ADLINK Technology aTCA-8202 User manual

Advance Technologies; Automate the World.
Manual Revision: 2.00
Revision Date: August 12, 2011
Part No: 50-1G010-1000
aTCA-8202
2U 2-slot AdvancedTCA®Shelf
User’s Manual

Revision History
Revision Release Date Description of Change(s)
2.00 2011/08/12 Initial Release

Preface iii
aTCA-8202
Preface
Copyright 2011 ADLINK Technology Inc.
This document contains proprietary information protected by copy-
right. All rights are reserved. No part of this manual may be repro-
duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.In no
event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.
Environmental Responsibility
ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro-
pean Union's Restriction of Hazardous Substances (RoHS) direc-
tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu-
facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.
Trademarks
Product names mentioned herein are used for identification pur-
poses only and may be trademarks and/or registered trademarks
of their respective companies.

iv Preface
Using this Manual
Audience and Scope
The aTCA-8202 User’s Manual is intended for hardware
technicians and systems operators with knowledge of installing,
configuring and operating ATCA systems.
Manual Organization
This manual is organized as follows:
Chapter 1, Introduction: Introduces the aTCA-8202, its
features, and package contents.
Chapter 2, Hardware Information: Provides information on the
physical features, dimensions, and pre-installed hardware
components of the aTCA-8202.
Chapter 3, Getting Started: Provides information on procedures
to begin using the aTCA-8202.
Chapter 4, Shelf Maintenance: Provides information on
maintaining the aTCA-8202.
Important Safety Instructions: Presents safety instructions all
users must follow for the proper setup, installation and usage of
equipment and/or software.
Getting Service: Contact information for ADLINK’s worldwide
offices.

Preface v
aTCA-8202
Conventions
Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform
tasks.
CAUTION:
Information to prevent minor physical injury, component dam-
age, data loss, and/or program corruption when trying to com-
plete a task.
WARNING:
Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

vi Preface
This page intentionally left blank.

Table of Contents vii
aTCA-8202
Table of Contents
Revision History...................................................................... ii
Preface.................................................................................... iii
List of Figures........................................................................ ix
List of Tables.......................................................................... xi
1 Introduction ........................................................................ 1
1.1 Features............................................................................... 1
1.2 Specifications....................................................................... 2
1.3 Shelf Management Hub....................................................... 3
1.4 Ordering Information............................................................ 4
1.5 Package Contents ............................................................... 4
2 Hardware Information........................................................ 5
2.1 External Layout.................................................................... 5
2.2 Mechanical Dimensions....................................................... 6
2.3 Backplane............................................................................ 7
2.4 Cooling System.................................................................... 8
Fan Tray Module .............................................................8
Fan Control .....................................................................8
Fans Specifications .........................................................8
2.5 Power Supply....................................................................... 9
3 Getting Started ................................................................. 11
3.1 Installation Environment .................................................... 11
3.2 Inserting and Removing ATCA Blades .............................. 12
Inserting an ATCA blade into the shelf .........................12
Removing an ATCA blade from the shelf .....................13
3.3 Shelf Management Hub..................................................... 13

viii Table of Contents
3.4 Powering Up the System ................................................... 13
3.5 Managing the Shelf............................................................ 14
aCMM-2200 Shelf Management Hub ...........................14
Serial Connection .........................................................14
LAN Connection ............................................................15
Temperature Management ...........................................16
4 Shelf Maintenance ............................................................ 19
4.1 Fan Tray Module................................................................ 19
Removing the fan tray module ......................................19
Replacing the fan tray module ......................................20
Important Safety Instructions............................................... 21
Getting Service...................................................................... 23

List of Figures ix
aTCA-8202
List of Figures
Figure 1-1: aTCA-8202/aCMM-2200 Functional Block Diagram........3
Figure 2-1: aTCA-8202 Shelf Front Panel..........................................5
Figure 2-2: aTCA-8202 Shelf Rear Panel..........................................5

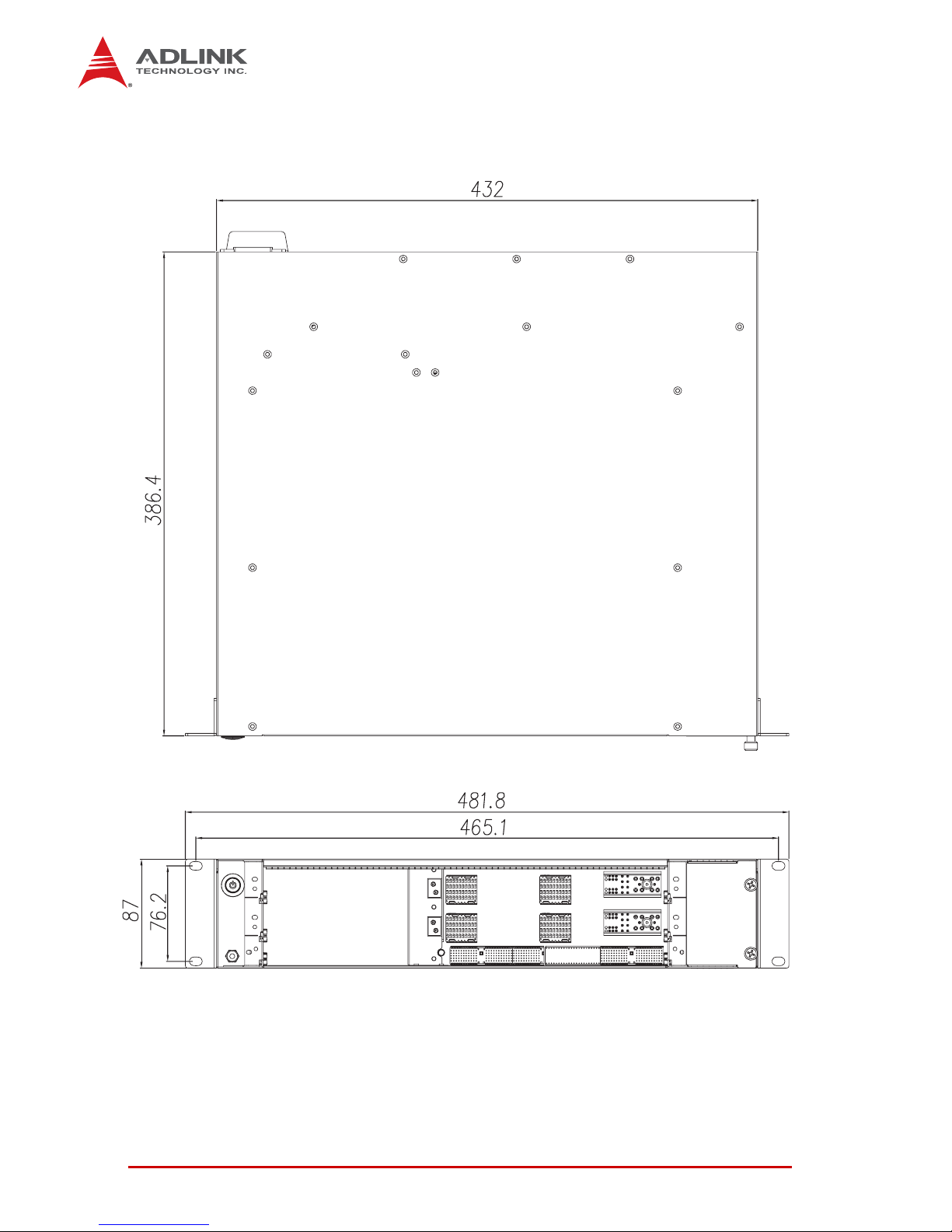

Figure 2-3: aTCA-8202 Mechanical Dimensions ...............................6

xListofFigures
This page intentionally left blank.

List of Tables xi
aTCA-8202
List of Tables
Table 1-1: aTCA-8202 Shelf Specifications......................................2
Table 3-1: aTCA-8202 Backplane Thermal Thresholds..................16

xii List of Tables
This page intentionally left blank.

Introduction 1
aTCA-8202
1 Introduction
The aTCA-8202 is a 2U AdvancedTCA® shelf with two slots that
support AdvancedTCA® blades and a dedicated slot for an
aCMM-2200 Shelf Management Hub. Equipped with a dual-star
topology fabric interface, the aTCA-8202 comes with a hot-swap-
pable fan tray module (push cooling) and one 650W AC power
supply.
Providing robust control, monitoring, and management of the
aTCA-8202 is the aCMM-2200 Shelf Management Hub, with full
system management capabilities and built-in non-manageable
Layer-2 GbE switch for Base Interface connectivity. With
dual-IPMB and I2C system busses, the aCMM-2200 can control
all installed AdvancedTCA blades and the fan tray module, based
on temperature and other built-in sensor readings.
1.1 Features
X19” rackmount shelf – 2U height and 15.3” depth
XTwo ATCA slots with dual-star topology fabric interface
XNo support for rear transition modules (RTM)
XDual IPMB bus
XOne I2C-controlled hot-swappable fan tray module
XSingle slot for an aCMM-2200 Shelf Management Hub with
Layer-2 GbE switch for Base Interface connectivity
XSingle 650W AC power supply

2Introduction
1.2 Specifications
Table 1-1: aTCA-8202 Shelf Specifications
Form Factor • 19” rackmount, 2U height, 15.3” depth
• Fits inside a 600 mm-deep cabinet
Specification • Supports up to two standard AdvancedTCA®blades
• Supports one shelf management hub
Shelf Management
(with aCMM-2200
installed)
Supports multiple management interfaces including:
• Remote Management Control Protocol (RMCP)
• Remote Procedure Call (RPC)
• Simple Network Management Protocol (SNMP)
• Command Line Interface (CLI)
• Web-Base Interface: Dual Fast Ethernet ports and
one serial console for management access
• Layer-2 GbE switch for Base Interface connectivity
(non-manageable)
Cooling System • Single hot-swappable I2C-controlled fan tray module
• Right to left transverse airflow (push cooling)
Backplane • Dual-star topology Base Interface
• Dual-star topology Fabric Interface
• Dual-IPMB bus
Power Filter 650W built-in power supply (input: 100-240VAC)
Weight (barebone) 11.5kg (including power supply)
Temperature • Operating: 0ºC to 50ºC
• Storage: -20ºC to 80ºC
Humidity 5% to 95%, non-condensing
Dimensions 432mm x 87mm x 485.6mm (W x H x D)
Compliance PICMG 3.0 AdvancedTCA Specification R3.0
PICMG 3.1 AdvancedTCA Ethernet
Certifications CE, FCC, designed for NEBS Level 3
NOTE:
NOTE:
Specifications are subject to change without notice.

Introduction 3
aTCA-8202
1.3 Shelf Management Hub
The aCMM-2200 Shelf Management Hub is based on a Pigeon
Point Systems shelf management controller to provide full system
management capabilities. It comes with built-in non-manageable
Layer-2 GbE switch to provide Base Interface connectivity for the
aTCA-8202’s two ATCA slots. A functional block diagram is shown
below.

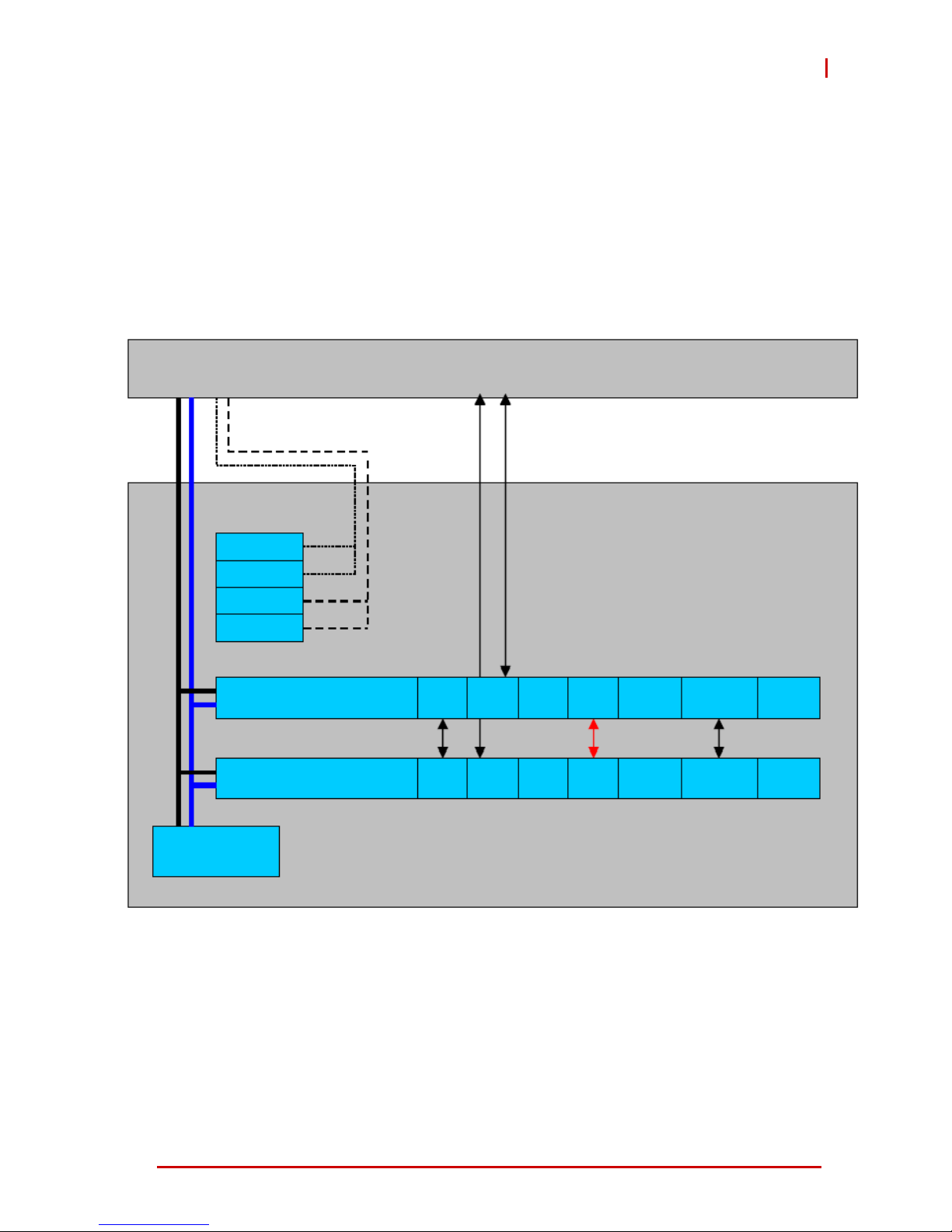

Figure 1-1: aTCA-8202/aCMM-2200 Functional Block Diagram
aCMM-2200 Shelf Management Hub
IPMB A/B I
2
C A/B
Backplane
LM75 92h
FRU 52h
FRU 52h
LM75 90h
Update
Channels
FCH2
BCH2 FCH1
BCH1
Slot 1 @82h
Update
Channels
Slot 2 @84h FCH2
FCH1
BCH2 BCH1
IPM Fan
Controller

4Introduction
1.4 Ordering Information
aTCA-8202/AC: 2U 2-slot Rackmount AdvancedTCA System with
single aCMM-2200 Shelf Management Hub
1.5 Package Contents
Before unpacking, check the shipping carton for any damage. If
the shipping carton and/or contents are damaged, inform your
dealer immediately. Retain the shipping carton and packing mate-
rials for inspection. Obtain authorization from the dealer before
returning any product to ADLINK.
The following contents are included in the shipping carton:
XaTCA-8202 ATCA Shelf
XaCMM-2200 Shelf Management Hub (ShMH)
XAccessory package
ZRackmount brackets
ZRetention screws
NOTE:
NOTE:
The aTCA-8202 does NOT include slot filler panels. Filler panels
for ATCA and ShMH slots are available and may be purchased
separately.

Hardware Information 5
aTCA-8202
2 Hardware Information
This chapter provides information on the external layout and pre-
installed hardware components of the aTCA-8202.
2.1 External Layout

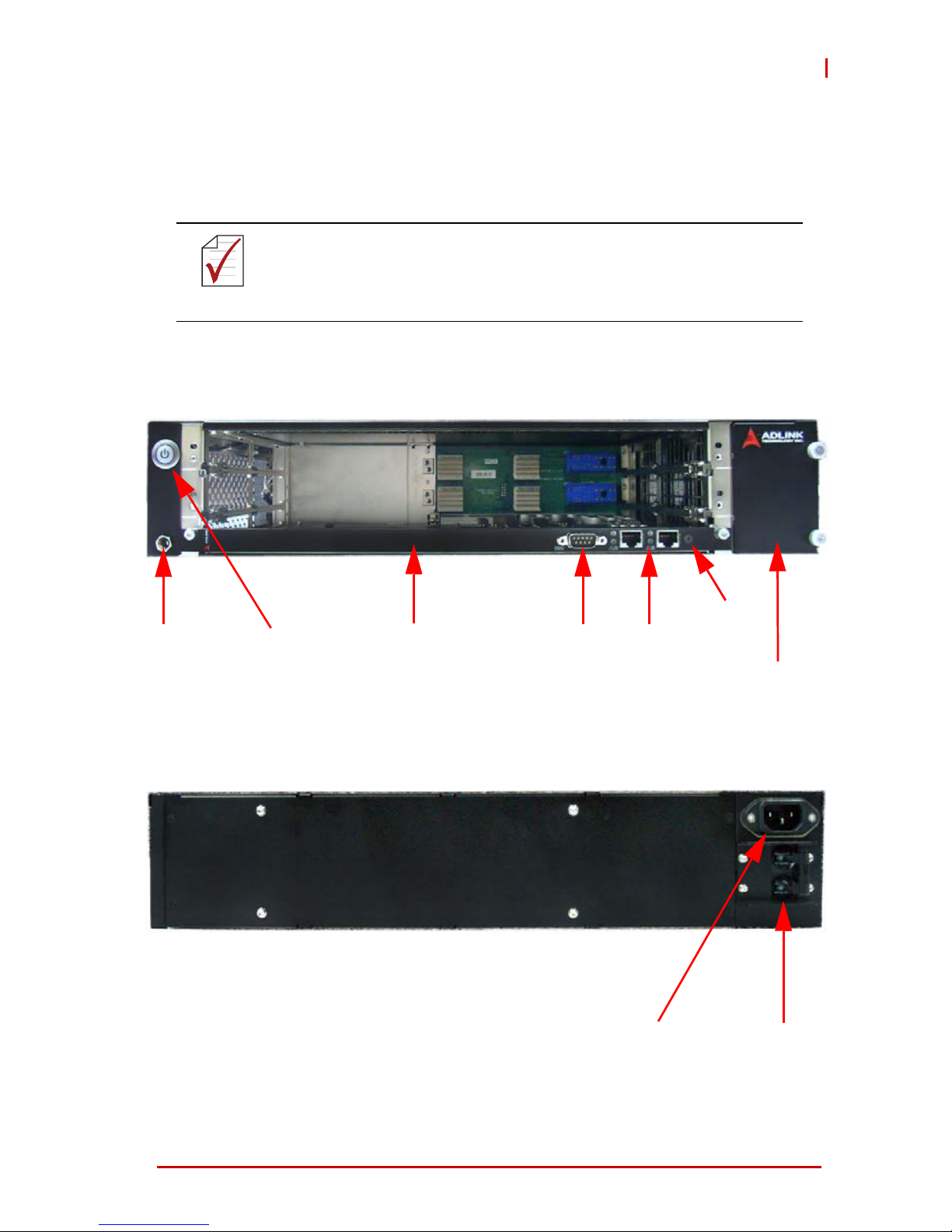

Figure 2-1: aTCA-8202 Shelf Front Panel
Figure 2-2: aTCA-8202 Shelf Rear Panel
NOTE:
NOTE:
The following illustrations present an aTCA-8202 shelf and are
intended for reference only. The figures below may differ from
your actual shelf configuration.
Fan Tray
Module
Shelf Management
Module Serial
Port LAN
Ports
Power
Button
Ground
Terminal
Status
LED
Circuit
Breaker
AC Power
Inlet

6 Hardware Information
2.2 Mechanical Dimensions
Figure 2-3: aTCA-8202 Mechanical Dimensions
Dimensions in mm

Hardware Information 7
aTCA-8202
2.3 Backplane
The aTCA-8202 shelf comes with a cBP-5020 backplane featuring
two AdvancedTCA slots that do not support rear I/O functionality
and a dedicated slot for an aCMM-2200 Shelf Management Hub.
Features
XDual-star topology Base Interface
XDual-star topology Fabric Interface
XDual-IPMB bus
Specifications
XPICMG 3.0 AdvancedTCA Base R3.0
XPICMG 3.1 AdvancedTCA Ethernet R1.0

8 Hardware Information
2.4 Cooling System
Fan Tray Module
The aTCA-8202 shelf is equipped with one fan tray module that
has three fans to provide optimum cooling for AdvancedTCA
blades. The hot-swappable fan tray module is located at the right
of the shelf with air flow from right to left (push cooling).
Fan Control
The aCMM-2200 detects and adjusts fan speed based on two
temperature sensors located on the backplane..
Fans Specifications
The fan tray module houses three Delta FFB0812EHE-9U34 fans.
NOTE:
NOTE:
Refer to “Fan Tray Module” on page 19.for details on removing
and replacing the fan tray module.
NOTE:
NOTE:
Refer to “Temperature Management” on page 16.for detailed
information on how fan speed is controlled by the shelf man-
agement hub.
Rated voltage 12 V DC
Operating voltage 7.0 to 13.8 V DC
Input current 0.75 A (0.9 A max)
Input power 9.0 W (10.8 W max)
Speed 5700 rpm (ref.)
Maximum airflow
(at zero static pressure) 2.270 m3/minute (2.040 m3/minute minimum)
80.16 CFM (72.04 CFM minimum)
Maximum air pressure (at
zero airflow) 20.63 mm H20 (16.71 mm H20 minimum)
0.812 inch H20 (0.658 inch H20 minimum)
Acoustical noise (average) 52.5 dBa (56.5 dBA maximum)
Insulation type UL Class A
