AREBOS AR-HE-SW30 User manual

User’s Manual – AREBOS 2x Heavy Duty Shelf 875 kg
1

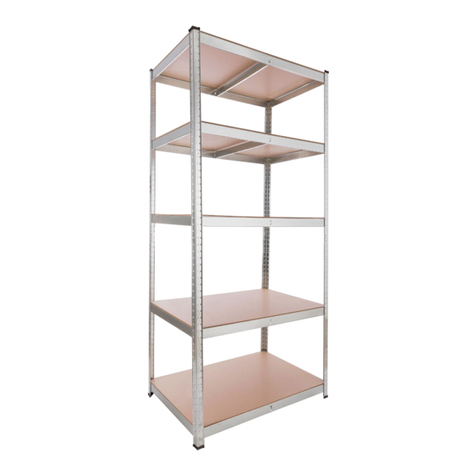

2x Heavy Duty Shelf 875 kg
AR-HE-SW30
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

User’s Manual – AREBOS 2x Heavy Duty Shelf 875 kg
2
Please read and save these instructions. Read through this user’s manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product or
property. Please retain instructions for future reference.
Safety Instructions
General safety instructions
•Read the operating instructions carefully before use.
•Save them for future reference.
•The maximum spot load is 386 lbs (175 kg) per shelf.
•The weight must be evenly distributed on the shelves.
•Make sure not to exceed the maximum spot load per shelf or for the whole unit.
•Do not place the unit in a room that is very humid because this could damage the shelves.
•Wear safety gloves when assembling the unit.
•Anchor the unit with a suitable wall bracket.
•Note: Make sure not to drill into water pipes or electric cables.
•If the connector tabs of the shelf cross pieces should bend on assembly, they can be bent
back into their original position with the aid of a flat head screwdriver.
Technical Specifications
Model
AR-HE-SW30
Dimensions
70.87 x 35.43 x 11.81 in (180 x 90 x 30 cm)
Load capacity total
1929 lbs (875 kg)
Load capacity per shelf
386 lbs (175 kg)
Material frame
galvanized metal
Material shelves
MDF wood fiber board
Number of shelves
5
Metal thickness
0.0276 in (0.70 mm)
Weight
33.1 lbs (15 kg)
Assembly
Before Assembly
•Remove all packaging material and check that all the parts are included.
•Check the product for transport damage before assembling.
•Assemble the product on a clean and level surface (e.g. carpet) to avoid damage.
•Use a rubber mallet to avoid damaging the material.
•Place the unit on a level surface. Otherwise this will compromise safety, or the maximum
supporting capacity.
•Only use plugs and screws suitable for the type of wall and weight of the shelves. Plugs,
screws and tools for wall mounting are sold separately.
•Exclusion of liability: There is no liability –also not for secondary damage –if the bug was
caused in order to wrong or unintended installation.

User’s Manual – AREBOS 2x Heavy Duty Shelf 875 kg
3
Parts
Installation
•Assemble the first shelf support as shown in diagram. For this fix two of the girders C and D
at the corner pieces (B).
•Fix the shelf support in the middle of both girders and bend the connector tabs, so the
support cannot move out anymore.
•Connect each of the corner pieces (B) with one other by using the included couplers (F).
•Place the shelves (A) on each level.
•Fit the plastic feet (G) on the top and bottom ends of the corner pieces.

User’s Manual – AREBOS 2x Heavy Duty Shelf 875 kg
4
Disposal Instruction
Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the
packaging valid in your region. In part, the package may consist of plastic bags - watch this
respect, with special care to ensure that this is not out of the reach of children. There is a risk
of suffocation!
Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local
waste disposal.
•At the end of the long life of your article, please dispose of the valuable raw materials for
proper disposal so that proper recycling can take place. If you are not sure how to proceed,
the local waste disposal companies or recycling centers are happy to help.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

User’s Manual – AREBOS 2x Heavy Duty Shelf 875 kg
5
Imprint
Name of the product: 2x Arebos Heavy Duty Shelf 875kg
Model Nr.: AR-HE-SW30
Art. Nr.: 4260627422494
If this product is modified without our consent, it loses the right to any warranty.
Tested acc. to:
EU standard:
PPP 51028B:2014
AfPS GS 2014:01 PAK
Date/Manufacturer Signature/Location: Würzburg, 19.12.2019
Identification of the signatory:
Dipl.-Inform. (Univ.) Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
