CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

AmericanDishService
INSTALLATIONINSTRUCTIONS
ModelET‐AF‐M,ET‐AF‐3
(PumpDrain‐SustainedHeat) 
Availablein90,120,150‐secondTimeCycle
Undercounter,Single‐Rack,ChemicalSanitizer,Dump&FillDishmachine
ListedbyUL#E68594,NSF/ANSI3,ASSE1004#933,LATestLabsFileM‐780089,Mass.LicenseP3‐0111‐306

Ifyouhavequestions,call800‐922‐2178orvisitourwebsiteatwww.AmericanDish.com
  
Theelectricalpowersuppliedtothismachineisanimminenthazardthatcouldresultinseverebodilyinjury
ordeathifnotproperlyinstalledorhookedupcorrectly. Whenworkinginthecontrolboxoronelectrical
parts,alwaysdisconnectpowerandtag‐outbeforeservicing.Replacecovertocontrolboxandother
protectivecoverswhenfinishedservicingthisequipment.
DANGER

2

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

  
READManufacturer’sManualbeforeUsingthisProduct.Foryoursafetyreadandobserveallcautions
shownthroughouttheseinstructions.Whileperforminginstallationsdescribedinthisbooklet,wear
approvedPersonalProtectiveEquipment,includingSafetyEye‐Wear.
CHEMICALS—Therearepotentiallyhazardoussituationswhenworkingwithindustrialcleaningchemicals
fordishmachines.Seechemicalmanufacturer’ssafepracticesandMSDSsheetsforhandlingandinstalling
chemicalsandsupplycontainers.

#1BEFOREYOUBEGIN—AmericanDishServiceprovidesthisinformationasaservicetoourcustomers.
Keepallinstructionsforfuturereference.ADSreservestherighttoalterorupdatethisinformationatany
time.Shouldyoudesiretomakesurethatyouhavethemostup‐to‐dateinformation,wewoulddirectyou
totheappropriatedocumentonourwebsite:www.americandish.com.Setoutbelowarethespecifications
andrequirementsthatyoumustuseandfollowtoproperlyinstallthetypeortypesofequipmentlisted
above.Itisyourobligationasthecustomertoensurethatthemachineisinstalledsafelyandproperly,and
whencompleted,themachineisleftinproperandsafeworkingorder.Electrical,Plumbing,andChemical
hookupshouldbeperformedbyaqualifiedprofessionalwhowillensurethattheequipmentisinstalledin
accordancewithallapplicableCodes,Ordinances,andSafetyrequirements.Failuretofollowthe
installationinstructionscouldvoidthewarranty.ADSassumesnoliabilityorcontrolovertheinstallationof
theequipment.ProductfailureduetoimproperinstallationisnotcoveredundertheADSWarranty.
#2FLUSHOUT—Donotinstallsprayarmuntilmachineisflushedwithwater.Whenthismachineisturned
on,,firstfillbypushingandholdingthebuttonmarkedFILLuntilwaterinsidethepanreachesthewater
leveldecalontheoutsideofthepan,thenpushthebuttononfrontdoormarkedSTARTtocompleteone
cycle.Dothisbeforeinstallingthesprayarm.Dumptheflushwateroutbeforeinstallingsprayarmby
pushingthebuttonmarkedDRAIN.Drainingthewaterwillflushinstallationdebrisfromthetankand
pump;thispreventsdamagetosprayarmbearing.
#3WATERHEATERS—orboilersmustprovidetheminimumtemperatureof120Fdegreesrequiredbythe
machinelistedabove,whichhasaminimumdemandof60gallonsperhour.Therecommended
temperaturerangeforoptimalperformanceis130‐140F‐degrees.Thesespecificationsareforthe
dishmachineonly,whichtypicallyaccountsfor70%ofarestaurant’shotwaterdemand.
#4IMPORTANT—Themodelofdishmachinelistedinthisdocumentmustbeinstalledwithspacearound
theoutsidetoallowforservicingofthemotoraswellasa4”spacebehindthemachinefromthewall.It
shouldnotbebuiltintowoodencabinets.
#5INSPECTFORDAMAGE—Ifyoureceiveadamageddishmachine,donotsign“Clear”butwrite“damaged”
onthedocuments.
CAUTION
NOTICE

3

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

#6LOOSEELECTRICALCONNECTIONS—Damagetoequipmentcanoccurifthefollowingprecautionsarenot
observed.Beforeconnectingpowertothemachine,checkallelectricalterminalsinthecontrolbox.Screws
canloosenintransit.Looseconnectionsonhighamploadterminalssuchasthepumpmotorwillcause
wireburningandcomponentdamageduringoperationandwillnotbecoveredunderADSwarranty.
#7“CLEANCIRCUIT”meanstheelectricalcircuitbreakerforthedishmachinesuppliesnootheroutlets,
machines,orlights.GFCIoutletsarenotrecommendedforcommercialdishmachines;ADSrecommends
thatasingle‐rackmachinebeinstalledwiththewireconnection(hard‐wired)directlyfromthecircuit
breaker.Ifaplugandsocketareusedtoprovideelectricalpowertoadishmachineinacommercialkitchen,
thenaccordingtoelectricalcodeitmustbeaGFCI,butnotallGFCIsarethesame.Theymustberatedfor
thedrawofthecircuit.
ReferenceNECArticle210.8GFCIProtection(B)OtherThanDwellingUnits(2)CommercialandInstitutional
Kitchens.All15and20A,125Vreceptaclesinstalledinkitchens,eventhosethatdonotsupplythecountertop
surface,mustbeGFCIprotected.
#8Thisequipmentisconsideredanitemofheavyuse.Itisnotratedforoutdooruse.
ELECTRICALSECTION
Theelectricalpowersuppliedtothismachineisanimminenthazardthatcouldresultinseverebodily
injuryordeathifnotproperlyinstalledorhookedupcorrectly
Electrical—ET‐AF‐M,ET‐AF‐3w/PumpDrain,SustainerHeater(120volt,20amp) 
Atimecycleof90‐secondsistheshortesttimeavailableforthismodelandiscompliantwithNSFlisting.To
changetoalongertimecycle,theentirecamtimerassemblymustbechangedbecauseofthemotorgearing. 
 
Showingcontrolsonloweraccessdoor&drainpumpControlboxwithcoverremoved
Thepowersupplyfor120volts,20amps,shallconsistoftwo#10‐12‐gaugewiresandonesuitablegreen
groundwire.The20ampbreakeror20ampfusemustbeonacleancircuitforonlythismachine.ADShas
providedajunctionboxwitha7/8”holeforthe1/2”conduitthatwillbringthebuilding’selectricalpowerto

4

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

themachine.Thisjunctionboxisattachedtothelowerframeofthemachine,belowthecontrolboxwhen
thedoorisclosed.
Removethejunctionboxcover,attachtheconduitandconnectablack120voltsupplywiretotheblackwire
inthejunctionbox.Connectawhiteneutralsupplywiretothewhitewireinthejunctionbox.When
poweredup,testtheneutralwiretoagroundsourcewithavoltmeter,itshouldread0to6volts.Testthe
blackwiretoagroundsource,itshouldread110‐120volts.Attachabuildinggroundwiretothegroundlug
locatedinthejunctionboxandtightenallwires.Replacethejunctionboxcover.
  
LeftisStartRelay,rightisHeaterRelayLeftisDrainRelay,rightisHeaterContactorOptionalbuzzerforlowchem.alarm
 
Powerjunctionboxforincoming120vpowerWashmotorcontactortotheleftofthecamtimermotor
  
HeaterterminalboxinrightfrontsideofthepanHeaterboxlesscover,thermostat,element,floatwires 

5

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

THESUSTAINERHEATER—israted500Wattsat120v,andwilldrawapproximately4amps.Itisnotdesigned
toprovideoperationalheat;theoperationalhotwatermustbeprovidedbythebuilding’sprimarywater
heater.Thesustainerheaterwillnotprovidearisetotheincomingwatertemperature.Itspurposeisto
sustaintheexistinghotwatersittinginthepanofthemachineifitweretositidleforperiodsoftime.The
sustainerwillonlyoperatewhenthepumpmotorisoff.
 
1.5HPMotor,arrow1arrow2pointtoL1&NeutralconnectpointsOptionalchemicalalarmpressureswitch
ITISRECOMMENDEDTHATTHISEQUIPMENTBEINSTALLEDUSINGANEWCIRCUITBREAKER.
Thismachinedoesnotuseaboosterheater.
PLUMBINGSECTION

#1TANKLESSwaterheaterscanbeproblematicforcommercialdishmachines.TheADSmodelET‐AF
dishmachinerequiresthefullcycleamountofwater(1.7gallons)suppliedwithin7seconds.Ithasbeenthe
experienceofADSthattanklesssupplysystemsrequiremultipleunitsplumbedinsequencewitha
recirculationlooptoachieveproperpressureandtemperature.
Checkwiththetanklesswaterheatermanufacturer,theymayrecommendastoragetanktoguarantee
properflowandlinepressuretothemachine.Failuretoprovideadequatewaterquantity,pressureand
temperaturetothemachinewillcausethemachinetofunctionimproperlyandisnottheresponsibilityof
ADS.ImproperlyinstallingADSequipmentinthismannercouldvoidthewarranty.Allcostsassociatedwith
providinganadequatewatersupplytothemachineisthesoleresponsibilityoftheuser.
#2HOODS—Followalllocalplumbingandmechanicalcodes.IMC2012,section507.2.2requiresTypeII
hoodsforallcommercialdishwashersexceptwheretheheatandmoistureloadsareincorporatedintothe
building’sHVACsystemsordishwashingequipmentdesignedwithseparateheatandmoistureremoval
systems.Anundercounter‐type,chemicalsanitizingdishwasherisratedat6450Btu/hbytable5E,ASHRAE
ResearchProject#1362,8/5/2008.ADSDOESNOTSPECIFYBUILDINGHVACVALUES
NOTICE

6

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

#3DRAINSIZE—Thepumpdrainmodelusesa¾”reinforceddraintube60”long.Thistubeshouldnotbe
connectedtoadrainoutlethigherthan18”fromthefloor.Donotconnectasplicetolengthenthetube,
thiswillcreateacloginthedrainline.Ifalongertubeisneeded,replacewithasingletubethatrunsthefull
lengthtodrain.ADSdoesnotrecommendrunningadrainlinefurtherthan6’fromthemachine.Fasten
theendofthedraintubetoadrainlineusingadapterswitha¾”barbedfittingandhoseclamp.NOTE:
Typicalsinktail‐piecesandtrapsarenormallyhigherthan18”offthefloorandarenotapproveddrain
accesspointsforthismodel.
 
Showing½”femalepipeinlet,ballvalve,y‐linefilter,H2OsolenoidASSEapprovedvacuumbreaker(backflowpreventer)
HotWaterConnection
WATERHEATER—Flushthebuilding’swaterlinesbeforeconnectingtothedishmachine.Priortoconnecting
plumbing,levelthemachinebyadjustingthefeetatthebottomofeachlegupordown.Waterheatersor
boilersmustprovidetheminimumtemperatureof120Frequiredforthismodelofdishmachine,which
demandsaminimumof60GPHforET‐AF‐PDHorET‐AF‐3PDH.Temperaturesabove150Fdegreesexceed
theoperationaldesignlimitsforthesemodels.Thesemodelscannotbeconvertedtohightempsanitizing
byaddingabooster.
INLETFLEXHOSE—Domesticstyle1/2”flexiblebradedhoseshouldnotbeusedtoconnectthedishmachine
toplumbing.TheIDoftheplasticlinerforthistypehoserestrictsflow.
Tousecopperpipeplumbing,connect1/2"malepipethread(1/2”istheminimumallowablepipesize)ofthe
hotwatersupplylinetothe1/2"femalepipethreadonthedishmachine’swaterinletmanifold.
SINKFAUCET—Ifthehotwaterlineisalsosupplyingthefaucetofapre‐rinsesinkorbarsink,installcheck
valvesonbothcoldandhotwaterinletstothefaucet—toavoidcoolingthewaterbycross‐connectioninthe
mixingheadofthefaucet.ThehotwaterinletmanifoldislocatedbehindtheET‐AFcontrolboxdoorandto
theleft.Thesupplywatermusthaveaminimumof120Fdegrees,but130‐140Fdegreesisrecommendedfor
bestresults.


7

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

WaterPressureforFilling
Minimumpressureneededatthemachineis15psiDURINGthefill.ThisiscalledFLOWpressure.STATIC
pressurereadingscanbemisleadingandcandropto“0”duringfill.Withflowpressuresbelow15psi,
additionalmeasureswillbeneededtoresolvetheproblem.Thefirstsuggestionistorun3/4"pipedirectly
fromthewaterheatertothedishmachine.Iftheproblempersists,installapressurebladdertankusedfor
domesticwellwater;a5gallonsizewouldbeaminimum,10gallonasamaximum.Anotheroptionistoorder
acamtimerwithlongercycletimesbutthiswillreducehourlyproductionrates.

SimpleTestForWaterPressure
Emptythewateroutofthemachinebyliftingthedrainball,pushthemanualFILLbuttonwhilecountingthe
secondstofillbackuptothewaterleveldecal.Ifittakesmorethan20secondstofill,thereisnotenough
buildingpressuretooperatethemachineproperly.
DrainRequirements
Totherearofthemachineisfoundthedrain“Y”forthetubecomingfromthedrainpumpandthetank
overflow.DonotremovetheYfromtheback.Whenthedrainlineisrundownfrom18”offthefloor,theY
affordsprotectionfromoverflowandleakingwatersolenoidconditions.
 
Showingstainlessdrainpumpw/3/4”dischargetubeDrain“y”fromoverflow&drainpump,48”draintube

Recommendeddraintubeconnectiontobuildingdrain

8

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

CHEMICALFEEDERSSECTION
 
Youmustwearapprovedsafetyeye‐wearbeforeconnectingchemicals.Readthechemicalmanufacturer’s
MSDSsheets.Chemicalscandamageorcorrodeplumbingandstainlesspartsofthedishmachine.Donot
runchemicallinesovercontrolsorplumbing.Alwayssecurechemicallinesandcheckregularlyforleaks.If
notproperlyhandled,chemicalscancauseseriousbodilyinjury.Intheeventofchemicalcontacttoskinor
eyes;washimmediatelywithfreshwaterandseekmedicalattention.

INSTRUCTIONSFORDE‐LIME,Onlyperformedbytrainedchemicalspecialists.First,emptyallwateroutofthe
machinebypushingthedrainbutton.Afterallwaterhasemptiedout,fillthemachinewithfreshwater.
After,turnoffthemasterswitch.Disconnectandprotectoneofthewirestothecamtimermotorandrollthe
camtimertomid‐cycleonthewashsection.Turnonthemasterswitchtooperatethepumpmotor.Addde‐
limeagenttothefreshtankwater.Repeatthisfirststepagainbydraining,thenrefillandthenrunwithfresh
water.Thiswillflushthemachine,thenturnoffthemasterswitchandreconnectthetimermotorwirefor
normalcycles.READTHEDIRECTIONSONTHECONTAINERFORCORRECTCONCENTRATIONOFTHE
CHEMICAL.TYPICALCONCENTRATIONLEVELS1:20to1:60.

Itisbesttode‐limemoreoftenwithmilderacidsolutionsthanwaitinguntilthereisheavybuildupofwhite
minerals,thentryingtoremovethebuildupwithverystrongacidconcentrations.Usingtoostrongofanacid
solutionorrunningitforverylongperiodsoftimewillerodethemetaloftheimpellerbecauseitisspinningin
theacidsolution.
  
WarningdecalaboutmixingchemicalsImpellerdamagedfromhighacidsolution










WARNING

9

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017


CHEMICALFEEDERPUMPS

  

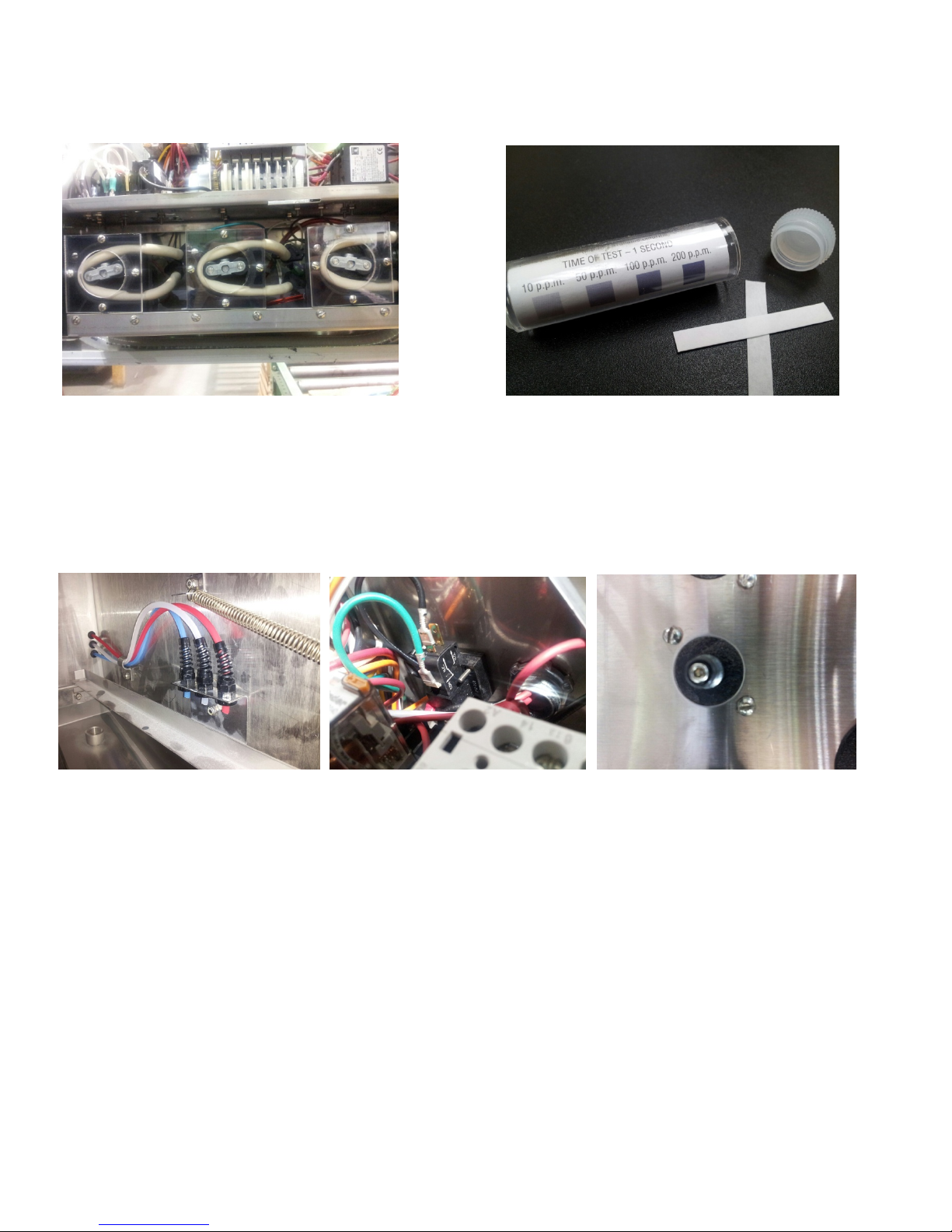

Showingdeter,rinse,sanitizerinternalchemicalpumpsChlorineteststripsformeasuringsanitizer
ADSprovidesthree(3)peristalticpumpstodispenseliquidchemicals
Chemicalfeedlinesarecolorcoded“Red”Detergent,“Green”Sanitizer,“Blue”Rinse‐aid
Pick‐uptubesareprovidedforchemicalproductcontainers
Sanitizer(chlorine)concentrationsshouldbesetat50partspermillion 
Inspectthetransfertubingforanycutsorholes,keepthemprotectedandsecuredoutoftheway

  
ShowingchemicallinesabovesumpOptionalChemicalAlarmswitchChemicalalarmbarbadjustingscrew*

TYPEOFCHEMICALS—Useonlycommercialgradelow‐energychemicals.Forproperoperation,usenon‐
foamingdetergentsandbufferedsanitizer.Donotwashgold,pewter,silver,orsilver‐platewithchlorine
basedsanitizers.Highconcentrationsofchlorinesanitizersandcausticdetergentswillcausedamagetometals
andwelds.Donotexceed50parts‐per‐million(PPM)“free”oravailablechlorine.Anysettinghigherthan50
ppmwillbedependentonlocalhealthrequirements,however,theincreasedchlorinewillresultinhigher
corrosionofmetalparts.Purpose‐builtware‐washingdispensersareneededtoproperlymeterchemicalsfor
washandrinse.Thesedispensersareincludedwiththismodel.Manuallyaddingindustrialchemicalstothe
dishmachineisunsafeandnotapproved.

CHEMICALLINES—Placecolorcodedtubesintoproperchemicalcontainers.Thecontainersneedtobeas
closetothemachineaspossibleandatfloorlevel.Thismayrequireshorteningoftheflexiblechemical
transfertubes.Onthesideofthecontrolboxdoor,therearechemicalprimeswitches.Thereisadecal
identifyingeachswitch.Toprimechemicals,usethesemomentaryprimeswitches,verifyingthatallthree
pumpsrotate.Ifachemicalpumpsqueezetubehastakenaset(notallowingthepumptoturn),manuallyfree

10

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

thepumpbypullingonthedischargeside(right‐hand)ofthesqueezetubewhilepushingtheprimeswitch.
Squeezetubesshouldbereplacedatleasteverysixmonths.
 
CONTAINERS:TheADSchemicaldeliverysystemisdesignedfor5gallonpailsofindustriallow‐energy
chemicalproducts.Alwaysusechemicalresistantsafetyglovesandsafetygoggles(indirect‐ventedornon‐
vented)whenchangingchemicalbuckets.ImmediatelyreportspillsandrefertoyourchemicalsuppliersSDS
safetydatasheetorMSDSmaterialsafetydatasheetforinformationifchemicalcomeincontactwithskinor
eyes.
AnymodificationstothechemicaldeliverysystemforsmallercontainersmustincludeClosedLoopChemical
Containers(spillproofbottles)inasecuredrackingsystem.Itistheresponsibilityoftheuserofthemachine
topurchasechemicalsinspillproofcontainers.FAILURECANRESULTINSERIOUSINJURY.Neverplace
chemicalsinopencontainersorcontainersthatcanbeeasilytippedoverwhenmovingorchangingproduct.
FailuretodosowillvoidyourADSwarranty.
CHEMICALADJUSTMENT—Chemicaldispensingiscontrolledbyamechanicalcamtimer.Allchemicalproducts
mustbeadjustedfortheproduct’sconcentrationandlocalwaterconditions.Itwillbenecessarytoadjust
initialfactorysettings(SeebelowforCamTimerAdjustmentSection).Watersoftenersshouldbeaddedto
correcthardwaterconditions.Hardwaterisoftentreatedwithmoreexpensiveware‐washingchemicals,but
itismoreeffectiveandlessdestructivetothemetaltosoftenthewaterbeforeitcomestothedishmachine.

AUDIBLECHEMICALALARMOPTION—Theoptionalchemicalalarm(P/N031‐0326)usesapressureswitchwith
abarbfittingthatextendsfromthecontrolboxandconnectstothechemicallinebymeansofa“t”fitting.
Theswitchsendsvoltagetoabuzzerlocatedinthecontrolbox.SensitivityisadjustedbyanAllenwrench
(5/64”or2mm)toturnascrewlocatedinthecenterofthebarb(seephotoabove*).Removethetubefromthe
barb;turnthescrewtotherightforlesssensitivity.Chemicalbucketsmustbeplacedonthefloorforthe
pressureswitchtowork.

VISUALCHEMICALINDICATOR—

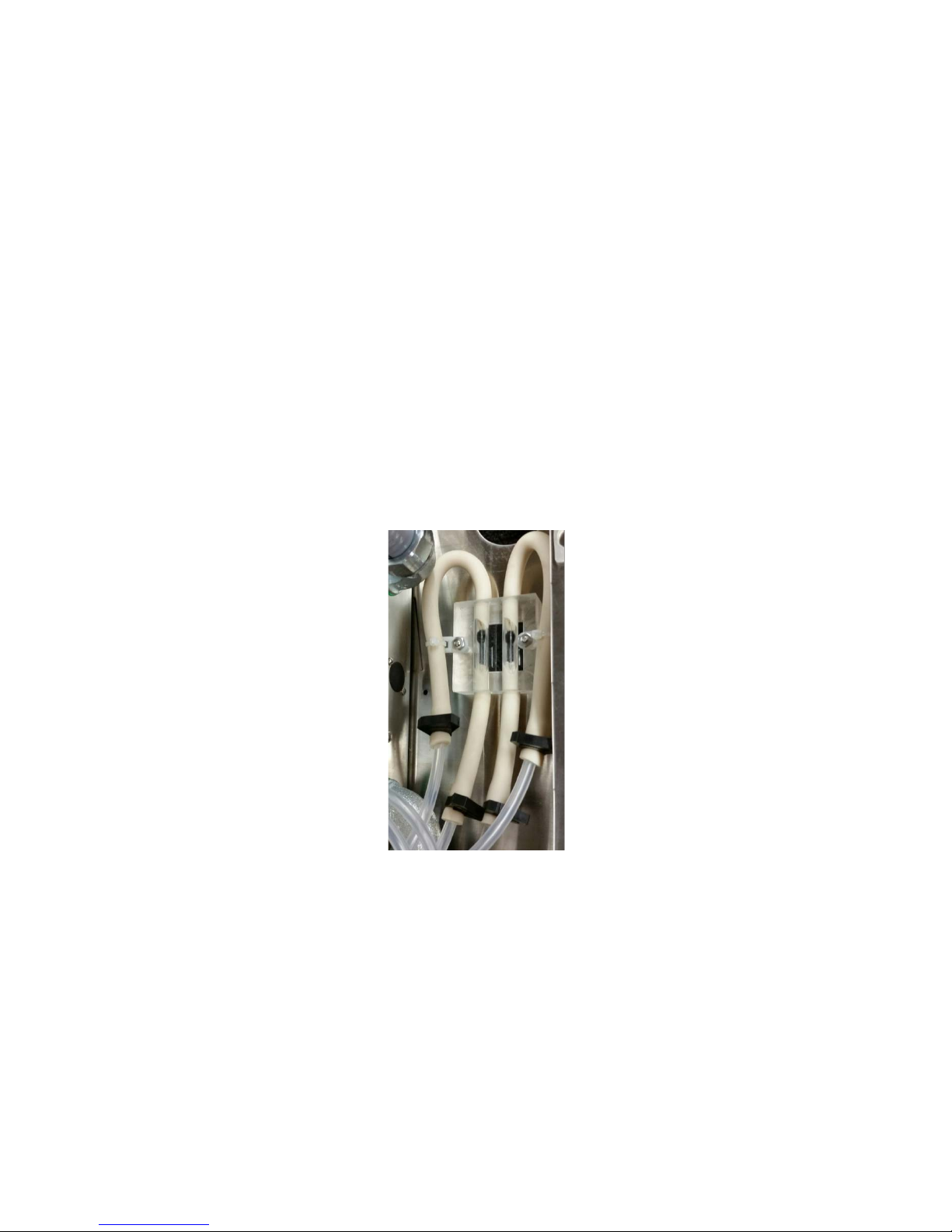

ET‐AFChemicalFlowIndicator


WARNING

11

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

AccordingtoNSF/ANSI3,section5.19.3and5.19.5
“Thismachinemustbeoperatedwithanautomaticdetergentfeederand,ifapplicable,anautomatic
chemicalsanitizerfeeder,includingavisualmeanstoverifythatdetergentsandsanitizersaredelivered
oravisualoraudiblealarmtosignalifdetergentsandsanitizersarenotavailablefordeliverytothe
respectivewashingandsanitizingsystems.Pleaseseeinstructionsforelectricalandplumbing
connectionslocatedinthismanualandinthefeederequipmentmanual.”
‐‐avisualmeanstoverifythatdetergentsandsanitizersaredelivered;oravisualoraudiblealarmto
signalifdetergentsandsanitizersarenotbeingdeliveredtotherespectivewashingandsanitizing
systems.
ForADSfamilymodelsofET‐AFandthemodelASQ,thechemicalFlowIndicator(084‐6403)isthevisual
meanstoindicateliquidisflowinginthefeedersystemfordetergentandsanitizer.Ineachofthetubes
machinedthroughtheclearplastichousing,thereisablackcoloredmarble(099‐1008).Squeezetube
material(092‐2000)isinsertedinbothupperandlowertubeopenings.Thesetubesarepushedintotheholes
ofthehousingandheldinplacebytensionofthetubewallagainstthehousing’sinnersurface.When
insertingthesqueezetubesintothehousing,lubricationusingdishsoapishelpful.

Whenthetoptubeoftheindicatorisconnectedtotheinletsideofthechemicalperistalticpump,liquidis
drawnupthroughthesupplytubeofthechemicalbucket.TheliquidisdrawnintothebottomoftheFlow
Indicatorhousingandliftstheblackindicatormarbleupwardinthevisualchamber.Thismovementshows
flowoftheliquidinthetube.Thetubewithredcoloredliquidwillindicatedetergentflowing,thetubewith
clearliquidwillindicatesanitizer(chlorine)flowing.
Theoperatorshouldbeinformedthatthismovementofthemarblesinthehousingisthevisualindication
thatchemicalsarebeingdeliveredforthewashingandsanitizingoperationsofthedishmachine.
Managementshouldbenotifiedifthereisnomovementoftheindicators.


12

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

CAMTIMERADJUSTMENTSECTION
Timersareavailablewith7‐or8‐cams.Thecycletimesarenotadjustable.Thecamsofthetimerarewheels
whosepositionsareeitherfixedoradjustable.Eachcamcontrolsaspecificmachinefunction,asnotedonthe
timerdecal.Adjustablecamsarecomprisedoftwowheelsheldtogetheratthehub.Theperimeterofeach
wheelisdividedinto180‐degreesofhighcamand180‐degreesoflowcam.Whenoneofthesewheelsis
rotatedonthehubinrelationtotheopposingwheel,thetwolowercamsegmentscanformanotchinthe
perimeter(seephotobelowright).Aboveeachcamisatimerswitchwithametalfingerthatridesalongthe
outeredgeofthecam.Whenthefingerdropsintothelowercamnotch,thefunctionofthatcamstarts.
  
CamadjustmenttoolTemperatureindicatorSprayarmpressuretester#088‐1048 
Towidenthenotch(length=timeenergized)orclosethenotchusethetimeradjustmenttool,whichis
providedandtapedtothecontrolboxshelf.Thistoolhastworaisedbuttonsthatfitintotheholesontheside
ofeachwheel.Thefactorysetsthestartofeachfunctionusingtheright‐sidewheelofthecam.TOADJUST
rotateonlytheleft‐sidecamwheel.Theleft‐sideofthewheelcontrolsthepointwhenthatspecificfunctions
ends.Factorysettingsareonlyinitialsettings,adjustmentswillberequiredforeachchemicalandthewater
filltimebecausewaterpressureswillbedifferentforeveryaccount.
  
Theleftphotoshowsarrowispointedattheleft‐sidewheelofthecamwhichisusedtolengthenorshortenthelowcamorthetime
ONfortherespectiveswitch.Centerphotoshowshigh‐cam&low‐camnotch.Adjustablecamsarecoloredeitherblackorgray.
Lookingatthefrontofthecamswiththecamtimerassemblysittingonitsmountingbase
#1Cam:Thewhitecamontheleftisthemastercam.Itcontrolsthetotaltimeofthecycleandisnot
adjustable.
#2Cam:Continuinglefttoright,thisblackorgraycamcontrolsdetergent.Thedetergentcamisadjustable
andshouldbeginassoonasthewashactionstarts.
#3Cam:Thiswhitecamcontrolsthedraintimeandisnotadjustable.
#4Cam:TheH2Oorfillcamopensthewatersolenoid.Toolittlewaterwillcausethepumptocavitate
(surging).Overfillingdoesnotallowthesoiledwashwatertofullydrainbetweencycles,causingcarry‐over.Do

13

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

notmovetherightsideofthecamwheel.Adjusttheleft‐sideofthecamwheeltoclosethewatersolenoid
whenthedishmachinereachesfullsprayarmpressure.
#5Cam:Thisblackorgraycamcontrolssanitizer.Thesanitizercamisadjustable.Setsanitizerconcentrations
at50partspermillion.Monitorchlorinelevelsbyusingchlorineteststrips.ToTest—runarackofdishes
throughacompletecycle,usetheteststriptotestwatersamplesfromthetopofanyglass.
#6Cam:Thisblackorgraycamcontrolsrinseadditive.Therinse‐aidcamisadjustable.
#7Cam:Thiscamisusedtopauseor“burp”thepumponthe3D‐S,ES,5AG‐S,5CD,andLSeries.Itissetatthe
factorybutcanbeadjusted.
#8Cam:Availableon21/2minutetimersonly.Providesprewash/wash/rinse.
TUNINGADUMP&FILLMACHINESECTION
Tuningisessentialforpropercleaning;donotskipthisIMPORTANTPROCEDURE
Thekeytounderstandingpropertuningistorealizethatthedrainsequencecannotbechanged.Itisafixed
timefunctionandtheregulatorofthecyclebetweenwashandrinse.Therefore,alltuningisaccomplishedby
settingoradjustingthefillcaminrelationshiptothefixeddraincam.Thegoaloftuningistoeliminateall
soiledwashwaterthroughthedrain,beforethedraincloses.Asignthatsoiledwashwaterhasexitedthe
tankwillbethetypicalhollowsoundofapumprunningwithoutwater.

ItisatthispointthattheH2O(FILL)camshouldbeadjustedsothewatersolenoidturnsthefillwateron.That
functioniscontrolledbytheadjustmentofthefillcam.Foroptimumresults,allowthefillwatertoflushthe
interiorofthemachineforafewsecondsbeforethedraincloses.Oncethedrainisclosedthefillcyclebegins.
Fillmustcontinueuntilfullsprayarmpressureisreached.Thiscanbeverifiedwiththeuseofasprayarm
pressuretester(Kit#088‐1048)attachedwhereoneoftheendplugsareusuallyscrewedintothelowerwash
arm.Thetestergaugewillindicatefullsprayarmpressurewhentheneedlestopsfluctuatingandremains
steady.AdjustthefillcamtoturnthewaterOFFwhenthispointofsteadypressureisreached.Itisimportant
thatthemachineisnotoverfilled.UsejustenoughwatertoreachFullSpray‐armPressure(FSP),nomore
thanthatisneededforproperoperation.

Typical90‐secondtimeroperation[Pumpshutoff]‐[*sanitizerhere].
START[‐‐‐‐‐‐‐‐‐WASH45‐Seconds‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐]‐[‐‐DRAIN15‐Sec‐‐]‐[‐‐30‐sectoFILLandRINSE‐‐‐]END
 [*detergenthere][‐FilluntilFSPisreached‐].

Ifapressuregaugetesterisnotavailable,anapproximationoffullsprayarmpressurecouldbedeterminedby
thesoundofthesprayarms.Therewouldbeatypicalcontinuousswishingsoundofthewaterspraying.
Again,whenthissoundisheard,thatwouldbethepointtoturnthewaterOFF.Sevensecondsoffullspray
armrinsepressureisrequiredbyhealthcode.Intheeventthatairistrappedinthepumpduringfill,avapor
lockcanoccurwherethepumpisturningbutthereisnospraying.

Ifthisvaporlockoccurs,checkincomingwatertemperatureandreducethetemperatureifitisabove140‐
150F.Operatingtemperatureof120Fdegreesistheminimum,130‐140Fdegreesisrecommended.Ifthe
problemiscausedbylowwaterpressuretothemachine,thenseethePlumbingSectionabovetocorrectthat
condition.Ifvaporlockisstillpresent,electricallystoporpausethepumptoreleaseair.Thismachinehasa
7‐camtimer,thispausefeatureiswiredintothe7thcamfromthefactory.



14

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

FINALINSTALLATIONCHECKLIST

1ChecktobesurepowerisdisconnectedatthebreakerandthecontrolboxisswitchedOFF.
2Themasterswitchislocatedonthesideofthelowerdoor,whichhousesthecontrolbox.Openwash
cabinetdoorandremoveallpackaging,saveallinstructionsforfuturereference.
3Removethewhiteprotectivefilmfromdoors,frontpanel,andcontrolbox.
4Checkdishtableplacement,ifoneisusedwiththedishmachine.
5Turnonwatersupply.Checkforleaks.Tightenconnectionsifneeded.
6TOOPERATE—turnonthemainpowercircuitbreakerandswitchthedishmachinemasterswitchtoON
position.Removesprayarmandmanuallyfillthemachinewithwaterusingthefillswitch(labeledFILL).This
switchislocatedonthefrontfacingsurfaceoftheloweraccessdoor.Runonecompletecyclebyclosingthe
door,pushthestartswitch(labeledSTART).Thisfirstrunwillbetheflushcycle,whichremovesinstallation
debrisfromwashtankandpump.

  

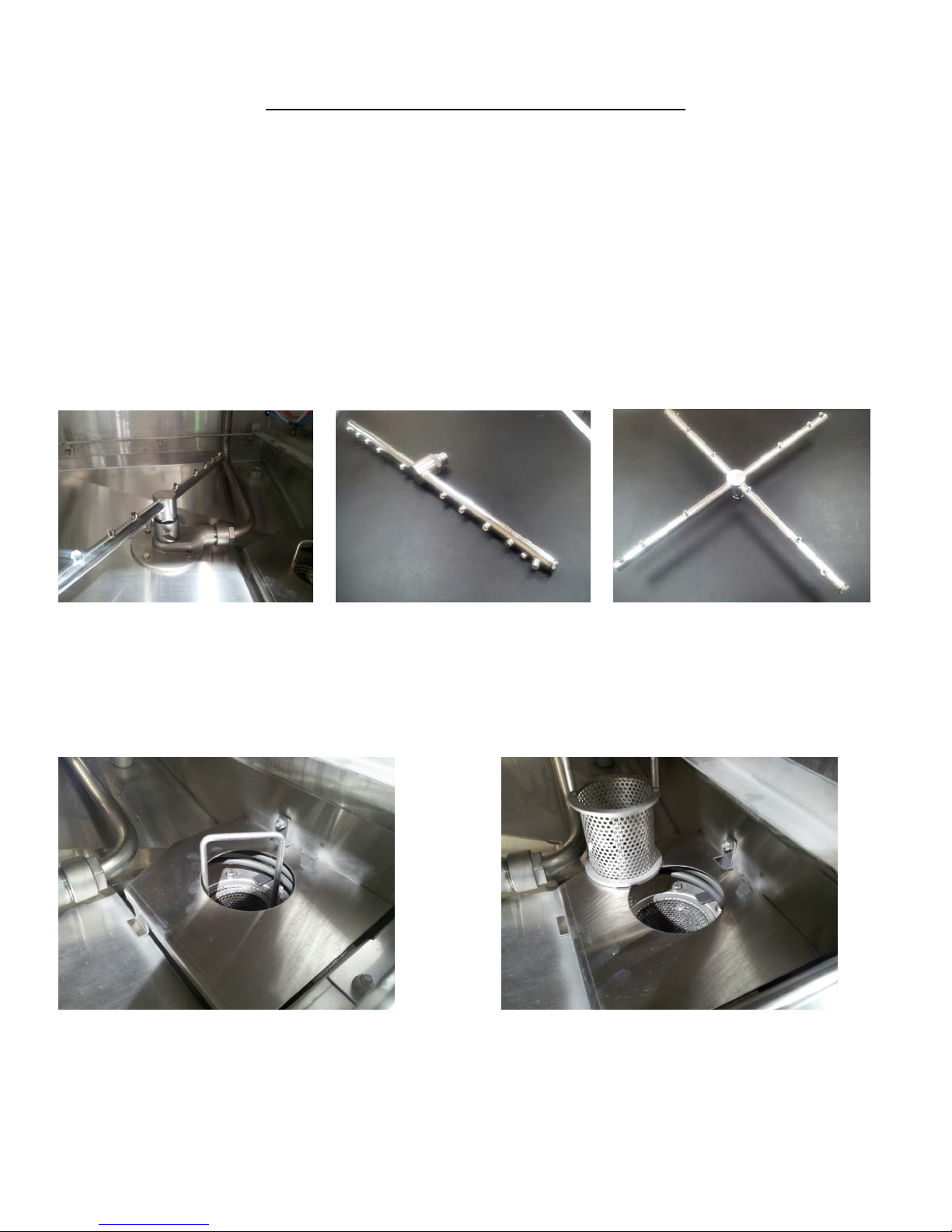

Sprayarm,basew/thumbscrewsStandardET‐AFsprayarm(081‐6208)Crossarmforlightglassware(081‐6212)

7AFTERFLUSHING—installthesprayarm.Failuretofollowthisflushprocedurecandamagethesprayarm
bearing.Observethewaterleveldecal.Thisdecalislocatedontheoutsideofthepannexttothesump.This
markistheapproximatelevelforinitialfill.Verifyincomingwatertemperatures120Fdegreesminimum
(130‐140Fdegreesrecommended).

 
SustainerheatercoverandpumpfiltersystemSecondarybasketfordumping,primaryfiltershowninplace

8PUMPFILTERS—Inspectthesumpareaandverifypumpfiltersareinplace.Theprimaryfilterisboltedin
placeandshouldnotberemovedbytheend‐users.Ifthesecondaryfilterbasketisusedproperly,thiswill
avoidunnecessarycleaningoftheprimaryfilter(whichshouldonlybecleanedbyqualifiedpersonnel).The

15

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017

secondaryfilterbasketisusedtoblockthepathforpicksandstraw’sthroughtheprimaryfilterholes;it
catchesandholdssolids.Thesecondary(loophandle)shouldnotberemovedbeforedrainingthemachine.It
shouldberemovedandemptiedonlyafterthemachineiscompletelydrained—likethetrayofascrapbox.
Verifythatchemicalfeedlinesareintheirpropercontainerandthatlinesareprimed.Postanoperational
wallchartclosetothemachine.
 
Donotopendoorswhilemachineisincycle.Doingsocouldresultinseriousbodilyinjuryfromsprayinghot
waterandchemicals.


APPENDIX
089‐9340‐‐‐ET‐AF‐PD‐HPartsManual
089‐9400‐‐‐ServiceManual
089‐9429‐‐‐Brochure
089‐9364‐‐‐WallChart
089‐9446‐‐‐WireDiagram
089‐9412‐‐‐SpecSheet
089‐9379‐‐‐InstallationManualET‐AF‐PDH


WARNING

16

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017


