Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
DISHWASHER
MODEL: EDW-B1462D(SS)

REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS
APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY
SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a
safe place for future reference.
SAFETY PRECAUTIONS
1. Keep this appliance out of reach from children. Do not let them to operate the
appliance without supervision.
2. Check the current rating on the rating plate and make sure the current supplied is
matched with the appliance before using.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
5. If the power cord or plug is damaged, it must be replaced by the service centre or a
qualified service technician to avoid hazard.
6. Any electrical work required to install this appliance should be carried out by a qualified
technician or competent personnel.
WARNING - to reduce the risk of fire or injury to persons or property, please
read and follow below instructions carefully:
•Do not operate this appliance if it has malfunctioned, damaged or appears damaged in
any way. Make enquiry to our service centre and return the complete set to the place of
purchase for inspection, repair or replacement.
•This appliance must be grounded and the ground wire should not be connected to any
heating pipe and gas pipe.
•The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
•Do not abuse, sit or stand on the door or dish rack of the unit.
•Do not operate the appliance unless all enclosure panels are properly in place. Open
the door carefully if the appliance is operating, there will be risk of water squirting out.
•Do not place heavy objects or stand on the appliance door when it is open.

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Close the door, turn on the water tap and press the Start/Pause button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnantsof burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the Power button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteammay escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the Power switch button to switch on the appliance, Open the door.
1.Press the start/pause button to stop the machine.
2.Open the door.
3.Add the forgotten dishes.
4.Close the door, then press the start/pause button, the dishwasher will
start running again after 10 seconds.
For detailed operating method read the corresponding content onthe instruction manual.
1.A runningcycle can only be modified ifit has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button ,than press the program button more than 3 seconds to cancel the
running programme.
3. Select a new programme.
4. Restart the dishwasher.

To review the section on troubleshooting Tips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully readthismanualbefore usingthe
dishwasher,it will help you touseand maintainthe
dishwasher properly.
Pass it on toany subsequentowner of the appliance.
Thismanual contains sections on safety Instructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Keep it as arefer in the later days.
If you can not solvethe problems by yourself ,
please contactourafter-salesservicecentre.
Dishwasher Features.................................... ...3
A Water Softener...........................................4、
Attention before orafter loading the Dishwasher
Baskets..........................................................9
FilteringSystem.............................................13
Caring for the Dishwasher..................... .........14.
B Loading the Salt into the Softener.................5、

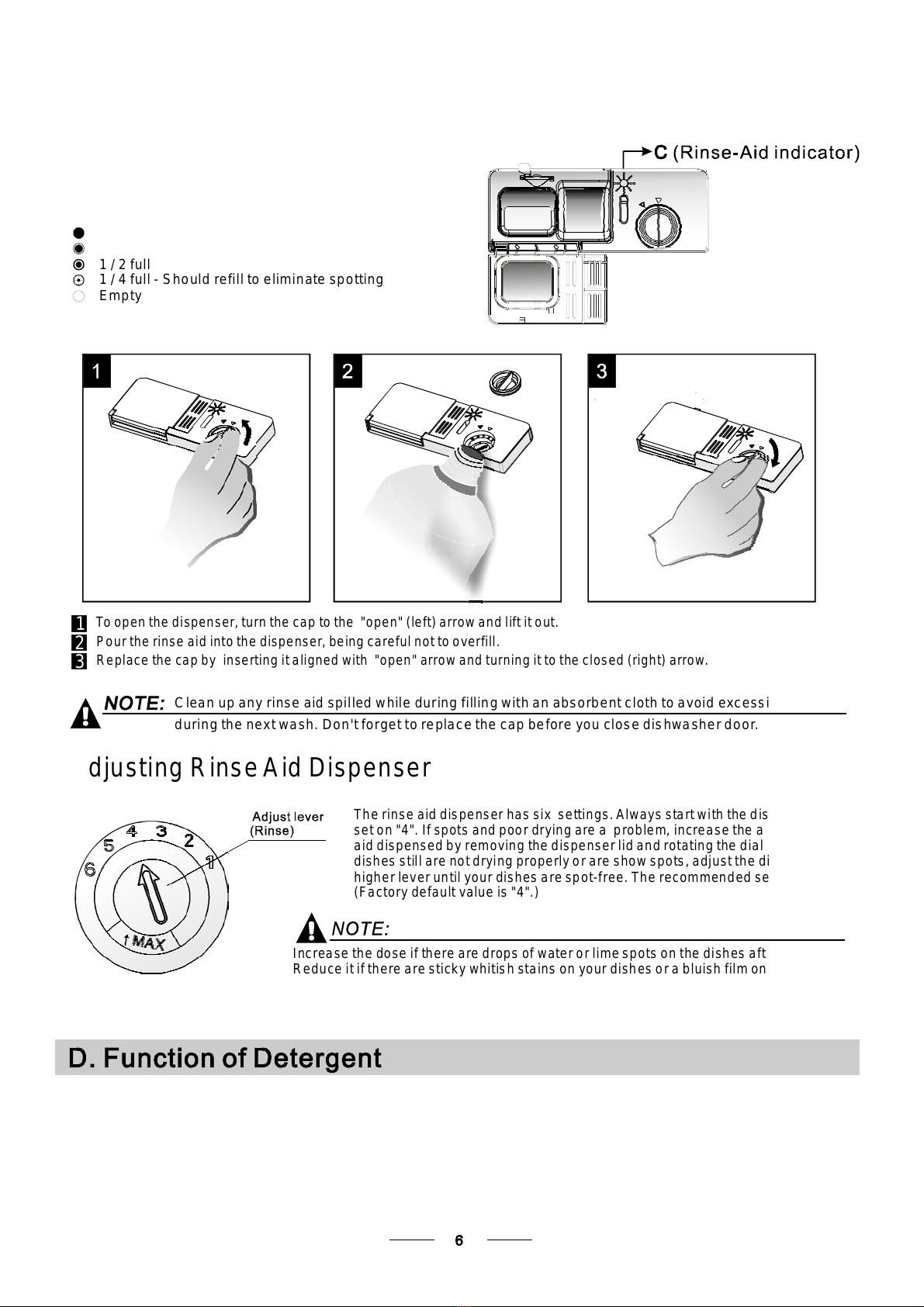

C Fill theRinseAid Dispenser.........................5、
D FunctionofDetergent.................................6 、
WashCycleTable...........................................11
Turning on theAppliance................................12
Change the Programme.............. ................12....
At the Ene of the Wash Cycle...........................12
PositioningtheAppliance................... ..........15..
Water Connection.................................. .......16.
About Power Connection........................ .......15.
Start of dishwasher................................ ......17..
Beforecallingforservice........................... .....18.
Errorcodes.................................... ..............19.
Technical information.............................. .....20..
ControlPanel...................................................3
The Method Loading Normal Dishware.............10

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedin the basket
with their pointsdown or placed in a
horizontal position.
)
When usingyour dishwasher, youshould
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines witha visual heating
element.)
Ifthesupplycordisdamaged, it mustbereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of the wash cycle. The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increasethe riskof tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose of thedishwasherpackaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene,e.g.plasticclips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material couldbe dangerous for children!
For disposing of package and theappliance please go to a recycling centre. Therefore cut
off the power supply cable and make the door closing deviceunusable.
Cardboard packaging is manufactured fromrecycled paperand should be disposed in the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environmentand human health, which could otherwisebe caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Donotdisposethisproductas unsortedmunicipal waste. Collection of such
wasteseparately for special treatment is necessary.






beforeusing it for the first time.
To get the best performance from yourdishwasher, read all operating instructions
6.Start /Pause button: To start the selected
washing program or pause the washing program
when themachine isoperating.
5.Power Button:To turn on/off the power supply. 8.Child lock button: press this button and half load
button simultaneously to lock the program.
4.DelayButton :To Pressthebutton to delay start.
3.Program Button :To Press thebutton to select
appropriateprogram.
1. Program indicators: to show which
program you have chosen;
2.Display screen: to show the remainingtime
and thestate(runningstate, delaytime etc )
7.Half load functionsButton:To select Half load
functions. (WiththisHalfload function you can
only use it when you have only about or less than
6placesettingdishwave,andyouwillseeless
water and energy consumption , can only be used with
Intensive,Normal, Eco and 60 min .)
11 12
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cupshelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upperbasket
Cutlery rack
Top spray arm
1
Innerpipe
5
6
7
8
9
10
12
11
3
24
6

The water softener must be set manually using thewater hardness dial.
The higherthe contentofthese minerals and salts, theharder your water is.
The softener should be adjusted accordingto the hardness ofthe water in your area. Your local WaterAuthority
can advise youonthehardnessofthewaterinyourarea.
Adjusting Salt Consumption
The dishwasher is designed toallow for adjustmentin the amount of salt consumed based on the hardness of
thewaterused.This is intended tooptimiseand customise the levelo f salt consumption.
1. Switch on theappliance;
2. Press the Start/Pause button for morethan 3 seconds to start the water
softener set model within 60seconds after the appliance has switched on;
3. Press the program button to select thepropersetaccording to
your local environment, the sets will change in the following
sequence: H1->H2->H3->H4->H5->H6;
4. Press the button to end the set up model.Start/Pause
WATER SOFTENER
Thehardness ofthe water variesfrom place to place.If hardwater isused inthe dishwasher, deposits will
form on the dishesand utensils.
Theapplianceis equipped with aspecial softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
dH mmol/l
0~90~5 0~0.94 H1 0/
10-20
6-11 1.0-2.0 H2 20 60
21-30
12-17 2.1-3.0 H3 30 50
H4 40
40
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
SelectorPosition Salt consumption
(gram/cycle) Auto nomy
(cycles/1kgs)
Please follow the steps below for adjustment in saltconsumption.
18-22 31-40 22-28 3.1-4.0
If your model does not have anywater softener, you may skip this section.
Clark:Britishdegree
fH: French degree
DH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
41-60
23-34 4.1-6.0 H5 50 30
H6 60 20
29-42
The manufactory setting: H4 (EN 50242)
35-55 61-98 43-69 6.1-9.8
Before using your dishwasher for the first time,set the water softener by:
.
B. Filltherinseaiddispenser
C. Fill in detergent
A. Adding1.5Kgdishwasher saltandthenfullfill the saltcontainerwithwater
The water softener is designed to remove minerals and salts fromthe water,which wouldhave adetrimental
or adverseeffect on the operationof the appliance.

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves,the salt warning light maystill be on even though the salt container
is filled.
If there is nosalt warning light in the control panel (for some Models),you can estimate when to fill the salt into
thesoftenerby the cyclesthat the dishwasherhas run.
2. If thereare spillsof the salt, a soak ora rapid program should be runto remove the excessivesalt.
Always use the salt intended for use withdishwasher.
The salt container is located beneath the lower basket and shouldbefilled as explained
inthe following:
Attention!
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spotand streak free drying.
Attention!
Only use branded rinseaid for dishwasher. Never fill the rinse aid dispenserwithanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Full fill the salt container with water,It is normal for a small amount of water to come out of the
salt container.
AAfter the lower basket has been removed, unscrew and remove the cap from the salt container.
BPlace theend of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThe saltwarning lightwillstopbeing after thesalt container hasbeenfilled withsalt.
Only use salt specifically designed for theuse indishwashers! Every other type of salt not
specifically designed forthe use in a dishwasher, especially table salt, will damage thewater
softener. In case of damagescaused by the useof unsuitable salt the manufacturer
does not give any warranty nor is liable for any damages caused.
Only fill withsalt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,remainingon the
bottom of the machine for any period of time, which may cause corrosion.
FImmediately after filling the salt into the saltcontainer, a washing programshould be started
program Otherwise the filter system, pump or other important parts of the machinemay be damaged by salty water.
this is out of warranty.
(Wesuggest to use a short
).
The rinse aidisreleasedduring thefinal rinse to preventwater from forming dropletsonyour dishes, which can leave spots
andstreaks.Italsoimproves drying byallowingwaterto rolloff thedishes. Yourdishwasher is designedto use
liquidrinseaids. The rinse aiddispenser islocated inside the doornext to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into thedispenser until the levelindicator turns completely
black. The volume of the rinse aid container is about 110ml.

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid intothe dispenser, being careful not to overfill.
Replace the cap by inserting italigned with "open" arrow and turningit to the closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser hassix settings.Always startwith the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensedby removing thedispenser lid and rotating the dial to "5". If the
dishes still are not drying properly orare show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory default value is "4".)
Increase the dose if thereare drops of wateror limespotsonthe dishes after washing.
Reduce it ifthere aresticky whitish stains on your dishes orabluish filmon glasswareor
knife blades.
1
2
3
As the rinse aid diminishes, the sizeof the black dot
onthe rinse aidlevel indicator changes,as illustratedbelow.
Full
3/4full
1/2full
1/ 4full- Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrolpanel, you can estimatethe amount from the colour
of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, thesize of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the next wash. Don'tforget to replacethe cap before you closedishwasherdoor.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crushdirt and transport it outof the dishwasher.
Mostofthecommercial quality detergentsare suitableforthispurpose.
""
Proper Use of Detergent
Useonly detergent specifically made for the useindishwashers. Keep yourdetergent fresh and dry.
Don't putpowdered detergentinto thedispenseruntil you'reready to wash dishes.
Attention!

Amount of DetergenttoUse
Dishwasher detergent is corrosive! Takecare to keepit out of reach of children.
Based ontheir chemical composition, detergentscan besplit in two basic types:
Detergenttabletsofdifferent brandsdissolve at different speeds. For this reasonsome
detergent tablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programs when usingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must berefilledbefore the start ofeach washcycle following the instructions
provided in the wash cycle table . Your dishwasher usesless detergent and rinse aid than
Conventional dishwasher.Generally, only one tablespoon of detergent is needed for
anormal washload. Moreheavily soileditemsneedmore detergent.Alwaysaddthe
detergentjust before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkaline detergents with causticcomponents
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase please choosea program with a higher temperature.
°
Detergents
Thereare 3 sorts of detergents
1.With phosphate andwithchlorine
2.With phosphate andwithout chlorine
3.Without phosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfor dishwasher.
If the lid is closed: press release button.The lid will spring open.
Detergent tablet
Detergent powder

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplace of main wash cycle detergent placed.
Theplace of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendationsas statedonthedetergent packaging.
Closethe lid and press untilit locks in place.
If the dishes are heavily soiled, place anadditional
detergent dosein the pre-wash detergent chamber.Thisdetergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You findinformation about the amount of detergent for thesingle programme onthe last page.
Pleaseaware, that according tothe levelsoiling and the specific hardness of waterdifferencesarepossible.
Pleaseobservethemanufacturer's recommendationsonthe detergent packaging.

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued partsthat arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsyntheticfibres
Some types of glassescan become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse thedishesunder running water.
Place objects inthe dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray armscan rotatefreely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upperbasket into the lower basket, we recommend thatyou empty the lower
basket first and thenthe upper basket.
Consider buying utensils whichareidentified asdishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the
detergentmanufacturers.
For particular items, select a program withas low a temperatureas possible.
Topreventdamage, donottakeglass and cutlery out of the dishwasherimmediatelyaftertheprogramme
has ended.
Dishesand items of cutlerymustnotlie insideoneanother, orcover each other.
Toavoiddamage to glasses,theymust not touch.
Load large items which are mostdifficult to cleanintothe lower basket.
The upperbasket is designed to hold more delicate and lighterdishware such as glasses, coffee and teacups
Long bladedknives stored inan upright position are apotential hazard!
Long and/orsharp itemsofcutlery such as carving knivesmust bepositionedhorizontallyintheupperbasket.
Please do not overload your dishwasher. This is important forgood resultsandforreasonableconsumption
of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that water cannot
collect in thecontainer ora deep base.

Theupper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell asplates, small bowls
andshallowpans (as long astheyarenot toodirty).
Position the dishes andcookwareso thatthey will
notgetmoved bythespray ofwater.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The BottomBasket features folding spikes so that largeror more pots and pans can be loaded.
Folding Spikes of Lower Basket
Adjusting the Upper Basket
The heightof the upperbasketcan be adjusted in order to
create morespace for large utensilsboth for the upper
/lowerbasket. The height of theupper basket can be
adjusted byplacingthewheels on differentheight ofthe
rails. Long items, serving cutlery, salad servers and knives
shouldbeplacedontheshelfsothat theydonotobstruct
therotationofthesprayarms.
Folding back the cup shelves
Wesuggestthatyouplace large items and themost
difficultto cleanitems placed into thelowerbasket:
suchaspots, pans,lids,serving dishesand bowls,
as shown inthefigure below.It ispreferable toplace
serving dishes and lids on theside of theracksinorder
to avoidblocking the rotation of the top spray arm.
Forbetterstackingofpotsandpans,
the cup shelves can shown inthepicture below
Forbetter stacking ofpots and pans,
thespikes can be shownin the picturebelow
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, thismay
affect washing performance.

Eco.
Intensive
Normal
(or )3in1
5/30g
(or )3in1
5/30g
(or )3in1
5/30g
Rapid
160
170
140
40
1.25
1.04
1.45
0.6
19
15
12.5
11.5
60 min
60 10
1
Starting a wash cycle
Draw out the lower and upper basket, load the dishes and push them back.
Itiscommended to load thelower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in thedetergent (seethe section entitled Salt, Detergent and RinseAid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specificationof the socketis
10A 250VAC. Make sure that the watersupplyisturned on tofull pressure.
Close the door,press the P button,to switchonthe machine.
Press the program button , the wash program will bechanged as follows direction:
If a program is selected, the response light will light.Then press the Start/Pause button, the
dishwasher begins to start.
“”
“”
ower
Intensive->Normal->Eco->60min->Rapid ;->Soak
1
2
3
4
5
5/30g
30g
To rinse dishes that youplan
to wash later that day
Soak
80.014
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
For normally soiled loads,
such as , plates,glasses
andlightly soiledpans.
pots
Standard daily cyclefor
normally soiled loads, such
aspots plates glasses.、、
For heavily soiled crockery,
andnormally soiled pots
pans dishes etc with dried
onsoiling.
、
、
Ashorter wash for lightly
soiled loadsthat do not
need drying.
For lightly soiled loads that
do not need excellent drying
efficiency.
Prewash 50
Wash 65
Rinse
Rinse
Rinse 55
Drying
（℃）
（℃）
（℃）
Prewash(45 )
Wash (55 )
Rinse
Rinse (60 )
Drying
℃
℃
℃
Prewash
Wash (50 )
Rinse
Rinse(60 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
Prewash 50
Wash(60 )
Rinse (55 )
Drying
（℃）
℃
℃
Prewash

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop.Turn off
the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher.
Wait for afew minutes before unloading thedishwasher to avoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. Theywill alsodry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programmehas ended.
Power1.Switch off the dishwasher by pressingthe button.
2.Turnoffthewatertap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowedto cool down around 15 minutes
before removing fromthe appliance.
Open thedishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler andthe drying will beimproved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upperone. This will avoid water dripping from the upper Basket onto
the dishes in thelower one.
If you open the door , the machine will pause. The program lightwill
stop blinking and the buzzerwill mooing every minuteunless you closethe door . After
youclosethedoor,themachinewillcontinuetooperateafter10seconds.
during a washcycle
Premise:
Acycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have alreadybeen released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pausebutton , the machinewill be in standby state, press the program button morethan
3s then you can change the program to the desired cycle setting (see the section entitled " Startinga wash
cycle. . ." ).
1
2
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
6
Press the Start/Pause button
Press the button, the dishwasher will run
after 10 seconds.
Start/Pause
When you press the Start/Pause button to pause during washing, the running indicator will
stop blinking and the dishwasher will mooingevery minute unless youpressthe
button to start.Start/Pause
Wash the arms in soapy and warm water and use a soft brush to
cleanthejets. Replace them afterrinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
If yourmodel has broken remember function, the machine will go on to finish the selected
program .
after the powercut

The filter preventslarger remnants of food or other objects from getting insidethepump.
Theresidues may blockthefilter, inthis casethey mustbe removed.
The filter systemconsists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthis filter arepulverizedbya
special jet on the lower spray armand washeddown todrain.
Larger items, such as piecesof bones or glass, that couldblock
the drainaretrappedin the coarse filter.To remove theitems
caught by the filter, gently ratate the tap on the topof this
filterandliftout.
Thisfilter holds soil and food residuesin the pumparea and
preventsit from beingredepositon the dishes during washcycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it isrecommended to
remove thelarger foodparticlestrapped in the filter aftereach wash cycle by rinsing the semicircular filterand
cup under running water. To remove the filter device,pull thecup handle in the upwarddirection.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level ofthe appliance
and damage dishesand utensils.
1
2
Step 1 Turn the filter in anti-clockwisedirection,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panelcan be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neverusesharp objects, scouring pads or harsh cleaners onany part of the dishwasher.
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on thelast page and reinsertthe entire assembly in the dishwasher, positioning itin itsseat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwashercouldbedecreased.
To clean theedge around thedoor,you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of therisk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
Itis necessary to cleanthe spray arms regularly ashard
water chemicals will clog the spray arm jets and bearings.
- Inspect the filtersfor blockingafter every timethe dishwasher has been used.
- By unscrewing the coarsefilter, you can remove the filter system. Removeany foodremnants and
cleanthefilters underrunningwater.
Remarks:
The entire filter assembly shouldbe cleanedonce a week.
To remove the lower spray arm, pull out the spray arm upward.
To remove theupper spray arm, hold the nut,rotate thearm
clockwise to remove it.
Wash the arms in soapyandwarm waterandusea softbrushto
clean the jets. Reassemble them after rinsing it thoroughly.

Itisrecommendthatyourun awashcycle with the
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
gasket to last longer and prevent odours from forming
withintheappliance.
If the appliance must be moved, tryto keep it in the
verticalposition. Ifabsolutelynecessary,itcanbe
positioned on its back.
Ensure the voltage and frequency of the power being correspondsto
those on the ratingplate. Only insert the plug into an electrical socket which isearthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate fortheplug, replace the socket, ratherthan usingaadaptors or thelike as
they couldcause overheating andburns.
Pleaselook at therating label to knowthe rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp,timedelay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Position the appliancein the desired location.The back should rest against the wall behindit, and the sides,
along the adjacent cabinetsor walls. The dishwasheris equippedwith water supply and drain hoses that can
be positioned either to the rightor the left sidesto facilitate proper installation.
Once the applianceis positionedfor levelling, the heightof the dishwasher
may be alteredviaadjustmentof the screwing level of the feet. In any case,
theappliance should notbeinclined more than 2 .
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberpartsofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
vinegar, ora cleaning product madespecificallyfor
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Door Gasket
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen so that
moisture and odours are not trapped inside.
After EveryWash
When not inUse for aLongTime
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug mustbe plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
One ofthe factors that cause odours to formin the
dishwasher is food that remainstrappedin the door
gasket. periodic cleaning with adamp spongewill
prevent this from occurring.

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightlyin place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. Thisprecautionis neededto avoidthe
risk ofthe water inlet to be blocked and damage the appliance.
please close the hydrantafter using.
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
Insert the drainhose into adrainpipe with aminimum diameter of 40mm, or let it run into the sink, making sureto
avoidbendingor crimpingit.The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B
