Global-Tek GT-CR 2 User manual

Global-Tek (Singapore) Pte Ltd
1 | P a g e
Model: GT-CR 2
Double Tank Conveyor Dish Washer
适用于
9C51L0010 9C51R0010
Double Tank
Dish Washing
Machine
Model CR-2
G-TEK
G-TEK

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
2 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
CONTENTS
Wash Chamber……………………………………………………………………3-4
Wash Tank Assembly………..……………………………………………………5-6
Wash and Rinse Arm Assembly (L-R)…………………………………….………7-8
Wash and Rinse Arm Assembly（R-L）…….…..…………..………………….9-10
Rinse Arm Assembly………………………………………………………11-12
Booster Heater Assembly………………………………………………………13-14
Booster Piping Assembly ……………………….………………………………15-16
Conveyor Rack Assembly………………………………………………………17-18
Guide Rail………………………………………………………………19-20
Conveyor Motor Assembly………………………….……………………21-22
Control Panel……………………………………………………………………23-24
Electrical Control Panel（Singapore）………………………..………………25-26

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
3 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Wash Chamber

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
4 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Wash Chamber
Item No.
Parts Series No.
Parts Name
Qty
1
0T12D-20A-301
Upper Hood
1
2
0T12D-20A-302
Upper Hood
1
3
3.1
0T2D-65331
0T2D-65331R
Door Panel (L)
Door Panel (R)
1
1
4
F003-65326-01
Door Strip
4
5
0T2D-65318-8
Magnet Housing
2
6
A005-10X17X51-01
Magnet
2
7
0T12D-65333
Drain Closer
2
8
F005-M22-01
Hole Plug
2
9
E013-M10-01
Hexagonal Nut
2
10
E011-M10-01
Spring Washer
2
11
E012-M10-01
Flat Washer
4
12
E009-M10X20-01
Hex Bolt
2
13
0T2D-65330
Door hook
2
14
E010-M5X30-01
Hexagon Socket Screw
2
15
E012-M5-01
Flat Washer
2
16
E015-M5-01
Nut
2
17
0T12D-65322L
Splash Restrictor （L）
1
18
0T12D-65322R
Splash Restrictor （R）
1
19
F001-50317-01
Gasket
1
20
0MF-YQ20-316
Fill
1
21
C004-D8-01
Curtain Rod
7
22
F031-T1D-02
Curtain (short)
4
23
F031-T1D-01
Curtain (long)
3

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
5 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2

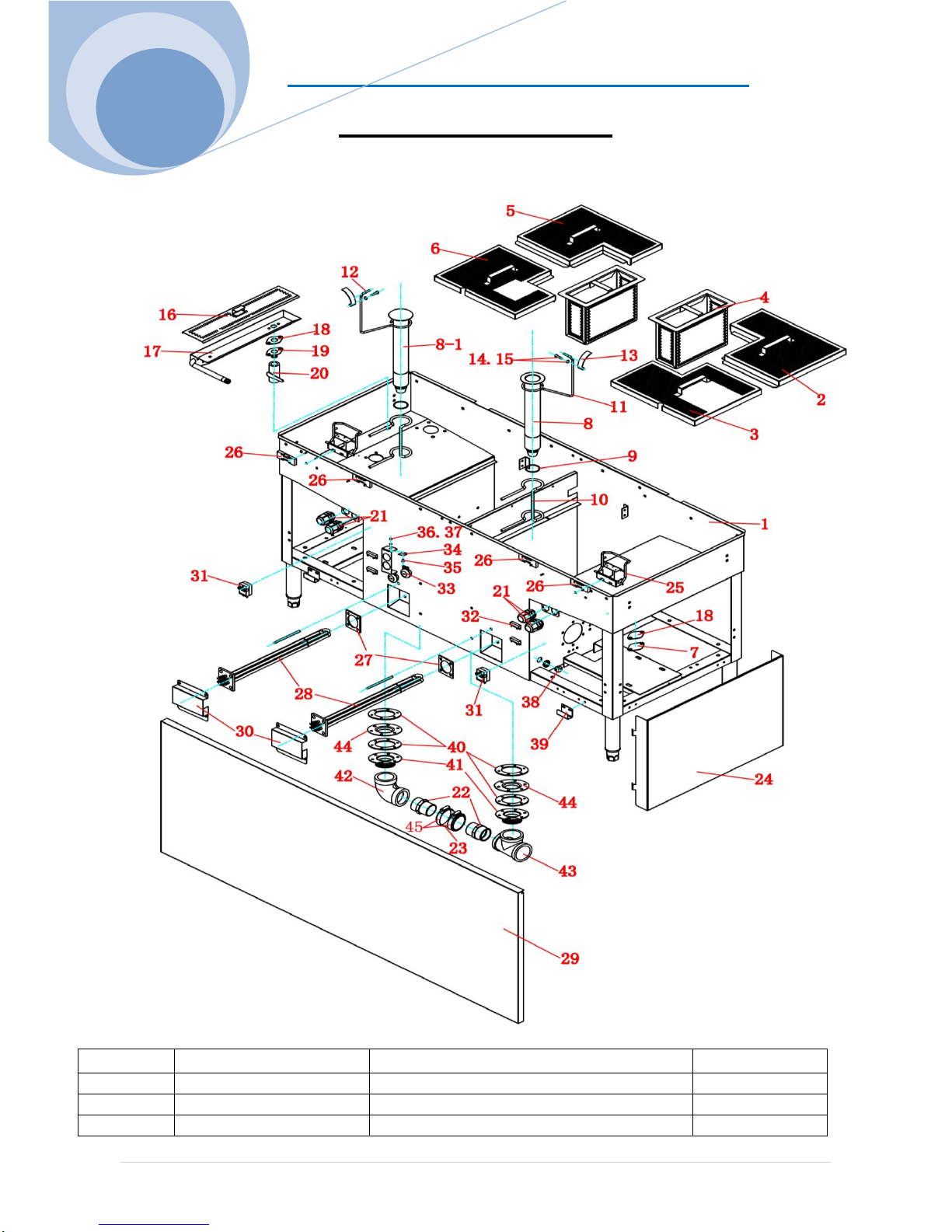

Wash Tank Assembly
Item No.
Parts Series No.
Parts Name
Qty
1
0T12D-10000
Double Tank
1
2
0T2D-65303
Scape Tray (right hand side tank, rear)
1
3
0T12D-65302L
Scrape Tray (right hand side tank, front)
1

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
6 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Item No.
Parts Series No.
Parts Name
Qty
4
0T2D-65301
Basket
2
5
0T12D-65303
Scrape Tray (left hand side tank, rear)
1
6
0T12D-65302R
Scrape Tray (left hand side tank, front)
1
7
0T2D-65323
Seal
1
8
0T2D-65307
Drain pipe (open)
1
8-1
0T12D-65307
Drain pipe (close)
1
9
F002-34.5X5.3-01
Drain Pipe O-Ring
2
10
0T2D-65310
Drain Pipe Guide
2
11
0T12D-65311-2(R-L)
Drain Lift Link (R->L)
1
12
0T12D-65311-2(L-R)
Drain Lift Link (L->R)
1
13
0T2D-65311-1
Drain Left Handle
2
14
E010-M6X30-01
hexagon socket screw
2
15
E012-M6-01
Flat Washer
2
16
0T12D-65342
Catch Pan Cover
1
17
0T12D-65341(L-R)
Catch Pan (please specify machine
direction when ordering)
1
0T12D-65341(R-L)
1
18
F001-50317-01
Seal Gasket
2
19
0T1D-50346
Frank
1
20
D022-1/2-01
Drain Valve
1
21
G030-PG16-01
Connector
4
22
0T12D-50350
Hose Adapter
2
23
F021-D51-01
Drain Rubber Hose
1
24
0T2D-65335
Side Panel
2
25
0T2D-65318A
Magnet Switch Activator
2
26
0T2D-70308
Magnet Switch
4
27
F001-40309-01
Gasket
2
28
G005-9KW-02
9 kW Heating Element
2
29
0T12D-65334
Lower Front Panel
1
30
0T12D-10301-6C
Tank Heating Element Cover
2
31
G021-82C-01
Thermostat 82c
2
32
0JD-65998A
Level Magnet Switch (80 cm)
4
33
0T2D-70309
Tank Water Level Float Ball
4
34
0CD-YQ23-318
Float Card
4
35
E002-M6X10-01
Screw
4
36
E012-M6-01
Flat Washer
4
37
E015-M6-01
Nut
4
38
F005-M22-01
Hole Plug
2
39
0T2D-65328
Panel Bracket
2
40
F001-65309A-01
Drain Gasket
4
41
0T2DA-65308-01
Drain Connection
2
42
D009-2-01
Elbow (2”)
1
43
D006-2-01
Tee (2”)
1
44
0T2DA-65308-02
Drain Seat
2
45
E018-46X70-01
Hose Clamp
2

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
7 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Wash Assembly (left)

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
8 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2

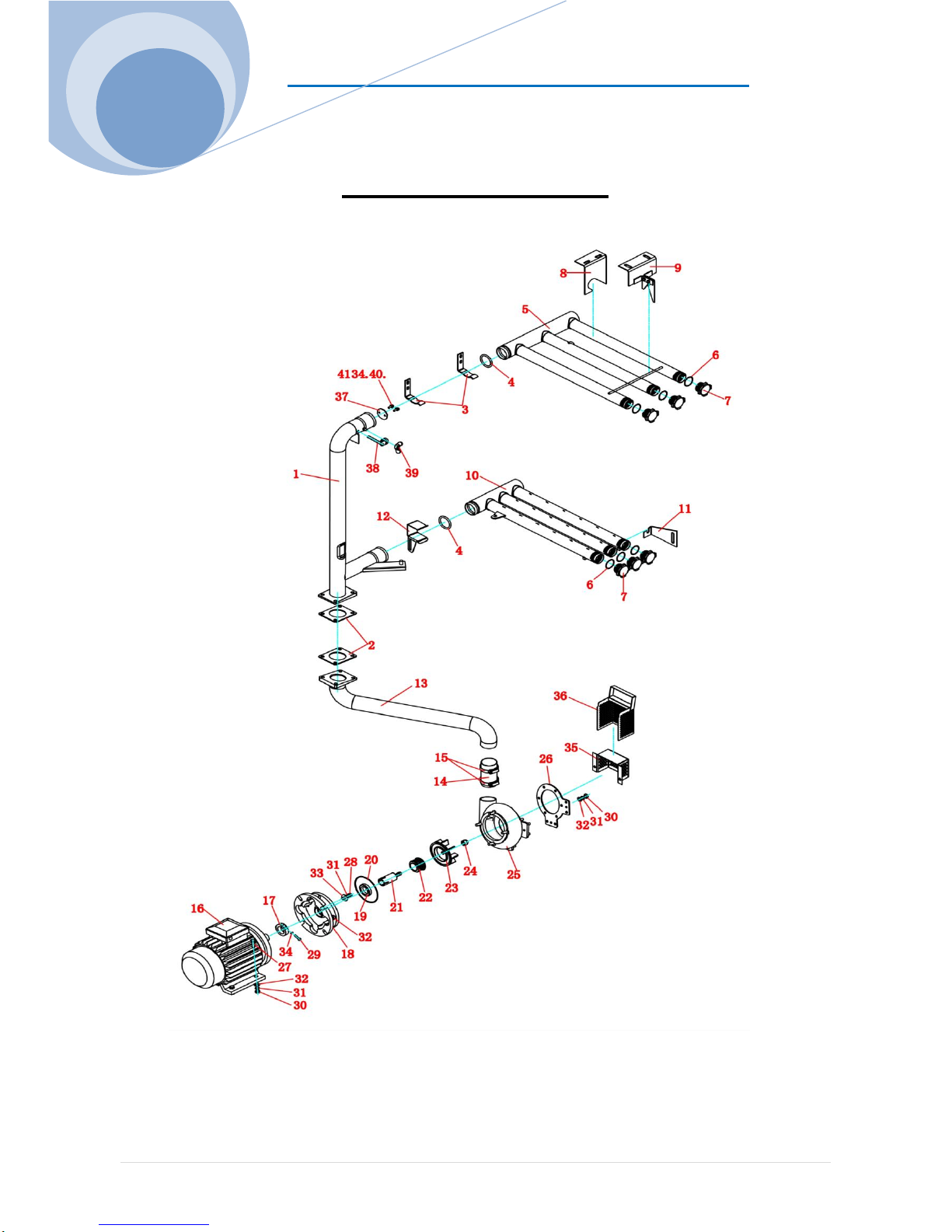

Wash Assembly (left)
Item No.
Parts Series No.
Parts Name
Qty
1
0T12D-50301L
Stand Pipe
1
2
F001-50305-01
Gasket
2
3
0T2D-50322
Upper Wash Arm Bracket
2
4-7
0T12DA-SQXG-PJ-L
Upper Left Wash Arm (complete)
1
4,6,7,10
0T12DA-XQXG-PJ-L
Lower Left Wash Arm (complete)
1
4
F002-40X5.3-01
O Ring
2
5
0T12D-50303L
Upper left wash arm only
1
6
F002-28X2.65-01
O Ring
6
7
F007-50339-01
Wash Arm End-Cap
6
8
0T12D-50323L-1
Upper Wash Arm Bracket
1
9
0T2D-50324
Upper Wash Arm Bracket Lock
1
10
0T12D-50302L
Lower Left Wash Arm only
1
11
0T12D-50326AL
Lower Wash Arm Holder
1
12
0T2D-50325
Lower Wash Arm Bracket
1
13
0T12D-50304L
Wash Pump Connecting Pipe
1
14
F021-D51-01
Rubber Hose (9 cm)
1
15
E018-46X70-01
Hose Clamp
2
16-34
0T12DA-DJB-PJ-L
Wash Motor With Pump (complete)
1
16
G002-1.5KW-02
ABB Wash Motor only
1
17
A012-60317-01
Wash Pump Impeller Coupling
1
18
G003-FJ-06
Pump Frank
1
19
G003-FJ-05
Gasket
1
20
G003-FJ-01
O Ring
1
21
G003-FJ-07
Pump shaft
1
22
G003-FJ-02
Wash Pump Seal
1
23
G003-FJ-03
Pump Impeller
1
24
E014-M12-01
Hex Domed Cap Nut
1
25
G003-FJ-08
Pump Housing
1
26
F001-60319-01
Wash Pump Gasket
1
27
E009-M8X30-02
Hex Bolt
4
28
E009-M8X25-01
Hex Bolt
4
29
E010-M5X20-01
Hexagon Socket Screw
1
30
E011-M8-01
Spring Washer
14
31
E012-M8-01
Flat Washer
18
32
E013-M8-01
Hexagonal Nut
18
33
E012-M22XD8-01
Flat Washer
4
34
E011-M5-01
Spring Washer
3
35
0T12D-60320
Pump Intake Screen Holder
1
36
0T12D-65304
Pump Intake Screen
1
37
T2D-50301-7A-2
Flow Restrictor
1
38
T2D-50301-7A-4
Flow Restrictor Lever
1
39
E016-M6-01
Flow Restrictor Butterfly nut
1
40
E009-M5X16-01
Hex Bolt
2
41
E012-M5-01
Flat Washer
2

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
9 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Wash Assembly (Right)

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
10 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Wash Assembly (Right)
Item No.
Parts Series No.
Parts Name
Qty
1
0T12D-50301R
Stand Pipe
1
2
F001-50305-01
Gasket
2
3
0T2D-50322
Upper Wash Arm Bracket
2
4-7
0T12DA-SQXG-PJ-R
Upper Right Wash (complete)
1
4,6,7,10
0T12DA-XQXG-PJ-R
Lower Right Wash Arm (complete)
1
4
F002-40X5.3-01
O Ring
2
5
0T12D-50303R
Upper Right Wash Arm only
1
6
F002-28X2.65-01
O Ring
6
7
F007-50339-01
Wash Arm End-Cap
6
8
0T12D-50323R-1
Upper Wash Arm Bracket
1
9
0T2D-50324
Upper Wash Arm Bracket Lock
1
10
0T12D-50302R
Lower Left Wash Arm Only
1
11
0T12D-50326AR
Lower Wash Arm Bracket
1
12
0T2D-50325
Lower Wash Arm Holder
1
13
0T12D-50304R
Wash Pump Connecting Pipe
1
14
F021-D51-01
Rubber Hose (9 cm)
1
15
E018-46X70-01
Hose Clamp
2
16-34
0T12DA-DJB-PJ-R
Wash Motor With Pump (complete)
1
16
G002-1.5KW-02
ABB Wash Motor
1
17
A012-60317-01
Wash Pump Impeller Coupling
1
18
G003-FJ-06
Pump Frank
1
19
G003-FJ-05
Gasket
1
20
G003-FJ-01
O Ring
1
21
G003-FJ-07
Pump Shaft
1
22
G003-FJ-02
Wash Pump Seal
1
23
G003-FJ-03
Pump Impeller
1
24
E014-M12-01
Hex Domed Cap Nut
1
25
G003-FJ-08
Pump Housing
1
26
F001-60319-01
Gasket
1
27
E009-M8X30-02
Hex Bolt
4
28
E009-M8X25-01
Hex Bolt
4
29
E010-M5X20-01
Hexagon Socket Screw
1
30
E011-M8-01
Spring Washer
14
31
E012-M8-01
Flat Washer
18
32
E013-M8-01
Hexagonal Nut
18
33
E012-M22XD8-01
Flat Washer
4
34
E011-M5-01
Spring Washer
3
35
0T12D-60320
Pump Intake Screen Holder
1
36
0T12D-65304
Pump Intake Screen
1
37
T2D-50301-7A-2
Flow Restrictor
1
38
T2D-50301-7A-4
Flow Restrictor Lever
1
39
E016-M6-01
Flow Restrictor Butterfly nut
1
40
E009-M5X16-01
Hex Bolt
2
41
E012-M5-01
Flat Washer
2

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
11 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2

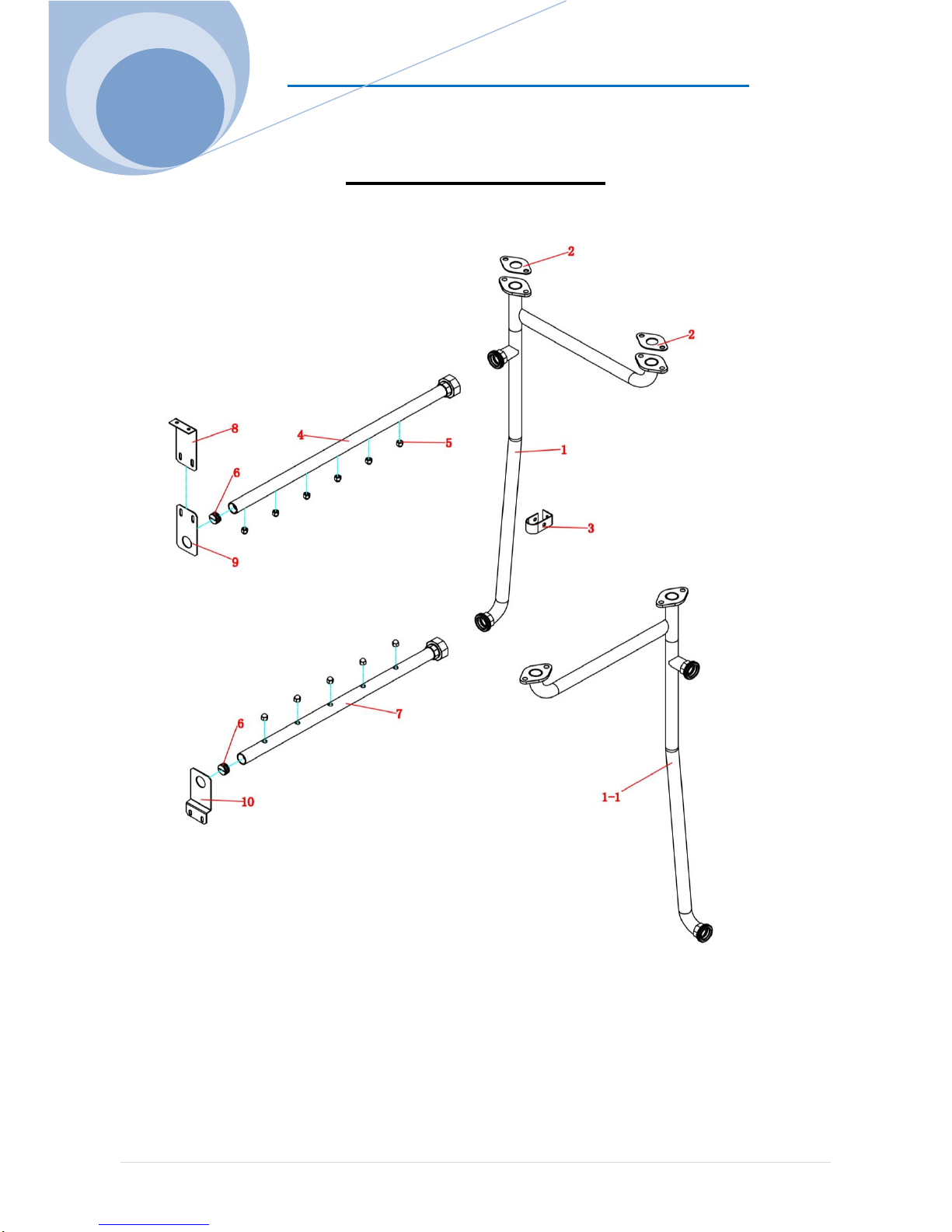

Rinse Arm Assembly

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
12 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Rinse Arm Assembly
Item No.
Parts Series No.
Parts Name
Qty
1
0T12D-50317L
Stand Pipe (left to right)
1
1-1
0T12D-50317R
Stand Pipe (right to left)
1
2
F001-50317-01
Gasket
2
3
0T2D-50327
Clip
1
4
0T2D-50313
Upper Rinse Arm
1
5
A012-50311/6-03
Nozzle
11
6
A012-50335-01
Rinse Arm End-cap
2
7
0T2D-50315
Lower Rinse Arm
1
8
0T2D-50331
Upper RinseArm Bracket
1
9
0T2D-50332
Upper RinseArm Holder
1
10
0T12D-50330
Lower Rinse Arm Bracket
1

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
13 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Booster Heater

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
14 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Booster Heater
Item No.
Parts Series No.
Parts Name
Qty
1
0T1D-40A-301
Booster Tank
1
2
F001-40309-01
Heater Gasket
5
3
G005-9KW-02
Heating Element
4
4
0T2D-40305
Cover
1
5
0T1D-40A-302
Base
1
6
0T1D-40A-303
Upper Hood
1
7
0T1D-40A-304
End Cover
2
8
D010-1/2X3/4-01
¾x½”Reducer Union
2
9
D009-1/2-01
½” S.S. Elbow
2
10
D004-1/2X135-01
½” S.S. Joint
1
11
D004-1/2-01
½” S.S. Joint
1
12
D018-1/2-01
Butterfly Valve
1
13
D009-3/4-01
¾” S.S. Elbow
2
14
D004-3/4-01
¾” S.S. Joint
4
15
D014-3/4-01
Coupling Joint
1
D014-3/4-02
D014-3/4-03
D014-3/4-04
16
D017-3/4-01
Pressure Regulator
1
16-1
D015-1/4-01
Pressure Gage
1
17
G017-110VX1/2-01
ASCO Solenoid Valve
1
18
D016-3/4-01
Strainer
1

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
15 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Rinse Piping

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
16 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Rinse Piping
Item No.
Parts Series No.
Parts Name
Qty
1
0T1D-50312
Connecting pipe
2
2
F001-50317-01
Gasket
2
3
D007-1/2-01
½” S.S. Joint
1
4
D006-1/2-01
½” S.S. Tee Joint
1
5
A012-50311/1A-01
Bushing for Thermo Probe
1
6
D011-1/8X1/2-01
Bushing for Rinse Aid
1
7
D026-1/8-01
Plug
1
8
D004-1/2x310-01
½” S.S. Joint
1
9
D004-1/2-01
½” S.S. Joint
3
10
D014-1/2-01
Coupling Joint
2
D014-1/2-02
D014-1/2-03
D014-1/2-04
11
D004-1/2X70-01
½” S.S. Joint
1
12
D009-1/2-01
½” S.S. Elbow
2
13
D004-1/2x150-01
½” S.S. Joint
1
14
D006-1/2X3/4-01
¾x½” S.S. Joint
2
15
D010-1/2X3/4-01
½” S.S. Joint
1
16
D023-3BAR-01
Pressure Relief Valve
1
17
D004-1/2x135-01
½” S.S. Joint
1
18
D004-1/2x390-01
¾x½” S.S. Joint
1
19
D004-1/2x220-01
½” S.S. Joint
1
20
G017-110VX1/2-01
ASCO Solenoid Valve
1

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
17 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2

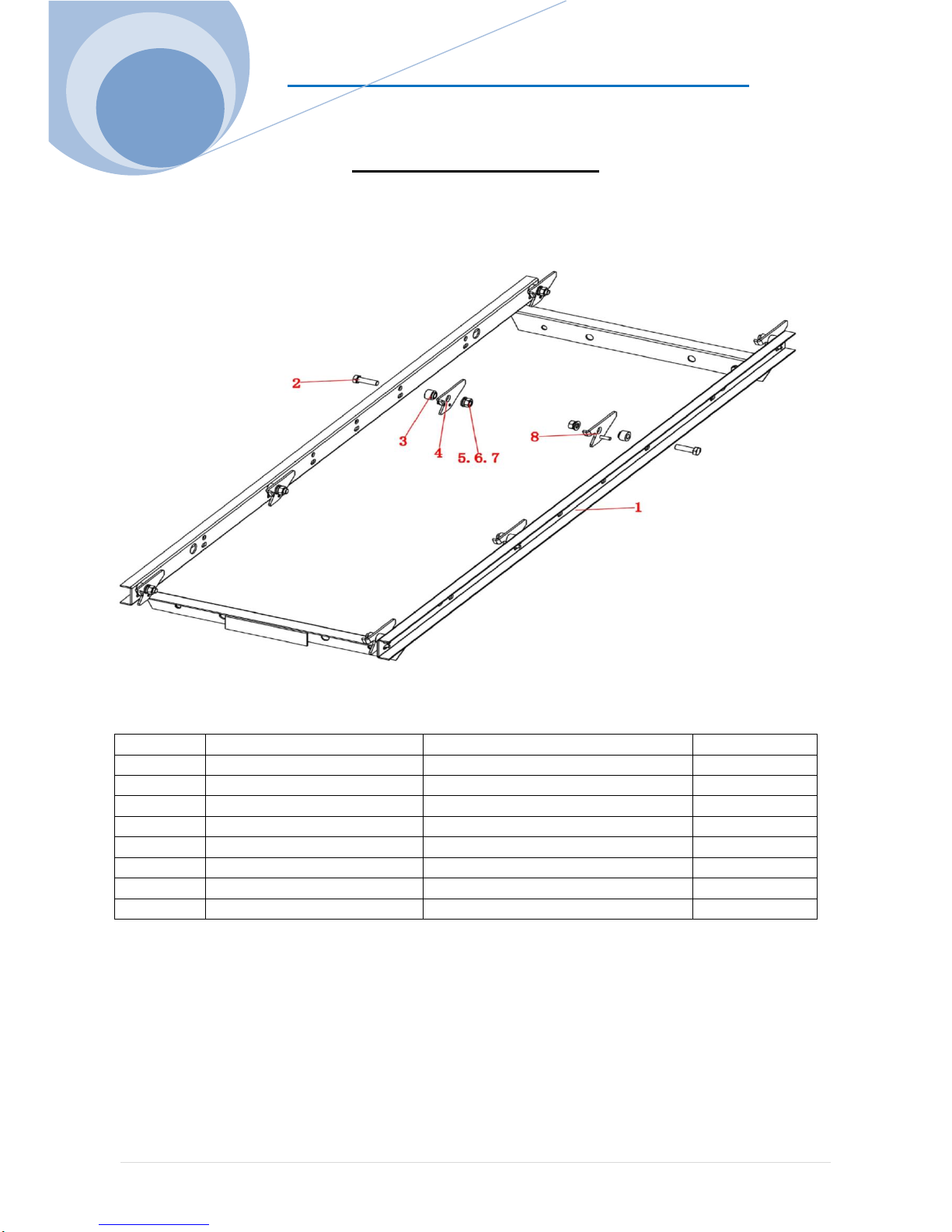

ConveyorAssembly
Item No.
Parts Series No.
Parts Name
Qty
1
0T12D-30303
Rack Truck
1
2
E009-M10x30-01
Hex Bolt
6
3
A012-30310-01
Positioning Bushing
6
4
0T2D-30305
Conveyor Dog (left)
3
5
E012-M10-01
Flat Washer
6
6
E011-M10-01
Spring Washer
6
7
E013-M10-01
Hexagonal Nut
6
8
0T2D-30306
Conveyor Dog (right)
3

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
18 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Guide Rail
Item No.
Parts Series No.
Parts Name
Qty
1
E009-M8X25-01
Hex Bolt
16
2
F018-30311-01
Sliding Block
8
3
0T12D-30301
Rack Guide
2
4
E012-M8-01
Flat Washer
16
5
E011-M8-01
Spring Washer
16
6
E013-M8-01
Hexagonal Nut
16
7
0T12D-30301-7
Bracket
8
8
0T12D-65343
Bracket
2

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
19 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Conveyor Motor Assembly

Double Ta Double Tank Conveyor Dish Washer
nk Dish Washing Machine Model CR-2
20 | P a g e
Double Tank
Dish Washing
Machine
Model CR-2
Conveyor Motor Assembly
Item No.
Parts Series No.
Parts Name
Qty
(1-23)
0T1D-CDZZ-PJ
Drive Shaft (complete)
1
1
E010-M8X55-01
Hex Bolt
1
2
E012-M8-01
Flat Washer
4
3
A012-60306-01
Bush
1
4
F019-60304-01
Guide Block
1
5
E010-M6X10-01
Screws
1
6
E004-M6X10-01
Screws
5
7
A012-60305-01
Flat Plate
1
8
E011-M8-01
Spring Washer
2
9
E019-M35-01
C-Clip
1
10
E013-M8-01
Hexagonal Nut
2
11
F008-60307-01
Canopy
1
12
F009-17/35-01
Seal
1
13
E019-M16-01
C-Clip
1
14
A010-6003DU-01
Bearing
1
15
F014-60303-01
Spacer Bush
1
16
A012-60301
Permanent Seat
1
17
A010-6003DU-01
Bearing
1
18
F009-19/32-01
Seal
1
19
E020-5X5X20-01
Flat Key
1
20
E020-5X5X25-01
Flat Key
2
21
A012-60302-01
Transmission Shaft
1
22
A012-60308-01
coupling
1
23
F001-60309-01
Gasket
1
24
G004-0.2X40S-01
Motor
1
25
0T2D-60310
Motor Base
1
26
F025-60315-01
Stand
1
27
E015-M8-01
Nut
1
28
A012-60313-01
Spacer
1
29
0T2D-60311
1
30
E012-M22XD8-01
Flat Washer
2
31
A002-60312-01
Compressing Spring
1
32
E009-M8X120-02
Hex Bolt
1
33
0T2D-60314
Stents
1
34
G034-N2110P20C-01
Limit Switch
1
35
E020-7X7X35-01
Flat Key
1
