Advanced Diagnostics MVP PRO User manual

MAZDA 2014- 1
2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
MVP & TCODE PRO
PIN DONGLE
OUT-CODE / IN-CODE
DEALER or NASTF
ONLY
ADC250
or
ADC151
+
MVP
PRO
U.S. Patent #7315238
or
Also Requires
Smart Card
Or
Advanced Diagnostics
Web Challenge / Response
If Pro is not SMC enabled.
SEE WWW.ADUSA.US FOR INFO
G–Tan
MAZDA PROX 2014
(ADS-225)
Models Covered:
(At time of printing)
2013-2015 CX-5
2014-2015 MAZDA 3
2014-2015 MAZDA 6
MVP - TCODE - PRO
Powered by ADVANCED DIAGNOSTICS USA

2 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.

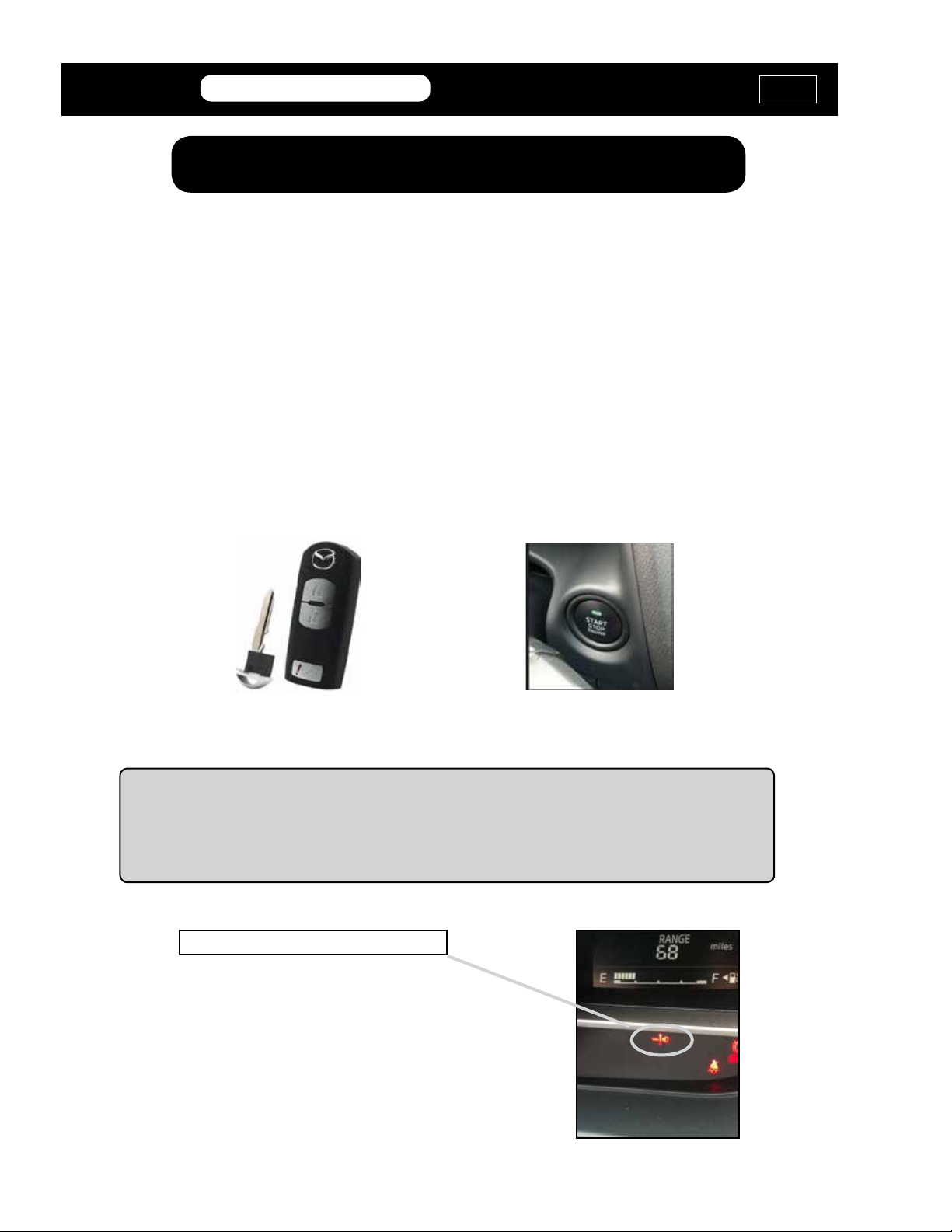

Push to Start / Stop buttonRemote transmitter & E-Key
AKA PROX
About Prox Keys
From what we have seen these Mazda Prox are re-usable from one car to another however, there are
several button congurations used depending on how the vehicle is equipped
I.E. Hatch, Trunk, etc. Always verify correct parts needed with a reputable supplier.
Immobilizer light / Indicator
When the vehicle is started theft light / indicator should be out.
Not blinking etc.
If the light is on or blinks when the car is turned on then the is a
problem with the key or with the immobilizer system.
MVP &
TCODE MAZDA 2014 ADVANCED DIAGNOSTICS USA powered
by
OVERVIEW
> A maximum of six remote transmitters (PROX) can be programmed to one vehicle.
>Two or more remote transmitters (PROX) must be programmed for the engine to start.
>If the engine is started during programming, the programming mode cancels. Therefore,
do not start the engine unless indicated in the procedure.
>Repeat the procedure from the beginning if the engine is started or the procedure is
interuppted.
>If any metallic or magnetic object is near the remote transmitter, communication between
the remote transmitter and the vehicle may be obstructed, resulting in a failure to program.
Remove any metallic or magnetic objects, such as key holders, from the remote
transmitter when programming.

MAZDA 2014- 3
2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
FORCE IGNITION ON
CLEAR PROGRAM PROX
ADD PROX
DIAGNOSTIC MENU
FORCE IGNITION ON
Use this function when you have NO WORKING prox
Available.
To use CLEAR OR ADD PROX the Ignition must rst be
placed in the ON position.
Use FORCE IGNITION ON to accomplish this FIRST before
doing anything else.
Once the Ignition is ON, leave it on and proceed to one of
the procedures below.
FORCE IGNITION ON
CLEAR PROGRAM PROX
ADD PROX
DIAGNOSTIC MENU
CLEAR PROGRAM PROX
Use this function to CLEAR all existing prox remotes from the
system and to PROGRAM TWO new ones.
You will need to have TWO prox remotes ready in order
to complete this procedure.
The Ignition MUST be placed in the ON position to begin so
either use FORCE IGNITION ON.
If you have a working prox use it to place the ignition in the
ON position.
FORCE IGNITION ON
CLEAR PROGRAM PROX
ADD PROX
DIAGNOSTIC MENU
ADD PROX
Use this function when you want to ADD a prox into the sys-
tem without erasing any of the already programmed ones.
You will need to have ONE prox remote ready in order
to complete this procedure. However, the Prox will not
function completely until the engine is started with TWO
Prox remotes. Until the engine starts with TWO prox re-
motes the new prox will only start the engine when held
up to the Start/Stop button.
The Ignition MUST be placed in the ON position to begin so
either use FORCE IGNITION ON.
If you have a working prox use it to place the ignition in the
ON position.
SPECIAL FUNCTIONS MENU
MVP &
TCODE
ACURA / HONDA
ADVANCED DIAGNOSTICS USA
powered
by
It is normal for the theft light to blink
while the Ignition has been forced on.
REQUIRES A MAZDA INCODE!
An IN-CODE is required to use this
software.
Must be obtained from a friendly Mazda
dealer or thru N.A.S.T.F. while at the job!

4 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.

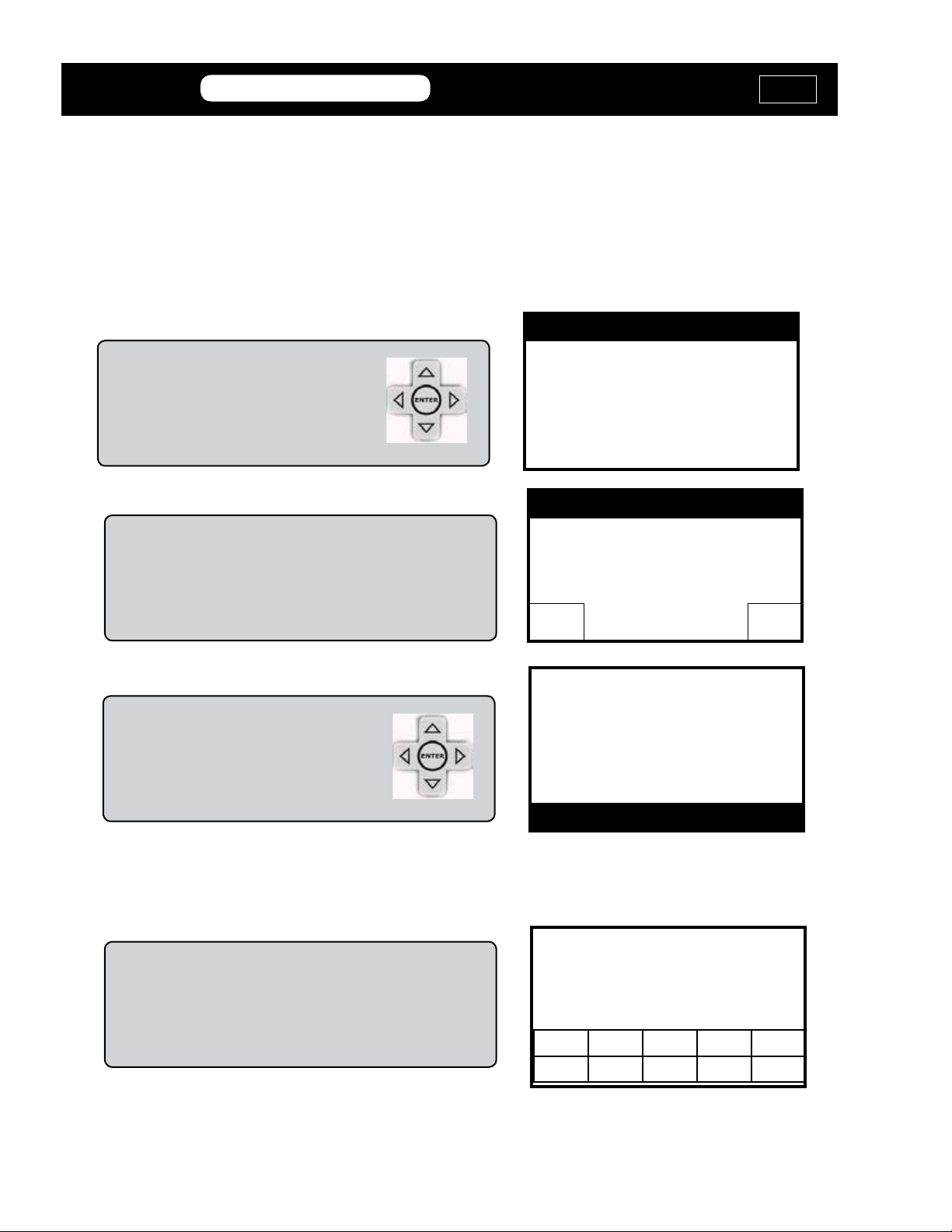

HAZARDS ON/ IGNITION OFF
PRESS ENTER KEY
MAZDA CX5 / 3 / 6
ECU IDENTIFICATION
PRESS ENTER KEY
ECU IDENTIFICATION
>SPECIAL FUNCTIONS
DIAGNOSTIC MENU
PRESS & RELEASE START / STOP
BUTTON
FORCE IGNITION
PRESS ENTER KEY
Start by turning on the hazard lights
Leave the Ignition in the OFF position
PRESS ENTER TO CONTINUE
FORCE IGNITION ON PROCEDURE
ECU ID SCREEN
SHOULD DISPLAY
PRESS ENTER TO CONTINUE
Select SPECIAL FUNCTIONS
PRESS ENTER TO CONTINUE
Select FORCE IGNITION ON
THEN PRESS ENTER
Press and Release the Start Stop
Button
(For about a second)
THEN PRESS ENTER
>FORCE IGNITION ON
CLEAR PROGRAM PROX
ADD PROX
DIAGNOSTIC MENU
MVP &
TCODE MAZDA 2014 ADVANCED DIAGNOSTICS USA powered
by
START HERE - IF NO WORKING PROX IS AVAILABLE

MAZDA 2014- 5
2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
WAIT FOR THE LIGHT ON
START / STOP BUTTON TO TURN
ORANGE THEN PRESS &
RELEASE START / STOP BUTTON
IGNITION SHOULD TURN ON
The light on the START / STOP Button
should turn ORANGE once it does
Press the START / STOP BUTTON
& the Ignition should turn ON.
Once it does, LEAVE IT ON.
FORCE IGNITION
MVP &
TCODE
MAZDA 2014
ADVANCED DIAGNOSTICS USA
powered
by
YOU MAY SKIP THE “FORCE IGNITION ON” PRECEDURE
IF YOU HAVE A WORKING PROX AVAILABLE.
ONCE YOU HAVE COMPLETED THE “FORCE IGNITION ON” PROCEDURE
THE DASH SHOULD BE FULLY ON AND THE THEFT LIGHT
SHOULD BE BLINKING RAPIDLY
SEE NEXT PAGES >>>>>

6 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
MVP &
TCODE MAZDA 2014 ADVANCED DIAGNOSTICS USA powered
by

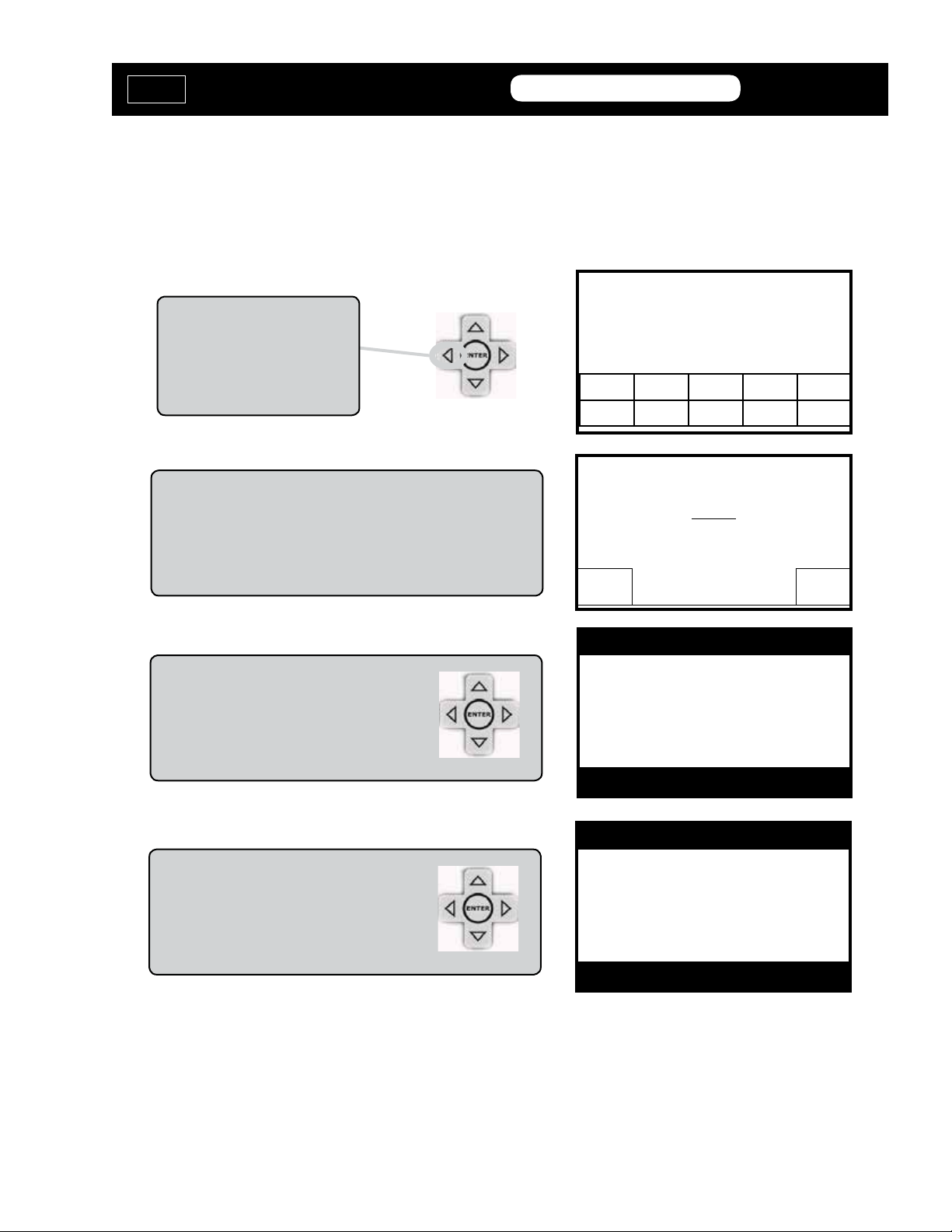

IN-CODE
_ _ _ _
12345
67890
Carefully
Enter the 4-Digit
IN-CODE
SELECT CLEAR PROGRAM PROX
Make sure you have 2 Prox keys
ready to Program!
MAKE SURE THE IGNITION IS ON!
FORCE IGNITION ON
> CLEAR PROGRAM PROX
ADD PROX
DIAGNOSTIC MENU
CLEAR PROGRAM PROX PROCEDURE
SWITCH THE IGNITION “ON”
OR FORCE THE IGNITION ON PRIOR TO BEGINNING!
CLEAR PROGRAM PROX
Erases ALL currently programmed Prox
and programs in TWO Prox.
Press the Check mark if you
want to continue
Or
Press the X if you want to abort.
GAINING ACCESS
OUTCODE: 17 68 2C
(EXAMPLE ONLY!)
PRESS ENTER KEY
USE THE OUTCODE TO OBTAIN
AND INCODE FROM MAZDA.
ONCE YOU HAVE OBTAINED THE
INCODE PRESS ENTER TO CONTINUE
STAY CONNECTED WHILE YOU OBTAIN THE INCODE
IF YOU DISCONNECT YOU WILL HAVE TO START OVER!
X4
WARNING
ALL KEYS WILL
BE CLEARED
CONTINUE
CLEAR KEYS
CONTINUED ON NEXT PAGE >>>>>

MAZDA 2014- 7
2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
MVP &
TCODE
MAZDA 2014
ADVANCED DIAGNOSTICS USA
powered
by
X4
9 0 0 B
(EXAMPLE ONLY)
Once you have entered the INCODE
IN-CODE
Select the check Mark to continue
or the X to abort.
IN-CODE
_ _ _ _
ABCDE
F G H I J
To change to letters on
the keypad use the left
and right arrow keys.
KEYS PROGRAMMED : 00
2 KEYS REQUIRED
PROGRAM PROX
PRESS ENTER KEY
THE NEXT SCREEN SHOULD SHOW
THAT ALL KEYS HAVE BEEN
CLEARED
PRESS ENTER TO CONTINUE
PRESS THE START / STOP
BUTTON TO SWITCH THE IGNITION
OFF
PROGRAM PROX
PRESS ENTER KEY
PRESS THE START / STOP
BUTTON TO TURN THE IGNITION OFF
THEN PRESS ENTER TO CONTINUE
CONTINUED ON NEXT PAGE >>>>>
CLEAR PROGRAM PROX PROCEDURE
CONTINUED’

8 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.

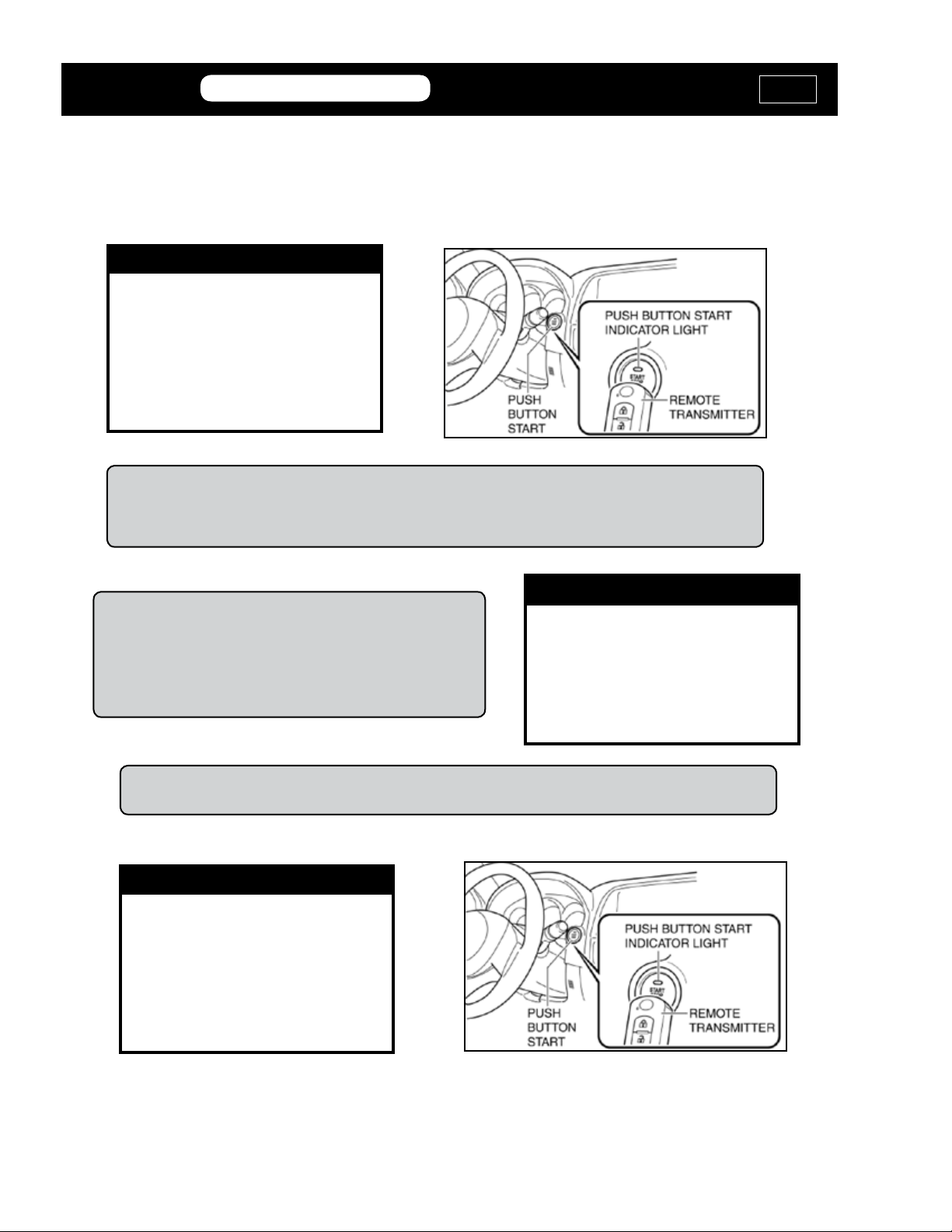

DO NOT PRESS THE BRAKE PEDAL
PRESS THE START / STOP BUTTON TO
TURN THE IGNITION ON
WITHIN 10 SECONDS HOLD THE 1ST
PROX OVER THE START / STOP
BUTTON WITH THE MAZDA LOGO
FACING YOU
PROGRAM PROX
Perform this step as shown above.
The reason NOT to depress the brake pedal is we do NOT want the engine to start.
KEYS PROGRAMMED: 1
PRESS THE START / STOP
BUTTON TO SWITCH THE IGNITION
OFF
PROGRAM PROX
REPEAT THE PROCESS TO PROGRAM IN THE 2ND PROX.
THE SCREEN SHOULD NOW DISPLAY
KEYS PROGRAMMED: 1
AND
ASK YOU TO TURN THE IGNITION OFF
CLEAR PROGRAM PROX PROCEDURE
CONTINUED’
CONTINUED ON NEXT PAGE >>>>>
MVP &
TCODE MAZDA 2014 ADVANCED DIAGNOSTICS USA powered
by
DO NOT PRESS THE BRAKE PEDAL
PRESS THE START / STOP BUTTON TO
TURN THE IGNITION ON
WITHIN 10 SECONDS HOLD THE 1ST
PROX OVER THE START / STOP
BUTTON WITH THE MAZDA LOGO
FACING YOU
PROGRAM PROX

MAZDA 2014- 9
2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
IT’S VERY IMPORTANT TO PERFORM THIS STEP!
UNTIL EACH PROX STARTS THE VEHICLE
THEY WILL NOT OPERATE PROPERLY.
KEYS PROGRAMMED: 2
PRESS THE START / STOP
BUTTON TO SWITCH THE IGNITION
OFF
PROGRAM PROX
THE SCREEN SHOULD NOW DISPLAY
KEYS PROGRAMMED: 2
AND
ASK YOU TO TURN THE IGNITION OFF
TO COMPLETE THE PROCEDURE
START THE ENGINE WHILE HOLDING
EACH PROX UP TO THE START / STOP
BUTTON
PROGRAM PROX
PRESS ENTER KEY
MVP &
TCODE
MAZDA 2014
ADVANCED DIAGNOSTICS USA
powered
by
CLEAR PROGRAM PROX PROCEDURE
CONTINUED’
ADD PROX PROCEDURE
The ADD PROX procedure is essentially the same as the CLEAR PROGRAM PROCEDURE
EXCEPT it does not ERASE any previously programmed PROX and only programs 1 NEW Prox.
IMPORTANT:
Before ADDING a PROX make sure you have at least one of the 2 already working PROX available.
This is because of the way MAZDA designed the system.
Remember, before any PROX that has been added will work properly the engine MUST be started with
TWO prox keys.
If you ADD a Prox but DO NOT have the other PROX available the new prox will work and start the engine
but only by holding it up to the start / stop button.
The process can be completed later by starting the engine with the other prox but this is something to
be aware of as your customer will likely NOT be happy until everything works as designed.
IF FOR ANY REASON 2 PROX DID NOT SUCCESSFULLY PROGRAM REPEAT THE PROCESS
OF HOLDING UP THE PROX SHOWN ON THE PREVIOUS PAGE UNTIL BOTH PROX OPERATE
AND START THE ENGINE.

10 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
99
99
99

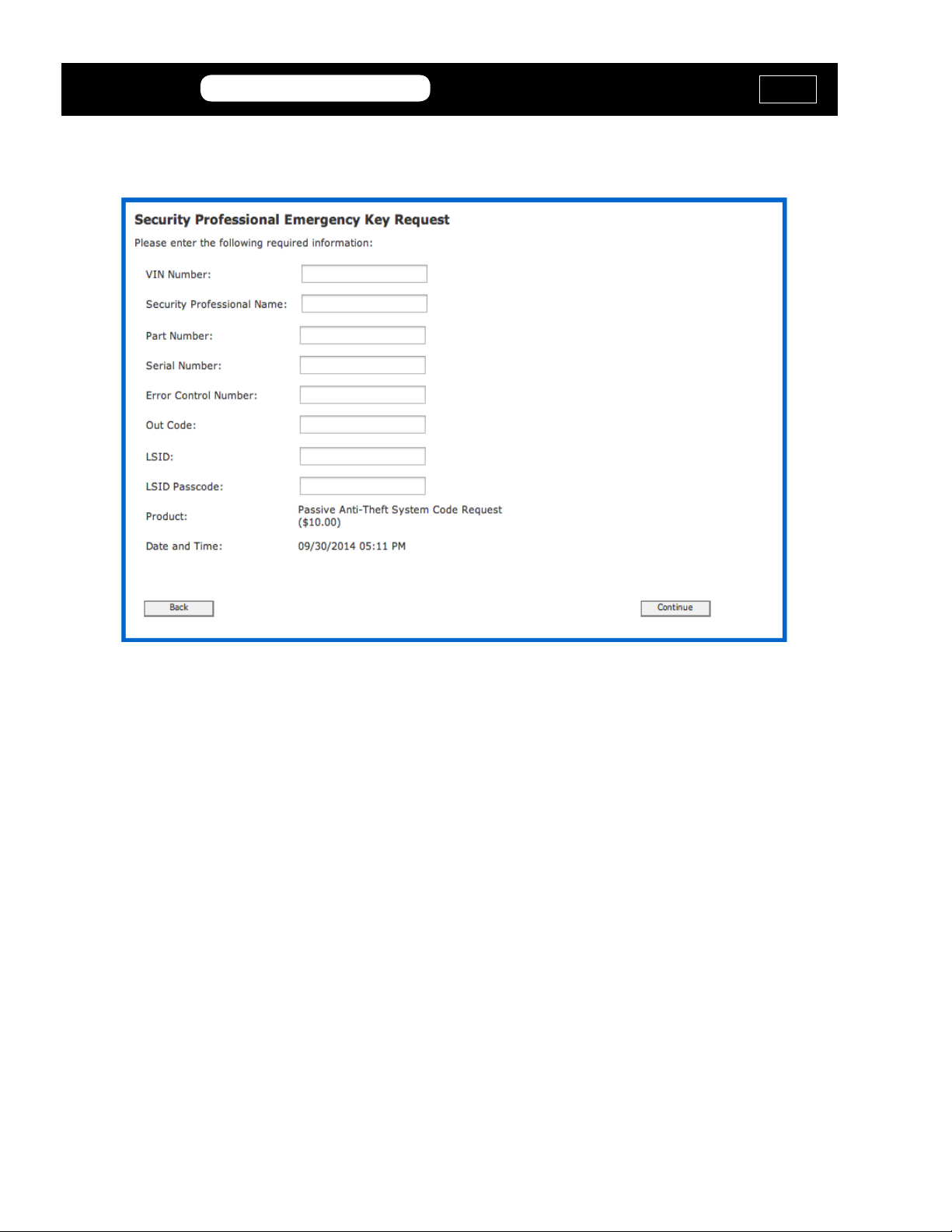

Helpful tip for lling out the MAZDA info:
Insert 99 into the elds shown above.
Insert the OUT-CODE displayed on the PRO without any spaces:
Example: ABCD12
