Advantage S-250 User manual

POWER-AMPLIFIER S-250
ADVANTAGE
ADVANTAGE
STANDBY

Introduction 2
Design 2
Balanced signal transmission 2
Unpacking 3
Placement 3
Cleaning 3
Rear panel 4
Balanced Inputs 4
Unbalanced Inputs 4
Output Connectors 4
Balanced / Unbalanced switch 4
Data Com 4
AC Line Cord Recepatcle 4
Front panel 5
Standby 5
LED / Indicator 5
Trouble Shooting 6
Warranty 7
Obtaining Service 7
“Burn-In”2
Table of contents
ADVANTAGE

To prevent fire or shock hazard, do not expose this unit to rain
or moisture.
To avoid electrical shock, do not open the unit’s case, there are
no serviceable parts inside.
Refer all servicing to qualified personell only.
1
This symbol is intended to alert you to the presence of
unisulated, dangerous voltage within the unit’s case that may
be sufficient magnitude to constitute a risk of electric shock.
This symbol is intended to alert you to the presence of
important operating and maintenance instructions in the
litterature accompanying this unit.
Marking by the “CE ” symbol (shown left)indicates compliance
of this device with the EMC (Electromagnetic Compatibility)and
LVD (Low Voltage Directive)standards of the European
Community.
The information contained in the manual is subject to change
without notice.The most current version of this manual will be
posted on our web site at http://www.bladelius.com.
ADVANTAGE

Thank you for purchasing the ADVANTAGE S-250 Power-
amplifier.
Your S-250 is a state-of-the-art unit, and has been assembled
by highly skilled ADVANTAGE craftsmen to provide you
with many years of listening pleasure. Our unit’s esteem arises
from the way we handle music-signals. ADVANTAGE
develops products for people who wish absolutely natural an
enjoyable music reproduction.
Reduction is the principle for the shaping of all
ADVANTAGE components. The unobtrusive design
harmonizes with almost every environment and does not
compete with your personal sphere. The form refers to the
tonal ability of the product line, whose composure and
strength manifests a well-balanced equilibrium.
Design
Due to the extremely short signal paths designed and built
into this piece of equipment, a significant "burn-in" period is
required before the unit will reach its maximum sonic
potential.
We recommend the unit be left on (or in standby mode) at all
times, especially during the first 5-6 weeks of operation, in
order to speed the "burn-in" process.
For best results, the S-250 should be left on or in the standby
mode at all times. The unit should not be switched off via the
master ON/OFF switch unless the unit will not be being used
for a significant period of time (during vacations, etc.).
“Burn-In”
Balanced signal transmission means that two signal lines are
used which carry the same signal with opposite phase. On the
receiving side, the signals are mixed. Since any noise
interference that has arisen during transmission will be
present in both lines with identical phase, such noise is
canceled out, leaving only the pure original signal. Balanced
connection therefore keeps the signal transfer free from any
kind of interference.
Balanced signal transmission
2
Introduction
ADVANTAGE

Unpacking When you have received your S-250, you should make sure
that the shipping box is in it’s original state. If however that
should not be the case, please conact your dealer. Please
unpack your unit carefully, there are several parts that can be
damaged. We suggest that you to keep your box and
shockabsorbers . Save your plastic bag, inserts, and carton.
You may need these later for transporting the S-250 or for
shipment in the event it ever requires factory service. Record
the serial number (on rear panel) here for future reference:
____________________
Please make sure that your shipping box contains the
following:
1 pc ADVANTAGE S-250
1 pc Power cord
1 pc Owner’s manual
Placement
To clean the unit, use only a soft tissue (Kleenex type). Never
apply abrasive cleaners to the outer surfaces of the unit.
Note!
At no time should liquid cleaners be applied directly to the S-
250, as direct application of liquids may result in damage to
electronic components within the unit.
Cleaning
The S-250 Power-amplifier functions best when placed on a
flat, stable surface.
Never place the S-250 near heat sources such as radiators,
stoves, fireplaces or other heat-producing appliances. Avoid
placing the the S-250 where it will be subjected to direct
sunlight or extremely low temperature.
3
ADVANTAGE

DATA COM
BALANCED
UNBALANCED
OUTPUT CONNECTORS
+
--
+
VOLTAGE
230V
50-60 Hz
Replace fuse
only with same
type and value.
AC INLET
I
O
6.
7.
8.

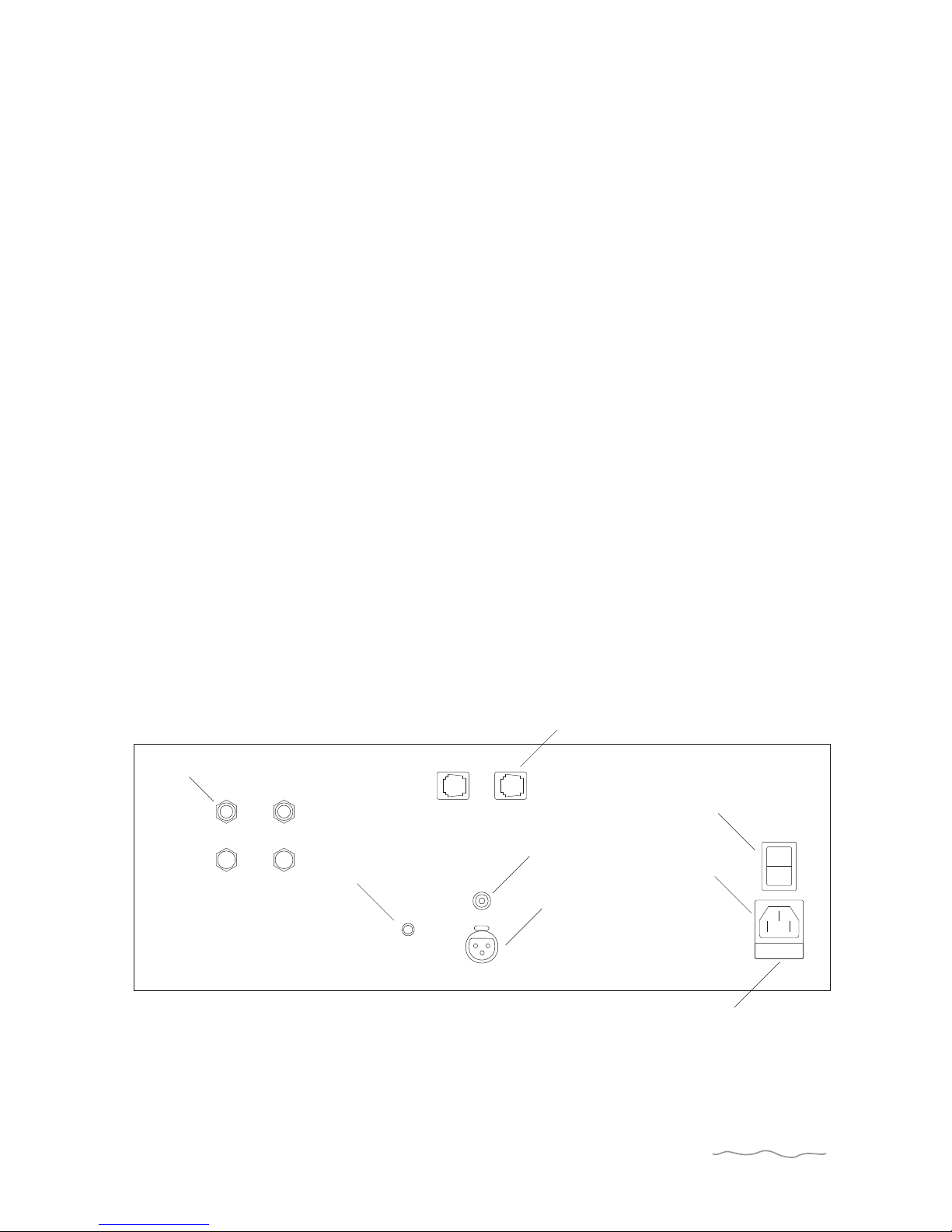

Rear panel
AC Line Cord Receptacle
(7.-8.-9.)
Unbalanced Inputs
(2.)
Data Com
(3.)
If your volume controlled sources / preamp. are not equipped
with XLR-outputs, please use the line-input with RCA-
connectors.
Balanced Input
(1.)
Plug the female end of the AC cord firmly into the AC
receptacle and make sure that it is properly seated. Connect
the male end directly to an AC wall outlet. Avoid use of an
extension cord or power strip since these often degrade sound
quality. Use the switch (8.) to turn ON/OFF master power.
The balanced inputs are intended to be used if your volume
controlled sources / preamp. have XLR-outputs.
3.
1.
2.
4.
4
The Data com is used to exchange information with other
ADVANTAGE products. If you for example connect your
power-amplifier to the S-2 preamp you will be able to get
information about the temperature on the heatsinks or to put
the power amplifier in stand-by mode.
5.
Output Connectors
(3.) The outputs marked + or - respectively have the same output.
Both pairs of terminals are intended to be used when you wish
to “bi-wire” your speakers.
Balanced/Unbalanced switch
(4.) If you want to use the balanced inputs flip the switch towards
the text “balanced” and vice versa in case of use of unbalanced
ADVANTAGE

5
LED / Indicator
(2.) When you turn on the master ON/OFF switch the LED will
flash until all circuits have reached full power. Given that
there are no problems with the Input Signal, such as high DC-
offset, the LED will after a few seconds have a steady light
indicating that the S-250 is in operation. If, however, the LED
starts to flash during operation it means most likely that the S-
250 is overheated. Try turning the master switch off for a
while and then turn it back on.
Standby
(1.) For best results, the S-250 should be left on or in the standby
mode at all times. The unit should not be switched off via the
master ON/OFF switch unless the unit will not be being used
for a significant period of time (during vacations, etc.).
Front panel
ADVANTAGE
1.
STANDBY
2.
ADVANTAGE

Trouble Shooting
Problem Cause Solution
No sound !Mains switch not on , mains
connection not correctly
attached .
!S-250 is in Standby mode.
!S-250 is in Protection mode.
!A fuse is blown..
!Check the power cord and
the mains switch.
!Push Standby.
!1.)
!2.)
!Contact your dealer.
One channel is
inoperative.
!The Loudspeakers are not
correctly connected or
damaged.
!Defective hookup cables,
not correclty attached or
damaged.
!Check the Loudspeakers and
the connections.
!Check the hookup cables.
!Check your preamp/source..
!Contact your dealer.
Diffuse, weak bass/ weak
stereo image.
!The Loudspeakers are
connected off phase.
!Check the Loudspeakers
and connections..
!Contact your dealer.
1.)If the LED starts to flash during operation it means most likely that the S-250 is
overheated. Try turning the master switch off for a while and then turn it back on.
In the event of a fuse failure, locate the fuse access hatch under the AC mains plug.
Replace the fuse only with the exact type originally provided with the S-250.
2.) Substitution of
a larger fuse will void your warranty.
6
ADVANTAGE

Contact your authorized ADVANTAGE dealer for details of
our warranty policy.
If your ADVANTAGE component must be serviced, please
contact your dealer. Your dealer will then decide whether the
problem can be remedied locally, or whether to contact
ADVANTAGE for further service information or parts, or to
obtain a Return Authorization.
Important!
Return authorization must be obtained from our Technical
Services Department BEFORE a unit is shipped for Service.
It is extremely important that information about a problem be
explicit and complete. A specific, comprehensive description
of the problem helps your dealer and the Technical Services
Department locate and repair the difficulty as quickly as
possible.
A copy of the original bill of sale will serve to verify warranty
status. Please include it with the unit when it is brought in for
warranty service.
Warning!
All returned units must be properly packaged (preferably in
their original packing material), and the proper return
authorization numbers must be marked on the outer carton
for identification. If the packaging to protect the unit is, in our
opinion or that of our dealer, inadequate to protect the unit,
we reserve the right to repackage it for return shipment at the
owner’s expense. Neither ADVANTAGE nor your dealer can
be responsible for shipping damage due to improper (that is,
non-original) packaging.
Your dealer can order a new set of shipping materials for you
if you need to ship your component and no longer have the
original materials. There will be a charge for this service. We
strongly recommend saving all packing materials in case you
need to ship your unit some day.
Warranty
Obtaining Service
7
ADVANTAGE

Manufactured in Sweden
