Advantech FWA-3140 User manual

Advantech
Internet Security Platform
FWA-3140
Rackmount Internet Security
Platform with 4 Front LAN
Ports/ Dual PCI Expansion
Slots/ LCD Display

FWA-3140 User Manual --- Page II
Copyright Notice
This document is copyrighted, 2004. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in
this manual at any time without notice. No part of this manual may be reproduced,
copied, translated or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
CE Notification
The FWA-3140, developed by Advantech Co., Ltd., has passed the CE test for
environment specifications when shielded cables are used for external wiring. We
recommend the use of shielded cables.
1stEdition
PrintedinTaiwan March2004

FWA-3140 User Manual --- Page III
Product warranty
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two year from the date of
purchase.
This warranty does not apply to any products which have been repaired or altered
by persons other than repair personnel authorized by Advantech, or which have
been subject to misuse, abuse, accident or improper installation. Advantech
assumes no liability under the terms of this warranty as a consequence of such
events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is
defective, it will be repaired or replaced at no charge during the warranty period. For
out-of-warranty repairs, you will be billed according to the cost of replacement
materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. For example, CPU
speed, Advantech products used, other hardware and software used, etc. Note
anything abnormal and list any on-screen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise
authorization) number from your dealer. This allows us to process your return more
quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt) in
a shippable container. A product returned without proof of the purchase date is not
eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to
your dealer.

FWA-3140 User Manual --- Page IV
Packing List
Before installation, ensure that the following materials have been received:
• One FWA-3140 Internet Security Platform
• One box of accessories
• One warranty certificate
• One CD-ROM for user manual (PDF file)
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Technical Support and Sales Assistance
If you have any technical questions about the FWA-3140 or any other Advantech
products, please visit our support website at:
• http://www.advantech.com.tw/support
For more information about Advantech's products and sales information, please
visit:
• http://www.advantech.com.

FWA-3140 User Manual --- Page V
Contents
1. General Information....................................... 1
1.1 Introduction......................................................................... 2
1.2 Features................................................................................. 2
1.3 Specifications................................................................... 2
1.4 Dimensions....................................................................4
1.5 Model List....................................................................5
2. System Setup............................................... 6
2.1 Removing the cover............................................................................. 7
2.2 Installing Central Processing Unit (CPU)...................................... 8
2.3 Installing Memory Module............................................................9
2.4 Installing Hard Drive........................................................................10
2.5 Installing Compact Flash...................................................11
2.6 Setting LAN Bypass function.........................................................12
Appendix A...................................................15
A.1 NAME-3140 Mother Board...............................................16

FWA-3140 User Manual --- Page VI
Figures
Figure 1-1: FWA-3140 dimensions................................................................... 4
Figure 1-2: Outlook of FWA-3140......................................................................... 4
Figure 2-1: Front view of FWA-3140.......................................................... 7
Figure 2-2: Removing the cover............................................................. 7
Figure 2-3: Top view of FWA-3140.......................................................... 8
Figure 2-4: Installing Central Processing Unit steps..................................... 9
Figure 2-5: Installing Memory Module steps.................................................. 10
Figure 2-6: Installing Hard Disk Drive steps............................................. 11
Figure 2-7: Installing Compact Flash steps.................................... 12
Figure 2-8: The illustration of LAN Bypass function.................... 12
Figure 2-9: LAN Bypass function jumps....................................... 13

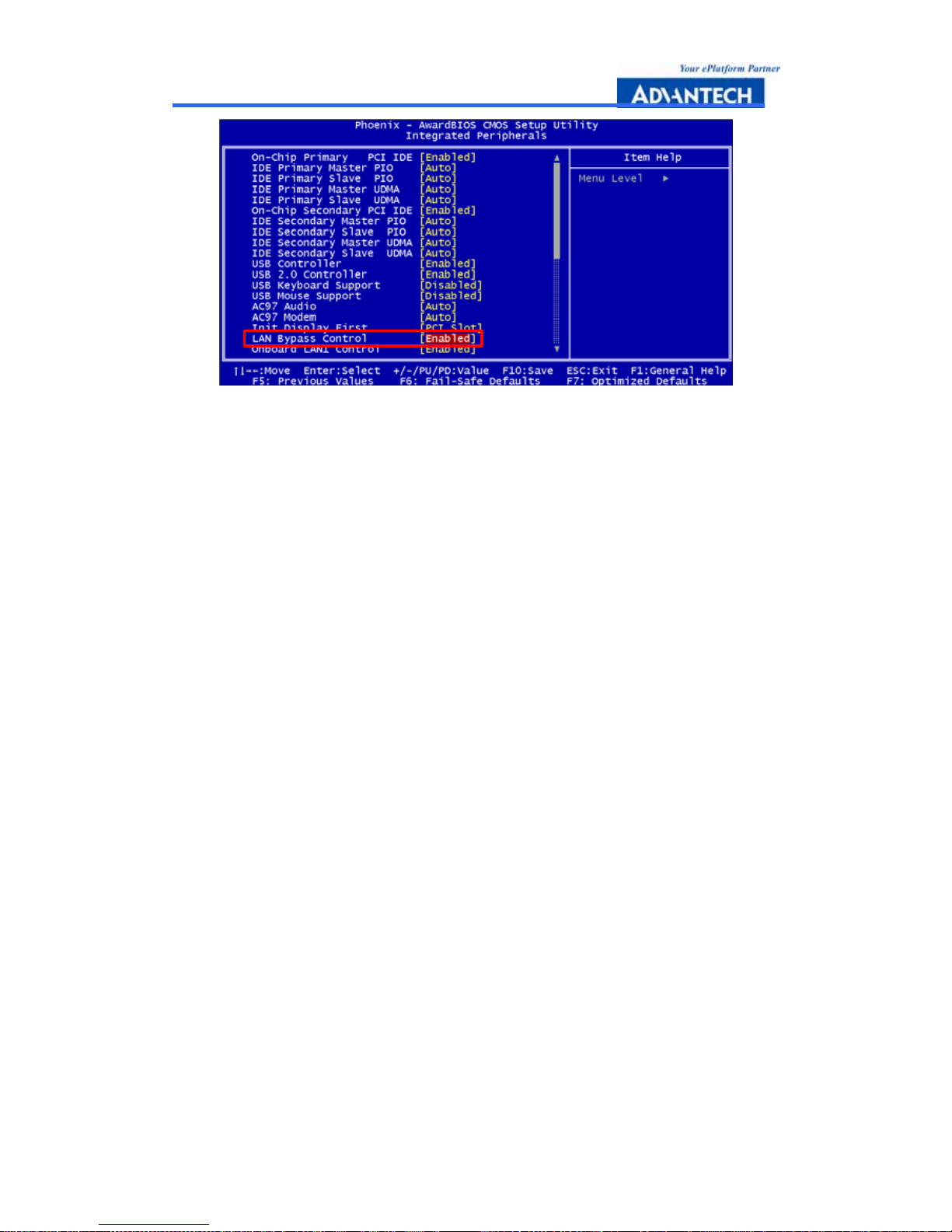

Figure 2-10: Setting LAN Bypass function from BIOS...................... 14

FWA-3140 User Manual --- Page 1
1
General Information

FWA-3140 User Manual --- Page 2
1.1 Introduction
Conceived as a powerful rackmount Internet Security platform, the FWA-3140 was
specifically designed for Internet secure connectivity. Designed with the Intel®
Pentium® 4 processor, it provides high performance and meets the requirements of
Internet security appliances. The system supports Compact Flash for OS and
Internet security applications. This avoids service disruption caused by hard disk
mechanical / magnetic failures. In addition, the FWA-3140 can support system
memory up to 2 GB DDR memory. Both Compact Flash and memory can be
accessed and replaced for software upgrades through an easily removable cover.
Designed with the Plug-and-Serve concept in mind, the FWA-3140 offers four
10/100/1000 Mbps auto-sensing LAN ports in the front panel. There are two LED
Indicators which monitor power and HDD activities. For easy access, the front panel
has a 9-pin, RS-232 serial port for local system management, maintenance and
diagnostics. The FWA-3140 provides optional 3.5” IDE HDD and 2 PCI slots. It is FCC
and CE compliant. Please see the FWA-3140 user manual for more details.
1.2 Features
• 1U rackmount Internet security platform
• Socket 478 Intel® Pentium® 4
• Dual 32-bit/33 MHz PCI expansion slots
• Four 10/100 Fast Ethernet or 10/100/1000 Gigabit Ethernet ports
• Console port for local setting
• Hard drive mounting bracket for 3.5” drive
• LCD display module
• LAN Bypass function
1.3 Specifications
• Processor System:
CPU: Intel Pentium 4 , 3.06G Hz
Max. Speed: 533/400 MHz FSB
L2 Cache: 512/256KB
Chipset: Intel 845GV, ICH4
BIOS: Award 2 Mb Flash
• Memory: Support DDR 266/200, Max. Capacity 2 GB, Socket 184-pin DIMM x 2
• Ethernet: 10/100 Fast Ethernet or 10/100/1000 Gigabit Ethernet, RJ-45 x 4

FWA-3140 User Manual --- Page 3
• Drive Bay: 3.5”HDD x1
• Management: Console RS-232 x1
• Cooling: Fan (15 CFM) x2, Blower x1
• Miscellaneous: Power Switch, 2 LED indicators for Power/HDD, CompactFlash
Socket x1, LCD Display Module x1
• Adapter Power Requirement:
Input: ATX PS, AC 90 ~ 264 V @ 47 ~ 63 Hz, full range
Output: 250W
• Operating Environment:
Operating: Temperature 0 ~ 40 °C (32 ~ 104 °F), Humidity 5 ~ 85 %
Non-Operating: Temperature -20 ~ 75 °C (-4 ~ 167 °F), Humidity 5 ~ 95 %
• Dimensions (W x H x D):
1U: 426 x 44.4 x 360 mm (16.7” x 1.7” x 15.7”)
• Weight: 4.5 Kg (9.9 lb)

FWA-3140 User Manual --- Page 4

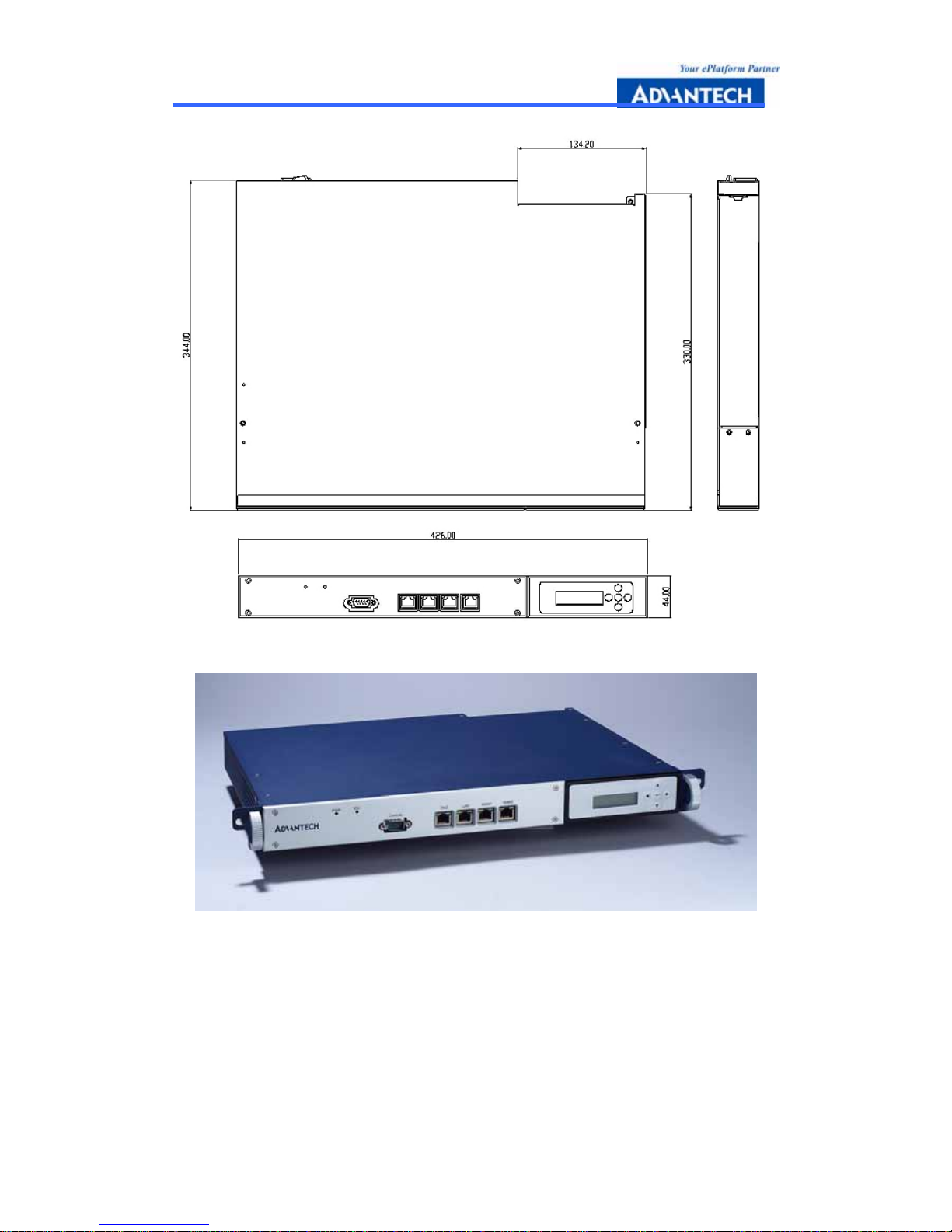

1.4 Dimensions
Figure 1-1: FWA-3140 dimensions.
Figure 1-2: Outlook of FWA-3140

FWA-3140 User Manual --- Page 5
1.5 Model List
• FWA-3140 A: 1U rackmount Internet security platform, Dual 32-bit/33 MHz PCI
expansion slots, LCD display module, Four 10/100 Fast Ethernet ports supporting
one LAN Bypass function.
• FWA-3140 B: 1U rackmount Internet security platform, Dual 32-bit/33 MHz PCI
expansion slots, LCD display module, two 10/100 Fast Ethernet and two
10/100/1000 Gigabit Ethernet ports supporting one LAN Bypass function.
• FWA-3140 C: 1U rackmount Internet security platform, Dual 32-bit/33 MHz PCI
expansion slots, LCD display module, four 10/100/1000 Gigabit Ethernet ports.

FWA-3140 User Manual --- Page 6
2
System Setup

FWA-3140 User Manual --- Page 7
Setting up your FW-3140 requires only a screwdriver and a small amount of time.
Before you begin, you should also gather together all of the device you plan to install,
as well as the CPU, RAM, HDD, and etc.
The front panel of FWA-3140 includes a LCD display module, four Ethernet ports, a
RS-232 console port, and two LEDs where one is power LED and another is HDD LED.
On the rear panel, there is a power switch located on the top right hand corner.
Four LAN
ports LCD display module
RS-232
Console
port
LEDs
(Power x 1/
HDD x 1)
Power switch
Four LAN
ports LCD display module
RS-232
Console
port
LEDs
(Power x 1/
HDD x 1)
Power switch

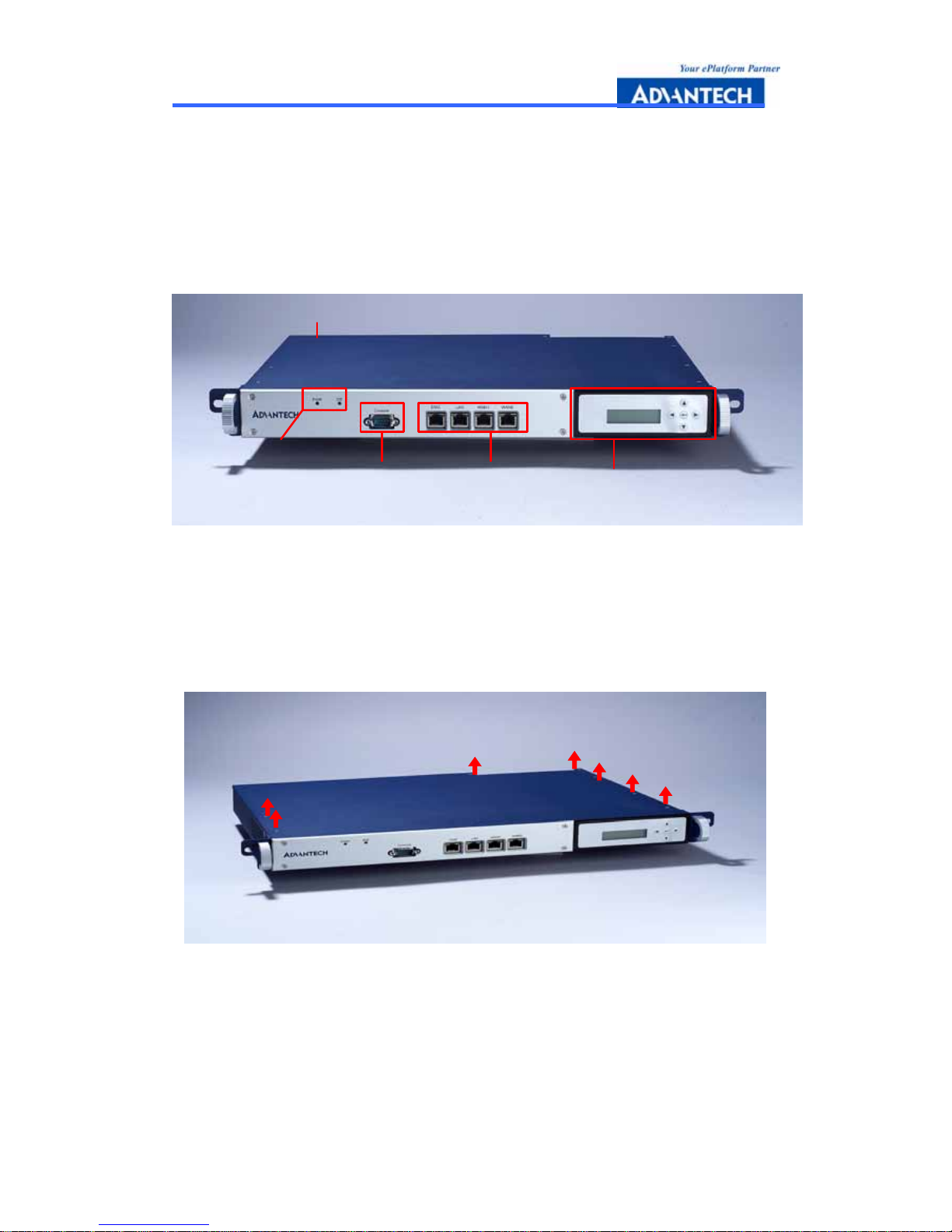

Figure 2-1: Front view of FWA-3140
2.1 Removing the cover
There are screws which secure the cover to the chassis. They are along the sides,
near the top. Remove them, and then slide the cover to the rear of the chassis.
Figure 2-2: Removing the cover

FWA-3140 User Manual --- Page 8
Two PCI slotTwo PCI slot
3.5” HDD Space
Power supply Two 15-CFM
cooling fan
3.5” HDD Space
Power supply Two 15-CFM
cooling fan

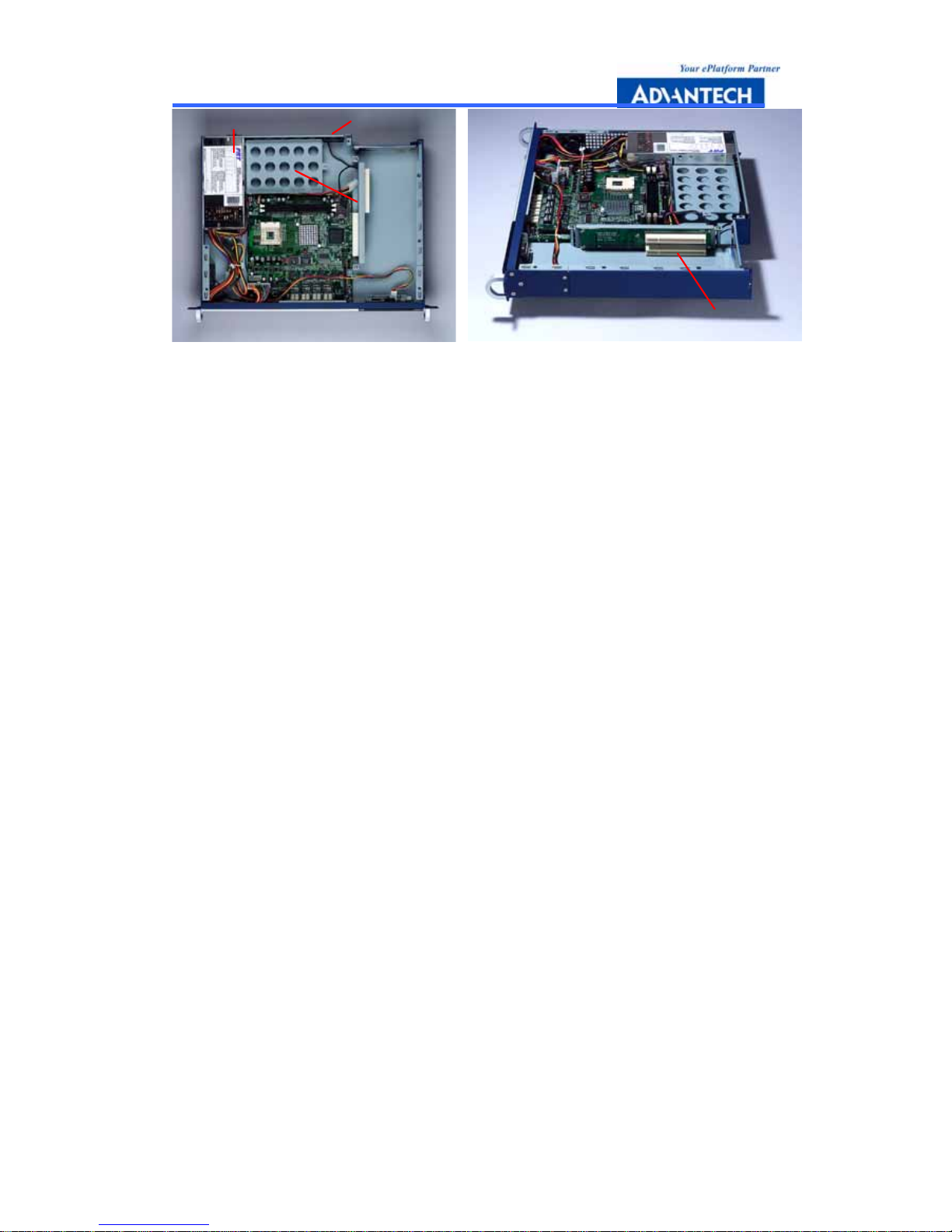

Figure 2-3: Top view of FWA-3140

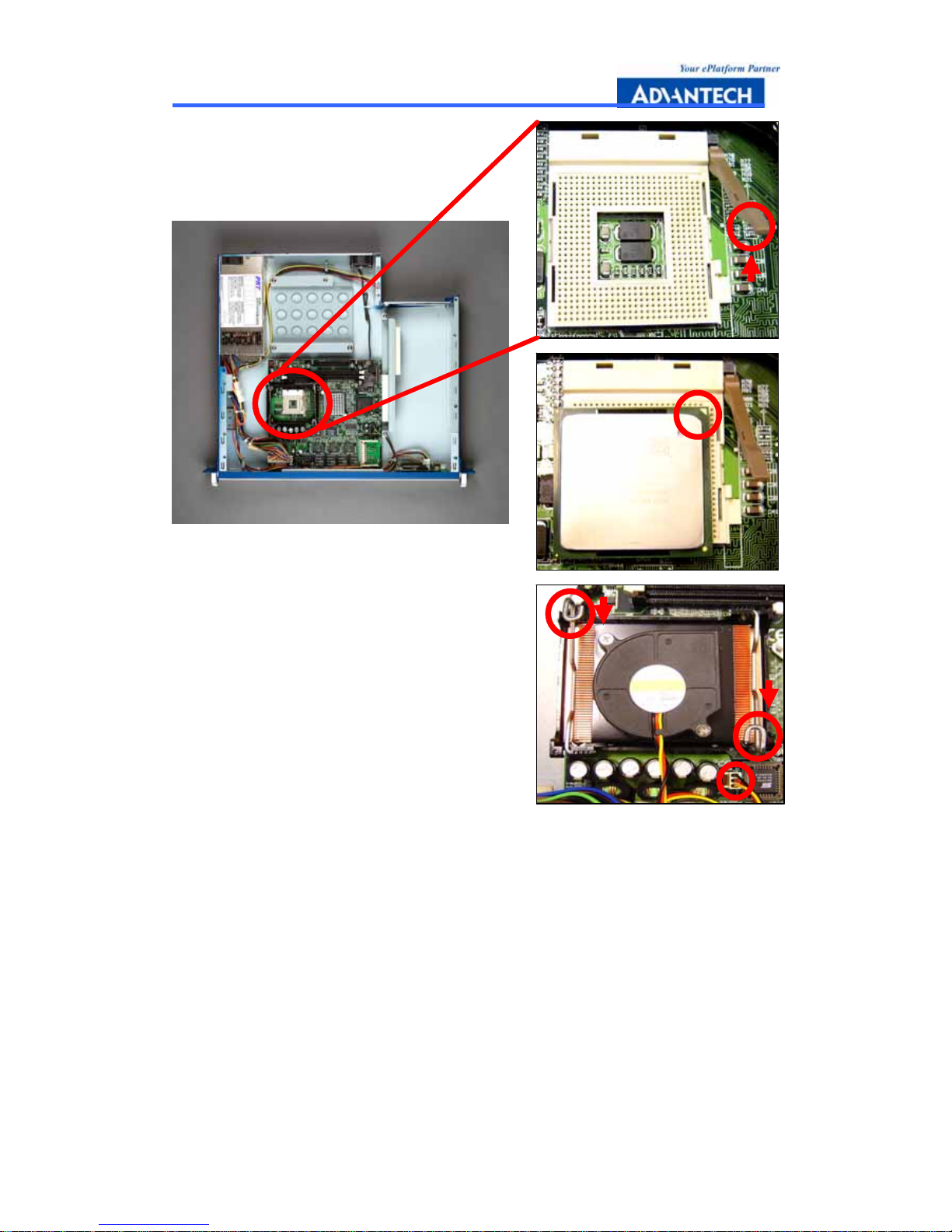

2.2 Installing Central Processing Unit (CPU)
1. Locate the 478-pin CPU ZIF socket on the motherboard. And pull the Socket
actuation lever to the 90-degree directly.
2. Position the CPU above the socket that its marked corner (golden cut edge on
the CPU upper corner) matches the base of the socket lever. Insert the CPU into
the socket. (Do not force the CPU into the socket.) Then push down the socket
lever to secure the CPU.
3. Apply the thermal tape to provide better heat conduction between your CPU and
cooling fan. Position the cooling fan on top of the CPU. Align and snap the four
hooks of the retention mechanism to the holes on each corner of the module
base.
4. Make sure the CPU fan power connector is plugged to the motherboard fan
power connector, than installing CPU is completed.

FWA-3140 User Manual --- Page 9
1.
2.
3.
4.
1.1.
2.2.
3.
4.
Figure 2-4: Installing Central Processing Unit steps
2.3 Installing Memory Module
Please note that FSB 533 Pentium 4 processor will support DDR333/DDR266
memory module and FSB 400 Pentium 4 processor will only support DDR266
memory module.
1. Unlock a DIMM socket by. Align the notch of the DIMM memory module to match
on the socket and insert the DIMM into the socket until the DIMM is properly
seated.

FWA-3140 User Manual --- Page 10
2. Press the retaining clips inward to lock the DIMM memory module. Installing
memory module is completed.
1. 2. 1. 2. 1. 2.

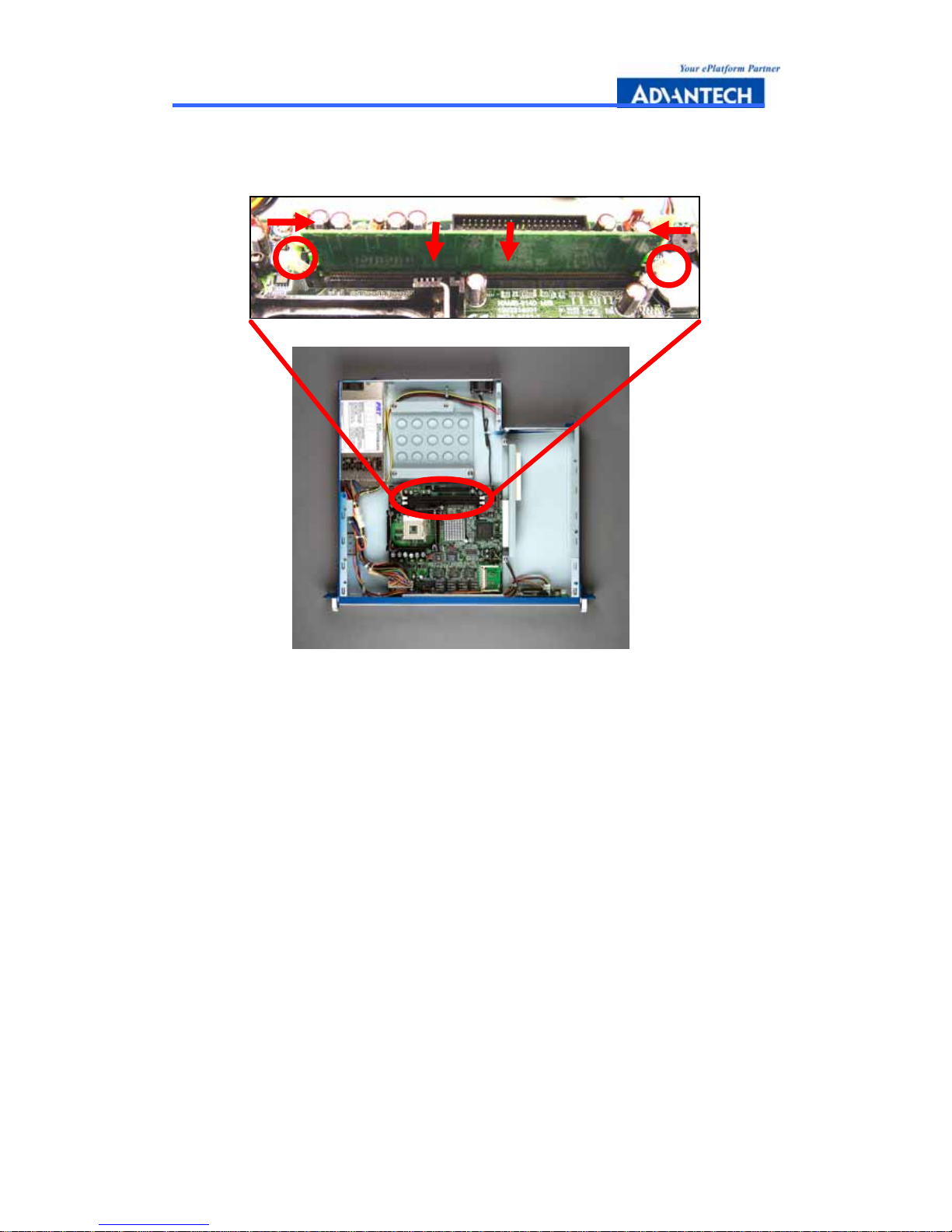

Figure 2-5: Installing Memory Module steps

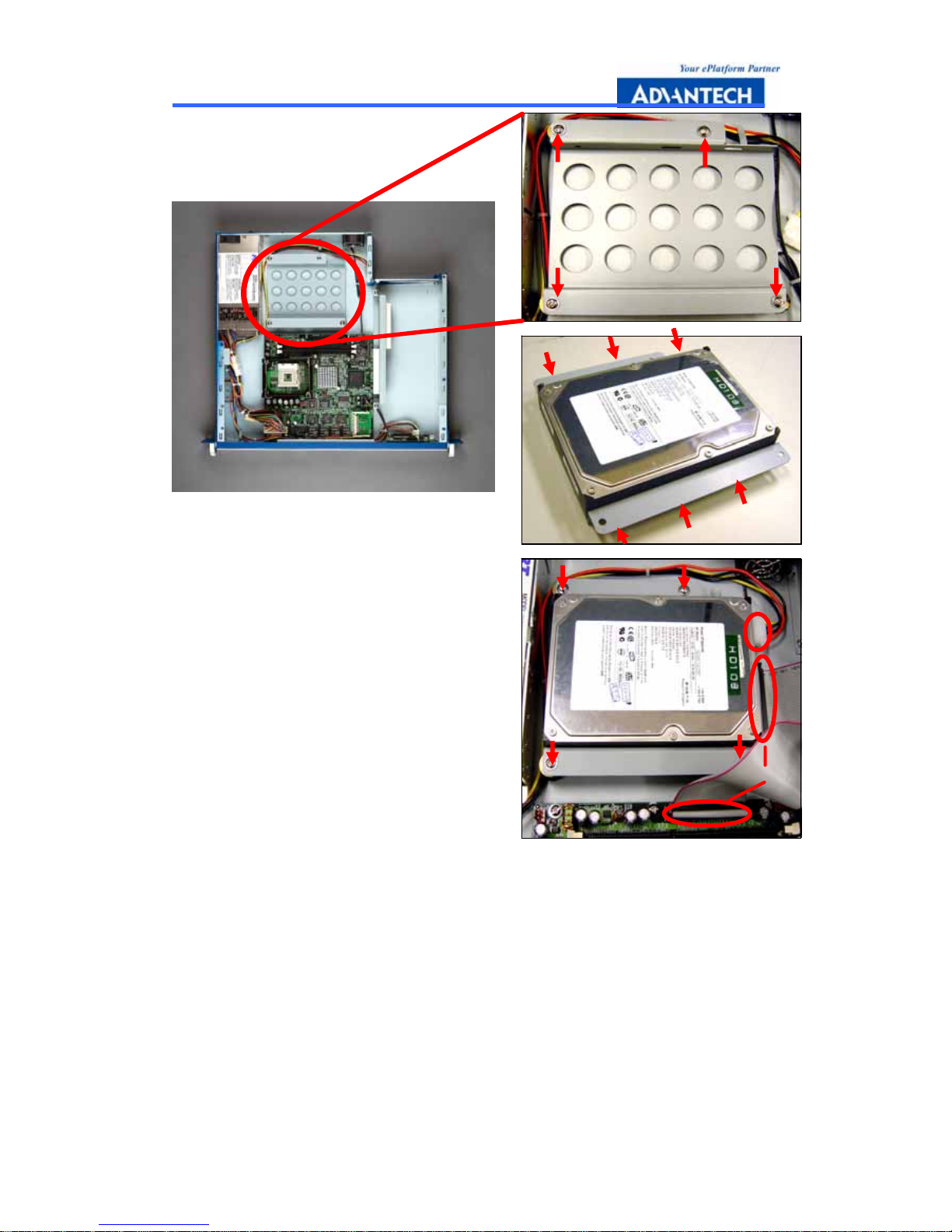

2.4 Installing Hard Disk Drive
1. Unscrew each side of the HDD supporting frame on the chassis and pull it out.
2. Put the HDD above the HDD supporting frame and position the screws
accordingly.
3. Screw each side of the HDD supporting frame to fix on the chassis.
4. Connect the IDE cable included in the accessory box to the connector on the
HDD. Make sure that the RED wire on the ribbon should be connected to PIN 1 of
HDD.
5. Connect power connector to the HDD. Installing Hard Disk Drive is completed.

FWA-3140 User Manual --- Page 11
1.
3.
4.
5.
2.
1.1.
3.
4.
5.
3.
4.
5.
2.2.
Figure 2-6: Installing Hard Disk Drive steps
2.5 Installing Compact Flash
1. Position a CompactFlash disk accordingly in the CompactFlash disk socket and
push it inward. Installing CompactFlash disk is completed.

FWA-3140 User Manual --- Page 12
1.1.1.
Figure 2-7: Installing Compact Flash steps
2.6 Setting LAN Bypass function
FWA-3140 provides LAN Bypass function showed as Figure 2-8. When system shuts
down, LAN1-LAN2 will connect directly to avoid network broken.
Network appliance
software
Rx Tx RxTx
Rx Tx RxTx
Network appliance
software
Rx Tx RxTx
Rx Tx RxTx
Network appliance
software
RxTx RxTx
RxTx RxTx
Network appliance
software
RxTx RxTx
RxTx RxTx
Figure 2-8: The illustration of LAN Bypass function

FWA-3140 User Manual --- Page 13
The jump "J4" allows you to set LAN Bypass function. (See J4 pins assignment in
APPENDIX A.1 NAME-3140 MOTHER BOARD)
Pins 1-3: Monitor network mechanism with watchdog timer
Pins 3-5: Turn off LAN Bypass
N. C.: Turn on LAN Bypass
Pins 2-4: Set LAN Bypass enable automatically when system shut down
Pins 4-6: Set LAN Bypass enable / disable via BIOS
1 3 5
2 4 6
J4 : LAN Bypass Control
1-3 :WATCH DOG
(Default) 3-5 :LAN Bypass Off N.C. :LAN Bypass On
2-4 :AUTO On
(Default) 4-6 :GPIO Control
J4
1 3 5
2 4 6
1 3 5
2 4 6
J4 : LAN Bypass Control
1-3 :WATCH DOG
(Default)
1-3 :WATCH DOG
(Default) 3-5 :LAN Bypass Off3-5 :LAN Bypass Off N.C. :LAN Bypass OnN.C. :LAN Bypass On
2-4 :AUTO On
(Default)
2-4 :AUTO On
(Default) 4-6 :GPIO Control4-6 :GPIO Control
J4
Figure 2-9: LAN Bypass function jumps
When jumper keeps on pins 4-6, follow below steps to set LAN Bypass function via
BIOS.
1. Turn on FWA-3140 platform. Then hold down the <Delete> key during the boot
process to enter BIOS menu.
2. Move to "LAN Bypass Control" Item
3. Press <PageUp> or <PageDown> key to change the condition option of "LAN
Bypass Control" Item. Condition option [Enabled]: Set LAN Bypass function
enable. Condition option [Disabled]: Set LAN Bypass function disable.
4. Press <F10> to save and exit BIOS menu.

FWA-3140 User Manual --- Page 14
Figure 2-10: Setting LAN Bypass function from BIOS
