Adventure Kings 50L User manual

Please read and understand these instructions and the
safety information section before using your refrigerator.
Adventure Kings 50L Refrigerator
USER MANUAL

Adventure Kings 50L Fridge Manual
CONTENTS
Safety Information 1
Notes on using the product 1
Instructions for use 2
Cleaning and
maintaining your refrigerator 3
Troubleshooting 4
Error Codes 5

Adventure Kings 50L Fridge Manual
page 1
SAFETY INFORMATION
• Do not touch any exposed cables or wires.
• Do not operate the fridge in wet or damp environments.
• Do not submerge the fridge in water.
• When using the fridge in the vehicle or boat, make sure that the
circuit being used is fused.
• Any installation of DC power systems should be handled by a
qualified professional.
• Make sure the source voltage is correct. The technical data label
has the voltage data for the fridge.
• Ensure that the fridge is kept steady and secure as it can become
heavy when filled.
• A filled fridge may be heavy so be cautious when attempting to lift it.
NOTES ON USING THE PRODUCT
• Good ventilation is necessary for the fridge. Allow a gap of at least
20cm around the vents to allow for airflow.
• If its power supply is cut off, the fridge will switch off automatically
and turn back on when it starts to receive power.
• Do not place any electrical devices inside the refrigerator as
moisture could harm them.
• Frost build-up can affect the cooling ability of the fridge. Humidity in
the unit can cause this frost.
• Placing your refrigerator near a heat source can reduce its efficiency
and heat up its contents. Make sure that you keep the fridge several
metres away from heat sources.
• Place the refrigerator on a flat surface and away from any edges.
When using the fridge in a vehicle, please use a fastening device to
secure it.

Adventure Kings 50L Fridge Manual
page 2
INSTRUCTIONS FOR USE
TURNING ON THE REFRIGERATOR
1. Plug the fridge into a power point. An orange LED labelled “power”
will be illuminated to indicate that the unit is receiving power.
2. Hold the power button for five seconds to turn on the refrigerator.
The power LED will be illuminated with a green light when the fridge
is running and the screen will show the temperature.
ADJUSTING THE REFRIGERATOR’S TEMPERATURE
1. Press the SET button ONCE to initiatte the temperature selection
menu.
2. Use the and buttons to raise or lower the temperature
respectively.
3. Press SET three times — or do not press any button for five
seconds — to confirm the selection.
4. At first the LED display will show the current temperature but will
start to decrease to the target temperature after approximately 5
minutes.
SWAPPING BETWEEN UNITS OF TEMPERATURE
1. Press the SET button TWICE to initiate the unit selection menu.
2. Use the and buttons to select your desired unit.
3. Press SET three times — or do not press any button for five
seconds — to confirm the selection.

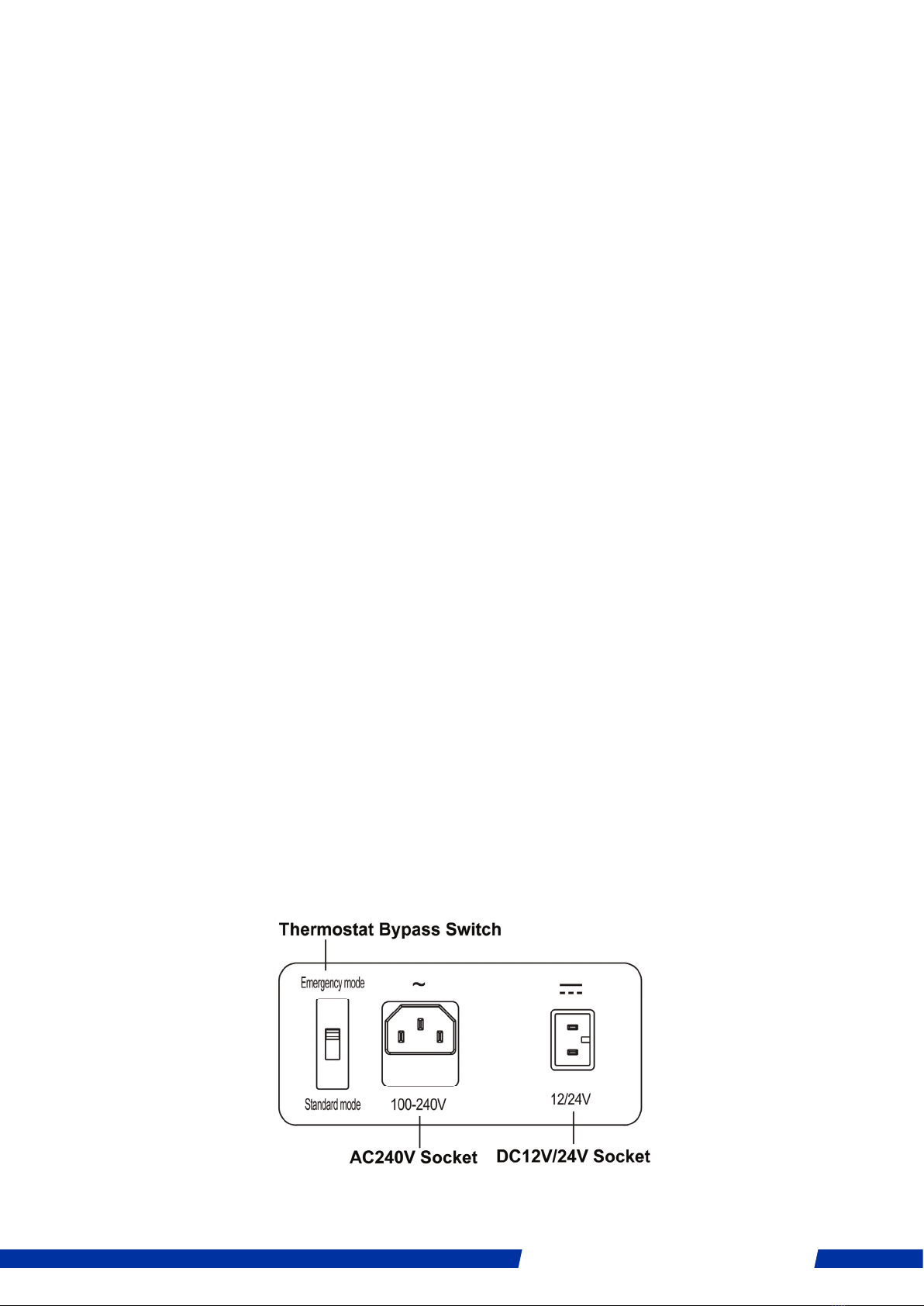

Settings
Powe r Cont rols
Display
Panel

Adventure Kings 50L Fridge Manual
page 3
CHANGING THE BATTERY VOLTAGE SETTING
1. Press the SET button THREE times to initiate the voltage control
menu.
2. Use the and buttons to select your desired voltage.
We suggest your keep the voltage set to LOW but the exact
voltage details are as follows:
3. Press SET three times — or do not press any button for five
seconds — to confirm the selection.
CLEANING AND MAINTAINING YOUR REFRIGERATOR
• Keep the fridge clean by wiping it down with a damp cloth, inside
and out, each week.
• If the fridge is dirty DO NOT use soaps, abrasive products or
detergents, as these may damage the refrigerator. Instead, use a
small amount of sodium bicarbonate fully dissolved in lukewarm
water. Rinse thoroughly with clean water and dry carefully.
• Never clean the appliance under running water or using a hose.
• Do not leave food in the refrigerator when it is unpowered as the
food could spoil.
12V 24V
LOW – 11.0 volts LOW – 23.0 volts
MED – 12.0 volts MED – 24.0 volts
HIGH – 12.5 volts HIGH – 24.5 volts

Adventure Kings 50L Fridge Manual
page 4
TROUBLESHOOTING
PROBLEM SOLUTION
The appliance is not
turning on.
•Check the power supply.
•Ensure the power plug is placed firmly in
the socket.
•Check whether the fuse needs replacing.
•Make sure that the fridge has been turned on.
See page 2 for instructions.
The food inside is
frozen or very icy. •The fridge’s temperature is too low.
See the instructions on page 2 for how
to increase the temperature.
Bad performance in
refrigeration
•The set temperature might be inappropriate.
Try changing it as per page 2.
•The lid could be unlocked, open or is not able
to fully close. Remove the blockage and close
the fridge completely.
•The refrigerator’s seal may be broken or
failing. Check to see if you see any faults and
contact Evakool if you need a replacement.
•The fridge may have poor ventilation. Try
removing any objects that are blocking the
ventilation vents.
•The fridge may be overfull. Try removing
some items.
•The contents of the fridge may have been
overly warm when placed inside. Let food
cool down before refrigerating them.
•There is a heat source near the unit. Move the
fridge away from sources of heat.
The sound of moving
liquid can be heard
within the refrigerator
•This is normal behaviour and is due to
the flow of the refrigerant. No fix should
be necessary.
Unusual noise can be
heard when the refrig-
erator is working
•The refrigerator is not placed on a level
surface. Carefully move the fridge to a
level surface. Be careful not to move
heavy objects.
•Something may have come loose in the
refrigerator. Contact Evakool for advice
about this.

Adventure Kings 50L Fridge Manual
page 5
ERROR CODES
The Adventure Kings 50L Fridge has an error system where a code is
displayed as a series of flashes over a four second period. Each sequence
of flashes indicates a specific error as shown in the table below.
NOTE: this fridge is fitted with an automatic 60 second restart delay. This will be
activated if your fridge enters an error mode. It’s designed to protect the fridge if
an error occurs.
CODEWARNING SOLUTION
1 flash
every four
seconds
Low voltage
•Please check the source voltage to ensure
it is above the cut out. Try lowering the
voltage cut out setting to LOW.
•The vehicle cabling may be inadequate
or unsuitable. Please refer to the cable
specifications table below for correct
cable thickness.
2 flashes
every four
seconds
Fan or
compressor
running issue
•Fan is drawing too many amps (over 1 amp)
– replace the fan. Contact Evakool.
•The compressor is drawing too many amps
(over 12 amps). Contact Evakool.
•Possible Electronic Box or compressor
fault. Contact Evakool.
3 flashes
every four
seconds
Compressor
speed is too low
•Reduce number of items inside fridge
•Move unit to a lower ambient temperature
•Clean vents and ensure clear air flow over
compressor
4 flashes
every four
seconds
Ambient
temperature is
too high
•Clean vents and ensure clear air flow
•Fan fault – replace the fan.
Contact Evakool [phone].

Adventure Kings 50L Fridge Manual
page 6
NOTES ON OPERATION
• Power: The electronic control module controls the compressor
motor and has the function of a three-stage battery protection.
When the input voltage drops below the minimum, the compressor
will cut out; when the voltage comes back up to the cut-in value, the
compressor will restart automatically.
• Battery Protection: The Danfoss compressor requires
approximately 11 volts (for a 12V system) or 23.0 volts
(for a 24V system) to operate. If the voltage drops below this,
the fridge will stop running.
CABLE SPECIFICATION TABLE
The DC cables must have a suitable cross-section for their length,
according to this table:
Cable area 12V Max Cable
Length*
24V Max Cable
Length*
[mm2] AWG [m] [ft.] [m] [ft.]
2.5 13 2.5 8 5 16
4 11 4 13 8 26
6 9 6 20 12 39
10 7 10 33 20 66
* - Note, the length is from the battery to the refrigerator.

Adventure Kings 50L Fridge Manual
WARRANTY STATEMENT
TERMS AND CONDITIONS
• The warranty period commences from the
date of purchase by the original purchaser
from an authorised EvaKool dealer.
• EvaKool will honour this warranty on
presentation of proof of purchase of the
unit to EvaKool or its approved service
agent. The service agent may be requested
to provide EvaKool with a photocopy of
the proof of purchase to obtain approval to
proceed prior to warranty being honored.
• Evakool will not be held responsible for any
costs incurred in making a warranty claim.
• Please telephone [phone] for the
name of an authorized service agent or
refer to list provided. It is the purchaser’s
responsibility to freight the unit to and from
the service agent.
• EvaKool will not be held responsible
for any damage or loss suffered or cost
incurred whilst fridge is in transit.
• Warranty repairs may only be carried out
by an authorised service agent. EvaKool
will not reimburse repair claims carried
out by unauthorized service agents. Any
unauthorized tampering with any part of
the unit will automatically void the warranty.
• Service agents may charge a fee for
viewing or testing the unit. This is not
covered by EvaKool or this warranty and
is payable at the service point unless
authorized by EvaKool.
• Any Evakool authorized service centre
in Australia will be able to carry out the
service of your unit. If a repair needs to be
undertaken and is covered in terms of this
warranty a warranty authorization number
must be obtained prior to commencement
of any work.
EVAKOOL WILL NOT ACCEPT A WARRANTY CLAIM IF:
1. Modifications have been carried out to the
unit without EvaKool’s written authority.
2. Damage to or failure of the unit has
been caused in EvaKool’s opinion by
incorrect, extreme or unreasonable use.
3. Damage to or failure of the unit has
been caused in EvaKool’s opinion by
misuse, neglect, accident, impact or
similar cause. Refer the preventative
maintenance guidelines.
• EvaKool has total discretion on the variation of the
warranty terms.
• Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
• also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major
failure.
• The above warranty conditions are in addition
to any other rights and/or remedies as per the
applicable law.
• Failure to follow the guidelines/recommendations
in this manual may void the warranty.
• This warranty cannot be varied by others.
