Electrolux EUM0500SB User manual

1

WARNING!
It is hazardous for anyone other than authorized service personnel to carry out servicing
or repairs which involves the removal of covers. To avoid the risk of an electric shock do
not attempt to repair this appliance yourself.
Safety tips
Do not use electrical appliances such as a hair dryer or heater to defrost your
Fridge/Freezer.
Containers with flammable gases or liquids can leak at low temperatures.
Do not store any containers with flammable materials, such as spray cans, fire
extinguisher refill cartridges etc. in the Fridge/Freezer.
Do not place carbonated or fizzy drinks in the Freezer compartment. Ice lollies can cause
“Frost/Freeze burns”. If consumed straight from the Fridge/Freezer.
Do not remove items from the Fridge/Freezer compartment if your hands are damp/wet,
as this could cause skin abrasions or “Frost/Freezer burns”. Bottles and cans must not be
placed in the Freezer compartment as they can burst when the contents freeze.
Manufacturer’s recommended storage times should be adhered to. Refer to relevant
instructions.
Do not allow children to tamper with the controls or play with the Fridge/Freezer. The
Fridge/Freezer is heavy. Care should be taken when moving it. It is dangerous to alter the
specification or attempt to modify this product in any way.
Do not store inflammable gases or liquids inside you Fridge/Freezer.
IMPORTANT SAFETY INSTRUCTIONS
3

If the power cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
This appliance is intended to be used in household and similar applications such as
gstaff kitchen areas in shops, offices and other working environments;
gfarm houses and by clients in hotels, motels and other residential type environments;
gbed and breakfast type environments;
gcatering and similar non-retail applications.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
Disposal
Old appliances still have some residual value. An environmentally friendly method of
disposal will ensure that valuable raw materials can be recovered and used again.
The refrigerant used in your appliance and insulation materials requires special disposal
procedures. Ensure that none of the pipes on the back of the appliance are damaged prior
to disposal. Up to date information concerning options for disposing of your old appliance
and packaging from the new one can be obtained from your local council office.
4

Locks
If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the
key out of reach and not in the vicinity of the appliance. If disposing of an old
Fridge/Freezer break off any old locks or latches as a safeguard.
INTRODUCTION
Before use
Please read these instructions and the Safety guidelines on page 1 carefully before using
your new Fridge/Freezer. The Fridge/Freezer is for indoor, domestic use only.
No Description
1 Chill door
2 Thermostat
3 Drip tray
4 Glass Shelf
5 Adjustable front feet
6 Plastic retaining
5

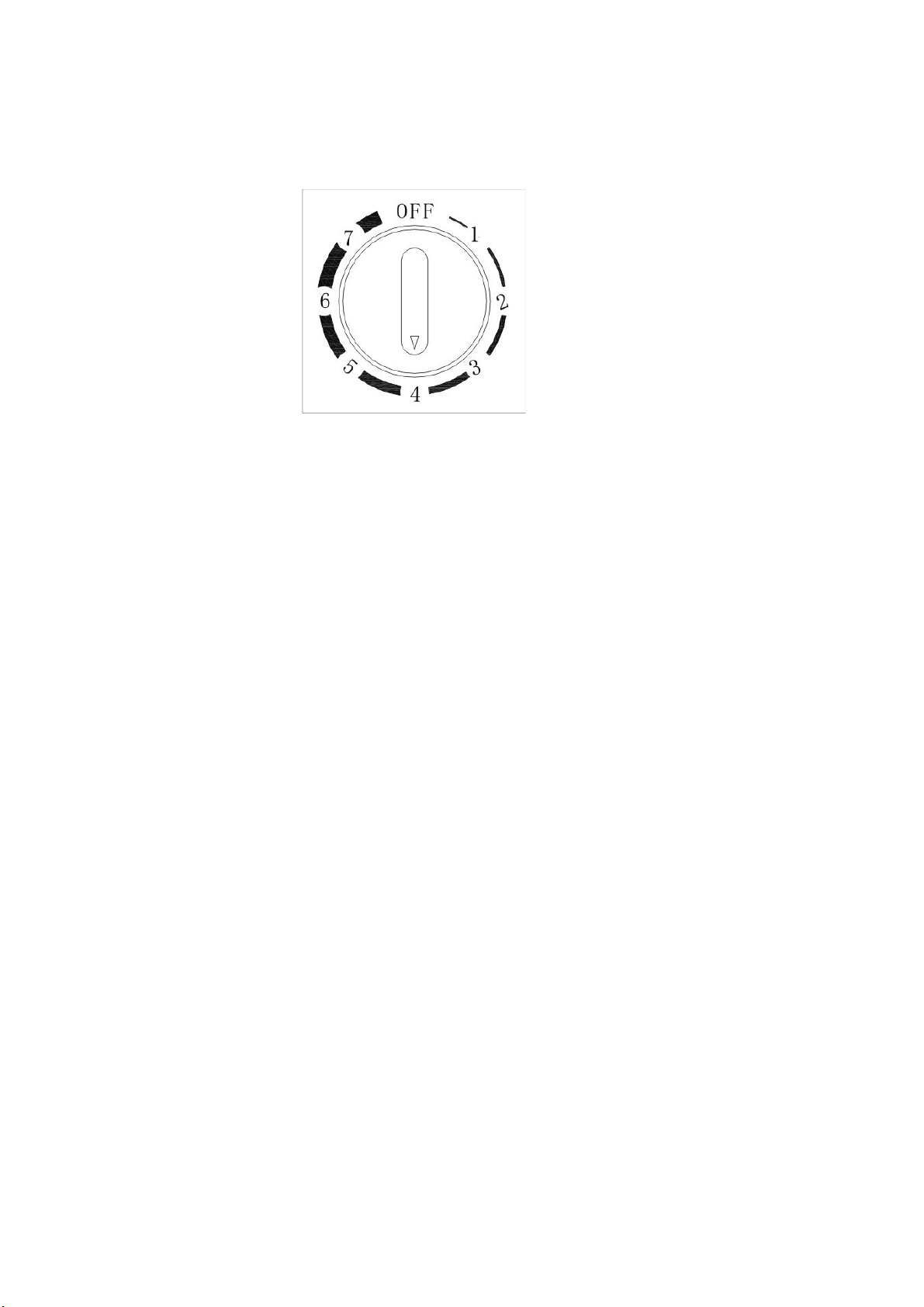

Temperature Control Dial
Temperature Control
1.The temperature in the refrigerator compartment is controlled by the temperature
controller installed on the side wall of the refrigerator compartment.
2.Turn the thermostat knob to right or left, you can regulate the temperature inside the
refrigerator.
3.The marks on the knob are the temperature grades, not the exact number of the
degrees of temperature.”OFF” shows a forced STOP and “7” shows the lowest
temperature. Turn the knob from "1"position to "7"position, the temperature decreases
continuously. You may set the temperature control selector to any position according to
what you need.
4.Please set the selector to "4" position in normal use.
STORAGE OF FOOD
1.How to Use the Chilled Room
*Put fresh and clean food such like fish, meat into ice room ,therefore the taste and
nutrient of food are preserved.
*Wrap food to be frozen in ALUMINIUM FOIL or place it in AIRTIGHT boxes.
*Do not allow already frozen food into direct contact with food to be frozen.
*If you buy deep frozen food in the shops, bring it home and place it in ice room as quickly
as possible so that the time during which it kept in the air temperature is as short as
possible.
2.How to Use the Refrigerator Compartment
*The cook dishes can be put into refrigerator to keep fresh after their temperature
8

decreases to room temperature.
*Egg pockets and bottle pockets for eggs, butter, milk and bottle drinks,etc..
3.Placement of Food
*Proper place should be left instead of too crowded during food storage.
*Food to be stored should be wrapped with clean plastic film or fresh keeping paper, then
distributed to several frames even to avoid contamination and the loss of water and smell
mixture.
*Cool hot food down to the room temperature before storing or consumption of electricity
will increase and would lead to frost forming inside.
*Never place vegetables and fruits into ice room in order to prevent them from being
frostbitten.
IN USE
1. The appliance might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an
extended period of time below the cold end of the range of temperatures for which the
refrigerating appliance is designed
2. The fact that the climate class is ST, and the room temperature of between 16ćand
38ć.
3. The fact that the internal temperatures could be affected by such factors as the
location of the refrigerating appliance, ambient temperature and the frequency of door
opening, and, if appropriate, a warning that the setting of any temperature control
device might have to be varied to allow for these factors
4. The fact that effervescent drinks should not be stored in food freezer compartments
or cabinets or in low-temperature compartments or cabinets, and that some products
such as water ices should not be consumed too cold
5.The need to not exceed the storage time(s) recommended by the food manufacturers
for any kind of food
6. The fact that a rise in temperature of the frozen food during manual defrosting,
maintenance or cleaning could shorten the storage life
7. It is better wrapping the frozen food in several layers of the glass shelves.
8. the care required with regard to frozen food in storage in the event of an extended
non-running of the refrigerating appliance (interruption of power supply or failure of the
refrigerating system)
9. The door to the evaporator clearance can be used to store food˗
9
10.
Please support the refrigerator’s body by your hand because of while the door
opening, it might be sliding out of the pulling force.

Take extra care with meat and fish
Cooked meats should always be stored on a shelf above raw meats to avoid bacterial
transfer. Keep raw meats on a plate which is large enough to collect juices and cover it
with cling film or foil.
Leave space around food
This allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept
cool.
Wrap up food!
To prevent transfer of flavors and drying out, food should be separately packed or covered.
Fruit and vegetables need not be wrapped.
Pre-cooked food should be cooled properly
Allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the
internal temperature of the Fridge from rising.
Shut the door!
To prevent cold air escaping, try to limit the number of times you open the door. When
returning from shopping, sort foods to be kept in your Fridge before opening the door. Only
open the door to put food in or take it out.
Where to store your foods in the fridge
Cool area
This is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt,
fruit juices, hard cheeses eg. Cheddar. Opened jars and bottles of salad dressings,
sauces and jams. Fats, eg. Butter, margarine, low-fat spreads, cooking fats and lard.
Coldest area
This is where foods which must be cold to keep them safe should be kept:
·Raw and uncooked foods should always be wrapped.
·Pre-cooked chilled foods, eg. Ready meals, meat pies, soft cheeses.
·Pre-cooked meats eg. Ham,
·Prepared salads(including pre-packed mixed green salads, rice, potato salad etc).
·Desserts, eg. Fromage frais, home-prepared food and leftovers or cream cakes.
10
Tips for keeping food perfect in the Fridge

NOTE˖
˖Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom
of the fridge. This will stop them dripping onto, or touching other foods. Do not store
inflammable gasses or liquids in the fridge.
Recommended storage periods
For recommended food storage time, refer to the information given on your food
packaging.
Defrosting
1.When the refrigerator working for a period of time ,the inner surface of the chilled room
will be covered with a layer of white frost. It may raise the electricity consumption and
lessen the effect of refrigeration.Then you should do frost re-movement at once.
2.After defrosting ,clear away defrosting water in water pan as soon as possible.
Notes: Never use sharp metal tools or it will damage the refrigerator.
Cleaning inside the Fridge/Freezer
After defrosting you should clean the Fridge/Freezer internally with a weak solution of bicarbonate of
soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in
warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer.
Condensation will form on the back wall of the Fridge; however it will normally run down the back wall
and into the drain hole behind the salad bin.
11

The drain hole will have a “cleaning spike” inserted into it. This ensures that small pieces off food can not
enter the drain. After you have cleaned the inside of your Fridge and removed any food residues from
around the whole, use the “cleaning spike” to make sure that there are no blockages.
Cleaning outside the Fridge/Freezer
Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer
exterior.
The grille of the condenser at the back of the Fridge/Freezer and the adjacent
components can be vacuumed using a soft brush attachment.
Do not use harsh cleaners, scouring pads or solvents to clean any part of the
Fridge/Freezer
TROUBLE SHOOTING AND MAINTENANCE
Trouble Shooting
Power cut
Do not open the Fridge/Freezer door more than necessary.
The Fridge/Freezer is exceptionally cold
You may have accidentally adjusted the thermostat control dial to a higher position.
The Fridge/Freezer is exceptionally warm
The compressor may not be working. Turn the thermostat control dial to the maximum
setting and wait a few minutes. If there is no humming noise, it is not working. Contact the
local store where your purchase was made.
The Fridge/Freezer is not working
Check it is plugged in and switched on. Check that the fuse in the plug has not blown.
The Fridge/Freezer should be placed in a well ventilated room with an ambient
temperature of between 16ćand 38ć. Leave the Fridge/Freezer for 30 minutes.
Condensation appears on the outside of the Fridge/Freezer
This may be due to a change in the room temperature. Wipe off any residue of moisture.
12

If the problem continues contact the local store where your purchase was made.
GURGLING, WHOOSHING
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It
has become more pronounced since the introduction of CFC free gases. This is not a fault
and will not affect the performance of your Fridge/Freezer.
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
Moving the Fridge/Freezer
Location
Do not place your Fridge/Freezer near a heat source, eg. Cooker, boiler or radiator. Also
avoid direct sunlight in out-buildings or sun lounges.

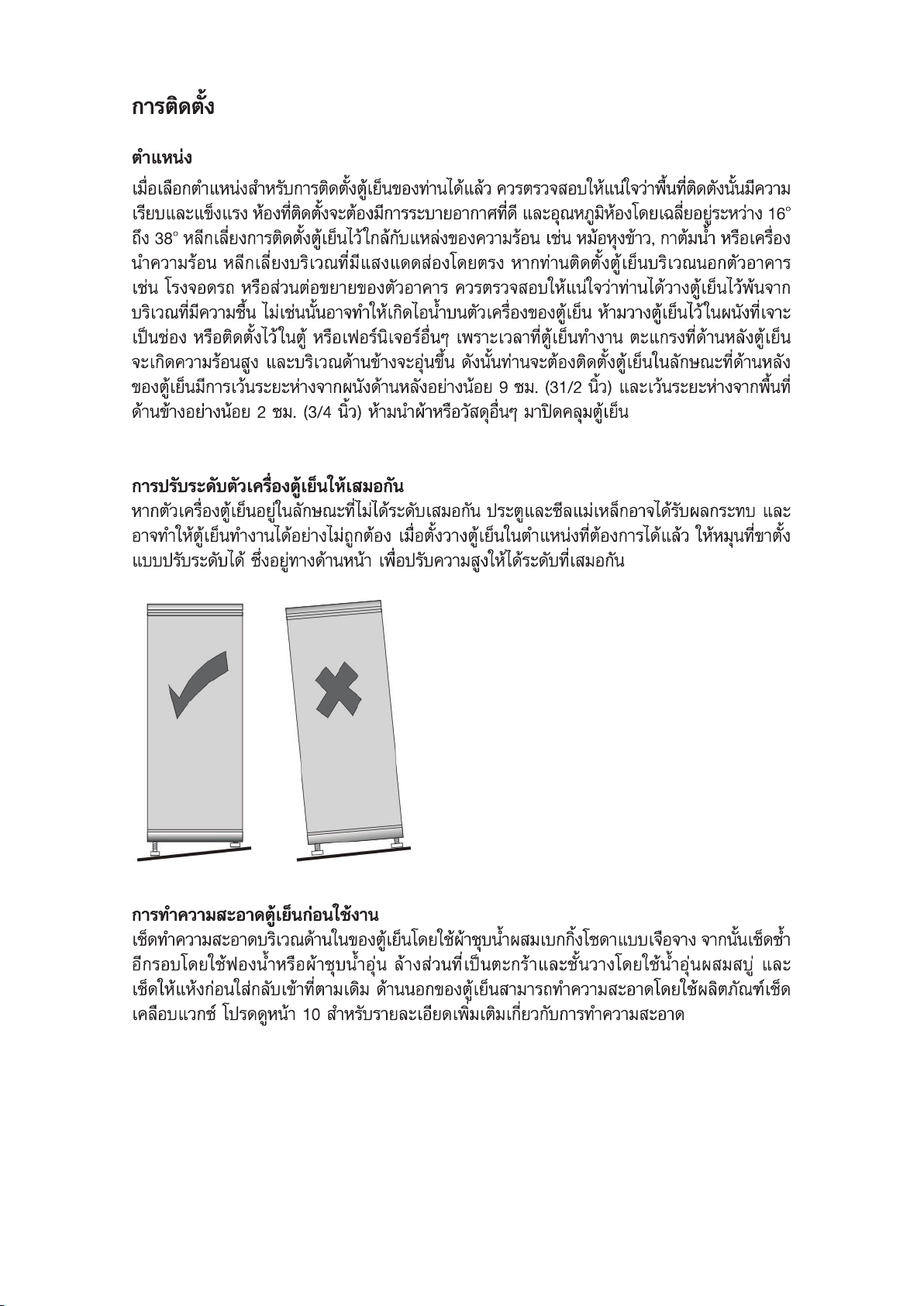

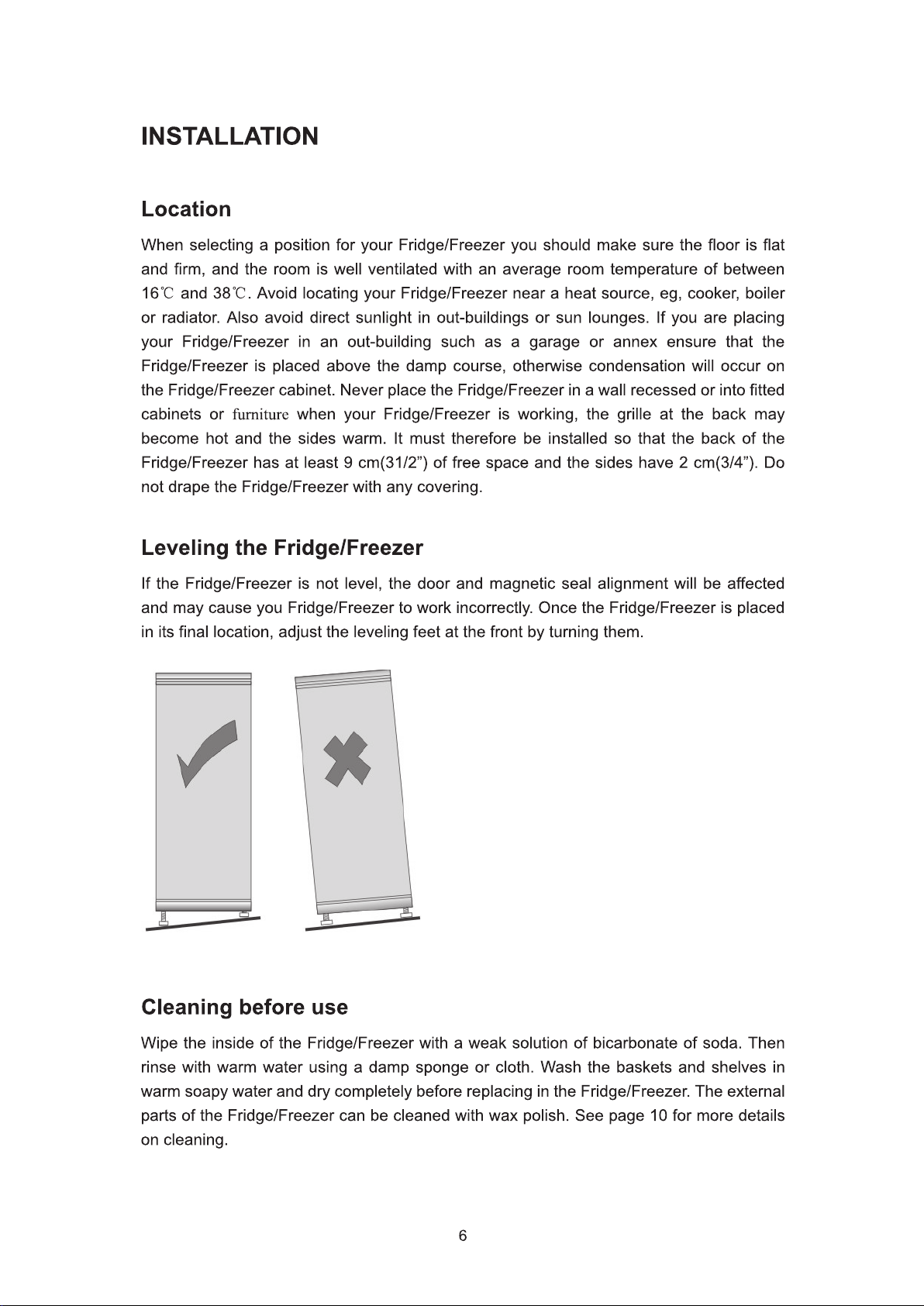

Leveling the Fridge/Freezer
Make sure the Fridge/Freezer is level. Use the rotating leveling feet at the front. If the
Fridge/Freezer is not level, the doors and magnetic seal alignments will be affected and
may cause your Fridge/Freezer to work incorrectly.

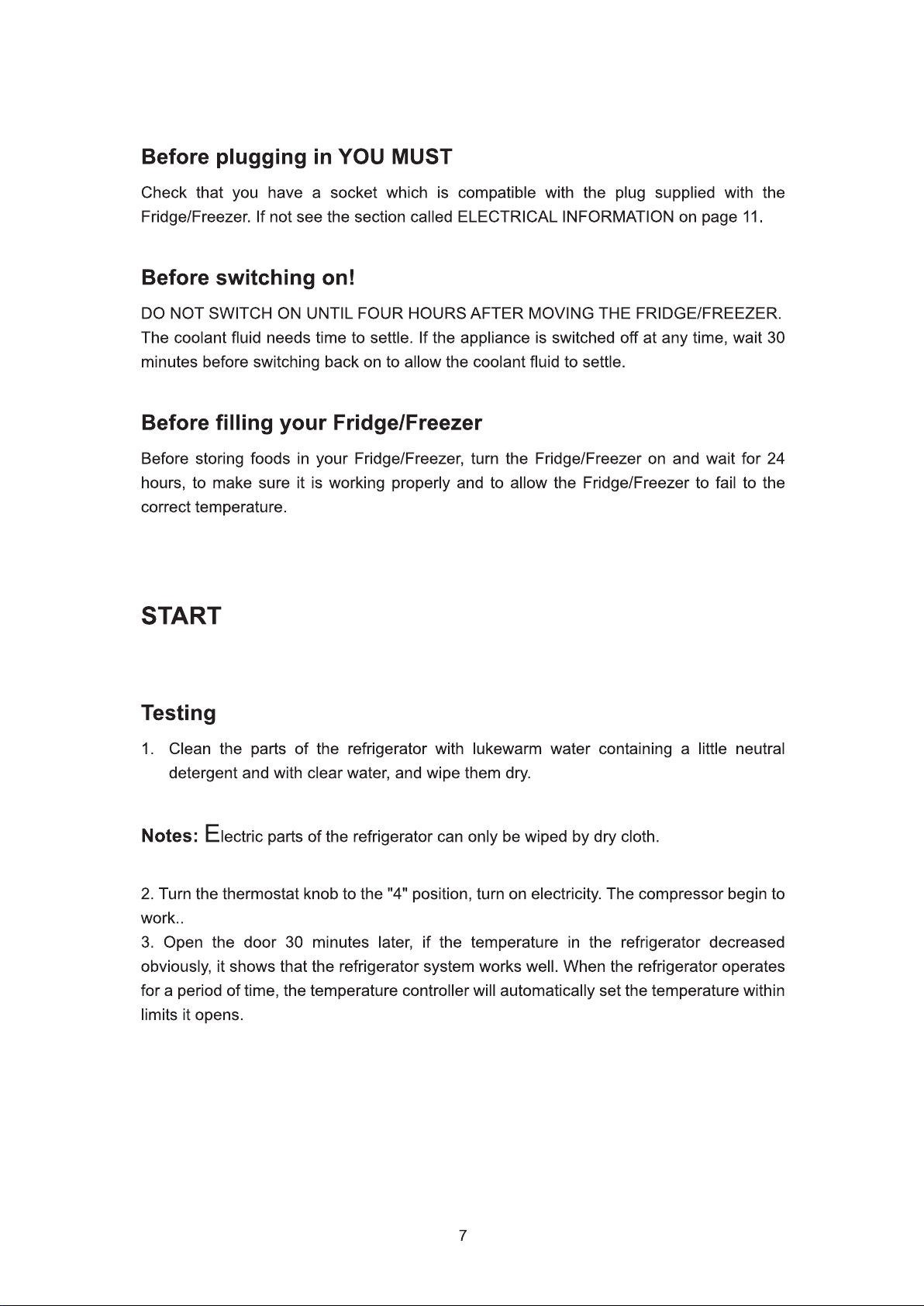

Do not turn on the Fridge/Freezer for 4 hours
After the Fridge/Freezer is in place it needs to be left for 4 hours. This allows time for the
coolant to settle.
Installation
Donÿt cover or block the vents or grilles of your appliance.
Vacation Time
•Turn off the refrigerator first and then unplug the unit from the wall outlet.
•Remove all the food.
•Clean the refrigerator.
•Leave the lid open slightly to avoid possible formation of condensation, mold, or
odors.
•Use extreme caution in the case of children. The unit should not be accessible to
child’s play.
•Short vacations: Leave the refrigerator operating during vacations of less than three
weeks.
•Long vacations: If the appliance will not be used for several months, remove all food
and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly: blocking it open if necessary or have
the door removed.
Servicing
This product should be serviced by an authorized engineer and only genuine spare parts
should be used.
13

Under no circumstances should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.
Contact the local store where your purchase was made.
When the appliance is not in use for long periods, disconnect from the electricity supply,
empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant
smells.
ELECTRICAL INFORMATION
THIS APPLIANCE MUST BE EARTHED.
This appliance is fitted with a plug which will be suitable for use in all houses fitted with
sockets to current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully
disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a
socket.
Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and collection
systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
14

2

3

4

5

6

7
