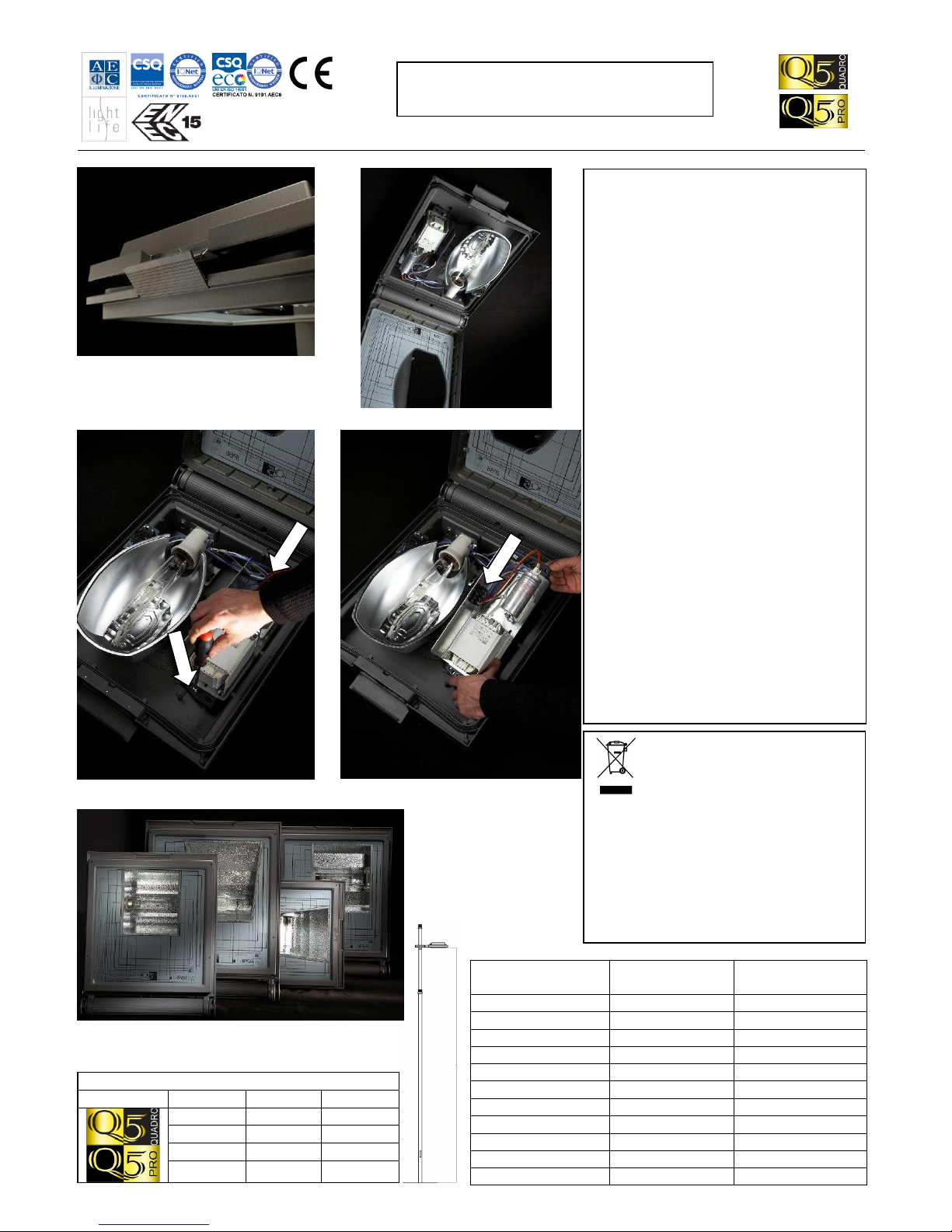

AEC Q5 Pro Technical specifications

MOUNTING AND MAINTENANCE
INSTRUCTION
Q5 AS-OP-S-SM45-SP_IM_ENG - Rev.13 of 16/09/16 Pag. 1 of 4
AS - OP - S - SM45 - SP
Made in Italy
Pic. 1
Pic. 2
H
Suggested height of installation
Model
Power [W]
H min [m]
H max [m]
100W
7
12
150W
7
13
250W
7
14
400W
8
18
MOUNTING AND MAINTENANCE
The system connection, on pole/bracket or
on wall mounting, allows to install the
luminaire parallel to the ground. See related
section for particular fixing on pole, bracket
or wall mounting.
To gain access to the electrical parts, unlock
and open the frame [Pic. 1]. The lower
frame will open and stopping in vertical
position [Pic. 2].
To connect the luminaire to the electrical
line, insert the cable into the cable clamp
and then connect it to the on-load switch.
Tighten the cable clamp with an adjustable
wrench of:
- Q5 QUADRO: 28 mm - 10Nm
- Q5 PRO: 24mm - 7.5Nm
The feeding of the fitting must be done with
a bipolar cable with diameter between:
- Q5 QUADRO: 7 ÷ 10,5mm with standard
gasket;
9 ÷ 13mm with the
appropriate gasket.
- Q5 PRO: 8 ÷ 13mm
When it is necessary, you can take away the
gear tray, loosen the two screws (A-B) and
disconnect the main and lamp connectors
(C) [Pic. 3-4].
To reinsert the gear tray, put it in right
position and then tighten the screws and
reinsert the connectors.
ATTENTION, high voltage danger with RX7
and FC2 lamp holder.
A
B
Pic. 4
C
Pic. 3
Pic. 5
Luminaire version
Incoming cables
Max luminaire in
cascade
Q3 PRO 70W SHP
2x1,5
25
Q3 PRO 100W SHP
2x1,5
18
Q3 PRO 150W SHP
2x1,5
12
Q5 PRO 250W SHP
2x2,5
12
Q5 PRO 400W SHP
2x2,5
7
Q3 PRO 35W MHL
2x1,5
47
Q3 PRO 70W MHL
2x1,5
24
Q3 PRO 100W MHL
2x1,5
18
Q3 PRO 150W MHL
2x1,5
12
Q5 PRO 250W MHL
2x2,5
12
Q5 PRO 400W MHL
2x2,5
7
This product complies with EU Directive 2002/95/EC.
The crossed-out wastebasket symbol on the appliance
means that at the end of its useful lifespan, the product must
be disposed of separately from ordinary household wastes.
The user is responsible for delivering the appliance to an
appropriate collection facility at the end of its useful lifespan.
Appropriate separate collection to permit recycling,
treatment and environmentally compatible disposal helps
prevent negative impact on the environment and human
health and promotes recycling of the materials making up
the product. For more information on available collection
facilities, contact your local waste collection service.
INFORMATION TO THE CUSTOMERS
Directive 2002/96/EC (Waste Electrical and
Electronic Equipment - WEEE):
information for users.

MOUNTING AND MAINTENANCE
INSTRUCTION
Q5 AS-OP-S-SM45-SP_IM_ENG - Rev.13 of 16/09/16 Pag. 2 of 4
AS - OP - S - SM45 - SP
Made in Italy
Post top and bracket mounting
Dimensions
Mounting
Mount the bracket to the pole through the 4 8MA x 100 screws (A). Tighten the 4 screws (A) with a set screw wrench of 6mm applying a
twisting moment of 8Nm. Connect the Q5 fixing support to the selected compatible bracket through the two 12MA x 70 screws (B). Tighten
the screws with a set screw wrench of 10mm applying a twisting moment of 30 Nm. Tighten the two 12MA x 40 screws with a set screw
wrench of 10mm applying a twisting moment of 60Nm to fix the fitting in horizontal position (C). See particular bracket mounting
instructions for furthers details.
B
C
Wall mounting or MQ bracket mounting
Dimensions
Mounting
Connect the Q5 through the wall mounting support according to the indicated holes interaxes (A). Tighten the screws with the correct twisting
moment. Choose the horizontal inclination then tighten the two 12MA x 40 screws with a set screw wrench of 10mm applying a twisting
moment of 60Nm to fix the fitting in position (B). See particular mounting accessories instructions for furthers mounting positions and
solutions.
Wall mounting support E
Dimensions
Mounting
Connect the Q5 through the wall mounting support E according to the indicated holes interaxes (A). Tighten the screws with the correct
twisting moment. Choose the horizontal inclination then tighten the two 12MA x 40 screws with a set screw wrench of 10mm applying a
twisting moment of 60Nm to fix the fitting in position (B). See particular mounting accessories instructions for furthers mounting positions
and solutions.
C
B
B
A
A
B
A
C
B
B
A

MOUNTING AND MAINTENANCE
INSTRUCTION
Q5 AS-OP-S-SM45-SP_IM_ENG - Rev.13 of 16/09/16 Pag. 3 of 4
AS - OP - S - SM45 - SP
Made in Italy
CPO White
MHL
SHP
White Son
140W
100W
150W
250W
400W
100W
150W
250W
400W
100W
Optic
Optic
Optic
Optic
Optic
Optic
Optic
Optic
Optic
Optic
E27
NO OP
NO OP
E40
NO OP
NO OP
NO OP
NO OP
NO OP
NO OP
NO OP
NO OP
FC2
NO SP
NO SP
NO SP
NO SP
G12
NO OP
NO OP
G22
NO OP
PG12-1
NO OP
PGX12-2
NO OP
PGZ12
NO OP
RX7S
NO SP
RX7S-24
NO SP
NO SP
0.10 m2
Form Factor: 1,2
Area exposed to the wind
0.29 m2
A- Ballast
L- Lamp
f–Fuse
(500V)
C- Capacitor
Z- Ignitor
WIRING SCHEME
SHP - White Son
MHL
WIRING SCHEME
Cosmopolis
Fluorescenti Compatte
L
N
L
Out
A
In
Model
Power [W]
Peso [gr]
Empty
With control gear
100W
9500
13000
150W
14000
250W
15000
400W
17000
ELECTRICAL LINE CONNECTION
< 25 mm
67mm
In order to insure double insulation
characteristic of the feeder cable, we
would advise that you first secure the
feeder cable to the internal cable
clamp, remove approximately 25mm of
external sheathing, and 6mm of
sheathing from the internal wires.
ATTENTION
a) The luminaire can be installed close to flammable surfaces.
b) High voltage danger with RX7 and FC2 lamp holder.
c) Outdoor luminaire for Ta=30°C.
d) Class II luminaires must be installed in such a way that it is impossible for any exposed metal part to come in contact with
electrical components.
e) Luminaires for Metal Halide lamps must be always complete with its protective screen.
f) For luminaires with Metal Halide lamps, damaged protective shields can only be replaced with original AEC Illuminazione’s
replacement shields.
g) On luminaires for Metal Halide lamps use only UV Stop protected lamps.
h) This luminaire has been designed and manufactured following all relevant standards. The installation must be done by
experienced personnel and following the instructions.
The present instruction paper has to be kept for any future maintenance operation on the luminaire.
Non compliance with the above will automatically release AEC Illuminazione Srl from any responsibility.

MOUNTING AND MAINTENANCE
INSTRUCTION
Q5 AS-OP-S-SM45-SP_IM_ENG - Rev.13 of 16/09/16 Pag. 4 of 4
AS - OP - S - SM45 - SP
Made in Italy
OPTIC
ATTACHMENT
LAMP
POS
AS45 / AS65
E27
100W MHL-E
F
AS45 / AS65
E27
150W MHL-E
F
AS45 / AS65
E40
100W MHL-T
A
AS45 / AS65
E40
150W MHL-T
A
AS45 / AS65 / SP
E40
250W MHL-T
B*
AS45 / AS65 / SP
E40
250W MHL-T
C**
AS45 / AS65
E40
400W MHL-T
D
AS45 / AS65
E40
100W SHP-T
A
AS45 / AS65
E40
150W SHP-T
A
AS45 / AS65
E40
250W SHP-T
C
AS45 / AS65
E40
400W SHP-T
D
AS45 / AS65 / S / SM45
FC2
250W MHL
2A
AS45 / AS65 / S / SM45
FC2
400W MHL
2B
AS45 / AS65 / S / SM45
FC2
250W SHP
2B
AS45 / AS65 / S / SM45
FC2
400W SHP
2B
AS45 / AS65
G12
150W MHL
F+spacer
AS45 / AS65
G12
250W MHL
F+spacer
AS45 / AS65
G22
250W MHL
F
AS45 / AS65
PG12-1
100W SHP-White
E
AS45 / AS65
PGX12-2
150W MHL
E
AS45 / AS65 / S / SM45
RX7S
150W MHL
1A
AS45 / AS65 / S / SM45
RX7S-24
150W MHL
1A
AS45 / AS65 / S / SM45
RX7S-24
150W SHP
1A
AS45 / AS65
PGZ12
140W CPO
E
S / SM45
E27
100W MHL-E
B2 rot
S / SM45
E27
150W MHL-E
B2 rot
S / SM45
E40
100W MHL-T
C1
S / SM45 / SP
E40
150W MHL-T
C1
S / SM45
E40
250W MHL-T
D1*
S / SM45
E40
250W MHL-T
E1**
S / SM45
E40
400W MHL-T
F1
S / SM45
E40
100W SHP-T
C1
S / SM45
E40
150W SHP-T
C1
S / SM45
E40
250W SHP-T
E1
S / SM45
E40
400W SHP-T
F1
S / SM45
G12
150W MHL
B2 rot
+ spacer
S / SM45
G12
250W MHL
B2 rot
+ spacer
S / SM45
G22
250W MHL
B2 rot
S / SM45
PG12-1
100W SHP-White
A2 rot
S / SM45
PGX12-2
150W MHL
A2 rot
S / SM45
PGZ12
140W CPO
A2 rot
SP
E27
100W MHL-E
E rot
SP
E27
150W MHL-E
E rot
SP
E40
100W MHL-T
D
SP
E40
150W MHL-T
D
SP
E40
250W MHL-T
D
SP
E40
400W MHL-T
A
SP
E40
100W SHP-T
D
SP
E40
150W SHP-T
D
SP
E40
250W SHP-T
B
SP
E40
400W SHP-T
A
SP
G12
150W MHL
E rot
+ spacer
SP
G12
250W MHL
E rot
+ spacer
SP
G22
250W MHL
E rot
SP
PG12-1
100W SHP-White
F rot
SP
PGX12-2
150W MHL
F rot
SP
PGZ12
140W CPO
F rot
OP
RX7S-24
150W MHL
OP
RX7S
150W MHL
OP
RX7S-24
150W SHP
OP
FC2
250W MHL
OP
FC2
400W MHL
OP
FC2
250W SHP
OP
FC2
400W SHP
AS45/AS65
Lamp holder support
Lamp holder plate
AS45/AS65 double
attachment
Lamp hoder plate
SM45/S
Lamp holder support
Lamp holder plate
SM45 double
attachment
Lamp holder plate
OP double attachment
Lamp holder plate 150W
Lamp holder plate 250-400W
S double attachement
Lamp holder plate
S / SM45 OPTIC
NORMAL position
ROTATED position
SP
Fix lamp
holder support
Mobile lamp
holder plate
SP OPTIC
NORMAL
ROTATED
* lamp with quartzitic burner
** lamp with ceramic burner
