AED AUDIO FLEX6 User manual

This manual is subject to change without further notice. No rights can be derived from this manual. No part
of this manual may be reproduced, in any form or by any means, without prior written consent from AED
Distribution NV, Belgium. AED Audio is a registered trademark of AED Distribution NV.
User manual

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Table of contents
The AED Audio Flex6 Manual.......................................................................................................4
Introduction................................................................................................................................4
Disclaimers ................................................................................................................................4
Intended use..............................................................................................................................4
Symbol description .................................................................................................................... 5
Symbols used......................................................................................................................... 5
Abbreviations used.................................................................................................................... 5
Revision history...................................................................................................................... 5
Contact details Manufacturer..................................................................................................... 6
Manufacturer’s declarations ...................................................................................................... 6
EU declaration of conformity..................................................................................................6
Licenses and credits .............................................................................................................. 6
General Safety information and general safety instructions .........................................................7
Warnings.................................................................................................................................... 7
Safety features & devices of the Product .................................................................................. 7
Other safety notes ..................................................................................................................... 8
Modification................................................................................................................................8
System components...................................................................................................................... 9
General characteristics and technical specifications................................................................. 9
Technical data........................................................................................................................9
Dimensions drawing ...............................................................................................................10
Transportation, handling and commissioning ............................................................................. 11
Transportation..........................................................................................................................11
Remove the shipping assembly............................................................................................... 11
Installation ...................................................................................................................................11
Loudspeaker configurations........................................................................................................12

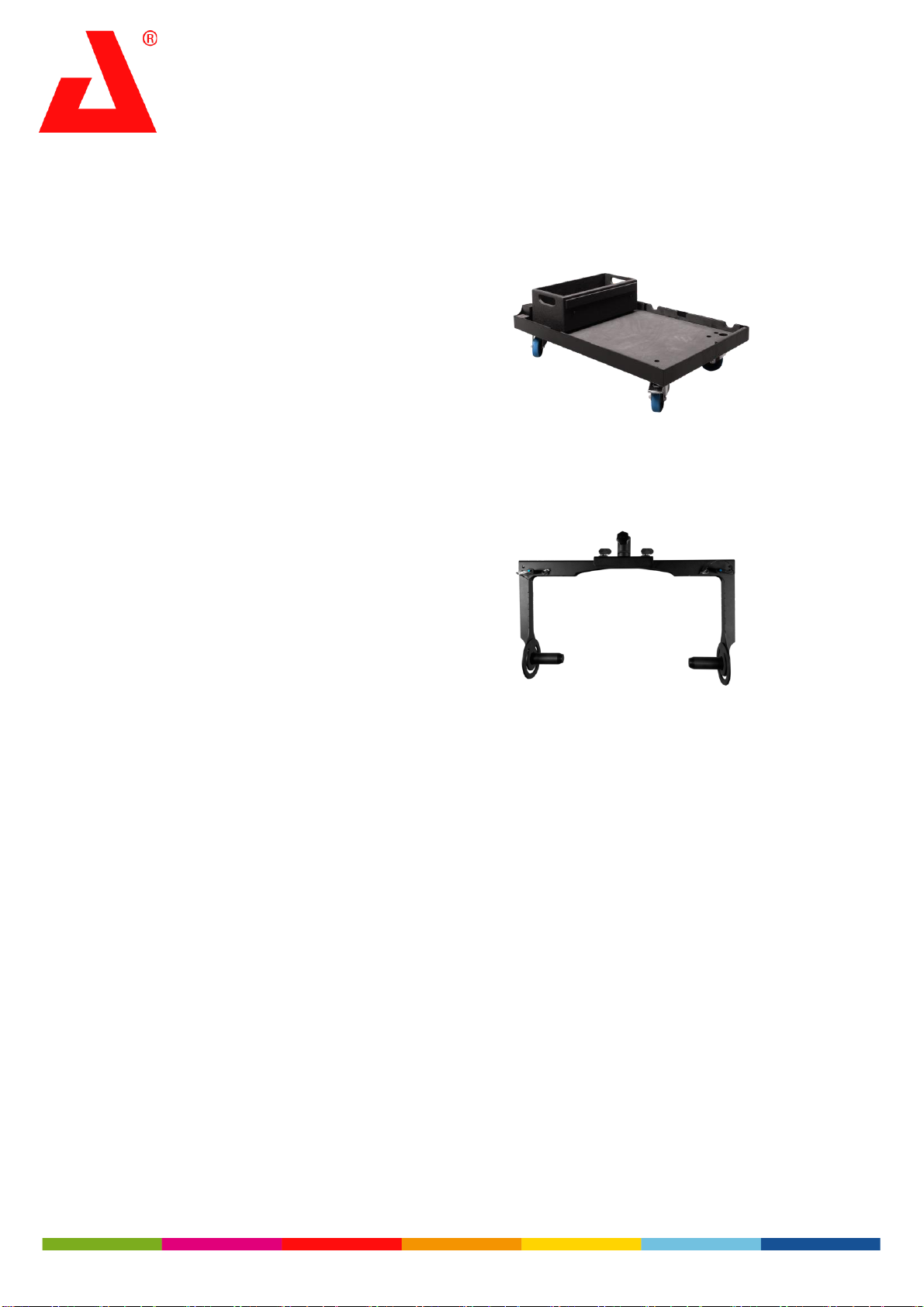

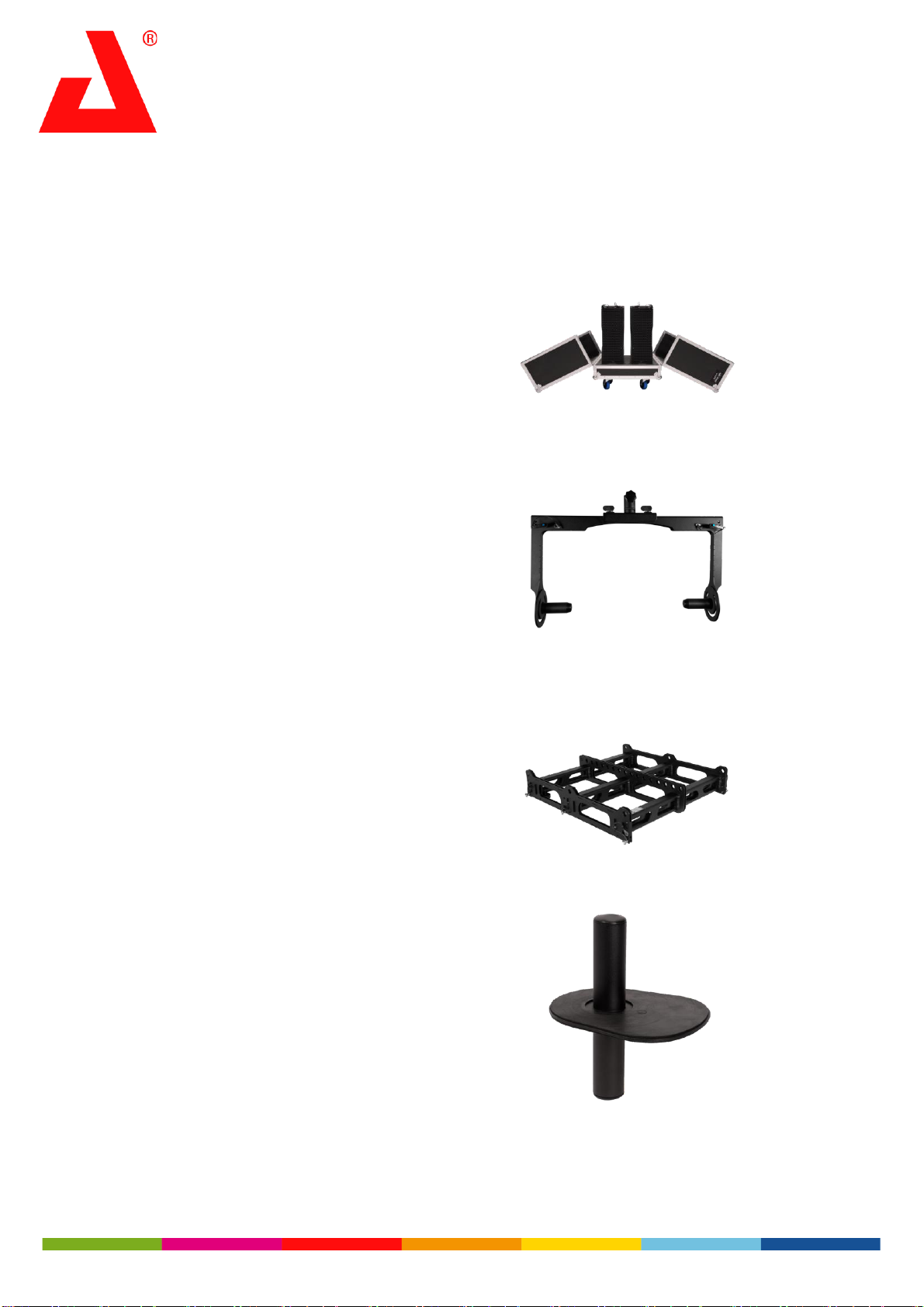

Accessories .............................................................................................................................13
Operation.....................................................................................................................................15
Powering on/ off.......................................................................................................................15
Using the main menu...............................................................................................................15
Maintenance................................................................................................................................16
Troubleshooting and repair .........................................................................................................16
Fault list ...................................................................................................................................16

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Repair ......................................................................................................................................17
Contact details certified repair center .................................................................................. 17
Notes...........................................................................................................................................18

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
The AED Audio Flex6 Manual
Introduction
Thank you for purchasing this AED Audio Flex6.
The FLEX6 loudspeaker is the only professional multipurpose audio product available
worldwide on the market, useable for a variety of applications. Because of its multi-purpose way
of deployment, this 1.300W RMS powered speaker can be used in several ways. Put the FLEX6
on a pole, stack it and create a column array, fly it as a line array up to sixteen cabinets, put two
horizontally on a pole in a sub-top combination, etc.
This manual (hereinafter referred to as the “Manual”) is intended to be used as work of
reference for professional, well trained and authorized users to be able to safely install, use,
maintain and repair the product mentioned on the cover of this document (hereinafter referred to
as the “Product”). The observation of the Manual does not dispense the user from the
observance of the local safety instructions and regulations other than provided by the Manual.
Such safety instructions and regulations must be observed at all time.
For information about specific adjustments, maintenance or repair jobs which are not dealt
within this manual, please contact your Product supplier or AED Audio. If you suspect that the
Product is damaged or detect a potential or actual danger when using the Product, immediately
discontinue use of the Product and contact your supplier. To ensure the safe use of the Product
this Manual must always be kept with the Product in legible condition.
Disclaimers
AED Audio, AED DISTRIBUTION SA, with registered office at Bedrijvenpark De Veert 13/4,
2830 Willebroek (Belgium), or any of its affiliates, does not accept any liability for material
damage, including damage to the Product, or personal injury caused by non-observance by the
user of the safety instructions in the Manual or the applicable laws. As such AED Audio shall
among others not be liable for any damage or injury if the Product is used contrary to or for
purposes other than its intended use, is installed, used, maintained or repaired negligently or
contrary to the instructions mentioned in the Manual or on the Product, when the Product is
modified and when the safety devices and features of the Product are disregarded or
overridden.
Intended use
This system is intended for use by trained personnel for professional applications. The Product
is not intended to be used by minors. Any use, regardless whether or not under the supervision
of an adult, is at own risk.

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Symbol description
Symbols used
►
Information and tips to ease things for you as you use your AED Audio Flex6.
@
References to the online AED Audio website, where you can find interesting further
information: https://www.AEDAudio.com
!
Prompt to take action. This symbol means that you are being prompted to perform
some action.
Abbreviations used
Abbreviation
Definition
Revision history
Version number
date
update
1.0.0
Initial version
1.2.0
Update Overview Accessories

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Contact details Manufacturer
AED Distribution
Bedrijvenpark De Veert 12,
2830 Willebroek –Belgium
Tel.: [phone]
Mail: [email protected]
http://www.aedaudio.com
Manufacturer’s declarations
EU declaration of conformity
Licenses and credits

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
General Safety information and general safety instructions
For your own safety, please read this instruction manual carefully before turning on the product
for the first time.
Warnings
Always take note of any information marked with the CAUTION or WARNING symbol.
CAUTION
The signal word WARNING points out the potential risk of serious injury.
WARNING
The signal word CAUTION points out the potential risk of slight injury. The
CAUTION symbol is used to draw attention to circumstances which could
cause the machine to become damaged.
Safety features & devices of the Product
The pictograms, warnings and instructions attached to the Product are part of its safety
features. They must not be covered or removed and must be present and legible during the
entire use of the Product. Immediately replace or repair missing, damaged or illegible
pictograms, warnings and instructions.
The products referred to in this manual conform to the European Community
Directives and are therefore marked with CE logo.
Before operate this unit, please carefully read this users guide and keep if
needed in future.
The device can only run with 240V voltage, 50/60 Hz power, don’t connect to
any other wrong power source.
Safety I class device, need to be earth connected.
Keep this device away from children and unauthorized users, the manufacturer
will not take responsibility for the damage due to any disregard of the
information provided in this manual and wrong operation.
Don’t put or install the device on a surface that subject to vibration or bumps.

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Other safety notes
Errors caused by not following these instructions are not covered by the warranty. The
manufacturer will not accept liability for any resulting defects or problems.
•Keep the unit away from radiators or other heat sources!
•If the unit has been exposed to tremendous temperature changes (e.g. after
transportation), do not turn the device on immediately. The resulting condensation could
damage the unit. Don’t switch the unit on until the device reaches room temperature.
•This device belongs to protection class I. Therefore, it is imperative that the
green/yellow wire is connected to the earth contact or plug. The electrical connection
must be made by a qualified person.
•Make sure that the cable has never been squeezed or damaged by sharp objects.
Check the device and the power cables regulair.
•If the cable is damaged, it must be replaced immediately by the manufacturer, it’s a
service agent or qualified person in order to avoid danger.
•Ensure that wires never come in contact with other wires! Handle the power cord and all
connections with caution!
•Make sure that the line voltage is not higher than the voltage specified in this manual.
•Disconnect the unit from the AC mains when it is not in use or when cleaning it.
•The plug on the power supply cord is used as disconnect device, the socket-outlet shall
be easily accessible.
Modification
Under no circumstances any modification of the Product may be done by any person other than
AED Audio.

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
System components
General characteristics and technical specifications
Technical data
Type
Flex6
Configuration
Multipurpose powered line source speaker
LF transducer
2x 6.5” Neodymium
HF transducer
1x 1.4” 3” voice coil Neodymium
Frequency response -6 dB
65 –18 kHz
Frequency response -10dB
60 –18 kHz
Coverage angle
15° x 100° - rotatable horn
Maximum rated SPL
130 dB
Amplifier
Class D | 1.300W RMS –2.600W peak
AC power input
100 VAC - 3,6A | 120 VAC - 3A | 240 VAC - 1,5A
Controls
Power - Rotary encoder - Selection button - 2x Level
Indicators
LCD display - Rotatable multipurpose front LED indicator (power,
limiter, network, off) - 3x signal LED - Network LEDs
Connectors
2x XLR/F 1/4" combo - 2x XLR/M loop through - 1x XLR/M mix out
- 2x RJ45 4x4 Dante(AES67) & Control
Extra connectivity
Multicast Bluetooth© receiver/sender - NFC
Enclosure
Aluminium - Wood
Color
Black (RAL 9011)
Grill
Powder coated steel - Internal lining
Dimensions (WxHxD)
240 x 590 x 395 mm | 9.45 x 23.23 x 15.55 inch
Net Weight
16 kg - 35.27 lb
Attachment
Internal rigging - 2x pole mount
Optional accessories
Yoke –Flex protect - Vertical coupler - Rigging bumper –
Flight case for 2x Flex6 –Touring dolly
Power cable included
Not included

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Dimensions drawing

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Transportation, handling and commissioning
Transportation
Keep the product dry and the temperature between 0°C and 30°C to avoid damage to the
speaker. Please always handle with care.
Remove the shipping assembly
Before unpacking the fixture, please make sure that the packaging is in good condition and that
following items will be found in the box:
1x FLEX6
Remove the tape from the box and open the box. Take the unit out and remove the plastic foil
around the unit. Make a visual inspection of the unit. Please check condition of units while
unpacking, if any damages occur, the unit must be repaired/replaced before it can be used.
Please contact your local distributor for service. If units are damaged and still used, AED Audio
cannot be held liable for any risk/danger or occurrence given by these damaged units.
Installation
There are specific regulations like BGV C1 (old VBG 70) or country related regulations which
need to attend during the installation. The installation has to be handled by skilled persons only!
Suspension device has to be built and calculated in order to handle up to 10 times its specific
load limit over a time of one hour without permanent or harmful deformation.
Installation has to be done with a separate, independent suspension device like a safety chain.
Trespassing the danger zone below the installation during the assembling is prohibited.
Installer has to take care of all safety and machinery installations are approved by authorized
persons before first operation or after changes before restarting.
Installer has to take care of all safety and machinery installations are approved by skilled
persons at least once a year.
Installer has to take care of all safety and machinery installations are approved by authorized
persons every four years during the acceptance inspection. Spotlight should ideally installed
outside peoples lounge area.
Attention
Installation overhead needs a high level of experience. This includes (but is not just limited to)
calculation and definition of load capacity, used installation material and regular safety
inspections of used material and the fixture itself. Never try to do the installation by yourself if
you are not qualified, instead you have to instruct a skilled installer. Inappropriate installations
can cause injuries and/or damage of property.
Mounting place must be sufficient stable and be able to support a weight of 10 times of
the unit’s weight.
Assure the specified safety distances to flammable material.

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Loudspeaker configurations

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Accessories
FLIGHT CASE 2X FLEX6
Flight case for 2x Flex6 speakers
YOKE
Yoke mount for 2x Flex6 or 1x Solid15
For max. 2x Flex6 or 1x Solid15
2x brackets without clamp, 1x pole
mount piece included
Compatible for 30cm and 40cm truss
(with quick lock)
Completely foldable
Fix install directly against a ceiling/
wall possible
RIGGING BUMPER
Rigging bumper for Flex6 and Solid15
Fly up to 16x Flex6 or 8x Solid15 or
any combination in between
Multiple pick points for 1-hoist hangs
Lightweight (<13 kg | 29.8 lb.)
VERTICAL COUPLER
For vertical stacking
Vertical stacking of Flex6, Solid15
and Solid28
Can be used in all handles on all the
AED Audio speakers
Metal piece, covered with rubber to
protect the wood on the cabinets

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
TOURING DOLLY
Universal Touring dolly
Flexible Touring Dolly for SOLID15/28 &
MULTI SUB
Fits multiple SOLID15's (optionally
stacked with FLEX6's)
Fits 1x SOLID28 (optionally stacked with
SOLID15's and/or FLEX6's)
Fits multiple MULTI SUB's (optionally
stacked with MULTI12's)
Keep cabling connected during transport
Movable wooden cable tray and blue
wheels included
YOKE
Yoke mount for FLEX6 or SOLID15
For max. 2x FLEX6 or 1x SOLID15
2x brackets*, 1x pole mount piece
included
Compatible for 30 cm and 40 cm
truss (with quick lock)
Completely foldable
Fix install directly against a
ceiling/wall possible
* without clamps

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Operation
Powering on/ off
Turn on or off the device by flipping the rocker switch at the backside of the speaker.
Using the main menu
Use the menu and back button to navigate through the menu.
Line
Line
Mic
PRESETS
Full Range
Top HPE
Line-Array HPE
DELAY
m / feet / msec
Settings
BLUETOOTH
Device name
Connect
Group & Name
Name
State
ID
Group
NETWORK
IP / subnet
device number / Unique name
General
Brightness
LED
Locate
Lock
Self Test
Start
Info
Software
Hardware
S/N
Default Setting
Yes / No

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
EQ
eq1/ shelf filter
Freq / Q / gain
eq2
Freq / Q / gain
eq3
Freq / Q / gain
eq4/ shelf filter
Freq / Q / gain
FLAT
Yes / No
Maintenance
Operation only allowed to qualified person, damages due to unprofessional operation or remove
of any parts inside will not be considered in warranty service. There are no serviceable parts
inside the device or package, service only leaves to authorize dealers.
Troubleshooting and repair
Fault list
Problem
Fault message
Solution
The unit will not turn on.
n/a
Connect the power plug to the outlet
Turn on the device with the on/off switch

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Repair
If the Product is damaged or malfunctions, contact the AED Audio Service Department or a
AED Audio authorized distributor. Repairs by parties other than AED Audio or a AED Audio
authorized distributor may not involve the use of AED Audio genuine parts and may affect the
safety and functionality of the Product. For repair options or specific inquiries, please contact
the AED Audio Service Department.
Contact details certified repair center
AED Repair
Bedrijvenpark De Veert 11,
2830 Willebroek –Belgium
Mail: [e-mail]
https://www.aedgroup.com/en/services/aed-repair

Installation and User instructions
Version:
V1.2.0
Date:
04/10/2023
AED group | Bedrijvenpark De Veert 12, 2830Willebroek - Belgium | [phone] | www.aedgroup.com
Notes
All rights reserved. No part of this manual may be copied or published by means of printing,
photocopying, microfilm or otherwise without the prior written consent of the manufacturer. This restriction
also applies to the corresponding drawings.
The information given in this manual has been collected for the general convenience of our customers. It
has been based on general data pertaining to construction material properties and working methods
known to us at the time of issue of the manual and is therefore subject at any time to change or
amendment, and the right to change or amend is hereby expressly reserved. The instructions in this
manual only serve as a guideline for installation, use, maintenance and repair of the product mentioned on
the cover page of this document. This manual is to be used for the standard model of the product of the
type given on the cover page. Thus the manufacturer cannot be held responsible for any damage resulting
from the application of this manual to any other product.
This manual has been written with great care. However, the manufacturer cannot be held responsible,
either for any errors occurring in this manual or their consequences.
