AEG Electrolux SV4028 User manual

Model SV4028 / SV5028
Type C-5000S / C-6100S
User Manual Spin Dryer

2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control – indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an
integral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we
recommend you to keep it in a safe place. And please pass it to any future owner
of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips.
Environmental information.

Contents 3
Contents
Operating instructions
Safety information
Correct use
General safety
Child safety
Installation
Product description
First use
Spin drying time
Daily Use
Placing the laundry in the spin dryer
Turning the spin dryer on
Turning the spin dryer off
Cleaning and care
What to do if...
The spin dryer does not reach the maximum turning speed
or shakes rather strongly while spinning
The motor does not run
No water comes out through the exhaust nozzle
Technical data
Installation instructions
Installation
Electrical connection
Environment concerns
Packaging material
Warranty information
Key word index
4
5
5
5
5
6
6
7
7
7
8
10
11
12
13
13
13
13
14
15
15
15
16
16
16
17

Operating Instructions
Safety information
In the interest of your safety and to ensure the correct use, before installing and
first using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
Correct use
• The spin dryer is intended only for household use and for spin drying damp
laundry.
• This appliance was not designed for commercial or industrial use.
• This product should be serviced only by authorized service personnel, and
only genuine spare parts should be used.
• Never remove the plug from the socket outlet by tugging on the mains cable.
Do it directly from the plug.
• Avoid exposing the spin dryer to atmospheric influences, such as sun, rain, etc.
• In no case fill in the drum with water.
• Do not sit or stand over the spin dryer. Do not place heavy objects on top of it.
• Do not use the appliance next to sinks, bathtubs, showers or to other
containers filled with water.
• It is not recommended to use multiple socket connectors, cable extensions, or
plug adaptors.
• The plug must be pulled out in the following situations:
- In case of a malfunction.
- Before care and maintenance.
- After using the spin dryer.
• Do not lift, transport, tightly grasp, shove relocate, or tip the spin dryer while
it is running.
• Never use excessive force when operating the lever and the lid.
• Do not place rolled-up pieces of laundry inside the drum.
Never place solid objects, toys, any kind of shoes or food inside the drum.
• Switch off the appliance before unplugging it from the socket outlet.
4 Safety information

• Never leave the spin dryer unattended while operating.
This appliance does not switch off automatically, it is advisable to supervise
the operation and switch off the appliance.
• Do not use the spin dryer without locating the retainer disc into the drum
onto the clothes.
• Do not use the spin dryer without putting the water collecting
bowl (not supplied) under the exhaust nozzle.
• When lifting and transporting the spin dryer, always use only the
carrying handles provided for this purpose.
• Cut off the mains cable before recycling or disposing of the spin dryer.
Make sure that the spin dryer is disposed of in compliance with local
regulations.
Safety information 5
General safety
• Improper operation use may damage the appliance and cause damages
to the user.
• Do not use the spin dryer if it or the mains cable are damaged. In case
of any damages, contact your local authorized service centre for checking it
and to avoid any hazard.
• For safety reasons it is dangerous to alter the specifications or attempt to
modify this product in any way.
• Do not use the appliance in corrosive and explosive environment, next to
solvents and paints, in order to avoid electrical circuit breakage explosions.
• Never place the mains cable on sharp edges and keep it away from heat
sources and fire.
• If the mains cable has been damaged, call an authorized service centre
for replacing it.
• Do not touch the spin dryer with wet hands or when you are standing
barefoot on a wet surface.
• Do not use your spin dryer with laundry which is soiled by wax, paint or
combustible fluids. There is danger of fire or explosion!!
• Do not introduce your hands into the drum while it is still turning.
• Do not touch the plug or the socket outlet with wet hands.
• Do not immerse the spin dryer or its plug into water or any other liquids.
If the appliance gets wet or falls into water accidentally, please unplug it
immediately and call your nearest authorized service centre.
In no case immerse your hands into water to recover the appliance without
having first unplugged it. An electric shock may be caused by not following
the above safety rules.

6 Product description
Child safety
• This appliance is designed to be operated by adults. Do not allow children or
unable people to use the spin dryer unsupervised.
• Keep all packaging well away from children. There is risk of suffocation.
• Before using the spin dryer for the first time, remove all the packing material,
internal and external, and dispose of it according to local regulations.
• Check your spin dryer for any transport damage. Never connect a damaged
appliance. If your spin dryer is damaged contact your supplier.
• Before connecting the spin dryer to the socket outlet, please make sure that
the requirements on the rating plate are met by the values of the building
where the spin dryer is installed.
• Do not place the spin dryer near hot stoves or heating units.
• Place the appliance only on flat, dry, heat resistant floors, which do not get
damaged with humidity or water. Do not place the spin dryer on delicate floors
or parquets.
• Place the spin dryer at a suitable distance away from walls or other objects.
Installation

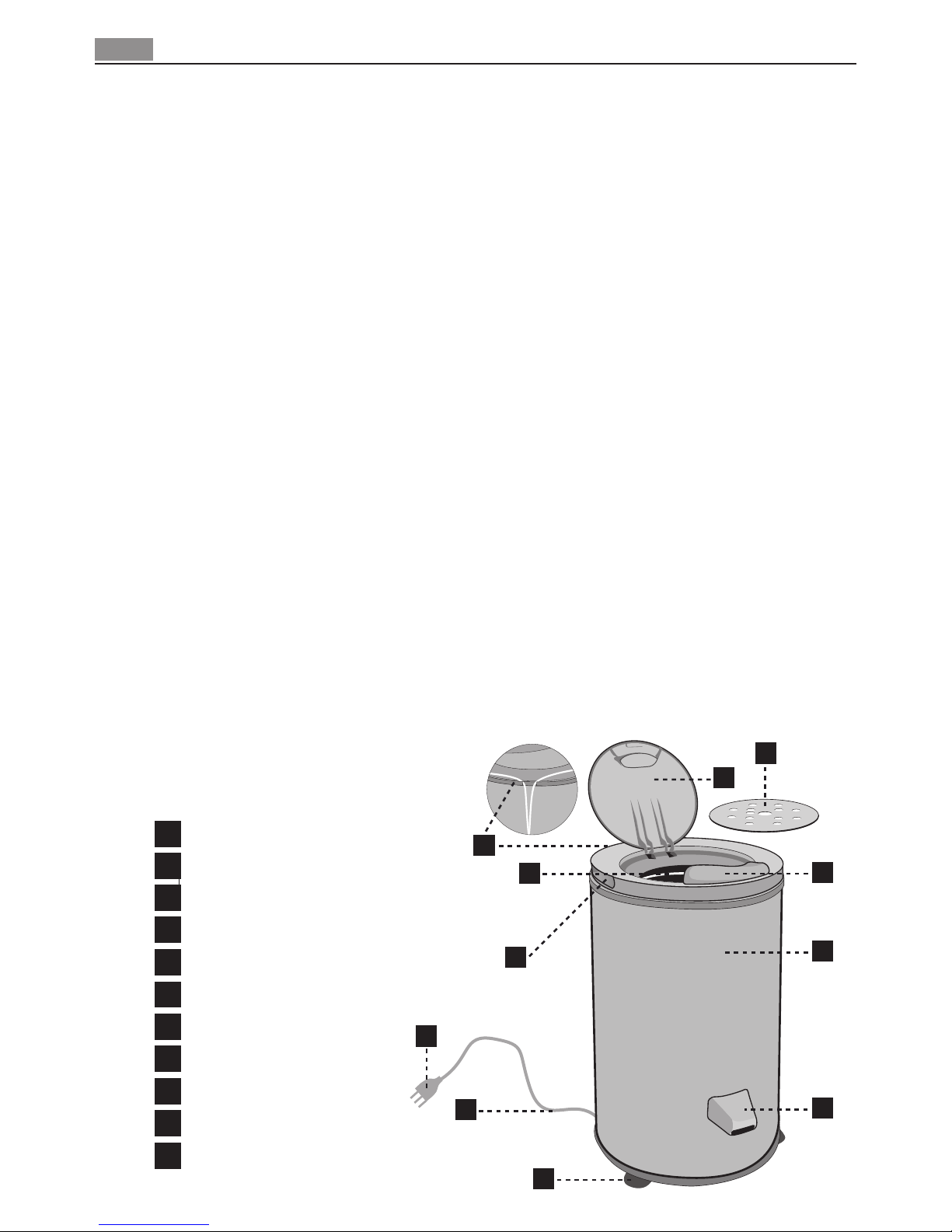

Product description
1 Cable storage fixture
2 Lid
3 Carrying handle
4 Plug
5 Mains cable
6 Foot
7 Exhaust Nozzle
8 Body
9 Lever
10 Drum
11 Retainer disc
4
5
2
11
1
10
3
6
7
8
9

First use 7
Before using your spin dryer for the first time:
• Ensure that the electrical connections comply with the installation instructions.
• Remove all packaging from inside the appliance. Take off the shipping brace
which is inside the drum.
• Clean inside the drum with a dampened cotton cloth using a soft detergent.
Do not use abrasive detergents or solvents.

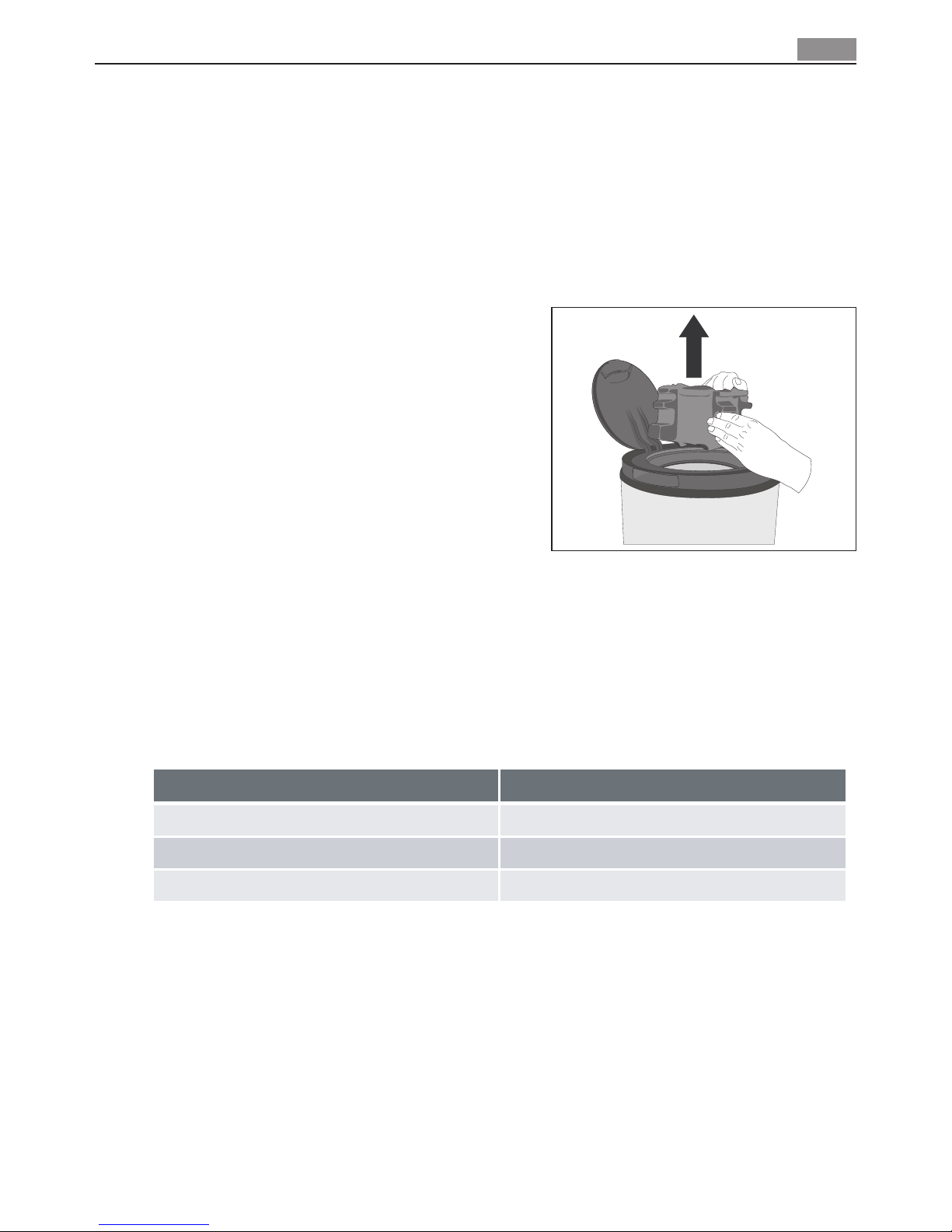

Here is a guide for the spin drying time depending on the kind of clothes.
First use
Spin drying time
Daily use
Use the spin dryer only for drying wet clothes which are suitable for this kind of
treatment.
Make sure that your clothes are suitable and do not get damaged or affected by
the treatment of centrifugal drying at 2,800 turns per minute.
Kind of clothes Spin drying time
Wool 3 min
Synthetics 3 min
Cotton 5 min

8 Daily use

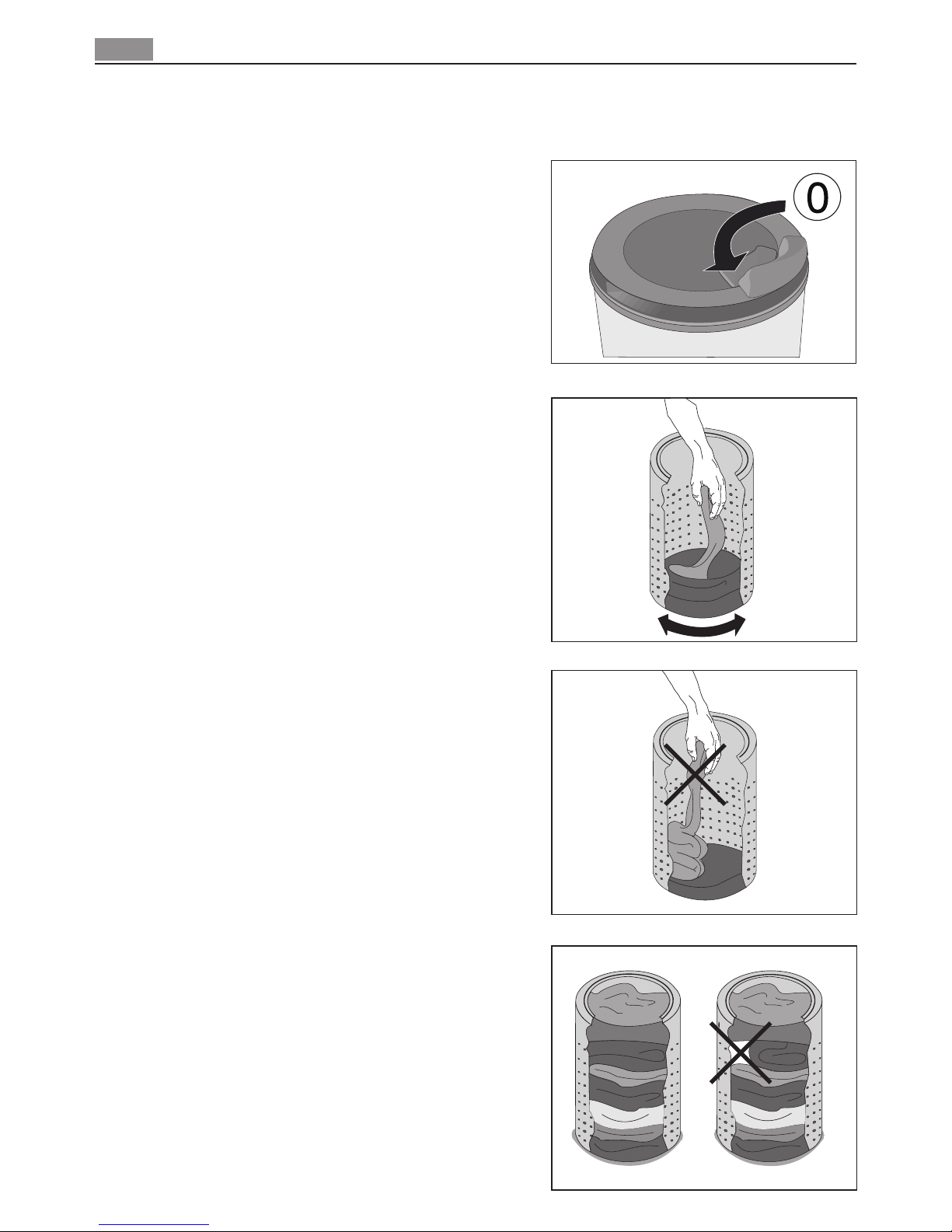

1. Ensure that the lever is in
“0” – OFF position.
2. Place the damp pieces of
laundry inside the drum,
taking good care of arranging
them in a tidy way, in order
to distribute homogeneously the
weight.
Important!
Do not gather the laundry only in
one side of the drum.
Important!
When introducing the laundry,
do not create empty spaces inside
the drum.
Placing the laundry in the spin dryer

Daily use 9

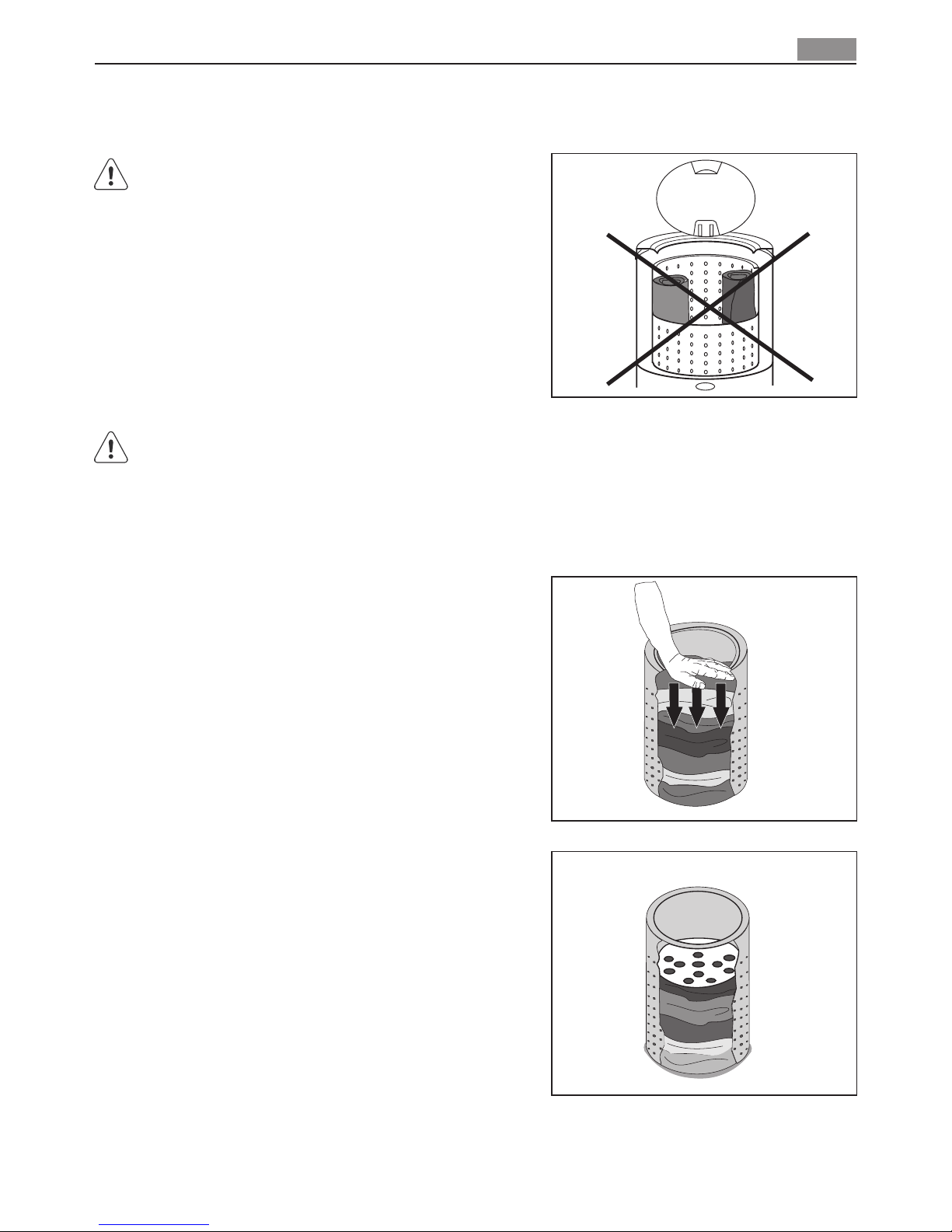

Caution!
Do not place rolled-up pieces of
laundry inside the drum.
Caution!
Do not place solid objects, toys such as teddy bears, any kind of shoes
or food inside the drum. There is risk to damage the spin dryer.
3. After filling the drum, slightly push
the laundry downwards with the
hands, in order to gently compact
them.
4. Always place the retainer disc into
the drum.
Correct laundry filling will avoid
excessive vibration.
5. Close the lid.

10 Daily use
Important!
• Do not fill too much into the drum.
• Do not exceed the laundry capacity
specified for the product.
• Leave around 3 cm of free space
between the retainer disc and the
upper rim of the drum.
1. Put an adequately large water
collecting bowl (not supplied)
under the exhaust nozzle.
2. Insert the plug into the socket outlet.
3. Close the lid and move the lever to
the “I” – ON position.
The spin dryer will begin to run and
the water will flow through the
exhaust nozzle.
An initial loss of balance or oscillation is normal. The spin dryer will tend to
stabilize after operating for some seconds.
Important!
Constantly check the coming out of water into the collecting bowl located under
the exhaust nozzle. If the bowl gets full:
1. Move the lever to OFF position.
2. Empty the water collecting bowl.
3. Relocate the water collecting bowl under the exhaust nozzle.
4. Restart the spin drying cycle by moving the lever to ON position.
Turning the spin dryer on

Daily use 11
Caution!
If the spin dryer:
- Does not reach the maximum turning speed
- Shakes rather strongly while spinning
Stop it immediately!
1. Open the lid.
2. Re-load the laundry completely in an even way, distributing homogeneously
the weight, such it was described in, placing the laundry in the spin dryer,
or re-load evenly, but with less laundry load.
3. Put the retainer disc and close the lid.
4. Move the lever to the ON position and see the results.
When no more water runs out through the exhaust nozzle:
1. Move the lever to the “0”- OFF position.
2. Wait until the drum is completely
stopped.
3. Open the lid, take out the retainer
disc and then, take out the laundry.
4. Incline the spin dryer a little, towards
the water collecting bowl, in order to
discharge the remaining water from
inside the drum.
5. Unplug the spin dryer from the
socket outlet.
Turning the spin dryer off

12 Cleaning and care
The spin dryer has a brake system, which decreases the rotation
of the drum in a very short time after moving the lever to OFF position.
Important!
A special safety device prevents the lid from opening until the drum is
completely stopped.
Caution!
Do not try to open the lid by force. There is risk to damage the spin dryer.
The laundry may still be a bit damp to the touch. They will not result to be
entirely dry, this is normal. So, it is advisable to lay them for a short period of
time over a traditional drying rack, before treating them with an iron.

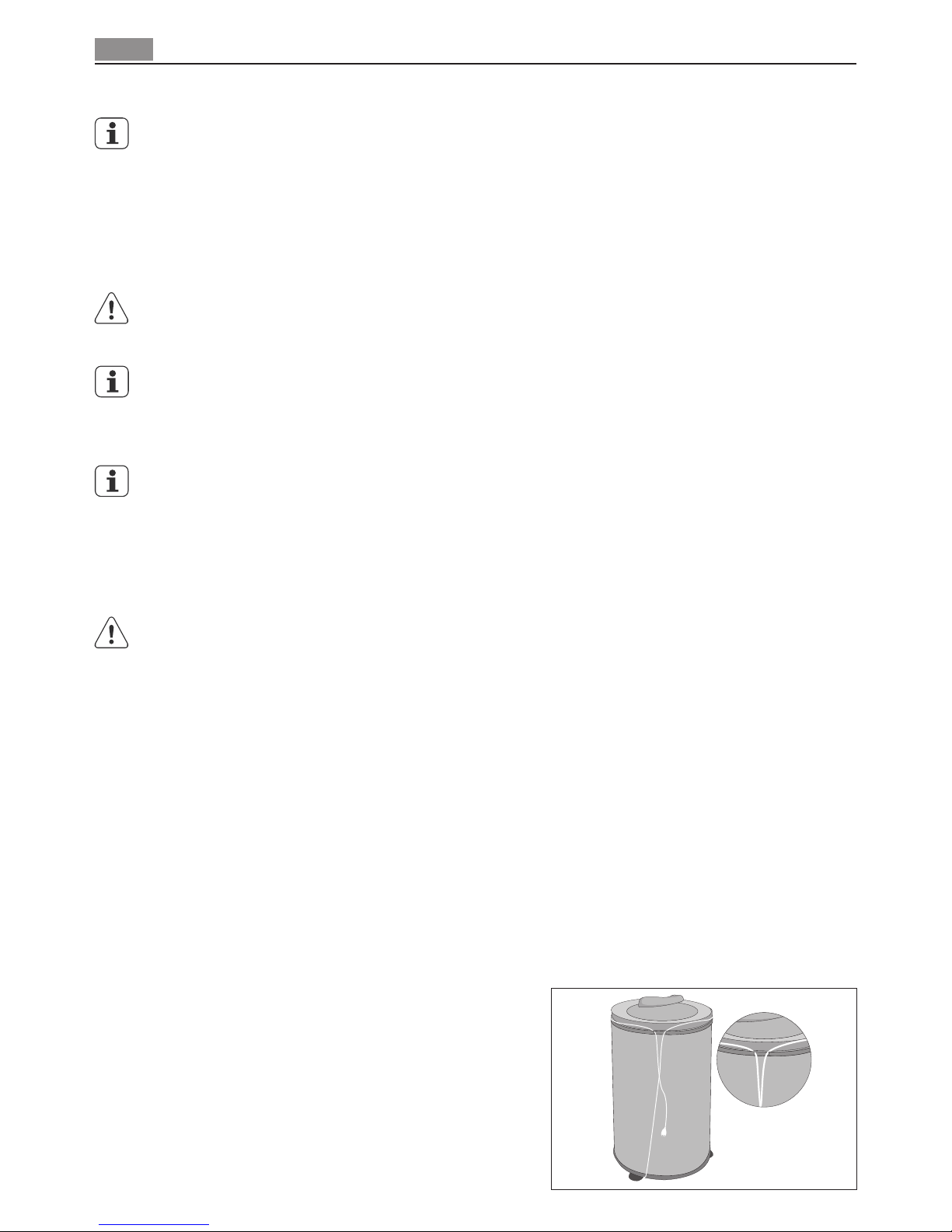

When the appliance is switched off with the lever at OFF position, the lid will not
be completely closed, this is normal.
Warning!
Always unplug the spin dryer before performing any kind of cleaning and
maintenance to the appliance.
• Clean the drum with a dry soft cloth once finished the last spin drying cycle.
• If the water comes out dirty in a spin drying cycle, it will be necessary to clean
the drum with a wet soft cloth, in order to avoid that the next laundry load of
the spin dryer, gets dirty too.
• To clean the drum and the external surfaces use a damp soft cloth with soft
detergents.
• Do not use neither abrasive products nor solvents to clean both internal and
external surfaces.
• Store the spin dryer in a dry and clean place.
• Roll the mains cable around the cover and fasten it in the cable storage
fixture, that is located
in the back of this part.
Cleaning and care

What to do if 13
Certain problems are due to the lack of simple maintenance or oversights, which
can be solved with the help of the indications described below, without calling
any authorized service centre.
Switch off the spin dryer and carry out the following suggested actions.
Stop it immediately!
1. Open the lid.
2. Re-load the laundry completely in an even way, distributing homogeneously
the weight, such it was described in, placing the laundry in the spin dryer,
or re-load evenly, but with less laundry load.
3. Put the retainer disc and close the lid.
4. Move the lever to the ON position and see the results.
• Check if there is power supply in your house.
• Check if the mains cable or its plug shows visible damage. In such case, you
must call the authorized service centre for replacing it.
• Check if the exhaust nozzle is being obstructed by any kind of laundry or other
element. Try to solve this situation by yourself, if the object can be easily
removed.
What to do if ...
The spin dryer does not reach the maximum turning speed
or shakes rather strongly while spinning
The motor does not run
No water comes out through the exhaust nozzle

14 Technical data
Model SV4028 SV5028
Rated Voltage 230 V~ 230 V~
Rated Frequency 50 Hz 50 Hz
Rated Power 300 W 300 W
Dry clothes capacity 4.0 kg / 13.6 LT 5.0 kg / 16.2 LT
Turning speed 2800 rpm 2800 rpm
Net weight 9.6 kg 10.3 kg
Height 614 mm 660 mm
Diameter 347 mm 347 mm
Protection against electric shock Class I Class I
Manufacturing standards EN 60335-1EN 60335-1
EN 60335-2-4EN 60335-2-4
EN 55014-1EN 55014-1
EN 55014-2 EN 55014-2
EN 61000-3-2EN 61000-3-2
EN 61000-3-3 EN 61000-3-3
EN 50366 EN 50366
Technical data
Type C-5000S C-6100S

Installation 15
Installation instructions
Installation
• Remove all packaging, external and internal, before positioning the spin dryer.
• Place the appliance only on flat, dry, heat resistant floors, which do not get
damaged with humidity or water. Do not place the spin dryer on delicate
floors or parquets.
• Place the spin dryer at a suitable distance away from walls or other objects.
Electrical connection
Warning!
The spin dryer requires that the electrical installation of the building where the
appliance is to be installed, be provided of earth connection.
if you have doubts about this subject, make check your electric circuit by an
authorized electric technician.
Under no circumstances connect your spin dryer if your electric circuit is
not provided with earth connection. There is risk for the user.
• Prior to using the appliance for the first time, ensure that the rated voltage
and type of supply on the rating plate match that of the supply where the
appliance is to be connected.
Warning!
Always connect the plug into a correctly installed shockproof socket.
Multi-way plugs, connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.
• The plug must be accessible after the spin dryer has been installed.
• Never unplug the spin dryer by pulling on the mains cable. Always pull the plug.
• Do not use the spin dryer if the mains cable is damaged.
In case of any damages, contact your local authorized service centre for
checking it and to avoid any hazard.
• The manufacturer accepts no liability for failure to observe the above safety
precautions.

Warranty information
Warranty does NOT cover:
• Incorrect use of the product;
• Disobedience of local electrical regulations;
• Improper switch protection in the electrical source;
• Repairs and/or replacement of components by non-authorized technicians;
• Use of illegitimate spare parts;
• Disobedience of the instructions stated in the instructions manual;
• Use of the product for commercial use;
• Manipulations, alterations and/or modifications made by a third party
to the product.
Environment concerns
Packaging material
The packaging materials are environmentally friendly and can be recycled.
Please dispose of the packaging materials in the appropriate container at the
community waste disposal facilities.
Warning!
When a unit is no longer being used:
• Pull the plug out of the socket outlet.
• Cut off the mains cable and plug and dispose of them.
• Dispose of the lid or lid catch. This prevents children from trapping themselves
inside and endangering their lives.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please
contact your local council, your household waste disposal service or the shop
you purchased the product.
16 Environment concerns16

Key word index 17
Key word index
B
Brake system 12
Body 6
C
Cable storage fixture 6, 12
Carrying handle 5, 6
Clothes 5, 7, 14
Cotton 7
Cover 12
D
Diameter 14
Drum 4, 5, 6, 7, 8, 9, 10, 11, 12
E
Earth connection 15
Electric circuit 5, 15
Electric shock 5, 14
Exhaust nozzle 5, 6, 10, 11, 13
F
Foot 6
H
Height 14
L
Laundry 4, 8, 9, 10, 11, 12, 13
Lever 4, 6, 8, 10, 11, 12, 13
Lid 4, 6, 9, 10, 11, 12, 13, 16
M
Mains cable 4, 5, 6, 12, 13, 15, 16
Motor 13
N
Net weight 14
P
Packaging 6, 7, 15, 16
Plug 4, 5, 6, 10, 13, 15, 16
R
Rated frequency 14
Rated power 14
Rated voltage 14, 15
Rating plate 6, 15
Retainer disc 5, 6, 9, 10, 11, 13
S
Service centre 5, 13, 15
Shipping brace 7
Spare parts 4, 16
Standards 14
Socket outlet 4, 5, 6, 10, 11, 16
Synthetics 7
T
Turning speed 11, 13, 14
W
Water collecting bowl 5, 10, 11
Wool 7

18
Sehr geehrter Kunde
Wir bedanken uns dafür, dass Sie eines unserer hochwertigen Produkte
ausgewählt haben.
Mit dieser werden Sie die perfekte Mischung aus funktionellen Design und
führende Technologie letzten Standes erleben.
Überzeugen Sie sich selbst davon, dass unsere Geräte hergestellt werden, um die
beste Leistung und Kontrolle zu liefern - wir setzen die höchsten Masstäbe für
hervorragende Qualität.
Ausserdem bekommen Sie Unwelt und energiesparende Aspekte als ein
Bestandteil unserer Produkte.
Um eine optimale und normale Leistung Ihres Gerätes zu gewährleisten, lesen Sie
bitte sorgfältig diese Bedienungsanleitung. Sie ermöglicht Ihnen, alle Prozesse
perfekt und gründlich zu durchzusehen. Um jederzeit in dieser Bedienungsanlei-
tung nachsehen zu können, empfehlen wir Ihnen diese an einem sicheren Platz
aufzubewahren. Und bitte geben Sie sie an den nächsten Besitzer dieses Gerätes
weiter.
Wir wünschen Ihnen viel Freude an Ihrem neuen Gerät.
Folgende Symbole werden in dieser Bedienungsanleitung benutzt:
Wichtige Information, die Ihre persönliche Sicherheit betrifft und wie Sie
vermeiden können, das Gerät zu schädigen.
Allgemaine Information und Hinweise.
Umweltsinformation.

Inhalt 19
Inhalt
Bedienungsanleitung
Sicherheitsinformation
Korrekter Gebrauch
Allgemeine Sicherheit
Sicherheit für Kinder
Installierung
Produktbeschreibung
Erster Gebrauch
Schleuderzeit
Täglicher Gebrauch
Die Wäsche in die Wäscheschleuder legen
Wäscheschleuder einschalten
Wäscheschleuder ausschalten
Reinigung und Pflege
Was tun wenn ...
Die Wäscheschleuder nicht die maximale Drehen Geschwindigkeit erreicht
oder während des Schleuderns sehr wackelt
Der motor nicht läuft
Kein Wasser aus dem Auslaufdüse kommt
Technische Daten
Installierungsanleitungen
Installierung
Elektrischer Anschluss
Umweltbetreffendes
Verpackungsmaterial
Information zur Garantie
Stichwörterverzeichnis
20
21
21
21
21
22
22
23
23
23
24
26
27
28
29
29
29
29
30
31
31
31
32
32
32
33

Bedienungsanleitung
Sicherheitsinformation
Im Interesse Ihrer Sicherheit und um den optimalen Gebrauch zu sichern, lesen
Sie diese Gebrauchsanweisung sorgfältig vor der Inbetriebnahme und erstem Ge-
brauch des Gerätes und beachten Sie Sicherheitshinweise und Warnungen. Um
unnützliche Fehler und Verletzungen zu vermeiden, ist es wichtig sicher zu gehen,
dass alle Personen, die das Gerät benutzen werden, mit dessen Bedienung und
Sicherheitsverkehrungen vertraut sind. Bewahren Sie diese Gebrauchsanweisung
auf und versichern Sie sich, dass sie bei dem Gerät ist, wenn dieses wegbewegt
oder verkauft wird, damit jeder der es während seiner Lebensdauer benutzt,
richtig über das Gerät und dessen Sicherheit informiert ist.
Korrekter Gebrauch
• Die Wäscheschleuder dient nur der Nutzung im Haushalt und dem
Ausschleudern von feuchten Wäscheteilen.
• Dieses Gerät ist nicht für gewerblichen oder industriellem Gebrauch geeignet.
• Dieses Gerät darf nur von zugelassenem Kundendienst gewartet werden und es
dürfen nur Originalersatzteile benutzt werden.
• Ziehen Sie den Netzstecker niemals am Netzkabel aus der Steckdose, sondern
ausschliesslich am Netzstecker.
• Setzen sie das Gerät nicht Witterungseinflüssen wie Sonne, Regen, etc. aus.
• Füllen Sie unter keinen Umständen Wasser in die Trommel.
• Setzen oder stellen Sie sich nicht auf die Wäscheschleuder und belasten Sie sie
nicht mit schweren Gegenständen.
• Dieses Gerät nicht neben Waschbecken, Badewannen, Duschen oder anderen
mit Wasser gefüllten Behältern gebrauchen.
• Es ist nicht empfohlen Vielfachsteckdosen, Verlängerungskabel und Adapter zu
verwenden.
• Der Netzstecker ist in folgenden Situationen zu ziehen:
- Bei Störung während des Betriebes.
- Vor jeder Reinigung und Pflege.
- nach dem gebrauch der Wäscheschleuder.
• Das Gerät während des Betriebes nicht anheben, transportieren, festhalten,
verschieben oder umstossen.
• Schalthebel und Deckel niemals mit Gewalt betätigen.
• Das Gerät ausschalten, bevor Sie es aus der Steckdose ziehen.
• Das Gerät nur an den Tragegriffen anheben bzw. transportieren.
20 Sicherheitsinformation
