AEG Electrolux ER 7533 I User manual

2222 177-25
I N F O
INSTALLATION - UND GEBRAUCHSANWEISUNGEN
INSTRUCTIONS POUR L’INSTALLATION ET L’EMPLOI
INSTALLATIE - EN GEBRUIKSAANWIJZINGEN
INSTALLATION AND INSTRUCTION MANUAL
ER 7533 I
ER 7533 I
ER 7533 I
ER 7533 I
KÜHL- GEFRIERSCHRANK
REFRIGERATEUR-CONGELATEUR
TWEEDEURS-KOELKAST
FRIDGE - FREEZER

WARNINGS
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can be
acquainted with the functioning of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You must read them carefully before installing or
using the appliance.
General Safety
■This appliance is designed to be operated by
adults. Children should not be allowed to
tamper with the controls or play with the
product.
■It is dangerous to alter the specifications or
modify this product in any way.
■Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
■Before any cleaning or maintenance work is
carried out, be sure to switch off and unplug
the appliance.
■This appliance is heavy. Care should be taken
when moving it.
■Ice lollies can cause frost burns if consumed
straight from the appliance.
■Take utmost care when handling your
appliance so as not to cause any damages
to the cooling unit with consequent
possible fluid leakages.
■The appliance must not be located close to
radiators or gas cookers.
■Avoid prolonged exposure of the
appliance to direct sunlight.
■There must be adequate ventilation round
the back of the appliance and any damage
to the refrigerant circuit must be avoided.
■For freezers only (except built-in models):
an ideal location is the cellar or basement.
■Do not use other electrical appliances
(such as ice cream makers) inside of
refrigerating appliances, unless they are
approved for this purpose by the
manufacturer.
Service / Repair
■Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
■This appliance should be serviced by an
authorized Service Centre, and only genuine
spare parts should be used.
■Under no circumstances should you attempt
to repair the appliance yourself. Repairs
carried out by inexperienced persons may
cause injury or more serious malfunctioning.
Refer to your local Service Centre, and
always insist on genuine spare parts.
■This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging
must therefore only be carried out by
authorized technicians.
Use
■The domestic refrigerators and freezers are
designed to be used specifically for the
storage of edible foodstuffs only.
■Frozen food must not be re-frozen once it has
been thawed out.
■Manufacturers’ storage recommendations
should be strictly adhered to. Refer to
relevant instructions.
■The inner lining of the appliance consists of
channels through which the refrigerant
passes. If these should be punctured this
would damage the appliance beyond repair
and cause food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice.
Frost may be removed by using the scraper
provided. Under no circumstances should
solid ice be forced off the liner. Solid ice
should be allowed to thaw when defrosting
the appliance. See defrost instructions.
■Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the
container, which may cause it to explode,
resulting in damage to the appliance. Do not
use a mechanical device or any artificial
means to speed up the thawing process other
than those recommended by the
manufacturer. Never use metal objects for
cleaning your appliance as it may get
damaged.
GB
39
Printed on recycled paper

Installation
■During normal operation, the condenser and
compressor at the back of the appliance heat
up considerably. For safety reasons, minimum
ventilation must be as shown in the relevant
Figure.
Attention: keep ventilation openings clear
of obstruction.
■If the appliance is transported horizontally, it is
possible that the oil contained in the
compressor flows in the refrigerant circuit. It is
advisable to wait at least two hours before
connecting the appliance to allow the oil to
flow back in the compressor.
■There are working parts in this product which
heat up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss.
See installation instructions.
■Parts which heat up should not be exposed.
Wherever possible the back of the product
should be against a wall.
■If the appliance has been transported
horizontally, it is possible that the oil
contained in the compressor ílows in the
refrigerant circuit. It is advisable to wait at
least two hours before connecting the
appliance to allow tlıe oil to flow back in the
compressor.
Environment Protection
■This appliance does not contain gasses
which could damage the ozone layer, in
either its refrigerant circuit or insulation
materials. The appliance shall not be
discarded together with the urban refuse
and rubbish. Avoid damaging the cooling
unit, especially at the rear near the heat
exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities. The materials used
on this appliance marked with the symbol
are recyclable.
CONTENTS GB
Installation
■Positioning
■Cleaning the interior
■Instructions for totally built-in
appliances
■Electrical connection
Technical specification
Use
■Operation
■Temperature regulation
■Freezing fresh food
■Storage of frozen food
■Thawing
■Fresh food refrigeration
■Defrosting
Maintenance
■Periodic cleaning
■Periods of non use
■Replacing the interior light bulb
Defective operation
41
41
41
42
44
44
45
45
45
45
46
46
46
47
48
48
48
48
48
40

INSTALLATION GB
If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door or
lid, be sure to make that spring lock
unusable before you discard the old
appliance. This will prevent it from
becoming a death-trap for a child.
Positioning
The appliance should be installed well away
from sources of heat such as radiators, boilers,
direct sunlight etc. Best performance is
obtained with ambient temperature between
+18°C and +43°C (class T); +18°C and +38°C
(class ST); +16°C and +32°C (class N); +10°C
and +32°C (class SN). The class of your
appliance is shown on its rating plate.
For building into kitchen units follow the special
“ Building-in” instructions given.
Important
It is essential that the appliance be connected
to an efficient earth tap. For this purpose the
supply cable plug incorporates a special earth
contact. If the sockets of your domestic wiring
system are not earthed, have the appliance
connected to a separate earth wire by a
qualified electrician in accordance with existing
safety regulations.
The Manufacturer declines all responsibility
if the above safety precautions are not
observed.
This appliance complies with EEC directive
number 87/308 of 2/6/87 relative to radio
interference suppression.
.
This appliance complies with the
following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent mod)fications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accessories
with lukewarm water and some neutral soap
so as to remove the typical smell of a brand-
new product, then dry thoroughly. Do not use
detergents or abrasive powders, as these will
damage the finish.
41

Fig. 1
Fig. 2
Fig. 3
Instructions for totally built-in
appliances
Dimensions of the recess
Height 1446 mm
Depth 550 mm
Width 560 mm
The appliance’s door has been locked in
position for transport by means of pins on
both sides. According to the door opening
direction, remove relevant pins at the top and
at the bottom.
For safety reasons, minimum ventilation must be
as shown in Fig. 1.
Attention: keep ventilation openings clear of
obstruction.
Push appliance into the housing until stop strip (A)
touches the kitchen unit.
If after having carried out the previously described
operation there is still some space left between
the appliance and the kitchen unit, fit the trimming
provided together with the appliance on the stop
strip (A).
Open the door and push the appliance against the
side of the kitchen unit opposite to that of ap-
pliance hinges.
Fasten the appliance with 4 screws provided in
the kit included with the appliance. Snap vent
grille (C) and hinge cover (D) into position.
D265
A
Fig. 4
50 mm
min.
cm
2
200
200 cm
2
min.
D567
A
D023
D
C
D723
42

Press in the joint covers between the appliance
and the kitchen unit.
Apply covers (B) on joint cover lugs and into hinge
holes.
Position the runners (H) at the top and bottom of
the inside of the kitchen unit as shown in Fig. 7
and mark the position of the external holes.
After preparing the holes, screw the runners to the
kitchen unit door using 3.5x16 mm screws.
Open both the appliance door and that of the
kitchen unit to approx. 90°. Place the little plates
over the runners. Hold the doors of the appliance
and the unit together and mark the holes.
Remove the little plates and make the holes with a
diam. of 2 mm. Replace the little platee over the
runners and screw in the screws provided (3.5x16
mm).
For the alignment of the kitchen unit door, if
necessary, use the clearance size of the slotted
holes. At the end of the procedure, check that the
doors of the appliance and the kitchen unit open
properly.
D724
D726
B
PR33
20mm
A
8mm
PR34
PR35
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
43

44
TECHNICAL SPECIFICATIONS
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond
to your domestic power supply. Voltage can vary by ±6% of the rated voltage. For operation with
different voltages, a suitably sized auto-transformer must be used.
The technical data is indicated in the rating plate on the left side inside the appliance.
GB

Operation
Insert the plug into the wall socket.
Open the refrigerator door and turn the thermostat
knob, clockwise, beyond the «O» (STOP)
position.
The appliance will start to operate.
Temperature regulation
The temperature is automatically regulated and
can be increased to achieve a higher temperature
(warmer) by rotating the thermostat knob toward
lower settings or reduced (colder) rotating the
knob towards higher settings.
However, the exact setting should be chosen
keeping in mind that the temperature inside the
refrigerator depends on:
room temperature;
how often the door is opened;
the quantity of food stored;
location of appliance.
A medium setting is generally the most
suitable.
To stop operation, simply turn the thermostat knob
to position «O».
Important
If the ambient temperature is high or the
appliance is fully loaded, and the appliance is
set to the lowest temperatures, it may run
continuously causing frost to form on the rear
wall. In this case the dial must be set to a
higher temperature to allow automatic
defrosting and therefore reduced energy
consumption.
Attention
With room temperature lower than +14°C switch
(A) (see Fig. 10) should be depressed (the built-in
light will come on).
Freezing fresh food
The 4-star compartment is suitable for
long term storage of commercially frozen food,
and for freezing fresh food. Do not exceed the
storage times shown by the manufacturer on the
commercially frozen food packets.
Under normal circumstances, to freeze fresh
foods it is not necessary to change the setting of
the thermostat knob with respect to the normal
running position. Depress the ambient switch at
least 3 hours before loading food to be frozen.
However, for a quicker freezing operation, turn
the thermostat knob to the coldest setting; but
remember that, in this condition, the
refrigerating compartment temperature might
drop below 0°C. If this occurs reset thermostat
knob to a warmer setting.
To help you make the most of the freezing
process, here are some important hints:
Place the food to be frozen in the top basket of
the freezing compartment as this is the coldest
part.
The maximum quantity of food which can be
frozen in 24 hrs is shown on the rating plate.
Only freeze top quality, fresh and thoroughly
cleaned foodstuffs.
Prepare the fresh food in small portions to
enable it to be rapidly and completely frozen
and to make it possible subsequently to thaw
only the quantity required at the time.
Wrap up the food in aluminium foil or polythene
and make sure that the packages are airtight.
It is advisable to show on the single food packet
or on the write-on produce strips to be found on
the front part of the storage baskets the
freezing-in date to enable you to keep date of
the storage time.
On the rear of the door you will find a list of
foods followed by a number. These numbers
indicate the maximum period of time for which
the food in question may be conserved (in
months).
Do not allow fresh, unfrozen food to touch food
which is already frozen, thus avoiding a rise in
temperature of the latter.
USE GB

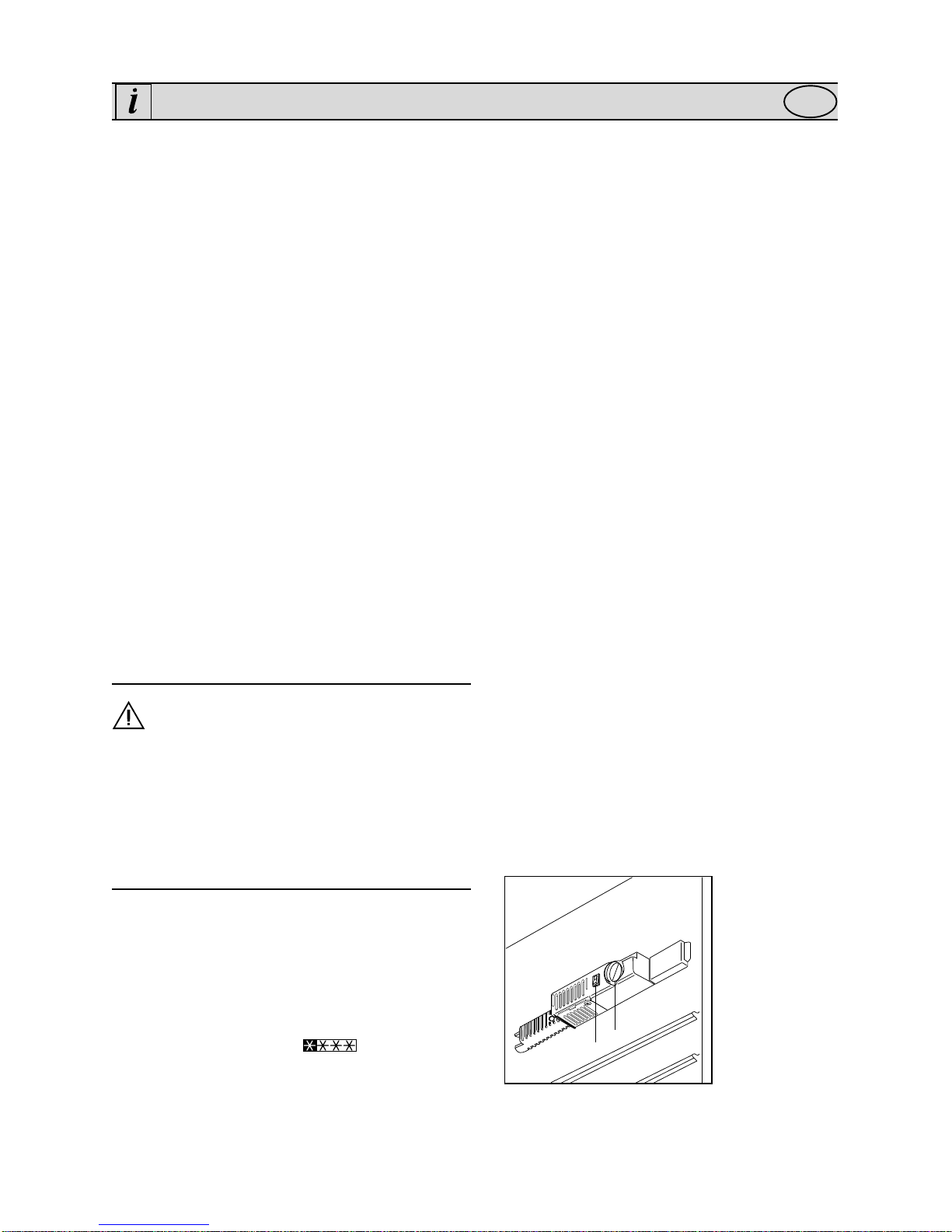

Fig. 10
45
D484
AB
A- Ambient switch
B- Thermostat knob

46
Important
Do not put carbonated liquids (fizzy drinks, etc.) in
the freezing compartment as they may burst.
Water ices, if consumed immediately after removal
from the freezing compartment, can possibly cause
the skin to be freeze burnt.
Remember that, once thawed, frozen food deterio-
rates rapidly.
Storage of frozen food
To obtain the best performance from this
appliance, we strongly recommend that you make
sure that the commercially frozen foodstuffs were
adequately stored by the retailer and, furthermore,
be sure that these frozen foodstuffs are transferred
from the foodstore to the consumer in the shortest
possible time (a temperature increase of the frozen
food could shorten its storage period).
It is also advisable not to exceed the storage
period indicated by the producer of the food.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
If there is a power failure when food is in the
freezer, do not open the door of the freezing
compartment.
The frozen food will not be affected if the power cut
is of short duration (a temperature increase of the
frozen food could shorten its safe storage period),
otherwise, it is recommended that the food should
be used within a very short time.
Thawing
Deep-frozen or frozen food, prior to being used,
can be thawed in the refrigerator compartment or
at room temperature, depending on the time
available for this operation.
Small pieces may even be cooked still frozen,
directly from the freezer: in this case, cooking will
take longer.
Fresh food refrigeration
To obtain the best performance:
do not store warm food or evaporating liquide in
the refrigerator
do cover or wrap the food, particularly if it has a
strong flavour.
Position food so that air can circulate freely round
it.
Useful hints:
Meat (all types): wrap in polythene bags and
place on the glass shelf above the vegetable
drawer(s).
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc: these should
be covered and may be placed on any shelf.
Fruit and vegetables: these should be
thoroughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed in
special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as
much air as possible.
Milk bottles: these should trave a cap and
should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator
Ice-cube production
This appliance is equipped with one or more trays
for the production of ice-cubes. Fill these trays
with water, then put them in the freezer
compartment.
Do not use metallic instruments to remove the
trays from the freezer.
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
For better use of space, the front half-shelves
can lie over the rear ones.
Fig. 11

47

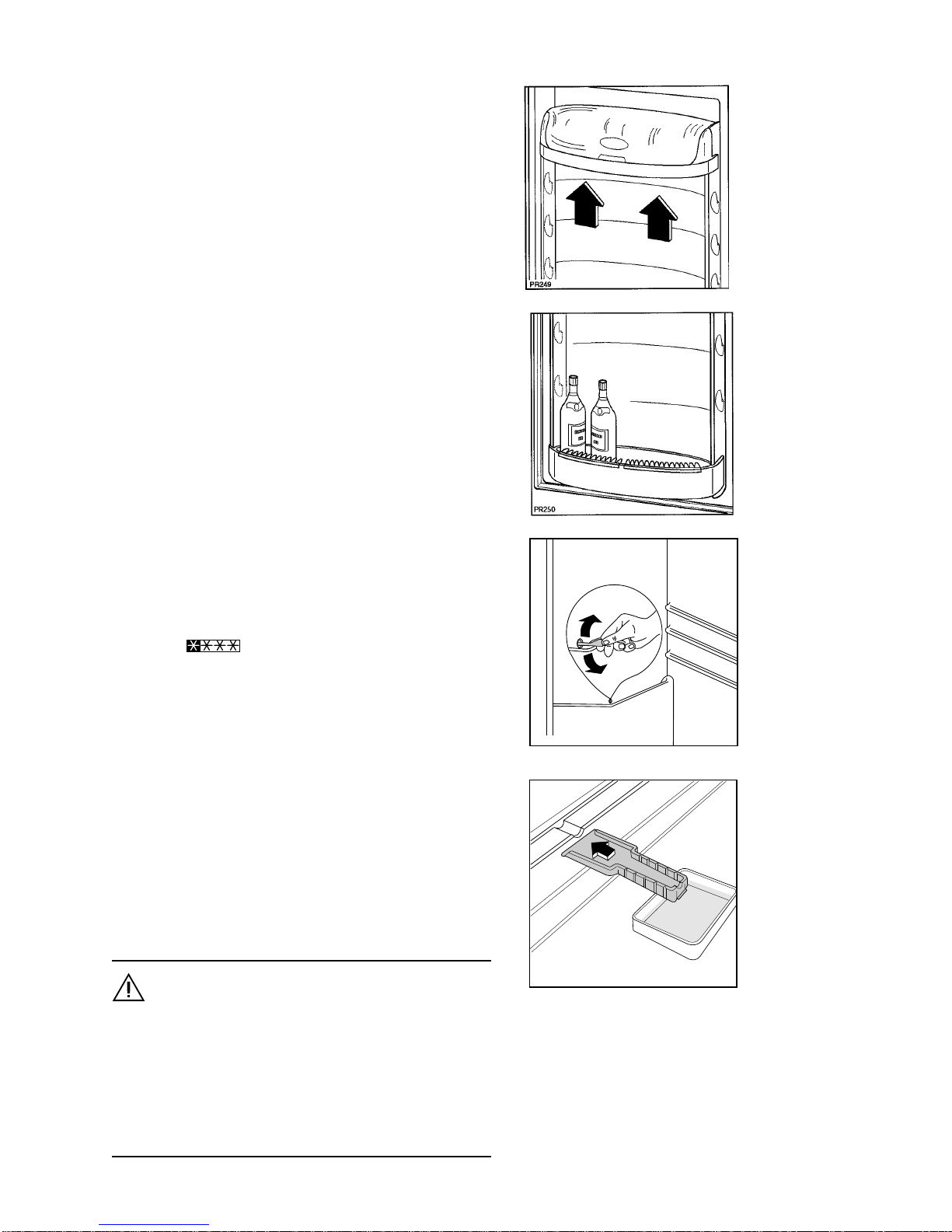

Positioning the door shelves
To permit storage of food packages of various
sizes, the door shelves can be adjusted in height.
To make these adjustments proceed as follows:
Gradually pull the shelf in the direction of the
arrows until it comes off, then reposition as
D037
Fig. 12
Fig. 13
Fig. 14
D068
Fig. 15
Defrosting
Frost is automatically eliminated from the evaporator
of the refrigerator compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a trough into a
special container at the back of the appliance, over
the motor compressor, where it evaporates.
The freezer compartment, however, will become pro-
gressively covered with frost. This should be
removed with the special plastic scraper provided,
whenever the thickness of the frost exceeds 4 mm.
During this operation it is not necessary to switch off
the power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the in-
ner liner, complete defrosting should be carried out
and it is advisable to carry out this operation when
the appliance is empty.
To carry out complete defrosting of the freezer com-
partment proceed as follows:
Remove any stored food, wrap it in several layers of
newspaper and put it in a cool place.
Pull out the plug from the wall socket or turn the
thermostat knob to the a«O» setting.
Leave the door open.
Introduce the plastic scraper in the appropriate seat-
ing at the bottom centre, as shown in Fig. 15, place
underneath a basin to collect the defrost water.
When defrosting is completed, dry the interior
thoroughly;
keep the scraper for future use;
replace the plug in the socket and, after letting the
appliance run for at least half an hour, replace the
previously removed food into the compartment.
Important
A temperature rise of the frozen food packs, during
defrosting, may shorten their safe storage life. Never
use sharp metal tools to scrape off frost from the
evaporator as you could damage it.
Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.

Unplug the appliance before carrying out any
maintenance operation.
Warning
This appliance contains hydrocarbons in its cooling
unit maintenance and recharging must therefore
only be carried out by authorized technicians.
Internal clearing
Never use metal objects for clearing your appliance
as it may get damaged.
When performing a complete defrosting, wash the
internal surfaces of the freezer with lukewarm
water and bicarbonate; rinse and then accurately
dry.
External clearing
Wash the outer body with lukewarm water and
soap. Periodically use a clearing polish to keep the
outer body shining. Dust the condenser located
behind the freezer with a soft brush or a vacuum
cleaner. An excessive accumulation of dust might
compromise the freezer’s efficiency.
Extended periods of non-operation
Whenever the freezer is not to be used for an
extended period of time, disconnect it from the wall
socket and empty and clean the freezer.
Remember to leave the door open for the entire
period of time in which the freezer is not to be
used.
Interior light
The light inside the refrigerator compartment is
easy to get at through the opening in the light
holder. If the light does not go on when the door
is open, check that it is screwed into place
properly. If it still does not light up, change the
bulb.
The rating is shown on the light bulb cover.
MAINTENANCE GB
DEFECTIVE OPERATION GB
Before calling your local dealer for servicing
assistance, check the following points to see if
you may not resolve the problem yourself:
Make sure that the freezer is plugged into the
wall socket correctly, and that electrical current
arrives to the freezer without interruption.
Control the thermostat setting.
In the event that the freezer makes excessive
noise or vibration, make sure that it is not in
direct contact with the wall or adjacent furniture.
If defective operation continues after these
controls, call your local Service Network and
provide all the data listed on the rating plate:
model, serial number, etc.
48
Fig 16
D731
