AEG Electrolux U32091 S 70170 User manual

SANTO
Operating instructions
S 70170 TK38
PERFECT IN FORM AND FUNCTION
A/AE/17. (07.)
200381354

2
Dear customer,
Before switching on your new appliance please read these operating
instructions carefully. They contain important information for safe use, for
installation and for care of the appliance. Please keep these operating
instructions for future reference. Pass them on to possible new owners of the
appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Caution!, Important!). Please observe the following carefully.
1. This symbol guides you step by step in the operation of the appliance.
2. .....
Supplementary information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of the
appliance are marked with the cloverleaf.
Explanations of the technical terminology used in the operating instructions
can be found at the end in the section "Technical Terminology". The operating
instructions contain instructions for the correction of possible malfunctions
by the user in the section "What to do if ...". If these instructions should not
be sufficient, contact your local Service Force Centre.
Printed on paper manufactured with environmentally sound processes he who
thinks ecologically acts accordingly...

3
Contents
Important Safety Instruction ..............................................................................................5
Disposal........................................................................................................................................7
Appliance Packaging Information........................................................................................7
Disposal of Old Appliances.....................................................................................................7
Remove Transport Packaging................................................................................................7
Installation..................................................................................................................................8
Installation Location ...............................................................................................................8
Your Refrigerator Needs Air....................................................................................................9
Levelling........................................................................................................................................9

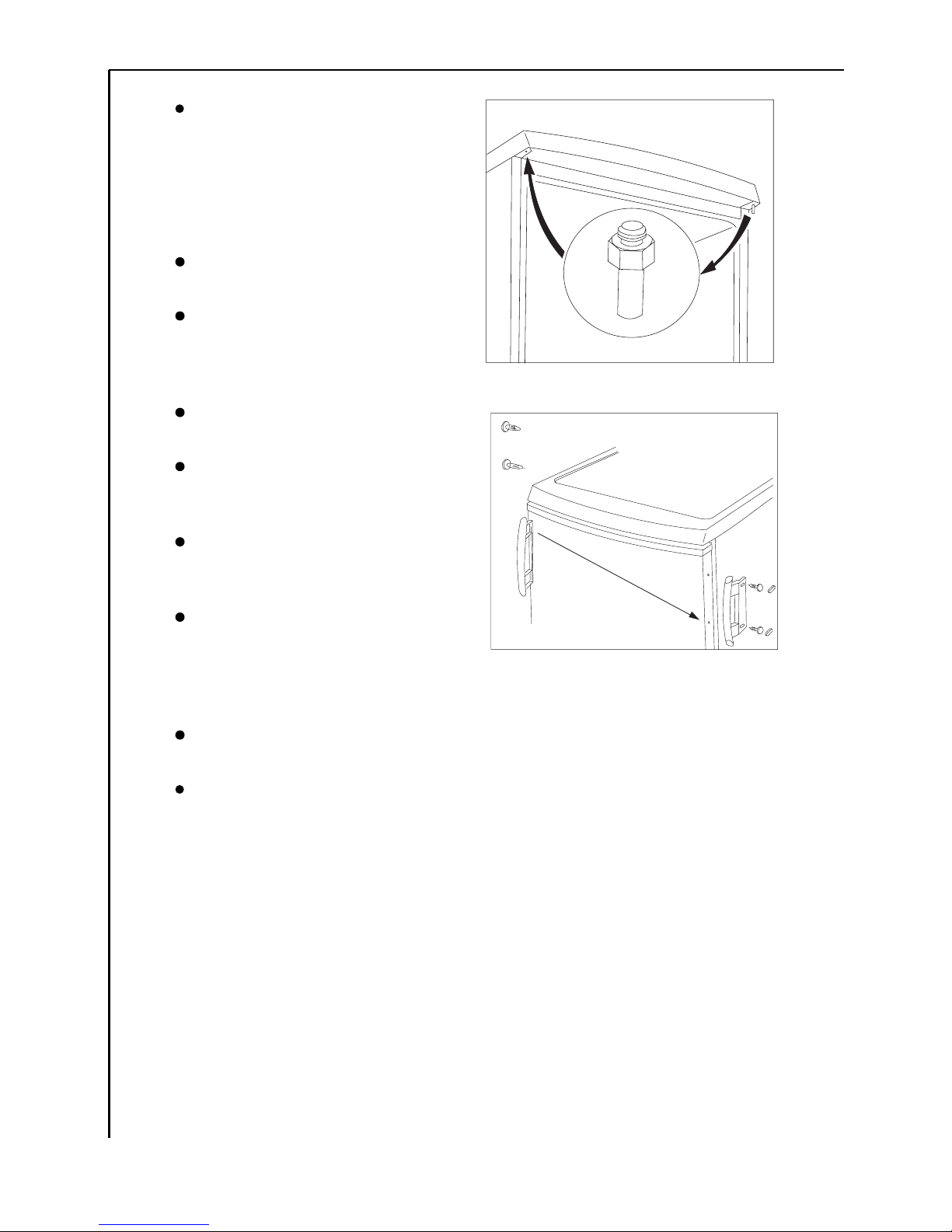

Reversing the Door....................................................................................................................9

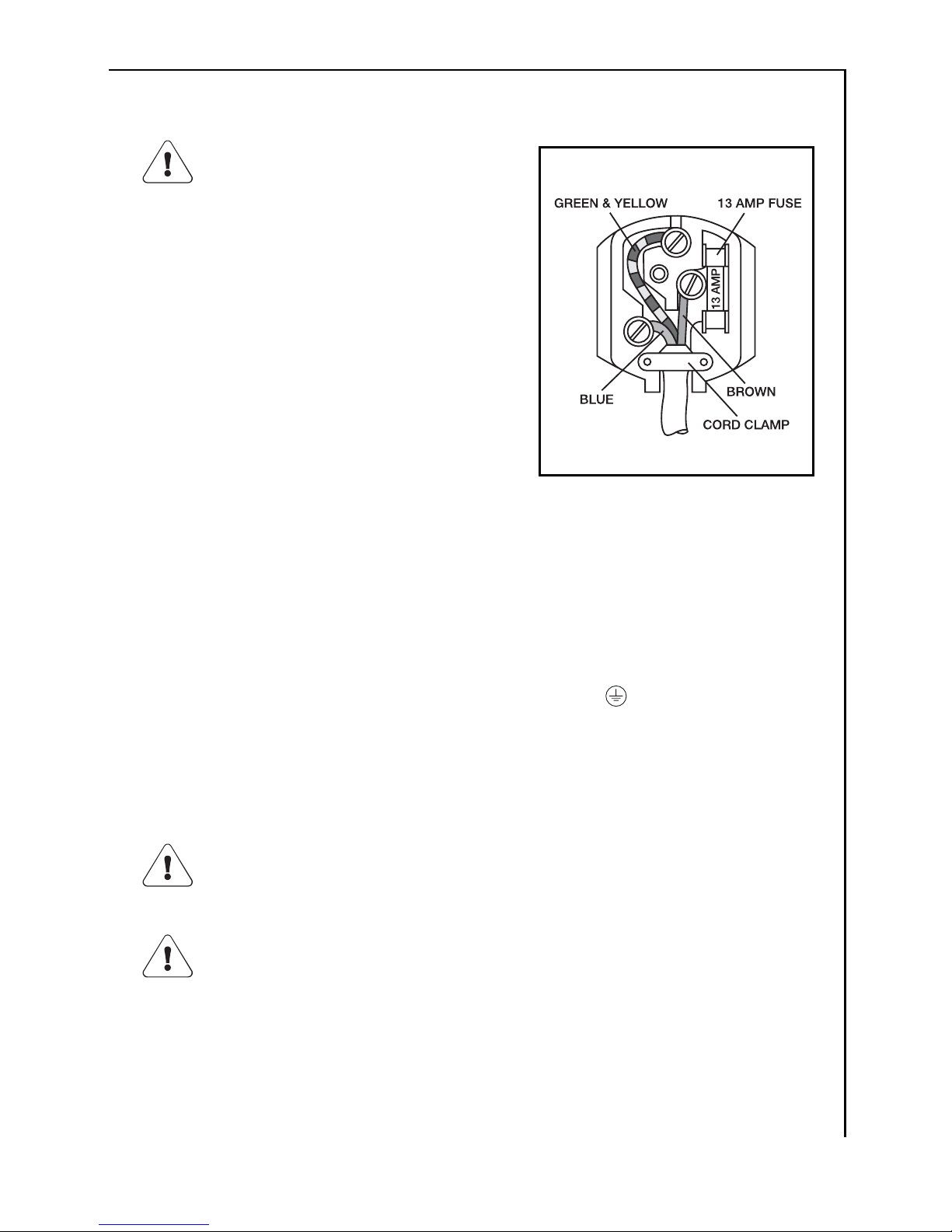

Electrical Connection..............................................................................................................11
Description of the Appliance ............................................................................................12
View of the Appliance............................................................................................................12
Using the Appliance.............................................................................................................13
Starting your appliance and temperature control.......................................................13
Control panel............................................................................................................................13
Temperature control buttons ............................................................................................13
These buttons belong to the temperature display.......................................................13

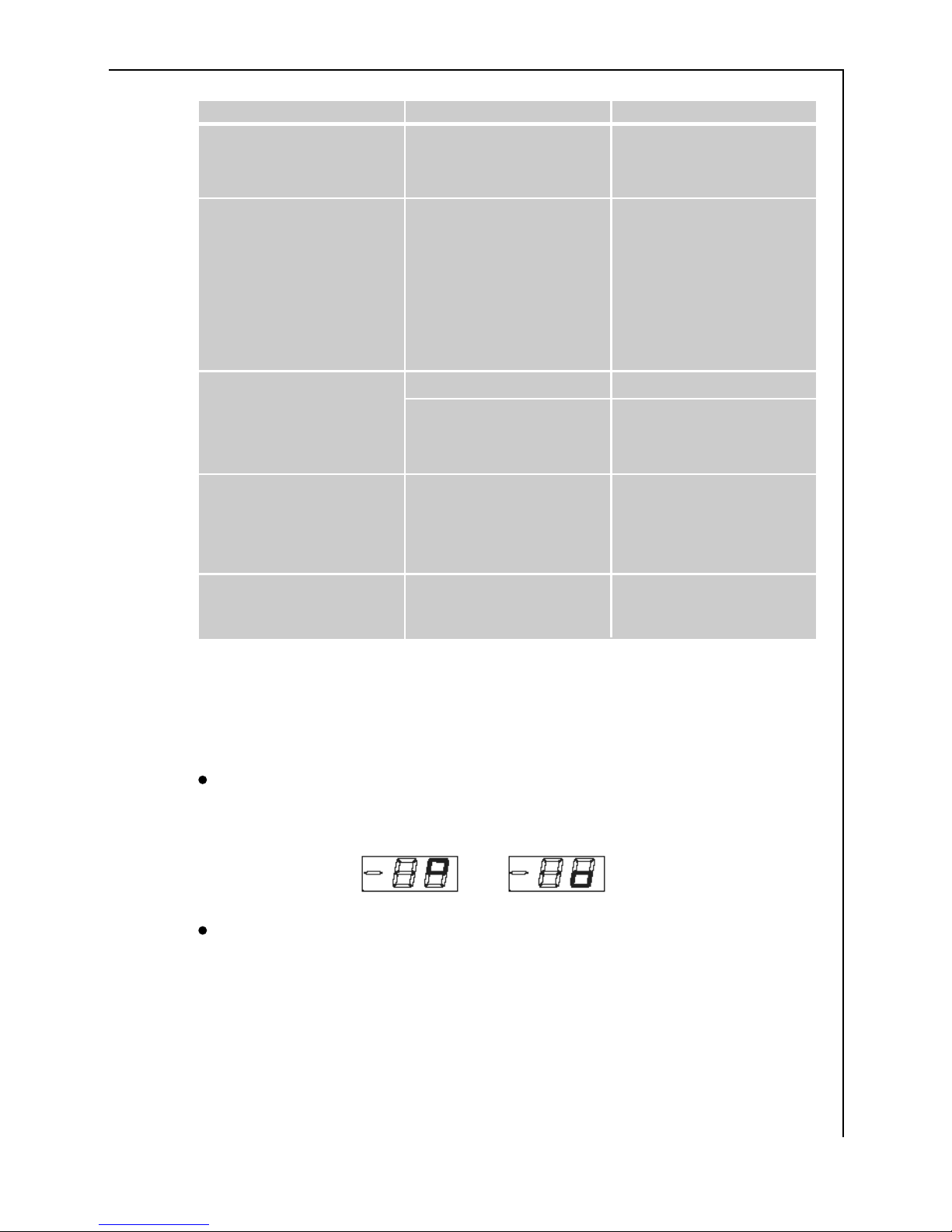

Temperature display................................................................................................................14
COOLMATIC button.................................................................................................................14
Holiday function......................................................................................................................14
Interior Accessories...............................................................................................................15
Storage Shelves........................................................................................................................15
Hints for storage....................................................................................................................15
Cleaning and Care.................................................................................................................16
Internal Cleaning...................................................................................................................16
Energy Saving Tips.................................................................................................................17

Contents
4
What to do if .........................................................................................................................18
Correcting Malfunctions.......................................................................................................18
Breakdown.................................................................................................................................19

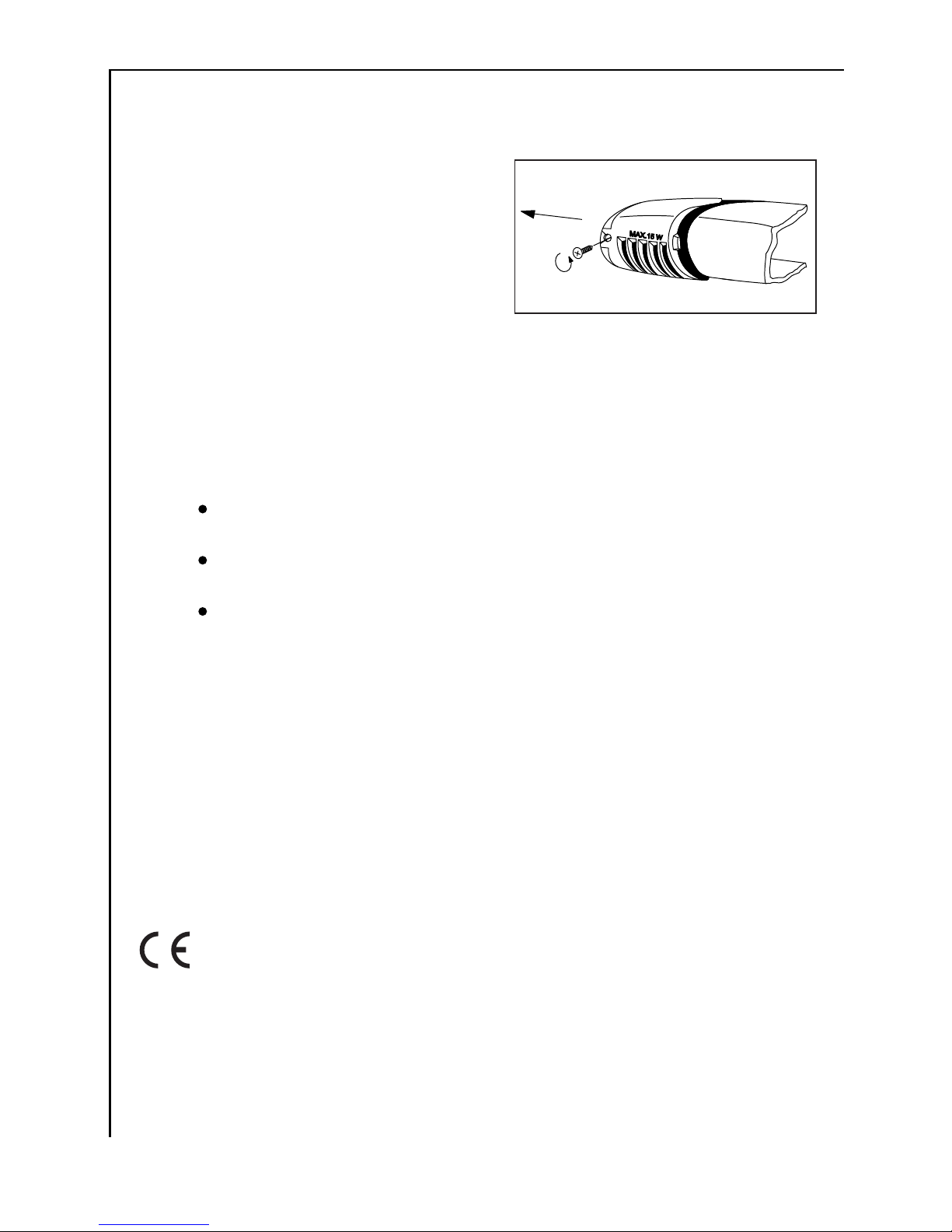

Changing the Light Bulb ......................................................................................................20
Noises During Operation ....................................................................................................20
Regulations, Standards, Guidelines................................................................................20
Technical Terminology...........................................................................................................21
Srevice and Spare Parts.......................................................................................................22
Customer Care Departement.............................................................................................24
Guarantee Conditions..........................................................................................................23

5
Important Safety Instructions
These warnings are provided in the interests of your safety. Ensure you fully
understand them before installing or using the appliance. Your safety is of
paramount importance. If you are unsure about the meaning of these
warnings contact the Customer Care Department for assistance.
Intended use
The refrigerator is intended for use in the home. It is suitable for the cooling
and storing of food. If the appliance is used for purposes other than those
intended or used incorrectly, no liability can be accepted by the
manufacturer for any damage that may be caused.
Alterations or changes to the refrigerator are not permitted for reasons of
safety.
If you use the refrigerator in a commercial application or for purposes other
than the cooling, freezing or frozen storage of foods, the manufacturer
accepts no liability for any damages which may occur.
Prior to initial start–up
Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in. In the event of damage, please
contact your supplier.
Ensure that the appliance does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must be replaced by
authorised service or qualified personnel using a special cable of the same
type.
Refrigerant
The refrigerant isobutane (R600a) is contained with in the refrigerant circuit
of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
Warning- During transportation and installation of the appliance, be
certain that none of the components of the refrigerant circuit become
damaged.
If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition;
- thoroughly ventilate the room in which the appliance is situated.
Safety of children
Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is
a risk of suffocation! Keep packaging material away from children!
Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable, break or remove spring or bolt catches, if
fitted. By doing this you ensure that children cannot lock themselves in
the appliance when playing (there is risk of suffocation!) or get themselves
into other dangerous situations.

Important Safety Instructions
6
Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision
and never let children play with the appliance!
This appliance is not intended for use by persons (including children)
with reduced physical sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
Daily Operation
Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable
materials such as spray cans, fire extinguisher refill cartridges etc. in the
refrigerator.
Warning- Do not operate any electrical appliances in the refrigerator
and/or freezer (e.g. electric ice cream makers, mixers etc.).
Warning- In order not to impair the function of the appliance, never cover
or obstruct the ventilation openings.
Warning- Do not damage the cooling circuit.
Warning- Do not use any mechanical devices or other artificial means to
speed up defrosting unless they are recommended by the manufacturer.
Before cleaning the appliance, always switch off the appliance and unplug
it, or disconnect from the electricity supply.
When unplugging always pull the plug from the mains socket, do not pull
on the cable.
In case of malfunction
If a malfunction occurs on the appliance, please look first in the "What to do if
..." section of these instructions. If the information given there does not help,
please do not perform any further repairs yourself.
This product should be serviced by an authorised engineer and only
genuine spare parts should be used.
Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local Service Force centre.

7
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be disposed of or burned
at an incinerating plant without danger. About the materials: The plastics can
be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chloro-
fluorocarbon.
The carton parts are made from recycled paper and should be disposed of at
a wastepaper recycling collection location.
Disposal of Old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service life
- for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remove
plug from mains, sever the power cable, remove or destroy any snap or latch
closures. This ensures that children do not lock themselves inside the
appliance (danger of suffocation!) or place themselves into other life-
endangering situations.
Disposal:
The appliance may not be disposed of with domestic waste or bulky refuse.
The refrigerant circuit, especially the heat exchanger at the back of the
appliance, must not be damaged.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it should be taken
to the approprite collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local
council; your household waste disposal service or the shop where you
purchased the product.
Remove Transport Packaging
The appliance and the interior fittings are protected for transport.
1. Pull off the adhesive tape on the left and right side of the door.
2. Remove all adhesive tape and packing pieces from the interior of the
appliance.

Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by the
ambient temperature. The appliance should therefore
- not be exposed to direct sunlight;
- not be installed next to radiators, cookers or other sources of heat;
- only be installed at a location whose ambient temperature corresponds to
the climate classification, for which the appliance is designed.
The climate classification can be found on the rating plate, which is located
at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for each
climate classification:
Climate classification for an ambient temperature of
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
T +18 to +43 °C
If the refrigeration appliance is installed next to another refrigerator or
freezer a clearance of 5 cm at the sides is required, in order to prevent the
formation of condensation on the outside of the appliance.
8

Installation
9
Your Refrigerator Needs Air
For correct operation this
appliance must be located in a
dry atmosphere, away from
heat sources, e.g. cookers,
radiators, boilers and direct
sunlight.
You should also ensure that air
can circulate freely around the
back and the top of the
cabinet. There should be
100mm (4”) between the top of
the cabinet and any
overhanging kitchen furniture.
Alternatively allow 50mm (2”) between the top of the cabinet and any
overhanging kitchen furniture and a gap of 25mm (1”) on either side of the
appliance.
Levelling
The appliance must be level.
Level the appliance by adjusting
the two adjustable feet (1) at
the front of the appliance.
If required the washer (2) can be
removed.
Reversing the Door
The side at which the door opens can be changed from the right side (as
supplied) to the left side, if the installation site requires.
Warning! When changing the
side at which the door opens,
the appliance must not be
connected to the mains.
Remove plug from the mains
beforehand.
Carefully tilt the appliance to
the back and place an adequate
object under it.
Take care to avoid the
compressor or the condenser
touching the ground.

Installation
10
Unscrew the adjustable feet
situated on both sides (2
pieces), in addition the
screws fixing the lower door
holders (2 pieces)
respectively the screw on the
other side.
Take off the freezer door by
pulling it slightly downwards.
Unscrew the top door hinge
pin of the refrigerator then
screw it back on the other
side.
Fit the freezer door on the
upper door hinge pin.
Put over the pin in the lower
door holding plate in the
direction of the arrow.
Fix the plate on the other
side leaving the position of
the door unchanged.
Then screw in the one screw
in the place set free on the
other side as well as the
adjustable feet (2 pieces)
and stand upright again.
Put the handles on the other side and put the plastic covering pins supplied
in the plastic bag of this instruction book into the vacant holes.
Put the appliance into it’s place, set it level and plug it into the mains socket.

11
Electrical Connection
Any electrical work required to install
this appliance should be carried out by
a qualified electrician or competent
person. This appliance must be earthed.
The manufacturer declines any liability
should these safety measures not be
observed.
Electrical Requirements
Before switching on, make sure the
electricity supply voltage is the same as
that indicated on the appliance rating
plate.
The appliance is supplied with a 13 amp
plug fitted. In the event of having to
change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need
to be replaced for any reason. The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E“ or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the terminal “N“ or coloured
black. The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
Upon completion there must be no cut, or stray strands of wire present
and the cord clamp must be secure over the outer sheath.
Important!The plug must still be accessible after the appliance has been
installed. The appliance should not be connected to the electrical supply
by means of an extension cable. In case that the electrical cable has to be
replaced, please contact your local Service Force Centre.
Warning! A cut off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that it is disposed of safely.

12
1. Glass shelf
2. Defrost water drain
3. Salad drawer
4. Rating Plate
5. Adjustable feet
6. Butter compartment
7. Interior Light
8. Door shelf
9. Door gasket
10. Bottle shelf
11. Egg tray
12. Air circulation
13. Air vent
14. Condenser
15. Evaporator tray
16. Compressor
17. Temperature Control and Display
Description of the Appliance
View of the Appliance

13
Using the Appliance
Starting your appliance and temperature control
1. Insert the plug into the wall socket.
2. Press the ON/OFF button. The green control light is on.
3. Press the "+" (3) or "-" (5) button. The temperature display switches to
showing the set temperature.
Note: Concerning secure food storage temperatures, a refrigerator
temperature of 5°C can be regarded as cold enough.
4. The compressor starts and continues to work automatically.
Attention! When you change the settings, the compressor will not start
immediately if it is doing automatic defrosting at the same time.
5. Since the refrigerator quickly reaches the storage temperature after being
switched on, you can place the food in immediately.
Control panel
1.ON/OFF control light (green)
2.ON/OFF switch
3.Temperature setting buttons
(to increase the temperature)
4.Temperature display
5.Temperature setting buttons (to decrease the temperature)
6.COOLMATIC indicator light (yellow)
7.Push button for COOLMATIC
Temperature control buttons
The temperature can be
adjusted with the "+" (warmer)
and "-" (colder) buttons.
These buttons belong to the temperature display.
If you press the "+" (3) or "-" (5) button, , the temperature display will switch
from the actual temperature (constantly luminous temperature display field)
to the desired temperature (flashing temperature display field).
By pressing any of the two buttons the desired temperature can be modified
by 1°C.

14
If the adjustment is stopped and neither button is pressed, the temperature
display will switch back to its original function and show the actual
temperature after a short while (about 5 seconds).
The appropriate storage temperature of food and drink is +5°C.
Temperature Display
The temperature display shows various information:
During normal operation the temperature inside the refrigerator (actual
temperature) is displayed on the temperature display.
At the time of switching on or heating up, the temperature display will show
the " " sign until the cold compartment cools down to a temperature
between +9 °C and +2 °C.
When the temperature is being adjusted, the temperature currently set
(desired temperature) flashes on the display field.
Attention! The display field shows the actual temperature with a delay of
maximum 24 hours.
COOLMATIC button
The COOLMATIC function serves for quickly cooling down a vast amount of
fresh food put into the refrigerator, for example drinks and salads prepared
for a party.
1. The COOLMATIC function can be switched on by pressing the COOLMATIC
button (7). The yellow indicator light (6) is on.
2. The COOLMATIC function provides intensive cooling. The refrigerator
automatically switches to a temperature of +2°C. The COOLMATIC function
turns off automatically after running for 6 hours. The refrigerator switches
back to the originally set temperature which is valid again. The actual
temperature of the fridge can be seen on the display.
3. The COOLMATIC function can be turned off manually by pressing the
COOLMATIC button again at any time. The yellow light goes out.
After turning on the COOLMATIC function the set temperature must not be
altered.
Holiay function
The holiday function sets the temperature at +15°C. This function allows you to
keep the refrigerator shut and empty during a long holiday period (e.g. the
summer holidays) without the formation of a bad smell.
1. To turn on the holiday function, press button (3).
2. Press continuosly button (3) until the letter "H" (Holiday) appears on the
temperature indicator. The temperature indicator can modify the displayed
temperature degree by degree up to +8°C. Above +8°C the display will show the
letter "H". The inside temperature can reach +15°C.
Now the refrigerator is in the "holiday" function in the energy-saving mode.
The fridge compartment must be empty with holiday function on.

Hints for storage
Below is the recommended storage positions for various food types:
1 Ready-cooked foods, con-
venience foods, fresh
meat, cold cuts
2 Milk, dairy products, foods
in dishes
3 Fruits, vegetables, salads
4 Cheese, butter
5Eggs
6 Yoghurt, sour cream
7 Small bottles, soft drinks
8 Large bottles, drinks
15
Interior Accessories
Storage Shelves
Various glass storage shelves are
included with your appliance. The
height of the storage shelves can be
adjusted:
1. To do this pull the storage shelf for-
ward until it can be swivelled
upwards or downwards and
removed.
2. Please do the same in reverse to
insert the shelf at a different height.

16
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
The appliance must not be connected to the mains during cleaning.
Danger of electrical shock. Before cleaning switch the appliance off and
remove the plug from the mains, or switch off or disconnect from the
electricity supply.
Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components and there is a danger of an electrical
shock. Hot vapours can lead to the damage of plastic parts.
The appliance must be dry before it is switched back on.
Important!
Ethereal oils and organic solvents can attack plastic parts, e.g.
- lemon juice or the juice from orange peels;
- butyric acid;
- cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
Do not use any abrasive cleansers.
Before any maintenance of cleaning work is carried out DISCONNECT the
appliance from the ELECTRICITY SUPPLY.
Internal Cleaning
Clean the inside and accessories with
warm water and bicarbonate of soda (5
ml to 0.5 litre of water). Rinse and dry
thoroughly.
Do not use detergents, abrasive
powders, highly perfumed cleaning
products, wax polishes or cleaning
products containing bleach or alcohol.
Clean the drain hole of the water
trough at regular intervals and ensure
that the drain hole is clear at all times.
If blocked carefully clear using a piece
of flexible curtain wire inserted into
the drain outlet to remove the blockage.
Regularly check the door seals and wipe clean to ensure they are clean and
free from debris.
Accumulation of dust at the condenser increases energy consumption. For
this reason carefully clean the condenser at the back of the appliance once
a year with a soft brush or a vacuum cleaner.

Energy Saving Tips
Do not install the appliance near cookers, radiators or other sources of
warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
Ensure sufficient air circulation and exhaust at the appliance base and at
the back wall of the appliance. Never cover air vent openings.
Do not place warm foods into the appliance. Allow warm foods to cool
first.
Only leave the door open as long as necessary.
Do not set the temperature any colder than necessary.
Put frozen food in the fridge to defrost. The cold in the frozen food will
then be used to cool the fridge.
Always keep the heat emitting condenser, the metal grille on the rear wall
of your appliance clean.
17

18
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify
yourself using the following instructions. Do not perform any other work on
the appliance if the following information does not provide assistance in your
specific case.
Important! Repairs to refrigerators/freezers may only be performed by
competent service engineers. Improper repairs can give rise to significant
hazards for the user. If your appliance needs repairing, please contact your
specialist dealer or your local Service Force Centre.
Symptom
Appliance does not work.
The compressor runs con-
tinuously.
The food is too warm.
Possible Cause
Appliance is not switched
on.
Mains plug is not plugged
in or is loose.
Fuse has blown or is
defective
Socket is defective.
Temperature is set too
cold.
Temperature is not
properly adjusted.
Door was open for an
extended period.
A large quantity of warm
food was placed in the
appliance within the last
24 hours.
The appliance is near a
heat source.
Remedy
Switch on the appliance.
Insert mains plug.
Check fuse, replace if nec-
essary.
Mains malfunctions are to
be corrected by a qualified
electrician.
Set the Electronic Control
to a warmer setting
temporarily.
Please look in the “Starting
Up and Temperature
Regulation” section.
Do not leave the door
open any longer than
necessary.
Set the Electronic Control
to a colder setting tem-
porarily.
Please look in
the“Installation location”
section.

Symptom
Interior lighting does not
work.
Heavy build up of frost,
possibly also on the door
seal.
Unusual noises.
The compressor does not
start immediately after
changing the temperature
setting.
Water in the bottom of
the cabinet.
Possible Cause
Light bulb is defective.
Door seal is not airtight
(possibly after reversing
the door).
Appliance is not level.
The appliance is touching
the wall or other objects.
This is normal, no error
has occurred.
Water drain hole is
blocked.
Remedy
Please look in the
“Changing the Light Bulb”
section.
Carefully warm the
leaking sections of the
door seal with a hair dryer
(on a cool setting). At the
sametime shape the
warmed door seal by hand
such that it sits correctly.
Readjust the feet.
Move the appliances
lightly.
The compressor starts
after a period of time.
See the “Cleaning and
Care” section.
19
What to do if ...
Breakdown
The warning signals of the control and signalling system of the appliance
are displayed on the visual display. The system will give out a signal if:
An error has occurred in the operation of the appliance. In case the
electronic system of the appliance cannot identify the real temperature,
one of the following signs will appear on the temperature display:
Until the product is repaired, the appliance will continue to run on a
standby program to protect the food stored within.
or

20
Changing the Light Bulb
Should the light fail to work you
can change it as below:
Disconnect the appliance from the
electricity supply.
Remove the lamp cover retaining
screws, then take the lamp cover off
in the direction of the arrow and
the bulb can be changed. (Type of
the bulb: 230 V, 15 W, E 14 thread)
After changing the bulb replace the lamp cover, and retaining screws and
reconnect the appliance to the electricity supply.
Noises During Operation
The following noises are characteristic of refrigeration appliances:
Clicks
Whenever the compressor switches on or off, a click can be heard.
Humming
As soon as the compressor is in operation, you can hear it humming.
Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or splashing
noises. Even after the compressor has been switched off, this noise can be
heard for a short time.
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the
regulations of the German Society of Electrical Engineers (VDE) were
observed in the manufacture of this appliance. The refrigerant circuit has
been checked for leaks.
This appliance is in accordance with the following EUguidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
– 96/57 EEC - 96/09/03 (Energy Efficiency Directive) and its subsequent
amendments
