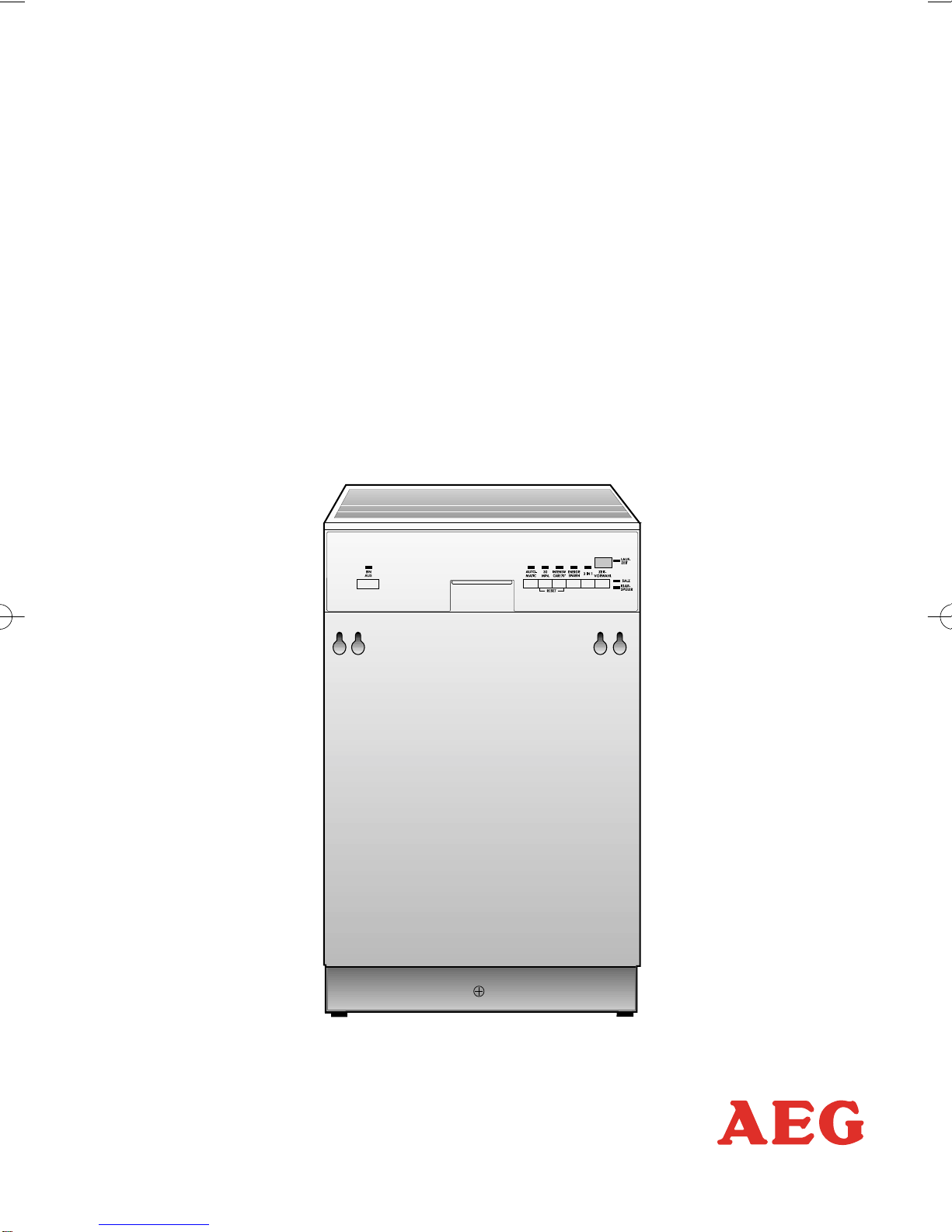

AEG FAVORIT 64470 I Operation manual

FAVORIT 64470 I
Dishwasher
User information
PERFEKT IN FORM UND FUNKTION
152967 82/0en 1-12-2003 11:17 Pagina 1

Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass it on to any subsequent owner of the appliance.
The following symbols are used in the text:
Safety instructions
Warning! Notes that concern your personal safety.
Attention! Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
Your dishwasher has the new washing system ”IMPULSE WASHING”.
With this dishwashing system the motor speed and spray pressure
are varied during the wash cycle to achieve better cleaning of the
dishes. It is for this reason that the noise level varies during the
dishwashing cycle.
2
152967 82/0en 1-12-2003 11:17 Pagina 2

CONTENTS
Operating instructions 4
Safety 4
Appliance features 5
Control panel 5
Prior to using for the first time 7
Setting the water softener 7
Adding special salt 9
Adding rinse aid 10
Activating/deactivating the inflow of rinse aid 11
In daily use 12
Loading cutlery and dishes 12
Adjusting the height of the upper basket 15
Adding detergent 16
Using 3 in 1 detergent tablets 17
Selecting the programme (Programme Table) 18
Starting a programme 19
Setting or changing the Start Delay 20
Switching off the dishwasher 21
Care and cleaning 22
What to do when... 23
Technical data 26
Notes for Test Institutes 27
Installation and connection instructions 28
Safety information for the installation 28
Installing the dishwasher 29
Connecting the dishwasher 30
Electrical connection 32
Service 33
Contents
3
152967 82/0en 1-12-2003 11:17 Pagina 3

OPERATING INSTRUCTIONS
Safety
Prior to using for the first time
•Follow the ”Instructions for installation and connection”.
Correct use
•The dishwasher is only meant for washing domestic dishes.
•Additions or modifications to the dishwasher are not permitted.
•Use only special salt, detergent and rinse aid suitable for domestic
dishwashers.
•Do not put any solvents in the dishwasher. This could cause an
explosion.
Child safety
•Keep packaging away from children. There is a risk of suffocation.
•Children often do not recognise the hazards associated with
electrical appliances. Don’t allow children to use the dishwasher
unsupervised.
•Make sure that children and pets don’t climb into the dishwasher.
Could endanger life!
•Dishwasher detergents can cause chemical burns to the eyes, mouth
and throat. Could endanger life! Comply with the safety instructions of
the dishwasher detergent manufacturer.
•The water in the dishwater is not for drinking. There is a risk of
chemical burns.
General safety
•Repairs to the dishwasher are only to be carried out by qualified
service engineers.
•When the dishwasher is not being used, switch it off and close the
water tap.
•Never unplug the appliance by pulling on the cable. Always pull the
plug.
•Never sit or stand on the open door.
• If the dishwasher is located in a room where there may be a frost,
remove the connection hose from the tap after each use of the
dishwasher.
Operating instructions
4
152967 82/0en 1-12-2003 11:17 Pagina 4

Appliance features
Operating instructions
5
Water hardness switch
Dispenser for
detergent
Filters
Upper spray arm
Lower spray arm
Rating plate
Dispenser for
rinse aid
Container for
special salt
ON / OFF
button
Programme
buttons
Function
buttons
Multidisplay
Control
indicators
Set start
delay
Select 3 in 1
function
1 2 3
Control panel
152967 82/0en 1-12-2003 11:17 Pagina 5

The ON/OFF button is used to turn the dishwasher on and off.
The Programme buttons are used to select the desired dishwashing
cycle.
Function buttons: In addition to the dishwashing cycle and/or start
delay selected, the following functions can also be set with the help of
these buttons:
The multi-display can indicate:
– the level of hardness to which the water softener is set.
– whether the rinse aid inflow has been activated/deactivated.
- the start delay that has been set.
– the estimated time remaining for the current dishwashing cycle.
– what type of error has occurred with the dishwasher.
The Control Indicators have the following meanings:
1)The indicators are never illuminated while a dishwashing cycle is
running.
Operating instructions
6
Function button 1
Function button 2
Function button 3
Set the water softener
Activate/deactivate rinse aid inflow
- not programmed -
SALZ 1
KLARSPÜLER 1
Refill with special salt
Refill with rinse aid
152967 82/0en 1-12-2003 11:17 Pagina 6

Operating instructions
7
Prior to using for the first time
1. Set the water softener
2. Fill up with special salt for water softener
3. Fill up with rinse aid
If you use 3 in 1 detergent, do the following:
– Switch on the dishwasher, press the 3 in 1 button. The indicator
lamp illuminates, the 3 in 1 function is selected. As a result
– there is no need to fill up with special salt or rinse aid.
– there is no need to set the water softener.
– there is no need to activate/deactivate the rinse aid inflow.
– Before the start of the dishwashing cycle put 3 in 1 detergent in
the detergent dispenser.
– Read the section “Using 3 in 1 detergent”.
Setting the water softener
To avoid scale deposits on the dishes and in the dishwasher, the
dishes must be washed with soft water, i.e. water with a low lime
content. The water softener must be set according to the table to
the water hardness in the area where you live. Your local water
company will be able to give you information about the water
hardness in your area.
The dishwasher must be switched off. The water softener must be
set manually and electronically:

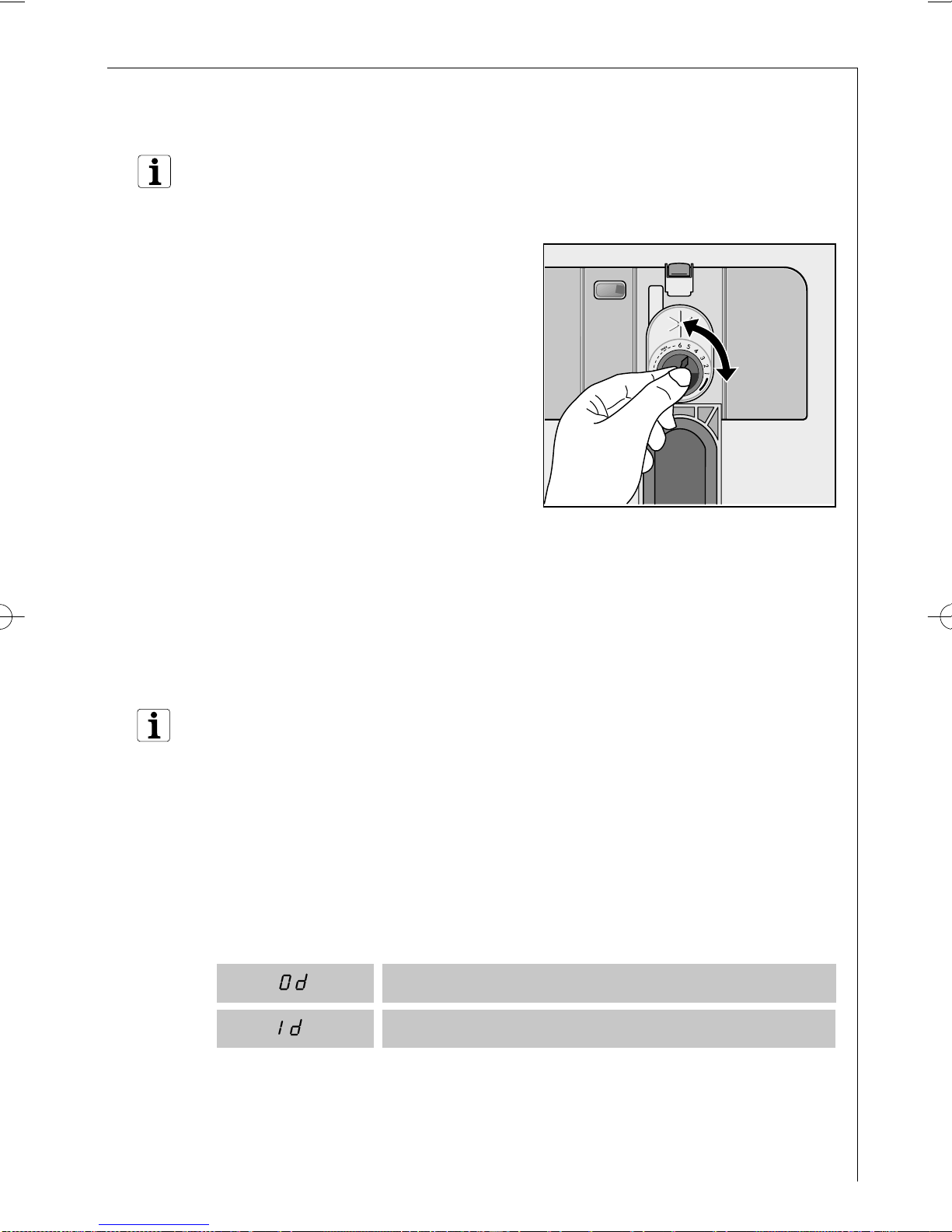

Setting manually:
1.Open the dishwasher door.
2.Remove the lower basket from
the dishwasher.
3.Turn the hardness range switch to 1
or 2 (see table).
AA07
152967 82/0en 1-12-2003 11:17 Pagina 7

Operating instructions
8
Setting electronically:
1. Press the ON/OFF button.
If indicators other than the ON/OFF button are lit, a programme
has been selected. The programme must be cancelled:
Press function buttons 2and 3simultaneously for approx. 2 seconds.
All other indicators will go out.
2. Press function buttons 2and 3simultaneously and keep them
pressed. The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 1again.
The LED indicator for function button 1will flash.
The multi-display will indicate the hardness setting.
4. Pressing function button 1increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).
5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.
If the water softener is set electronically to “1”, this switches off the
control indicator for special salt.

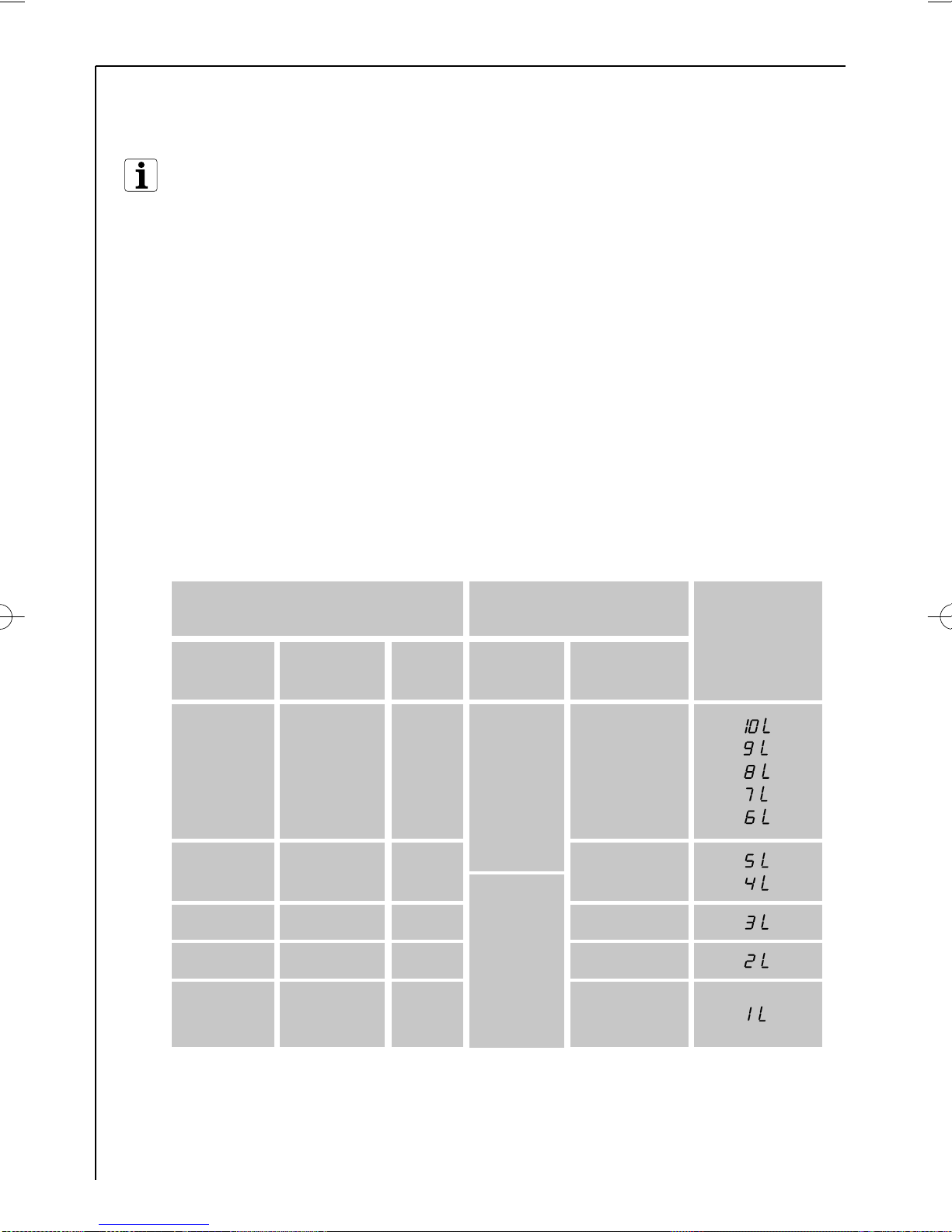

Adjusting the hardness
setting
10
9
8
7
6
3
1
no salt
necessary
Manual Electronic
*2
1
Indication on
the
multidisplay
2
Water hardness
51 - 70
43 - 50
37 - 42
29 - 36
23 - 28
9,0 - 12,5
7,6 - 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
IV
11 - 14 1,9 - 2,5 II
unter 4 unter 0,7 I
4 - 10 0,7 - 1,8 I/II
19 - 22
15 - 18 3,3 - 3,9
2,6 - 3,2 III 5
4*
in °d 1in mmol/l 2Range
1) (°d) German degree, measure of water hardness
2) (mmol/l) millimol per litre, international unit for water hardness
*) factory setting
152967 82/0en 1-12-2003 11:17 Pagina 8

Operating instructions
9
Adding special salt
Only use special salt suitable for domestic dishwashers.
If you don’t use 3 in 1 detergent add special salt:
-Before using the dishwasher for the first time.
-When the indicator for special salt is illuminated on the control panel.
1. Open the door and remove the lower
basket.
2. Screw open the lid on the salt
dispenser by turning it anti-
clockwise.
3. Only when using the dishwasher
for the first time:
Fill the salt dispenser with water.
4. Place the funnel (supplied) over the
dispenser opening.
Fill the dispenser with special salt;
the capacity of the dispenser is
approx. 1.0-1.5 kg, depending on the size of the grains. Do not
overfill the dispenser.
If water overflows when filling up with special salt, this is completely
harmless.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with
special salt. This will wash away salt water and any salt crystals that
have been spilt.
Depending on the size of the salt grains, it can take several hours
for the salt to dissolve in the water and for the SALT indicator to go
out.
SALE
ZOUT
SALT
SALZ
SEL
SR14
152967 82/0en 1-12-2003 11:17 Pagina 9

Adding rinse aid
With rinse aid the rinsing water drains away better and so you get
smear-free, gleaming dishes and clear glasses.
Only use special rinse aid for dishwashers and no other liquid
detergents.
If you don’t use 3 in 1 detergent add rinse aid:
-Before using the dishwasher for the first time.
-When the indicator for rinse aid is illuminated on the control panel.

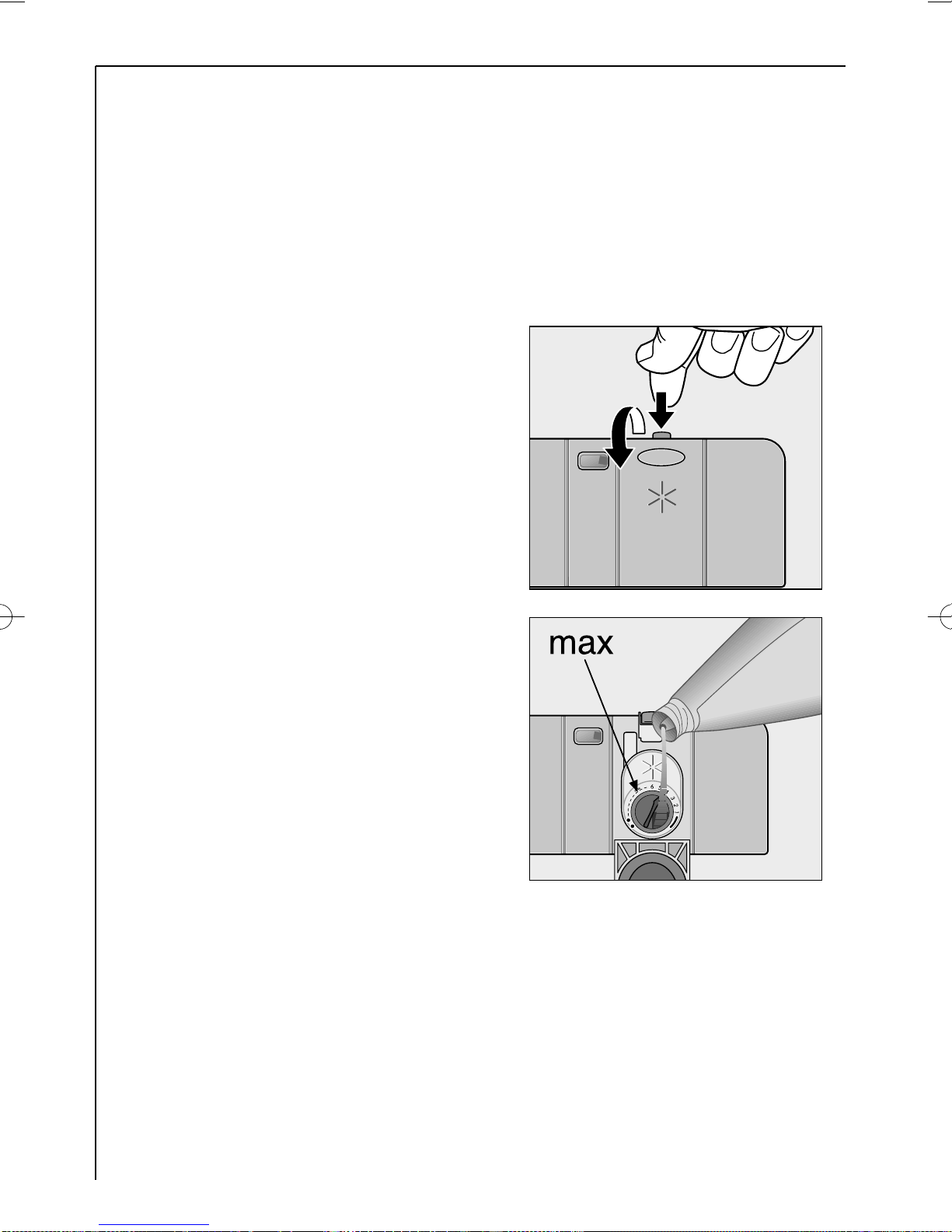

1. Open the door. The rinse aid
compartment is located on the
inside of the dishwasher door.
2. Press the release button on the rinse
aid compartment.
3. Open the cover.
4. Pour rinse aid in slowly right up
to the broken “max” line;
this corresponds to a volume of
approx. 140 ml when full.
5. Press the lid shut until it clicks
into place.
6. Wipe up any spilt rinse aid with a
cloth. Otherwise too much foam
will be formed when rinsing.
Operating instructions
10
BR17
BR14
152967 82/0en 1-12-2003 11:17 Pagina 10
