AEG FAVORIT 665 User manual

Dishwasher
FAVORIT 665/665 i
Operating instructions
AEG

Please read the instructions for use
and keep them in a safe place!
Your dishwasher should only be installed
by a qualified tradesman. Our special
installation instructions are given on
pages 19—21.
These instructions for use will help you take
full advantage of all the features offered
by this-machine. In return for this minor
effort, your FAVORIT will reward you with
faultless service. You will also save yourself
unnecessary maintenance costs!
Contents
Illustration pages (please unfold) 3— 5
Machine description 6—8
Important hints to help you use
your dishwasher correctly 8
How to operate your machine:
• Filling with rinse aid —
Setting the rinse aid quantity
to be dosed 10
• Add dishwashing detergent —
before each washing programme 11
Loading the dishwasher correctly 12

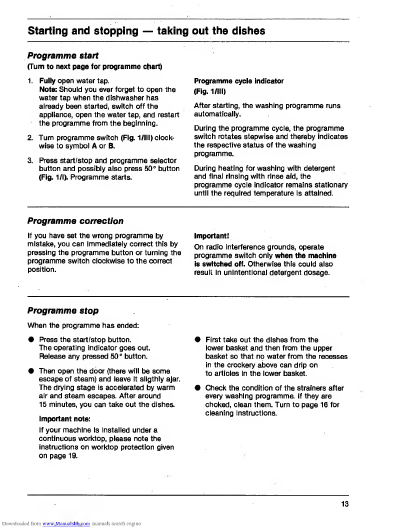

Starting and stopping —
taking out the dishes 13

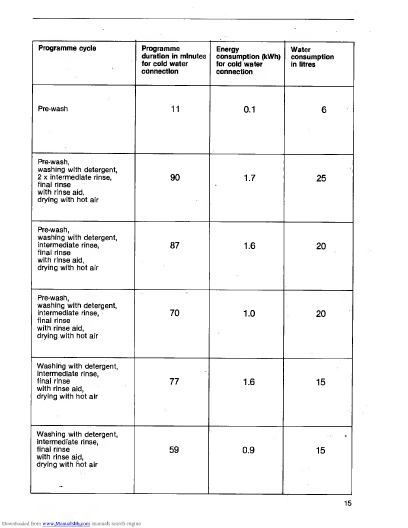

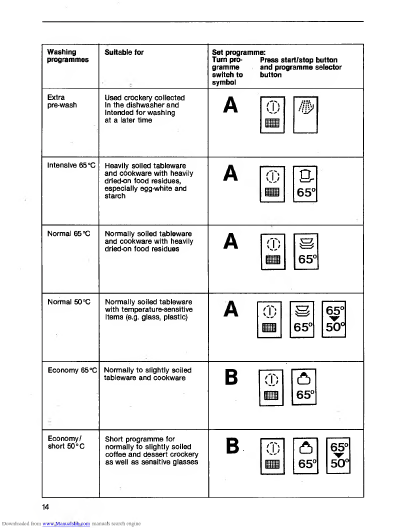

Washing programmes
(programme chart) 14—15
Cleaning and care 16

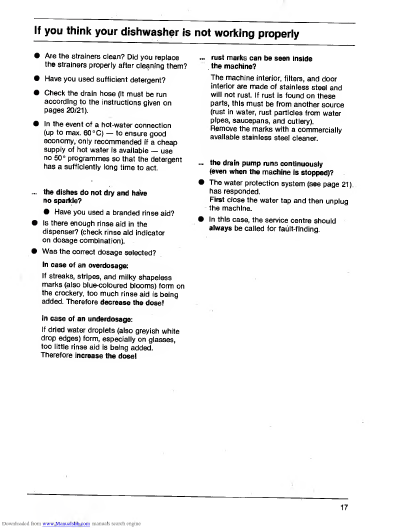

If you think your dishwasher
is not working properly 16—17

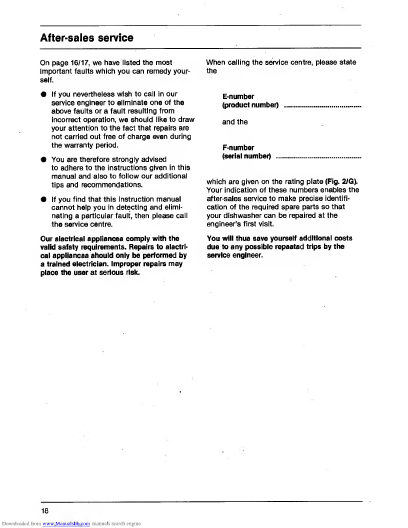

After-sales service 18

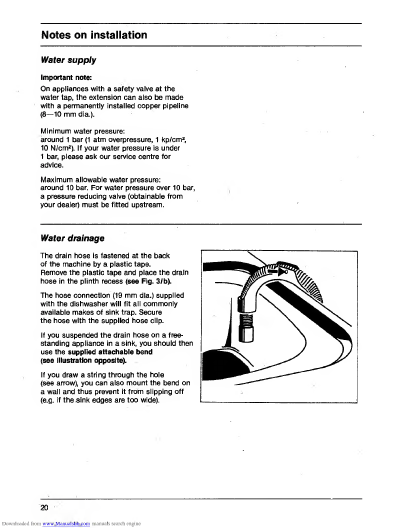

Notes on Installation
(Installation —
water and electrical connection —
water protection system) 19—21
Technical data 22
Arrangement examples 23

gPHUSS y— ' j 1
i n,
III
tUIIIIIIIIII
1 r
QU_jJ_L^'
Tt
b c

12
i: j
14 15
■ j
l/ c—-.1
16 17

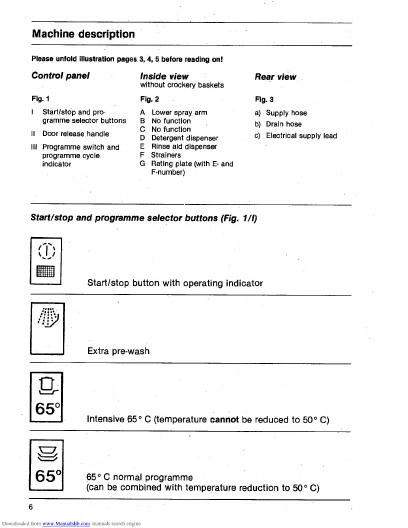

Machine description
Please unfold illustration pages 3, 4, 5 before reading on!
Control panel
Fig. 1
I Start/stop and pro¬
gramme selector buttons
II Door release handle
III Programme switch and
programme cycle
Indicator
Inside view
without crockery baskets
Fig. 2
A Lower spray arm
B No function
C No function
D Detergent dispenser
E Rinse aid dispenser
F Strainers
G Rating plate (with E- and
F-n umber)
Rear view
Fig. 3
a) Supply hose
b) Drain hose
c) Electrical supply lead
Start/stop and programme selector buttons (Fig. 1/1)
(T;
Start/stop button with operating indicator
65 °
Intensive 65° C (temperature cannot be reduced to 50° C)
65 °
65° C normal programme
(can be combined with temperature reduction to 50° C)

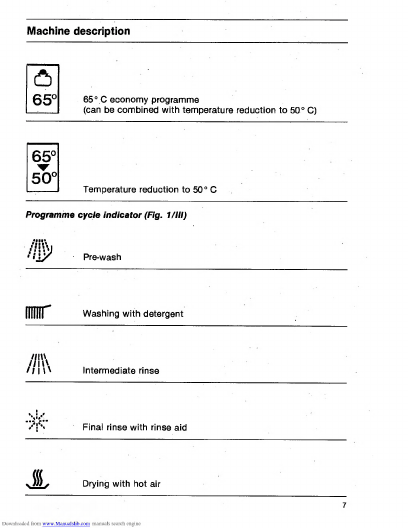

Machine description
A
65 “ 65° C economy programme
_ (can be combined with temperature reduction to 50° C)
65 °
50 °
Temperature reduction to 50° C
Programme cycle indicator (Fig. 1/III)
fih
• IJyr Pre-wash
(IIIKP Washing with detergent
//it'
Intermediate rinse
Final rinse with rinse aid
Drying with hot air

Machine description

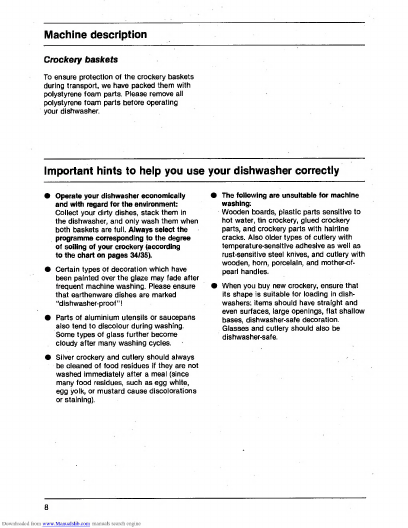

Crockery baskets
To ensure protection of the crockery baskets
during transport, we have packed them with
poiystyrene foam parts. Please remove ail
polystyrene foam parts before operating
your dishwasher.
important hints to heip you use your dishwasher correctiy
• Operate your dishwasher economically
and with regard for the environment:
Collect your dirty dishes, stack them In
the dishwasher, and only wash them when
both baskets are full. Always select the
programme corresponding to the degree
of soiling of your crockery (according
to the chart on pages 34/3S).
• Certain types of decoration which have
been painted over the glaze may fade after
frequent machine washing. Please ensure
that earthenware dishes are marked
“dishwasher-proof”!
• Parts of aluminium utensils or saucepans
also tend to discolour during washing.
Some types of glass further become
cloudy after many washing cycles.
• Silver crockery and cutlery should always
be cleaned of food residues if they are not
washed immediately after a meal (since
many food residues, such as egg white,
egg yolk, or mustard cause discolorations
or staining).
• The following are unsuitable for machine
washing:
Wooden boards, plastic parts sensitive to
hot water, tin crockery, glued crockery
parts, and crockery parts with hairline
cracks. Also older types of cutlery with
temperature-sensitive adhesive as well as
rust-sensitive steel knives, and cutlery with
wooden, horn, porcelain, and mother-of-
pearl handles.
• When you buy new crockery, ensure that
its shape is suitable for loading In dish¬
washers; items should have straight and
even surfaces, large openings, flat shallow
bases, dishwasher-safe decoration.
Glasses and cutlery should also be
dishwasher-safe.

How to operate your machine
Filling with rinse aid
The rinse aid ensures that the iast rinse water
flows off, leaving no drops, and gives your
crockery its final sparkle. The rinse aid is
dispensed automatically from the dispenser.
Important!
Use only a branded rinse aid for domestic
dishwashers, since other agents, e.g.
vinegar, may damage your machine and
not produce the intended effect.
Never use conventional washing-up liquids,,
since they contain agents causing heavy
frothing and are unsuitable for dishwashers.

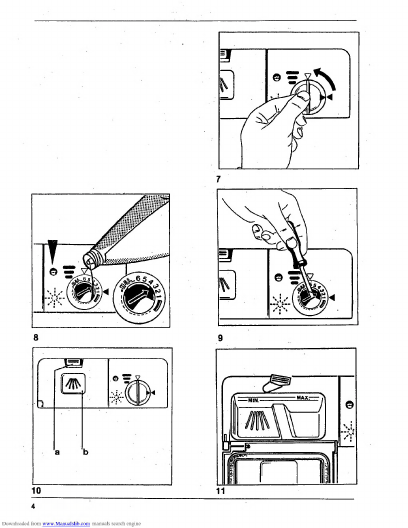

The dispenser is located on the inside of the
door (Fig. 2/E), Open the dispenser by
twisting the cap 'A revolution to the left
(Fig. Tfarrow) and fill the rinse aid into the
filling opening max. up to the dotted line
(Fig. 8).
Then close the cap again by twisting it to the
right.
Fiiling quantity is around 150 cm^ (sufficient
for around 50 washing programmes).
Wipe off any spilled rinse aid with a cloth,
otherwise too much foam will be produced
during washing.
Rinse aid repienishment indicator
You must replenish with rinse aid when a
dark spot surrounded by a bright ring { (g) )
appears in the display window on the dosage
combination (Fig. 8/arrow). When the rinse aid
dispenser Is full, the display window appears
uniformly dark.
10

How to operate your machine

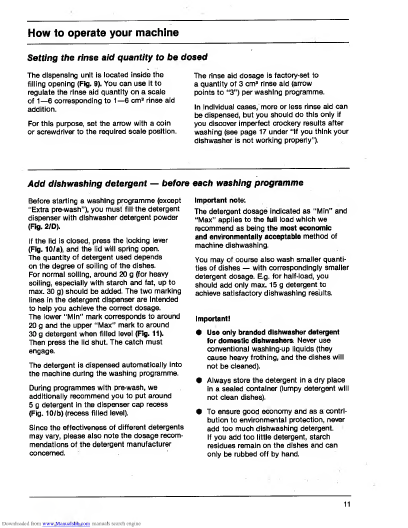

Setting the rinse aid quantity to be
The dispensing unit Is located Inside the
filling opening (Fig. 9). You can use it to
regulate the rinse aid quantity on a scale
of 1—6 corresponding to 1—6 cm“ rinse aid
addition.
For this purpose, set the arrow with a coin
or screwdriver to the required scale position.
The rinse aid dosage Is factory-set to
a quantity of 3 cm’ rinse aid (arrow
points to “3”) per washing programme.
In Individual cases, more or less rinse aid can
be dispensed, but you should do this only if
you discover imperfect crockery results after
washing (see page 17 under “If you think your
dishwasher Is not working properly’’).
Add dishwashing detergent — before each washing programme
Before starting a washing programme (except
"Extra pre-wash”), you must fill the detergent
dispenser with dishwasher detergent powder
(Fig. 2/D).
If the lid is closed, press the locking lever
(Fig. 10/a), and the lid will spring open.
The quantity of detergent used depends
on the degree of soiling of the dishes.
For normal soiling, around 20 g (for heavy
soiling, especially with starch and fat, up to
max. 30 g) should be added. The two marking
lines in the detergent dispenser are Intended
to help you achieve the correct dosage.
The lower “Min” mark corresponds to around
20 g and the upper “Max” mark to around
30 g detergent when filled level (Fig. 11).
Then press the lid shut. The catch must
engage.
The detergent Is dispensed automatically Into
the machine during the washing programme.
During programmes with pre-wash, we
additionally recommend you to put around
5 g detergent in the dispenser cap recess
(Fig. 10/b) (recess filled level).
Since the effectiveness of different detergents
may vary, please also note the dosage recom¬
mendations of the detergent manufacturer
concerned.
Important note;
The detergent dosage indicated as “Min” and
“Max” applies to the full load which we
recommend as being the most economic
and environmentally acceptable method of
machine dishwashing.
You may of course also wash smaller quanti¬
ties of dishes — with correspondingly smaller
detergent dosage. E.g. for half-load, you
should add only max. 15 g detergent to
achieve satisfactory dishwashing results.
Important!
• Use only branded dishwasher detergent
for domestic dishwashers^ Never use
conventional washing-up liquids (they
cause heavy frothing, and the dishes will
not be cleaned).
• Always store the detergent In a dry place
In a sealed container (lumpy detergent will
not clean dishes).
• To ensure good economy and as a contri¬
bution to environmental protection, never
add too much dishwashing detergent.
If you add too little detergent, starch
residues remain on the dishes and can
only be rubbed off by hand.

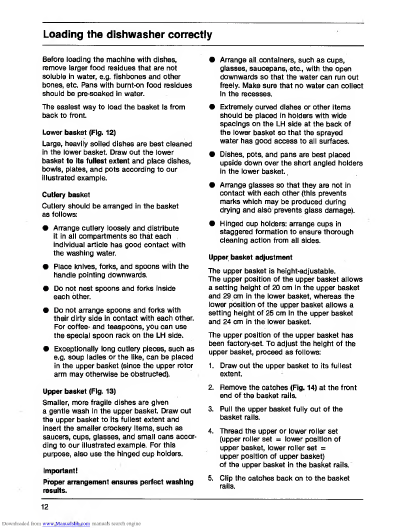

Loading the dishwasher correctly
Before loading the machine with dishes,
remove larger food residues that are not
soluble in water, e.g. fishbones and other
bones, etc. Pans with burnt-on food residues
should be pre-soaked in water.
The easiest way to load the basket Is from
back to front.

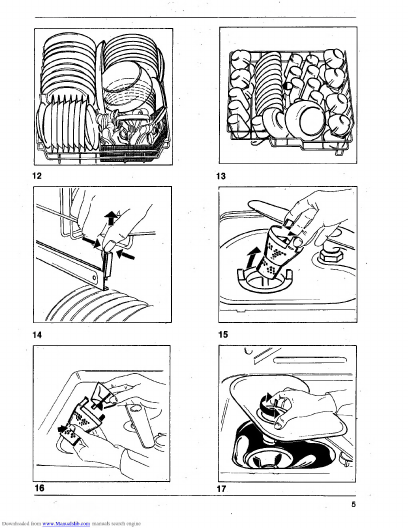

Lower basket (Fig. 12)
Large, heavily soiled dishes are best cleaned
in the lower basket. Draw out the lower
basket to its fullest extent and place dishes,
bowls, plates, and pots according to our
illustrated example.
Cutlery basket
Cutlery should be arranged in the basket
as follows;
• Arrange outlery loosely and distribute
It in all compartments so that each
Individual article has good contact with
the washing water.
• Place knives, forks, and spoons with the
handle pointing downwards.
• Do not nest spoons and forks inside
each other.
• Do not arrange spoons and forks with
their dirty side in contact with each other.
For coffee- and teaspoons, you can use
the special spoon rack on the LH side.
• Exceptionally long cutlery pieces, such as
e.g. soup ladles or the like, can be placed
in the upper basket (since the upper rotor
arm may otherwise be obstructed).
Upper basket (Fig. 13)
Smaller, more fragile dishes are given
a gentle wash in the upper basket. Draw out
the upper basket to its fullest extent and
insert the smaller crockery items, such as
saucers, cups, glasses, and small cans accor¬
ding to our illustrated example. For this
purpose, also use the hinged cup holders.
Important!
Proper arrangement ensures perfect washing
• Arrange all containers, such as cups,
glasses, saucepans, etc., with the open
downwards so that the water can run out
freely. Make sure that no water can collect
In the recesses.
• Extremely curved dishes or other items
should be placed in holders with wide
spaoings on the LH side at the back of
the lower basket so that the sprayed
water has good access to all surfaces.
• Dishes, pots, and pans are best placed
upside down over the short angled holders
in the lower basket.,
• Arrange glasses so that they are not In
contact with each other (this prevents
marks which may be produced during
drying and also prevents glass damage).
• Hinged cup holders: arrange cups in
staggered formation to ensure thorough
cleaning action from all Sides.
Upper basket adjustment
The upper basket Is height-adjustable.
The upper position of the upper basket allows
a setting height of 20 cm in the upper basket
and 29 cm in the lower basket, whereas the
lower position of the upper basket allows a
setting height of 25 cm In the upper basket
and 24 cm in the lower basket.
The upper position of the upper basket has
been factory-set. To adjust the height of the
upper basket, proceed as follows:
1. Draw out the upper basket to its fullest
extent.
2. Remove the catches (Fig. 14) at the front
end of the basket rails.
3. Pull the upper basket fully out of the
basket rails.
4. Thread the upper or lower roller set
(upper roller set = lower position of
upper basket, lower roller set =
upper position of upper basket)
of the upper basket in the basket rails.
5. Clip the catches back on to the basket
12

starting and stopping — taking out the dishes
Programme start
(Turn to next page for programme chart)
1. Fully open water tap.
Note: Should you ever forget to open the
water tap when the dishwasher has
already been started, switch off the
appliance, open the water tap, and restart
the programme from the beginning.
2. Turn programme switch (Fig. 1/iii) ciock-
wise to symbol A or B.
3. Press start/stop and programme selector
button and possibly also press 50° button
(Fig. 1/i). Programme starts.
Programme cycle indicator
(Fig. 1/lii)
After starting, the washing programme runs
automatically.
During the programme cycle, the programme
switch rotates stepwise and thereby indicates
the respective status of the washing
programme.
During heating for washing with detergent
and final rinsing with rinse aid, the
programme cycle indicator remains stationary
until the required temperature is attained.
Programme correction
If you have set the wrong programme by
mistake, you can immediately correct this by
pressing the programme button or turning the
programme switch clockwise to the correct
position.
Important!
On radio interference grounds, operate
programme switch only when the machine
is switched off. Otherwise this could also
result In unintentional detergent dosage.
Programme stop
When the programme has ended:
• Press the start/stop button.
The operating indicator goes out.
Release any pressed 50° button.
• Then open the door (there will be some
escape of steam) and leave It sligthly ajar.
The drying stage is accelerated by warm
air and steam escapes. After around
15 minutes, you can take out the dishes.
Important note:
If your machine Is Installed under a
continuous worktop, please note the
instructions on worktop protection given
on page 19.
• First take out the dishes from the
lower basket and then from the upper
basket so that no water from the recesses
In the crockery above can drip on
to articles In the lower basket.
• Check the condition of the strainers after
every washing programme. If they are
choked, clean them. Turn to page 16 for
cleaning instructions.
13

Washing
programmes
Set programme:
Turn pro- Press start/stop button
gramme and programme selector
switch to button
Extra Used crockery collected
pre-wash In the dishwasher and
Intended for washing
at a later time
A
Intensive 65°C
Heavily soiled tableware
and cookware with heavily
drIed-on food residues,
especially egg-white and
starch
A
Normal 65 “C Normally soiled tableware
and cookware with heavily
dried-on food residues
A
CD
#
■
CD
Q.
■
65°
CD
ii 65°
Normal 50 °C Normally soiled tableware
with temperature-sensitive
Items (e.g. glass, plastic)
A
Economy 65 °C
Normally to slightly soiled
tableware and cookware
B
CD
s
^°
■
65°
(T)
d:b
ill
65°
Economy/
short 50 °C
Short programme for
normally to slightly soiled
coffee and dessert crockery
as well as sensitive glasses
B
(D
65°
181
65°
50°
14

Programme cycle
Programme
duration in minutes
for cold water
connection
Energy
for cold water
connection
Water
consumption
in litres
Pre-wash
11
0.1
6
Pre-wash,
washing with detergent,
2 X intermediate rinse,
finai rinse
with rinse aid,
drying with hot air
90
1.7
25
Pre-wash,
washing with detergent,
intermediate rinse,
finai rinse
with rinse aid,
drying with hot air
87
1.6
20
Pre-wash,
washing with detergent,
intermediate rinse,
finai rinse
with rinse aid,
drying with hot air
70
1.0
20
Washing with detergent,
intermediate rinse,
final rinse
with rinse aid,
drying with hot air
77
1-6
15
Washing with detergent,
intermediate rinse,
final rinse
wifh rinse aid,
drying with hot air
59
0.9
15
15

Cleaning the strainers
Coarse filter
Fig. 15
Remove the coarse strainer and clean it
under running water with a brush.
If food residues have become stuck,
take out the insert (Fig. 16) and remove
the food residues.
Then replace the Insert firmly in the coarse
strainer and place it in the fine strainer.
Fine filter
Fig. 17
If necessary, also clean the fine strainer
and microfilter.
Twist it to the left and clean the upper
and lower sides.
Unscrew it anticlockwise and clean the top
and the underside of the strainer.
Then replace It so that the outside edge
rests correctly on the floor of the
machine (i.e. forms a tight fit). Then screw
on tight In a clockwise direction.
Never carry out a washing programme
without a strainer.
Care instructions
Never clean the screens and controls of your If cleaning is necessary, use only lukewarm
appliance with commercially available water,
furniture cleaners and aggressive detergents.
if you think your dishwasher is not working properiy
Before calling our service centre, please check whether you can rectify the fault yourself
by following the instructions given below.
What should I check if....?
... the program will not start?
• Are the fuses in order?
• Have you closed the door properly?
... no water flows in?
• Have you turned on the water tap?
• Check the water supply hose
(it must not be kinked).
... the programme switch stops at the start
of cleaning (symbol mr ) or rinsing with
rinse aid (symbol )?
• Have you fully opened the water tap
(see page 13)?
• Check the strainer at the screwed
connection of the supply hose
(please clean if dirty).
• Is a minimum water pressure of around
1 bar available (see page 20)?
... the crockery is not clean?
• Did you select the correct programme?
Remember to use a programme suitable
for the nature and degree of soiling
of your crockery.
• Did you arrange the crockery in
accordance with the instructions given
in this manual? The sprayed water must
have access to all surfaces, both internal
and external. The baskets must not be
overfilled!
• Have the spray arms been obstructed by
a piece of crockery or cutlery?
Please make sure that, for better drainage
of residual water at the programme end,
the upper spray arm obliquely tilts when
it comes to rest. When operational.
It automatically runs in the horizontal
position.
16

If you think your dishwasher is not working properly
• Are the strainers clean? Did you replace
the strainers properly after cleaning them?
• Have you used sufficient detergent?
• Check the drain hose (It must be run
according to the instructions given on
pages 20/21).
• In the event of a hot-water connection
(up to max. 60°C) — to ensure good
economy, only recommended if a cheap
supply of hot water is available — use
no 50° programmes so that the detergent
has a sufficiently long time to act.
... the dishes do not dry and haVe
no sparkle?
• Have you used a branded rinse aid?
• Is there enough rinse aid in the
dispenser? (check rinse aid indicator
on dosage combination).
• Was the correct dosage selected?
In case of an overdosage;
If streaks, stripes, and milky shapeless
marks (also blue-coloured blooms) form on
the crockery, too much rinse aid is being
added. Therefore decrease the dose!
In case of an underdosage:
If dried water droplets (also greyish white
drop edges) form, especially on glasses,
too little rinse aid is being added.
Therefore increase the dose!
rust marks can be seen inside
the machine?
The machine interior, filters, and door
interior are made of stainless steel and
will not rust. If rust is found on these
parts, this must be from another source
(rust in water, rust particles from water
pipes, saucepans, and cutlery).
Remove the marks with a commercially
available stainless steel cleaner.
... the drain pump runs continuously
(even when the machine is stopped)?
• The water protection system (see page 21)
has responded.
First close the water tap and then unplug
the machine.
• In this case, the service centre should
always be called for fault-finding.
17

After-sales service
On page 16/17, we have listed the most When calling the service centre, please state
important faults which you can remedy your- the
self.
• If you nevertheless wish to call in our
service engineer to eliminate one of the
above faults or a fault resulting from
Incorrect operation, we should like to draw
your attention to the fact that repairs are
not carried out free of charge even during
the warranty period.
• You are therefore strongly advised
to adhere to the instructions given in this
manual and also to follow our additional
tips and recommendations.
• If you find that this instruction manual
cannot help you in detecting and elimi¬
nating a particular fault, then please call
the senrice centre.
Our electrical appliances comply with the
valid safety requirements. Repairs to electri¬
cal appliances should only be performed by
a trained electrician. Improper repairs may
place the user at serious risk.
E-number
(product number)
and the
F-number
(serial number)
which are given on the rating plate (Fig. 2/G).
Your indication of these numbers enables the
after-sales service to make precise identifi¬
cation of the required spare parts so that
your dishwasher can be repaired at the
engineer’s first visit.
You will thus save yourself additional costs
due to any possible repeated trips by the
service engineer.
18

Notes on installation
Installation
Your dishwasher can be installed On any
level and stable floor. It is important that your
dishwasher should stand firmly and horizon¬
tally on the floor. Uneven floor conditions can
be compensated by adjustment of the feet.
If you want to integrate your free-standing
appliance below a worktop, you can remove
the worktop (cover from the dishwasher).
In this case, please make sure that, before
the appliance is inserted, the worktop Is
covered below and on its front edge by an
aluminium foil (to be ordered from
the service centre).
The fitting instructions are given on the back
of this foil.
Only In this manner will your worktop be
protected from damage by the steam
emerging from the machine when the door
is opened.
Important note
(applies only to freestanding machines
with worktop)
If, for reasons of space, there is no alternative
to Installing your dryer directly next to a gas
or electric cooker or coal range, you must
Interpose a thermally insulated panel
(measuring 85 x 57.5 cm) between cooker and
dishwasher. This panel should be coated with
aluminium foil on the side facing the cooker.
If you have build-under appliance, please
follow the notes on installation given in the
Installation and connection instructions
supplied as well as the separate fitting
instructions.
Water supply
This dishwasher is equipped with a safety
valve (solenoid valve) directly at the water tap
(see also page 21); To assure the function of
the safety device, the double-skinned supply
hose must be connected to the outlet valve
(water tap) in a specific installation position.
Please therefore take special note of the
separate “Water Tap Safety Valve”
connection instructions.
Your dishwasher has been built In accordance
with regulations governing water-consuming
appliances and is equipped with safety
devices which prevent used water from
flowing back into the drinking water mains.
Your dishwasher can be connected to either
a cold or hot water supply of max. 6b°C,
but not to open hot water appliances and
through-flow heaters.
The supply hose is fitted with a screwed
hose connection (to DIN 259) and can be
connected to an outlet valve (water tap)
with male thread (y4'’).
Suitable washers are supplied with the
machine. Do not use any washers other than
these! The plastic nut of the screwed hose
connections can be tightened by hand.
If you require a supply hose which Is longer
than the one supplied, use only a complete
hose kit continuously and to adequate length.
Never lengthen existing hoses.
19

Notes on installation
Water supply
Important note:
On appliances with a safety valve at the
water tap, the extension can also be made
with a permanently installed copper pipeline
(8—10 mm dia.).
Minimum water pressure:
around 1 bar (1 atm overpressure, 1 kp/cm=i,
10 N/cm*). If your water pressure is under
1 bar, please ask our service centre for
advice.
Maximum allowable water pressure:
around 10 bar. For water pressure over 10 bar,
a pressure reducing valve (obtainable from
your dealer) must be fitted upstream.
Water drainage
The drain hose is fastened at the back
of the machine by a plastic tape.
Remove the plastic tape and place the drain
hose In the plinth recess (see Fig. 31b).
The hose connection (19 mm d|a.) supplied
with the dishwasher will fit all commonly
available makes of sink trap. Secure
the hose with the supplied hose clip.
If you suspended the drain hose on a free¬
standing appliance in a sink, you should then
use the supplied attachable bend
(see Illustration opposite).
If you draw a string through the hole
(see arrow), you can also mount the bend on
a wall and thus prevent it from slipping off
(e.g. if thesink edges are too wide).
20
