DISHWASHER USER MANUAL

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
2

CONTENTS
4 Safety information
6 Product description
7 Control panel
9 Use of the appliance
10 Setting the water softener
11 Use of dishwasher salt
12 Use of detergent and rinse aid
13 Multitab function
14 Loading cutlery and dishes
15 Washing programs
17 Setting and starting a washing
program
19 Care and cleaning
21 What to do if…
24 Technical data
24 Installation
25 Water connection
29 Electrical connection
29 Environment concerns
30 Warranty
The following symbols are used in this user
manual:
Important information concerning your
personal safety and information on how to
avoid damaging the appliance.
General information and tips
Environmental information
Subject to change without notice.
Contents 3

SAFETY INFORMATION
For your safety and correct operation of the appliance, read this manual carefully before
installation and use. Always keep these instructions with the appliance even if you move or
sell it. Users must fully know the operation and safety features of the appliance.
Correct use
• Only use the appliance to clean household utensils that are suitable for dishwashers.
• Do not put solvents in the appliance. Risk of explosion.
• Put knives and all items with sharp points in the cutlery basket with their points down. If
not, put them in a horizontal position in the upper basket.
• Use only products specified for dishwashers (e.g. detergent, rinse aid).
• If you open the door while the appliance is in operation, hot steam can escape. Risk of
skin burns.
• Do not remove dishes from the appliance before the end of the washing program.
• When the washing program is completed, disconnect the mains plug from the mains
socket and close the water tap.
• Only an authorised service engineer can repair this appliance. Use only original spare
parts.
• Do not do repairs yourself to prevent injury and damage to the appliance. Always con-
tact the Customer Care Centre.
General safety
• This appliance is intended to be used in household and similar applications such as:
– Staff kitchen areas in shops, offices and other working environments
– Farm houses
– By clients in hotels, motels and other residential type environments
– Bed and breakfast type environments.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if
swallowed. Avoid contact with skin and eyes. Keep the children away from the appliance
when the door is open. Check that the detergent dispenser is empty after completion of
the washing program.
• Obey the safety instructions from the manufacturer of the dishwasher detergent to pre-
vent burns to eyes, mouth and throat.
• Only put detergent in the dispenser before you start a washing program.
• Do not drink the water from the appliance. Detergent residue can stay in your appliance.
• Always close the door when you do not use the appliance to prevent injury and not to
stumble over the open door.
• Do not sit or stand on the open door.
4Safety information

Child safety
• Do not let persons, children included, with reduced physical sensory, reduced mental
functions or lack of experience and knowledge use the appliance. They must have super-
vision or instruction for the operation by a person who is responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all the packaging away from children. There is a risk of suffocation.
• Keep all detergents in a safe area. Do not let children touch the detergents.
• Keep children and pets away from the appliance when the door is open.
Installation
• Make sure that the appliance is not damaged because of transport. Do not connect a
damaged appliance. If necessary, contact the supplier.
• Remove all packaging before first use.
• A qualified and competent person must do the electrical installation.
• A qualified and competent person must do the plumbing installation.
• Do not change the specifications or modify this product. Risk of injury and damage to
the appliance.
• Do not use the appliance:
– If the mains cable or the water hoses are damaged.
– If the control panel, worktop or plinth area are damaged so that you can get access to
the inner side of the appliance.
Contact your local Customer Care Centre.
• Do not drill into the sides of the appliance otherwise damage to hydraulic and electrical
components may occur.
WARNING!
Follow carefully the instructions for electrical and water connections.
Safety information 5

PRODUCT DESCRIPTION
2
3
4
5
6
7
1
8
9
10

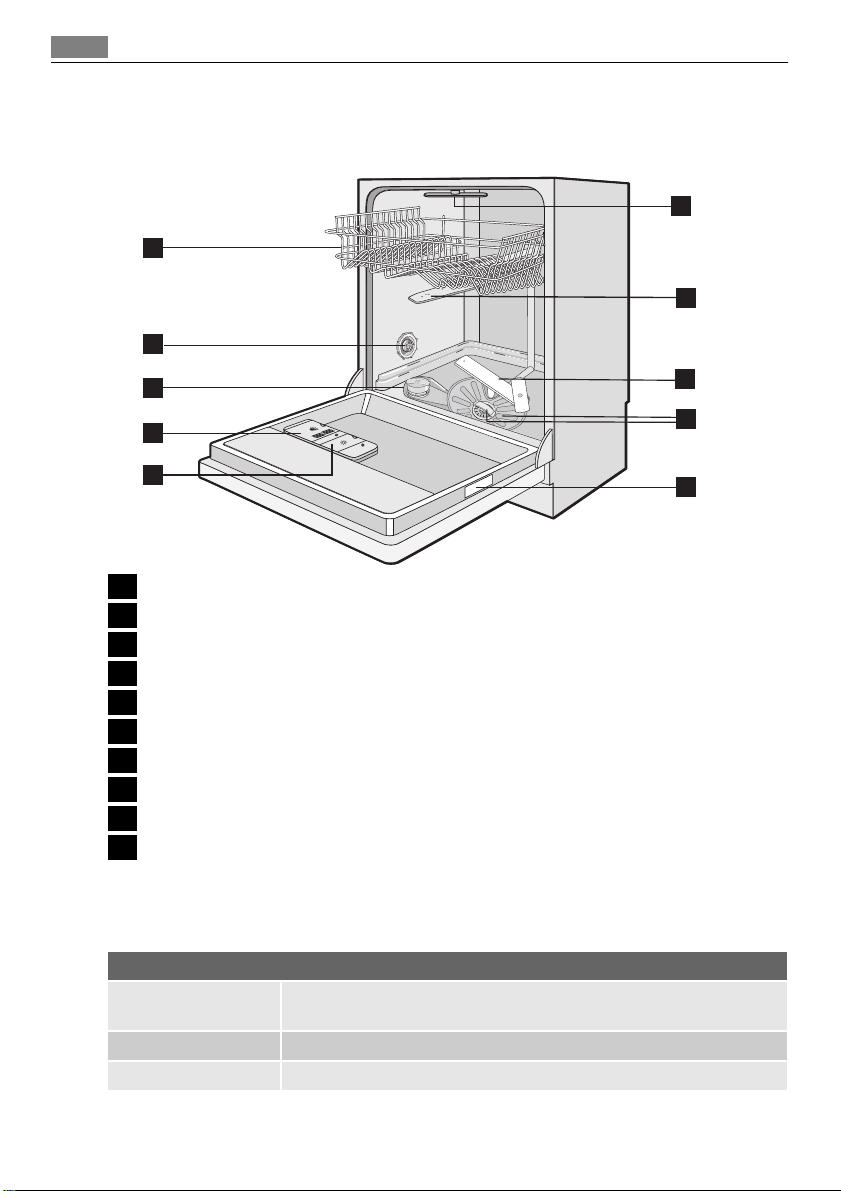

1Upper basket
2Air vent and water hardness dial
3Salt container
4Detergent dispenser
5Rinse aid dispenser
6Rating plate
7Filters
8Lower spray arm
9Upper spray arm
10 Top spray arm
Light beam
After the start of the washing program, a light beam shows on the floor below the appli-
ance door.
Light beam
The red light is on. Indication of the start of a washing program. The red light stays on dur-
ing the washing program.
The red light flashes. Indication of a malfunction.
The green light is on. Indication of the end of a washing program.
6Product description

CONTROL PANEL
The controls are on the top of the control panel. To operate with the controls keep the ap-
pliance door ajar.
1234567 8 9
1On/off button
2Display
3Delay start button
4Program button (down)
5Program button (up)
6Extra-Hygiene button
7Multitab button
8RESET button
9Indicators
Indicators
Salt indicator. It comes on when it is necessary to fill the salt container.
1)
After you fill the container, the salt indicator can stay on for some hours. This
does not have an unwanted effect on the operation of the appliance
Rinse aid indicator. It comes on when it is necessary to fill the rinse aid dispenser.
1)
End indicator. It comes on when the washing program is completed.
1) When the salt container and/or the rinse aid dispenser are empty, the related indicators do not come on while a
washing program operates.
On/off button
Press this button to switch on or off the appliance.
After 10 minutes from the end of the washing program, the AUTO OFF function automati-
cally switches off the appliance. This helps to decrease energy consumption.
The display
The display shows:
• The electronic adjustment of the level of the water softener
• The activation and deactivation of the rinse aid dispenser (only with the multitab func-
tion on)
• The number of the washing program
• The remaining time to the end of the washing program
Control panel 7

• The end of a washing program (the display shows a zero)
• The time of the delay start
• The alarm codes
• The activation and deactivation of the acoustic signals.
Delay start button
Press this button to delay the start of the washing program from 1 to 24 hours. Refer to
'Setting and starting a washing program'.
Program buttons
Press one of these buttons repeatedly to set a washing program. Each time you press the
button, the display shows a number that is related to a washing program. Refer to 'Washing
programs' chart.
Extra-Hygiene button
This function provides more hygienically clean dishes and glasses. During the last rinse, the
temperature increases to 70 °C and is kept above 65 °C minimum for 10 to 14 minutes.
Press this button to activate the function. The related indicator comes on.
The function can be activated with all washing programs but has effect only on some pro-
grams. To see where the Extra-Hygiene function has effect, refer to the 'Washing programs'
chart.
Multitab button
Press this button to activate or deactivate the multitab function. Refer to 'Multitab func-
tion'.
RESET button
Press this button to cancel a washing program in operation. Refer to 'Setting and starting a
washing program'.
Setting mode
The appliance must be in setting mode for these operations:
• To set and start a washing program.
• To set and start a delay start.
• To adjust electronically the level of the water softener.
• To activate or deactivate the rinse aid dispenser (only with the multitab function on).
• To deactivate or activate the acoustic signals.
Switch on the appliance. The appliance is in setting mode when:
• The display shows two horizontal status bars.
Switch on the appliance. The appliance is not in setting mode when:
• The display shows the time of the washing program or of the delay start.
– To go back to the setting mode, it is necessary to cancel the program or the delay
start. Refer to 'Setting and starting a washing program'.
8Control panel

Acoustic signals
You can hear the acoustic signals when:
• The washing program is completed.
• You adjust electronically the level of the water softener.
• The appliance has a malfunction.
Factory setting: acoustic signals active.
Deactivating the acoustic signals
1. Switch on the appliance. Make sure that the appliance is in setting mode.
2. Press and hold button (4) and button (5) at the same time until the indicators of but-
tons (3), (4) and (5) flash.
3. Release button (4) and button (5).
4. Press button (5),
• The indicators of button (3) and button (4) go off.
• The indicator of button (5) continues to flash.
• The display shows the setting of the acoustic signals.
Acoustic signals activated.
Acoustic signals deactivated.
5. Press button (5) to change the setting. The display shows the new adjustment.
6. Switch off the appliance to confirm.
To activate the acoustic signals again, do steps (1) through (6).
USE OF THE APPLIANCE
Refer to the specific instructions for each step of the procedure.
1. Check if the water softener level is correct for the water hardness in your area. If neces-
sary set the water softener.
2. Fill the salt container with dishwasher salt.
3. Fill the rinse aid dispenser with rinse aid.
4. Load cutlery and dishes into the appliance.
5. Set the correct washing program for the type of load and soil.
6. Fill the detergent dispenser with the correct quantity of detergent.
7. Start the washing program.
If you use the combi detergent tablets ('3 in 1', '4 in 1', '5 in 1'), set the multitab function.
Refer to 'Multitab function'.
Use of the appliance 9

SETTING THE WATER SOFTENER
The water softener removes minerals and salts from the water supply. Minerals and salts
can have bad effect on the operation of the appliance.
Water hardness is measured in equivalent scales:
• mg/I (millimol per litre)
• ppm (parts per million),
• mmol/l (millimol per litre -international unit for the hardness of water).
Adjust the water softener in to the water hardness in your area. If necessary, contact your
local water authority.
Water hardness Water hardness setting
mg/l ppm mmol/l manually electronically
910 -1250 910 -1250 9.1 -12.5 210
760 -909 760 -909 7.6 -9.0 2 9
650 -759 650 -759 6.5 -7.5 2 8
510 -649 510 -649 5.1 -6.4 2 7
400 -509 400 -509 4.0 -5.0 2 6
330 -399 330 -399 3.3 -3.9 2 5
260 -329 260 -329 2.6 -3.2 1 4
190 -259 190 -259 1.9 -2.5 1 3
70 -189 70 -189 0.7 -1.8 1 2
< 70 < 70 < 0.7 11
1)
1) No use of salt required.
You must set the water softener manually and electronically.
Manual adjustment
The appliance is set at the factory at position 2.
1. Remove the lower basket.
2. Turn the water hardness dial to position 1
or 2 (refer to the chart).
3. Put back the lower basket.
10 Setting the water softener

Electronic adjustment
The appliance is factory set at level 5.
1. Switch on the appliance. Make sure that the appliance is in setting mode.
2. Press and hold button (4) and button (5) at the same time until the indicators of but-
tons (3), (4) and (5) flash.
3. Release button (4) and button (5).
4. Press button (3),
• The indicators of button (4) and button (5) go off.
• The indicator of button (3) continues to flash.
• The acoustic signals sound.
• The display shows the setting of the water softener (example: and you hear five
acoustic signals = level 5).
5. Press button (3) one time to increase the water softener level by one step. Continue to
press button (3) until the required water softener level is achieved.
6. Switch off the appliance to confirm.
USE OF DISHWASHER SALT
CAUTION!
Only use dishwasher salt. Types of salt that are not suitable for dishwashers cause damage
to the water softener.
CAUTION!
Grains of salt and salty water on the bottom of the appliance can cause corrosion. Fill the
appliance with salt before you start a washing program.

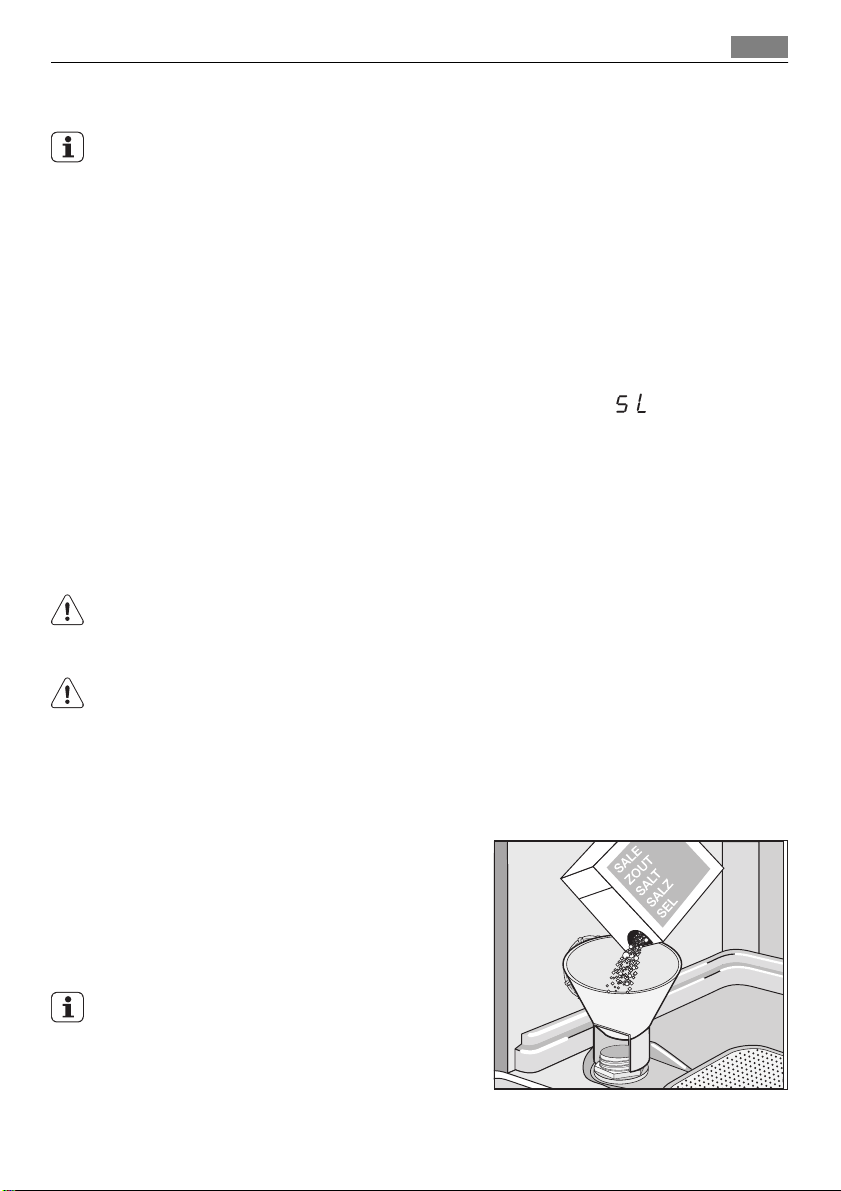

Filling the salt container
1. Turn the cap counterclockwise to open the salt container.
2. Fill the salt container with 1 litre of water (only the first operation).
3. Use the funnel to fill the salt container
with salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap clockwise to close the salt
container.
It is normal that water overflows from the
salt container when you fill it with salt.
Use of dishwasher salt 11

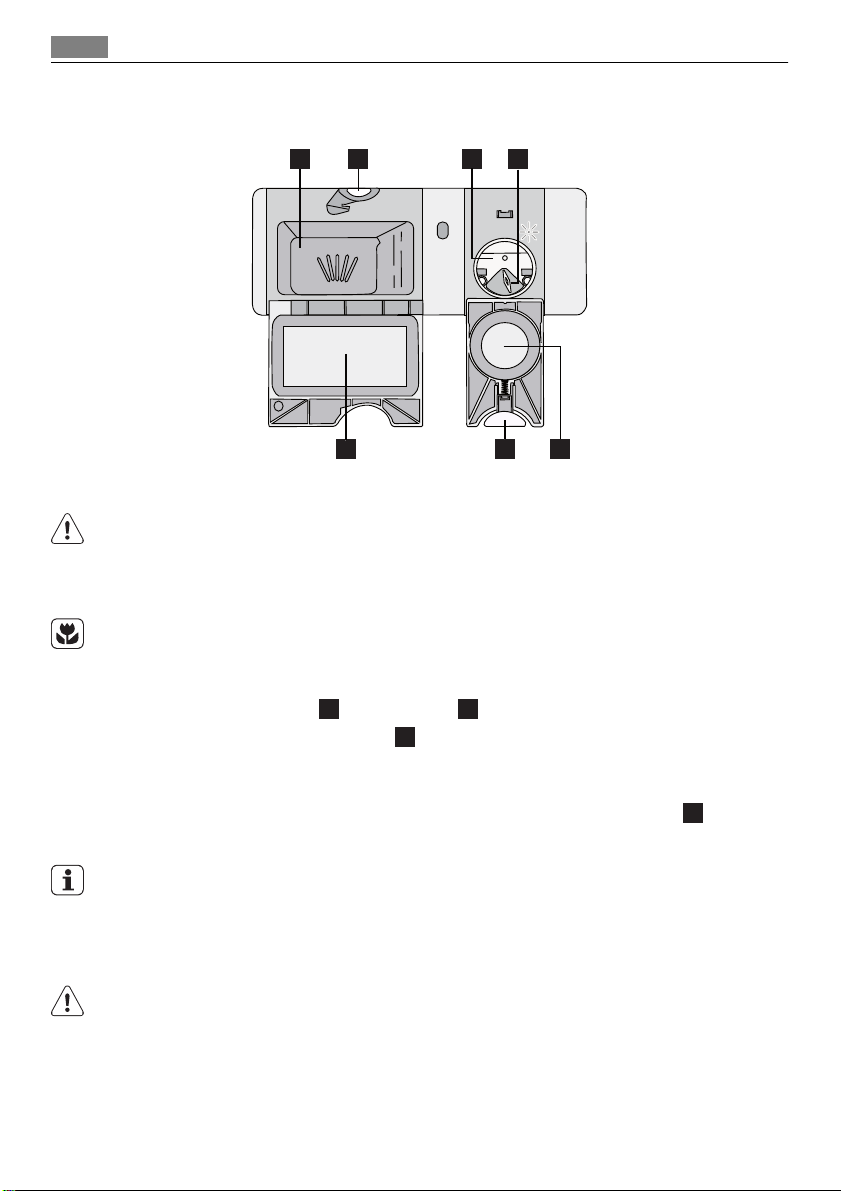

USE OF DETERGENT AND RINSE AID
20
30
M
A
X
1
2
3
4
+
-
1234
5
6
7
Use of detergent
CAUTION!
Only use detergents (powder, liquid or tablet) that are suitable for dishwashers.
Follow the recommendations on the detergent packaging for the use and storage of the
detergent.
To help the environment, do not use more than the correct quantity of detergent.
Filling with detergent
1. Press the release button
2
to open the lid
7
of the detergent dispenser.
2. Put the detergent in the dispenser
1
.
3. If the washing program has a prewash phase, put a small quantity of detergent on the
inner part of the appliance door.
4. If you use the detergent tablets, put the tablet in the detergent dispenser
1
.
5. Close the detergent dispenser. Press the lid until it locks into position.
Different brands of detergent dissolve in different times. Some detergent tablets do not
have the best cleaning results during short washing programs. Use long washing programs
when you use detergent tablets to fully remove the detergent.
Use of rinse aid
CAUTION!
Only use rinse aid specified for dishwashers.
Do not fill the rinse aid dispenser with other products (e.g. dishwasher cleaning agent, liq-
uid detergent). This can cause damage to the appliance.
Rinse aid makes it possible to dry the dishes without streaks and stains.
Rinse aid is automatically added during the last rinsing phase.
12 Use of detergent and rinse aid

Follow these steps to fill the rinse aid dispenser:
Filling with rinse aid
1. Press the release button
6
to open the lid
5
of the rinse aid dispenser.
2. Fill the rinse aid dispenser
3
with rinse aid. The mark 'max' shows the maximum level.
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam during
the washing program.
4. Close the rinse aid dispenser. Press the lid until it locks into position.
Adjusting the rinse aid dosage
Factory set: position 3.
You can set the rinse aid dosage between position 1 (lowest dosage) and position 4 (highest
dosage).
Turn the rinse aid selector
4
to increase or reduce the dosage.
Wash hands to remove any residue of rinse aid from skin.
MULTITAB FUNCTION
The multitab function is for combi detergent tablets.
These tablets contain agents as detergent, rinse aid and dishwasher salt. Some types of tab-
lets can contain other agents.
Be sure that these tablets are suitable for the water hardness in your area (refer to the in-
structions on the packaging of the products).
The multitab function deactivates the flow of rinse aid and salt.
The multitab function deactivates the indicators of salt and rinse aid.
The program duration can increase if you use the multitab function.
Activate or deactivate the multitab function before the start of a washing program. You
cannot activate or deactivate the function while a washing program operates.
To activate the multitab function
• Press the multitab button, the multitab indicator comes on. The function is activated.
– When you activate the multitab function, it stays on until you deactivate it.
To deactivate the multitab function and use separately detergent, salt and rinse aid
1. Press the multitab button, the multitab indicator goes off. The function is deactivated.
2. Fill the salt container and the rinse aid dispenser.
3. Adjust the water hardness to the highest level.
4. Start a washing program without dishes.
5. When the washing program is completed, adjust the water softener to the water hard-
ness in your area.
6. Adjust the rinse aid dosage.
Multitab function 13

LOADING CUTLERY AND DISHES
Refer to the leaflet 'Examples of ProClean loads'.
Helpful hints and tips
CAUTION!
Only use the appliance for household utensils that are suitable for dishwashers.
Do not use the appliance to clean objects that can absorb water (sponges, household cloths,
etc.).
• Before you load cutlery and dishes:
– Remove all remains of food and debris.
– Soften burnt remains of food.
• While you load cutlery and dishes:
– Load hollow items (e.g. cups, glasses and pans) with the opening down.
– Make sure that water does not collect in the container or in a deep base.
– Make sure that cutlery and dishes do not lie inside one another.
– Make sure that cutlery and dishes do not cover other cutlery and dishes.
– Make sure that glasses do not touch other glasses.
– Put small objects in the cutlery basket.
• Plastic items and pans with non-stick coatings can retain water droplets. Plastic items do
not dry as well as porcelain and steel items.
• Put light items in the upper basket. Make sure that the items do not move.
CAUTION!
Make sure that the spray arms can move freely before you start a washing program.
WARNING!
Always close the door after you load or unload the appliance. An open door can be danger-
ous.
14 Loading cutlery and dishes

WASHING PROGRAMS
Program Type of soil Type of load Program description Function
1
1)
All Crockery, cut-
lery, pots and
pans
Prewash
Wash 45 °C or 70 °C
Rinses
Dry
Extra-Hy-
giene
2Heavy soil Crockery, cut-
lery, pots and
pans
Prewash
Wash 70 °C
Rinses
Dry
3
2)
Normal soil Crockery and
cutlery
Prewash
Wash 50 °C
Rinses
Dry
4
3)
Fresh soil Crockery and
cutlery
Wash 60 °C
Rinse
Extra-Hy-
giene
5
4)
Normal soil Crockery and
cutlery
Prewash
Wash 50 °C
Rinses
Dry
Extra-Hy-
giene
6Light soil Crockery and
cutlery
Wash 55 °C
Rinses
Extra-Hy-
giene
7Normal or
light soil
Delicate crock-
ery and glass-
ware
Wash 45 °C
Rinses
Dry
8Use this program to quickly rinse
the dishes. This prevents the re-
maining food to bond on the
dishes and bad odours to come
out from the appliance.
Do not use detergent with this
program.
Rinse
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically adjusts the
temperature and quantity of the water, the energy consumption and the program time.
2) This is the most silent washing program. The pump works at a very low speed to decrease the level of noise.
Because of the low speed, the program time is long.
3) With this program you can wash a load with fresh soil. It gives good washing results in a short time.
4) This is the standard program for test institutes. With this program you have the most efficient use of water and
energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information.
Washing programs 15

Consumption values
Program Program time (mi-
nute)
Energy (kWh) Water (litre)
190 -160 0.9 -1.7 8 -15
2140 -160 1.5 -1.6 13 -14
3200 -220 1.1 -1.2 9 -11
430 0.9 9
5105 -115 0.67 -0.81 9.6 -11.6
650 -60 1.0 -1.2 10 -11
770 -80 0.8 -0.9 11 -12
814 0.05 4
The water pressure and temperature, the variations of the mains supply and the quantity of
dishes can change the consumption values.
16 Washing programs

SETTING AND STARTING A WASHING PROGRAM
Starting the washing program without delay start
1. Switch on the appliance. Make sure that the appliance is in setting mode.
2. Set the washing program.
• The number related to the washing program flashes in the display.
3. Close the appliance door, the washing program starts.
Starting the washing program with delay start
1. Switch on the appliance. Make sure that the appliance is in setting mode.
2. Set the washing program.
3. Press the delay start button repeatedly until the display shows the time of the delay
start.
• The time of the delay start flashes in the display.
• The delay start indicator is on.
4. Close the appliance door, the countdown starts.
When the countdown is completed, the washing program starts automatically.
The opening of the appliance door interrupts the countdown. When you close the door, the
countdown continues from the point of interruption.
Cancelling the delay start
If the appliance door is open, and the countdown has not started
1. Press the delay button repeatedly until the display shows the number of the washing
program.
• The program number flashes in the display.
2. Close the appliance door, the washing program starts.
If the appliance door is closed, and the countdown operates
1. Open the appliance door.
2. Press the delay button repeatedly until the display shows the number of the washing
program.
• The number flashes for some seconds and then the time of the washing program
shows in the display.
3. Close the appliance door, the washing program starts.
WARNING!
Only interrupt or cancel a washing program if necessary.
Attention! Open the door carefully. Hot steam and water can escape.
Interrupting a washing program
• Open the appliance door. The washing program stops.
• Close the appliance door. The washing program continues from the point of interruption.
Setting and starting a washing program 17

Cancelling the washing program
If the washing program has not started, you can change the selection.
To change the selection while the washing program operates, it is necessary to cancel the
program.
• Press the RESET button until the display shows two horizontal status bars.
Make sure that there is detergent in the detergent dispenser before you start a new wash-
ing program.
End of the washing program
When the washing program is completed, an intermittent acoustic signal sounds.
1. Open the appliance door.
• The end indicator is on
• The display shows a zero.
2. Switch off the appliance.
For better drying results, keep the appliance door ajar for some minutes.
Removing the load
• Let the dishes cool down before you remove them from the appliance. Hot dishes are
easily damaged.
• First remove items from the lower basket, then from the upper basket.
• There can be water on the sides and door of the appliance. Stainless steel becomes cool
more quickly than the dishes.
18 Setting and starting a washing program

CARE AND CLEANING

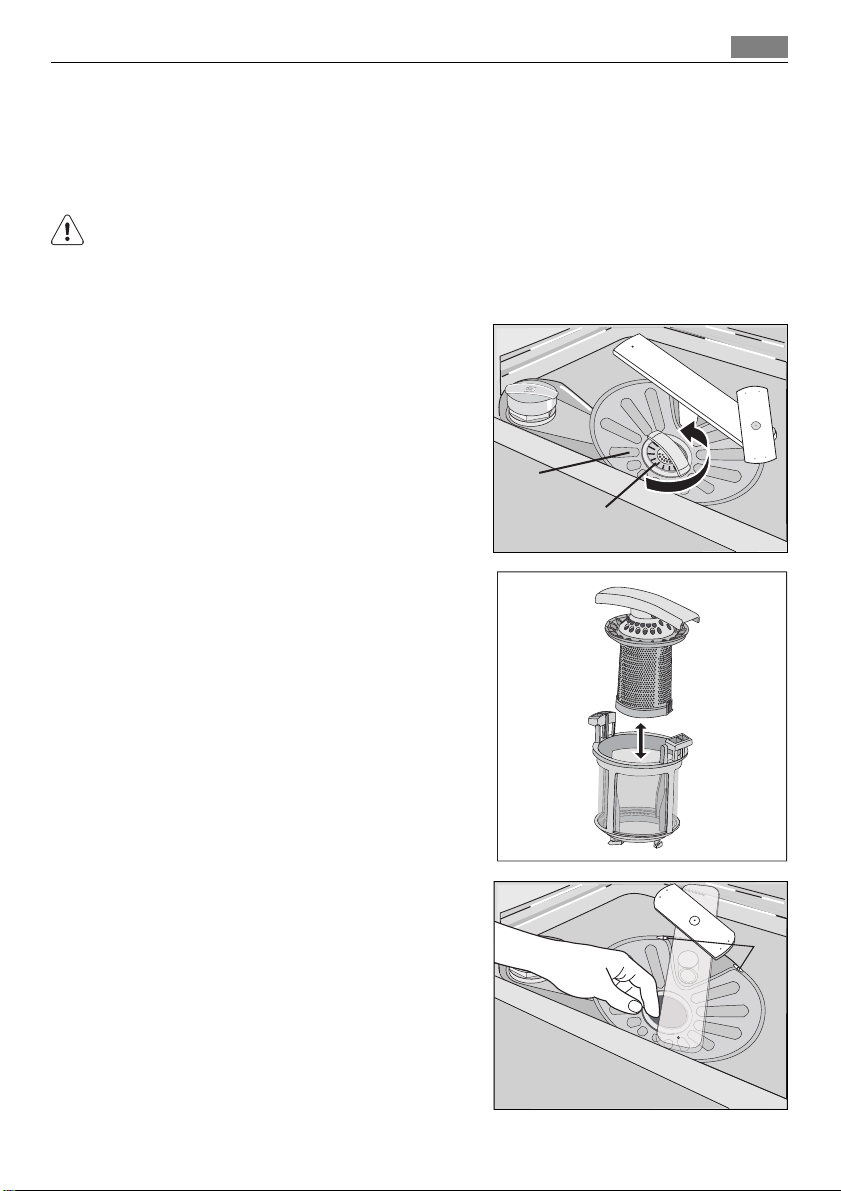

To remove and clean the filters
WARNING!
Switch the appliance off before you carry out any cleaning operation.
Dirty filters decrease the washing results. Although the maintenance is very low with these
filters, we recommend that you regularly check the filters and clean them if necessary.
1. To remove filter (A), turn it counterclock-
wise and remove it out from filter (B).
2. Filter (A) has 2 parts. To disassemble the
filter, pull them apart.
3. Thoroughly clean the parts under running
water.
4. Put the 2 parts of the filter (A) together
and push. Make sure that they assemble
correctly in each other.
5. Remove filter (B).
6. Thoroughly clean filter (B) under running
water.
7. Put filter (B) to its initial position. Make
sure that it assembles correctly under the
two guides (C).
8. Put filter (A) into position in filter (B) and
turn it clockwise until it locks.
A
B
C
Care and cleaning 19

WARNING!
Switch the appliance off before you do any cleaning operations.
Cleaning the spray arms
Do not remove the spray arms.
If the holes in the spray arms become clogged, remove remaining parts of soil with a thin
pointed object.
External cleaning
Clean the external surfaces of the appliance and control panel with a damp soft cloth. Only
use neutral detergents. Do not use abrasive products, scouring pads or solvents (e.g. ace-
tone).
Internal cleaning
We recommend, every 3 months to run a washing program for heavily soiled dishes. Use
detergent, but do not put dishes in the appliance.
When the appliance is not to be used for a long period
1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Leave the door open to prevent unpleasant smells.
4. Keep the inner side of the appliance clean.
Frost precautions
CAUTION!
Do not install the appliance where the temperature is below 0 °C. The manufacturer is not
responsible for damage caused by frost.
Moving the appliance
1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Remove the appliance and the hoses.
4. Do not tilt the appliance during transport.
20 Care and cleaning
