AEG LAVATHERM 96695IH User manual

LAVATHERM 96695IH EN User Manual

CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 5
3. PRODUCT DESCRIPTION.............................................................................................. 7
4. ACCESSORIES.................................................................................................................8
5. CONTROL PANEL...........................................................................................................9
6. PROGRAMME TABLE................................................................................................... 11
7. OPTIONS....................................................................................................................... 14
8. BEFORE FIRST USE.......................................................................................................15
9. DAILY USE......................................................................................................................16
10. HINTS AND TIPS.........................................................................................................18
11. CARE AND CLEANING.............................................................................................. 20
12. TROUBLESHOOTING.................................................................................................23
13. TECHNICAL DATA..................................................................................................... 24
14. INSTALLATION........................................................................................................... 25
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
- Read the supplied instructions.
1.1 General Safety
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing
machine, use the stacking kit. The stacking kit,
available from your authorized vendor, can be used
only with the appliance specified in the instructions,
supplied with the accessory. Read it carefully before
installation (Refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below the kitchen counter with correct space (Refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, where the appliance door can not be fully
opened.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
•Ensure you have good ventilation in the installation
room to avoid the back flow of gases into the room
from appliances burning other fuels, including open
fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning
gas or other fuels. (if applicable)
ENGLISH 3

•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Obey the maximum load volume of 9kg (refer to the
“Programme chart” chapter).
•Do not use the appliance if industrial chemicals have
been used for cleaning.
•Wipe away lint that has accumulated around the
appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
•Remove all objects from pockets such as lighters and
matches.
•Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
•The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
www.aeg.com
4

1.2 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use the appliance
where the temperature is less than
5°C or higher than 35°C.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always move the appliance vertically.
• The rear surface of the appliance
must be put against the wall.
• When the appliance is put in its
permanent position, check if it is fully
level with the aid of a spirit level. If it
is not, adjust the feet until it is.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
ENGLISH 5

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Do not dry the damaged items which
contain padding or fillings.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
tumble dryer.
2.4 Internal light
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• The type of light bulb or halogen
lamp used for this appliance is only
for household appliances. Do not use
it for house lighting.
• To replace the internal light, contact
the Authorised Service Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
www.aeg.com
6

3. PRODUCT DESCRIPTION
1 2
7
3
4
5
6
9
10
11
12
8
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6The button to open the heat
exchanger door
7Airflow slots
8Adjustable feet
9Heat exchanger door
10 Heat exchanger cover
11 The knob to lock the heat exchanger
cover
12 Rating plate
The load door can be
installed by the user in the
opposite side. It can help to
easily put and remove the
laundry or if there is a limit
to install the appliance (see
separate leaflet).
ENGLISH 7

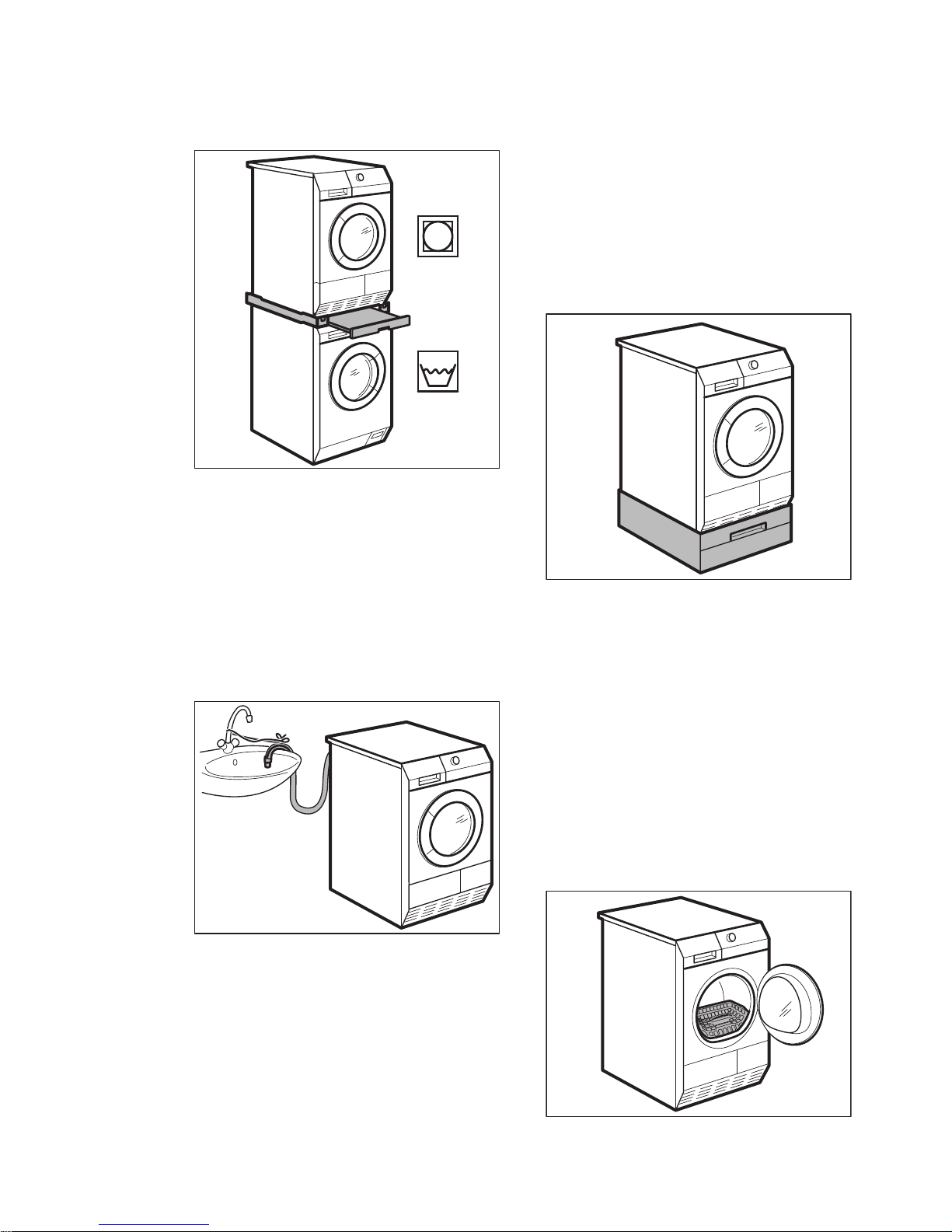

4. ACCESSORIES
4.1 Stacking kit
Accessory name: SKP11, STA8, STA9
Available from your authorized vendor.
Stacking kit can be used only with the
washing machines specified in the
leaflet. See the leaflet attached.
Read carefully the instructions supplied
with the accessory.
4.2 Draining kit
Accessory name: DK11.
It is available from your authorized
vendor (can be attached to some types
of the tumble dryers)
The accessory for through draining of the
condensed water into a basin, siphon,
gully, etc. After the installation, the water
container is drained automatically. The
water container must stay in the
appliance.
The installed hose must be on the height
from minimum of 50 cm to maximum of 1
m from floor level. The hose cannot be in
loop. Decrease the length of the hose if
necessary.
Read carefully the instructions supplied
with the accessory.
4.3 Pedestal with the drawer
Accessory name: PDSTP10.
It is available from your authorized
vendor.
To put the appliance higher at the level
what helps to easy load and remove the
laundry.
The drawer can be used for laundry
storage e.g. : towels, cleaning products
and more.
Read carefully the instructions supplied
with the accessory.
4.4 Drying rack
Accessory name: RA5, RA6, RA11, RA12.
www.aeg.com
8

It is available from your authorized
vendor (can be attached to some types
of the tumble dryers). Do the check with
the vendor or on the web site if the
accessory is compatible with your
appliance.
Drying rack accessory let to dry safely in
the tumble dryer:
• sport shoes
• wool
• soft toys
• lingerie
Read carefully the instructions supplied
with the accessory.
5. CONTROL PANEL
1 2
34
1Programme dial
2Touch panel with the display
3Programme indicators
4
On/Off button with the Auto Off
function
5.1 The touch panel
S e n s i D r y
Memory 1
Memory 2
Extra Silent
Start/Pause
Delay
Start
Time Dry
Buzzer
Spun at
RPM
Dry Plus Anti-
crease
As alternative for the buttons to set the
option you must touch the area with the option name. Each area between the vertical marks senses the user finger.
ENGLISH 9

For accurate selection touch
the centre point of the area
between the vertical marks.
Do not wear gloves when
you touch the panel to set
the function. Make sure the
panel is always clean and
dry.
5.2 Display
Symbol on the display Symbol description
text bar
clock
cycle time indication
estimated hour of the programme end
estimated hour of the time programme end
time programme interval 10min. — 120min.
estimated hour of the programme end with the delayed start
delay start interval 30min. — 20h.
Symbol on the display Symbol description
, , extra laundry dryness: default, moderate, maximum
www.aeg.com10
