AEG TP7050TW User manual

USER
MANUAL
EN User Manual 2
Tumble Dryer
DE Benutzerinformation 25
Wäschetrockner
TP7050TW

CONTENTS
1. SAFETY INFORMATION.............................................................................................3
2. SAFETY INSTRUCTIONS.............................................................................................5
3. PRODUCT DESCRIPTION...........................................................................................7
4. CONTROL PANEL....................................................................................................... 7
5. PROGRAMME TABLE................................................................................................. 8
6. OPTIONS....................................................................................................................10
7. SETTINGS...................................................................................................................11
8. BEFORE FIRST USE................................................................................................... 12
9. DAILY USE..................................................................................................................13
10. HINTS AND TIPS..................................................................................................... 14
11. CARE AND CLEANING.......................................................................................... 15
12. TROUBLESHOOTING.............................................................................................17
13. TECHNICAL DATA..................................................................................................18
14. QUICK GUIDE.........................................................................................................20
15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION
1369/2017........................................................................................................................22
16. GUARANTEE .......................................................................................................... 24
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3

1.2 General Safety
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing
machine, use the stacking kit. The stacking kit,
available from your authorized vendor, can be used
only with the appliance specified in the instructions
supplied with the accessory. Read it carefully before
installation (refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
www.aeg.com
4

•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
ENGLISH 5

• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are suitable for
drying in a tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in a
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• To prevent damage to the cooling
system be careful when you clean the
appliance.
2.5 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.aeg.com
6

3. PRODUCT DESCRIPTION
1 2
5
3
4
6
7
8
9
1Water container
2Control panel
3Appliance door
4Filter
5Rating plate
6Airflow slots
7Heat Exchanger lid
8Heat Exchanger cover
9Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
4. CONTROL PANEL
1
789 6 5
3
4
2
1Programme knob and RESET
switch
2Display
3Zeit (Time Dry) touch button
4Zeitvorwahl (Delay Start) touch
button
5Start/Pause touch button
6Knitterschutz (Extra Anticrease)
touch button
7Reverse Plus touch button
8Indicator: clean filter, drain
water container, check
condenser
9On/Off button
ENGLISH 7

Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
4.1 Display
Symbol on the display Symbol description
child lock on
wrong selection or knob is in the "Reset" posi-
tion
programme duration
- time Drying duration
- delay start duration
5. PROGRAMME TABLE
Programme Load 1) Properties / Fabric type2)
3) Baumwolle (Cot-
ton) Eco 8 kg
Cycle to be used to dry cotton with
"cotton cupboard" dryness level,
with maximum energy saving. /
Baumwolle (Cotton)
Extratrocken (Extra Dry) 8 kg Drying level: extra dry. /
Baumwolle (Cotton)
Schranktrocken (Cup-
board Dry)
8 kg
Cycle defined to dry all types of
cotton ready to store (cupboard
dry). /
Baumwolle (Cotton)
Bügeltrocken (Iron Dry) 8 kg Drying level: suitable for ironing. /
Mischgewebe (Synthetics)
Extratrocken (Extra Dry) 3,5 kg Drying level: extra dry. /
www.aeg.com8

Programme Load 1) Properties / Fabric type2)
Mischgewebe (Synthetics)
Schranktrocken (Cup-
board Dry)
3,5 kg Drying level: cupboard dry. /
Leichtbügeln (Easy Iron) 1 kg (or 5
shirts)
Easy care fabrics for which a mini-
mum of ironing is necessary. The
drying results can be different from
one type of fabric to another.
Shake the items before putting
them in the appliance. When the
programme has ended, immedi-
ately remove the items and put
them on a hanger.
/
Zeitprogramm (Time Dry-
ing) 5 kg
With this programme you can use
the Zeit (Time Dry) option and set
the programme duration.
Drying time should be adequate to
the load, e.g. 2h for 5 kg of cotton.
/
Mix (Mixed) 3kg
Cotton and synthetic fabrics. Low
temperature programme. Delicate
programme with warm air. /
Bettwäsche (Bedlinen) 3kg
Bed linen such as single and dou-
ble sheets, pillowcases, duvet cov-
er. /
Seide (Silk) 1 kg Silk suitable for tumble drying. /
Wolle (Wool) 1 kg
Woollen fabrics. Gentle drying for hand-washa-
ble woollens. Remove items immediately when
the programme is completed.
Denim 4 kg
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck, cuffs
and seams).
/
Feinwäsche (Delicates) 4 kg Delicate fabrics such as viscose,
rayon, acrylic, and their blends. /
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter
HINTS AND TIPS: Preparing the laundry.
3) The Baumwolle (Cotton) Schranktrocken (Cupboard Dry) ECO programme is the “Standard cot-
ton programme” according to Commission Regulation EU No. 392/2012. It is suitable for drying normal
wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet
cotton laundry.
ENGLISH 9

6. OPTIONS
6.1 Reverse Plus
Increase drum reversing frequency to
reduce items twisting and entanglement.
To increase uniformity of drying result
and help reduce creases. Recommended
for large or long items (e.g. sheets,
trousers, long dresses)"
6.2 Knitterschutz (Extra
Anticrease)
Extends the anti-crease phase by 60
minutes at the end of the drying cycle.
This function reduces creases. The
laundry can be removed during the anti-
crease phase.
6.3 Zeit (Time Dry)
You can set the programme duration,
from a minimum of 10 minutes to a
maximum of 2 hours. The required
duration is related to the quantity of
laundry in the appliance.
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
6.4 Zeit (Time Dry) on Wolle
(Wool) programme
Option suitable for Wolle (Wool)
programme to adjust final dryness level.
6.5 Options table
Programmes1) Reverse Plus Knitterschutz
(Extra Anticrease) Zeit (Time Dry)
Baumwolle (Cot-
ton) Eco ■
Baumwolle (Cotton)
Extratrocken (Extra
Dry)
■ ■
Baumwolle (Cotton)
Schranktrocken (Cup-
board Dry)
■ ■
Baumwolle (Cotton)
Bügeltrocken (Iron Dry) ■ ■
Mischgewebe (Syn-
thetics)
Extratrocken (Extra
Dry)
■ ■
Mischgewebe (Syn-
thetics)
Schranktrocken (Cup-
board Dry)
■ ■
www.aeg.com10

Programmes1) Reverse Plus Knitterschutz
(Extra Anticrease) Zeit (Time Dry)
Leichtbügeln (Easy
Iron) ■
Zeitprogramm (Time
Drying) ■ ■
Mix (Mixed) ■ ■
Bettwäsche (Bedlinen) ■
Seide (Silk) ■
Wolle (Wool) ■ 2)
Denim ■ ■
Feinwäsche (Delicates) ■
1) Together with the programme you can set 1 or more options. To activate or deactivate them, press
the related touch button.
2) See chapter OPTIONS: Time Drying on Wool programme
7. SETTINGS
A
CDE
B
A. Zeit (Time Dry) touch button
B. Zeitvorwahl (Delay Start) touch
button
C. Start/Pause touch button
D. Knitterschutz (Extra Anticrease)
touch button
E. Reverse Plus touch button
7.1 Child lock function
This option prevents children playing
with the appliance while a programme is
operating. The touch buttons are locked.
Only the on/off button is unlocked.
Activating the child lock
option:
1. Press the on/off button to activate
the appliance.
2. Press and hold touch button (E) for a
few seconds.
The child lock indicator comes on.
It is possible to deactivate
the child lock option while a
programme operates. Press
and hold the same touch
buttons until the child lock
indicator goes off. The Child
Lock function isn't available
for 8 s after switching on the
appliance.
ENGLISH 11

7.2 Adjustment of remaining
laundry moisture
Every time you enter in the
"Adjustment of remaining
laundry moisture" mode,
previously set degree of
remaining moisture will
change into next value ( e.g
previously set will
change into ).
To change the default degree of
remaining moisture:
1. Press the on/off button to activate
the appliance.
2. Use the programme knob to set any
programme.
3. Wait approximately 8 seconds.
4. Press and hold buttons (E) and (D) at
the same time.
One of these indicators comes on:
• the maximum dryness
• the more dry laundry
•the standard dry laundry
5. Press and hold buttons (E) and (D)
again until the indicator of the
correct level comes on.
If the display returns to
the normal mode (the
time of the selected
programme from step 2.
will be displayed), while
setting the degree of
remaining moisture,
press and hold buttons
(E) and (D) once again to
enter to the "Adjustment
of remaining laundry
moisture" mode
(previously set degree of
remaining moisture will
change into next value).
6. After 5 s the display returns to normal
mode.
7.3 Water container indicator
By default, the water container indicator
is on. It comes on when the programme
is completed or when it is necessary to
empty the water container.
If a draining kit is installed
(additional accessory), the
appliance automatically
drains the water from the
water container. In this case
we recommend that you
deactivate the indicator of
the water container.
Deactivating the water
container indicator:
1. Press the on/off button to activate
the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (B) and
(D) at the same time.
The display shows one of these 2
configurations:
• The display shows "Off". After 5 s
the display returns to normal
mode.
• The display shows "On". After 5 s
the display returns to normal
mode.
7.4 Buzzer on/off
To deactivate or activate the acoustic
signals, press and hold for approximately
2 seconds touch buttons (A) and (B) at
the same time.
8. BEFORE FIRST USE
Rear drum packaging is
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour programme with moist
laundry.
www.aeg.com12

At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal for
compressor powered
appliances such as
refrigerators and freezers.
9. DAILY USE
9.1 Start a programme without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when you
close the door, the
laundry does not get
caught between the
appliance door and the
rubber seal.
2. Press the on/off button to activate
the appliance.
3. Set the correct programme and
options for the type of load.
The display shows the programme
duration.
The drying time you see on
the display, when the cotton
programme is selected, is
related to the load of 5 kg
and standard conditions .
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.
4. Press the Start/Pause touch button.
The programme starts.
9.2 Starting the programme
with delay start
1. Set the correct programme and
options for the type of load.
2. Press the delay start button again
and again until the display shows the
delay time you want to set.
You can delay the start
of a programme from a
minimum of 1 hour to a
maximum of 20 hours.
3. Press the Start/Pause touch button.
The display shows the countdown of the
delay start.
When the countdown is completed, the
programme starts.
9.3 Change a programme
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate
the appliance.
3. Set the programme.
Alternatively:
1. Rotate the selector knob to the
"Reset" position.
2. Wait for 1 second. The display shows
.
3. Set the programme.
9.4 At the end of the
programme
When the programme is completed:
• An intermittent acoustic signal
operates.
• The display shows
• The indicators Wärmetauscher
(Condenser) and Sieb (Filter)
comes on.
• The Start/Pause indicator is on.
The appliance continues to operate with
the anti-crease phase for approximately
30 minutes or more if Knitterschutz (Extra
ENGLISH 13

Anticrease) option was set (see chapter
Option - Knitterschutz (Extra
Anticrease) ).
The anti-crease phase reduces creasing.
You can remove the laundry before the
anti-crease phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed or completed.
When the anti-crease phase is
completed:
• The display still shows
• The indicators Wärmetauscher
(Condenser) and Sieb (Filter)
comes on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate
the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.

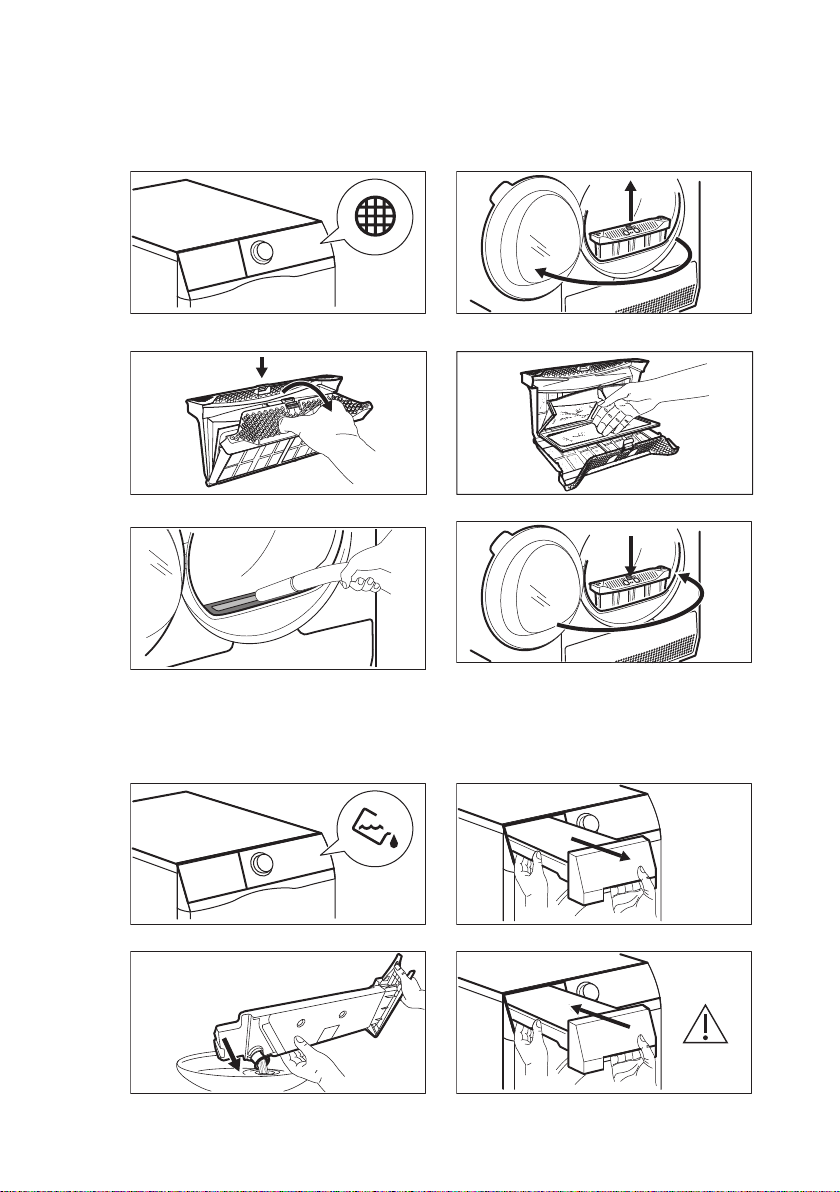

Always clean the filter and
empty the water container
when a programme is
completed.
9.5 Stand-by function
To reduce energy consumption, this
function automatically deactivates the
appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the
programme.
The time is reduced to 30
seconds if the selector knob
is pointing to "Reset"
position.
10. HINTS AND TIPS
10.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the programme suitable
for the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
www.aeg.com14

11. CARE AND CLEANING
11.1 Cleaning the filter
1. 2.
1
2
3.
1
2
4.
5. 1) 6.
2
1
1) If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.
11.2 Emptying the water container
1. 2.
3. 4.
ENGLISH 15

You can use the water from
the water container as an
alternative to distilled water
(e.g. for steam ironing).
Before you use the water,
remove dirt residues with a
filter.
11.3 Cleaning the Heat Exchanger
1. 2.
1
2
3. 4.
11
22
5. 6.
7. 8.
9.
2
1
www.aeg.com16

CAUTION!
Do not touch the metal
surface with bare hands. Risk
of injury. Wear protective
gloves. Clean carefully to
avoid damaging the metal
surface.
11.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
11.5 Cleaning the control
panel and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture
cleaning agents or cleaning
agents which can cause
corrosion.
11.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
12. TROUBLESHOOTING
Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected
to the mains socket.
Check fuse in fuse box (domestic installa-
tion).
The programme does not start. Press Start/Pause.
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is
correct.
Make sure that the laundry is not caught be-
tween the appliance door and the rubber
seal.
The appliance stops during operation. Make sure that the water container is emp-
ty. Press Start/Pause to start the programme
again.
Load is too small, increase the load or use
the Zeitprogramm (Time Drying) pro-
gramme.
The cycle time is too long or unsatisfactory
drying result.1)
Make sure that the weight of the laundry is
suitable for the duration of the programme.
ENGLISH 17

Problem Possible solution
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in
the washing machine again.
Ensure that the room temperature is higher
than +5°C and lower than +35°C. Optimal
room temperature is 19°C to 24°C.
Set the Zeitprogramm (Time Drying) or the
Extratrocken (Extra Dry) programme.2)
The display shows . If you want to set a new programme, deacti-
vate and activate the appliance.
Make sure that the options are suitable for
the programme.
The display shows Error code (e.g. E51). Deactivate and activate the appliance. Start
a new programme. If the problem occurs
again, contact the Service centre.
1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets ).
12.1 If the drying results are
not satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the
appliance.
• The drum is dirty.
• Incorrect setting of the conductivity
sensor ( See chapter " Settings -
Adjustment of the remaining laundry
moisture degree " for better setting).
• The airflow slots are clogged.
• Room temperature is too low or too
high ( optimal room temperature 19°C
to 24°C )
13. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 600 mm (maximal 665 mm)
Max. depth with the appliance door open 1100 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8kg
Voltage 230 V
Frequency 50 Hz
Sound power level 66 dB
www.aeg.com18

Total power 900 W
Energy efficiency class A+
Energy consumption on the standard cotton
programme with the full load. 1)
2,60 kWh
Energy consumption on the standard cotton
programme with the partial load. 2)
1,38 kWh
Annual energy consumption3) 308,20 kWh
Left-on mode power absorption 4) 0,50 W
Off mode power absorption 4) 0,50 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid
particles and moisture ensured by the pro-
tective cover, except where the low voltage
equipment has no protection against mois-
ture
IPX4
This product contains fluorinated greenhouse gases, hermetically sealed
Gas designation R134a
Weight 0,30 kg
Global-warming potential (GWP) 1430
1) With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2) With reference to EN 61121. 4 kg of cotton centrifuged at 1000 rpm.
3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme
at full and partial load, and the consumption of the low-power modes. Actual energy consumption per
cycle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
4) With reference to EN 61121.
The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.
13.1 Consumption data
Programme Spun at / residual humidity Drying time1)
Energy
consump-
tion2)
Baumwolle (Cotton) Eco 8 kg
Schranktrocken (Cup-
board Dry) 1400 rpm / 50% 147 min. 2,03 kWh
ENGLISH 19

Programme Spun at / residual humidity Drying time1)
Energy
consump-
tion2)
1000 rpm / 60% 179 min. 2,60 kWh
Bügeltrocken (Iron
Dry) 1400 rpm / 50% 113 min. 1,47 kWh
1000 rpm / 60% 135 min. 1,79 kWh
Baumwolle (Cotton) Eco 4 kg
Schranktrocken (Cup-
board Dry) 1400 rpm / 50% 86 min. 1,14 kWh
1000 rpm / 60% 102 min. 1,38 kWh
Mischgewebe (Synthetics) 3,5 kg
Schranktrocken (Cup-
board Dry) 1200 rpm / 40% 58 min. 0,71 kWh
800 rpm / 50% 72 min. 0,90 kWh
1) For partial loads, the cycle time is shorter and appliance uses less energy.
2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase
the energy consumption.
14. QUICK GUIDE
14.1 Daily use
1 2 3
54
1. Push the On/Off button to turn on
the appliance. 2. Use the programme dial to set the programme.
www.aeg.com20
