AEG ARCTIS 189 GT User manual

820 41 72 36
ARCTIS 189 GT
ARCTIS 261 GT
Chest freezer
Operating Instructions

2
Dear customer,
Before placing your new chest freezer into operation please read these
operating instructions carefully. They contain important information for
safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/ or with signal words
(Warning!, Caution!, Attention!). Please observe the following carefully.
This symbol guides you step by step in the operation of the appliance.
Supplementary information regarding operation and practical applications
of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the cloverleaf.
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "What to do if ...".If these
instructions should not be sufficient, our customer service department is
always available to you.
Printed on paper manufactured with environmentally sound processes – he
who thinks ecologically acts accordingly ...
♣♣

3
Contents
Safety 4
Disposal 6
Appliance Packaging Information 6
Disposal of old Appliances 6
Installation 7
Installation Location 7
The freezer needs air 8
Electrical Connection 9
Appliance Description 10
Control Panel 9
Starting up 9
Temperature adjustment 11
Opening/closing the lid 11
The role of the Pressure
Equilisation Valve 11
Low Frost System 12
Lock 12
Storage baskets 13
Switching the Appliance Off 14
Maximum capacity /
Stacking limit 14
Freezing 14
Frozen Storage 16
Defrosting 16
Cleaning and care 17
Energy Saving Tips 18
What to do if 18
Correcting Malfunctions 18
Replace light bulb 20
Service & Spare Parts 21
Customer Care 21
Regulations,
Standards, Guidelines 22

4
Safety
The safety of our freezers is in accordance with recognised technological
standards and appliance safety legislation. We nevertheless feel that it is
important to acquaint you with the following safety guidelines:
Use for Intended Purpose
The freezer is intended for household use. It is suitable for freezing and
storage of frozen food. The manufacturer assumes no liability for
damages occurring through improper operation or use of the appliance
for unintended purposes.
Alterations or changes to the freezer are not permitted for reasons of
safety.
If you use the freezer in a commercial application or for purposes other
than the freezing or frozen storage of foods, please observe all valid legal
regulations for your application.
Prior to initial start-up
check the refrigerator/freezer for transport damage. Do not under any
circumstances connect a damaged appliance! Please contact your
supplier in the event of damage.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
avoid open flames and sources of ignition;
thoroughly ventilate the room in which the appliance is situated.
Safety for Children
Packaging materials (e.g. films, styrofoam) can be dangerous for children.
Danger of suffocation! Keep packaging materials away from children!
For appliances with lockable lids: Children playing could get locked in.
Danger of suffocation! Keep the key out of the reach of children and do
not leave it near the appliance.

5
Before disposing of old appliances make them inoperable. Remove plug
from mains, sever the power cable, remove or destroy any snap or latch
closures. This eliminates the danger that playing children lock themselves
into the appliance (danger of suffocation!) or place themselves into other
life-endangering situations.
Children often do not recognise the dangers involved with household
appliances. Please provide for the necessary supervision and do not allow
children to play with the appliance!
Daily Operation
Containers with flammable gases or fluids can develop leaks through
contact with the cold. Danger of explosion! Do not store containers with
flammable substances, such as aerosol cans, refill cartridges for cigarette
lighters etc. in the refrigerator/freezer.
Bottles and cans may not be placed in the freezer compartment. They can
burst when the contents freeze - or even explode if the contents contain
carbonic acid! Never place sodas, juices, beer, wine, champagne etc. into
the freezer compartment. Exception: Spirits with high alcohol content
may be stored in the freezer compartment.
Do not place ice cream or ice cubes directly from the freezer
compartment into the mouth. Very cold ice can freeze to the lips or
tongue and cause injury.
Never touch frozen goods with wet hands. Hands can freeze to the goods.
Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
Before cleaning the appliance always pull the mains plug out or switch
off/disengage the household fuse.
When unplugging always pull the plug from the mains socket, do not pull
on the cable.
In case of malfunction
If a malfunction occurs on the appliance, please look first in the "What
to do if ..." section of these instructions. If the information given there
does not help, please do not perform any further repairs yourself.
This product should be serviced by an authorised engineer and only
genuine spare parts should be used.
Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.

6
Disposal
Appliance Packaging Information
All materials are environmentally friendly. They can be safely disposed of at
a recycling centre.
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of
chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of at
a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remove
plug from mains, sever the power cable, remove or destroy any snap or latch
closures. This eliminates the danger of playing children locking themselves
into the appliance (danger of suffocation!) or place themselves into other
life-endangering situations.
Disposal:
The appliance may not be disposed of with domestic waste or bulky
refuse.
The refrigerating circuit must not be damaged.
Information concerning collection schedules or locations can be
obtained from your local Council or Environmental Health Office.

7
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room on a firm and
level surface.
Warning! The appliance may not be exposed to spray or water splashes.
There is a danger of electrical shock!
Energy use is affected by the ambient temperature.
The appliance should therefore
not be exposed to direct sunlight;
not be installed next to radiators, cookers or other sources of heat;
only be installed at a location whose ambient temperature corresponds
to the climate classification, for which the appliance is designed.

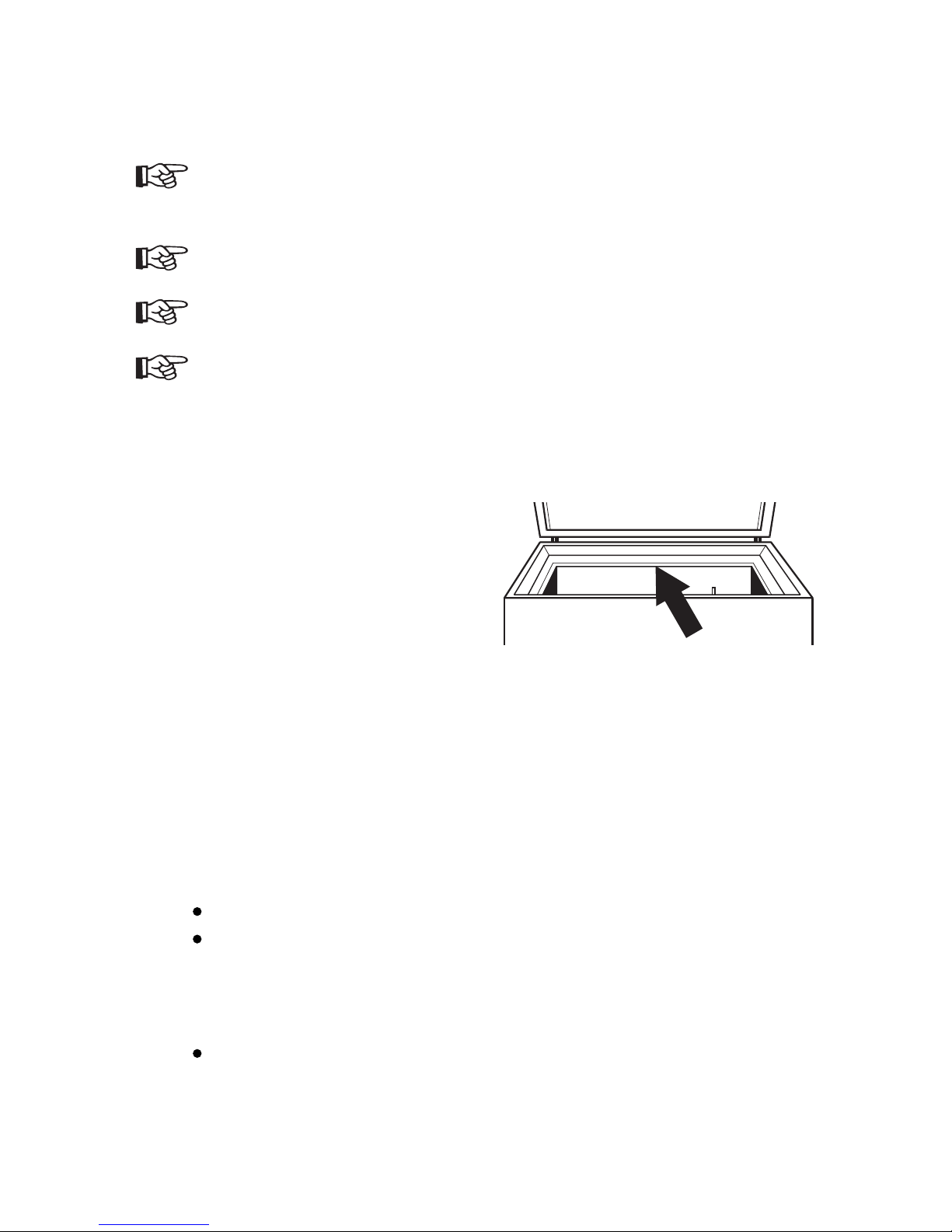

The climate classification is stipulated on the serial plate which can be
found on the inner side of the lid. The following table shows which ambient
temperature is correct for each climate classification:
Climate classification for an ambient temperature of
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
T +18 to +43 °C
Model ARCTIS 189 GT ARCTIS 261 GT
Volume (gross) litres
Volume (net) litres
Height without/with roller cm
Width cm
Depth cm
Weight kg
Energy consumpt./24h kWh
Freezing capacity kg/24h
Hold-over time hours
Rated power W
189
184
87,6/88,3
93,5
66,5
49
0,53
23
43
75
261
255
87,6/88,3
11 9
66,5
57
0,64
27
47
100
Technical Specifications

8
The freezer needs air.
The side walls become warm whilst the appliance is on. The heat is
generated by the special refrigerating system (shell condenser) and helps
prevent condensation. In order for the heat to be able to be dissipated, air
must be able to circulate around all the side walls.
Attention! To function correctly the appliance requires good ventilation.
Make sure that the side walls and the base of the appliance are not covered
or obstructed.

9
Electrical Connection
Any electrical work required to install this appliance should be carried out
by a qualified electrician or competent person.
WARNING - THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety mea-sures
not be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on
the left.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved
(BS 1362) fuse must be used.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
1.The wire coloured green and yellow must be connected to the termi-nal
marked with the letter „E” or by the earth symbol or coloured green
and yellow.
2.The wire coloured blue must be connected to the terminal marked „N” or
coloured black.
3.The wire coloured brown must be connected to the terminal marked „L”
or coloured red.
4.Upon completion there must be no cut, or stray strands of wire present
and the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safety.

10
Thermostat

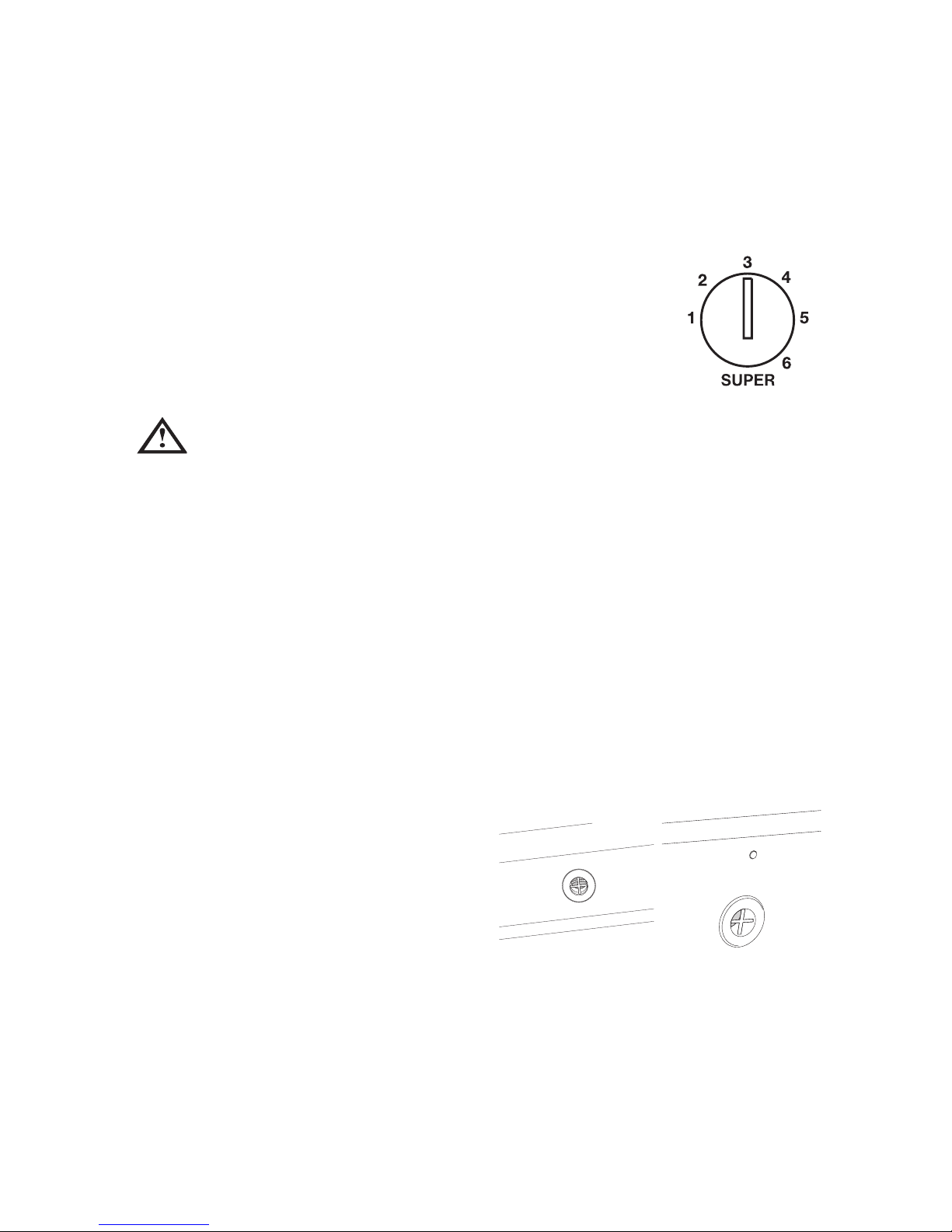

control knob Signal light
Appliance Description
Control Panel
Starting Up
Please clean the appliance interior and all accessories prior to initial start up
(see section: “Cleaning and Care”).
Insert the mains plug of the chest freezer into the mains supply. Set the
thermostat control knob to a medium setting and leave the appliance to run
for 2 hours before placing any food inside.
The temperature inside the freezer must be -18 °C or colder. This can be
checked by measuring the temperature of the top middle package.
When the appliance has reached the correct temperature for safe storage of
frozen food the red signal light will illuminate. If the temperature in the
freezer is too high the light will go out. The light may go out for the following
reasons:
There is a power failure.
The lid has been recently opened.
A large quantity of food has been added to the appliance.
There is a fault.
Important: Check regularly on the red temperature warning light and on a
thermometer placed inside whether the storage temperature is being
maintained.

11
Temperature adjustment
Thermostat control knob
1 = Lowest setting, minimum cold
SUPER = Highest setting, maximum cold
Turning the thermostat control knob towards "SUPER"
reduces the temperature in the freezer and turning it
towards to the lower numbers will increase the
temperature. Use a small coin in the groove to make it
easier to turn the thermostat control knob.
Important: If you adjust the temperature control knob to a lower
temperature the motor may not start immediately, this is a normal and not a
fault with the appliance.
OPENING/CLOSING THE LID
After opening and closing the lid of your freezer you will not be able to open
the lid again immediately. This is because a vacuum will have developed
inside, keeping the lid closed until the pressures inside and outside the lid
have equalised. After a few minutes you can easly reopen the lid.
THE ROLE OF THE PRESSURE EQUALISATION VALVE
The pressure equalisation valve installed in freezer automaically eliminates
the pressure difference which would otherwise make it very difficult or even
impossible to open the lid.
It may be possible to hear the
operation of the valve as the air
flows in through the airing outlet in
the back wall of the cabinet.
For a safe operation, keep the two
openings of the valve free, do not
cover them!

12
LOW FROST SYSTEM.
The patented LOW FROST System reduces the ice-build-up in the chest
freezer by up to 80 percent, which results in a longer period of time between
defrosting. To get the full benefit of the system, please observe the following
points:
The amount of ice-build-up in any freezer is very much dependent of the
moisture of the surrounding air. The ice will build up quicker in a humid climate
than in a dry climate.
Therefore you should avoid installing your freezer in very humid surroundings.
The LOW FROST system minimizes the amount of ice caused by the natural
temperature cycle of the freezer. However, ice-build-up from other sources is
not reduced. The most important other sources are poorly wrapped food and
warm air introduced when the lid is opened.
Therefore, it is important to ensure that the lid isn’t opened unnecessarily,
and the lid is not obstructed by packs of food when closed.
If food stored in the freezer is not wrapped properly, humidity from the food
will settle as ice on the freezer walls. Food quality will also deteriorate, so
ensure that food put in the freezer is wrapped well.
Maintenance and Cleaning. The LOW FROST system does not need any
maintenance or cleaning during normal use. If needed the pipe can be wiped
with a soft cloth. Do not use any sharp or piercing tools, as this may damage the
system.
DEFROSTING
In general food should not be defrosted at room temperature, since this
increases the risk of bacteria growth. It is best to defrost large portions of
meat or poultry in the refrigerator, and this also applies to food which is to
be consumed as it is (e.g. fruit, butter and sliced meat). Small portions of food
can be cooked straight from the freezer. A good number of ready-to-cook
dishes can also be cooked without defrosting. Always observe the instructions
on product packaging. Bread tastes good when defrosted in a moderate oven.
Microwave ovens can be used for the rapid defrosting of most frozen foods.
Observe the instructions for use of the microwave oven concerned, especially
regarding foil dishes.
LOCK
The lock works as shown in the
drawings. Remember to keep the key
out of the reach of children.

13
Baskets
The baskets are designed for the storage of food which has already been
frozen. The handles can be placed in two positions, as shown.
The baskets can either be placed inside the freezer or hung on the edge of
the casing.
The following spare parts can be ordered from your local Service Force Centre.
Please note that 2 handles must be
ordered for each basket.
„A” Basket 291263000/9
„B” Basket 291263001/7
Handle 291340004/6 (2 required).

14
Switching the Appliance Off
To switch off the appliance pull out the plug from the power supply or switch
off or disengage the household fuse.
If the appliance is to be removed from service for a lengthy period:
Remove the mains plug or switch off or turn out the circuit breaker or fuse.
Defrost freezer compartment and clean thoroughly (see section: "Cleaning
and Care").
Then leave the lid open to avoid odours.
Maximum capacity / Stacking limit
To be able to store larger quantities
or bulky products for freezing you
can remove all the storage baskets.
The appliance will still function
safely if used in this way.
Do not stack the products
higherthan the lower edge of the
plastic frame.
Freezing
Tip: To freeze fresh foods use the small freezing compartment on the right of
the dividing partition. This enables you to separate already frozen foods from
fresh foods. Always make sure already frozen goods cannot defrost by coming
into contact with fresh products. If the freezing compartment is too small
you can freeze part of the products in the large storage section on the left of
the dividing partition as long as it does not come into contact with
previously frozen food.
Attention!
Before freezing food the temperature in the freezer must be -18 °C or colder.
Please observe indicated freezing capacity on the rating plate. The
freezing capacity represents the maximum amount of fresh goods that
can be frozen within 24 hours. If you freeze goods on several days, one
after the other, freeze amounts equal to 2/3 to 3/4 of the capacity
indicated on the rating plate.
Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.

15
Turn the control knob to „SUPER”. The freezer will now run continuously,
creating a sufficient reserve of the temperature required.
Turn the control knob to „SUPER” 6-24 hours before placing fresh food in
the freezer, depending on how much food is to be frozen.
Place the food in the freezer and leave the control knob set to „SUPER” for
a further 24 hours.
Return the control knob to a medium setting. The freezer will return to
normal storage temperature. If you forget to return the control knob to a
medium setting, the freezer will not be damaged but energy will be
wasted.
All foods must be packed air tight prior to freezing, so that they do not dry
out or lose their flavour, and so that no flavour contamination of other frozen
goods occurs.
Caution! Do not touch the frozen foods with wet hands. Hands can freeze to
the goods.
Place the packed food products into the freezer. Ensure they come into
contact with the side walls. Unfrozen goods may not come into contact with
already frozen goods, otherwise the frozen goods may start to thaw.
If more products have to be frozen, keep on the fast freeze switch - otherwise
switch the fast freeze function off about 24 hours after inserting the food
products, for smaller quantities earlier.
TIPS:
The following are suited for the packaging of frozen goods:
- freezer bags and polyethylene wraps;
- special cans for frozen goods;
- extra-thick aluminium foil
The following are suitable for closing bags and foil: plastic clips, rubber
bands or adhesive tape.
Before closing press out the air from the bags and foil, as air make the
frozen products dry out more easily and wastes space.
Make flat packages, because these freeze more quickly.
Do not fill cans for frozen goods to the brim with liquid or paste-like
goods, because liquids expand during freezing.

16
Frozen Storage
Attention! Before filling the freezer for the first time with previously frozen
goods, the necessary storage temperature of -18 °C must have been attained.
Load freezer only with packaged frozen goods, so that they do not dry out
or lose their flavour, and so that no flavour contamination of other frozen
goods can occur.
Please observe maximum storage times and expiry dates of frozen goods.
Store ice cream and fatty foods in the lower area of the freezer (near to
the bottom).
Defrosting
Whilst in operation and when the lid is opened, the moisture inside the
freezer forms hoar frost. Remove this hoar frost from time to time with a soft
plastic scraper, e.g. a spatula. Do not under any circumstances use hard or
pointed objects for this purpose.
Defrost the freezer when the layer of hoar frost has become 4 mm thick. For
models with a no-frost system at least once a year.
Models with a low frost system do not need to be defrosted as often, as in
the case of these appliances ice and hoar frost take longer to build up in the
freezer. The low frost system is maintenance free throughout the entire
service life of the appliance.
A convenient time for defrosting is any time when the appliance is empty, or
only minimally loaded.
Warning!
Do not use electrical heating appliances or any other mechanical or
artificial devices to speed up the defrosting process, with the exception of
those recommended in these operating instructions.
Do not use defrosting sprays, because they may be health endangering
and/or contain substances damaging to plastics.
Caution! Do not touch frozen goods with wet hands Hands can freeze to the
goods.
Remove frozen goods, pack them in several layers of newspaper, cover them
and store them in a cool place, e.g. in a refrigerator.
Remove the mains plug or switch off or turn out the circuit breaker or fuse.
Remove the interior accessories (baskets, trays etc.).

17

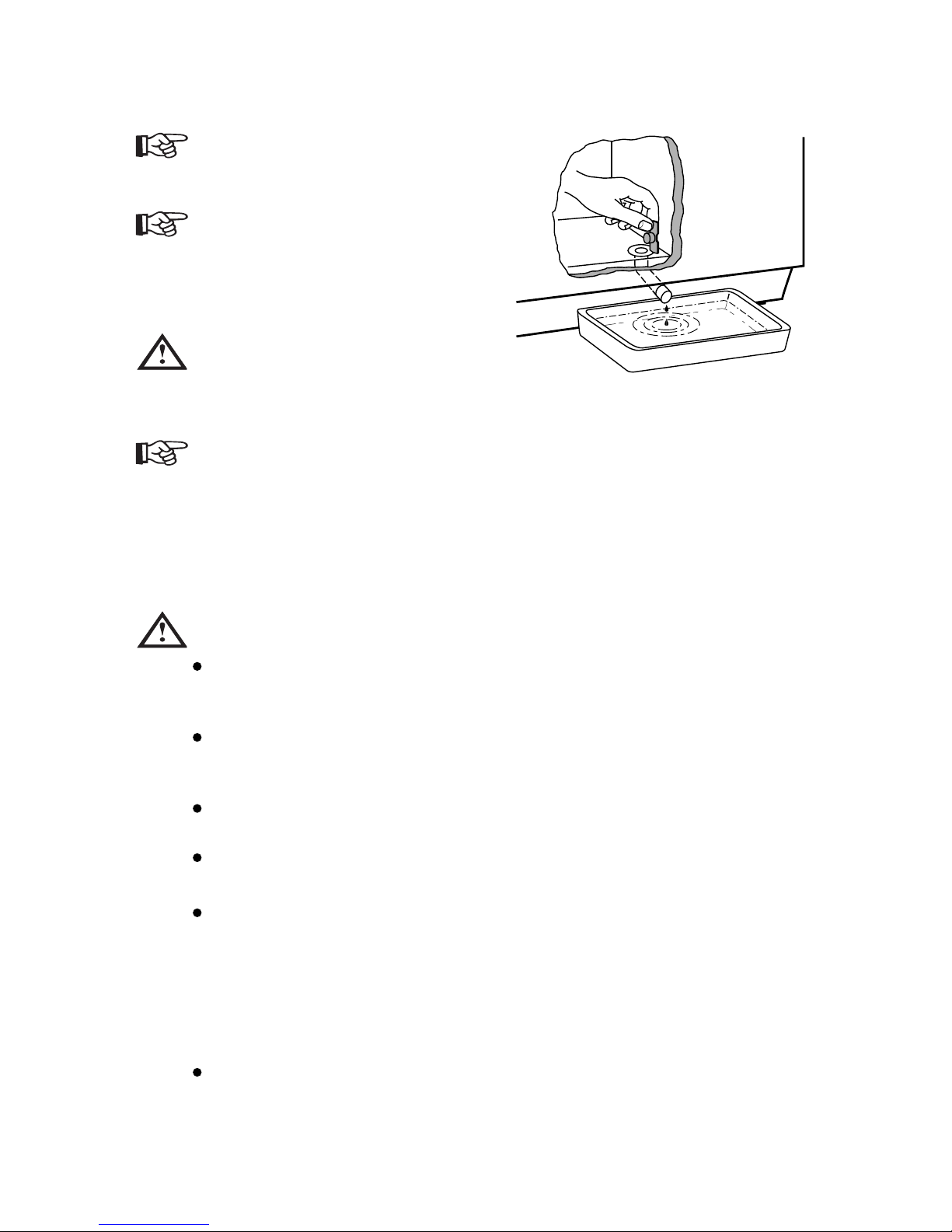

Pull out the plug of the defrost water
outlet at the bottom of the freezer.
To catch the defrost water, place the
freezing trays (not included with all
models), the dividing partition or
another flat receptacle under the
defrost water outlet.
Tip: To accelerate the defrosting
process, place a saucepan with hot
water in the appliance and close the
lid. Remove pieces of ice that break away before defrosting is complete.
After defrosting thoroughly clean the freezer interior, as well as
interior accessories (see section: "Cleaning and Care").
Cleaning and care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
The appliance may not be connected to the power supply whilst it is being
cleaned. Electric shock hazard! Before cleaning, pull out the mains plug or
switch off or disengage fuse.
Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock! Hot
vapours can lead to the damage of plastic parts.
Take care that no fluid enters the control panel on the handle or any other
electrical parts.
The appliance must be dry before it is placed back into service.
Important!
Ethereal oils and organic solvents can attack plastic parts, e.g.
- Juice from lemon or orange peel;
- butyric acid;
- cleansers which contain acetic acid.
Do not allow such substances to come into contact with parts of the
appliance.
Do not use any abrasive cleansers.

18
Defrost the freezer compartment (see section: "Defrosting").
Clean the appliance and the interior accessories with a cloth and lukewarm
water. Commercially available dish washing detergents may also be used.
After cleaning wipe with fresh water and rub dry.
Attention! Reinsert the plug of the defrost water outlet at the base of the
freezer after cleaning.
After everything is dry place appliance back into service.
Energy Saving Tips
Do not install the appliance near cookers, radiators or other sources of
warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
In order to guarantee sufficient ventilation, do not cover or obstruct the
sides and base of the appliance.
Do not place warm foods into the appliance. Allow warm foods to cool
first.
Do not leave the lid open any longer than necessary.
Do not set the temperature colder than necessary.
Place frozen goods into the refrigerator for thawing. Cold from frozen
goods is thus used for cooling in the refrigerator.
What to do if ...
Correcting Malfunctions
Perhaps a malfunction has been caused by a minor error, which you, can
correct yourself with the help of the following instructions. Do not attempt
any further repairs if the following instructions do not help in each specific
case.
Warning! Repairs to refrigerators/freezers may only be performed by
competent service engineers. Improper repairs can give rise to significant
hazards for the user. If your appliance needs repairing, please contact your
specialist dealer or your Local Service Force Centre.
♣♣

19
What to do if...
If the appliance is not working correctly, please carry out the following checks before
calling out an engineer.
Symptom
No power to the
appliance .
The temperature in
the freezer is too
warm.
The lid will not open.
Excessive frost and ice
has built up.
The pressure
equalisation valve does
not close properly.
Check if....
Plug not connected properly.
Faulty fuse in the plug.
There is a power failure.
Is the thermostat control knob
set correctly relevant to the
ambient conditions.
Check the ambient conditions.
Check that the ambient
temperature is within the
appliance’s operating limits of
10°C - 32°C.
Fresh food has recently been
placed in the freezer.
The lid has recently been
opened.
Is the thermostat control knob
set correctly relevant to the
ambient conditions.
Is the lid closing correctly.
There is a large amount of
moisture from the packaging of
stored food.
Some pollution has got into
the valve.
Solution
Connect plug to the power
supply.
Replace the fuse if necessary.
Leave the lid closed and wait
for the power supply to be
restored.
Turn the thermostat control knob
to the appropriate setting
(colder).
Relocate the appliance.
If it has wait a few minutes for
the pressure inside the freezer to
the equalise and then open the
lid.
Do not put excessive force on the
handle.
Turn the thermostat control knob
to the appropriate setting
(warmer).
Rearrange the stored food so
that the lid can be closed
correctly.
Ensure that all food placed in the
freezer is wrapped in airlight dry
packaging.
The valve must be cleaned from
the airing outlet in the rear
wall.

20
REPLACE LIGHT BULB
Warning! Electric shock hazard! Before changing the bulb, disconnect the
appliance from the electricity supply.
Light bulb specifications: 220-240 V, max. 15 W, socket: E 14
Pull out the mains plug to switch off
the appliance.
Open the lid of the chest freezer. The
light bulb can be found in the inner
lid.
Unscrew the bulb, and replace it with
a new bulb.
Restart the appliance again.
