AEG S63800KMW0 User manual

S63800KMW0 EN REFRIGERATOR USER MANUAL 2
IT FRIGORIFERO ISTRUZIONI PER L’USO 21

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have
created it to give you impeccable performance for many
years, with innovative technologies that help make life
simpler – features you might not find on ordinary
appliances. Please spend a few minutes reading to get
the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to
keep all your AEG appliances looking spotless and
working perfectly. Along with a wide range of
accessories designed and built to the high quality
standards you would expect, from specialist cookware
to cutlery baskets, from bottle holders to delicate
laundry bags…
Visit the webshop at:
www.aeg-electrolux.com/shop
2

CONTENTS
4 Safety information
6 Control panel
10 First use
10 Daily use
12 Helpful hints and tips
13 Care and Cleaning
14 What to do if…
16 Technical data
17 Installation
20 Environmental concerns
The following symbols are used in this
user manual:
Important information concerning
your personal safety and information
on how to avoid damaging the
appliance.
General information and tips
Environmental information
Subject to change without notice
Contents 3

SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing and first
using the appliance, read this user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important to ensure that all people using
the appliance are thoroughly familiar with its operation and safety features. Save these
instructions and make sure that they remain with the appliance if it is moved or sold, so
that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection
cable (as close to the appliance as you can) and remove the door to prevent playing
children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having
a spring lock (latch) on the door or lid, be sure to make that spring lock unusable be-
fore you discard the old appliance. This will prevent it from becoming a death trap for
a child.
General safety
CAUTION!
Keep ventilation openings clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a normal house-
hold as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerat-
ing appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the ap-
pliance, a natural gas with a high level of environmental compatibility, which is never-
theless flammable.
During transportation and installation of the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which the appliance is situated
4Safety information

• It is dangerous to alter the specifications or modify this product in any way. Any dam-
age to the cord may cause a short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power cord, plug, compressor) must be replaced by a certified
service agent or qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance without the lamp cover
1)
of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/
wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
•Bulb lamps
2)
used in this appliance are special purpose lamps selected for household
appliances use only. They are not suitable for household room illumination.
Daily use
• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Re-
fer to relevant instructions.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
• Do not clean the appliance with metal objects.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean
the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
For electrical connection carefully follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appli-
ance if it is damaged. Report possible damages immediately to the place you bought
it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
1) If the lamp cover is foreseen.
2) If the lamp is foreseen.
Safety information 5

• Adequate air circulation should be around the appliance, lacking this leads to overheat-
ing. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
•Connect to potable water supply only.
3)
Service
• Any electrical work required to do the servicing of the appliance should be carried out
by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare
parts must be used.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains flammable gases: the
appliance shall be disposed according to the applicable regulations to obtain from your
local authorities. Avoid damaging the cooling unit, especially at the rear near the heat
exchanger. The materials used on this appliance marked by the symbol are recyclable.
CONTROL PANEL
12345 6
1ON/OFF button
2Mode button
3OK button
4Temperature colder button
5Temperature warmer button
6Display
It is possible to change predefined sound of buttons to a loudly one by pressing together
Mode button and Temperature colder button for some seconds. Change is reversible.
3) If a water connection is foreseen.
6Control panel

Display

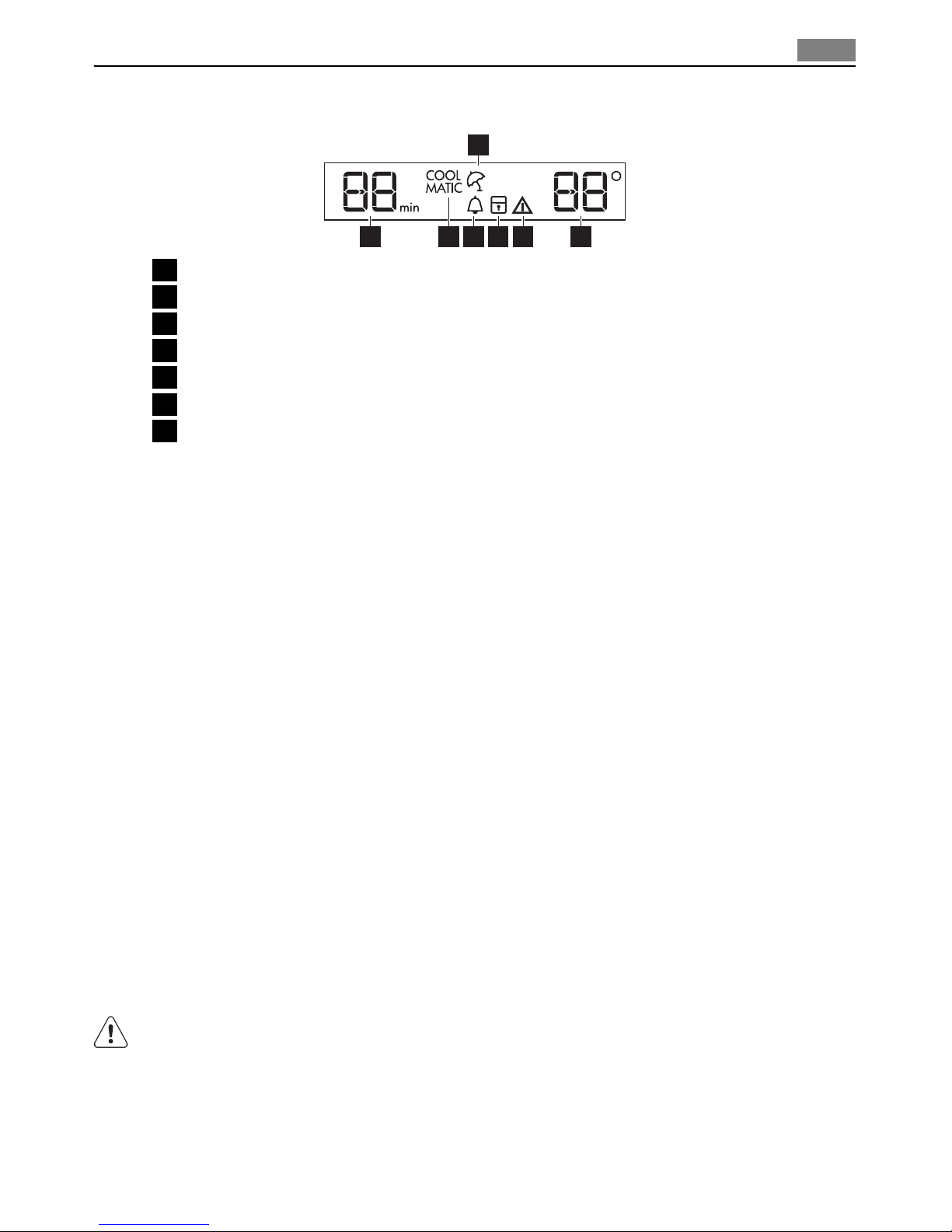

7
5 64321
1Timer function
2COOLMATIC function
3Minute Minder function
4Child Lock function
5Alarm indicator
6Temperature indicator
7Holiday function
Switching on
To switch on the appliance do these steps:
1. Connect the mains plug to the power socket.
2. Press the ON/OFF button if the display is off.
3. The alarm buzzer could operate after few seconds.
To reset the alarm refer to "High temperature alarm".
4. The temperature indicators show the set default temperature.
To select a different set temperature refer to "Temperature regulation".
Switching off
To switch off the appliance do these steps:
1. Press the ON/OFF button for 5 seconds.
2. The display switches off.
3. To disconnect the appliance from the power disconnect the mains plug from the pow-
er socket.
Temperature regulation
The set temperature of the fridge may be adjusted by pressing the temperature button.
Set default temperature:
• +5°C for the fridge
The temperature indicator shows the set temperature.
The set temperature will be reached within 24 hours.
After a power failure the set temperature remains stored.
Minute Minder function
The Minute Minder function is to be used to set an acoustic alarm at the preferred time,
useful for example when a recipe requires to cool down a mixture for a certain lenght of
time.
Control panel 7

To switch on the function:
1. Press the Mode button until the corresponding icon appears.
The Minute Minder indicator flashes.
The Timer shows the set value (30 minutes) for a few seconds.
2. Press the Timer regulator button to change the Timer set value from 1 to 90 minutes.
3. Press the OK button to confirm.
The Minute Minder indicator is shown.
The Timer start to flash (min).
At the end of the countdown the Minute Minder indicator flashes and an audible alarm
sounds:
1. Switch off the function.
To switch off the function:
1. Press the Mode button until the Minute Minder indicator flashes.
2. Press the OK button to confirm.
3. The Minute Minder indicator goes off.
It is possible to deactivate the function at any time.
It is possible to change the time at any time and before the end by pressing the Tempera-
ture colder button and the Temperature warmer button.
Child Lock function
To lock the buttons from unintentional operation select the Child Lock function.
To switch on the function:
1. Press the Mode button until the corresponding icon appears.
2. The Child Lock indicator flashes.
3. Press the OK button to confirm.
The Child Lock indicator is shown.
To switch off the function:
1. Press the Mode button until the Child Lock indicator flashes.
2. Press the OK button to confirm.
3. The Child Lock indicator goes off.
COOLMATIC function
If you need to insert a large amount of warm food, for example after doing the grocery
shopping, we suggest activating the COOLMATIC function to chill the products more rap-
idly and to avoid warming the other food which is already in the refrigerator.
To switch on the function:
1. Press the Mode button until the corresponding icon appears.
The COOLMATIC indicator flashes.
The fridge temperature indicator shows the set temperature of +2°C .
2. Press the OK button to confirm.
The COOLMATIC indicator is shown.
The COOLMATIC function shuts off automatically after approximately 6 hours.
To switch off the function before its automatic end:
8Control panel

1. Press the Mode button until the COOLMATIC indicator flashes.
2. Press the OK button to confirm.
3. The COOLMATIC indicator goes off.
The function switches off by selecting a different fridge set temperature.
Quick Chill function
The Quick Chill function provide rapid cooling of
cans and bottles through cold airstream.

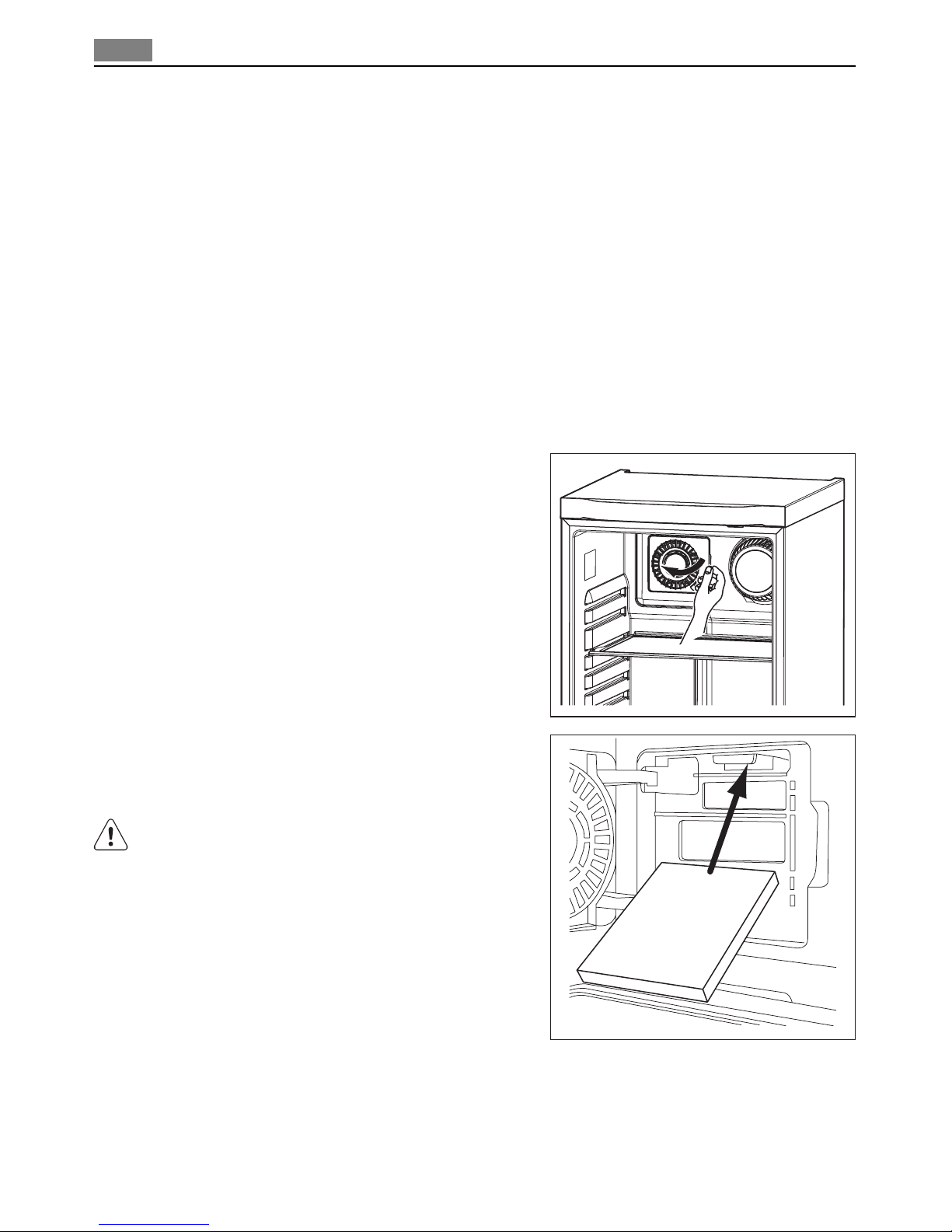

1. Put the cans/bottles on the Quick Chill bottle
holder.

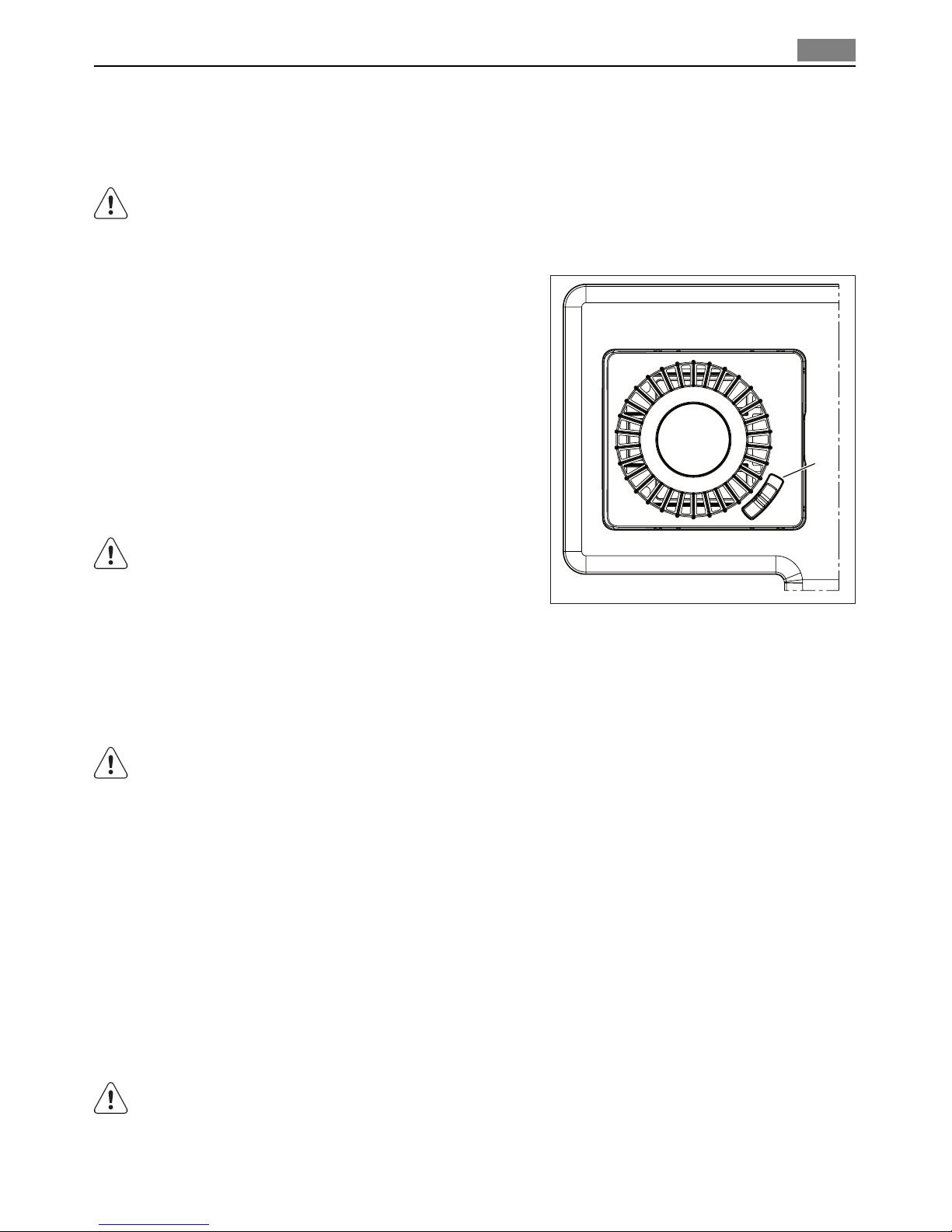

2. Open the air lever (1) towards maximum.
3. Activate COOLMATIC function.
4. The Quick Chill function stops automatically
after approximately 6 hours.
5. When the cooling is finished return the air
lever (1) towards minimum.
To cancel the function at any time, press COOL-
MATIC button.
The Quick Chill bottle holder can be removed if
not used.
Holiday function
This function allows you to keep the refrigerator closed and empty during a long holiday
period without the formation of a bad smell.
The fridge compartment must be empty with holiday function on.
To switch on the function:
1. Press the Mode button until the corresponding icon appears.
The Holiday indicator flashes.
The fridge temperature indicator shows the set temperature.
2. Press the OK button to confirm.
The Holiday indicator is shown.
To switch off the function:
1. Press the Mode button until the Holiday indicator flashes.
2. Press the OK button to confirm.
3. The Holiday indicator goes off.
The function switches off by selecting a different fridge set temperature.
1
Control panel 9

Door open alarm
An acoustic alarm will sound if the door is left open for a few minutes. The door open
alarm conditions are indicated by:
• flashing Alarm indicator
• acoustic buzzer
When normal conditions are restored (door closed), the alarm will stop.
During the alarm, the buzzer can be switched off by pressing any button.
FIRST USE
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accesso-
ries with lukewarm water and some neutral soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Do not use detergents or abrasive powders, as these will damage the finish.
DAILY USE
this appliance is sold in France.
In accordance with regulations valid in this country it must be provided with a special
device (see figure) placed in the lower compartment of the fridge to indicate the coldest
zone of it.
Clean Air Control Filter
Your appliance is equipped with a carbon filter behind the air lever flap.
The filter purifies the air from unwanted odours in the fridge compartment preserving
food quality.
On delivery the filter is in a plastic bag. Refer to "Installation of the Clean Air Control
filter" for instructions.
Make sure that the air lever flap is closed to obtain proper function.
10 First use

Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be posi-
tioned as desired.
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed at
different heights.
Bottle rack
Place the bottles (with the opening facing front)
in the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to
store previously opened bottles. To obtain this re-
sult, pull the shelf up so it can rotate upwards
and be placed on the next higher level.
Bottle and can holder
The side of the bottle and can holder is movea-
ble to enable a more flexible placement of cans
and bottles in front of the grid.
To allow the holder to be moved easier when mov-
ing sideways, press the shelf backwards.
Daily use 11

The bottle support can be pulled out when chill-
ing larger bottles.
Removing the bottle and can holder
1. Take out the Quick Chill Shelf with hold-
er from the cabinet
2. To loosen the holder from the shelf,
bend the hooks/brackets that surround
the backside of the shelf.
Quick Chill shelf
The Quick Chill shelf can be placed in one of the
upper grooves. To maintain the best perform-
ance the shelf should be placed in the second
groove from the top.
HELPFUL HINTS AND TIPS
Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low tem-
perature and the appliance is fully loaded, the compressor may run continuously, caus-
ing frost or ice on the evaporator. If this happens, set the Temperature Regulator to-
ward warmer settings to allow automatic defrosting and so a saving in electricity con-
sumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
12 Helpful hints and tips

Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegeta-
ble drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special draw-
er(s) provided.
Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
CARE AND CLEANING
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging
must therefore only be carried out by authorized technicians.
Replacing the Clean Air Control filter
To get the best performance replace the Clean Air Control filter once every year.
New active filters can be purchased from your local dealer.
Refer to "Installation of the Clean Air Control filter" for instructions.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from
debris.
• rinse and dry thoroughly.
Do not pull, move or damage any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders, highly perfumed cleaning products or wax pol-
ishes to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the compressor at the back of the appliance with a
brush or a vacuum cleaner. This operation will improve the performance of the appliance
and save electricity consumption.
Take care of not to damage the cooling system.
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it is recommended that the outer casing of
this appliance is only cleaned with warm water with a little washing-up liquid added.
After cleaning, reconnect the equipment to the mains supply.
Care and Cleaning 13

Defrosting of the refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment
every time the motor compressor stops, during normal use. The defrost water drains out
through a trough into a special container at the back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigera-
tor compartment channel to prevent the water
overflowing and dripping onto the food inside.
Use the special cleaner provided, which you will
find already inserted into the drain hole.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
•disconnect the appliance from electricity supply
• remove all food
•defrost
4)
and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent the
food inside from spoiling in case of a power failure.
WHAT TO DO IF…
WARNING!
Before troubleshooting, disconnect the mains plug from the mains socket.
Only a qualified electrician or competent person must do the troubleshooting that is not
in this manual.
There are some sounds during normal use (compressor, refrigerant circulation).
Problem Possible cause Solution
The appliance is noisy The appliance is not supported
properly Check if the appliance stands sta- ble (all the four feet should be
on the floor)
4) If foreseen.
14 What to do if…

Problem Possible cause Solution
The appliance does not op-
erate. The lamp does not
operate.
The appliance is switched off. Switch on the appliance.
The mains plug is not connec-
ted to the mains socket correct-
ly.
Connect the mains plug to the
mains socket correctly.
The appliance has no power.
There is no voltage in the mains
socket.
Connect a different electrical ap-
pliance to the mains socket.
Contact a qualified electrician.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates
continually.
The temperature is not set cor-
rectly. Set a higher temperature.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
frequently. Do not keep the door open lon- ger than necessary.
The product temperature is too
high. Let the product temperature de- crease to room temperature be-
fore storage.
The room temperature is too
high. Decrease the room temperature.
The compressor does not
start immediately after
pressing the COOLMATIC
switch, or after changing
the temperature.
This is normal, no error has oc-
curred. The compressor starts after a pe- riod of time.
Water flows on the rear
plate of the refrigerator.
During the automatic defrost-
ing process, frost defrosts on
the rear plate.
This is correct.
Water flows into the re-
frigerator.
The water outlet is clogged. Clean the water outlet.
Products prevent that water
flows into the water collector. Make sure that products do not touch the rear plate.
Temperature cannot be
set .
COOLMATIC function switched
on. Switch off COOLMATIC manually, or wait to set the temperature
until the function has reset auto-
matically. Refer to "COOLMATIC
function"..
The temperature in the ap-
pliance is too low/high.
The temperature regulator is
not set correctly. Set a higher/lower temperature.
The door is not closed correctly. Refer to "Closing the door".
What to do if… 15

Problem Possible cause Solution
The product temperature is too
high. Let the product temperature de- crease to room temperature be-
fore storage.
Many products are stored at
the same time. Store less products at the same time.
The temperature in the re-
frigerator is too high.
There is no cold air circulation
in the appliance. Make sure that there is cold air circulation in the appliance.
Replacing the lamp
1. Switch off the appliance.
2. Press on the rear hook and at the same
time slide the cover in the direction of
the arrow.
3. Replace the lamp with one of the same
power and specifically designed for
household appliances. (the maximum
power is shown on the lamp cover).
4. Install the lamp cover by sliding it into
its original position.
5. Switch on the appliance.
6. Open the door. Make sure that the light comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.
TECHNICAL DATA
Dimension of the recess
Height 1800 mm
Width 600 mm
Depth 650 mm
The technical information are situated in the rating plate on the internal left side of the
appliance and in the energy label.
16 Technical data

INSTALLATION
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the ap-
pliance before installing the appliance.
Location
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc. Ensure that air can circulate freely
around the back of the cabinet. To ensure best
performance, if the appliance is positioned be-
low an overhanging wall unit, the minimum dis-
tance between the top of the cabinet and the
wall unit must be at least 100 mm . Ideally, how-
ever, the appliance should not be positioned be-
low overhanging wall units. Accurate levelling is
ensured by one or more adjustable feet at the
base of the cabinet.
If the cabinet is placed in a corner and the side
with the hinges facing the wall, the distance be-
tween the wall and the cabinet must be at least 10 mm to allow the door to open
enough so that the shelves can be removed.
WARNING!
It must be possible to disconnect the appliance from the mains power supply; the plug
must therefore be easily accessible after installation.
Positioning
WARNING!
If you are discarding an old appliance that has a lock or catch on the door, you must
ensure that it is made unusable to prevent young children being trapped inside.
The appliance shall have the plug accessible after installation.
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Climate class Ambient temperature
SN +10°C to + 32°C
N+16°C to + 32°C
ST +16°C to + 38°C
T+16°C to + 43°C
10mm 10mm 100mm
Installation 17

Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate cor-
respond to your domestic power supply.
The appliance must be earthed. The power supply cable plug is provided with a contact
for this purpose. If the domestic power supply socket is not earthed, connect the appli-
ance to a separate earth in compliance with current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility if the above safety precautions are not ob-
served.
This appliance complies with the E.E.C. Directives.
Installation of the Clean Air Control filter
The Clean Air Control filter is an active carbon filter which absorbs bad odours maintain
the best flavour and aroma for all foodstuffs without risk of odour cross contamination.
On delivery the carbon filter is in a plastic bag to preserve performance.
1. Open the air lever flap.
2. Take the filter out of the plastic bag.
3. Insert the filter in the slot found in the
back of the air lever flap.
4. Close the air lever flap.
The filter should be handled carefully so frag-
ments do not loosen from the surface.
Make sure that the air lever flap is closed to
obtain proper function.
18 Installation

Rear spacers
Inside the appliance you find two spacers
which must be fitted as shown in the figure.
Slacken the screws and insert the spacer under
the screw head, then retighten the screws.
Door reversibility
WARNING!
Before carrying out any operations, remove the plug from the power socket.
To carry out the following operations, we suggest that this be made with another person
that will keep a firm hold on the door of the appliance during the operations. Gently lay
the appliance on its back.
To change the opening direction of the door, do these steps:
1. Remove the clip-in ventilation grille, remove the plug (e) from the ventilation grille
and install it on the opposite side.

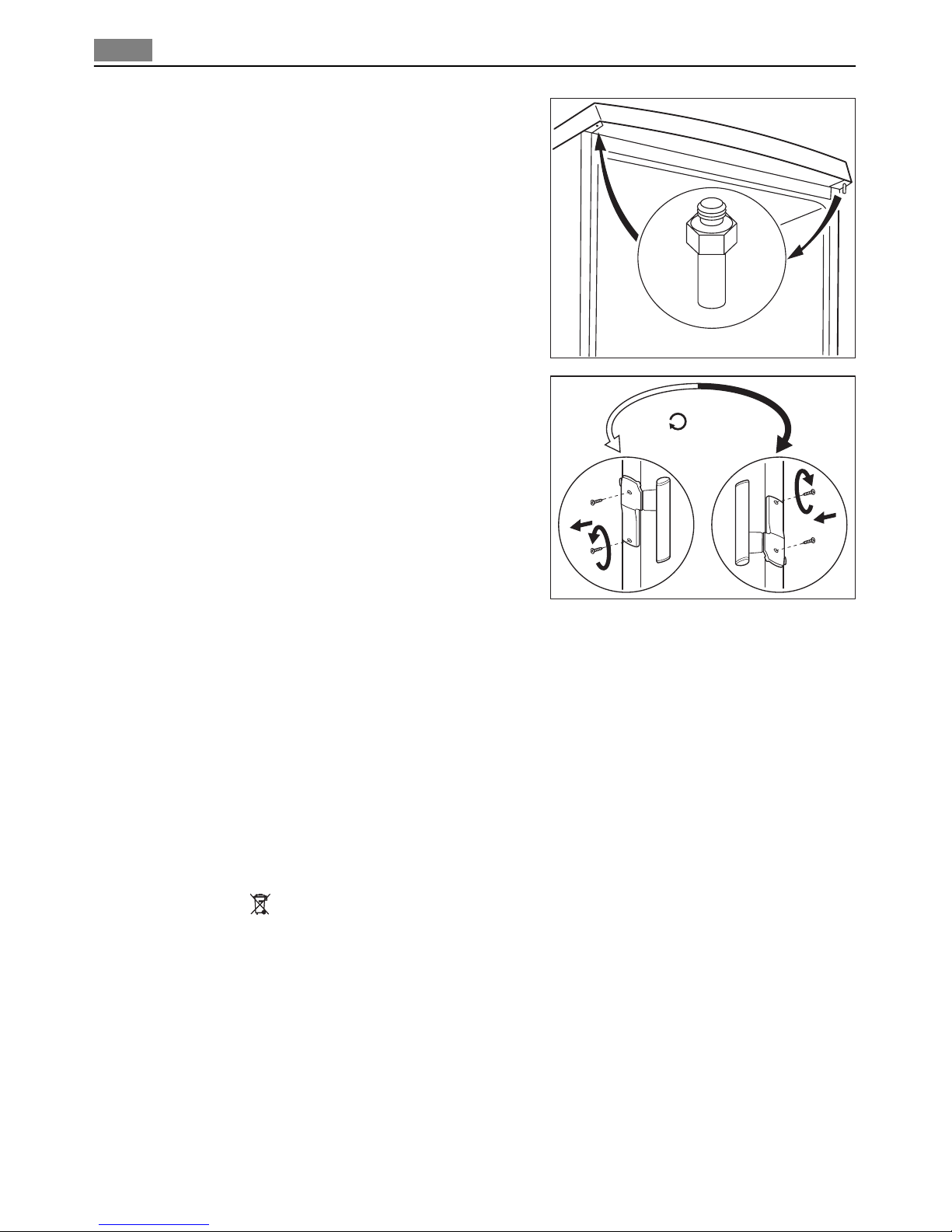

2. Remove the bottom hinge (A) by un-
screwing the fixing screws.
3. Remove the door.
4. Unscrew the pin (f) of the bottom
hinge and install it on the opposite side.
Ae
f
A
Installation 19

5. Unscrew the pin of the upper hinge
and install it on the opposite side.
6. Install the door in the upper hinge.
7. Install the ventilation grille, clipping it
into place.
8. Unscrew the handle. Remove the plug
with a punch. Install the handle and
the plug on opposite side. Take from
the accessory bag the two plugs and
cover the holes left open after having
removed the handle.
9. Make sure that the front board of the
door is parallel to the front board of
the top.
10. Reposition, level the appliance, wait for
at least four hours and then connect it
to the power socket.
Do a final check to make sure that:
• All screws are tightened.
• The magnetic seal adheres to the cabinet.
• The door opens and closes correctly.
If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting of the gasket.
ENVIRONMENTAL CONCERNS
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it should be taken to the appropriate collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about recycling of this
product, please contact your local council, your household waste disposal service or the
shop where you purchased the product.
180°
20 Environmental concerns
