AEG S93000KZM0 User manual

EN User Manual 2
Refrigerator
DE Benutzerinformation 19
Kühlschrank
IT Istruzioni per l’uso 38
Frigorifero
S93000KZM0

CONTENTS
1. SAFETY INFORMATION...........................................................................................3
2. SAFETY INSTRUCTIONS.......................................................................................... 4
3. OPERATION.............................................................................................................. 5
4. DAILY USE..................................................................................................................7
5. HINTS AND TIPS..................................................................................................... 11
6. CARE AND CLEANING.......................................................................................... 12
7. TROUBLESHOOTING.............................................................................................13
8. INSTALLATION....................................................................................................... 15
9. NOISES.................................................................................................................... 16
10. TECHNICAL INFORMATION...............................................................................18
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
ENGLISH 3

•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before
connecting the appliance to the
power supply. This is to allow the oil
to flow back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• All electrical connections should be
made by a qualified electrician.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Service or an electrician
to change the electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
www.aeg.com
4

2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
• Do not change the specification of
this appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to
the refrigerant circuit. It contains
isobutane (R600a), a natural gas with a
high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not store flammable gas and
liquid in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION
3.1 Control panel
56 4 3 2
1
1Display
2Temperature warmer button
3Temperature colder button
4OK
5Mode
6ON/OFF
ENGLISH 5

It is possible to change predefined
sound of buttons by pressing together Mode and Temperature colder button for some seconds. Change is reversible.
Display
A B C D E F
A) Timer function
B) COOLMATIC function
C) MinuteMinder function
D) ChildLock function
E) Alarm indicator
F) Temperature indicator
3.2 Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off.
The alarm buzzer could operate after few
seconds.
The temperature indicators show the set
default temperature.
To reset the alarm refer to "High
temperature alarm".
To select a different set temperature
refer to "Temperature regulation".
If "dEMo" appears on the display, refer
to "What to do if..." chapter.
If the door remains open for
some minutes, the light will
turn off automatically. The
light is reset by closing and
opening the door itself.
3.3 Switching off
1. Press the appliance ON/OFF button
for a few seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
3.4 Temperature regulation
The set temperature of the fridge may be
adjusted by pressing the temperature
button.
Default temperature:
• +5°C for the fridge
The temperature indicator shows the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.5 COOLMATIC function
If you need to insert a large amount of
warm food, for example after doing
grocery shopping, we suggest activating
the COOLMATIC function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
1. Press Mode until the corresponding
icon appears.
The COOLMATIC indicator flashes.
2. Press OK to confirm.
The COOLMATIC indicator is shown.
The COOLMATIC function
shuts off automatically after
52 hours. To switch off the
function before its automatic
end, repeat the steps until
the COOLMATIC indicator
goes off.
3.6 Door open alarm
An acoustic alarm will sound if the door
is left open for a few minutes. The door
open alarm conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
www.aeg.com
6

3.7 MinuteMinder function
The MinuteMinder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for
a certain length of time or when a
reminder is needed in order not to forget
the bottles placed in the freezer for fast
cooling.
1. Press Mode until the corresponding
icon appears.
The MinuteMinder indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Timer regulator to change
the Timer set value from 1 to 90
minutes.
3. Press OK to confirm.
The MinuteMinder indicator is shown.
The Timer starts to flash (min).
It is possible to change the time at any
time during the countdown and at the
end by pressing the Temperature colder
button and the Temperature warmer
button.
At the end of the countdown, the
MinuteMinder indicator flashes and an
audible alarm sounds. Press OK to switch
off the sound and terminate the function.
It is possible to deactivate the function at
any time during the countdown by
repeating the function steps, until the
indicator turns off.
3.8 ChildLock function
Activate the ChildLock function to lock
the buttons from unintentional
operation.
1. Press Mode until the corresponding
icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Movable shelves
The walls of the refrigerator are
equipped with a series of runners so that
the shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer
and the bottle shelf to
ensure correct air circulation.
4.2 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed as
follows:
1. Gradually pull the shelf in the
direction of the arrows until it comes
free.
ENGLISH 7

2. Reposition the shelf as required.
The model is equipped with a variable
storage box which is fitted under a door
shelf compartment and can be slide
sideways.
4.3 LONGFRESH
Compartment
In the LONGFRESH 0°C compartment
the temperature is controlled
automatically. It stays constantly at about
0°C, no adjustment is necessary.
The constant storage temperature of
about 0°C and the relative humidity of
between 45 and 90 % provide optimal
conditions for the various kinds of food.
You can therefore store a
variety of fresh food in the
LONGFRESH 0°C
compartment, where it will
last up to 3 times longer with
better quality compared to
normal refrigerator
compartments. This allows
you to stock more fresh
food. Taste, degree of
freshness, quality and
nutritional values (vitamins
and minerals) are well
preserved. Loss of weight in
vegetables and fruit
diminishes. Food yields a
higher degree of nutritional
value.
The LONGFRESH 0°C
compartment is also suitable
for defrosting food. In this
case the thawed food can be
stored up to two days .
4.4 Fresh food storage time in the LongFresh compartment
Type of food Air humidity adjustment Storage time
Onion "dry” up to 5 months
Butter “dry” up to 1 month
Large pork cuts “dry” up to 10 days
Beef, venison, small pork
cuts, poultry “dry” up to 7 days
Tomato sauce “dry” up to 4 days
Fish, shellfish, cooked meat
products “dry” up to 3 days
Cooked seafood “dry” up to 2 days
www.aeg.com8

Type of food Air humidity adjustment Storage time
Salad, vegetables Carrots,
herbs, Brussels sprouts,
celery
“humid” up to 1 month
Artichokes, cauliflower,
chicory, iceberg lettuce, en-
dive, lamb’s lettuce, lettuce,
leeks, radicchio
“humid” up to 21 days
Broccoli, Chinese leaves,
kale, cabbage, radishes, Sa-
voy cabbage
“humid” up to 14 days
Peas, kohlrabi “humid” up to 10 days
Spring onions, radishes, as-
paragus, spinach “humid” up to 7 days
Fruit
Pears, dates (fresh), straw-
berries, peaches
“humid” up to 1 month
Plums
rhubarb, gooseberries “humid” up to 21 days
Apples (not sensitive to
cold), quinces “humid” up to 20 days
Apricots, cherries “humid” up to 14 days
Damsons, grapes “humid” up to 10 days
Blackberries, currants “humid” up to 8 days
Figs (fresh) “humid” up to 7 days
Blueberries, raspberries “humid” up to 5 days
Cakes containing cream and
other kinds of pastry
products can be stored in
the LongFresh compartment
for 2 or 3 days.
Not to be placed in the
LongFresh compartment:
• cold sensitive fruit which have to be
stored at cellar or room temperature
like pineapple, bananas, grapefruit,
melons, mango, papaya, oranges,
lemons, kiwi fruit.
• The types of food not mentioned
above should be stored in the
refrigerator compartment (e.g. all
sorts of cheese, cold cuts, etc.)
The level of air humidity in
the drawers depends on the
content of humidity in the
stored food, vegetable and
fruit and on the frequency of
door opening
The LongFresh compartment is also
suitable for slow thawing of food. In this
case the thawed food can be stored in
ENGLISH 9

the LongFresh compartment for up to
two days.
• Pay attention to the freshness of the
food, especially on the expiry date.
Quality and freshness influence the
storage time.
• The whole storage cycle time will
depend on the preservation
conditions made prior to the final
storage in the fridge.
• Food, fruit or vegetables should
always be packed or wrapped up
before storage.
• Animal food always store packed and
dry.
• Food rich in proteins will go bad
quicker. This means seafood will spoil
before fish which in turn will spoil
before meat. While storing food in a
LongFresh compartment storage time
for that kind of food can be increased
by up to three times as well without
loss on quality.
• All food stored in a LongFresh
compartment should be taken out of
the drawers roughly 15-30 min before
consumption, particularly fruit and
vegetables to be consumed without
any additional cooking process.
Allowing fruit and vegetables to
return to room temperature will
improve the texture and flavour.
4.5 Carbon Air Filter
Your appliance is equipped with a
carbon filter CLEANAIR CONTROL
behind a flap in the rear wall of the fridge
compartment.
C L E A N A I R C O N T R O L
The filter purifies the air from unwanted
odours in the fridge and LONGFRESH
compartment meaning that the storage
quality will be further improved.
During the operation, always
keep the air ventilation flap
closed.
4.6 Humidity control
Both drawers can be used according to
the desired storage conditions
independently of each other with lower
or higher humidity.
Regulation for each drawer is separate
and is controlled using the slide valve at
the front of the drawer.
• „Dry“: low air humidity - up to 50 %
relative humidity
This humidity level is reached when
both sliders are set into this position
and the ventilation openings are wide
open.
• Humid“: high relative humidity - up to
90%
This humidity level is reached when
both sliders are set in this position
and the ventilation openings are
closed. Humidity is kept and can not
escape.

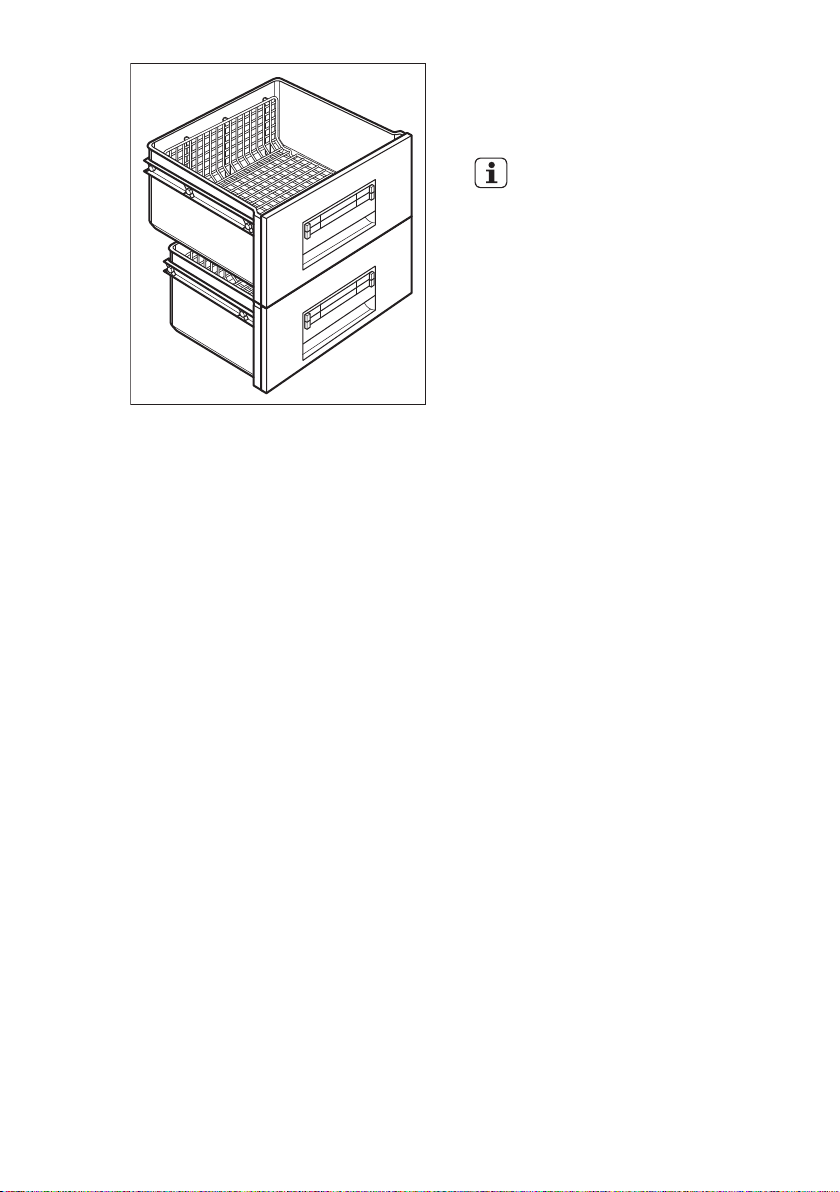

4.7 Longfresh drawers
The humidity is not adjustable.
The wire shelves inside the drawers
permit that air can circulate freely and
consequently a better conservation of
foods.
The compartment has stops to prevent
the drawers from falling out when fully
extended.
www.aeg.com
10

To remove the drawers (e.g. for cleaning
purposes):
1. Pull them out as far as the stops,
2. lift drawers and remove them.
Remove all drawers to store
large quantities of foods.
5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic
dilatation (a natural and not
dangerous physical phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If the ambient temperature is high
and the Temperature Regulator is set
to low temperature and the appliance
is fully loaded, the compressor may
run continuously, causing frost or ice
on the evaporator. If this happens, set
the Temperature Regulator toward
warmer settings to allow automatic
defrosting and so a saving in
electricity consumption.
5.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or
evaporating liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
5.4 Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one
or two days at the most.
• Cooked foods, cold dishes, etc..:
these should be covered and may be
placed on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or
polythene bags to exclude as much
air as possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or
(if equipped) on the bottle rack.
ENGLISH 11

• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
6.2 Periodic cleaning
CAUTION!
Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet,
lift it by the front edge to
avoid scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
6.3 Defrosting of the
refrigerator
Defrosting of the fridge compartment is
automatic. The water that forms flows
into a recipient on the compressor and
evaporates. The recipient cannot be
removed.
6.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
6.5 Replacing the carbon filter
The air filter is a consumable
accessory and as such is not
covered by the guarantee.
www.aeg.com12

To get best performance the carbon air
filter should be changed once every year. New active air filters can be purchased from your local dealer.
Refer to “Installation of the carbon air
filter” for the instructions.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Solution
The appliance does not op-
erate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to the
mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
Audible or visual alarm is on. The cabinet has been re-
cently switched on or the
temperature is still too
high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The temperature in the ap-
pliance is too high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The door is left open. Close the door.
The temperature in the ap-
pliance is too high.
Contact a qualified electrician
or contact the nearest Author-
ized Service Centre.
A rectangular symbol is
shown instead of numbers
on the Temperature Display.
Temperature sensor prob-
lem.
Contact the nearest Author-
ized Service Centre (the cool-
ing system will continue to
keep food products cold, but
temperature adjustment will
not be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author-
ized Service Centre.
ENGLISH 13

Problem Possible cause Solution
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart on
the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before stor-
ing.
The door is not closed cor-
rectly.
Refer to "Closing the door".
The COOLMATIC function
is switched on.
Refer to "COOLMATIC func-
tion".
The compressor does not
start immediately after
pressing the COOLMATIC,
or after changing the tem-
perature.
This is normal, no error has
occurred.
The compressor starts after a
period of time.
Water flows inside the refrig-
erator.
The water outlet is clog-
ged.
Clean the water outlet.
Food products prevent
that water flows into the
water collector.
Make sure that food products
do not touch the rear plate.
Water flows on the floor. The melting water outlet is
not connected to the
evaporative tray above the
compressor.
Attach the melting water out-
let to the evaporative tray.
Temperature cannot be set. The FROSTMATIC or
COOLMATIC function is
switched on.
Switch off FROSTMATIC or
COOLMATIC manually, or wait
until the function resets auto-
matically to set the tempera-
ture. Refer to "FROSTMATIC
or COOLMATIC function".
DEMO appears on the dis-
play.
The appliance is in demon-
stration mode.
Keep the OK pressed for ap-
proximately 10 seconds until a
long sound is heard and dis-
play shuts off for a short time.
The temperature in the ap-
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
The door is not closed cor-
rectly.
Refer to "Closing the door".
www.aeg.com14

Problem Possible cause Solution
The food products' tem-
perature is too high.
Let the food products temper-
ature decrease to room tem-
perature before storage.
Many food products are
stored at the same time.
Store less food products at the
same time.
The door has been
opened often.
Open the door only if necessa-
ry.
The COOLMATIC function
is switched on.
Refer to "COOLMATIC func-
tion".
There is no cold air circula-
tion in the appliance.
Make sure that there is cold air
circulation in the appliance.
If the advice does not lead
to the desired result, call the
nearest brand-mark service.
7.2 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the After Sales
Service.
7.3 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your After Sales
Service.
8. INSTALLATION
8.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature
range. If you have any
doubts regarding where to
install the appliance, please
turn to the vendor, to our
customer service or to the
nearest Service Centre
8.2 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
ENGLISH 15

• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
8.3 Installation of the carbon
air filter
On delivery the carbon filter is in a plastic
bag to maintain its duration and
characteristics. The filter should be
placed behind the flap before the
appliance is turned on.
During operation, always
keep the air ventilation flap
closed. Handle carefully the
filter so fragments do not
loosen from the surface.
The carbon air filter is an active carbon
filter which absorbs bad odors and
permits to maintain the best flavour and
aroma for all foodstuffs without risk of
odor cross contamination.
1. Open the flap cover (1).
2. Remove the filter from the plastic
bag.
3. Insert the filter in the slot found in
the back of the flap cover (2).
4. Close the flap cover.
1
2
8.4 Ventilation requirements
The airflow behind the appliance must
be sufficient.
5 cm min.
200 cm2
min.
200 cm2
CAUTION!
Refer to the assembly
instructions for the
installation.
9. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
www.aeg.com16

BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK! CLICK!
SSSRRR! SSSRRR!
BRRR! BRRR!
HISSS! HISSS!
BLUBB! BLUBB! CRACK!CRACK!
ENGLISH 17

10. TECHNICAL INFORMATION
10.1 Technical data
Height mm 1855
Width mm 545
Depth mm 575
Voltage Volts 230 - 240
Frequency Hz 50
The technical information are situated in
the rating plate, on the external or internal side of the appliance and in the energy label.
11. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
www.aeg.com18

INHALTSVERZEICHNIS
1. SICHERHEITSINFORMATIONEN.......................................................................... 20
2. SICHERHEITSANWEISUNGEN.............................................................................. 21
3. BETRIEB................................................................................................................... 23
4. TÄGLICHER GEBRAUCH........................................................................................25
5. TIPPS UND HINWEISE............................................................................................29
6. REINIGUNG UND PFLEGE.....................................................................................30
7. FEHLERSUCHE........................................................................................................31
8. MONTAGE...............................................................................................................34
9. GERÄUSCHE............................................................................................................35
10. TECHNISCHE DATEN.......................................................................................... 36
FÜR PERFEKTE ERGEBNISSE
Danke, dass Sie sich für dieses AEG-Produkt entschieden haben. Wir haben es
geschaffen, damit Sie viele Jahre von seiner ausgezeichneten Leistung und den
innovativen Technologien, die Ihnen das Leben erleichtern, profitieren können.
Es ist mit Funktionen ausgestattet, die in gewöhnlichen Geräten nicht vorhanden
sind. Nehmen Sie sich ein paar Minuten Zeit zum Lesen, um seine Vorzüge
kennen zu lernen.
Besuchen Sie uns auf unserer Website, um:
Anwendungshinweise, Prospekte, Fehlerbehebungs- und Service-
Informationen zu erhalten:
www.aeg.com
Ihr Produkt für einen besseren Service zu registrieren:
www.registeraeg.com
Zubehör, Verbrauchsmaterial und Original-Ersatzteile für Ihr Gerät zu kaufen:
www.aeg.com/shop
REPARATUR- UND KUNDENDIENST
Bitte verwenden Sie ausschließlich Original-Ersatzteile für Ihre Produkte.
Halten Sie folgende Angaben bereit, wenn Sie sich an den Kundendienst wenden
Modell, Produktnummer (PNC), Seriennummer.
Die Informationen finden Sie auf dem Typenschild.
Warn-/ Sicherheitshinweise
Allgemeine Informationen und Empfehlungen
Umweltinformationen
Änderungen vorbehalten.
DEUTSCH 19

1. SICHERHEITSINFORMATIONEN
Lesen Sie vor der Montage und dem Gebrauch des
Geräts zuerst die Gebrauchsanleitung. Der Hersteller
übernimmt keine Verantwortung für Verletzungen und
Beschädigungen durch unsachgemäße Montage.
Bewahren Sie die Gebrauchsanleitung griffbereit auf.
1.1 Sicherheit von Kindern und schutzbedürftigen
Personen
•Das Gerät kann von Kindern ab 8 Jahren und
Personen mit eingeschränkten physischen,
sensorischen oder geistigen Fähigkeiten oder mit
mangelnder Erfahrung und/oder mangelndem Wissen
nur dann verwendet werden, wenn sie durch eine für
ihre Sicherheit zuständige Person beaufsichtigt
werden oder in die sichere Verwendung des Geräts
eingewiesen wurden und die mit dem Gerät
verbundenen Gefahren verstanden haben.
•Kinder dürfen nicht mit dem Gerät spielen.
•Wartung oder Reinigung des Geräts dürfen nicht von
Kindern ohne Aufsicht erfolgen.
•Alle Verpackungsmaterialien von Kindern fernhalten.
1.2 Allgemeine Sicherheit
•Dieses Gerät ist für die Verwendung im Haushalt und
ähnliche Zwecke vorgesehen, wie z. B.:
–Bauernhöfe, Personalküchenbereiche in
Geschäften, Büros und anderen Arbeitsumfeldern
–Für Gäste in Hotels, Motels, Pensionen und
anderen wohnungsähnlichen Räumlichkeiten
•Achten Sie darauf, dass die Belüftungsöffnungen im
Gehäuse um das Gerät und in der Einbaunische nicht
blockiert sind.
•Versuchen Sie nicht, den Abtauvorgang durch andere
als vom Hersteller empfohlene mechanische oder
sonstige Hilfsmittel zu beschleunigen.
•Beschädigen Sie nicht den Kältekreislauf.
www.aeg.com
20
