AEG L6FBK941B User manual

L6FBK941B

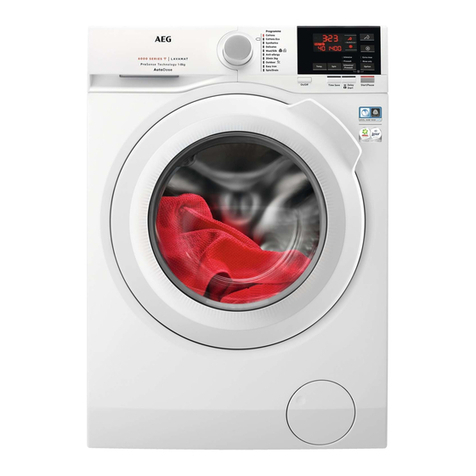

EN User Manual | Washing Machine

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not find on ordinary appliances. Please spend a few minutes reading
to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 3
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. PRODUCT DESCRIPTION............................................................................. 6
4. TECHNICAL DATA......................................................................................... 7
5. INSTALLATION...............................................................................................8
6. ACCESSORIES............................................................................................ 12
7. CONTROL PANEL........................................................................................ 12
8. DIAL AND BUTTONS....................................................................................13
9. PROGRAMMES............................................................................................ 15
10. SETTINGS.................................................................................................. 19
11. BEFORE FIRST USE..................................................................................20
12. DAILY USE..................................................................................................20
13. HINTS AND TIPS........................................................................................ 24
14. CARE AND CLEANING.............................................................................. 26
15. TROUBLESHOOTING................................................................................ 31
16. CONSUMPTION VALUES.......................................................................... 34
17. QUICK GUIDE............................................................................................ 36
18. ENVIRONMENTAL CONCERNS................................................................37
2 ENGLISH

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or usage.
Always keep the instructions in a safe and accessible location
for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
ENGLISH 3

1.2 General Safety
• This appliance is for washing domestic-type, machine-
washable laundry only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 9 kg. Do not exceed the
maximum load of each programme (refer to the
“Programmes” chapter).
• The operating water pressure at the water entry point from
the outlet connection must be between 0.5 bar (0.05 MPa)
and 10 bar (1.0 MPa).
• The ventilation opening in the base must not be covered by
a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using
the new supplied hose sets, or other new hose sets
supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to
clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
4 ENGLISH

2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply with
relevant national regulations.
• Remove all the packaging and the transit
bolts including rubber bush with plastic
spacer.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in the future they
must be reattached to lock the drum to
prevent an internal damage.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Follow the installation instructions supplied
with the appliance.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature can be less than 0°C or
where it is exposed to the weather.
• The floor area on which the appliance is to
be installed must be flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its permanent
position, check if it is levelled correctly
with the aid of a spirit level. If it is not,
adjust the feet accordingly.
• Do not install the appliance directly above
a floor drain.
• Do not spray water on the appliance and
do not expose it to excessive humidity.
• Do not install the appliance where the
appliance door cannot be fully opened.
• Do not put a closed container to collect
possible water leakage under the
appliance. Contact the Authorised Service
Centre to ensure which accessories can
be used.
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• WARNING: This appliance is designed to
be installed / connected to a grounding
connection in the building.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not touch the mains cable or the mains
plug with wet hands.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• This appliance is fitted with a 13 A mains
plug. If it is necessary to change the mains
plug fuse, use only a 13 A ASTA (BS
1362) fuse (UK and Ireland only).
2.3 Water connection
• The inlet water shall not exceed 25 °C.
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not
used for a long time, where repair work
has been carried out or new devices fitted
(water meters, etc.), let the water flow until
it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• Do not use an extension hose if the inlet
hose is too short. Contact the Authorised
Service Centre for the replacement of the
inlet hose.
• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing of the
appliance with the use of water in the
factory.
ENGLISH 5

• You can extend the drain hose to
maximum 400 cm. Contact the Authorised
Service Centre for the other drain hose
and the extension.
• Make sure that there is access to the tap
after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock, fire, burns
or damage to the appliance.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber parts of
the washing machine. Prewash such
fabrics by hand before loading them into
the washing machine.
• Do not touch the glass door while a
programme operates. The glass can get
hot.
• Make sure that all metal objects are
removed from the laundry.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be available
for 10 years after the model has been
discontinued: motor and motor brushes,
transmission between motor and drum,
pumps, shock absorbers and springs,
washing drum, drum spider and related
ball bearings, heaters and heating
elements, including heat pumps, piping
and related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware including
reset software, door, door hinge and
seals, other seals, door locking assembly,
plastic peripherals such as detergent
dispensers. Please note that some of
these spare parts are only available to
professional repairers, and that not all
spare parts are relevant for all models.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
drum.
• Dispose of the appliance in accordance
with local requirements for the disposal of
Waste Electrical and Electronic Equipment
(WEEE).
3. PRODUCT DESCRIPTION
3.1 Special features
Your new washing machine meets all modern
requirements for an effective treatment of
laundry with low water, energy and detergent
consumption and respectful of fabric care.
• The ProSense System adjusts
automatically the programme duration to
the laundry in the drum to achieve perfect
washing results in the minimum possible
time. Read the paragraph "The ProSense
System load detection " for more details.
6 ENGLISH

3.2 Appliance overview
1 2 3 9
5
6
7
4
10
8
11 12
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
8Drain hose
9Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support
00000000
00A
Mod. xxxxxxxxx
000V ~ 00Hz 0000 W
910000000 00
A
B
C
Prod.No.
D
The rating plate reports the model name (A), product
number (B), electrical ratings (C) and serial number
(D).
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59,7 cm /84,7 cm /66,0 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
230-240 V
2200 W
13 A
50 Hz
Level of protection against ingress of solid particles and moisture ensured
by the protective cover, except where the low voltage equipment has no
protection against moisture
IPX4
ENGLISH 7

Water supply pressure
1)
Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Water supply 2) Cold water
Maximum Load Cotton 9 kg
Spin Speed Maximum spin speed 1351 rpm
1) The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot connect
the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your domestic cold water
storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the
bottom of the water storage tank.
2) Connect the water inlet hose to a water tap with a 3/4'' thread.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Unpacking
1. Open the door and remove the
polystyrene piece from the door seal and
all the items from the drum.
Accessories delivered with the
appliance may vary depending on the
model.
2. Put the packaging element on the floor
behind the appliance and carefully put it
down onto its rear side. Remove the
polystyrene protection from the bottom.
1
2
CAUTION!
Do not lay washing machine on its front.
3. Put the appliance back into an upright
position. Remove the power supply cable
and the drain hose from the hose holders.
WARNING!
It is possible to see water flowing from
the drain hose. This is because the
washing machine has been tested at the
factory.
4. Remove the three bolts and pull out the
plastic spacers.
8 ENGLISH

5. Put the plastic caps, that you find in the
user manual bag, in the holes.
We recommend that you keep the
packaging and the transit bolts for any
transport of the appliance.
5.2 Installation on suspended
flooring
Suspended wooden floors are particularly
susceptible to vibration.
To limit vibration we recommend placing a
waterproof wooden panel, at least 15 mm
thick, under the appliance. It should be
screwed to at least 2 floor beams and should
extend beyond the front feet.
If possible, install the appliance where the
floor is more stable.
5.3 Positioning and levelling
1. Install the appliance on a flat hard floor.
Make sure that carpets do not stop the
air circulation below the appliance.
Make sure that the appliance does not
touch the wall or other units.
2. Loosen or tighten the feet to adjust the
level.
WARNING!
Do not put cardboard, wood or equivalent
materials below the appliance feet to
adjust the level.
x4
The appliance must be level and stable.
A correct adjustment of the appliance
level prevents the vibration, noise and
the movement of the appliance when in
operation.
When the machine is installed on a plinth
or if a washer dryer is stacked on the
washing machine, use the accessories
described in chapter 'Accessories'. Read
carefully the instructions supplied with
the appliance and with the accessory.
5.4 The inlet hose
1. Connect the water inlet hose to the back
of the appliance.
ENGLISH 9

2. Position it toward left or right depending
on the position of the water tap.
20º20º
45º45º
Make sure that the inlet hose is not in
vertical position.
3. If necessary, loose the ring nut to set it in
the correct position.
4. Connect the water inlet hose to the cold
water tap with 3/4" thread.
WARNING!
The inlet water shall not exceed 25 °C.
CAUTION!
Make sure that there are no leaks from
the couplings.
Do not use an extension hose if the inlet
hose is too short. Contact the service
centre for the replacement of the inlet
hose.
5.5 Water drainage
The drain hose should be positioned at a
height of not less than 60 cm and not more
than 100 cm from the floor.
You can extend the drain hose to
maximum 400 cm. Contact the
authorized service centre for the other
drain hose and the extension.
It is possible to connect the drain hose in
different ways:
1. The drain hose can be bent into U shape
and put around the plastic guide
Buy accessories from authorised supplier
2. On the edge of a sink - Fasten the guide
to the water tap or to the wall.
Make sure that the plastic guide cannot
move when the appliance drains.
Make sure that the drain hose end is not
immersed in the water. There may be a
return of dirty water into the appliance.
10 ENGLISH

3. To a stand pipe with vent-hole - Insert
the drain hose directly into a drain pipe.
Refer to the illustration.
The end of the drain hose must always
be ventilated , i.e. the inner diameter of
the drain pipe (min. 38 mm - min. 1.5")
must be larger than the external diameter
of the drain hose.
4. If the end of the drain hose looks like this
(see the picture), you can push it directly
into the stand pipe.
5. Without the plastic hose guide, to a
sink spigot - Put the drain hose in the
spigot and tighten it with a clamp. Refer
to the illustration.
Make sure that the drain hose makes a
loop to prevent particles going into the
appliance from the sink.
6. Position the hose directly to a built-in
drain pipe in the room wall and tighten
it with a clamp.
5.6 Electrical connection
At the end of installation you can connect the
mains plug to the mains socket.
The rating plate on the inner edge of the
appliance door and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are compatible
with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any other
appliances in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install this
appliance, contact our Authorised Service
Centre.
The manufacturer does not accept any
responsibility for damage or injury through
failure to comply with the above safety
precaution.
ENGLISH 11

6. ACCESSORIES
6.1 Available in www.aeg.com/shop
or from authorised dealer
Read carefully the instructions supplied with
the accessory.
Only appropriate accessories approved
by AEG ensure the safety standards of
the appliance. If unapproved parts are
used, any claims will be invalidated.
6.2 Fixing plate kit
If you install the appliance on a plinth that is
not an accessory supplied by AEG, secure
the appliance in the fixing plates.
Read carefully the instructions supplied with
the accessory.
6.3 Stacking kit
The tumble dryer can be stacked on the top
of the washing machine only by using the
correct stacking kit.
WARNING!
Do not put the tumble dryer under the
washing machine. Verify the compatible
stacking kit by checking the depth of your
appliances.
7. CONTROL PANEL
7.1 Control panel description
7
8
9
1 2 3
5
4
6
1On/Off touch button
2Programme dial
3Display
4Delay Start touch button
12 ENGLISH

5Time Save touch button
6Start/Pause touch button
7Options touch button
• Stains option
• Prewash option
8Spin reduction touch button
9Temp. touch button
7.2 Display
A
BED
C
A The digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. or ).
• Cycle end ( ).
• Warning code ( ).
B Extra rinse indicator. It lights on when this option is selected .
CThe indicator blink during the laundry load detections.
D Child safety lock indicator.
E Door locked indicator.
8. DIAL AND BUTTONS
8.1 Programme dial
For selecting the desired washing
programme. Refer to 'Programmes' chapter
for more details.
The position is a "Reset" function, which
stops and resets the running programme.
When the selector is in this position, display
shows . It indicates that no programme
was selected.
8.2 On/Off
Pressing this button for a few seconds allows
to activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.
As the Stand-by function automatically
deactivates the appliance to decrease the
energy consumption in a few cases, you may
need to activate the appliance again.
ENGLISH 13

For more details, refer to Stand-by paragraph
in Daily Use chapter.
8.3 Introduction
The options/functions are not selectable
with all washing programmes. Check the
compatibility between options/functions
and washing programmes in the
"Programme Chart". An option/function
can exclude another one, in this case the
appliance doesn't allow you to set the
incompatible options/functions together.
Make sure the screen and touch buttons
are always clean and dry.
8.4 Temp.
When you select a washing programme, the
appliance automatically proposes a default
temperature.
Set this option to change the default
temperature.
The indicator = cold water of the set
temperature comes on (the appliance does
not heat the water).
8.5 Spin
When you set a programme, the appliance
automatically sets the maximum spin speed
allowed.
Touch repeatedly this button to:
Decrease the spin speed
Activate the Rinse Hold option
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The door stays locked and the drum turns
regularly to reduce creasing.
• You must drain the water to unlock the
door.
• If you touch the Start/Pause button, the
appliance performs the spinning phase
and drains the water.
The appliance empties the water out
automatically after 18 hours
approximately.
Activate the No Spin option
• Set this option to deactivate all spin
phases. Only the drain phase is available.
• The related indicator comes on.
• Set this option for very delicate fabrics.
• The rinses phase uses more water for
some washing programmes.
The spin speed can be reduce.
8.6 Options
Press this button repeatedly to activate one of
the available options.
•Stains
Select this option to add an anti-stain
phase to a programme in order to treat
heavily soiled or stained laundry with stain
remover.
Pour the stain remover into
compartment . The stain remover will be
added in the appropriate phase of the
washing programme.
This option can increase the
programme duration. This option is
not available with a temperature lower
than 40 °C.
•Prewash
Use this option to add a prewash phase at
30 °C before the washing phase.
This option is recommended for heavily
soiled laundry, especially if containing
sand, dust, mud and other solid particles.
This option can increase the
programme duration.
The relevant indicator comes on.
8.7 Delay Start
With this option you can delay the start of a
programme in a more convenient time.
14 ENGLISH

Touch repeatedly the button to set the
required delay. The time increases by steps
of 30 minutes up to 90' and from 2 hours up
to 20 h.
The indicator of the option and the indicator
of the set value are on. After touching
theStart/Pause button the appliance begins
the countdown.
8.8 Time Save
This option may be advisable to shorten the
washing programme.
Use this option for items with normal or light
soil or items to refresh.
Touch this button once to decrease the
duration.
In case of smaller load, touch this button
twice to set an extra quick programme.
The indicator of the option and the indicator
of the set value are on.
8.9 Start/Pause
Touch the Start/Pause button to start, pause
the appliance or interrupt a running
programme.
9. PROGRAMMES
9.1 Programme Chart
Washing programmes
Programme Programme description
Washing programmes
Eco 40-60 White cotton and fast-coloured cotton. Normally soiled items. The energy
consumption decreases and the time of the washing programme is extended,
ensuring good washing results.
Cottons White and coloured cotton heavily and normally soiled cotton items.
Synthetics Synthetic items or mixed fabric items. Normally soiled items.
Easy Iron Synthetic items requiring a gentle wash. Normally and lightly soiled items.1)
Delicates Delicate fabrics such as acrylics, viscose and mixed fabrics requiring
gentler washing. Normally and lightly soiled items.
Wool/Silk Machine washable wool, hand washable wool and other fabrics with
«hand washing» care symbol2).
Duvet Single synthetic blanket, padded clothes, duvets, down jackets and similar
items.
Spin/Drain All fabrics, except woollens and delicate fabrics. To spin the laundry and to
drain the water in the drum.
Rinse All fabrics, except woollens and very delicate fabrics. Programme for rins‐
ing and spinning the laundry. The default spin speed is the one used for cotton
programmes. Reduce the spin speed accordingly to the type of laundry. If nec‐
essary, set the Extra Rinse option to add rinses. With a low spin speed the ap‐
pliance performs delicate rinses and a short spin.
ENGLISH 15

Programme Programme description
Anti-Allergy White cotton items. This high-performance wash program combined with
steam vapour, removes more than 99,99% of bacteria and viruses3) keeping
the temperature above 60°C throughout the washing phase; with an additional
action on the fibers thanks to a vapour phase, an enhanced rinsing phase en‐
sures a proper removal of detergent and micro-organism residues. This pro‐
gram ensures also a proper reduction of pollens/allergenic items.
Jeans Denim clothing and jersey items. Normal soil. This programme performs a
gentle rinsing phase, designed for denim, that reduces fading and does not
cause washing powder residues on the fibres.
Sport Mixed fabric sportswear like polyester, polyester, elastane blends, polya‐
mide. A cycle for outdoor sport clothes normal soiled
Cotton 20° Mixed fabric (cotton and synthetic items)4).
20min 3kg Cotton and synthetic items lightly soiled or once worn.
1) To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin phase. The
appliance adds some rinses.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or
doesn't rotate properly, but this is normal for this programme.
3) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and
MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No.
202120117).
4) This programme is for daily use and has the lowest energy and water consumption whilst maintaining a good
washing performance.
Programme temperature, maximum spin speed and maximum load
Programme Default tempera‐
ture
Temperature
range
Reference spin speed
Spin speed range
Maximum load
Washing programmes
Eco 40-60 40 °C 1) 1400 rpm
1400 rpm - 400 rpm 9 kg
Cottons 40 °C
95 °C - Cold ( )
1400 rpm
1400 rpm - 800 rpm 9 kg
Synthetics 40 °C
60 °C - Cold ( )
1200 rpm
1200 rpm - 800 rpm 4 kg
Easy Iron 40 °C
60 °C - Cold ( )
800 rpm
800 rpm - 800 rpm 3,5 kg
Delicates 30 °C
40 °C - Cold ( )
1200 rpm
1200 rpm - 800 rpm 2 kg
Wool/Silk 40 °C
40 °C - Cold ( )
1200 rpm
1200 rpm - 800 rpm 1,5 kg
16 ENGLISH

Programme Default tempera‐
ture
Temperature
range
Reference spin speed
Spin speed range
Maximum load
Duvet 40 °C
60 °C - Cold ( )
800 rpm
800-800 rpm 3 kg
Spin/Drain 2) -1400 rpm
1400 rpm - 800 rpm 9 kg
Rinse -1400 rpm
1400 rpm - 800 rpm 9 kg
Anti-Allergy 60 °C 1400 rpm
1400 rpm - 800 rpm 9 kg
Jeans
40 °C
60 °C - Cold ( )
1200 rpm
1200 rpm - 800 rpm 9 kg
Sport
30 °C
40 °C - Cold ( )
1200 rpm
1200 rpm - 800 rpm 4 kg
Cotton 20° Cold ( ) 1400 rpm
1400 rpm - 800 rpm 9 kg
20min 3kg 30 °C
40 °C - 30 °C
1200 rpm
1200 rpm - 800 rpm 3 kg
1) According to UK Ecodesign for Energy-Related Products and Energy Information Regulations and to the EU
Ecodesign Regulation 2019/2023 and the EU Energy Label Regulation 2019/2014, this programme at 40 °C is able
to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
For the reached temperature in the laundry, the programme duration and other data, please refer to 'Con‐
sumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally those that perform at lower tem‐
peratures and longer duration.
2) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set the No Spin option
then only the drain phase is available.
Programme options compatibility
Programme
Spin
No Spin
Rinse Hold
Stains 1)
Prewash
Time Save 2)
Delay Start
Eco 40-60 ■ ■ ■ ■ ■ ■ ■ ■
Cottons ■ ■ ■ ■ ■ ■ ■ ■
ENGLISH 17

Programme
Spin
No Spin
Rinse Hold
Stains 1)
Prewash
Time Save 2)
Delay Start
Synthetics ■ ■ ■ ■ ■ ■ ■ ■
Easy Iron ■ ■ ■ ■ ■ ■ ■
Delicates ■ ■ ■ ■ ■ ■
Wool/Silk ■ ■ ■ ■
Duvet ■
Spin/Drain ■ ■ ■
Rinse ■ ■ ■
Anti-Allergy ■ ■ ■ ■ ■ ■ ■
Jeans ■ ■ ■ ■ ■ ■ ■ ■
Sport ■ ■ ■ ■ ■ ■
Cotton 20° ■ ■ ■ ■ ■ ■ ■
20min 3kg ■ ■ ■
1) This option is not available with temperature lower than 40 °C.
2) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the
appliance, however the washing results can be less satisfactory.
Suitable detergents for washing programmes
Programme Universal
powder1)
Liquid Univer‐
sal
Liquid for
coloureds
Delicates
woollens
Special
Eco 40-60 ▲ ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Easy Iron ▲ ▲ ▲ -- --
Delicates -- -- -- ▲ ▲
Wool/Silk -- -- -- ▲ ▲
Duvet -- -- -- ▲ ▲
Anti-Allergy ▲ ▲ -- -- ▲
Jeans -- -- ▲ ▲ ▲
18 ENGLISH

Programme Universal
powder1)
Liquid Univer‐
sal
Liquid for
coloureds
Delicates
woollens
Special
Sport -- ▲ ▲ -- ▲
Cotton 20° ▲ ▲ ▲ -- --
20min 3kg -- ▲ ▲ -- --
1) At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended -- = Not recommended
9.2 Woolmark Wool Care - Blue
The wool wash cycle of this machine has been approved
by The Woolmark Company for the washing of wool gar‐
ments labelled as «hand wash» provided that the prod‐
ucts are washed according to the instructions on the gar‐
ment label and those issued by the manufacturer of this
washing machine. M1512
The Woolmark symbol is a Certification mark in many
countries.
10. SETTINGS
10.1 Child Lock
With this option you can prevent children from
playing with the control panel.
• To activate/deactivate this option, touch
the Spin and the Options buttons
simultaneously until the indicator
comes on/goes off on the display.
You can activate this option:
• After you touch the Start/Pause button: all
the buttons and the programme dial are
deactivated (except On/Off button ).
• Before you touch the Start/Pause button:
the appliance cannot start.
The appliance keeps the selection of this
option after you switch it off.
10.2 Acoustic signals
The acoustic signals operate when the
programme is completed (sequence of
sounds for about 2 minutes).
To deactivate/activate the acoustic signals,
touch the Delay Start and the Time Save
buttons simultaneously for about 6 seconds.
If you deactivate the acoustic signals,
they continue operate when the
appliance has a malfunction.
10.3 Permanent Extra Rinse
With this option you can permanently have an
extra rinse when you set a new programme.
• To activate/deactivate this option touch
the Temp. button and the Spin button
simultaneously until relevant indicator
comes on/goes off on display.
ENGLISH 19

11. BEFORE FIRST USE
1. Make sure that all transit bolts have been
removed from the appliance.
2. Make sure that the electrical power is
available and the water tap is open.
3. Pour a small quantity of detergent into the
compartment marked .
4. Set and start a programme for cotton at
the highest temperature without any
laundry in the drum.
This removes all possible dirt from the drum
and the tub.
12. DAILY USE
WARNING!
Refer to Safety chapters.
12.1 Activating the appliance
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Press the On/Off button for a few
seconds to activate the appliance.
A short tune sounds.
12.2 Loading the laundry
1. Open the appliance door.
2. Shake the items before you put them in
the appliance.
3. Put the laundry in the drum, one item at a
time.
Make sure not to put too much laundry in the
drum.
4. Close the door firmly.
CAUTION!
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
CAUTION!
Washing heavily oiled, greasy stains
could cause damage rubber parts of the
appliance.
12.3 Filling the detergent and
additives
Compartment for prewash phase, soak
programme or stain remover.
Compartment for washing phase.
Compartment for liquid additives (fabric
conditioner, starch).
Maximum level for quantity of liquid
additives.
Flap for powder or liquid detergent.
20 ENGLISH
