AEG L7FNE48SI User manual

USER
MANUAL
EN User Manual
Washing Machine
L7FNE48SI

CONTENTS
1. SAFETY INFORMATION......................................................................................3
2. SAFETY INSTRUCTIONS.................................................................................... 5
3. PRODUCT DESCRIPTION...................................................................................7
4. TECHNICAL DATA............................................................................................... 7
5. INSTALLATION.....................................................................................................8
6. CONTROL PANEL..............................................................................................18
7. DIAL AND BUTTONS......................................................................................... 20
8. PROGRAMMES..................................................................................................23
9. SETTINGS.......................................................................................................... 28
10. BEFORE FIRST USE........................................................................................29
11. DAILY USE....................................................................................................... 29
12. HINTS AND TIPS..............................................................................................33
13. CARE AND CLEANING.................................................................................... 35
14. TROUBLESHOOTING......................................................................................41
15. CONSUMPTION VALUES................................................................................45
16. ENVIRONMENTAL CONCERNS......................................................................47
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com2

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3

1.2 General Safety
•This appliance is for washing domestic-type, machine-
washable laundry only.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•Do not change the specification of this appliance.
•The appliance maximum load is 8.0 kg. Do not exceed
the maximum load of each programme (refer to the
“Programmes” chapter).
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 10 bar (1.0 MPa).
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
www.aeg.com4

2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply
with relevant national
regulations.
• Remove all the packaging and the
transit bolts including rubber bush
with plastic spacer.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal
damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Follow the installation instructions
supplied with the appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
• Do not install the appliance directly
above a floor drain.
• Do not spray water on the appliance
and do not expose it to excessive
humidity.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a closed container to
collect possible water leakage under
the appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• WARNING: This appliance is
designed to be installed / connected
to a grounding connection in the
building.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Water connection
• The inlet water shall not exceed 25
°C.
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
Authorised Service Centre for the
replacement of the inlet hose.
ENGLISH 5

• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing
of the appliance with the use of water
in the factory.
• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the
other drain hose and the extension.
• Make sure that there is access to the
tap after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme operates. The glass can
get hot.
• Make sure that all metal objects are
removed from the laundry.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 10 years after the model
has been discontinued: motor and
motor brushes, transmission between
motor and drum, pumps, shock
absorbers and springs, washing drum,
drum spider and related ball bearings,
heaters and heating elements,
including heat pumps, piping and
related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware
including reset software, door, door
hinge and seals, other seals, door
locking assembly, plastic peripherals
such as detergent dispensers. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.aeg.com6

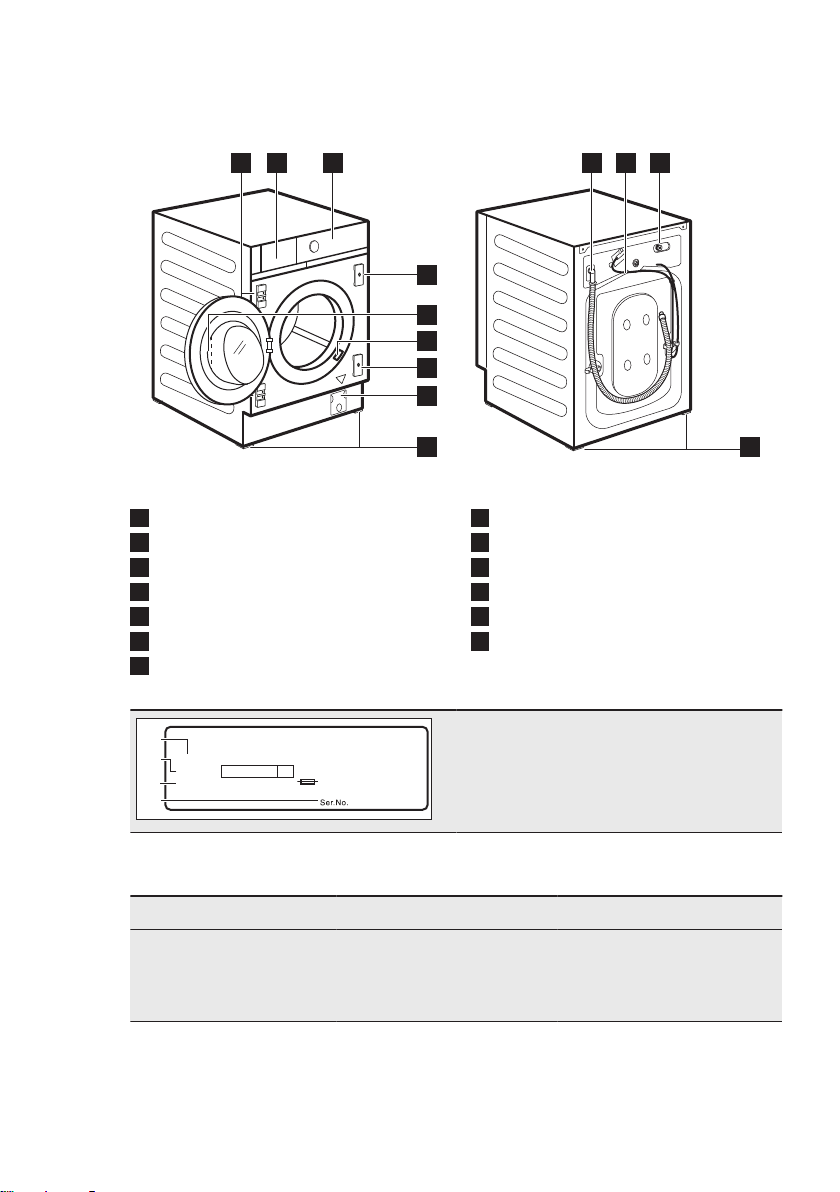

3. PRODUCT DESCRIPTION
3.1 Appliance overview
10 11 12
13
21 3
4
7
8
9
5
6
1Hinge supports
2Detergent dispenser
3Control panel
4Magnetic plate
5Door handle
6Rating plate
7Plate with rubber beater
8Drain pump filter
9Front feet for levelling the appliance
10 Drain hose
11 Mains cable
12 Inlet hose connection
13 Back feet for levelling the appliance
00000000
00A
Mod. xxxxxxxxx
000V ~ 00Hz 0000 W
910000000 00
A
B
C
Prod.No.
D
The rating plate reports the model name
(A), product number (B), electrical ratings
(C) and serial number (D).
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59.6 cm /81.9 cm /55.3 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
230 V
2100 W
10 A
50 Hz
ENGLISH 7

Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where
the low voltage equipment has no protection against mois‐
ture
IPX4
Water supply pressure Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Water supply 1) Cold water
Maximum Load Cotton 8.0 kg
Spin Speed Maximum spin speed 1351 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Be prepared for
installation
It is recommended that
installation is carried out by
two persons.
5.2 The appliance is equipped
with ...
x1 x2
x1
E
x2
x1 x1
x2
x4 x1 x1
BA C D
F G H L
5.3 Unpacking
WARNING!
Use the gloves.
WARNING!
Remove all the packaging and the transit bolts before installing the
appliance.
www.aeg.com8

1. Put two polystyrene packaging
elements on the floor under the
appliance.
WARNING!
It is strongly
recommended that this
action is carries out by two
persons.
2. Carefully put the appliance down on its
rear side.
Make sure not to damage
the hoses.
1
2
3. Remove the polystyrene protection
from the bottom.
1
2
4. Return the appliance in vertical
position and remove the socket
polystyrene protection.
5. Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliance in factory.
ENGLISH 9

6. Remove the three bolts, the hose
holders and plastic spacers by using the
spanner supplied with the appliance.
F
G
7. Close the holes with the plastic caps
you find in the user manual bag. Put the
smallest cap F in upper hole and the two
bigger caps G in lower holes.
We recommend that you keep the packaging and the transit bolts for any
movement of the appliance.
5.4 Positioning and levelling
x4
1. Install the appliance on a flat hard floor.
WARNING!
Make sure that carpets do not
stop the air circulation below
the appliance.
Bring the appliance near the
furniture recess before
levelling it. For more details,
refer to paragraph "Building
in".
2. Loosen or tighten the feet to adjust the
level.
A correct adjustment of the
appliance level prevents the
vibration, noise and the
movement of the appliance
when in operation.
www.aeg.com10

The appliance must be level and stable.
CAUTION!
Do not put cardboard, wood or
equivalent materials below the
appliance feet to adjust the
level.
5.5 Hose and cable
connection
1100 mm 1450 mm
960 mm1230 mm
900 mm 1360 mm
max 1000 mm
min. 600 mm
max 1000 mm
min. 600 mm
The inlet hose
1. Remove the inlet hose from inside the
drum.
2. To connect the water inlet hose towards
the proper direction and with the proper
inclination, check the position of the water tap
before connecting it to the back of the
appliance.
Make sure the hose is nor
kinked, squashed but neither
tensed.
ENGLISH 11

20O 20O
45O 45O
3. Connect the hose to the back of the
appliance. Do not turn the inlet hose
downwards, but turn it left or right depending
on the position of your water tap.
4. Loosen the ring nut to fix it in the correct
position.
5. Connect the water inlet hose to the cold
water tap with 3/4 thread.
WARNING!
The inlet water shall not
exceed 25 °C.
WARNING!
Make sure that there are no
leaks from the couplings.
Use the hose supplied with appliance.
Do not use an extension hose if the inlet hose is too short. Contact the
Authorised Service Centre for an inlet hose replacement.
Water drainage
The drain hose can be connected:
Ø 40 mm
To a stand pipe with vent-hole
Directly into a drain pipe at a height of not
less than 60 cm (23.6”) and not more than
100 cm (39.3”).
The end of the drain hose must always be
ventilated , i.e. the inner diameter of the drain
pipe (min. 40 mm - min. 1.6”) must be larger
than the external diameter of the drain hose.
www.aeg.com12

max.600 mm
To a sink spigot
Put the drain hose in the spigot and tighten it
with the supplied cable tie L.
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
L
To a wall-pipe
Directly to a built-in drain pipe in the room
wall and tighten it with the supplied cable tie
L.
You can extend the drain hose to maximum 400 cm. Contact the service
centre for the other drain hose and the extension.
5.6 Building in
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.
This appliance has been designed to be built
into the kitchen furniture. See the minimum
recess dimensions in the drawings.
553 mm
596 mm
140 mm
76 mm
50 mm
50 mm 819 mm
If hoses run behind the
appliance, make sure that
nothing closes the small
recess indicated with the
measures 50 x 50 mm.
ENGLISH 13

The appliance is also equipped with an
adhesive sponge pad H that you can find
inside the drum.
Attach it on the top of the appliance where
indicated in the drawing.
When levelling the appliance under the
furniture, DO NOT squeeze the sponge pad.
Before proceeding with appliance building in,
bring it near the recess and preposition the
inlet hose, the drain hose and the mains
cable.
WARNING!
Make sure they are not kinked
or squashed.
5.7 Preparation and assembly of the cupboard door
The dimensions of the cupboard door should be:
• width min. 595 - max. 598 mm;
• thickness 16-22 mm.
Factory pre setting
The appliance is originally pre set for the
assembly of a cupboard door opening from
right to left.
The best solution would be to
screw the upper hinge to the
upper hole of the top plate
and the lower hinge to the
lower hole of the bottom plate.
www.aeg.com14

Reversibility of the cupboard door
Carry out the cupboard door reversibility
before the appliance is built in completely.
M
N
O
If the cupboard door has to be opened from
left to right, invert the position of the hinge
supports M with the magnetic plate N and
lower plate O.
M
N
O
Make sure that the plate with
magnet is on the upper
position.
x
y
y

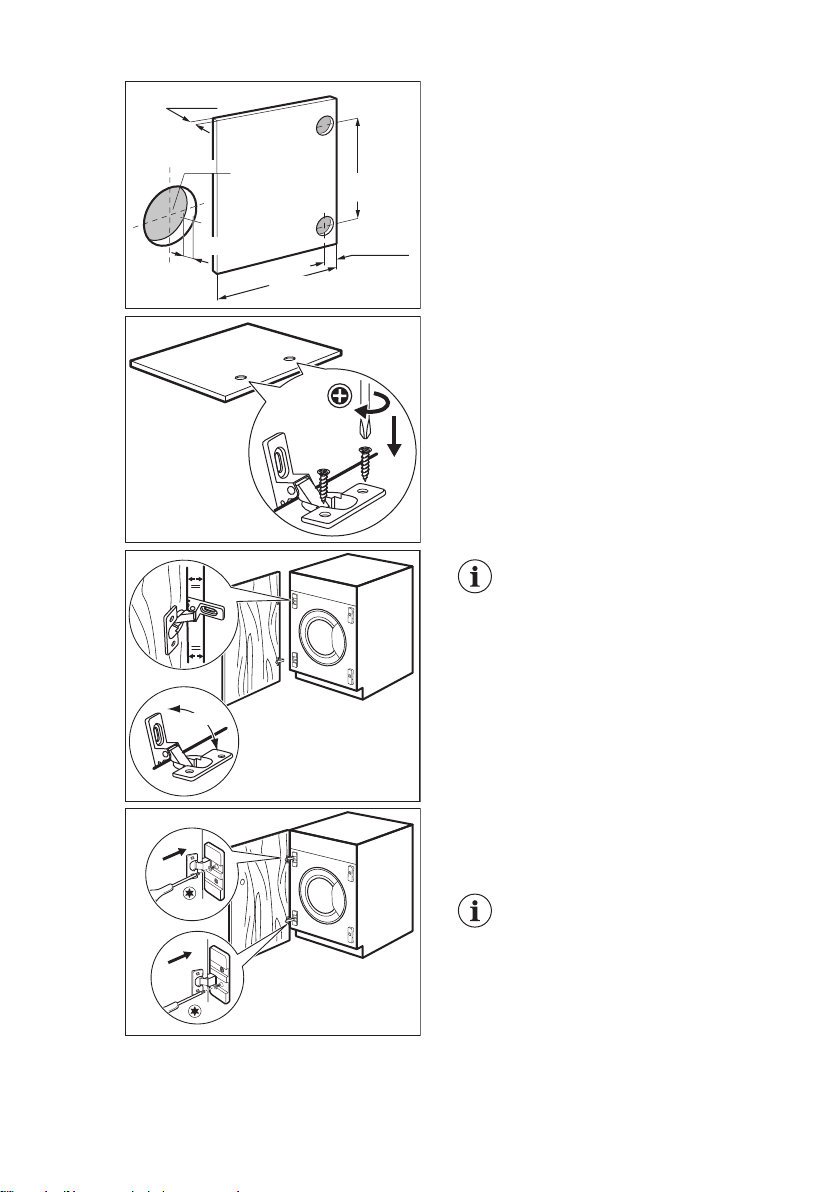

Cupboard door preparation
For countersinking the door, it
is recommended to call a
professional.
Align the cupboard door to the furniture
correctly.
Measure the distance X to fix the height of
the hole to countersink the upper hinge. The
centre of the hole Y should be at the same
height of the stroke on the hinge support.
ENGLISH 15

16-22 mm
22±1,5 mm
449
mm
595-598 mm
Ø 35 mm
12,5 - 14 mm
Set the position of the lower hole respecting
dimensions and distances shown in the
drawing (449 mm).
Countersink the holes.
A
Hinges
To mount the hinges it is necessary to drill
two holes (dia. 35 mm, depth 12.5 - 14 mm
depending on the depth of cupboard door) on
the inner side of the door.
The hinges will be fixed to the door by means
of the four supplied screws A.
max. 105°
To align the door perfectly,
make sure that the edge of
cupboard door is parallel with
the appliance edge and to
respect the proper opening
angle (max. 105 °).
Mounting the door
Fix the hinges to the hinge supports on the
appliance by means of the two supplied
screws B.
The hinges can be adjusted to
compensate for possible
uneven thickness of the door.
www.aeg.com16

2
N
1
ED
C
Counter-magnet
The appliance is pre set for a magnetic
closure.
For a correct closure:
1. Position the screw C and the counter-
magnet D on the magnetic plate N. Lean
the cupboard door against the screw until
it leaves a mark.
2. Open the cupboard door and screw the
counter-magnet D (steel disk + rubber
ring E) with the screw C in the inner side
of the cupboard door, where the screw
left the mark as described in the first
step.
Flexible machine stopper
The supplied plastic stopper
can be only installed when the
appliance installation is
complete, to avoid movement
outward. Fix it on the furniture,
near the front panel taking as
reference height the middle of
the door, on the opposite
side of the hinges.
5.8 Electrical connection
At the end of installation you can connect
the mains plug to the mains socket.
The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install
this appliance, contact our Authorised
Service Centre.
The manufacturer does not accept any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
ENGLISH 17

6. CONTROL PANEL
6.1 Control panel description
On/Off
3s
1
12 9 8
101113
72 3 4 5 6
1Programme dial
2Spin touch button
3Temperature touch button
4Display
5Delay Start touch button
6Time Save touch button
7Start / Pause touch button
8Plus Steam touch button and
permanent Child Lock option
9Soft Plus touch button
10 Extra Rinse touch button
11 Stains touch button
12 On/Off push button
13 Prewash touch button
6.2 Display
www.aeg.com18

The Temperature area:
Temperature indicator .
Cold water indicator.
Child safety lock indicator.
Door locked indicator.
Delay start indicator.
The digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. ).
• Cycle end ( ).
• Warning code (e.g. ).
• Error indicator ( ).
• Indication of total operating hours of the appliance. Refer to the
'Operating hours counter' section in the 'Settings' paragraph for
more details.
Time Save indicator.
Steam phase indicator.
Anti-crease phase indicator.
Drum clean indicator. This is a recommendation to perform the
drum cleaning.
The spin area:
Spin speed indicator
No Spin indicator. Spin phase is off.
Silent indicator.
Rinse Hold indicator.
Add garments indicator. It lights at the beginning of the washing
phase, when it is still possible to pause the appliance and add
more laundry.
Maximum load indicator (refer to "The ProSense System load de‐
tection " paragraph).
It flashes when the laundry load exceeds the maximum de‐
clared load of the selected programme.
ENGLISH 19

7. DIAL AND BUTTONS
7.1 Introduction
The options/functions are
not available with all
washing programmes.
Check the compatibility
between options/functions
and washing programmes in
the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set incompatible options/
functions.
7.2 On/Off
Press this button for a few seconds to
activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.
As the Stand-by function automatically
deactivates the appliance after several
minutes to reduce the energy
consumption, you may need to activate
the appliance again.
For more details, refer to Stand-by
paragraph in Daily Use chapter.
7.3 Programme dial
For selecting the desired washing
programme. Refer to 'Programmes'
chapter for more details.
The position is a "Reset" function,
which stops and resets the running
programme. The display shows empty
dashes to indicate that no programme
was selected.
7.4 Temperature
When you select a washing programme,
the appliance automatically proposes a
default temperature.
Touch this button repeatedly until the
desired temperature value appears on
the display.
When the display shows the indicators
, the appliance does not heat the
water.
7.5 Spin
When you set a programme, the
appliance automatically sets the
programme's default spin speed. With
this option you can decrease the default
spin speed.
Touch repeatedly this button to:
•Decrease the spin speed. The
display shows only the spin speeds
available for the set programme.
• Additional spin options No Spin
.
Set this option to deactivate all spin
phases. The appliance performs the
only draining phase of the selected
washing programme. Set this option
for very delicate fabrics. The rinses
phase uses more water for some
washing programmes
• Activate the Rinse Hold option.
The final spin is not performed. The
water of the last rinse is not drained
out to prevent the fabrics from
creasing. The washing programme
ends with water in the drum.
The indicator remains displayed.
The door stays locked and the drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
If you touch the Start / Pause
button, the appliance performs the
spinning phase and drains the water.
The appliance empties
the water out
automatically after 18
hours approximately.
• Activate the Silent option.
The intermediate and the final
spinning phases are suppressed and
the programme ends with water in the
drum. This helps to reduce creasing.
The indicator remains displayed.
The door stays locked. The drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
As the programme is very quiet, it is
suitable for use at night time when
www.aeg.com20
