1. Warnings
Keep this user’s manual with your washing machine. If you sell your
washing machine or give it away, make sure that it is accompanied by
its user’s manual. The new user can then be informed of how the
washing machine operates and read relevant warnings.
These warnings have been written for your safety and for the sa-
fety of others. Please read these comments carefully before instal-
ling and using your washing machine. Thank you for your
attention.
1.1. Usage
•When you receive your washing machine, unpack it or have it
unpacked immediately. Check its general appearance. Make any
reserves in writing on the delivery form and keep a copy.
•Your washing machine was designed for use by adults. Make sure
that children do not touch it or use it as a toy.
•Do not modify or attempt to modify the characteristics of this
washing machine. This could be dangerous for you.
•Your washing machine is intended for normal domestic use. Do
not use it for commercial or industrial purposes of for any
purpose other than that for which it was designed : to wash, to
rince and to spin.
•Unplug the power suplly plug and close the water supply tap
every time after using your washing machine.
•Only wash articles that can resist machine washing. Refer to the
instructions on the label for each article.
•Do not wash underwear with bones, or any material without
hems, or torn materials in your washing machine.
•Remember to remove all coins, safety pins, boraches, screws, etc.,

User’s instructions
4
before each wash. They can cause serious damage if they are left in
your washing.
•Do not put articles in your washing machine if you have used a
solvent, alcohol, trichloroethylene, etc., to remove stains from
them. If you must use these stain removers, wait until the product
has evaporated before putting the articles in the drum.
•Collect all small articles such as socks, belts, etc., in a small cloth
bag or pillow case.
•Use the quantity of detergent indicated in the «proportioning of
detergents» section.
•Always unplug the washing machine before cleaning it and doing
any maintenance.
1.2. Precautions against frost
If your washing machine is exposed to temperatures below 0°C, take
the following precautions :
•Close the tap and disconnect the water supply pipe.
•Put the end of this pipe and the drain pipe into a bowl on the floor.
•Select the «Drain» programme and make sure it works until it is
complete.
•Switch the washing machine off by putting the program selector
to the «Off»*position or pressing on the «On/Off»* key.
•Unplug the washing machine.
•Screw in the water inlet pipe and install the drain pipe.
Water that remained in the pipes will then be evacuated, thus preven-
*depending on model

User’s instructions
5
ting the formation of frost or ice that can damage your washing
machine.
The next time you want to use your washing machine, make sure that
it is installed in a room in which the temperature is above 0°C.
1.3. Scrapping
All materials marked with the symbol can be recycled. Put them
in a waste tip (ask for information from your municipal offices) so
that they can be recovered and recycled.
When you take your washing machine to the tip, make sure that
everything that could be dangerous is out of service ; cut the power
supply cable flush with the surface of your washing machine.
The symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is dis-
posed of correctly, you will help prevent potential negative conse-
quences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service
or the shop where you purchased the product.
1.4. Protection of the environment
We recommend that the following instructions should be followed to
achieve savings in water and energy and therefore to contribute to
protection of the environment:
• If possible, use the washing machine at full capacity rather than
with partial loads (however, do not overload the drum).
• Only use the Prewash or Soak function for very dirty washing.
• Use a detergent dose adapted to the water hardness (see «propor-
tioning of detergents» section) and to the amount of washing
and how dirty it is.

User’s instructions
6

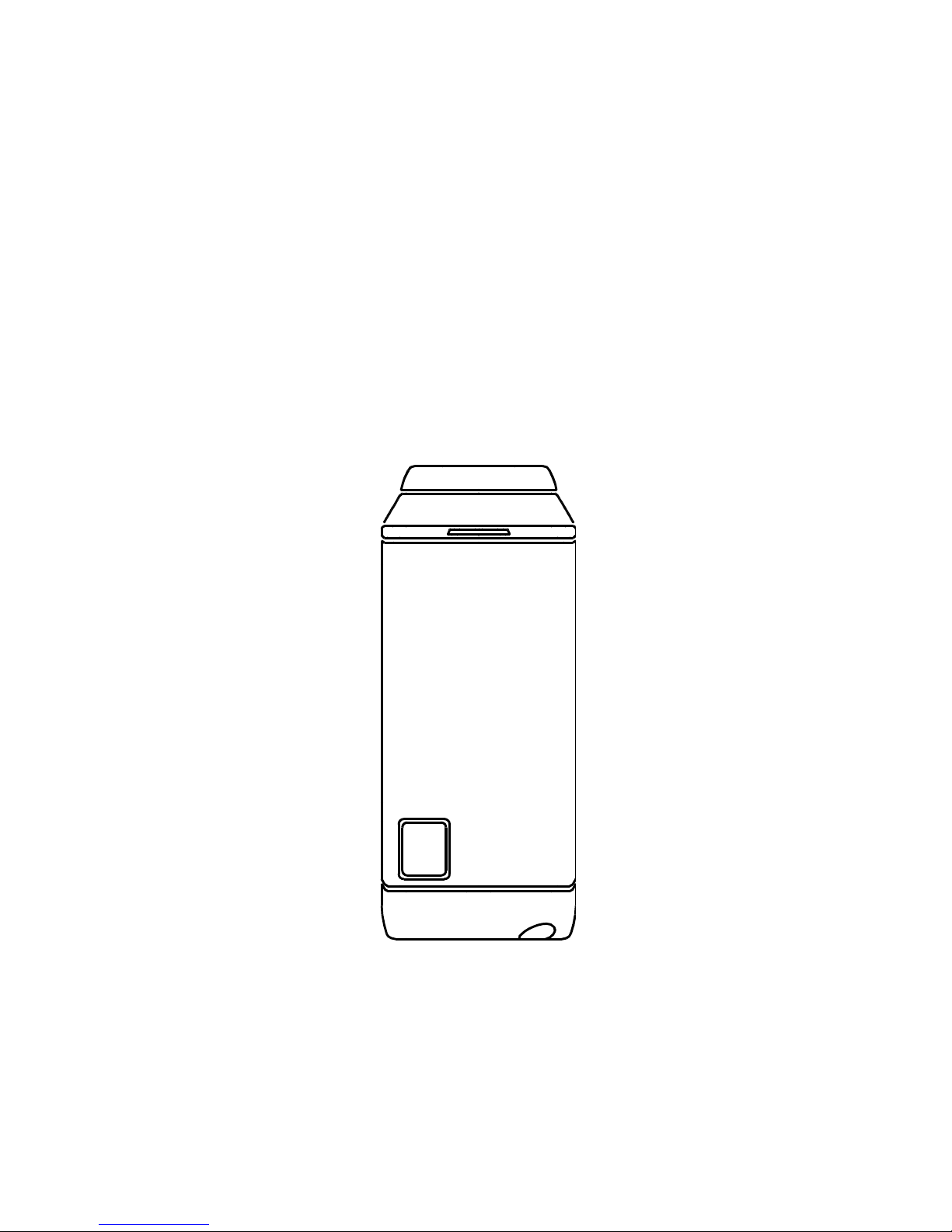

2. Washing machine description
1 - Control panel
2 - Lid opening handle
3 - Filter door
4 - Leveling screws
5 - Lever for moving the washing
machine
2.1. The detergents dispenser
Symbols
1 - prewash
2 - wash
3 - softener
(do not exceed the MAX mark)
4 - softener overflow
(if overfilled).
1
2
45
3
123
4

User’s instructions
7
3. Control panel

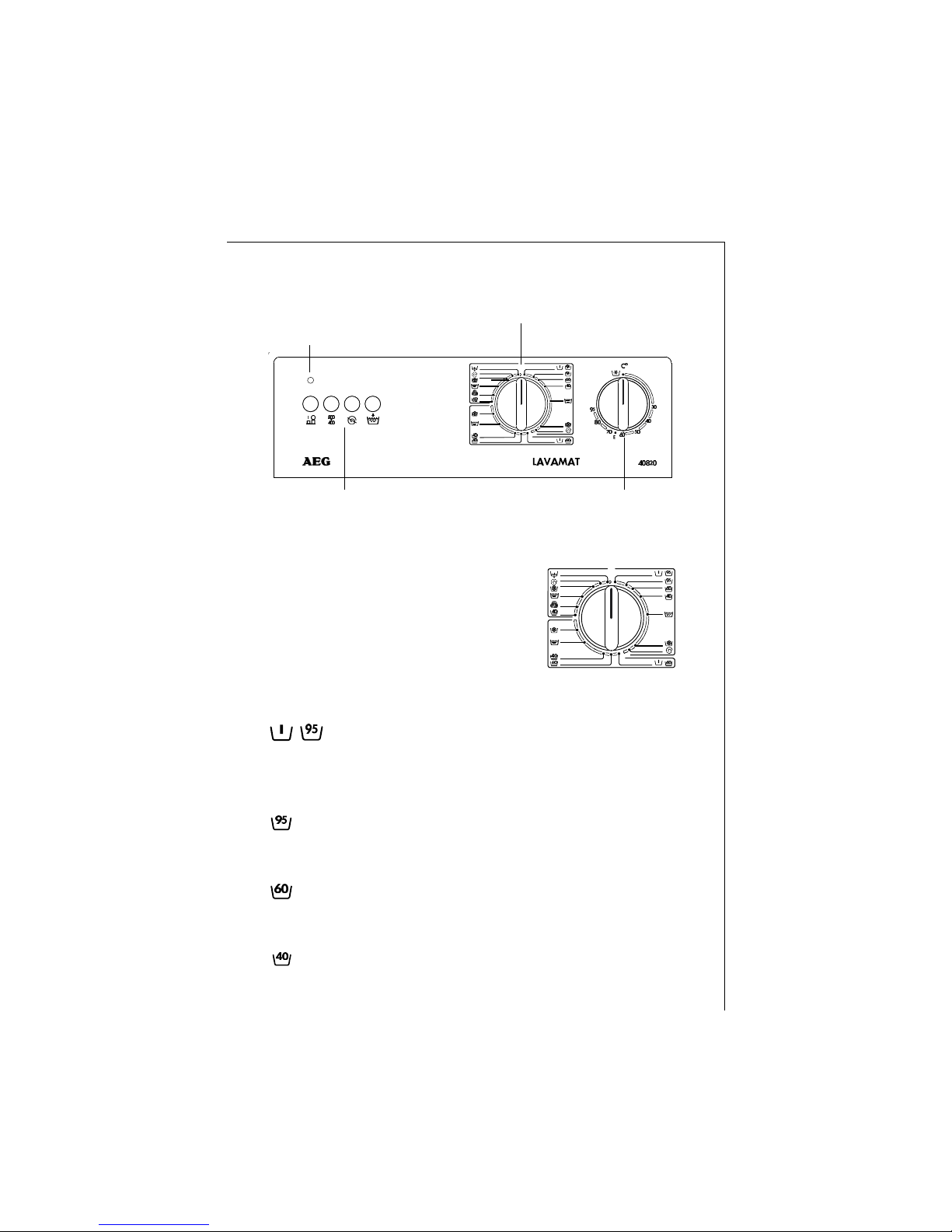

3.1. Programmes selector
It is used to select the most suitable
programme to the type and soiling of
your laundry.
Warning : never turn the pro-
gramme selector in the anticlock-
wise direction.

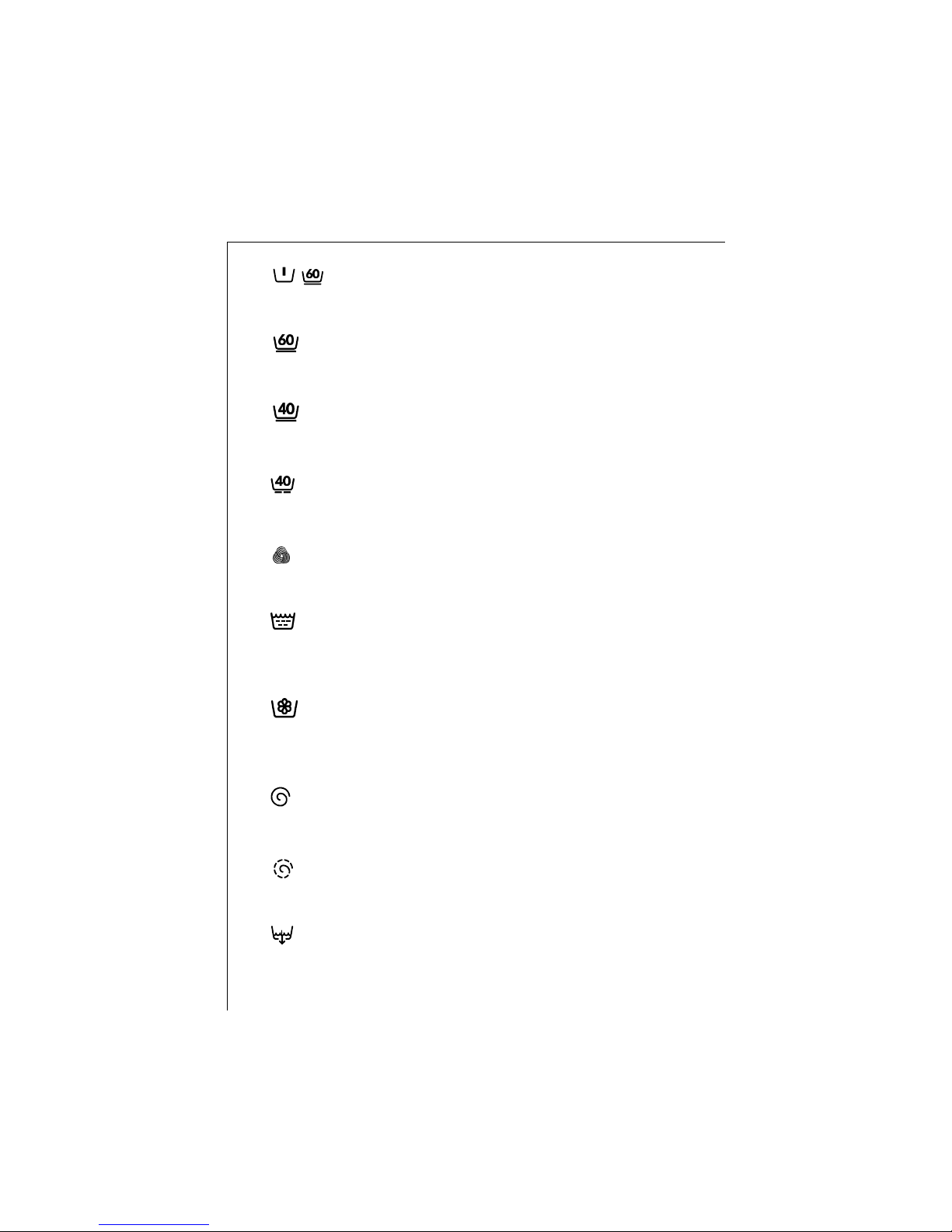

- COTTON / LINEN WITH PREWASH
Prewash at 40°C - Main washing for cotton / linen to be boiled from
30°C to 95°C.
- COTTON / LINEN
Main washing for cotton / linen to be boiled from 30°C to 95°C.
- COTTON / COLOREDS
Main washing for cotton or coloreds from 30°C to 60°C.
- COLOREDS
Main washing for coloreds from 30°C to 40°C.
Programmes selectorControl
lamp
Pushbuttons Thermostat

User’s instructions
8
- SYNTHETICS WITH PREWASH
Prewash at 40°C - Main washing for synthetics from 30°C to 60°C.
- SYNTHETICS
Main washing for synthetics from 30°C to 60°C.
- SYNTHETICS
Main washing for synthetics from 30°C to 40°C.
- DELICATES
Main washing for delicates from 30°C to 40°C.
- WOOL
Main washing for machine washable wool at 40°C.
- RINSES
3 separate rinses which can, for instance, be used to rinse and spin
handwash garments.
- SOFTENER
1 separate rinse which can, for instance, be used to rinse and spin
handwash garments.
- SPINNING
Separate spin for cotton and coloureds programmes.
- SHORT SPINNING
Separate short spin for synthetics, delicates and wool programmes.
- DRAIN
Drain water without spin afterwards.

User’s instructions
9

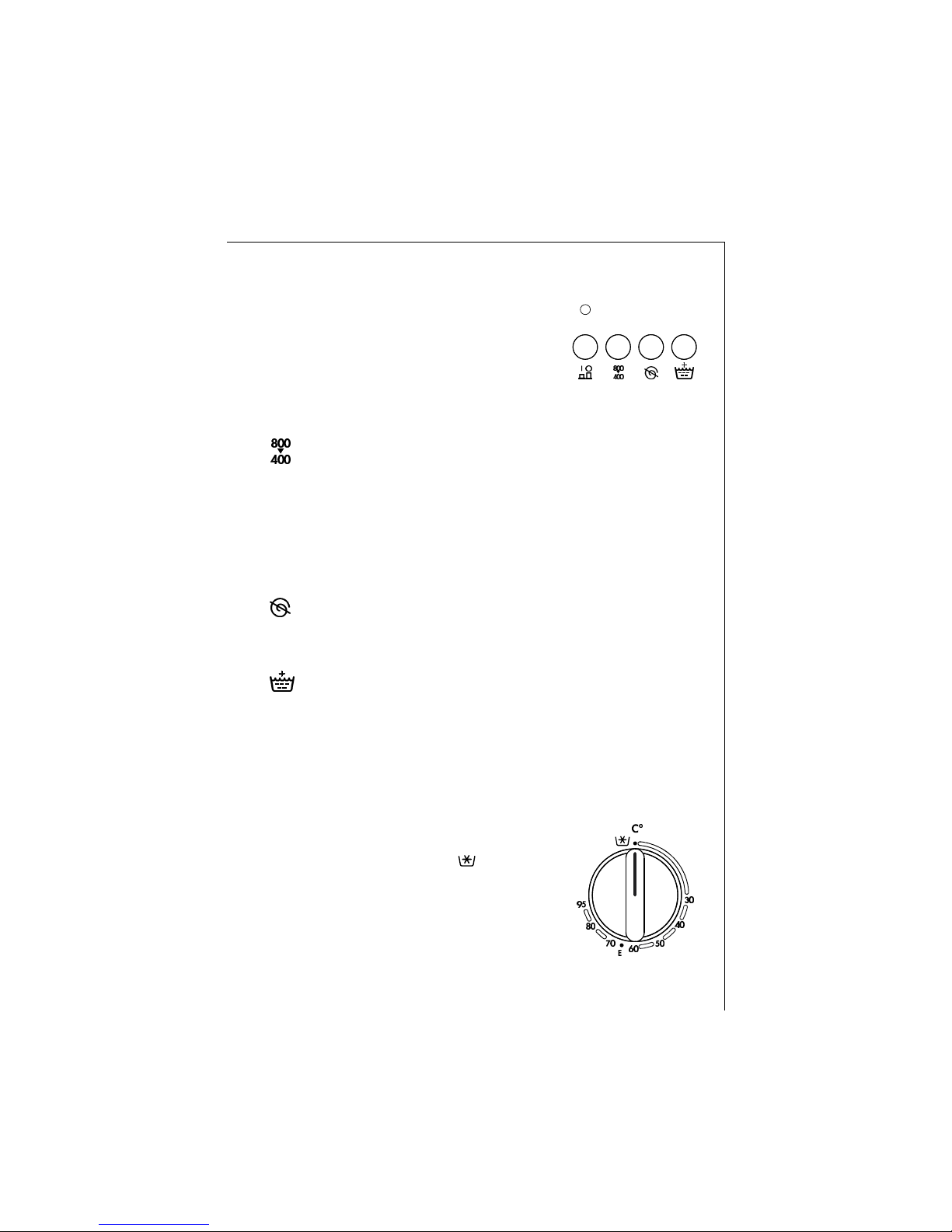

3.2. Additional programme pushbuttons
These pushbuttons can adapte the washing
programme to the degree of dirtiness of the
laundry. But it is not necessary to select them
in case of garments normally soiled.
Depending on the selected programme, different functions can be
combined.
- SPINNING SPEED REDUCTION PUSHBUTTON 800/400
The pushbutton 800/400 allows to realize a spinning to 400 rpm
(pressed pushbutton) or to 800 rpm (released pushbutton) on the cot-
ton programmes.
If you wish end the synthetics, delicates and wool programmes by a
short spinning, the spinning speed will be either 600 rpm (released
pushbutton) either 400 rpm (pressed pushbutton).
- SPINNING SUPPRESSION
This pushbutton eliminates spin drying on all programmes. They ter-
minate then with a drain.
- RINSE PLUS
This option adds more water in rinses on Cotton programmes. It is ad-
vised for allergic people to detergent products and in areas with fresh
water.
3.3. Thermostat
Use the thermostat to choose the temperatu-
re of the washing water. You can choose any
temperature between cold «» and 95°C.
You can use the «E» position if you want to
realize an economical programme.
The temperatures given in the programmes
table are provided as a guide. You can vary
them using the thermostat knob on your
washing machine. Always scrupulously res-
pect the temperature shown on the label on each item of washing.

User’s instructions
10
3.4. Progress within the programme
The programme selector turns gradually and shows you how far the
programme has advanced.

User’s instructions
11
4. Consumptions and programme dura-
tions
Values given in the above table are provided as a guide and may vary
depending on the water supply temperature and pressure, and your
electricity power supply mains voltage.
Timer / Temperature Washing
load
in kg
Water
con-
sumption
in liters
Energy
con-
sumption
in kWh
Dura-
tion in
minutes
WHITE/COLOUREDS 95 4,5 63 2,00 130
WHITE/COLOUREDS 60*
*Programme setting for testing in accordance with standard EN 60456.
4,5 59 1,20 130
WHITE/COLOUREDS 40 4,5 59 0,70 85
SYNTHETICS 60 2,0 47 1,00 80
DELICATES 30 2,5 47 0,40 55
WOOL 30 1,0 45 0,50 50

User’s instructions
12
5. Washing guide
5.1. Sorting and preparing your washing

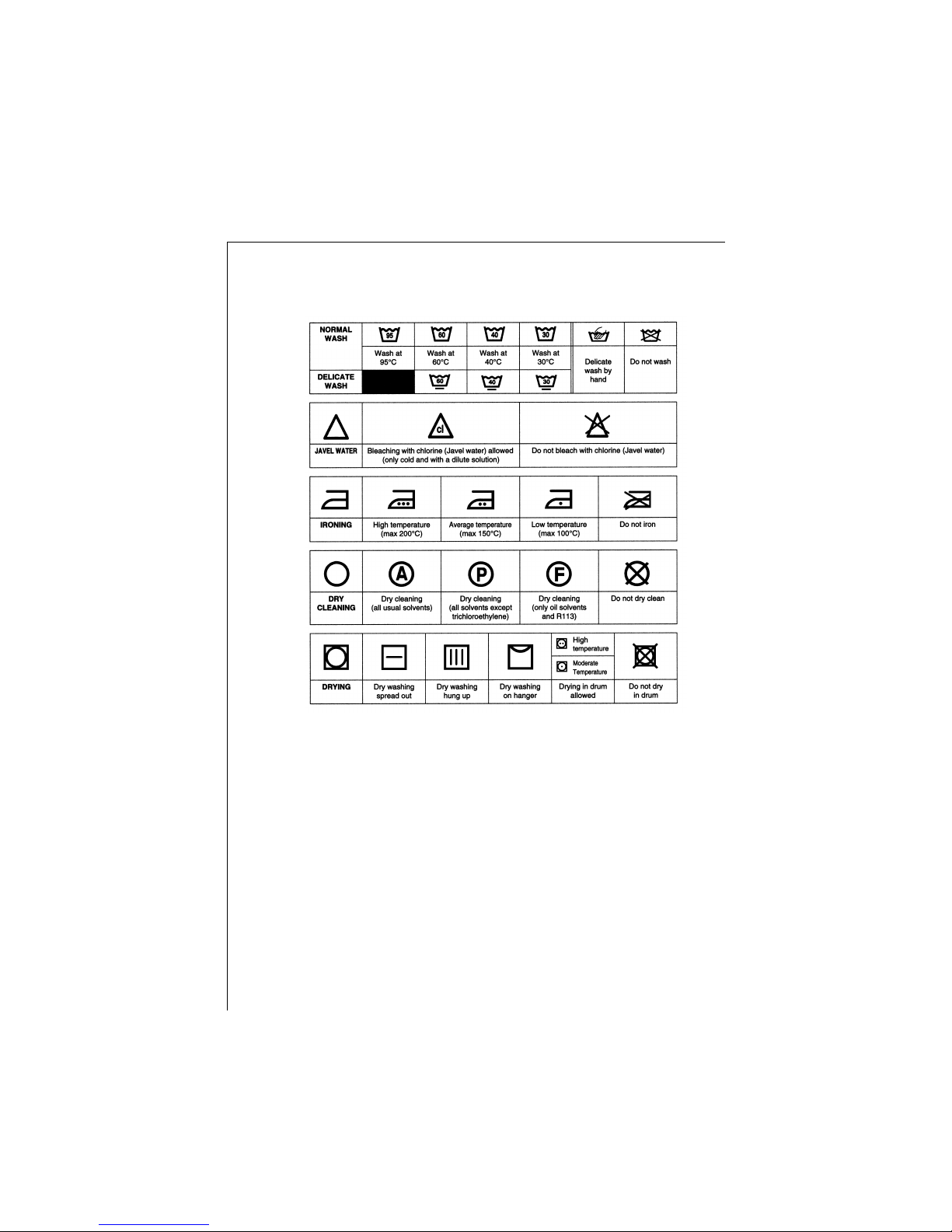

•Sort the washing by type and care symbol (see chapter 5.4: Inter-
national symbols for care of textiles): normal wash for strong
washing that can resist energetic wash and spin; delicate wash for
delicate washing that should be treated more carefully. For mixed
loads composed of articles of different types of fibers, choose a
program and temperature suitable for the most fragile fiber.
•Wash white washing and color washing separately. Otherwise, the
white washing may be colored or look gray.
•New clothes very often have too much color. Preferably wash new
clothes separately for the first time. Respect "wash separately" and
"wash several times separately" care instructions.
•Empty pockets and spread out the washing.
•Take off all loose buttons, pins and hooks and eyes. Close zip faste-
ners, tie knots in laces and straps.
•Turn clothes made of several layers of textiles (sleeping bags, ano-
raks, etc.), colored hosiery and wool and textiles with add-on deco-
rations, inside out.
•Wash small delicate items (socks, tights, bras, etc) in a washing net.
•Treat curtains with special care. Remove curtain hooks and put net
curtains in a net bag or a sachet.
5.2. Washing load depending on the nature of the
material
The quantity of washing that you put in your drum must not exceed
the maximum capacity of your washing machine. This capacity may
vary depending on the nature of your textiles. Reduce the quantity of
washing if it is very dirty or if you have terry cloth type materials.
Not all textiles have the same volume and the same water retention ca-
pacity. This is why in general the drum should be filled:
•completely, but without excessive pressure for cotton and linen,
and for mixed washe,
•half full for treated cottons and synthetic fibers,

User’s instructions
13
•about one third full for very delicate articles such as net curtains
and wool.
For a mixed wash, fill the drum as required for the most delicate ma-
terial.
5.3. Detergents and additives
Only use detergents and additives suitable for use in a washing ma-
chine. Read the manufacturer's instructions and respect sections 2.1
and 3.2.
Powder detergents can be used without restriction; liquid detergents
should be poured either in the proportioning bowl directly in the
drum, or in the wash compartment provided that the washing machi-
ne is started immediately; detergents in tablets or doses must be put
into the wash compartment of the detergents dispenser in your
washing machine.
The quantity of detergent to be used depends on the amount of
washing to be washed, the hardness of the water and how dirty the
washing is.
If the water is soft, you can reduce the doses slightly. Increase the
doses slightly if the water is hard (it is recommended to use a water
softener) or if the washing is very dirty or stained.
You can ask the water distribution company in your region or any
other competent authority to find out the degree of hardness of your
water.

User’s instructions
14
5.4. International symbols

User’s instructions
15
6. How to do a wash ?
Before the first wash in your washing machine, we recommend that
you should do a preliminary wash at 95°C with detergent but without
any washing to clean the tub.
6.1. Loading the washing
•Lift the machine cover.
•Open the drum by pressing on the locking button A; the two
flaps automatically separate.
•Insert the washing, close the drum and the cover of your washing
machine.
Warning : before you close the cover of
your washing machine, make sure that the
drum door is properly closed:
•the two flaps latched together,
•the locking button A extended.
6.2. Detergents
Your washing machine has been produced in order to reduce water
and detergents consumptions, so you can reduce the doses recom-
mended by detergent manufacturers. Pour the powder detergent
dose into the wash compartment and into the prewash compart-
ment if you chose the «prewash» option. Pour in the softener into
the compartment. If you are using a different type of detergent,
refer to the «detergents and additives» section in the washing guide.
6.3. Press the pushbutton(s) if you wish.
6.4. Select the desired temperature
Choose a temperature that is appropriate for the programme that you
have chosen, with reference to the information given on the pro-
grammes table.
A

UIser’s instructions
16
6.5. Select the desired washing programme
Choose the programme depending on the natrue and dirtiness of your
washing. Turn the knob in the clockwise direction until you find the
chosen programme.
6.6. Start the washing programme
Check that the water tap is open.
Press the ON/OFF pushbutton to start your washing machine : the
relevant light illuminates and the programme starts.
6.7. End of programme
The washing machine stops automatically and the programme selector
stops on a stop position.
The programmes end :
•by a spinning for the cotton and coloureds programmes.
•by a short spinning for the synthetics, delicates and wool program-
mes
Release the ON/OFF pushbutton at the end of the cycle to switch
your washing machine off. The control lamp lights off. Release any
other pushbuttons.
Warning :
You can not open the lid until about 2 minutes after the appliance has
stopped.
Remove the laundry. Unplug the appliance and switch off the water in-
let tap. Check that the drum is empty : any garments left in the ap-
pliance may be damaged during the next wash (shrinkage) or their
colour may run onto other garments.
Note : we recommend you to leave the lid and the drum opened after
use in order to air the tub.

User’s instructions
17
7. Programmes tables
7.1. Washing
This table does not include all possibilities, simply the best and most
usual adjustments in practice.
Washing
type
Max.
washing
quantity
Timer
Temperature
Other possible
options
Washing to
be boiled
5 kg Cotton / linen with
prewash
30-95
800 / 400
NO SPINNING
RINSE PLUS
Cotton / Linen
without prewash
30-95
Cotton /
Coloureds
5,0 kg Resistant coloureds
30-60
Delicate coloureds
30-60
Easy care
washing
2,5 kg Resistant synthetics
with prewash
30 - 60
800 / 400
NO SPINNING
Resistant synthetics
30 - 60
Delicate synthetics
30 - 40
Delicate
washing
2,5 kg Delicates
30 - 40
Wool 1,0 kg Wool
40

User’s instructions
18
7.2. Separate softener / starch
7.3. Separate rinse
7.4. Separate spinning
Washing type Max. washing quan-
tity (dry weight)
Timer
Washing to be boiled
Coloureds
5,0 kg
SOFTENER
Easy care washing 2,5 kg
Delicate washing 2,5 kg
Wool 1,0 kg
Washing type Max. washing quan-
tity (dry weight) Timer
Washing to be boiled
Coloureds
5,0 kg
RINSES
Easy care washing 2,5 kg
Delicate washing 2,5 kg
Wool 1,0 kg
Washing type Max. washing quan-
tity (dry weight) Timer
Washing to be boiled
Coloureds
5,0 kg SPINNING
Easy care washing 2,5 kg
SHORT SPINNINGDelicate washing / 2,5 kg
Wool 1,0 kg

User’s instructions
19
8. Care and cleaning
Do not do any cleaning operation until you have unplugged the
washing machine.
8.1. Descaling the washing machine
Normally there is no need to descale the washing machine if the de-
tergent was correctly proportioned.
If descaling is necessary, use a special non-corrosive product specially
designed for washing machines that you can find in the shops. Res-
pect the proportion and frequency of descaling shown on your pac-
kaging.
8.2. The surface
Clean the surface of your washing machine using lukewarm water
and a mild detergent. Never use alcohol, solvents or similar products.
8.3. The detergents dispenser

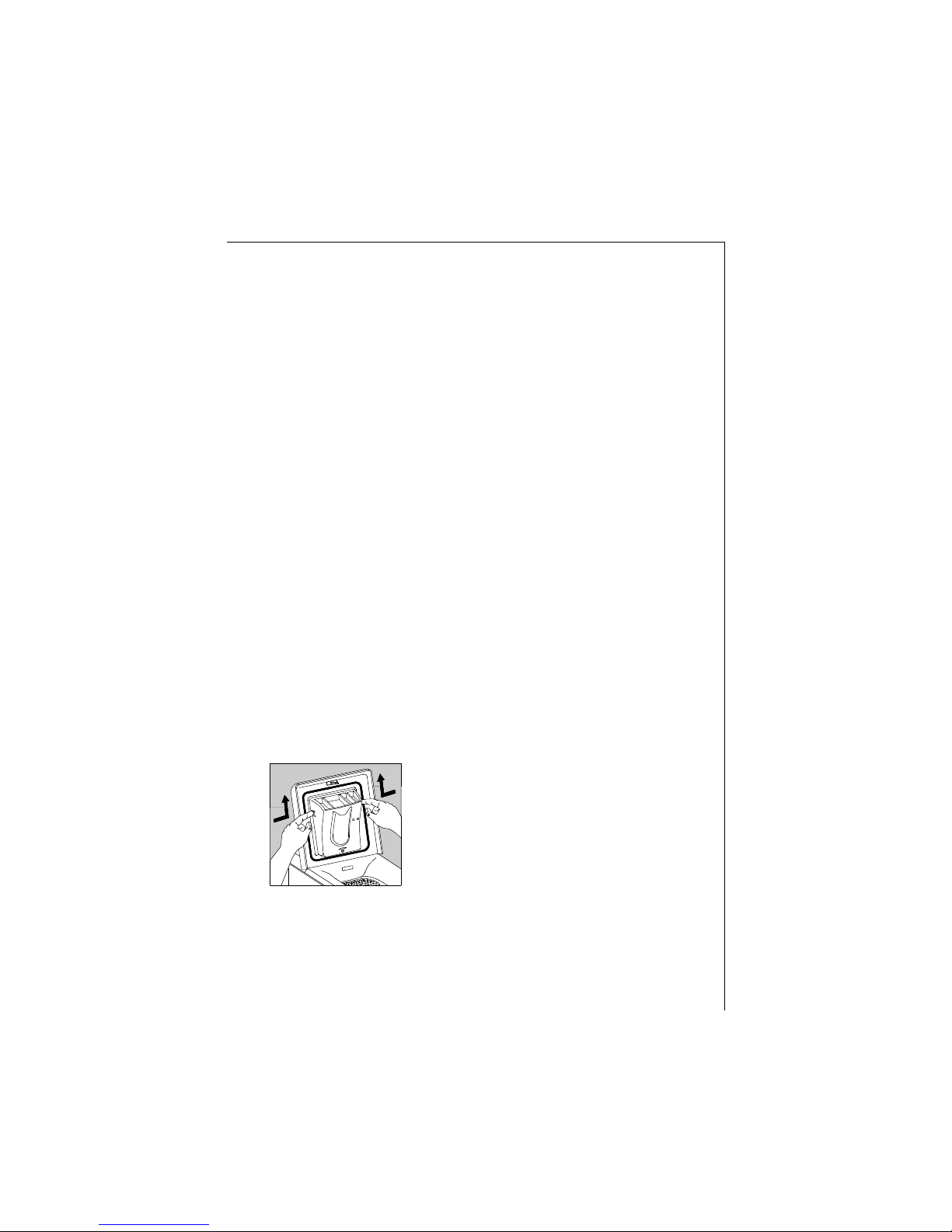

Disassembly:
Press the clips on each side of the detergents
dispenser and pull it upwards.

User’s instructions
20
You can thus clean it using running water and
a brush or a twisted cloth. Check that the si-
phons at the back of the detergents dispenser
are not blocked.
Reassembly :
Put the detergents dispenser in the notches
until they lock.
8.4. The drain filter
Clean the filter at the bottom of the washing machine regularly. The
"filter"*light comes on if the filter is blo-cked. In this case clean it im-
mediately. If you wash washing that is very fluffy, clean it after each
wash.
Open the door, with a screwdriver for example:
*depending on model
