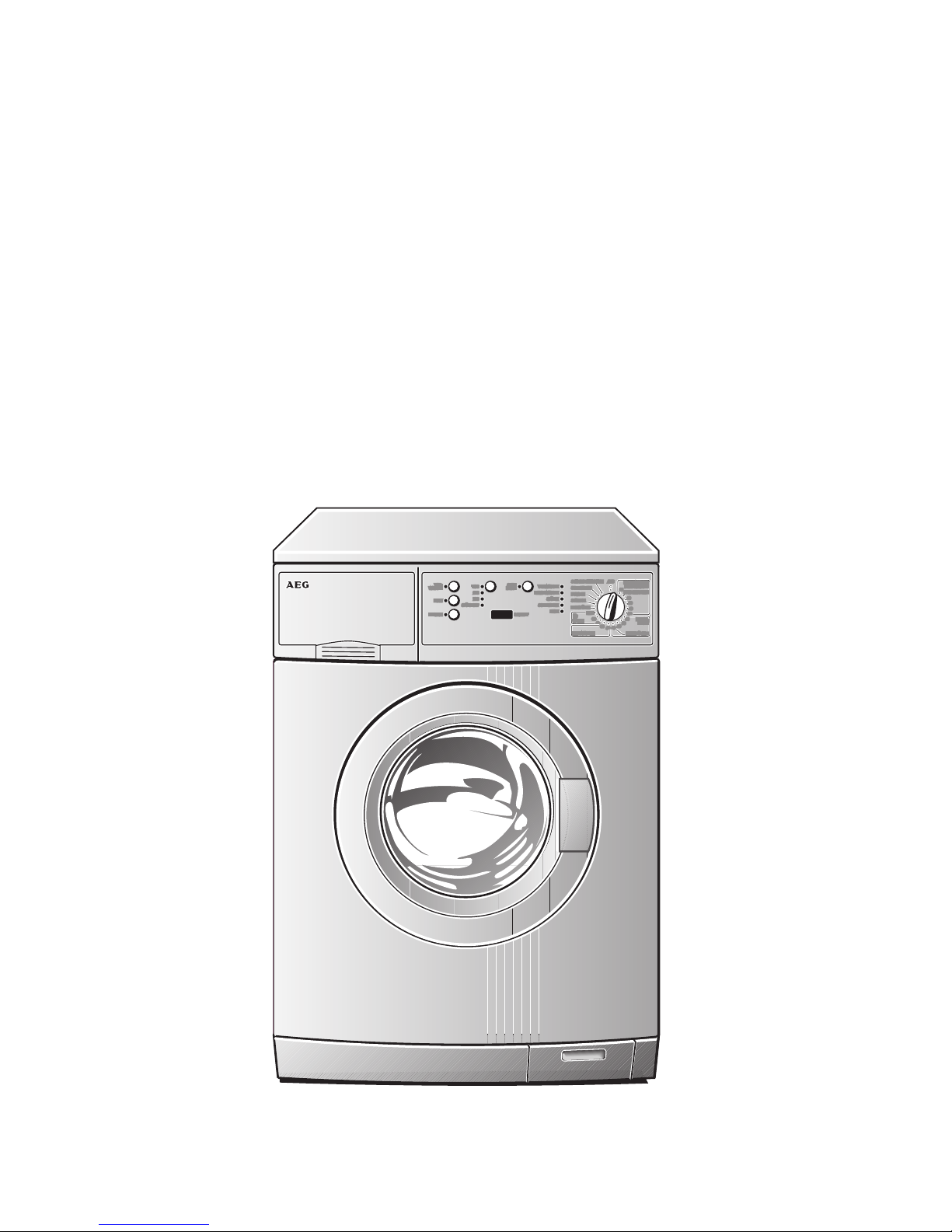

AEG LAVAMAT 7200 ELECTRONIC Operation manual

LAVAMAT 7200 ELECTRONIC
Washing Machine
User Information

2
Dear customer,
Please read this user information carefully.
In particular, pay attention to the section ”Safety” on the first pages.
Keep this user information in a safe place for later reference. Pass it on
to any subsequent owners of the unit.
1 Points which are necessary for your safety or which are important for
the unit's functional capability are highlighted by a warning triangle
and/or signal words (Warning!, Caution!, Attention!). Always remem-
ber.
0 1. This symbol guides you step by step in operating the unit.
2. ...
3 After this symbol you will find detailed information on operation and
practical use of the unit.
2 The clover leaf indicates tips and information on the economical and
environmentally-responsible use of the unit.
This user information contains information on remedying any faults
which may occur, see the section ”What to do if ...”.
If these instructions are not sufficient, our After-Sales Service is at your
disposal at any time:
ELGROEP & AEG SERVICE
Bergensesteenweg 719
1502 Lembeek
Tel.: [phone]
Here you will receive an answer to any question concerning the fea-
tures and use of your unit. Of course, we are also pleased to receive any
requests, suggestions and criticism. Our aim is to further improve our
products and services for the benefit of our customers.
In the event of technical problems, our factory customer service in your
area is at your disposal at all times. Also refer to the section ”Service”.
Printed on recycled paper.
Those who think ecologically act ecologically ...

3
Contents
Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Environment Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Drawer for Washing Powder and Care Agent . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programme selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Additional Programming Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Consumption Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Before the First Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Prepare the Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sort and Prepare the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Washing Types and Care Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Washing Detergents and Care Agents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Which washing detergent and care agent? . . . . . . . . . . . . . . . . . . . . . . 17
How much washing detergent and care agent? . . . . . . . . . . . . . . . . . . . 17
Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Performing a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Add the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Add Washing Detergent/Care Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Set the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Change Spin Speed / Select Rinse Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Programme display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Changing the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
End of wash cycle/Taking out washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4
Programme charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Separate Conditioning/ Starching/Impregnating . . . . . . . . . . . . . . . . . . . . 27
Separate rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Separate spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Washing Detergent Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Washing Drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Filling Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remedying Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
If the washing result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Drain pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Carry Out an Emergency Emptying Operation . . . . . . . . . . . . . . . . . . . . . . . 37
Child Safety Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting up and connection instructions . . . . . . . . . . . . . . . . . 40
Safety Instructions for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Setting Up the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Transporting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Remove the Transport Safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Prepare the Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting Up on a Concrete Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting Up on a Vibrating floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Compensate for Floor Unevenness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Permissible Water Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Water Inflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Delivery Heads over 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Customer services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Instructions for use
6
Instructions for use
1 Safety
The safety of AEG electrical appliances conforms to the recognised
technical regulations and the legislation covering the safety of appli-
ances. However, as manufacturers, we still regard it as our responsibility
to inform you of the following safety information.
Before Putting into Operation for the First Time
•Refer to the ”Installation and Connection Instructions” later in this
user information.
•When the unit is delivered in winter months with minus tempera-
tures: Store the washing machine for 24 hours at room temperature
before putting it into operation.
Correct Use
•The washing machine is only designed for normal domestic washing.
If the unit is used for purposes other than that for which it is de-
signed, the manufacturer can accept no liability for any resulting
damages.
•For safety reasons, conversions or modifications to the washing ma-
chine are not permissible.
•Use only detergents which are suitable for washing machines. Follow
the washing detergent manufacturer's instructions.
•The washing must not contain any flammable solvents. Also remem-
ber this when washing pre-cleaned washing.
•Do not use the washing machine for chemical cleaning.
•Dyes/dye removers may only be used in washing machines if the
manufacturer expressly allows these products. We cannot be held lia-
ble for any resulting damage.
•Use only water from the water mains. Use rainwater or service water
only if it meets the requirements outlined in DIN1986 and DIN1988.
•Frost damage is not covered by the warranty! If the washing machine
is in a room which is at risk from frost, an emergency emptying oper-
ation must be carried out when there is a frost risk (see the section
”Carry Out Emergency Emptying”).

Instructions for use
7
Child Safety
•Packaging components (e.g. films, polystyrene) can be hazardous to
children. Risk of suffocation! Keep packaging away from children.
•Children often cannot recognise the hazards associated with handling
electrical appliances. Therefore, ensure the necessary supervision dur-
ing operation and do not allow children to play with the washing ma-
chine – there is a risk that children can get trapped inside.
•Ensure that children or small animals cannot climb into the washing
machine's drum.
•When disposing of the washing machine: Pull out the mains plug, de-
stroy the door lock, cut off the electrical supply lead and throw away
the plug and the left-over cable. This means that children at play
cannot shut themselves inside and in so doing be in danger.
General Safety
•Repairs to the washing machine may only be carried out by qualified
specialists. Incorrect repairs may result in significant risk to the user.
If repairs are necessary, consult our customer service or your special-
ist dealer.
•Never use the washing machine if the mains cable is damaged or the
conrol panel, work surface or base panel area are so badly damaged
that the interior of the unit is openly accessible.
•Switch off the washing machine before carrying out cleaning, care
and maintenance work. Also pull the mains plug out of the socket or,
– if it is permanently connected, – switch off the circuit breaker at
the household power distribution box or completely remove the
screw-in fuse.
•If operation is stopped, disconnect the appliance from the mains sup-
ply and shut off the tap.
•Never pull the cable to remove the plug from the socket. Always
pull the plug itself.
•Multiple connectors, couplings and extension cables must not be
used. There is a risk of fire with overheating!
•Do not spray down the washing machine with a water jet. Risk of
electric shock!
•The glass in the door becomes hot in the case of wash programmes
with high temperatures. Do not touch!

Instructions for use
8
•Allow the washing solution to cool before carrying out an emergency
emptying operation or cleaning the drain pump.
•Small animals can chew the power cables and water hoses. Risk of
electric shock and danger of water damage! Keep small animals away
from the washing machine.
2 Disposal
Dispose the packing material!
Dispose of your washing machine's packaging correctly. All the packag-
ing materials used are harmless to the environment and can be recy-
cled.
•Plastic parts are marked with standard international abbreviations:
•Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Dispose the old appliance!
When you finally put your appliance out of operation,
please bring it to your nearest recycling centre or to your dealer.
>PE< for polyethylene, e.g. sheet wrapping material
>PS< for polystyrene, e.g. padding material (always CFC-free)
>POM< for polyoxymethylene, e.g. plastic clips

Instructions for use
9
2 Environment Tips
•The pre-wash cycle is not required for averagely dirty washing. This
saves washing powder/liquid, water and time (and does not harm the
environment).
•The washing machine is especially economical when you fully utilise
the stated filling quantities.
•For small amounts of washing, use only half to two thirds the recom-
mended amount of washing powder/liquid.
•Suitable pretreatment enables stains and small amounts of dirt to be
removed. You can then wash at a lower temperature.
•Use the energy-saving program to wash garments which are lightly to
moderately dirty.
•There is often no need for conditioner. Try it once! If you use a dryer,
your washing will become soft and velvety even without conditioner.
•In the case of medium to high water hardness, (hardness range II or
higher, see ”Washing and Care Agents”), you should use water sof-
tener.
The washing powder/liquid can then always be metered for hardness
range I (= soft).

Instructions for use
10
Unit Description
Front View
Drawer for Washing Powder and Care Agent
Drawer for
washing
powder and
care agent
Filling door
Screw feet
(height-adjustable)
Control panel
Flap in front of
drain pump
Rating plate
(behind filling
door)
Pre-wash
detergent/
soaking agent
or water-softener
Main detergent
(powder) and
water-softener
if required
In-wash stain treatment
Liquid care agent
(conditioner,
finisher, starch)

Instructions for use
11
Control panel
Programme selector
The programme selector is used
to choose the most suitable
wash setting (for example, wa-
ter level, type of drum move-
ment, number of rinses, spin
speed) forthe type of wash, as
well as the temperature of the-
detergent solution.
OFF (UIT, ARRET)
•Switches off the machine -
at all other positions the
machine remains on.
•Clears programme settings selected by mistake. The original settings
are restored.
COTTONS/LINEN (WITTE/BONTE WAS, BLANC/COULEURS)
Main wash for cottons/linen at 30 °C to 95 °C.
2 Position ENERGY SAVING (ENERGIEBESP., ECONOMIQUE): Energy-sav-
ing programme at around 67 °C, for slightly or normally soiled cottons,
extended wash time (cannot be combined with the SHORT/KORT/
COURT setting).
Spin speed/RINSE HOLD button
Additional programme buttons Progress indicator
Programme selector
START/PAUSE button
Multidisplay

Instructions for use
12
EASY-CARES (KREUKHERSTELLEND, DEFROISSABLE)
Main wash, for easy-care textiles (blend fabrics) at 40 °C to 60 °C.
Position EASY-IRON (STRIJKVRIJ, SANS REPASSAGE): Main wash at
40 °C for easy-care textiles, which require only lightor no ironing with
this setting.
DELICATES (FIJNE WAS, LINGE DELICAT)
Main wash for delicates, at 30 °C or 40 °C.
WOOL (WOL, LAINE)/P(Handwash)
Main wash (up to 40 °C) for both machine-washable and hand-
washable woolens and silk with the Care symbol ï(handwash).
GENTLE RINSE (FIJN SPOELEN, RINC. DELICAT)
Separate gentle rinse, for example, for handwash textiles (2 rinses,
liquid conditioner washed in æfrom the drawer, gentle spin).
STARCHING (STIJVEN, AMIDON.)
Separate starch, separate gentle rinse, separate conditioning for wet
clothes (1 rinse, liquid conditioner washed in from ædrawer, spin).
PUMP OUT (POMPEN, VIDANGE)
Empties the water after a rinse hold (no spin).
3 RINSE HOLD (GEEN CENTR., SANS ESSOR.) means: The washing is left to
soak in the last rinse water. It is not spun.
SPIN (CENTRIFUG., ESSORAGE)
Pumps out the water after a rinse hold or spin, or for separate spinning
of hand-washed cottons/linen.
GENTLE SPIN (KORT CENTRIFUG., ESSOR. DELICAT)
Pumps out the water after a Rinse Hold and Gentle Spin, or. separate,
gentle spin of delicate textiles (easy-care clothes, delicates, woollens).

Instructions for use
13
Additional Programming Buttons
The additional programming buttons adjust the
wash cycle according to how soiled the washing is.
Additional cycles are necessary only if the washing
is excessively soiled.
Depending on the cycle chosen, the various func-
tions may be used in combination with each an-
other.
PRE WASH (VOORWAS, PRELAV.)
Warm pre-wash prior to the main wash cycle (main wash cycle follows
automatically); with spin cycle for COTTONS/LINEN (WITTE/BONTE WAS,
BLANC/ COULEURS) and EASY-CARES (KREUKHERSTELLEND,
DEFROISSABLE), without spin cycle for DELICATES (FIJNE WAS, LINGE
DELICAT).
SHORT (KORT, COURT)
Shortened main wash cycle for washing that is lightly soiled.
STAIN (VLEKKEN, TACHES)
For treating washing that is heavily soiled or stained. Stain removal
agent is rinsed in at an optimal point in the cycle. This cycle can only
be set for a washing temperature of over 40° C, as stain removal agent
is only effective at higher temperatures.
3 If the WOOLLENS (WOL, LAINE)/P(hand wash) setting is selected the
additional programmes are not able to be chosen (any buttons that are
pressed have no effect).

Instructions for use
14
Consumption Values
The values for selected programs in the following tables were deter-
mined under normal conditions. However, there is a helpful orientation
aid for domestic operation.
Before the First Wash
0 1. Pull out the washing powder drawer slightly.
2. Pour about 1 litre of water through the washing powder drawer into
the washing machine. With the next program start, this will close the
solution container and the eco-sluice can function correctly.
3. Run the washing cycle without washing (COTTONS/WITTE WAS, BLANC
95 °C, with half the amount of washing detergent). This removes resi-
dues left over from production on the drum and solution container.
Program Selector/Temperature Filling Quantity
in kg
Water
in Litres
Energy
in kWh
COTTONS/LINEN 95
(WITTE/BONTE WAS,
BLANC/COULEURS)
549 1,80
COTTONS/LINEN 601)
(WITTE/BONTE WAS,
BLANC COULEURS)
1) Note: Program setting for a test in accordance with EN 60 456. The consumption
values can deviate from the stated values depending on the water pressure,
hardness, inlet temperature, room temperature, type and quantity of washing,
the washing powder/liquid used, fluctuations in the mains voltage and selected
additional functions.
546 0,94
COTTONS/LINEN 40
(WITTE/BONTE WAS,
BLANC/COULEURS)
554 0,60
EASY-CARES 40
(KREUKHERSTELLEND,
DEFROISSABLE)
2,5 54 0,50
DELICATES 30
(FIJNE WAS, LINGE DELICAT) 2,5 50 0,30
WOOLLENS (WOL, LAINE)/P
(Handwash) 30 247 0,25

Instructions for use
15
Prepare the Washing Cycle
Sort and Prepare the Washing
•Sort the washing according to care codes and type (see ”Washing
Types and Care Codes”).
•Empty pockets.
•Remove metal parts (paper clips, safety pins etc.).
•To prevent washing damage and washing snags: Close zip fasteners,
button closed bed covers and pillow cases, and tie together ribbons,
e.g. on aprons.
•Use clothing made of double-layer fabric (sleeping bag, anorak etc.).
•On knitted, coloured textiles and on wool and textiles with fitted
decorations: Turn inside out.
•Wash small and sensitive items (baby socks, stockings, tights, bras
etc.) in a washing net, a cushion with a zip fastener or in larger socks.
•Treat curtains with particular care. Remove small metal rollers or
small, burred rollers or tie them in a net or in a bag. We cannot ac-
cept any liability for damage.
•Do not wash coloureds and whites together in one washing cycle.
Otherwise, whites will discolour or turn grey.
•New coloureds often contain surplus dye. It is best to wash such
items separately the first time.
•Mix small and large items of washing! This speeds up theeffect of
washing and the washing is more favourably distributed during spin-
ning.
•Loosen up the washing before loading it into the washing machine.
•Put the washing into the drum folded out.
•Pay attention to the care instructions ”Wash separately” and ”Wash
separately several times”!

Instructions for use
16
Washing Types and Care Codes
The care codes help you choose the correct washing program. The
washing should be sorted according to type and care code. The temper-
atures stated in the care codes are all maximum values.
Cottons ç
Textiles made of cotton and linen with this care code are insensitive to
mechanical stress and high temperatures. The program COTTONS/LINEN
(WITTE/BONTE WAS, BLANC/COULEURS) is suitable for this type of
washing.
Linen èë
Textiles made of cotton and linen with this care code are insensitive to
mechanical stresses. The program COTTONS/LINEN (WITTE/BONTE WAS,
BLANC/COULEURS) is suitable for this type of washing.
Easy-Care Garments êí
Textiles such as finished cottons, cotton mixtures, viscose and synthet-
ics with this care code require mechanically more mild treatment. The
program EASY-CARES/EASY IRON (KREUKHERSTELLEND, DEFROISSA-
BLE/STRIJKVRIJ, SANS REPASSAGE) is suitable for this type of washing.
Delicates ì
Textiles such as layered fibres, microfibres, viscose, synthetics and cur-
tains with this care code require very gentle treatment. The program
DELICATES (FIJNE WAS, LINGE DELICAT) is suitable for this type of
washing.
Wool and Very Sensitive Washing 9ìï
Textiles such as wool, wool mixtures and silk with this care code are es-
pecially sensitive to mechanical stresses. The program WOOLLENS (WOL,
LAINE)/P(handwash) is suitable for this type of textiles.
Attention! Textiles with the care codeñ(Do not wash!) must not be
washed in the washing machine!

Instructions for use
17
Washing Detergents and Care Agents
Which washing detergent and care agent?
Use only washing detergents and care agents which are suitable for use
in washing machines. Always follow the manufacturer's instructions.
How much washing detergent and care agent?
The amount to be used depends on:
•the dirtiness of the washing
•the hardness category of the mains water supply
•the filling quantity
2 If the detergent manufacturer gives no details of the dosing quantities
for minimum loads, add one third less for half loads and, in the case of
very small loads and for EASY IRON (STRIJKVRIJ, SANS REPASSAGE),
only half the amount of detergent recommended for a full load.
Refer to the detergent/care agent manufacturer's instructions on use
and dosage.
Water Softener
For medium to high water hardness (hardness category II or higher) you
should use water softener. Pay attention to the manufacturer's instruc-
tions. Always then meter detergent for hardness category I (= soft). The
responsible water works can provide information on the local water
hardness.
2 Since the water softener is added before the main washing detergent,
(water pre-softening), eighty percent of the softener quantity stated on
the package is sufficient.
Water Hardness Details
Hardness Category
Water Hardness °dH
(degrees German
hardness)
Water Hardness in mmol/l
(millimol per litre)
I – soft 0 - 7 up to 1.3
II – medium hard 7 - 14 1.3 - 2.5
III – hard 14 - 21 2.5 - 3.8
IV – very hard over 21 over 3.8

Instructions for use
18
Performing a wash cycle
Quick Start Guide
To complete a wash cycle, follow the steps below:
0 1. Open the door, load the washing.
2. Close the door.
3. Pour detergent/conditioner into the drawer.
4. Choose a suitable programme:
–use the programme selector to set the programme
–set any additional programme functions as required
5. If necessary, adjust the spin speed or select RINSE HOLD (GEEN CENTR.,
SANS ESSOR.).
6. Start the programme by pressing the START/PAUSE (START/PAUZE,
MARCHE/PAUSE) button.
When the programme is finished:
Important! If the programme ends at Rinse Hold, select PUMP
OUT(POMPEN, VIDANGE), SPIN (CENTRIFUG., ESSORAGE) or GENTLE
SPIN (KORT CENTRIFUG., ESSOR. DELICAT) before opening the door.
7. Open the door, and take out the washing.
The door can be opened after the END (EINDE, FIN) indicator is lit.
8. Switch off the machine: Set the programme selector to OFF
(UIT, ARRET).
Add the Washing
3 For the maximum filling quantities, refer to the ”Program Tables”.
For information on the correct preparation of the washing, see ”Sort
and Prepare the Washing”.
0 1. Sort and prepare the washing according to type.
2. Open the filling door: Pull on the handle of the filling door.
3. Fill with washing.
Attention! When closing the door, make
sure no items of washing get stuck! This
could damage textiles and the unit.
4. Close the filling door securely.

Instructions for use
19
Add Washing Detergent/Care Agent
3 Refer to the information on washing detergents and care agents, see
section ”Washing Detergents and Care Agents”.
0 1. Open the washing detergent drawer:
grip inside the flap on the drawer at the
bottom (1) and pull out the drawer as
far as it will go (2).
2. Fill with washing detergent/
care agent
3. Push the drawer fully in.
3 If using Liquid Detergent/Tabs:
Add liquid detergent/tabs in the amount recommended by the washing
detergent industry. Follow the instructions on the detergent package.
Compartment for in-wash stain
treatment
Compartment for main washing
powder
(If you use water softener and need the
right compartment for the pre-wash
agent, add the water softener to the
main washing detergent in the left
compartment.)
Compartment for liquid care agent
(Conditioner, finisher, starch)
Attention! Fill the compartment up to the MAX mark.
If necessary, dilute viscous agent up to the MAX mark,
and dissolve powder starch.
Note: It is normal for a small amount of water to
be left in the compartment for liquid conditioner;
this will not affect the wash results.
Compartment for pre-wash agent
(only for additonal program PRE WASH/VOORWAS, PRELAVAGE)
or for water softener

Instructions for use
20
Set the Washing Program
3 For a suitable program, the right temperature and possible additional
programs for the relevant washing type, refer to the ”Program Tables”.
0 1. Set the program selector to
the required washing program
with the required temperature.
The probable duration of the
set program in minutes is
shown in the multi-display.
2. Select any additional programs:
The indicator for the selected additional program
lights up.
–Press another button to make different selection.
–Press the button again to deselect.
