AEG OKO Lavamat 80000 series User manual

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
Machine classes
I. ÖKO_LAVAMAT 80000
1

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
I.ÖKO_LAVAMAT 80000
1. Operating elements / panel
1.1 One button - Input philosophy
1.2 Panal
1.3 Programe selection switch
2. Additional programes
2.1 Gentle spin
2.2 Spinning
2.3 Unbalanced load system
2.4 Pumping
2.5 Starching
2.6 Gentle rinse
3. Option buttons / Display
3.1 Prewash
3.2 Soaking
3.3 Short
3.4 Spots (Intensiv)
3.5 Alternating spin speed
3.6 Rest moisture / Load
3.7 Multidisplay
3.8 Programe duration display
2

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3.9 Start / Break button
3.10 Electronic programe cycle display
3.11 Door lock
4. Additional features
4.1 Stand-By-Operation
4.2 Trum light
4.3 More water switch
5 Water intake system
5.1 Waterdistributer + Valve
5.2 Drawer
5.3 Water intake diagrames
5.4 ART - Rinse
5.5 First rinse
5.6 Additional rinse
5.7 Second rinse
5.8 Softening rinse
5.9 Foam detection
6. Cool down
7. Aqua - Control - System
3

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
7.1 General Function
7.2 Floating switch
8. Washing mechanics
9. Child savety device
9.1 Activate the child savety device
9.1.1 Behavior if a button is pressed
9.1.2 Behavior if the programe selection switch is turned
9.1.3 Switch off the child savety device
10 The pressure sensor
10.1 Function of the pressure sensor
11. Automatic foot
12. Motor controling EPW
13. Customer service test programe
13.1 Adjustment of the heating element
14. Update
15.Changes on the script
4

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N

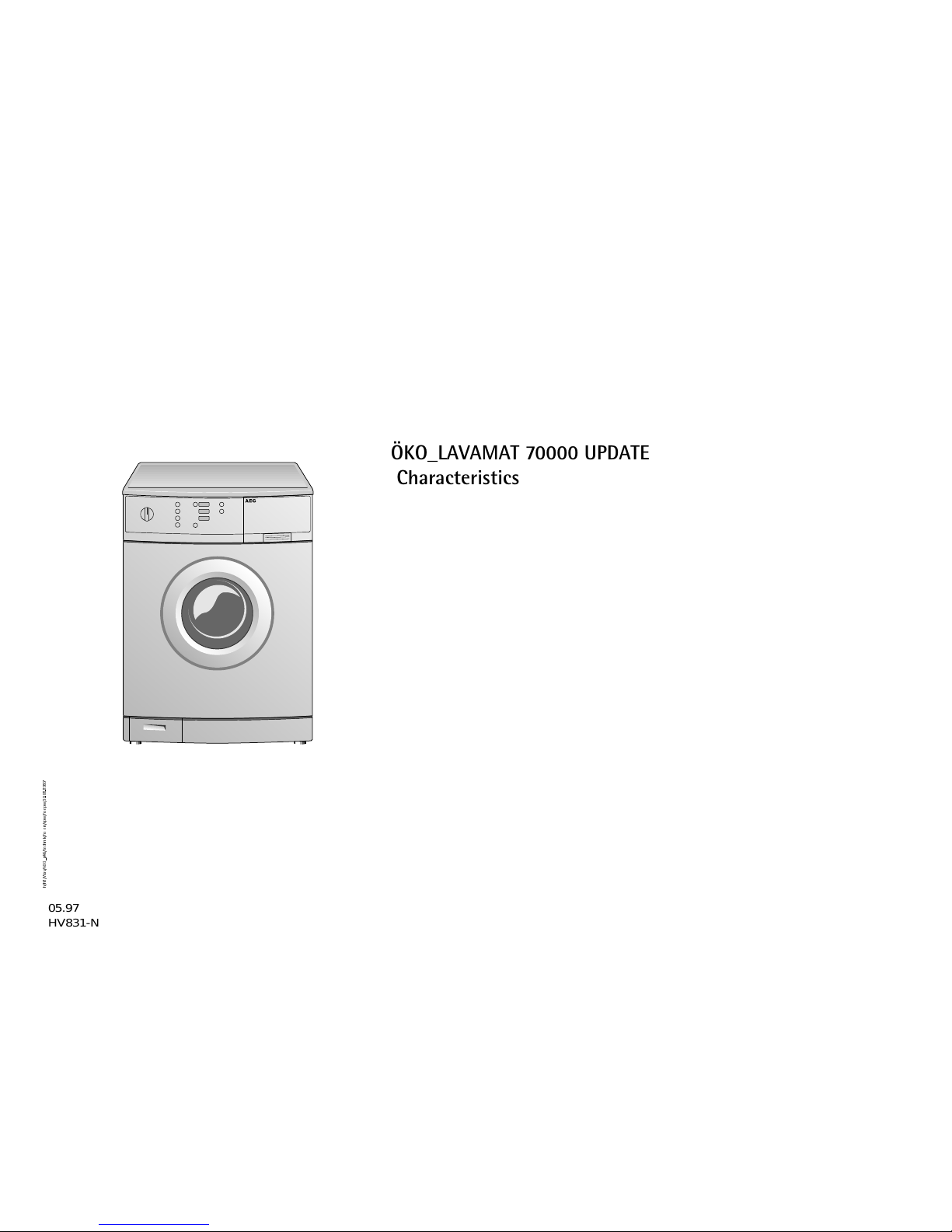

ÖKO_LAVAMAT 70000 UPDATE
Characteristics ( features )
- Electronic machine with Fuzzy - Logic
- Sensortronic foam detection
- Unbalanced load system
- Motor is puls with controled
- Pressure sensor
- Öko tube
- Maximal number of drum revolution 1600 1/min
- Automatic foot
5

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
1. Operating elements / panel

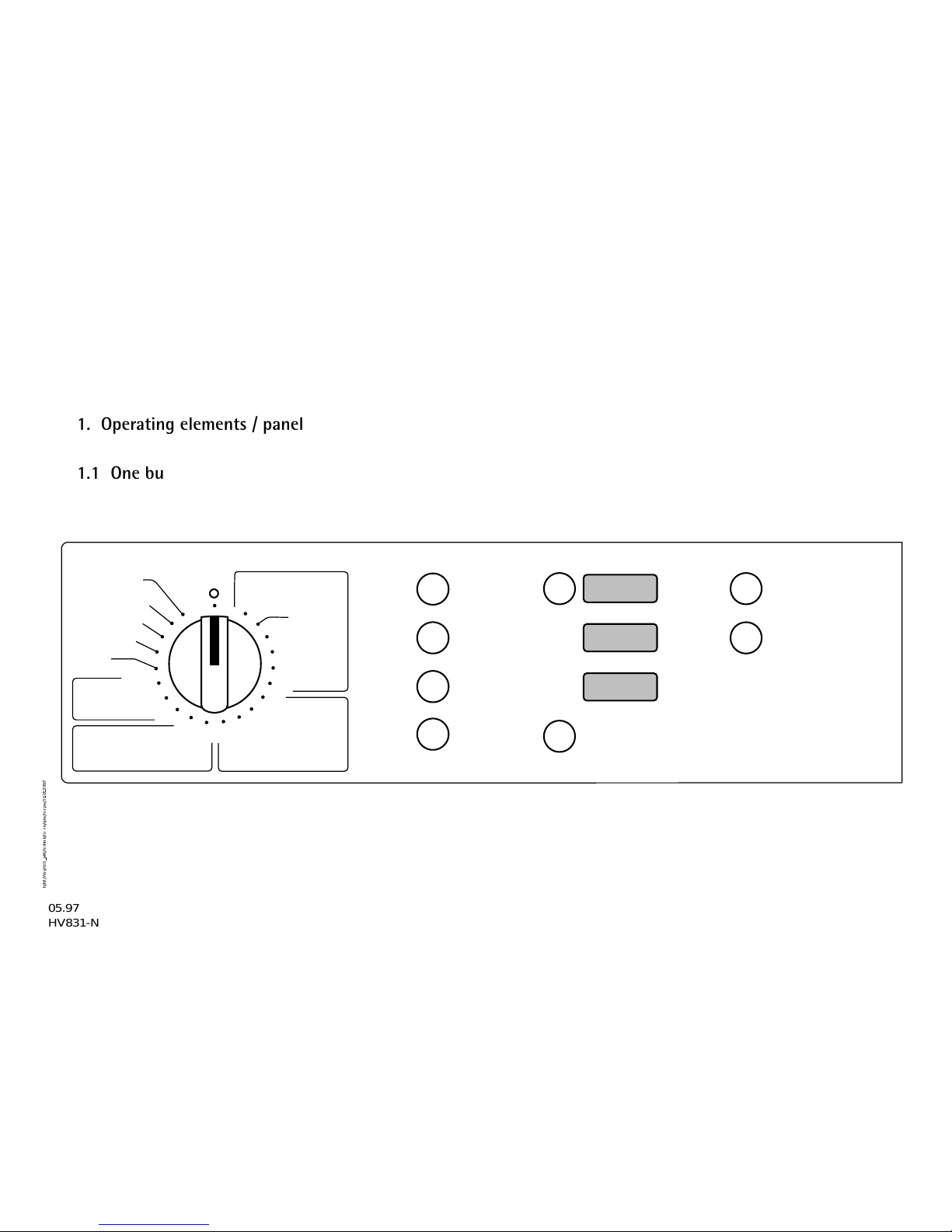

1.1 One button - Input philosophy
Every washing programe with its temperature can be adjusted with the programe selection switch.
Programe adjusting Option button Spin speed Door / Start Programe cycle
Rest moisture Light
Load
Multidisplay
VOR-
WÄSCHE
EIN-
WEICHEN
FEINWÄSCHE
WOLLE
FEIN-
SPÜLEN
3040 30 40 5060
30
30
KALT
40
40
BUNTWÄSCHE
ENERGIE-
SPAREN
KOCHWÄSCHE
SCHON-
SCHLEUDERN
SCHLEUDERN
PUMPEN
SPÜLSTOP
SPÜLEN
HAUPTWÄSCHE
VORWÄSCHE
ÜBERDOSIERT
ENDE
SCHLEUDERN
TÜR
LICHT
START
PAUSE
KURZ
FLECKEN
AUS
50
60
STÄRKEN
95
PFLEGELEICHT
SCHLEUDER-
DREHZAHL
RESTFEUCHTE %
BELADUNG %
LAUFZEIT
ZEIT-
VORWAHL
6

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
1. Operating elements / panel
1.2 The panal
1.2.1Machine class 80000 / background illuminated
- 3 Multidisplays
Spinspeed adjustment
Rest moisture in % / Load in %
Time of duration
- Display for the programe cycle is background illuminated
- Function of the buttons are background illuminated
1.2.2 Machine class 80000
- 1 Multidisplay
Time of duration
- LED´s for the programe cycle
- LED´s for option buttons
7

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
1. Operating elements / panel

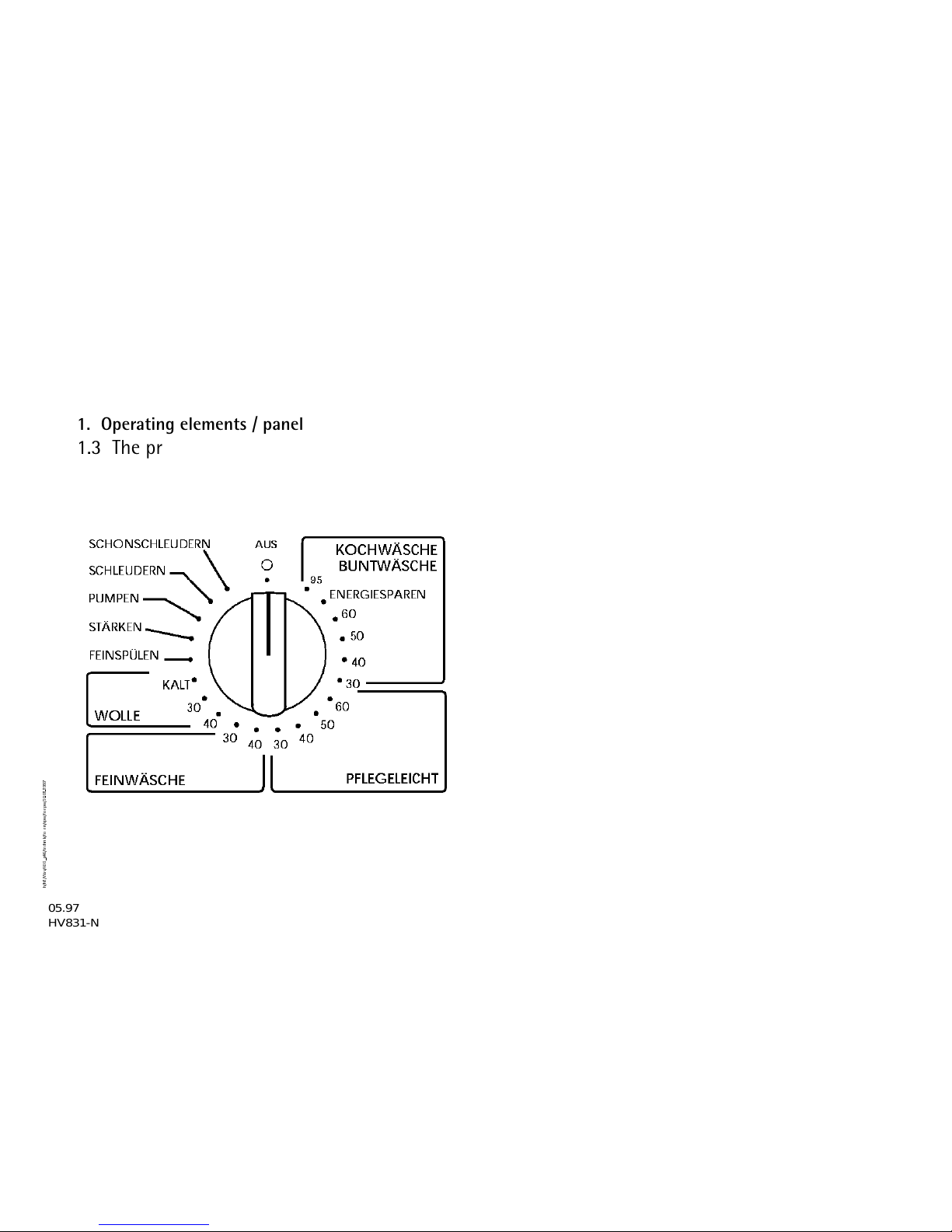

1.3 The programe selection switch
- 15 basic programes
- 5 additional programes
- On / Off - switch integrated in programe selector
- Quick programe correction possible, once programe
has started
8

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
2. Zusatzprogramme
2.1 Gentle spin
Select with programe selection switch
Schonschleudern: ( page 61 )
same as wool - final spin
2.2 Spining
Select with programe selection switch
Schleudern: ( additional final spin page 67 )
same as boiled / colored final spin
9

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N

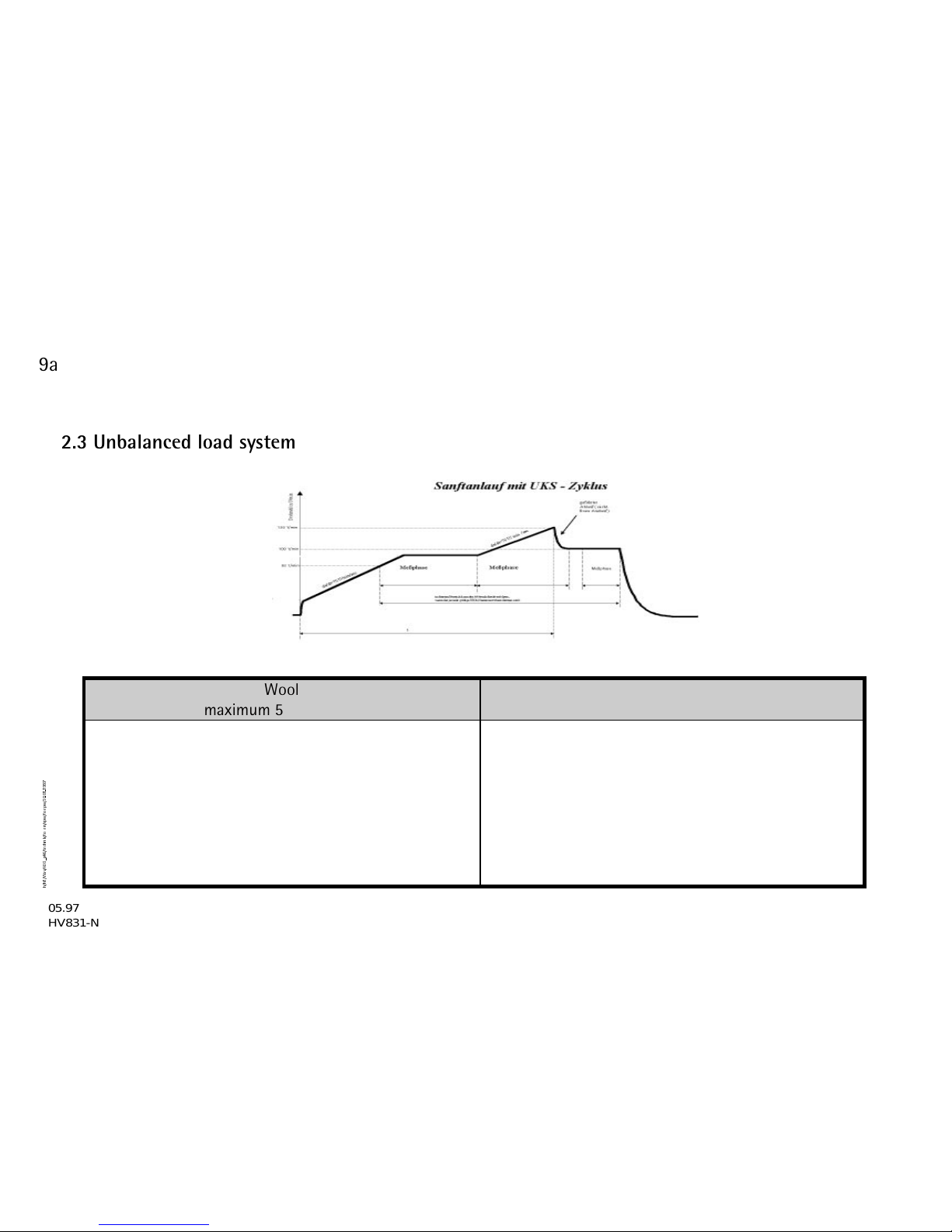

2.3 Unbalanced load system
9a
Wool
maximum 5 repetitions
Boiled / Colored, easy care, delicate wash
maximum 15 repetitions
IAfter this 5 repetitions the unbalanced load limit
will be increased and 10 more repetitions
can be made
Is no unbalanced load recognized the machine will
spin in a normal way.
Is still after the 10 attempt a unbalanced load
recognized, then the acceleration is forced
like boiled/colored.
IAfter the maximum repetitions, forced acceleration
with 2 revolution limits, 1023 1/min or 650 1/min,
depending on the hight of the unbalanced load

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
2. Additional programes
2.4 Pumping
Select with programe selection switch position pumping (Stellg. Pumpen)
Pumping until switching point of the pressure switch (Foam niveau)
additional 30 sec. fixed pumping time
2.5 Starching
Select with programe selection switch position starching (Stellg. Stärken)
It's the same rinse as the 3. rinse from boiled / colored
FFilling to washing level (ca. 5,4 l) chamber 1,
Fafter that filling over softener chamber (5 l),
Fathen 3,4min. reversing 70% mech.
the next programe step for example pumping or spining must be chosen
2.6 Delicate rinse
Select with programe selection switch position delicate rinse (Stellg. Feinspülen)
It's the same as 2 rinsing cycles from wool
FFilling on the highest level, after that 3,4 mim. reversing,
Fathen pumping
FFilling on highest level after that water intake
FSoftener chamber (5 l), then 3,4 min. reversing,
continuing with pumping and final spin like wool ( Gentle spin page 61 )
10

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.1 Prewash
- Can be started infront of each main programe.
- If you chose wool with prewash it is not possible
because this function is locked.
- Prewash is generaly cold
- Different wash mechanics
They depend on the chosen main programe
- It takes about 20 min.
- After the prewash the main programe is automatically started
11

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.2 Soaking
- No prewash can be chosen, rinse stop out of function
- for dried, encrusted stains
- If you chose wool with soaking it is not possible
because this funktion is locked
- soaking with a temperature max. 40°C possible
- Different washmechanics. They depend on the chosen main programme
- Programme time ca. 20Min. plus heating step till soaking stop
(Stoptime: 0,5 h.)
Soaking time (Stoptime) can be adjusted with the pre select starting
time
(Stoptime overall: 0,5 / 1,5 / 2,5 .... and so on in 1 h steps)
- 1,25% mechanic during soaking time
- shortest possible soaking time ca. 60 minutes
- after the soaking the drain pump will start working and
the main programme is startet
12

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.3 Short
a.) For all programmes
- suitable for 5 kg
- shorter Enzymphase*
- shorter washing time
b.) Additionalfor boiled/colored and easy care
- shorter rinse
* = Fuzzy-Enzymphase depending on the laundry
and temperature (only for boiled / colored, easy care)
13

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display

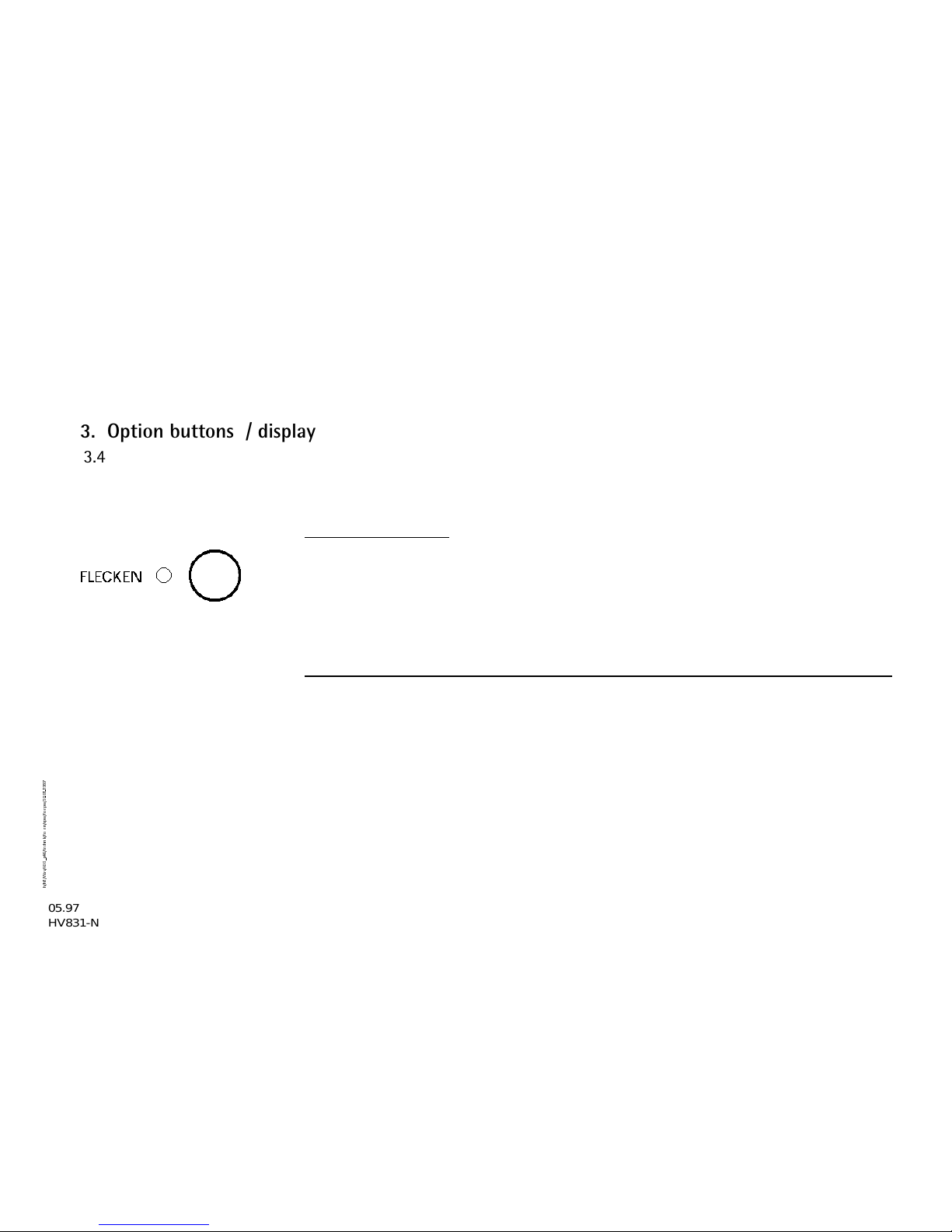

3.4 Spots ( Intensiv )
a. Standard variante
For boiled/colored, easy care and delicate wash:
- the time after the main wash and the additional heating steps
are depending on the programe
-delayed bleaching powder intake after the bio-phase.
b. Only in operation manual / there is no Intensiv printed on the panel
Select with option button Flecken
- This possibility is only shown in the operation manual
- Intensiv / Spots is the same programe
14

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.5 Alternating spin speed
Machine with multidisplay or LED's
- If you reduce spin speed you only influence the speed
of the final spin. Intermidiate spin with fixed spin speed.
- Selected with push button funktion.
- Depending on the programe a spin speed is suggested.
This spin speed can be alternated.
- At boiled/colored the maximum spin speed is suggested.
- At easy care, delicate wash and wool the final spin speed of
1000 1/minis suggested.
The maximum revolution is 1200 1/min.
- You can choose rinse stop for all programes.
S
CHLEUDER-
DREHZAHL
15

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.6 Rest moisture / Load
- without button only multi display
- Only 80000 range with bachground illumination has the display
- If the load is defently recognized ( after approx. 10 min. ),
the rest moisture is displayed
They are alternating displayed in a 1min. rhytm in %
If wool / delicate wash or additional programes are chosen the display is
out of function.
The load is displayed in 10 % steps.
2,5 kg load boiled / colored display 50%
2,5 Kgload easy care display 100%
5,0 Kg load boiled / colored display 100%
If the load is 20 % or more, higher than the maximum load of the
according programe, the multi display shows in any case 120 %.
RESTFEUCHTE %
BELADUNG %
16

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display

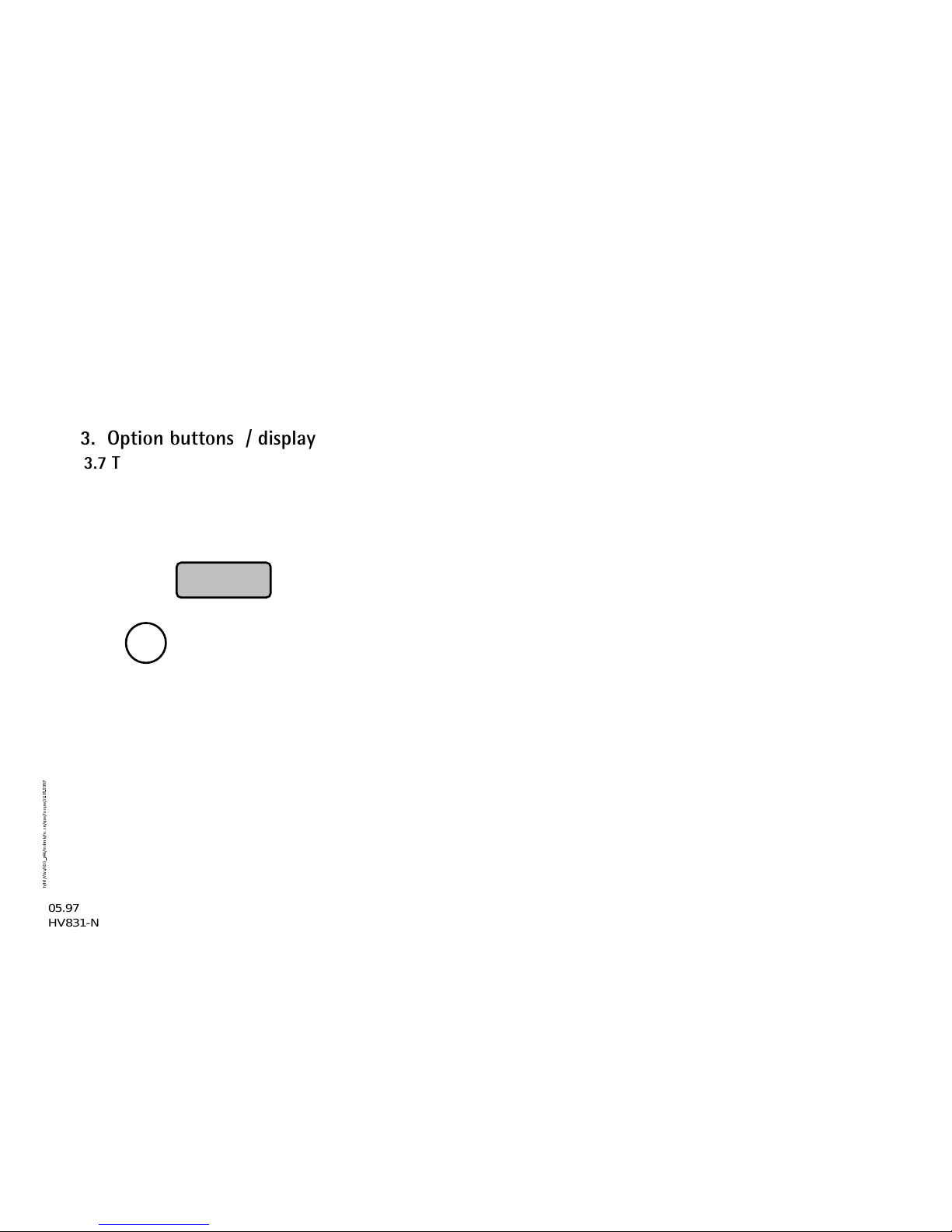

3.7 The Multi display
- indicates pre-selected start time (up to 19h)
- adjustable in 1h steps
- after the start time is chosen the start button must be
pushed to activate the pre-selected start time.
- If you press the break button during the pre-selected start time
the door can be opened.
- indicates the additional soaking time
- once programe has started, indicates the estimated duration
of programe / remaining duration in minutes
- indicates faults ( for example C1)
- update IR - Interface
LAUFZEIT
ZEIT-
VORWAHL
17

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.8 Duration display
- before programe start it indicates the estimated programe time
- indicates estimated duration of programe / remaining duration in
minutes. The duration in minutes can be corrected because of the
sensorlogic Fuzzy - Logic and UKS.
- indicates the end of programe
LAUFZEIT
18

Frontloading Washingmachines Range 1997
GGI
h/h1/Wav/AEG_p46/technik/folien/epw/folepw/30.01.1997
05.97
HV831-N
3. Option buttons / display
3.9 Start - Break button
- After the programe and the options are chosen you start
the machine with the start button.
After that moment you only can change the spinspeed.
- Break: Programe stops in any position.
⇒ During the breaktime the change of the programe isn't possible.
- If you turn the selection switch during the programe you must
restart the machine.
START
PAUSE
19
