About This Document
www.aerocompact.com 5
ABOUT THIS DOCUMENT
These installation instructions describe the procedure for installing the product. Read these assembly instruc-
tions carefully before starting the assembly. Follow the instructions carefully to ensure correct installation of
the product.
Applicable Documents
The following documents are a part of these installation instructions and are absolutely necessary for the
correct assembly of the system:
oProject report from AEROTOOL
oPlanning documents and drawings
Explanation of Symbols
In order to make these assembly instructions easy to understand, uniform safety instructions, symbols, terms
and abbreviations are used. The following symbols indicate notes which are not relevant to safety, but
which make working with the assembly instructions easier.
Requirements for an action are depicted with this symbol. Make sure that all requirements are met before
you carry out the following actions.
Action steps are depicted with this symbol. Carry out the steps in the specified order.
The result of the action is depicted with this symbol.
This note provides useful information for a smooth assembly of the product.
Symbols in Illustrations
Activities
Certain activities are required to carry out the assembly. These activities are shown in the illustrations with
the following symbols.
Check AEROTOOL planning documents Visual inspection
Activity by hand Observe right angle
Optional component,
optional installation method
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
About This Document
www.aerocompact.com 6
Tools
Certain tools are required to carry out the assembly. These tools are shown in the illustrations with the fol-
lowing symbols.
Measuring tape, measure Cordless screwdriver, screwdriver
Pencil, mark Torque wrench,
Observe torque
Chalk line
Target group
These installation instructions are intended for trained personnel who are familiar with the installation of
photovoltaic systems. The personnel should also be familiar with working on roofs and know the local reg-
ulations regarding work safety. The personnel must also observe the instructions in the Safety chapter.
Appropriate use
The CompactPITCH flat roof system is designed exclusively for installing PV modules on tiled roofs or similar
roof coverings. The system must be properly installed in accordance with these installation instructions.
PV modules used with the CompactPITCH system should be approved by the module manufacturer.
AEROCOMPACT accepts no liability for loss of performance or damage of any kind to the PV modules.
Any other use of the CompactPITCH system is considered improper.
Liability, Warranty, Guarantee
These assembly instructions and the project report supplied with the product are integral parts of the
product. The information, data and instructions given in the assembly instructions were up to date at the
time of printing. No claims can be made for products already delivered that deviate from the information,
illustrations and descriptions.
The project report supplied with the system contains the static calculation specific to the location. If the
module layout on the roof changes due to local conditions, e.g. unforeseen interference areas, the structural
analysis must be recalculated. The Aerocompact system is designed and planned using the AEROTOOL soft-
ware.
Aerocompact accepts no liability for damage and malfunctions caused by:
oimproper use
ouse of non-certified components.
ounauthorized modifications to the product.
oimproper handling of the product.
oInstallation errors
oFailure to comply with the installation instructions or planning documents.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
About This Document
www.aerocompact.com 7
Guarantee
The warranty period for the system is 25 years. The warranty period for galvanized steel parts is 10 years. The
guarantee is only valid if the installation is carried out professionally and all system components are pur-
chased from Aerocompact. If the assembly instructions or the planning documents are disregarded, the war-
ranty will be invalidated.
Photovoltaic racking systems are not maintenance-free. Perform maintenance annually and immediately
after unusual weather events, e.g., after heavy storms or heavy snowfall, etc. If the maintenance is not carried
out at the specified interval, the warranty will become void.
General information on liability
We point out that the product is sold within the framework of a sales contract. Assembly/processing by the
purchaser or third parties is not carried out on behalf of or for Aerocompact and must be carried out by qual-
ified personnel strictly in accordance with the assembly instructions. The Aerocompact system must be
designed and planned with the AEROTOOL software. Aerocompact is not responsible for the project-related
structural integrity of the roof structure, for obtaining and documenting the roof manufacturer's approval
for the installation of the corresponding fasteners on the respective roof (in terms of warranties), nor for the
professional execution.
Errors and damage as well as limited or insufficient functionality of the system due to incorrect installation
and/or installation that deviates from the installation instructions and/or the project report (AEROTOOL)
exclude any material defect for which Aerocompact is responsible. In the event of improper handling, the
rights of the buyer due to a material defect shall expire. The system warranty is only valid if all system com-
ponents are purchased from Aerocompact.
Systems with clamping on the short module side
For a system with a clamp on the short side of the module, it is assumed that the module may also be used
in this mounting form (clamp on the short sides of the module). This release can either be generally avail-
able as part of the module installation instructions or can be given by the module manufacturer for specific
projects.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Safety
www.aerocompact.com 8
SAFETY
Requirements of personnel
The person must be physically and mentally fit. Under no circumstances must the installation personnel be
under the influence of medication, alcohol or drugs.
Persons who are not healthy and fit must not work on roofs.
Personnel who are in training must only carry out work under the supervision of qualified personnel who
are authorized to train personnel.
Working safely
The company carrying out the installation is responsible for ensuring that the local regulations for work
safety and accident prevention are observed.
Breakthrough protection
Roof windows, skylights, large ventilation flaps etc. often cannot withstand the weight or impact of a person.
Such objects must be secured in a similar way as the edge of the roof.
Corrugated fibre cement roofs can be prone to breakthrough over the entire surface. Define walking routes
and secure them with load distribution measures.
On roofing or roof structures that do not have sufficient load-bearing capacity (e.g. thin sheets, corrugated
fibre cement), always work with load distribution aids.
Climbing aids
Only use suitable, intact and tested ladders. Set up and secure ladders according to instructions.
Separate rules apply to mechanical climbing aids (lifts, lifting platforms, ...).
Never use the PV mounting system as a climbing aid.
Weather conditions
In case of unsuitable weather conditions, work on the roof must not be continued any longer than neces-
sary - or not started at all.
Never carry out assembly work in strong winds. Strong wind exerts enormous forces on the large-area PV
modules. There is a risk that a module could be torn off the roof and people could be injured.
Never work in wet conditions or at temperatures below the freezing point. Depending on the roof pitch
there is a risk of slipping.
Dangers from the environment
Keep sufficient distance from overhead electrical lines. The following distances must be observed:
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Safety
www.aerocompact.com 9
1 m to 1,000 V
3 m: 1,000 to 11,000 V
4 m: 11,000 to 22,000 V
5 m: 22,000 to 38,000 V
> 5 m: if the voltage is unknown
Protection against falling objects
Areas below the roof on which work is being carried out must be protected from any falling objects. Where
this does not succeed, affected areas must be closed to the public.
Persons involved in the construction project must wear safety helmets.
Personal protective equipment (PPE)
Personal protective equipment is required to prevent injuries during assembly work.
Wear protective goggles when drilling.
Wear safety boots.
Wear cut-resistant work gloves during assembly.
Helmets are required for all persons involved on the construction site.
Use fall protection.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
System Overview
www.aerocompact.com 10
SYSTEM OVERVIEW
Basic components XT
1Middle clamp | CLM10
2End clamp | CLE10
3Installing rail X40, 5500 mm | X40-5500
4Wood Screws 6x100, 6x120, 6x140, 6x160, 8x100, 8x120, 8x140, 8x160 | SDS-W-XXX
5Tile Roof Hook | XT25, XT25CL, XT35, XT35CL, XT35 Flow, XTS40CL, XTS40XCL, XT40-Slim, XT40CL-
Slim, XT40-Slim-Low, XT40CL-Slim-Low, XT40-EL, XT40-EL
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
System Overview
www.aerocompact.com 11
Tile Roof Hook XT
1Tile Roof Hook with T-Bolt Assembly | XT25, XT35
2Tile Roof Hook with Click-Mount Attachment | XT25CL, XT35CL, XT40CL
3Tile Roof Hook with Angle Bracket and Click-Mount Attachment | XTS40XCL
Accessories
1Base-Plate-Bridge 2200 mm | XTR-2200
Installing Rails and Cross Connectors
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
System Overview
www.aerocompact.com 12
1Rail X40, 3300 mm, 4400 mm, 5500 mm | X40-3300, X40-4400, X40-5500
2Rail X50, 3300 mm, 4400 mm, 5500 mm | X50-3300, X50-4400, X50-5500
3Cross Connector X40, X50 | XDL

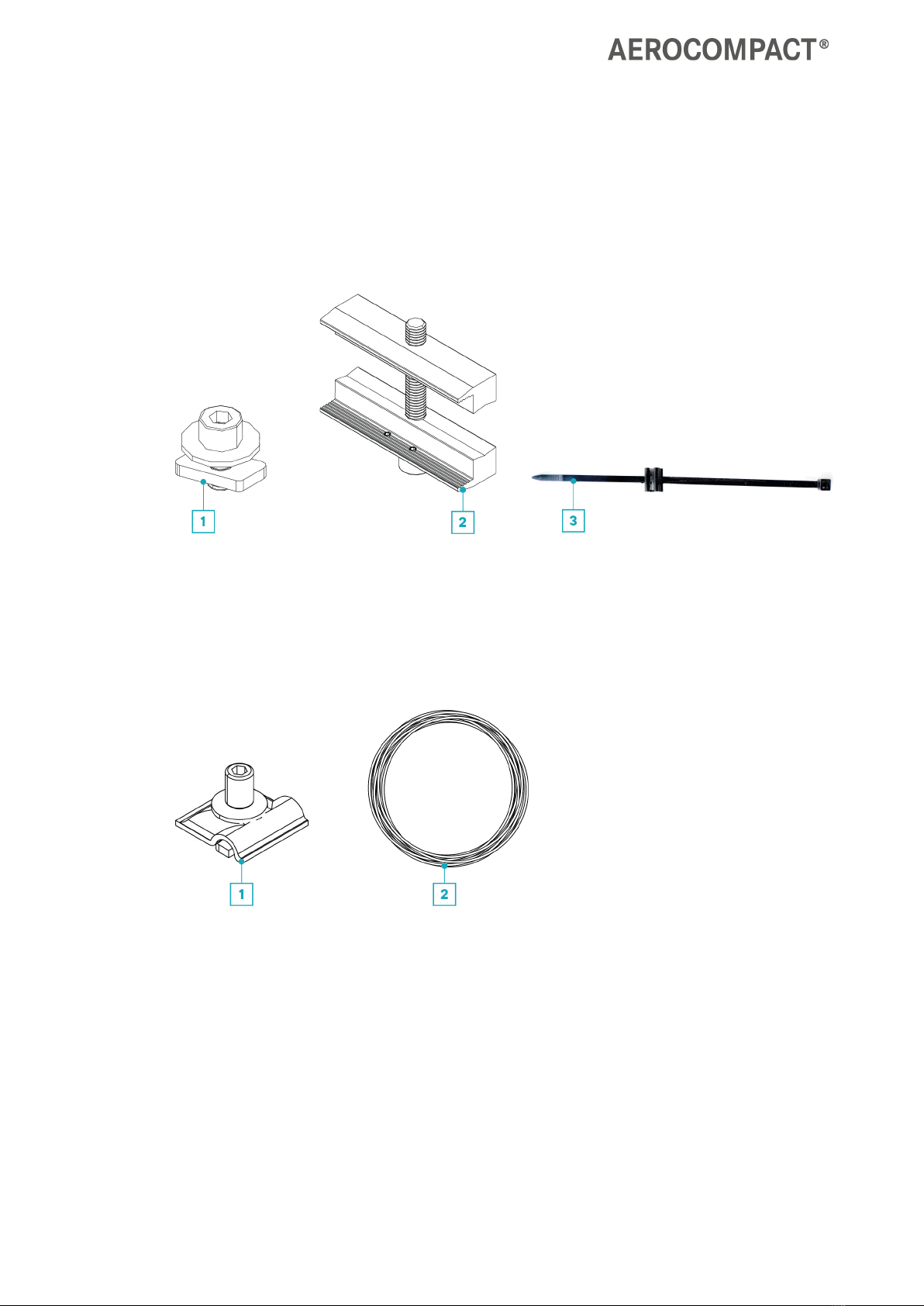

Module Accessories
1Microinverter T-Bolt Assembly for Top Rail-Channel | MA-RA
2Microinverter Clamp for Module Frame | MA-MO
3Cable Tie Clip for Module Frame | CLP-M
Bonding Accessories
1Grounding Clamp 8 - 10 mm | WCL8-10 (please use a UL467 certified Grounding Lug in the USA)
2Aluminium Wire 8 mm for Grounding | AWR8 (please use properly sized copper wire in the USA)
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 13
ASSEMBLY
Measure the area
The roof hooks are screwed down into the rafters.
Take the dimensions of the module field from the Aerotool planning documents.
Determine module size.
Determine the distances between the rafters
Determine and mark positions of roof hooks.
Installing Roof Hook with Base Plate
Expose rafters :
Move or remove roof tile upwards.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 14

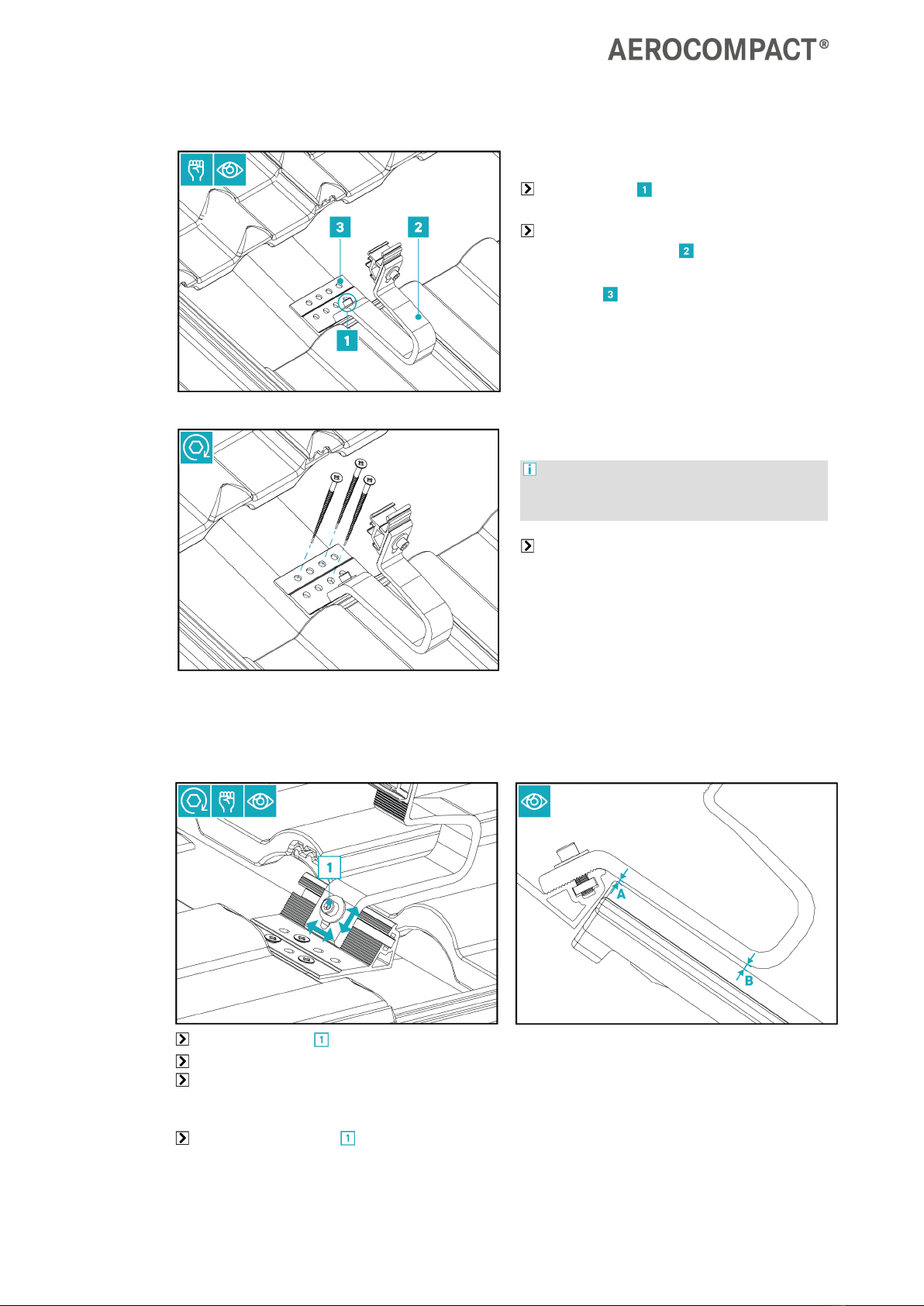

Position base plate and roof hook
Loosen the bolt between the base plate and
the roof hook.
Position the base plate:
Position the roof hook in the valley of the
roof tile.
Base plate requires at least a 6 cm support
width on the rafter.
Installing Roof Hooks
Refer to the Aerotool planning documents for
the exact number of wood screws per roof
hook.
Fasten the roof hook to the rafters with the
wood screws (Torx 30).
Align roof hook
Loosen Allen screw .
Position the roof hook horizontally in the valley of the roof tile.
Position the roof hook vertically:
Distance A: min. 2 mm
Distance B: min. 5 mm
Tighten the Allen screw to 15 Nm or 11 ft-lb.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 15
Installing Base Plate Bridge (optional)
The base plate bridge cannot be used with the following roof hooks: XTS40(CL), XT35(CL)-VLOW, XT40
(CL)-Slim-Low.
The base plate bridge is mounted over 2 rafters. The base plate bridge is used when the roof hook can-
not be mounted directly over the rafters.
Expose rafters :
Move or remove roof tile upwards.
Cut base plate bridge to size
The base plate bridge may be max. 1,000 mm
long.
Determine distance A.
Cut the base plate bridge to length A.
Fasten base plate bridge
The base plate bridge is fastened with 4 Ø 6 mm wood screws or 3 Ø 8 mm wood screws per rafter.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 16
Drill the required holes into the base plate bridge according to the drilling diagram.
Distribute the number of required holes over 2 rows.
Dismantle roof hook from base plate
Loosen screw .
Remove the roof hook from the base plate.
Attach and align roof hook
Fasten the base plate bridge to the rafters with
3 - 4 wood screws (Torx 30) on each side.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 17
Insert the roof hook with the T-Bolt Assembly into the channel of the base plate bridge .
The horizontal distance between the rafter and the roof hook must not exceed 140 mm.
Position the roof hook horizontally in the valley of the roof tile.
Position the roof hook vertically:
Distance A: min. 2 mm
Distance B: min. 5 mm
Tighten the Allen screw to 15 Nm or 11 ft-lb.
Close roofing
Make sure that the roof hooks are aligned horizontally and vertically.
If necessary align roof hooks again.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 18
Place the roof tiles in their original position.
If necessary, cut out a piece of the interlocking at the brick .
Ensure roof tightness. Make sure that the roofing is properly closed around the roof hook.
Installation of Rail X40/X50
Roof hook with T-Bolt assembly
Fasten the rail to the roof hook using the T-Bolt assembly.
Tighten nuts to 15 Nm or 11 ft-lb.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 19
Roof hook with click mount attachment
Attach the rail to each roof hook on the click mount attachment.
Tighten the screws with a torque of 15 Nm or 11 ft-lb.
Roof hook with angle bracket and click mount attachment
Attach the rail to each roof hook on the click mount attachment.
Tighten the screws with a torque of 15 Nm or 11 ft-lb.
Installing the X40/X50 rail in a cross-mount (optional
- not available in the USA)
At each point where the rails cross, the rails are joined together with a cross connector.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

XT
Assembly
www.aerocompact.com 20
Attach a cross connector to the upper rail for each cross connection.
Attach each of the cross connectors with the upper rail to the lower rail.
Make sure that the cross connector is fully clicked into place.
Tighten the Allen screw on each of the cross connectors to 15 Nm or 11 ft-lb.
Install microinverter (optional)
Mount microinverter with the microinverter clamp (MA-MO) onto the module frame.
The microinverter is installed directly onto the module frame.
Install the microinverter onto the module according to the module manufacturer's instructions.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
