AGI UNION IRON Series Installation instructions

Part Number: ITSM0308-R2
Revised: Jun/17
Read this manual before using product. Failure
to follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
TEMP-STOR CONTAINMENT WALL SYSTEM
ALL MODELS
ASSEMBLY & OPERATION

This product has been designed and constructed according to general engineering
standardsa. Other local regulations may apply and must be followed by the operator.
We strongly recommend that all personnel associated with this equipment be trained
in the correct operational and safety procedures required for this product. Periodic
reviews of this manual with all employees should be standard practice. For your
convenience, we include this sign-off sheet so you can record your periodic reviews.
a. Standards include organizations such as the American Society of Agricultural and Biological Engineers,
American National Standards Institute, Canadian Standards Association, International Organization for
Standardization, and/or others.
Date Employee Signature Employer Signature

ITSM0308-R2 3
UNION IRON TEMP-STOR CONTAINMENT WALL SYSTEM
ALL MODELS
TABLE OF CONTENTS
1. Introduction .......................................................................................................................... 5
2. Safety First............................................................................................................................ 7
2.1. General Safety ......................................................................................................... 8
2.2. Installation Safety..................................................................................................... 9
3. Assembly ............................................................................................................................ 11
3.1. Placement .............................................................................................................. 11
3.2. Wall Panel Assembly.............................................................................................. 12
3.3. Containment Wall System Assembly ..................................................................... 14
3.4. Aeration System Installation................................................................................... 15
3.5. Portable Filling Procedure...................................................................................... 15
4. Appendix............................................................................................................................. 17
4.1. Integra Tarp Instructions - Oval.............................................................................. 17
Limited Warranty..................................................................................................................... 21

4ITSM0308-R2
U
NION IRON TEMP-STOR CONTAINMENT WALL SYSTEM
ALL MODELS

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 1. INTRODUCTION
ALL MODELS
ITSM0308-R2 5
1. Introduction
Congratulations on your purchase of a Union Iron Temp-Stor Containment Wall
System.
Temp-Stor temporary grain storage systems are engineered for long life, with
galvanized c-channel construction and support angles fabricated from 7.6 cm x
7.6 cm galvanized angle. They are portable and can be easily moved from one
location to another or reconfigured as individual storage needs change. The
3 m wall panel modules are pre-assembled—the legs just need to be unfolded
and bolted in position. The modular design allows the system to be installed on
slightly uneven surfaces, requiring minimal site preparation.
Before using the Temp-Stor, give this manual to the people who will be
operating and maintaining the equipment. Reading and understanding the
manual will reduce downtime and equipment failure, as well as ensure safe and
efficient operation. A sign-off form is provided on the inside front cover for your
convenience.
Customer:
Type of Equipment:
Order Number:
Serial Number:

1. INTRODUCTION UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
ALL MODELS
6ITSM0308-R2

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 2. SAFETY FIRST
ALL MODELS
ITSM0308-R2 7
2. Safety First
The Safety Alert symbol to the left identifies important safety messages on the
product and in the manual. When you see this symbol, be alert to the possibil-
ity of personal injury or death. Follow the instructions in the safety messages.
Why is SAFETY important to you?
Three big reasons:
• Accidents disable and kill.
• Accidents cost.
• Accidents can be avoided.
SIGNAL WORDS
Note the use of the signal words DANGER, WARNING, CAUTION, and
NOTICE with the safety messages. The appropriate signal word for each
message has been selected using the definitions below as a guideline.
The Safety Alert symbol means ATTENTION, BE ALERT!, YOUR SAFETY IS
INVOLVED.
DANGER
Indicates an imminently hazardous situation
that, if not avoided, will result in serious injury
or death.
WARNING
Indicates a hazardous situation that, if not
avoided, could result in serious injury or
death.
CAUTION
Indicates a hazardous situation that, if not
avoided, may result in minor or moderate
injury.
NOTICE
Indicates a potentially hazardous situation that, if not
avoided, may result in property damage.

2. SAFETY FIRST UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
2.1. GENERAL SAFETY ALL MODELS
8ITSM0308-R2
2.1. GENERAL SAFETY
Important: The general safety section includes instructions that apply to all safety
practices. Any instructions specific to a certain safety practice (e.g., assembly
safety), can be found in the appropriate section. Always read the complete
instructional sections and not just these safety summaries before doing
anything with the equipment.
YOU are responsible for the SAFE use and maintenance of your equipment.
YOU must ensure that you and anyone else who is going to work around the
equipment understands all procedures and related SAFETY information
contained in this manual.
Remember, YOU are the key to safety. Good safety practices not only protect
you, but also the people around you. Make these practices a working part of
your safety program.
• It is the equipment owner and the operator's responsibility to read and
understand ALL safety instructions, safety decals, and manuals and follow
them before assembling, operating, or maintaining the equipment. All acci-
dents can be avoided.
• Equipment owners must give instructions and review the information initially
and anually with all personnel before allowing them to operate this product.
Untrained users/operators expose themselves and bystanders to possible
serious injury or death.
• Use this equipment for its intended purposes only.
• Do not modify the equipment in any way. Unauthorized modification may
impair the function and/or safety, and could affect the life of the equipment.
Any modification to the equipment voids the warranty.
• Do not allow children, spectators, or bystanders within the work area.
• Have a first-aid kit available for use should the need arise, and know how to
use it.
• Provide a fire extinguisher for use in case of an accident. Store in a highly
visible place.
• Wear appropriate protective gear. This list includes,
but is not limited to:
• a hard hat
•gloves
• protective shoes with slip-resistant soles
• protective goggles
• hearing protection
• For Powered Equipment: before servicing, adjusting, or repairing powered
equipment, unplug, place all controls in neutral or off position, stop the
engine or motor, remove ignition key or lock out power source, and wait for
all moving parts to stop.

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 2. SAFETY FIRST
ALL MODELS 2.2. INSTALLATION SAFETY
ITSM0308-R2 9
• Follow good shop practices:
• keep service area clean and dry
• be sure electrical outlets and tools are properly
grounded
• use adequate light for the job at hand
• Think SAFETY! Work SAFELY!
2.2. INSTALLATION SAFETY
• Check all equipment for damage immediately upon arrival. Do not attempt
to install a damaged item.
• Have 2 people handle the heavy, bulky components.

2. SAFETY FIRST UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
2.2. INSTALLATION SAFETY ALL MODELS
10 ITSM0308-R2

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 3. ASSEMBLY
ALL MODELS 3.1. PLACEMENT
ITSM0308-R2 11
3. Assembly
3.1. PLACEMENT
The area of construction should be stripped of all vegetation and proof rolled
with a large vibratory compactor. Compact any fill necessary to bring the
ground surface to grade to a minimum of 98% of the maximum dry density
obtained from the standard Proctor compaction test.
• Crown: A minimum of 1.25 cm per 3 m fall to the outside is recommended to
allow for drainage away from the storage area. The area of compaction
should extend approximately 3 m beyond the end of the base angle.
Note: Information is provided only as a guideline. Consult your soils engineer for
formal site-specific recommendations.
Figure 3.1 Wall Panel Arrangement
Important: The capacity of the Temp-Stor Containment Wall System is based on
containment walls being filled with grain to the top of the upper steel wall panel
using a 23° average angle of repose (the angle at which the surface of a freely
formed pile of grain makes to the horizontal). The actual angle of repose will
vary depending on grain moisture content, foreign material, piling method, and
type of grain. It is the responsibility of the customer to advise Union Iron if
actual conditions will vary from the above design parameters.
Warning: Before continuing, please reread the safety information relevant to this section at
the beginning of this manual. Failure to follow the safety instructions can result in serious
injury, death, or property damage.

3. ASSEMBLY UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
3.2. WALL PANEL ASSEMBLY ALL MODELS
12 ITSM0308-R2
3.2. WALL PANEL ASSEMBLY
Temp-Stor Containment wall panels are shipped collapsed with the support
angles folded underneath and bolted together for shipment.
1. To erect the wall panel, remove the 1.6 cm x 5 cm large shipping bolts
connecting the center holes in the wall support angles, lower base angles,
and upper support brace angles. See Figure 3.2.
Figure 3.2 Folded Containment Panel
2. Swing the containment panel upward. Swing the upper support brace
angles upward.
3. Connect the upper support brace angles to the wall support angle with the
1.6 cm x 5 cm large shipping bolt by inserting it in the second hole from the
top of the upper support angle as shown in Figure 3.3.
NOTICE
Failure to properly prepare the site could result in shifting of
the wall modules and loss of grain from the Temp-Stor
system.
NOTICE
Donotliftthecontainmentpanelbythetopheaderboardas
this may damage the board.

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 3. ASSEMBLY
ALL MODELS 3.2. WALL PANEL ASSEMBLY
ITSM0308-R2 13
Figure 3.3 Partially Assembled Containment Panel
4. Remove the two 1.6 cm x 3.8 cm large bolts connecting each lower support
brace angle to the upper support brace angle. Using the 1.6 cm x 3.8 cm
bolts, connect the lower support brace angles to the wall support angles
and lower base angles in the holes as shown in Figure 3.4.
Figure 3.4 Fully Assembled Containment Panel

3. ASSEMBLY UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
3.3. CONTAINMENT WALL SYSTEM ASSEMBLY ALL MODELS
14 ITSM0308-R2
5. Securely tighten all bolts.
6. Repeat until all wall panels are assembled.
3.3. CONTAINMENT WALL SYSTEM ASSEMBLY
1. Set all containment wall panels in place on the pad. Butt the wall panels
together as close as possible. See Figure 3.5.

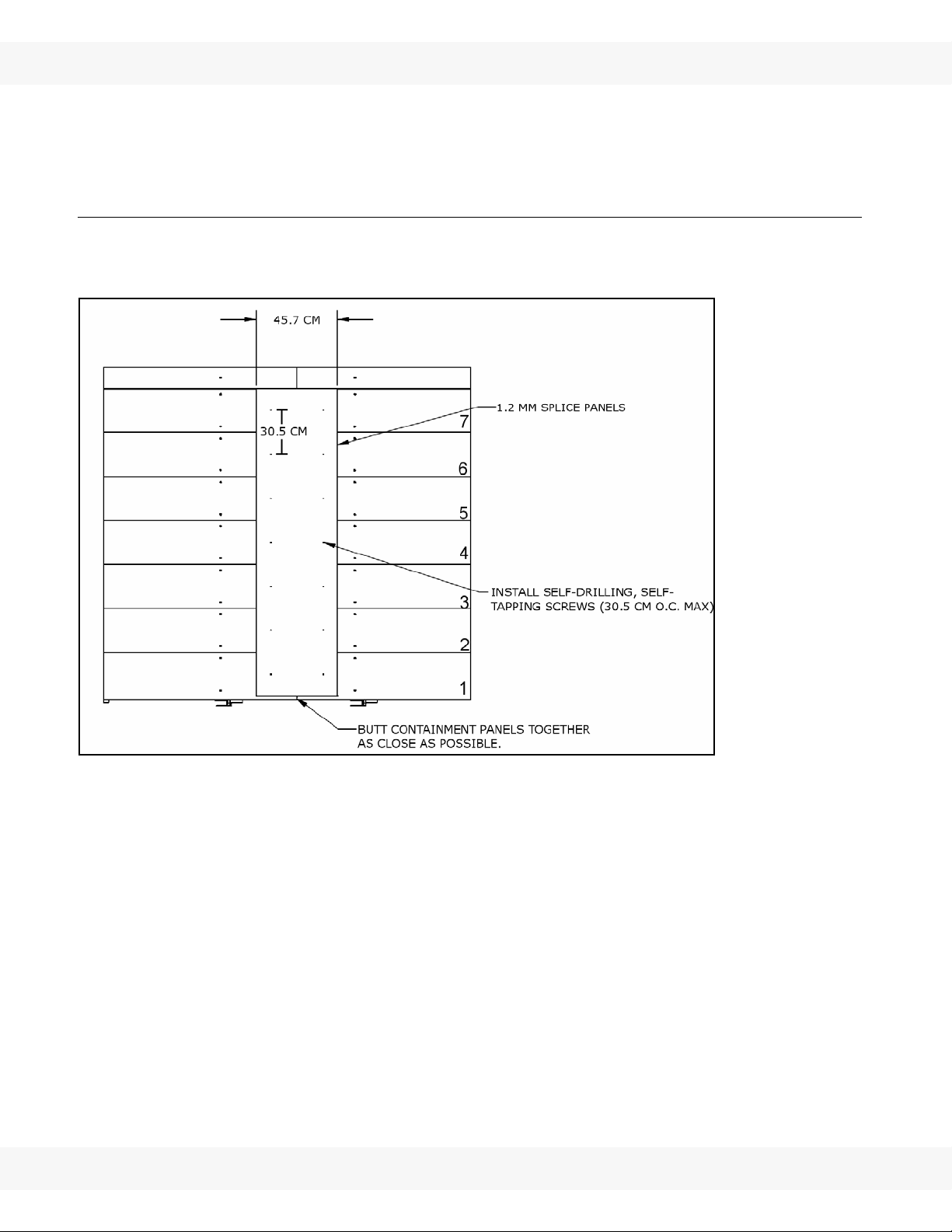

Figure 3.5 Splice Panel
2. Using a large hammer, drive the anchor rods through the 2.54 cm holes in
the lower base angles as shown in Figure 3.6.
Note: The 1.22 m and 1.83 m Temp-Stor Containment Wall Systems require 91.4 cm
anchor rods, while 2.74 m systems require two 1.22 m anchor rods per lower
base angle. See Figure 3.6.
3. Center 45.7 cm wide x 1.2 mm splice panels over joints between
containment wall panels, and attach to wall panels with 1.11 cm x 2.54 cm
large self-drilling, self-tapping screws, 30.5 cm apart (maximum). See
Figure 3.5.
4. Thread the .95 cm cable through the upper holes of the wall support angles
as shown in Figure 3.4. Tension the cable as required using the cable
clamps and turnbuckles. Panels may be removed for filling and emptying
by securely attaching the cable to the wall panels on either side of the
opening, and tensioning as outlined above.

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 3. ASSEMBLY
ALL MODELS 3.4. AERATION SYSTEM INSTALLATION
ITSM0308-R2 15
Figure 3.6 Anchor Rods
5. When the panels removed are reset, thread a shorter cable through the
upper holes of the wall support angles on these wall panels and attach to
the wall panels on either side of the opening, tensioning as required.
Note: The 2.74 m Temp-Stor Containment Wall Systems require two cables, one at
the top of the wall panels and one at the midpoint of the wall panels. See Figure
3.4.
For removing panels, Tek Screws on splice panel should be installed from
outside for accessibility.
3.4. AERATION SYSTEM INSTALLATION
Install the aeration piping system as shown in the assembly drawing for your
equipment. Holes for the aeration piping may be cut in the wall panels using
either a torch or a reciprocating saw.
3.5. PORTABLE FILLING PROCEDURE
1. Positioning an auger or belt conveyor on one end of the Temp-Stor
Containment Wall System, begin filling the unit until the grain has reached
the top of the containment walls, forming a pile with an approximate 23º
angle of repose.
2. Continue filling until entire Temp-Stor Containment Wall System is at full
capacity.

3. ASSEMBLY UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
3.5. PORTABLE FILLING PROCEDURE ALL MODELS
16 ITSM0308-R2

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 4. APPENDIX
ALL MODELS 4.1. INTEGRA TARP INSTRUCTIONS - OVAL
ITSM0308-R2 17
4. Appendix
4.1. INTEGRA TARP INSTRUCTIONS - OVAL
1. Place a pipe through the core of the roll. Hang chains from a forklift down to
each end of the pipe. Remove wrapping, being careful not to cut grain
cover. Position the roll about two-thirds of the way back the length of the
bunker with the open edge white side facing up, directed towards two-thirds
of the pile. See Figure 4.1.
Figure 4.1
2. Attach a rope to the end layers of the roll. Place about 3 old tires at the
peak of the pile. Run the rope through them over to the other side and tie to
a pulling vehicle. Use another rope tied to the tires at the peak and anchor it
near the roll. See Figure 4.2.

4. APPENDIX UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
4.1. INTEGRA TARP INSTRUCTIONS - OVAL ALL MODELS
18 ITSM0308-R2
Figure 4.2
3. Pull on the rope, raising the cover to the peak; release the rope holding the
tires, letting them come over with the cover. See Figure 4.3.
Figure 4.3
4. Position 6 to 8 people across the cover and pull it out to cover two thirds of
the pile. Then, do the same with the last one third of the pile. Pull cover
tight. Turn on the fans. See Figure 4.4.

UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM 4. APPENDIX
ALL MODELS 4.1. INTEGRA TARP INSTRUCTIONS - OVAL
ITSM0308-R2 19
Figure 4.4
5. Trim cover so that it has about a 60 cm overhang. Wrap a 5 cm x 10 cm
piece of lumber in the edge of the cover as a batten strip and screw or nail
it to the bunker wall.

4. APPENDIX UNION IRON - TEMP-STOR CONTAINMENT WALL SYSTEM
4.1. INTEGRA TARP INSTRUCTIONS - OVAL ALL MODELS
20 ITSM0308-R2
