AGIL ET119W-C User manual
②
①
Ax4 Bx8
Ax4
C
4x4
Bx8
C
4x4
C
A
2
3
1
4
Cx1 Dx4
①
②
③
④
1
2
2
1
①
②
②
④
③
③
C
B
③
②
②
x1
x1
D
DD
④
45KG
25mm/s
100-240V
720mm
1220mm
2
Technical Data
Column Stage
Maximum Load Capacity
Max Speed
Input Voltage
Lowest Position
Highest Position
Desktop Dimension 1204mmx604mm
ET119W-C
Model No.
Accessory List
Attention: The drawings below are only for guidance and they may differ slightly from the product and fittings received. Please contact our customer
service department if you have any queries.
M6 M6 4x4 Cable Tie
Part List Installation Instruction
No. Part Qty
Tabletop
Assemblies
Lifting column
Pedestal
Power Cord
STEP 1 Install the lifting columns
Short side of
the desktop
long side of the
lifting column
Rotate the column after inserting it to the
bottom to avoid height difference. The
long side of lifting column is parallel to
the short side of the tabletop.
Install the lifting column (2) to the tabletop(1),
then tighten the screws(A) with allen key (C). Tighten eight screws (A) with 4x4 allen key
Tighten
Insert
Insert the hexagon head of the
column along the wiring trough.
Rotate the column after inserting it,
making the screws on the supporting
beam into the column slot
STEP 2 Install the pedestals
Install the pedestals (3) to the lifting columns (2) with the
screws (B) and tighten it with 4x4 allen key (C).
STEP 3 Connect all cables to the adaptor
Adaptor
Motor Cable
Do not connect the power
before the wiring is completed
Connect the motor cable, power
cord (4) and adaptor as shown in
the figure, and use the cable tie (D)
to sort out and fix the wires.
Tear
Fix
Manage
the cables
Fix the cables to
the tabletop with
cable tie(D) to
keep desk clean.
废弃物处理
此标志表示该产品不应与其它生活垃圾一起
进行处理。为了防止随意处理造成对环境和
人类的潜在危害，应该对其进行回收以促进
材料资源的可持续再利用。在返还您使用的
设备时，请使用回收和收集系统或联系购买
的零售商。他们能够在确保环境安全情况下
进行回收。
注意事项
1. 供电电源：AC100V-240V，频率50/60Hz ；
2. 使用环境：0-40℃；
3. 清洁之前，必须拔下电源插头，清洁时用略微潮湿的抹布擦拭表面灰尘，注意
不要让水滴流入部件内部，不要损坏连接线，不要 碰松插头的连接；
4. 电器盒内含有电子元器件、金属、塑料、导线等等，应按照各国使用的环境法
规来进行处理，不要按照常规家庭垃圾处理。
5. 在使用产品前，请认真检查确定产品已完全正确安装。
6. 初次使用产品前，请熟悉产品的所有功能和程序设置。
7. 不允许儿童在该产品上玩耍。儿童在产品上玩耍，有些行为是难以预测的，由
此而导致的危险后果厂家不负责任。
8. 因结构引起的多楔带或制动系统的轻微噪音，对器材的使用不会有任何的影响。
9. 禁止使用腐蚀性或磨蚀性材料来清洁器材。必须确保使用的清洁剂不会污染环境。
10.在了解相关危险的情况下操作，八岁或八岁以上儿童以及存在身体感官等缺陷，
心智不健全的人员请在正确的监护和指导下使用。儿童不得随意接触玩耍。
11.儿童不得在没有监护的情况下进行清洗和用户维护。
12.如果出现电源线损坏的情况，必须由制造商或相关专业人员进行更换以避免受伤。
13.请确保您的操作环境没有任何的危险源，例如不要将您的工具随处乱丢。并始终
谨慎处理包装材料，以避免各种可能的危险，如儿童玩耍塑料袋，可能造成的窒
息危险！
14. 如有必要请保留该器材的原始包装，以备您今后运输时使用。
LED显示屏
按键
控制使用方法
常见异常处理
以下提示将帮助您检测并消除常见异常和错误。如果您遇到的一个
异常没有列在下表，请与您的供应商联系。所有这些异常或者错误
只能够由制造商或者受过专门培训的人员进行调查以及纠正。
● 代码处理：
a.复位功能定义：LED显示屏显示“ ”，此时一直按住向下键直到升降桌降到最低位置并反弹上升至停止，显示屏显示最低高度，松开“▼”向下键，复位结束，桌子可以正常使用；
b.如果出现"E01"或者"E02"字样，请让桌子休息18分钟以上可正常使用；
d.如果执行以上操作，桌子仍无法正常运行，请联系客服。
c.如果出现其它代码按“▼”向下键没有反应，请确认连接线无破损且连接都正常后，断电10秒以上，重新上电再按“▼”向下键显示屏显示" "字样，再长按”▼“向下键复位；
1.触按上/下键可实现升降功能；快速双击上/下键2S，即可实现持续升降功能；桌面运行至最低点，显示bot；
桌面运行至最高点，显示top；
2.按键：1、2、3、4为四档高度记忆键，长按3s即可记录当前高度；
3.同时按3和4键 , 长按5S，会出现RST复位指示，继续按“▼”下键，直到升降桌降到最低位置并反弹上升后
停止， 即可正常使用。
4.带有1个Type-A和1个Type-C接口。Type-A接口和Type-C接口可以为其他电子产品供电，支持充电协议：
单口输出Type-A：QC2.0/3.0, 3.6-12V, 27W Max；
单口输出Type-C：PD3.0,5V/3A,9V/3A,12V/3A,15V/3A,20V/2.25A,45W Max；
双口输出 A+C:5V/3A。桌子升降时，停止输出；待停止升降后，会重新开始输出。
5.灵敏度切换，长按上键+下键，切换成功后蜂鸣器响一声，数码管显示"A-0"关闭遇阻回退；数码管显示"A-1"
遇阻回退灵敏度等级1；数码管显示"A-2"遇阻回退灵敏度等级2，数码管显示"A-3"遇阻回退灵敏度等级3；灵
敏度等级为3时最灵敏。
异常现象 处理方法
电子功能无法正常运行
进行复位操作；
断电 分钟后再重新通电；18
检查连接线连接是否正常；
上升速度慢
设备下滑
设备经常进入复位状态
上升和下降高度不够
底部无法上升
超工作制要求工作后
（ ）Duty cycle:Max 2min on/18min OFF
只降不升或只升不降
检查设备负载是否太重超过 KG;
45
A01 B01
D01
E01
进口商：XXXXX（业务根据欧盟客户订单填写）
地址：XXXXXX（业务根据欧盟客户订单填写）

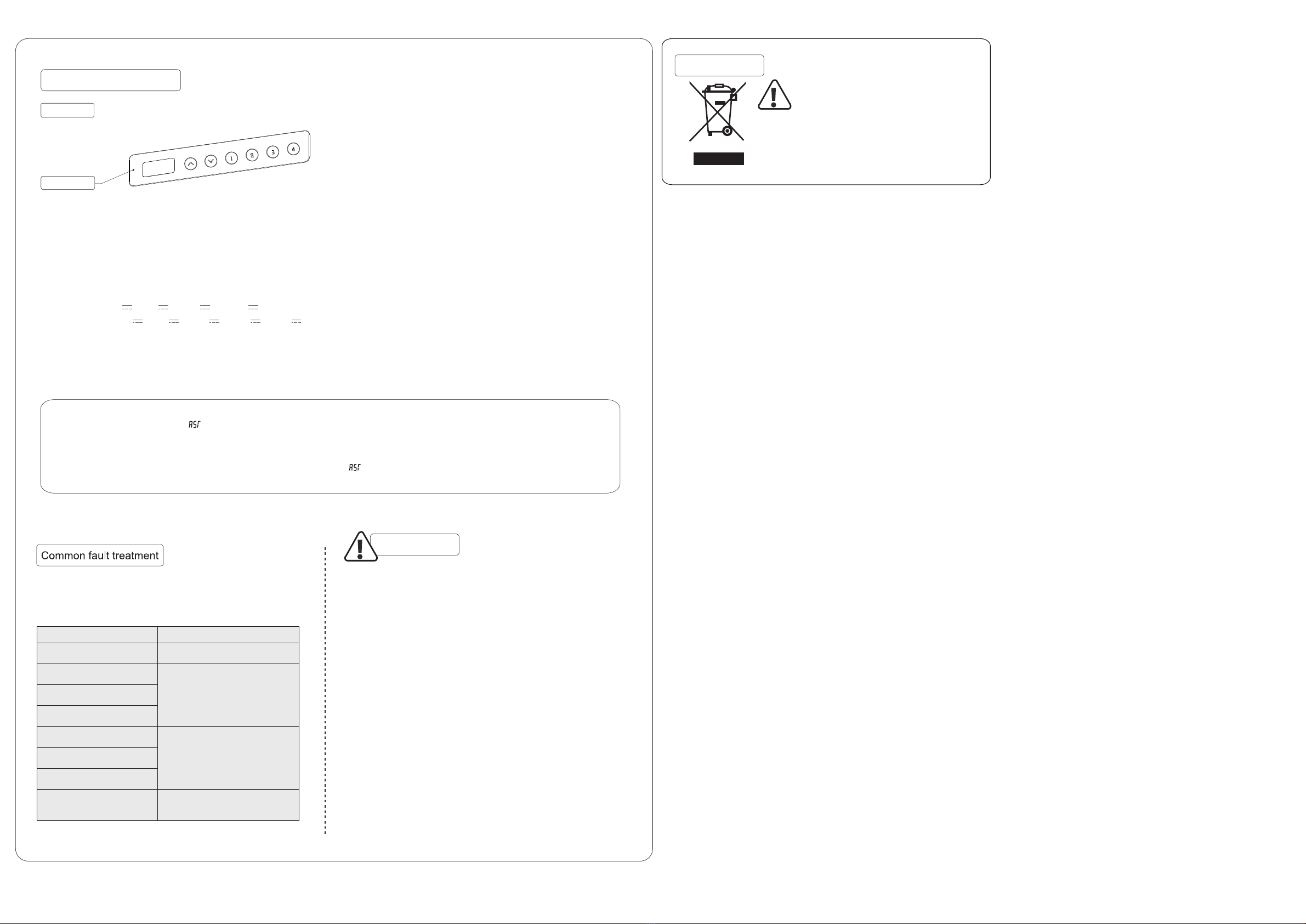

Operation Instruction
Key button
LED Screen
1. Press the up/down button to adjust the height of the desk. When the desktop runs to the lowest point, the screen will display “bot”.
Otherwise, the desktop will display “top” when the desktop runs to the highest point.
2. Key button: “1”,“2”,“3”,“4” are the four height memory keys, long press the button about 3 seconds to record the current height.
3. Press the “3” and the “4” buttons simultaneously for 5 seconds, “RST” will be displayed on the screen, keep pressing “▼” button until the desk
reaches the lowest point and then bounce up to stop, meaning the desk can work normally.
4. The desk has one Type-A port and one type-C port. Each port can power other digital devices, supporting charging protocol:
One USB port: 5V 3A/9V 2A/12V 1.5A/20V 1.35A 27W Max,
One Type-C port: 5V 3A/9V 3A/12V 3A/15V 3A/20V 2.25A, 45W Max,
Dual ports: 7.5W+7.5W. Output will be cut when the desk is rising or going down and when the movement stops, the port will start to output.
5. Long press the “up” and “down” button simultaneously to adjust the sensitivity of anti-collision function with a buzzer sound. The anti-collision
function will be closed when the screen shows “A-0”; the sensitivity is at level “A-1” when the screen shows “A-1”, the sensitivity is at level “A-2”
when the screen shows “A-2”, the sensitivity is at level “A-3” when the screen shows “A-3”, the level “A-3” has the maximum sensitivity.
●Troubleshooting:
a. Reset: When the LED shows" " , press “▼” button until the desk reaches its lowest height and rebounds to stop, it means the reset
has been finished.
b. When “step a” doesn't work and the LED shows "E01" or "E02", please retry 18 minutes later.
c. If the “▼” button doesn't work, please check the cable connection and then cut off the power for at least 10 seconds. Reconnect to the
power and press “▼” button to start the reset process when it shows the " ".
d. If all these above process are inefficient, please contact our customer service.
Method
The desktop could not function
Rising in a low speed
The desk moving downwards
without any operation
Automatically Self-Reset
The following tips will help you detected and eliminate the common fault and
error. If the fault you met is not listed below, please contact with your supplier.
Only the manufacturer and professionals are capable for investigating and
correcting those fault and error.
Fault phenomenon
Go down but not go up or go up
but not go down
The upper and downward
height is not enough
The desk could not lifted
Overwork
(Duty cycle: Max 2min on/18min OFF)
Check if all the cables well
connected;
Check if overloaded,
max loading: 45kg;
Reset;
Restart after suspend for 18mins while
connecting with power.
Attention
1. Power supply: AC100V-240V,50/60Hz
2. Service Environment: 0-40℃
3. Unplug the power plug before cleaning, wipe the dust on surface with slight wet
dishcloth when cleaning, be careful not to let the drops into the internal parts, not loose
the connector.
4. The electric box contains electronic components, metals, plastics, wires etc., so
dispose of it in accordance with each country's environmental legislation, not the
general household waste.
5. Check carefully to ensure correct and complete assembly before using.
6. Be familiar with all functions and program settings of the product before first use.
7. Children are forbidden to play on the product because of unforeseen action when
playing, so any dangerous consequences caused by this improper action will not be on
manufacturers.
8. Slight noise caused by the V-ribbed belt or brake system due to structure will not
have any effect on the use of the equipment.
9. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure
that the cleaner used will not pollute the environment.
10. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance.
11. Cleaning and user maintenance shall not be made by children without supervision.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person in order to avoid a hazard.
13. Please make sure there is no hazard sources in your operating environment. e.g.,
do not litter the tools around. Always be careful to treat the packaging materials in order
to avoid any possible danger, e.g. plastic bag may lead to choking hazard to children.
14. Keep the original package of the equipment if necessary in case of the future use in
transportation.
Waste disposal This marking indicates that this product should
not be disposed with other household wastes.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can take this
product for environmental safe recycling.
