V28BChapter2 HardwareInstallation
6
Chapter 2
Hardware Installation
This section gives you a step-by step procedure on how to install your system.
Follow each section accordingly.
2-1 CPU
2-1.1 CPU Installation Procedures
The motherboard uses a CPU socket called Socket 370 for easy installation, please
follow the below figure to install the CPU.
2-1.2 CPU Clock Ratio Setting
System Frequency= CPU Clock Ratio CPU Clock Frequency
The motherboard support jumperless CPU type setting, no jumper or switch is needed.
This motherboard also support CPU over-clock by adjusting the CPU Clock Frequency
and CPU Clock Ratio under BIOS Setup.
The available settings are:
-CPU Clock Frequency
66 –166 linear step1MHz over clock
-CPU Clock Ratio
3x/ 3.5x / 4x / 4.5x / 5x / 5.5x / 6x / 6.5x / 7x / 7.5x / 8x
Control Lever
Pin-1Cut ed
g
e
Pin-1Cut edge

V28BChapter2 HardwareInstallation
7
Clock Frequency:
Clock
Frequency BSEL0
BSEL1
66/Auto Disabled Disabled
100 Enabled Disabled
133 Enabled Enabled
When both BSEL 0 and BSEL 1 disabled, the motherboard will auto-detect and set CPU
clock frequency to its default(66 / 100MHz)
When BSEL 0 enabled BSEL 1disabled CPU will be forced to run at clock
frequency100MHz;
When both BSEL 0 and BSEL 1 enabled CPU will be forced to run at clock frequency
133MHz.
Warning:
At this moment, Intel PPGA 370 Celeron CPU normally
support 66/100MHz CPU Clock Frequency P
BSEL 1 BSEL 0

V28BChapter2 HardwareInstallation
8
Coppermine CPU support 100 / 133MHz clock frequency
CPU clock frequency recommended the other
CPU133-166MHz are available only for internal test or
end-user over-clocking testing which may cause your
system unstable or error damage.
2-1.3 Memory Installation
System Memory Installation Procedures

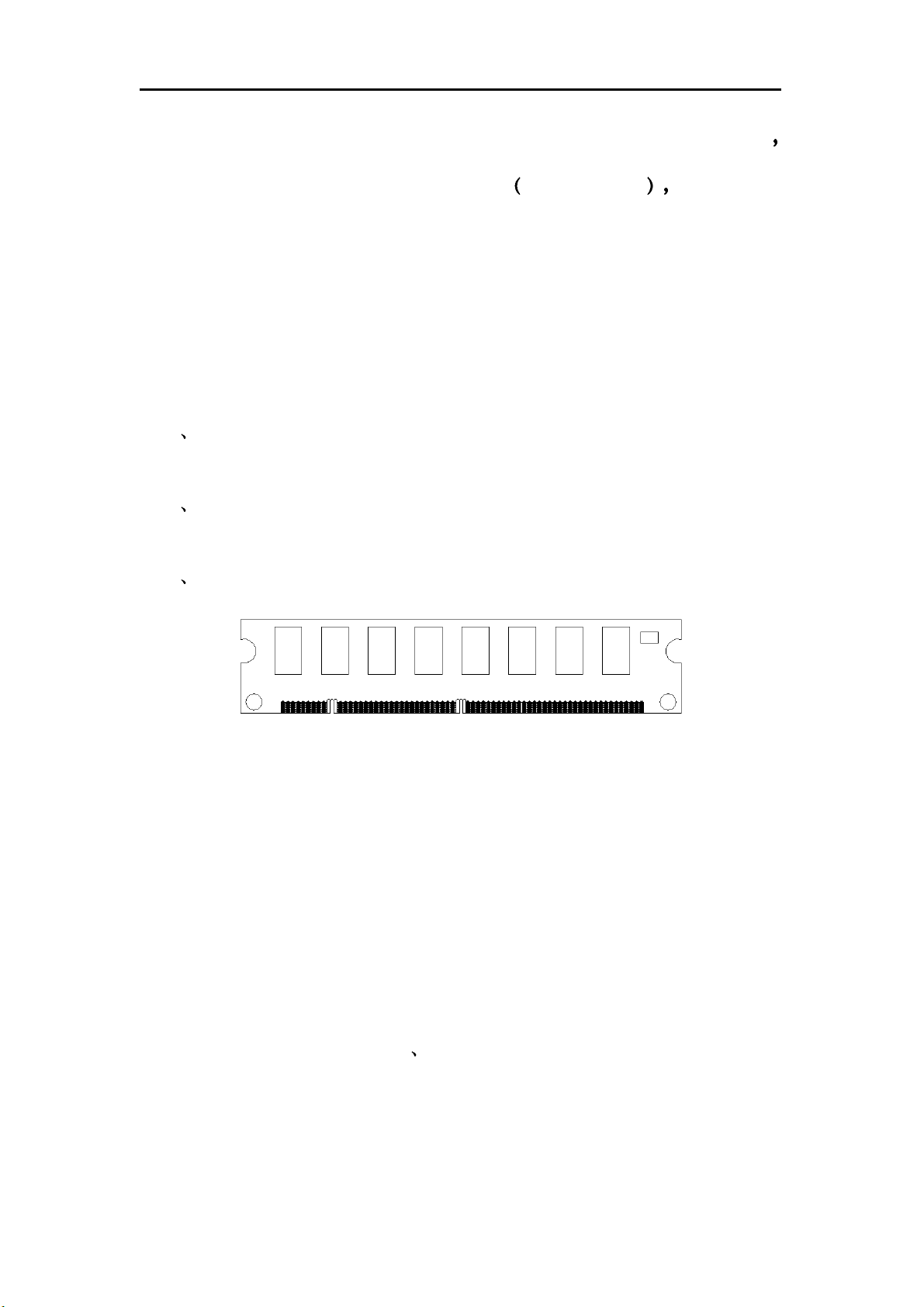

1The DIMM slot has 2 notch keys, so the DIMM memory module can only fit in one
direction.
2Insert the DIMM memory bank vertically into DIMM slot, then press it down placidly and
uniformly.
3The plastic clip at the side of the DIMM will automatically close.
There are 2 pcs 168 pin DIMM sockets on the motherboard which support Synchronous
DRAM and Registered SDRAM, and it allows you to install system maximum up to 1024MB.
2-1.4 Type
The mainbaord supports 168PIN Synchronous DRAM and Registered SRAM. However,
mixing DRAM and Registered SDRAM is not allowed. Install one type only in your system for
better compatibility,
2-1.5 Speed
This motherboard supports PC-66 PC-100 or PC-133 memory only for high speed
operation.

V28BChapter2 HardwareInstallation
9
2-1.6 Buffered and non-buffered
Only the non-buffered DIMM can be used in this motherboard. The difference between
buffered and non-buffered DIMM can be identified by the notch position shown above.
2-1.7 2-clock and 4-clock signal
2- clock and 4 -clock SDRAM DIMM is supported by this motherboard.
2-1.8 Parity and Non-parity
This motherboard supports standard 64 bit (Non-parity) and 72 bit (parity) DIMM modules.
2-1.9 Memory Auto-detected by BIOS
BIOS of the motherboard can automatically detect the DIMM memory size and type, so you
do not need to adjust any hardware or software settings. The maximum memory size supported up
to 512MB 2.
2-1.10 Recommended SDRAM combination
The motherboard support maximum up to 1024MB 512M 2, it has two 168-pin
non-buffered DIMM (Double In-Line Memory Module) socket. The motherboard support the
following SDRAM combination.
DIMM Location DIMM Size Max. Memory Size
DIMM 1 SDRAM 8, 16, 32, 64 128, 256MB 512MB
DIMM 2 SDRAM 8, 16, 32, 64 128, 256MB 512MB
DIMM1+DIMM2 Total System Memory 1024MB

V28BChapter2 HardwareInstallation
10
Important Note:
In order to enable onboard VGA function, you must make
sure SDRAM module is inserted into DIMM 1.
Warning:
There are three kinds of DIMM specification supported by
this motherboard PC133 PC100 PC66 . If you use 66 MHz
CPU Bus Frequency, these three DIMM spec. are supported.
If you use 100MHz CPU, PC100 & PC133 DIMM spec. is
supported. If you use 133 MHz CPU bus frequency, only
DIMM spec. of PC133 is supported.
The memory speed normally marked:
-15 -12 -10 -7 -8 PC-100 PC-133
The meaning is:
-15=15ns, and the maximum clock is 66MHz
-12=12ns, and the maximum clock is 83MHz
-10=10ns, and the maximum clock is 100MHz
-8=7ns, and the maximum clock is 125MHz
-7=7ns, and the maximum clock is 142MHz
PC-100/PC133 = New Intel specification for high memory speed
with 100/133MHz or above CPU Bus Clock.
This motherboard supports all the above memory speeds. If your system setting is 100Mhz or
higher CPU bus clock, we suggest you use PC-100 or faster SDRAM for better system
performance and reliability.

V28BChapter2 HardwareInstallation
11
2-2 Panel Connector

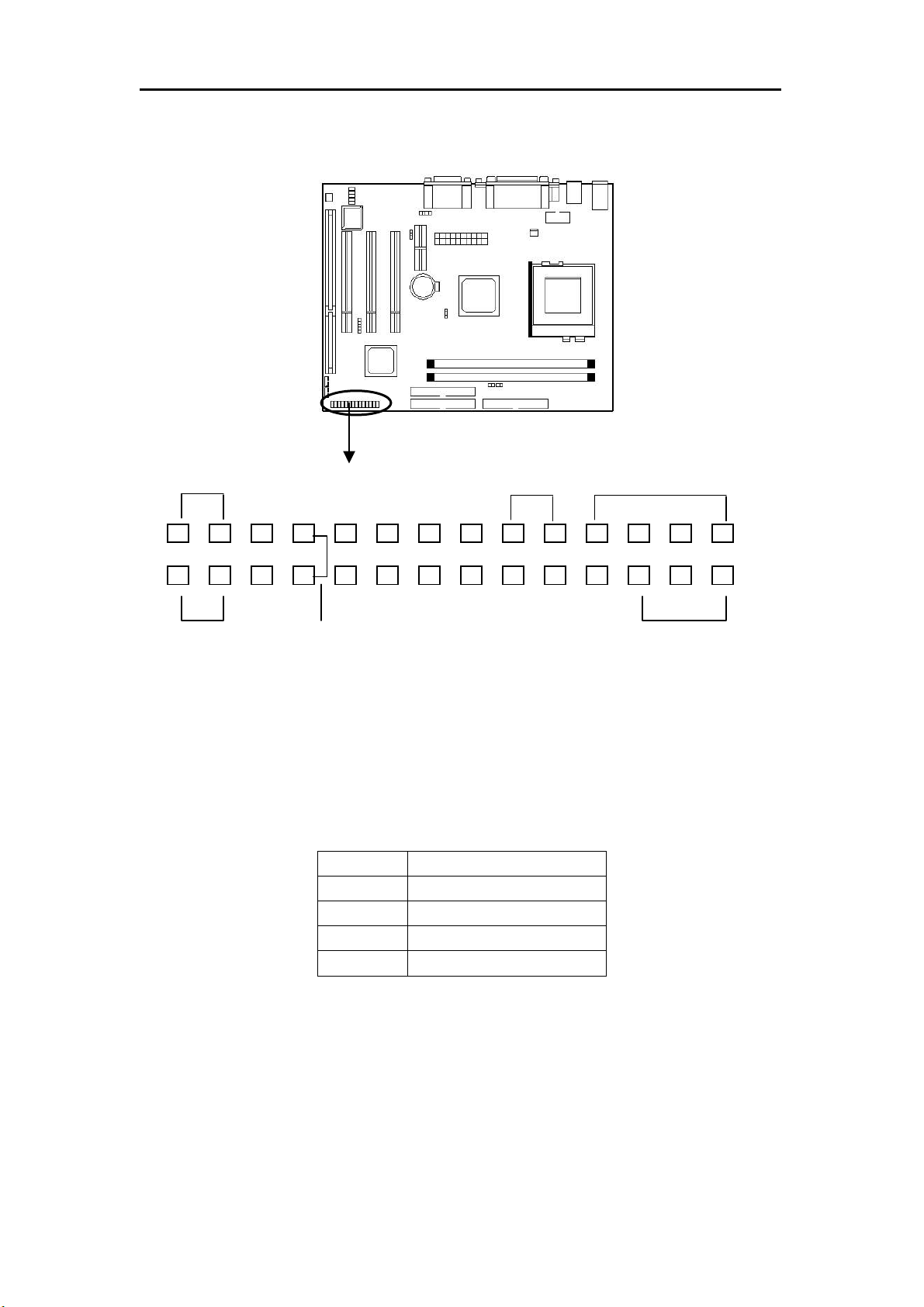

HDD LED Connector: HDD-LED
HDD LED shows the activity of a hard disk drive. Avoid turning the power off while the
HDD led is twinkling. You can connect HDD LED from the system case to this pin.
ATX Soft-power Switch Connector: PWR
Connect to a 2-pin push power button switch from computer case, it provide instant On/Off
function
Pin Description
1 Active Signal
2 Ground
3 Ground
4 Active Signal
SLEEP
POWER HDD LED
RESET SPEAKER
POWER LED

V28BChapter2 HardwareInstallation
12
RESET Switch: RST
RESET switch is used to reboot the system rather thatn turning the power On/Off. Award
rebooting with the HDD LED is lit.YOU can connect the RESET switch from the system case on
this pin.
Setting Description
Open Normal Mode
Close Reset system
Keylock and Power LED Connector: KEY-LOCK
Keylock allows you to disable the keyboard for security purpose. You can connect the
keyboard to this pin.
Pin Description
1 LED output
2 N.C.
3 Ground
4 Keylock
5 Ground
Speaker SPEAKER
Speaker from the system case is connected to this pin.
Pin Description
1 Data out
2 N.C.
3 Ground
4 +5V

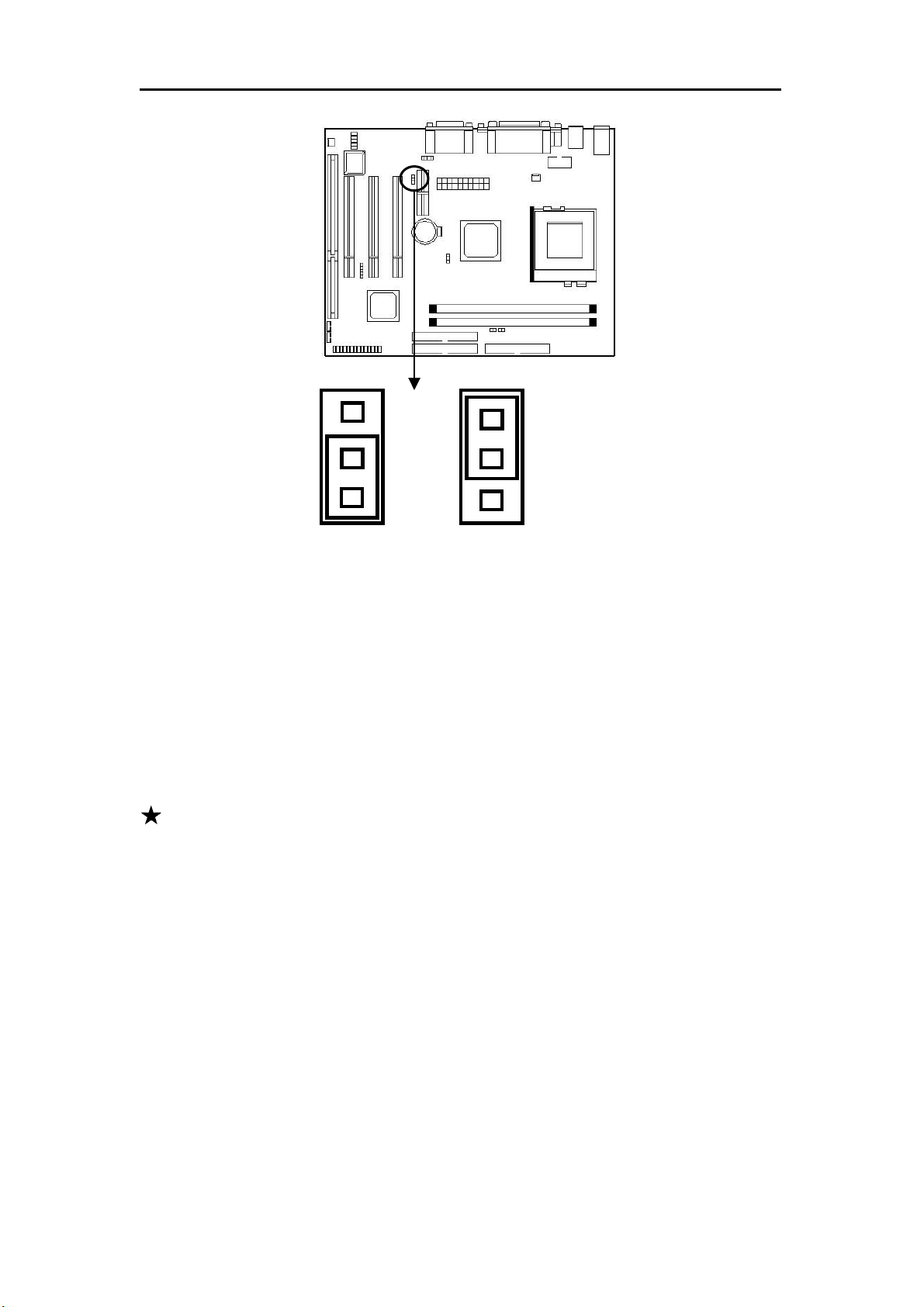

2-2.1 CMOS Clear Setting
CMOS Jumper
Please refer the following figures for the locations of the jumper on the mainboard.

V28BChapter2 HardwareInstallation
13
1-2 Normal (Save data) 2-3 Clear data
To clear CMOS, please follow the steps below:
1. Power off the system and unplug the chassis AC power cord.
2. Short JP7 at pin2-3 for 10-15 seconds.Set JP7 back to its Normal position at pin1-2.
3. Plug the AC power cord to the chassis.
4. Power on the system and load the BIOS setup defaults.
Note:
You can clear CMOS by shorting 1-2 pin for 10-15 seconds,
while the system is off. Then, return to 2-3 in position, Avoid
clearing the CMOS while the system is on, it will damage the
mainboard.
1 1

V28BChapter2 HardwareInstallation
14
2-2.2 On Board AC’97 Sound
J2
Set JP2 at pin 1-2 to use onboard AC’97 sound card(default). Set JP2 at pin2-3 will disable
the onboard AC’97 sound card.
Note
When you need to use AMR MODEM, if you are using
onboard sound card, then you don’t need to set J2 (i.e J2 is
in the default SECONDARY state), but if you are stopped
to use the onboard sound card, then you must set J2 at 1-2
pin.
2-3 Power Supply Connector
Connect the power supply cable to the power connector. Using the ATX power supply
functions such as wake-Up Modem is supported by this mainboard.
1-2 AC’97 Enable (Default)
1
1
2-3 Disable AC’97 Soun
d
1

V28BChapter2 HardwareInstallation
15
Warning:
Since the mainboard has the instant power on function, make
sure that all components are installed properly before
inserting the power connector to ensure that no damage will
be done.
The ATX power supply provides a single 20-pin connector.
Pin Description Pin Description
1
2
3
4
5
6
7
8
9
10
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
Power OK
5VSB
+12V
11
12
13
14
15
16
17
18
19
20
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
+5V
Note:
Some ATX–power does not have –5V voltage output, it will
effect some function of ADD-ON card devices.

V28BChapter2 HardwareInstallation
16
2-4 IDE1 IDE2 and FDD
The mainboard has a 32-bit Enhanced IDE controller that provides PIO mode 0-4, Bus
Master, and Ultra DMA 33/66 function. It has two HDD connectors IDE1 (primary) and
IDE2(secondary). You can connect up to four hard disk drives, CD-ROM and other devices to
IDE1 and IDE2.
Moreover, to each group of IDE connector, IDE can connect a Master and aSlave driver.
IDE1 Primary IDE Connector marked with blue
The first hard drive should always be connected to IDE1. IDE1 can connected a Master and a
slave drive. You must configure second hard drive to slave mode by setting the jumper
accordingly.
IDE2 Secondary IDE Connector
IDE2 can also connect a Master and a Slave drive.
It is suggested that you connect the IDE devices to your IDE cable as the figure shown above.
Each IDE channel either primary or secondary supports two IDE device which must be set
differently to master mode and slave mode.(Refer to you hard disk and CD-Rom user manual for
detail settings of IDE master and slave mode.)
IDE 1
IDE 2
Slave Master
MasterSlave

V28BChapter2 HardwareInstallation
17
2-5 IrDA Infrared Module Connector
The mainboard provides 4-pin infrared (IR) connector for IR modules. This connector is for
optional wireless transmitting and receiving infrared module. You must configure the setting
through the BIOS setup to use the IR function.
2-6 Serial devices COM1/COM2 , Parellel devices LPT1 and
VGA connector.
J1
IR
1
LPT1
COM1 VGA
COM 2

V28BChapter2 HardwareInstallation
18
There is a 15 pin monitor connector on the VGA connector mainboard, please connect the
monitor or other VGA compatible device to this connector..
Serial Port Connectors: COM1 and COM2
The mainboard has two 9-pin male DIN connectors for serial port COM 1 and COM 2.
These ports are 16550A high speed communication port that send/receive 16 bytes FIFOs. You
can attach a mouse or a modem cable directly into this connector.
Parallel Port Connector: LPT
The mainboard provides a 25-pin female centronic connector for LPT. A parrallel port is a
standard printer port that also supports Enhanced Parallel Port (EPP) and Extended Capabilities
Parallel Port (ECP).
2-7 PS/Keyboard, Mouse connector
Connect the PS/2 mouse and mouse seperately to the onboard 6-pin connectors.
Mouse Connector
The mainboard provides a standard PS/2 mouse mini DIN connector for attaching a PS/2
mouse. You can plug a PS/2 mouse directly into this connector.
PS/2 MOUSE
PS/2 KEY

V28BChapter2 HardwareInstallation
19
Keyboard Connector
The mainboard provides a standard PS/2 keyboard mini DIN connector for attaching a
keyboard. You can plug a keyboard cable directly to this connector.
2-8 USB devices connector
Connect your USB devices to the onboard USB connector.
USB Connectors
The mainboard provides a UHCI (Universal Host Controller Interface). Universal Serial
Bus root for attaching USB devices like: keyboard, mouse and other USB devices. You can plug
the USB device directly to this connector.
USB 1 / 2 – onboard connector.
USB 3 / 4 – connect USB port cable (w/ bracket) to this connector.
USB 2
USB 1
USB 3/4
