Agria 3100 User manual

Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 767 02.10
&
5301
Single-Wheel CultivatorSingle-Wheel Cultivator
Single-Wheel CultivatorSingle-Wheel Cultivator
Single-Wheel Cultivator
31003100
31003100
3100
Honda Engine
OriginalOriginal
OriginalOriginal
Original
OperatingOperating
OperatingOperating
Operating
InstructionsInstructions
InstructionsInstructions
Instructions

2agria Single-wheel Cultivator 3100
Symbols, Name Plate
Symbols
Warning – Danger
Important information
Choke
Fuel
Oil
Hoeing/tilling drive
Fast
Slow
Open (unlocked)
Closed (locked)
Visual check
è-Serviceç = contact
Your agria workshop
Please complete:
MachineTypeNo.:........................
Identification No.:
.....................................................
EngineType:.................................
EngineNo.:...................................
Date of Purchase:.......................
For name plate, refer to p3/fig. A/19
For engine type and number, refer
to p3/fig. B/6.
Please state these data when
ordering spare parts to avoid wrong
deliveries.
Onlyuse original agriaspare parts!
Specifications, figures and
dimensions stated in these
instructions are not binding. No
claims can be derived from them.We
reserve the right for improvements
without changing these instructions.
This delivery comprises:
l Operating instructions
l Single-wheel power hoe
– basic machine
– handlebar with tensioning lever
l Tool kit

agria Single-wheel Cultivator 3100 3
Designation of Parts
A
B

4agria Single-wheel Cultivator 3100
Designation of Parts
Fig. A
3Handlebar
4 Tool kit
5 Tensioning lever for handlebar side adjustment
6Hexagonal screw for handlebar height adjustment
8Gear shift lever for speed ratios
9Shift lever for tilling drive
10 Tilling attachment
11 Cap for chain gear housing
13 Drive-wheel
16 Location nut for front weight mounting
18 Square nut for handlebar height adjustment
19 Name plate/machine identification no.
24 Hexagonal screw for drive-wheel
25 Oil drain screw mechanical gearbox
26 Oil filler screw/oil control screw mechanical gearbox
Fig. B
1Air filter
2Carburetor
3Fuel tank cap
4Fuel tank
5Choke lever
6Engine type and number
7Starter handle
8Cooling-air screen
9Exhaust with protecting device
10 Spark plug/spark plug connector
11 Filler screw plug for engine oil- controlling opening
12 Engine oil drain plug
13 Fuel tap

agria Single-wheel Cultivator 3100 5
Index
3
5
6
2
1
4
Amount of Delivery.................. 3
Recommendations
Lubricants, Anti-Corrosive Agents.... 4
Fuel ................................................... 4
Maintenance and Repair .................. 4
Designation of Parts ................ 5
Assembly Instructions ............ 7
1. Safety Instructions......... 8–13
2. Specifications

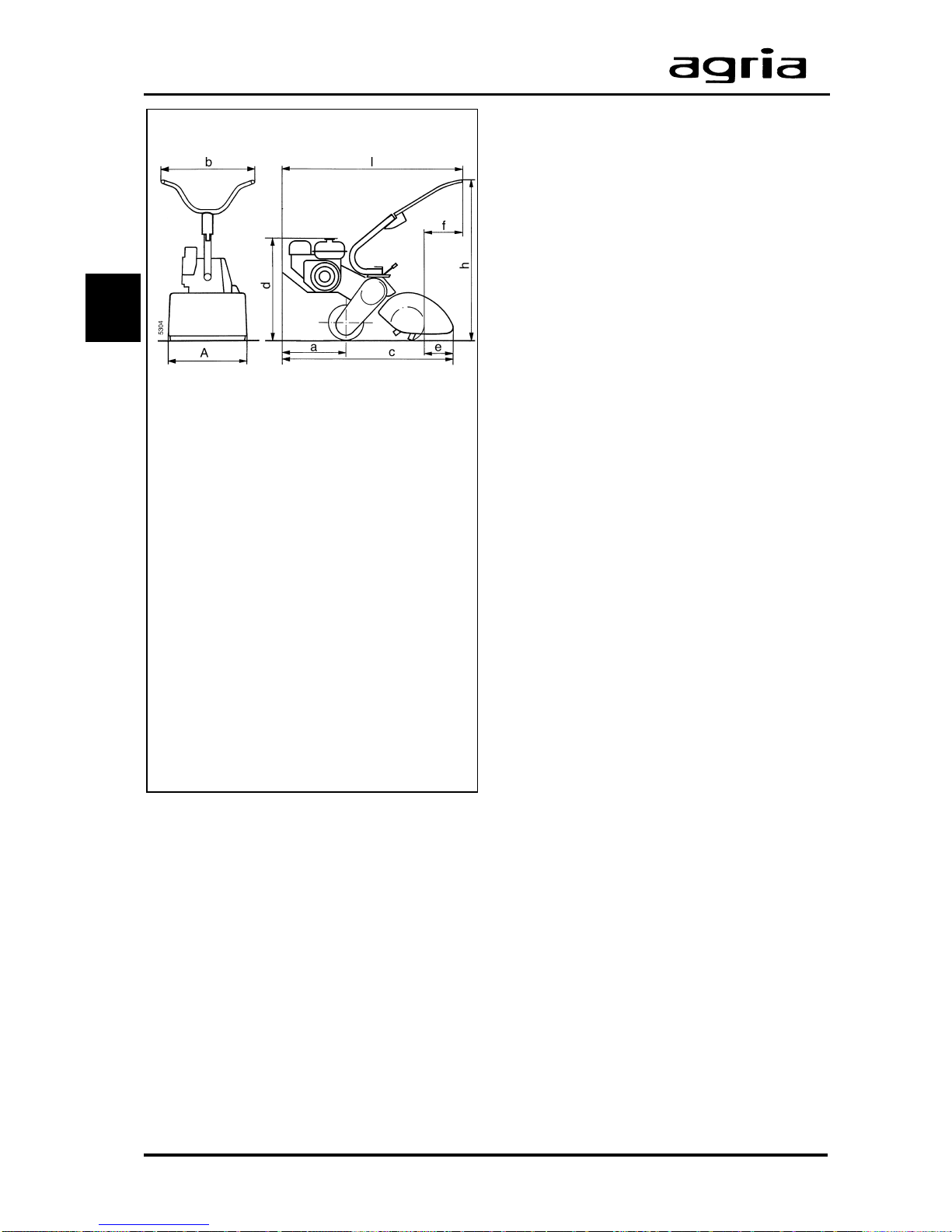

Dimensions ..................................... 14
Power Hoe ...................................... 14
Hoeing Drive................................... 14
Noise Level ..................................... 14
Vibration Acceleration Value........... 14
Engine............................................. 15
Operation on Slopes....................... 15
3. Devices and
Operating Elements
Safety Circuit .................................. 17
Clutch.............................................. 18
Gearbox.......................................... 18
Steering Handle .............................. 19
Tilling Tool ....................................... 20
Drive-Wheels .................................. 21
Front Weight.................................... 21
Leaf Deflector ................................. 22
4. Commissioning and
Operation
Commissioning the Machine .......... 23
Starting the Engine ......................... 24
Tilling .............................................. 25
Switching off the Engine ................. 27
Ridging............................................ 28
5. Maintenance
Air Cooling System ......................... 29
Mechanical Gearbox....................... 30
Adjustments on Hand Levers ......... 32
Handlebar Side Adjustment............ 33
General Maintenance ..................... 34
Cleaning.......................................... 34
Storage ........................................... 35
6.Troubleshooting...........36 - 37
Diagram: Electric Circuit ....... 38
Maintenance Chart................. 38
Varnishes,Wear Parts ............ 39
Inspection and
Maintenance Sheet ................ 40
Conformity Declaration ......... 43
Note fold-out pages!
Fig. A + B................................... 3
Fig. C ....................................... 42

6agria Single-wheel Cultivator 3100
Lubricants and
Anti-Corrosive Agents:
Use the specified lubricants for engine
and gearbox (see “Specifications”).
We recommend using bio-lubricating
oil orbio-lubricating grease for“open”
lubricatingpointsornipples(asspecified
in the operating instructions).
We recommend using bio-slushing oil
forpreservation of machines and imple-
ments (do not apply on painted external
covers). Oil can be brushed or sprayed
on.
Anti-corrosive agents are environmen-
tally friendly and degrade fast.
Using ecologically safe bio-lubricants
and bio-anti-corrosives, you contribute
to environmental protection and to the
wellbeing of humans, animals and
plants.
Fuel:
This engine runs smoothly on
commercial unleaded regular and
supergrade petrol as well as on
leaded supergrade petrol.
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drained completely when shutting down
the engine for more than 30 days.This
is to prevent resin residue from deposit-
ing in the caburetor, fuel filter, and tank.
Or add a fuel stabilizer to the fuel.
For further instructions refer to "Engine
Preservation".
Maintenance and
Repair
The trained mechanics of your agria
workshop carry outexpert maintenance
and repair.
You should only carry out major main-
tenance work and repairs on your own,
if you have the proper tools and
knowledge of machines and internal
combustion engines.
Donot hammeragainst theflywheelwith
a hard object or metal tools as it might
crack and shatter in operation causing
injuries and damage.Only use suitable
tools for pulling the flywheel.
Recommendations

agria Single-wheel Cultivator 3100 7
Instructions for Unpacking
Open top of cardboard box.
Mount handlebar
- Unscrew hexagonal screws (3 + 4).
- Place handlebar (1) onto locking disk
and hold – make sure that bowden ca-
bles and electric cables are not twisted
or squeezed.
- Insert threaded bolt (6) of tensioning
lever into steering bar joint and handle-
bar.Push threaded bolt in from below.
- Move tensioning lever to the left and
screw hexagonal nut (4) onto threaded
bolt until hexagonal nut fits into triangu-
lar relief on handlebar.
- Move tensioning lever backwards to
centre position and press down (ten-
sion).Nowthe handlebar must be firmly
jammed with steering bar.If this is not
the case, screw hexagonal nut (4) fur-
ther down (for adjusting tensioning le-
ver, refer to page 32).
- If handlebar jamming is not sufficient,
screw hexagonal nut (3) onto bolt and
lock with hexagonal nut (4).
- Place nut cap (2).
- Fasten bowden cables and electrical
lines with clamps (7) onto handlebar
rods.
Fit the hoeing tools and adjust
hoeing skid (refer to page 20).
Mountprotectivehood(referto page
20).
Carry out all steps for starting-up
(refer to page 23) and see operation
instructions for Honda engine!





20
20
32
and Assembly

8agria Single-wheel Cultivator 3100
1. Safety Instructions
Before starting the engine, read the op-
erating instructions and note:
Warning
Thissymbol marksallparagraphsaffect-
ing your safety.Pass all safety instruc-
tions to other users and operators.
Due Use
The single wheel cultivator is a hand-
controlled automatic single-axle
machine which can power and/or pull
various implements approved by the
manufacturer.Propulsion is achieved
using the hoe tools approved by the
manufacturer. The single wheel
cultivator hoe is intended for use in
turning over the ground in landscape
gardening(includingtheleisuresector).
The area to be covered must be in line
with the usual size of such areas in
landscape gardening. (Due use)
Any other type of use is considered un-
due. The manufacturer is not liable for
anydamagesresulting from undue use,
forwhichtherisklies withthe useralone.
Due use includes compliance with
manufacturer’s instructions on opera-
tion, maintenance and repair.
The single wheel cultivator is not
intended for use on such areas as vary
stonyorrockygroundoras a tree-stump
milling machine.
Any unauthorized changes to the sin-
gle-wheelcultivatorrendermanufacturer
liability null and void.
General Instructions
on Safety and
Accident Prevention
Basic Rule:
The standard accident prevention regu-
lations must be adhered to, as well as
all other generally accepted rules gov-
erning operational safety, occupational
health and road traffic regulations.
For travelling on public roads, the cur-
rent traffic code applies.
Check the single-wheel cultivator for
road and operational safety each time
you take up operation.
Only persons familiar with the single-
wheel cultivator and instructed on the
hazardsofoperationareallowedtouse,
maintain and repair the machine.
Teenagers of 16 years or younger may
not operate the single-wheel cultivator!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes.Wear solid
shoes.
Note the warning and instruction signs
on the single-wheel cultivator for safe
operation. Compliance is for your own
safety.
When transporting the single-wheel
cultivator on vehicles or trailers outside
thearea to be cultivated, ensurethatthe
engine is turned off.
Careful with rotating tools – keep at a
safe distance!
1

agria Single-wheel Cultivator 3100 9
1. Safety Instructions
Beware of coasting tools.Before you
start anymaintenanceor repairon them,
waituntil tools have come toa complete
stop.
Foreignpoweredparts shear andcrush!
Riding on the attachment during opera-
tion is not permitted.
Attachments and their weight affect the
driving, steering, braking, and tip-over
characteristics of the single-wheel
cultivator. Therefore, ensure steering
and braking functions are sufficient.
Match operating speed to conditions.
Do not change governor settings.High
engine speed increases risk of
accidents.
Working Area and
Dangerous Area
The user is liable to third parties work-
ing within the single-wheel cultivator’s
working range.
Stayinginthehazardousarea of thesin-
gle-wheel cultivator is not permitted.
Check the immediate surroundings of
the single-wheel cultivator before you
start it. Watch out for children and ani-
mals.
Before you start work, clear the area
from any foreign object. During opera-
tion,always watchout forfurther objects
and remove them in time.
Foroperationin enclosed areas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
Operation and
Safety Devices
Before you start operation
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn off the en-
gine quickly and safely in case of an
emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
With no attachment mounted, make
sure PTO-shaft is covered with the pro-
tective cap.
Starting the engine
Donot start engine in closedrooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine set all oper-
ating elements to neutral or idling posi-
tion.
For starting the engine, do not step in
front of the single-wheel cultivator and
the attachment.
Operation
Neverleavetheoperator’s positionatthe
steering handle while single-wheel
cultivator is at work.
Never adjust the steering handles dur-
ing work – danger!
1

10 agria Single-wheel Cultivator 3100
1. Safety Instructions
For any operation do not leave the op-
erator’s position as defined bythe steer-
inghandle,especially not whenyouturn
the machine.
Riding on the attachment during opera-
tion or in transport is not permitted.
Ifclogging occursin theattachment,turn
off the engine and clean the attachment
with an appropriate tool.
In case of damage to the single-wheel
cultivator or to the attachment, immedi-
ately turn off the engine and have it re-
paired.
If steering causes problems, immedi-
ately bring the single-wheel cultivator to
a halt and turn it off.Have the malfunc-
tion removed without delay.
To prevent the single-wheel cultivator
from sliding on slopes make sure it is
secured by another person using a bar
or a rope.This person must be located
at a higher position than the vehicle at a
safe distance from the attachment at
work.
If possible, always work horizontally to
the slope.
End of Operation
Never leave the single-wheel cultivator
unattended with the engine running.
Before you leave the single-wheel
cultivator,turnoffthe engine.Then close
fuel tap.
Secure single-wheel cultivator against
unauthorized use – remove spark plug
connector.
Attachments
Onlymount attachmentswiththe engine
and attachment drive switched off.
Always use appropriate tools and wear
gloveswhenchangingattachments and
parts thereof.
For mounting and dismounting attach-
ments bring support leg into proper po-
sition and ensure stability.
Secure single-wheel cultivator and at-
tachments against rolling off (wheel
wedge).
Bewareof injuries whencouplingattach-
ments.Proceed with extreme caution.
Mount attachments as specified and
only couple at specified points.
Secure single-wheel cultivator and at-
tachmentagainstunauthorizeduse and
rolling off when you leave the machine.
If necessary, install transport or secu-
rity devices and secure.
Hoeing Attachment
Adjustprotectivehoodofhoeingattach-
ment so that only those parts of tools
whichpenetratethe soilare notcovered.
When hoeing, make sure hoeing skid is
adjusted properly.
Weights
Fitweightsproperlyandatspecifiedpoints.
1

agria Single-wheel Cultivator 3100 11
1. Safety Instructions
Maintenance
Never carry out any maintenance or
cleaning with the engine running.
In addition, always remove spark plug
connector before you work on the en-
gine.
Check regularly and, if necessary, re-
place all protecting devices and tools
subject to wear and tear.
Replace damaged cutting tools.
Always wear safety gloves and use
proper tools when exchanging cutting
tools.
Do not carry out repairs like welding,
grinding, drilling, etc. on structural and
safety-relevant parts (e.g. coupling de-
vices)!
Keep single-wheel cultivatorandattach-
ment clean to avoid risk of fire.
Checknutsand screwsregularlyfortight
fit and re-tighten, if necessary.
Ensure that you re-install all safety and
protectivedevicesandadjust themprop-
erly after maintenance and cleaning.
Only use original agria spare parts.All
other commercial spare parts must cor-
respondto quality and technicalrequire-
ments specified by agria.
Storage
Itis notallowedtostorethe single-wheel
cultivator in rooms with open heating.
Never park the single-wheel cultivator
inclosedroomswithfuelleftintank.Fuel
vapours are hazardous.
Engine,Fuel, and Oil
Neverletthe enginerunin closedrooms.
Extreme danger of intoxication!
Careful when dealing with fuel. Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts.Do not refill fuel in closed
rooms.Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device.
In case of fuel-spillage, push the single-
wheel cultivator away from the spillage
before you start the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
1

12 agria Single-wheel Cultivator 3100
1. Safety Instructions
Explanation of
Warning Signs
Before any cleaning,
maintenance,andrepair
work switch off the
engine and pull spark
plugconnector.
With engine running,
keep at a safe distance
from hoeing or cutting
tools.
Do not work without
protective covers
mounted.Beforestarting
the engine, bring covers
intoproperposition.
Do not touch any
moving machinery
parts.Wait until they
have come to a
completestop.
With the engine
running, keep at a
safedistance.
Signs
When working with the
machine, wear individual
protective ear plugs.
Wear protective gloves.
Wear solid shoes.
1

agria Single-wheel Cultivator 3100 13
1

14 agria Single-wheel Cultivator 3100
2. Specifications
2
Vibration acceleration value:
on handlebar:................ ahw = 5,9 m/s2
(in accordance with EN 709 and EN 1033)
Noise level:
Noise level
at operator’s ear.................... 83 dB(A)
(in accordance with EN 709)
Weight: ......................... approx. 51 kg
Machine Dimensions:
a........................................ 340 mm
b........................................ 620 mm
c....................................... 1030 mm
d........................................ 710 mm
h.......................... ca.700 - 900 mm
l........................................ 1360 mm
A...............................100 - 500 mm
(depending on tilling attachment)
e..................................... > 150 mm
f..............> 500 mm at h = 800 mm
Type: ........................................... 3100
Tyre:.........................3.00-4 (field tyre)
Tyre air pressure:................... 0.8 bar
Clutch: ....................Multi-plate clutch,
running in oil bath
Gearbox:2-speed mechanical gearbox
with 1 roller chain to wheel and tilling
shaft respectively.
Oil filling quantity: ......... approx. 0.6 l
Transmission oil BP TFJD - GL4
Lubricant filling quantity:
Travelling drive
chain housing............... approx. 150 g
Tilling drive
chain housing................ approx. 150 g
Transmission flow grease
(e.g. BP Energrease LS-EP00)
Travelling Speeds:
1st gear ................................. 2.7 km/h
2nd gear................................ 4.8 km/h
Tilling shaft speed:
1st gear .................................. 196 rpm
2nd gear................................. 350 rpm
Tilling work width: .............10–50 cm
depending on tilling attachment
version = accessory
Accessories:
...............Tilling attachment 10–50 cm
.............Ridging attachment 2152 011
........................ Front weight 3128 011
...................... Leaf deflector 2130 031

agria Single-wheel Cultivator 3100 15
Fuel tank capacity: .................... 3,6 l
Fuel:.......... Commercial available petrol,
oktane number min. 85 RON;
refer to fuel recommendations
Air filter: ..................Dry element filter
with foamed preliminary filter
Carburetor: ........... Throttle valve type
Mixture control screw: .....................
.... opened approx. 2 1/8 turns in base
setting
Rated speed: ...................... 3600 rpm
Top no-load speed: ............3850 rpm
Idling speed:........... 1250 - 1600 rpm
Engine oil:..........................................
Filling quantity .................approx. 0.6 l
...............Multi-grade oil SAE 10 W-40
........... SG, SF or higher quality grade
Operability on Slopes:... < 20° (44%)
(with oil level at “max“”= upper level
mark).
2. Specifications
Engine
Manufacturer: ..........................Honda
Type: ........................ GX160 K1 QPU
Version: ....................... Fan-air-cooled
1-cylinder-4-stroke engine (petrol)
Bore: ........................................ 68 mm
Stroke:..................................... 45 mm
Cubic capacity: ................... 163 ccm
Compression:.......................... 8.5 : 1
Output: ............... 4,0 kW at 3600 rpm
Max. torque
.......................... 10,8 Nm at 2500 rpm
Spark plug: .................... BOSCH WR
.................................... NGK BPR6 ES
Spark plug gap:................0.7- 0.8 mm
Ignition system: ............. Contactless
electronic magnet ignition,
ignition point is pre-set, radio remote
screened according to VDE 0879
Valve lash (engine cold):
Intake: ............... 0.15 mm ± 0.02 mm
Outlet: ............... 0.20 mm ± 0.02 mm
Starter:.............Soft-pull recoil starter
.................................. with mechanical
.........................decompression facility
2

16 agria Single-wheel Cultivator 3100
3. Devices and Operating Elements
The single wheel cultivator is a
motorised unit for turning over the
ground and may also be used with an
implement.
Thefollowingattachments areavailable:
l Tilling attachment 10–50 cm
l Ridging attachment
l Front weight
l Leaf deflector
Motor
The 4-stroke engine runs on
conventional petrol (see fuel
recommendations of p6).
During the first 20 operating hours
(break-in period) do not use engine to
maximum power. Even after break-in
period never use engine at higher
speed than necessary for the work in
hand.
IHigh engine speed is harmful
to any engine and considerably
affects its durability. This applies
especially for no load operation. Any
overspeed (have the engine roar) can
result in immediate damage.
Cooling System
Coolingsystemisfan-cooled.Therefore
keep screen at recoil starter and cool-
ing ribs of cylinder clean and free from
sucked-in plant trash.
Idling-speed
Always ensure that idling-speed is ad-
justed correcty.At low speeds and with
the speed control lever set to idle, the
engineissupposedtorunsmoothlyand
without run-out.
Air Filter
The air filter purifies the air intake. A
clogged filter reduces engine output.
Ignition System
The engine is equipped with a mainte-
nance-free, contactless electronic igni-
tion system. We recommend to have
necessary check-upsdone byan expert
only.
3

agria Single-wheel Cultivator 3100 17
Speed Control Lever
The speed control lever (C/7) on the
steering handle is for stepless setting
ofenginespeedfrommin.=idletomax.
= full throttle.
Engine Shut-off Switch
Themachineisequippedwithan electric
shut-off switch (C/3). On pressing the
switch, the ignition is turned off (engine
is shut off).
Position „I“ = Operation
Position „0“ = Engine off
IThe engine shut-off switch
also serves as an emergency
shut-off.Set the switch to “0” for fast
shut-off.
Safety circuit
The machine is equipped with a safety
circuit lever.
Stop position: When releasing the
lever (C/4), the ignition system is shut
off (engine is off).
Beware – engine keeps running due to
centrifugal mass.
Start position: Forstartingtheengine
and for short breaks, pull the clutch lever
(C/5) and fasten with pawl (C/6).
Operating position: To operate the
machine press safety circuit lever (C/4)
down.
W
Do not tie down safety circuit lever.
IThe safety circuit lever also
serves as an emergency
shut-off.In an emergency, move the
lever to position “STOP” to shut off the
enginefast.Thelever automaticallygoes
to STOP position.
3. Devices and Operating Elements
3
max
min



Stop

18 agria Single-wheel Cultivator 3100
3. Devices and Operating Elements
3
Clutch
The machine is decoupled when you pull the hand clutch lever ("0").
The pulled hand clutch lever can be locked with pawl (C/6).
Coupling takes place when the manual clutch
lever is released and the pawl is open ("I").
To avoid clutch slipping away during operation,
a clutch play is factory-set on the hand lever.
èMaintenance
After the first operating hour, the clutch play has
to be checked and, if necessary, re-adjusted.
èMaintenance
IAlways park the machine with the clutch lever pulled
(“0”–pawl lockedin place).Otherwiseclutch problems
may result due to distortion of the V-belt.
Gearbox
IOnly shift with machine decoupled. Only move levers with your hands.
Speed Ratios
Speed ratios of wheel and tilling drive are engaged with
gear shift lever (A/8).
0 = neutral (idling speed)
I=1st gear
II =2nd gear
Tilling Drive
The tilling drive is secondary to the 2-speed mechanical
gearbox. This means that the tilling drive can only be en-
gaged when the 1st or 2nd gear is engaged.
Thetilling driveis engaged/disengagedwithshiftlever(A/9).
C/6 32
C/5
A/8
A/9
32

agria Single-wheel Cultivator 3100 19
3. Devices and Operating Elements
3
Steering Handle
Steering handle
height adjustment
l Unscrew hexagonal screw (2) from
square clamping piece (3) and remove
from steering bar joint.
l Adjust handlebar to desired height and
insert into proper boring in steering bar
joint.
l Insert hexagonal screw and screw into
square clamping piece and tighten. (En-
surethat snugof clamping piece locksinto
long hole of location in steering bar joint).
Steering handle
side adjustment
l Pulltensioningleverupwards(1),swivel
handlebar to desired position and fit into
proper toothing.
l Press tensioning lever back down
(tension).

20 agria Single-wheel Cultivator 3100
-
3. Devices and Operating Elements
3
Tilling Tools
MountingTillingTools
Wear protective gloves.
l Mount tilling tools (1 + 2) onto the
tilling shaft (6). Tine blades must point
into rotating direction (forwards).Mount
both tools in such a way that tines of
both tools pointing to the housing are
staggered and not parallel to the tines
on the opposite side.
l Insert tensioning screw (3) from right
to left, fit toothed washer (4) and tighten
with hexagonal nut (5).
Hoeing Skid
For heavy soil and coarse tilling:
For light soil and fine tilling:
For sandy soils:
WNo tilling without skid!
Protective Hood


Mounting Protective Hood
l Slide protective hood with the hook
in hood carriers.
l Hang tensioning spring into spike
plate and fold tensioning lever back.
WNo tilling without protective
hood!


1
2
3
4
56

