Agrio Gigant User manual

Instruction manual
GIGANT
ver. 1/2022

Content:
2.1 Warranty and guarantee ....................................................................................................6
2.1.1 Parts not covered by the warranty..................................................................................6
2.2 Principles of machine use....................................................................................................6
2.2.1 Obligation of the user.....................................................................................................6
2.2.2 Duties of the operator.....................................................................................................7
2.2.3 Danger when using the machine....................................................................................7
3.1 Technical data......................................................................................................................7
3.2 TECHNICAL SHEET ........................................................................................................8
4.1 Permissible use of the machine...........................................................................................9
4.2 Safety and accident prevention regulations....................................................................10
4.2.1 General safety instructions...........................................................................................10
4.2.2 Safety regulations for road traffic................................................................................10
4.2.3 Hydraulic system..........................................................................................................10
4.2.4 Drive.............................................................................................................................11
4.2.5 Brakes...........................................................................................................................11
4.2.6 Tires .............................................................................................................................11
4.2.7 Repair and maintenance...............................................................................................11
4.2.8 Handling of pesticides..................................................................................................12
4.3 List of safety labels............................................................................................................13
4.3.1 Position of the safety labels .........................................................................................16
5.1 Overview of the individual machine elements................................................................17
6.1 Control panels and computers .........................................................................................20
TOUCH800® TOUCH1200® ...................................................................................................20
Navigation TRACK-Guide III...................................................................................................20

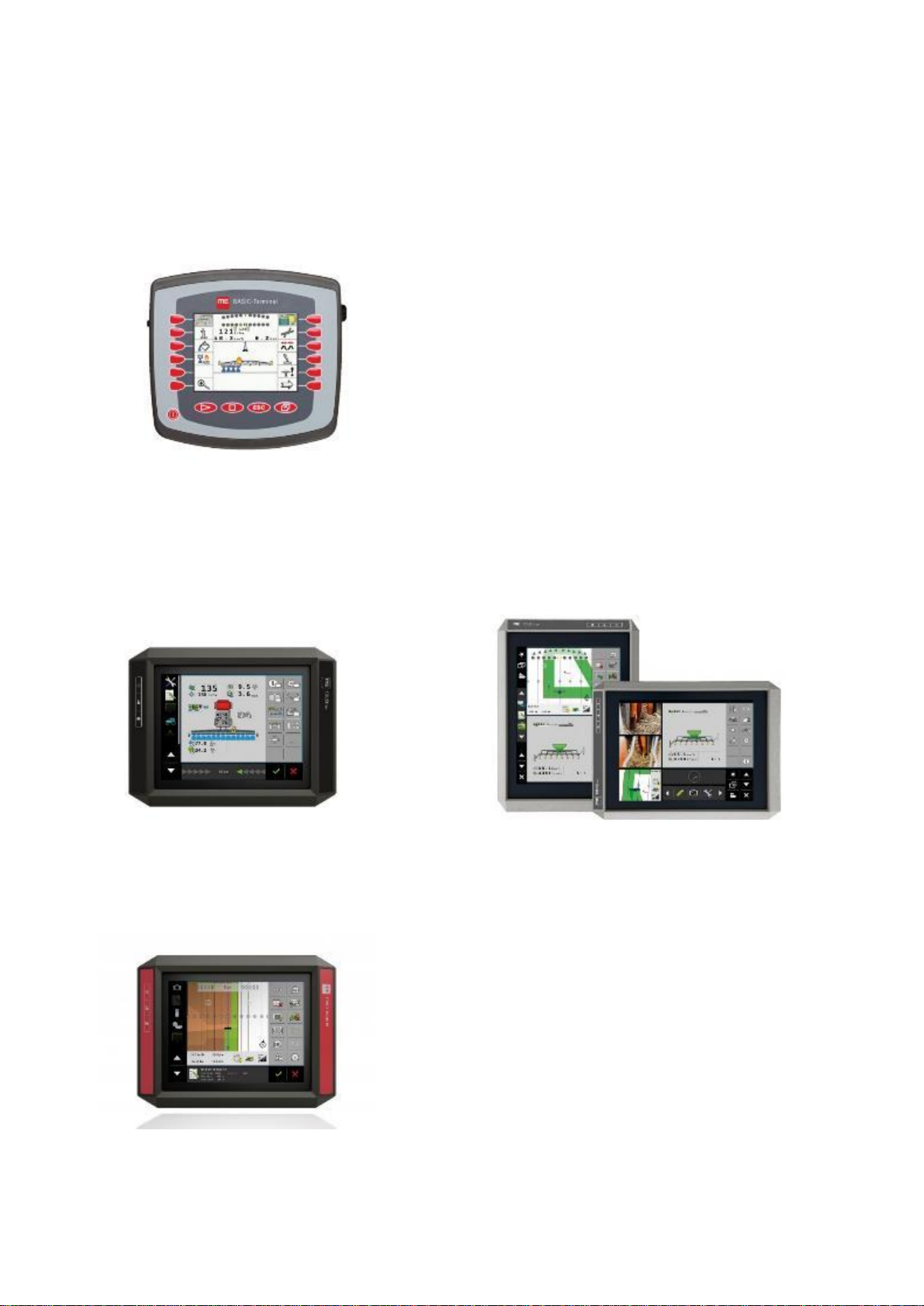

Different variants of computers and panels on offer: ................................................................21
6.2 GIGANT syringe controllers............................................................................................22
6.2.1 Sprayer control with Tank Control & TopLine ...........................................................22
6.2.2 Description of the hydraulic system.............................................................................24
6.2.3 Basic.............................................................................................................................24
6.2.4 Control via a simple control panel...............................................................................25
6.2.5 Control via proportional distributor.............................................................................26
7.1 Building block concept......................................................................................................27
7.2 Container............................................................................................................................27
7.3 Pumps.................................................................................................................................27
7.4 Filling..................................................................................................................................27
7.5 Mixing.................................................................................................................................28
7.6 Washing and cleaning.......................................................................................................28
8.1 Commissioning...................................................................................................................28
8.2 Coupling and uncoupling the trailed sprayer.................................................................28
8.2.1 Connection...................................................................................................................28
8.2.2 Uncoupling...................................................................................................................31
8.3 Driving with the trailed sprayer.......................................................................................31
8.3.1 Check before each trip .................................................................................................31
8.3.2 Check after each trip....................................................................................................31
8.3.3 Towing the trailed sprayer ...........................................................................................31
9.1 Filling the main tank.........................................................................................................33
9.1.1 General recommendations............................................................................................33
9.1.2 Suction with the piston diaphragm pump ....................................................................33
9.1.3 Filling the spray tank via external filling.....................................................................34

9.1.4 Filling with the centrifugal pump.................................................................................34
9.2 Filling the clean water tank..............................................................................................34
9.2.1 Standard .......................................................................................................................34
9.2.2 Filling via quick coupling (special equipment)............................................................34
9.3 Filling crop protection products with the Ecomixer......................................................35
9.3.1 Description of the parts of the ecomixer (induction hopper).......................................35
9.3.2 Filling with the Ecomixer ............................................................................................36
9.3.3 Mixture of powdered agents and urea..........................................................................39
9.3.4 Flushing the ecomixer..................................................................................................39
9.3.5 Canister flushing nozzle...............................................................................................40
9.4 Adding pesticides to the tank via the main tank opening..............................................40
9.5 Mixing.................................................................................................................................40
9.5.1 Mixing with maximum power......................................................................................40
10.1 With standard equipment.............................................................................................41
11.1 Rinsing the sprayer with residual quantity in the main tank -..................................42
11.2 Flushing of distribution lines........................................................................................43
11.3 Flushing and residue emptying of the spray tank.......................................................43
12.1 Fully automatic control.................................................................................................45
12.2 Sprayer without automatic flow control......................................................................45
12.2.1 Checking the travel speed............................................................................................45
12.2.2 Calculation of the required throughput per nozzle.......................................................46
12.2.3 Setting the correct nozzle pressure...............................................................................46
13.1 Linkage in working position.........................................................................................47
13.1.1 Folding.........................................................................................................................50
13.2 Collision protection........................................................................................................50
13.3 Suspension of the linkage..............................................................................................51
13.4 Inclination adjustment of the boom.............................................................................51
13.4.1 Description of the sash suspension function - Tilting..................................................51
13.4.2 Automatic boom control "DISTANCE - Control ........................................................51
13.4.3 Tilting the boom "hydraulically" (optional).................................................................52
13.5 Linkage - types and operation......................................................................................53
13.5.1 Rods 15 - 36 m.............................................................................................................53
13.5.2 Combination of linkage parts.......................................................................................54
13.5.3 Folding in and out the middle arms .............................................................................55
14.1 1. axis...............................................................................................................................57
14.1.1 BPW 12t suspension ....................................................................................................57
14.2 Suspended steerable axle...............................................................................................59
14.2.1 BPW 12t.......................................................................................................................59
14.3 Air brakes.......................................................................................................................65
Brake unit...................................................................................................................................65
14.3.1 Description of the brake function.................................................................................65
15.1 Drag hose / drag tube ....................................................................................................67
15.1 Parallel operation / SECTION control during application........................................68
15.2 Exterior cleaning with high-pressure gun...................................................................68
16.1 Cleaning..........................................................................................................................70
16.2 Washing with high-pressure cleaner / steam cleaner.................................................70
16.3 Frost protection (drainage)...........................................................................................70
16.4 Injection pumpe.............................................................................................................71
16.4.1 Description of the individual pump parts.....................................................................71
16.4.2 Check the oil level........................................................................................................72
16.4.3 Oil change....................................................................................................................73

16.4.4 Air pressure in the pump..............................................................................................74
16.4.5 Replacement and inspection of suction and discharge valves .....................................74
16.4.6 Testing and replacement of diaphragms ......................................................................75
16.4.7 Summary of the most important points........................................................................76
16.5 Calibration of the flow meter........................................................................................76
16.6 Connection for sprayer test/inspection........................................................................76
16.1 Lubrication points:........................................................................................................77
18.1 Possible errors during spraying. ..................................................................................84
19.1 Hydraulic diagram of the sprayer................................................................................88
19.2 Water scheme of the sprayer ........................................................................................89
19.3 Dosage tables..................................................................................................................90

1Homepage
Dear Customer,
You have purchased a new GIGANT trailed sprayer that meets the latest requirements of the
Czech inspection body. With this machine, you are equipped for the crop protection of the future.
In order to take full advantage of our trailed sprayer and to achieve the highest level of reliability
and durability, we ask you to read these operating instructions carefully.
We wish you good luck and success in your work.
Published by:
AGRIO MZS s.r.o.
Issued: 22.1.2022
All previous manuals for the trailed sprayer are no longer valid after receipt of this edition.
Development changes or technical solutions at the request of the customer are reserved.
Address:
AGRIO MZS S s.r.o.
Mric 66
382 03 Křemže
Phone: [phone]
Fax: [phone]
E-mail: [email protected]

2General information
This chapter contains important recommendations for the safe use of the machine.
2.1 Warranty and guarantee
Claims for personal injury or property damage cannot be made if one or more of the following
causes are found to exist:
-the unauthorized use of the device.
-improper installation, commissioning, operation and maintenance of the machine.
-Use of the machine with damaged, incorrectly attached or non-functioning safety and protective
devices.
-Failure to observe the recommendations in the operating instructions for commissioning,
operation and maintenance of the machine.
-individual finishing on the machine.
-Insufficient inspection of the worn parts.
-improperly performed repair.
-Natural disasters, damage caused by third parties and/or gross violence.
2.1.1 Parts not covered by warranty
Wear parts:
-Lifting rope
-Suspension rope
-Pump diaphragms
-Pump valves
-Trolley rollers
-Shock absorber
-Antennas
-Running and hanging roller
2.2 Principles of machine use
Observe the recommendations in the instructions for use.
Knowledge of the basic safety recommendations and regulations is a prerequisite for safe
handling and trouble-free operation.
2.2.1 Obligation of the user
The user is obliged to ensure that the machine is operated only by a person who:
-is familiar with the basic regulations on occupational safety and accident prevention.
-is familiar with the work of the machine.
-has read and understood the operating instructions.
-complies with the regulations on the use of work equipment, as well as the regulations on health
protection

2.2.2 Duties of the operator
All persons working with or near the machine must comply with the regulations on work safety
and accident prevention.
2.2.3 Danger when using the machine
The machine is built according to the recognized safety rules.
However, the use of the device may cause danger or damage,
-the health and life of the operator or a third party,
-the machine itself,
-may affect other property.
Use the machine only,
-for their permitted purpose.
-in a safe and secure condition
Attention!
Immediately eliminate malfunctions that may endanger the safety of the machine!
3Technical data
3.1 Technical data

Dimensions are given in mm.
The total weights apply to water only.
Dimensions and weights apply only to the standard equipment. They may vary in conjunction with
other variants or optional equipment.
We reserve the right to make changes due to technical progress.
3.2 TECHNICAL SHEET
Type
GIGANT
11000
12000
14000
Main tank
actual volume.
[l]
Nominal
volume.
11000
12000
14000
Filling height of the foldable
eco-mixer
[mm]
810
Filling
height
From the
ground
[mm]
3200
(Main cover)
From the
platform
1100
Permissible system pressure
[bar]
20
Change of the fluid pressure
Pneumatic
Pressure range
[bar]
0,8-10
Working pressure indicator
Pressure gauge 0-8/25 bar ø100 mm, fertilizer-proof
Pump pressure indicator
Pressure gauge 0-8/25 bar ø60 mm, fertilizer-proof
Pressure filter
Screens with 50 and 100 meshes
Mixing
Injector nozzles
Regulation of the application
rate
Manually or automatically, depending on the speed, by
computer
Height of the nozzle above
the surface
[mm]
500-2600
Spray pump:
Type
Piston diaphragm pump
AR 185 bp
AR 250 bp
AR 280 bp
Max. Capacity [l/min]
185
250
282
Max. Operating pressure
[bar]
20
20
20
Max. Speed [1/min]
550
550
550
Max. Power
consumption [kW]
5,5
8,5
9,5

Filling pump:
Type
Centrifugal pump Magnum I
Max. Capacity [l/min]
700
Max. Transport height [m]
36
Suction
2"
Hydromotor
MGG 20
Max. Power consumption
[kW]
8,8
Oil pressure [bar]
125
Oil quantity
28 l/min at 3500 rpm
Connect
7/8"-14
4Safety requirements
4.1 Permitted use of the machine.
The sprayer can be used exclusively for agricultural work in field and vegetable crops, special crops
and fodder crops for the application of plant protection products and liquid fertilizers.
The spraying equipment may only be operated, maintained and connected by persons who are
familiar with the possible hazards involved in using the machine.
The maximum permissible speed of a sprayer with BPW axle is 40 km/h.
The maximum permissible speed of a sprayer with the boom unfolded is 12 km/h.
Max. guaranteed slope accessibility is 7%.
CAUTION - Do not fill the tank beyond the maximum technically permissible weight.
Beyond the intended use, note;
-all recommendations in these operating instructions.
-compliance with the warranty and maintenance conditions.
-Immediately rectify any defects that could endanger the operator or the machine.
Attention!
Any use outside the instructions is not permitted!
For damage caused by unauthorized use:
-is the sole responsibility of the user.
-the manufacturer does not provide any warranty.
The relevant safety, occupational health and traffic regulations must be observed.
The manufacturer is not liable for any damage caused by modifications made to the machine by the
user.
The manufacturer is not aware of any negative effects of pesticides that could damage the device.
Attention!
These operating instructions must be read carefully before using the machine and the
recommendations must be followed exactly!
The manufacturer does not assume any warranty for damage caused by carelessness!

4.2 Safety and accident prevention regulations
4.2.1 General safety instructions
-Test the traffic and operational safety before each commissioning!
-Observe the recommendations in this manual and the general safety and accident prevention
regulations!
-Observe the relevant regulations when using the machine on public roads!
-The driving speed must be adapted to the driving conditions, the gradient and the tank filling
level!
-The maximum permissible speed when driving with the cultivation or floating tires must be
adapted to the recommendations of the tire manufacturers!
-Before starting work, it is necessary to familiarize yourself with all the equipment, controls and
functions of the machine!
-Make sure that no other people are around before you start!
-Make sure you have a good view of the machine and your surroundings!
-Check the traffic facilities - e.g. lighting, warning and safety signs!
-Pay attention to the yaw and centrifugal force of the machine when cornering!
-Riding on the machine during work and transport is prohibited!
-The permissible weight per axle, hitch and support leg must not be exceeded!
-When folding and unfolding the boom, no one is allowed to be in the folding area!
-It is forbidden to stay under the unfolded boom!
-There are shear points on all hydraulically folded areas!
4.2.2 Safety regulations for road traffic
-When participating in road traffic, you must comply with the rules of the road traffic
regulations!
-The machine must be equipped with the prescribed equipment.
-The driving speed must be adapted to the terrain profile!
-Special care must be taken when driving on slopes. Danger of the machine tipping over!
-In difficult terrain, make sure that the machine has sufficient ground clearance!
-The maximum speed allowed is 40 km/h.
-When used on the road, nothing must be attached behind the sprayer.
-It is forbidden to carry people on the machine.
-Operation of the machine in poor visibility conditions is prohibited.
-Always clean the side fenders before driving on public roads.
4.2.3 Hydraulic system
-The hydraulic system is under pressure!
-When connecting hydraulic cylinders and pumps, the prescribed connection of the hydraulic hoses
must be observed!
-Check the hydraulic hose lines regularly and replace them if damaged or aged!

-The replaced hose lines must comply with the technical requirements of the machine
manufacturer!
-Use appropriate equipment when searching for leaks due to the risk of injury!
-Liquids escaping under high pressure (hydraulic oil) can penetrate the skin and cause serious
injuries! In case of injuries, consult a physician immediately! There is a risk of infection!
-Before working on the hydraulic system, lower the boom to the transport position or lower it
completely when folded out. The unit must not be under pressure!
Attention!
The hydraulic system is under high pressure!
Always release the pressure carefully before working on the hydraulic system.
Only allow professionally trained personnel to carry out work on the hydraulics.
Custom modifications or changes to the hydraulic system will void the warranty.
4.2.4 Drive
-Before switching on the drive, make sure that the selected tractor speed matches the maximum
speed of the sprayer pump and that no one is in the vicinity of the sprayer!
-Never switch on the drive with the motor switched off!
4.2.5 Brakes
-Set the load controller to the appropriate load level.
-Check the brakes before every ride!
-The adjustment and repair of the brakes may only be carried out by specialist workshops or
approved service technicians!
4.2.6 Tires
-When working on tires, the machine must be secured against rolling away (wheel chocks).
-The assembly of wheels and tires requires sufficient knowledge and the prescribed tools!
-Wheel and tire repairs may only be carried out by qualified personnel and with the tools intended
for this purpose!
-Check the wheel bolt nuts! Failure to do so may result in loss of the wheel and overturning of the
machine!
-Retighten after the first 50 km and regularly check the tightness of the tightening.
-Check the air pressure of the tires regularly! The pressure must correspond to the load capacity
and the actual load of the wheels!
-Check your tires regularly for damage (cuts, holes, dents)!
-On the tire is a table with pressure values for different speeds.
4.2.7 Repair and maintenance
-Regularly check whether the screws and nuts are tightened or retighten them!
-Dispose of oils, greases and filters properly!
-Before working on the electrical system, disconnect the machine from the power supply!
-If safety devices are subject to wear, they must be checked regularly and replaced in good time!
-When welding on the sprayer, the power supply must be disconnected!
-Do not open any lines that are under pressure! First depressurize with water taps!
-Only hoses with an operating pressure of at least 20 bar and which meet the required mechanical,
chemical and temperature resistance may be used as replacement hoses for crop protection agents!
Only stainless steel hose clamps may be used for assembly!

-Repairs in and on the tank may only be carried out after thoroughly washing the tank and using a
breathing mask or oxygen apparatus! For safety reasons, a second person outside the tank must
supervise the repair!
-When repairing a sprayer that has applied liquid fertilizer containing nitrates and urea, consider
the following:
- the residue of dissolved nitrate with urea is converted into salts by evaporation of water, pure
nitrate and urea are formed.
- if the critical temperature is exceeded during repair (e.g. grinding, welding), nitrate in pure
form is explosive in combination with organic substances (e.g. urea)!
- Nitrate salts with urea are water soluble, i.e. thorough washing with water before repair
eliminates the risk of explosion.
Attention!
Repairs to crop protection sprayers may only be carried out by qualified personnel!
4.2.8 Handling P pesticides
-Follow the recommendations of the crop protection product manufacturer!
-Wear protective clothing and observe the regulations for use and cleaning!
-Fabrics that tend to stick or shrink must not be used!
-Eating, drinking and smoking is prohibited when working with plant protection products!
-Prevent children from having access to plant protection equipment and products!
-Never blow nozzles and other small parts clean with your mouth!
Attention!
Before using products and fertilizers, read the safety data sheet carefully and follow the
instructions for use exactly.

4.3 List of security labels
Description of the security labels
BZ.2
Switch off the engine before any repair, adjustment or maintenance.
Follow the instructions.
BZ.3
Hazardous substances, vapors and gases.
Do not enter the tank.
BZ.4
Hazardous substances, vapors and gases.
Follow the product manufacturer's instructions.
BZ.1
Read the instructions for use before use.
BZ.5
Secure the machine against unwanted movements.

BZ.7
Risk of injury.
Keep a safe distance.
BZ.9
Injury possibilities.
Do not touch the shearing area.
BZ.10
Possibility of electric shock.
Keep a safe distance between the machine and the power supply.
BZ.8
Possible injuries to the upper limbs
Do not touch the shearing area.
BZ.6
Falling off the machine.
Keep a safe distance from the machine.

BZ.14
Attention; toxic material
BZ.13
Maximum speed and direction of rotation of the cardan shaft
BZ.12
Max. Spray pressure in the unit
BZ.11
Max. Pressure in hydraulic system
Possibility of crane attachment.

4.3.1 Location of the safety labels
BZ.3
BZ.3
BZ.3
BZ.4
BZ14
BZ.5
BZ.7
BZ.8
BZ.9
BZ. 6

5Description of the machine
5.1 Overview of the individual machine elements
Machine elements - view from left
1 Boom 11 Hydr. support foot
2 Main tank 12 Pressure gauge
3 Mudguards 13 Tank control
4 Tires/wheels 14 Lateral filling
5 Ecomixer (single-flush sluice)
6 Pump
7 Hydromotor
8 Ascent ladder
9 Fresh water tank (integrated)
10 Hand washing tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14

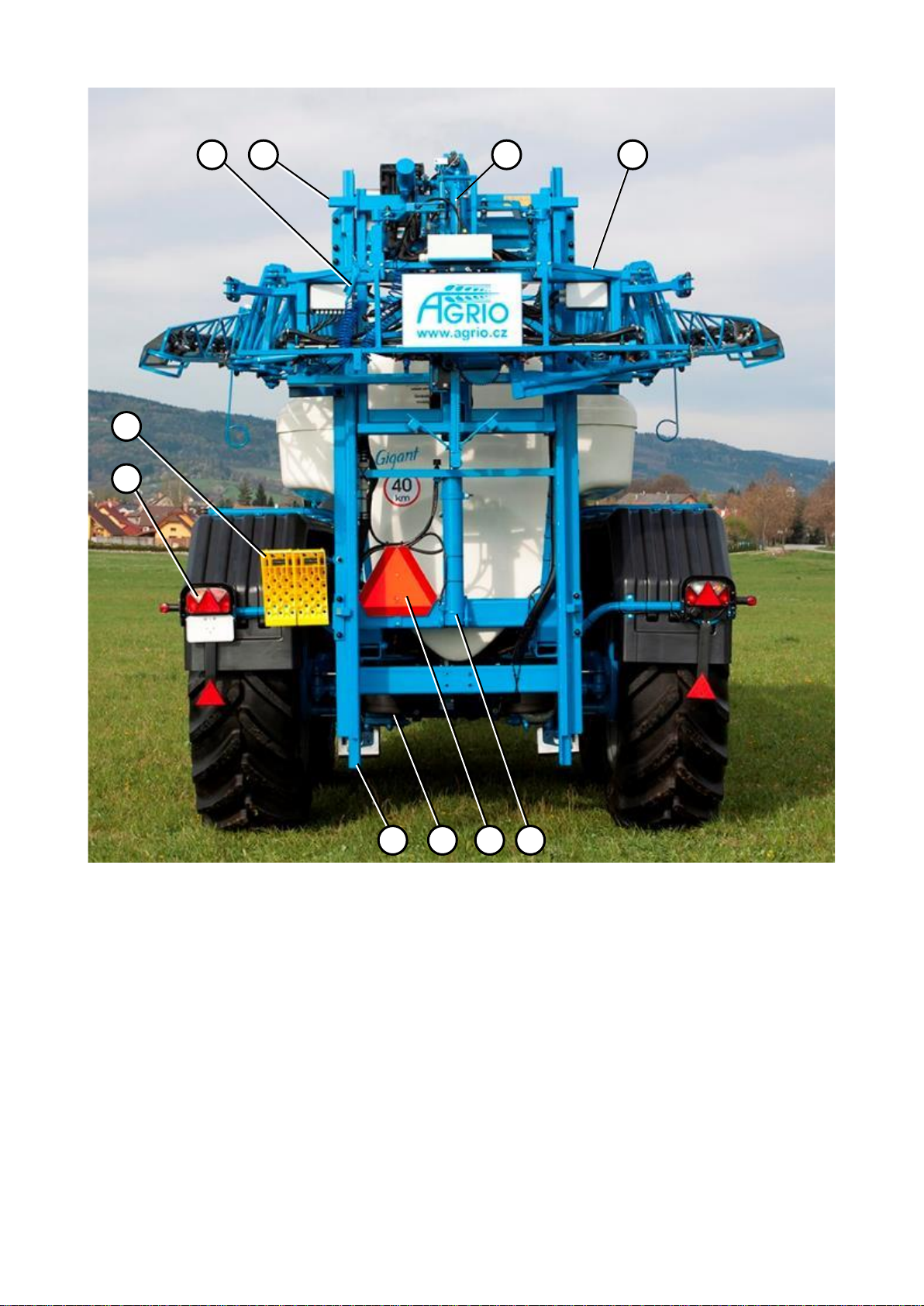

Machine elements - rear view
1 Tower 6 folding cylinders
2 Barrel carriage 7 Air pistol
3 center frame 8 Wheel chocks
4 Air suspension 9 Taillights
5 Lifting cylinder 10 Warning triangle
1
2
3
4
6
5
7
8
9
10

Machine elements - top view
1 Water tank lid Fresh water 8 Filling the main tank
2 Main tank cap 9 cleaning nozzles
3 Control valve 10 Hydrant filling
4 Pump overflow 11 TankControl dipstick
5 Return water 12 Ecomixer injector
6 Venting 13 Filling the main tank
7 2. control valve
1
3
1
7
6
11
2
5
12
4
9
10
13
8
2

6Description of the controls
6.1 Switchboards and computers
BASIC terminal
TOUCH800® TOUCH1200®
Navigation TRACK-Guide III
