Mytee 6001 Electric Boss User manual

1
Model #
Serial #
Form # ADP-6001
5-16
Instructions for
6001 Electric Boss™
13655 Stowe Dr., Poway, CA 92064
General information p. 2
Set up p. 4
Parts & pricing p. 6

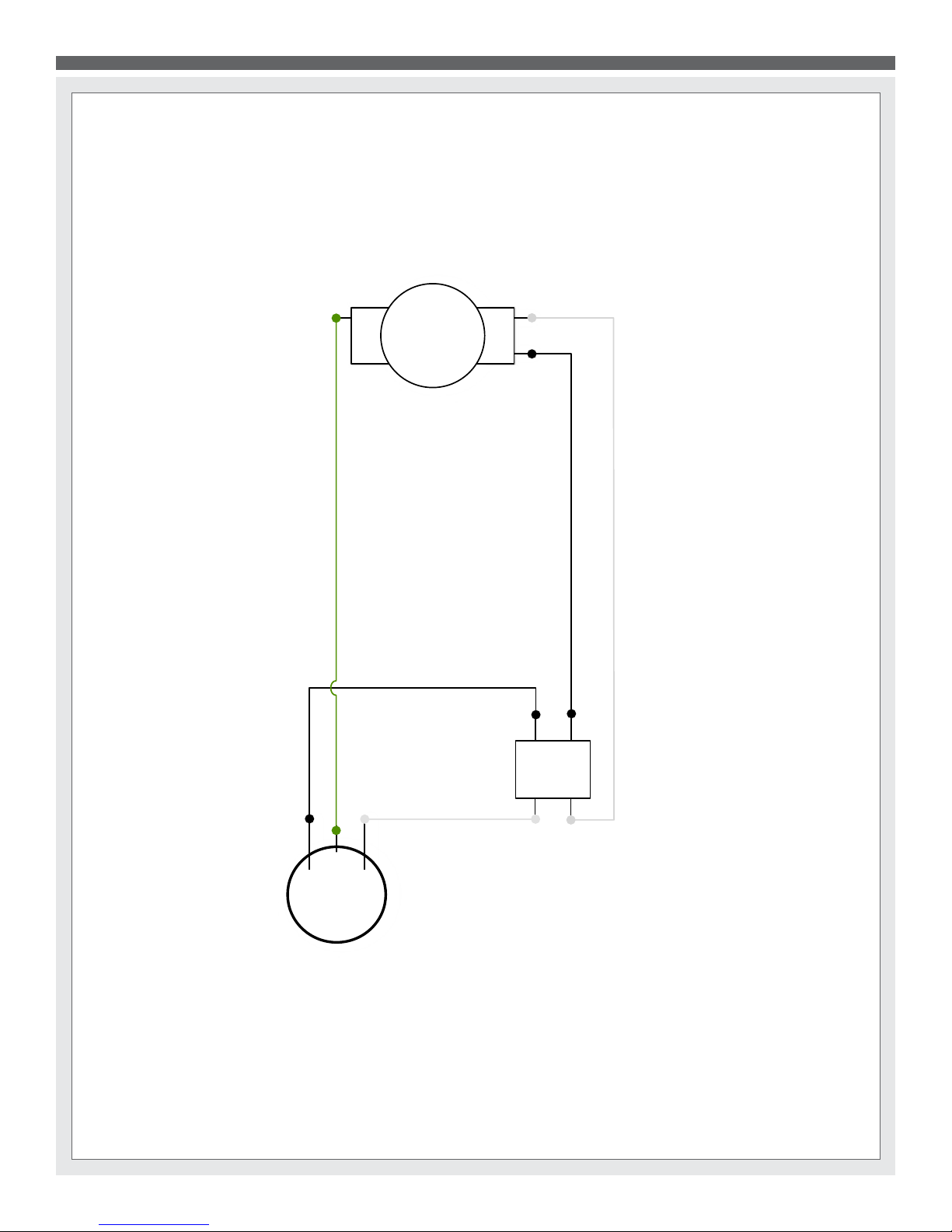

Wiring diagram p. 8
Please read before use.
Register your product
at http://www.mytee.
com/support/register

2

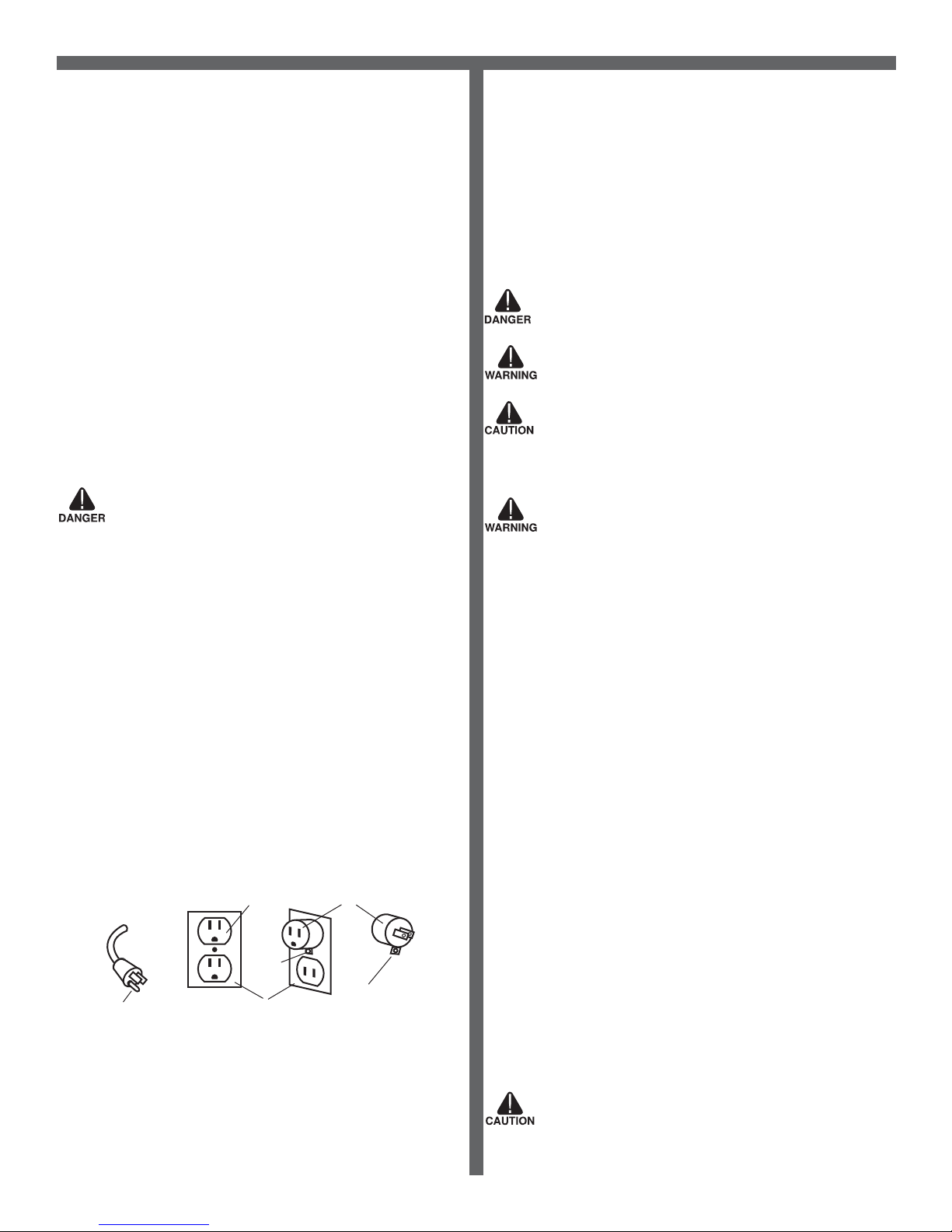

Figure 1
Grounding Pin
Grounded Outlet
Grounded Outlet Box
Adapter
Tab for Grounding
Screw
Metal
Screw
Figure 2 Figure 3
Dear Customer:
Congratulations on the purchase of your new 6001 Electric Boss™ As you are al-
ready aware, the scene of the equipment world is becoming more high tech, and we
at Mytee® Products Inc. strive to keep you on the cutting edge with superior quality
and technology.
Keep in mind that your 6001 Electric Boss™ is a machine, so neglect or abuse
will cause unnecessary damage and void the warranty. However with simple
maintenance your 6001 will give you quality performance for many years
to come.
If warranty questions arise, please consult your user manual or get in touch with
your distributor. If you have questions about maintenance, replacing parts or
ordering parts, please call an authorized Mytee® Products Inc. Service Center.
To see an updated list, visit our website at www.mytee.com
Before you begin cleaning, please read your manual thoroughly.
Sincerely,
Mytee® Customer Care Dept.
Grounding Instructions
This machine must be grounded when being recharged. If it should malfunction or
breakdown, grounding provides a path of least resistance for electrical shock. This
machine is equipped with a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed in accordance with all local code and ordinances. Do not remove ground
pin; if missing, replace plug before use.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or service person if you are in doubt
as to whether the outlet is properly grounded. Do not modify the plug provided with
the machine. If it will not t the outlet, have a proper outlet installed by a qualied
electrician.
This appliance is for use on a nominal 120-volt circuit, and has a grounding plug
that looks like the plug illustrated in Figure 1 below. A temporary adapter illustrated
in Figures 2 and 3 may be used~to connect this plug to a 2-pole receptacle as
shown in Figure 2 if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet (Figure 1) can be
installed by a qualied electrician. The green colored rigid ear, tab or the like
extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held
in place by a metal screw. Grounding adapters are not approved for use in Canada.
Replace the plug if the grounding pin is damaged or broken.
The Green (or GreenYellow) wire in the cord is the grounding wire. When replacing
a plug, this wire must be attached to the grounding pin only.
Extension cords connected to this machine should be 12 gauge, three-wire cords
with three-prong plugs and outlets. DO NOT use extension cords more than 50 feet
(15 m) long.
Please Note for America use only
Parts and Service
Repairs, when required, should be performed by Mytee® service personnel or
Mytee® authorized Service Center using Mytee original replacement parts and
accessories. Call Mytee for repair parts or service. Please specify the Model and
Serial Number when discussing your machine.
Name Plate
The Model and Serial Number of your machine are shown on the Nameplate on the
back panel of the machine. This information is needed when ordering repair parts
for the machine. Use the space provided on the front cover to note the Model and
Serial Number of your machine for future reference.
Unpacking the Machine
When the machine is delivered, carefully inspect the shipping carton and the
machine for damage. If damage is evident, save the shipping carton so that it can
be inspected by the carrier that delivered it. Contact the carrier immediately to le a
freight damage claim.
Caution and Warnings
Symbols
Mytee® uses the symbols below to signal potentially dangerous conditions. Always
read this information carefully and take the necessary steps to protect personnel
and property.
Is used to warn of immediate hazards that will cause severe personal injury or death.
Is used to call attention to a situation that could cause severe personal injury.
Is used to call attention to a situation that could cause minor personal injury or
damage to the machine or other property. When using an electrical appliance, basic
precautions should always be followed, including the following: Read all instructions
before using this machine. This product is intended for commercial use only.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
3. Always unplug power cord from electrical outlet before attempting any adjustments
or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
5. Do not pull or carry by cord. Do not close a door on cord or pull cord around sharp
edges or corners.
6. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not use with damaged cord or plug. If cord is damaged, repair immediately.
8. Do not use outdoors or on wet surfaces and or standing water.
9. Always unplug or disconnect the appliance from power supply when not in use.
10. Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
11. Do not use in areas where ammable or combustible material may be present.
12. Do not leave the unit exposed to harsh weather elements. Temperatures below
freezing may damage components and void warranty.
13. Use only the appropriate handles to move and lift unit. Do not use any other parts
of this machine for this purpose.
14. Keep hair, loose clothing, ngers, and all parts of the body away from all
openings and moving parts.
15. Use extra care when cleaning on stairs.
16. To reduce the risk of re or electric shock, do not use this machine with a solid-
state speed control device.
17. The voltage and frequency indicated on the name plate must correspond to the
wall receptacle supply voltage.
18. When cleaning and servicing the machine, local or national regulations may apply
to the safe disposal of liquids which may contain: chemicals, grease, oil, acid, alka-
lines, or other dangerous liquids.
19. Do not leave operating unattended.
Filling the Solution Tank
1. Fill the solution tank with 5 gallons of cleaning solution.
2. Do not ll up the solution tank completely: 1” should be left free at the top.
3. Typically, the solution should be a mixture of water and a cleaning chemical ap-
propriate for the type of job.
4. Always follow the dilution instructions on the chemical container label.
5. The temperature of the cleaning solution must not exceed 70oC/160oF.
Use only non-ammable liquid in this machine.
6001 Electric Boss™

3
After Use
1. Turn master switch OFF.
2. Empty solution tank and rinse it with clean water.
3. Inspect hoses and replace if damaged.
4. Inspect solution lter. Clean or replace if damaged.
5. Store the machine in a clean, dry place.
Maintenance Schedule
Maintenance item Daily Once a week
Clean and inspect Tanks
Clean and inspect Hoses
Check lters
Check power supply cable
Check spray nozzles
x
x
x
x
x
Troubleshooting
There is no power. Weak pressure.
1. Obstruction or blockage in the solution line.
2. Check jets and lters for debris.
3. Bad switch.
6001 Electric Boss™

4
3
8
10
11
15
12
13
14
6001 FRONT 6001 BACK
1. Spray Gun
2. 15’ Coiled Hose
3. Basket
4. Faucet Fill
5. Tank Lift Handle
6. Vented Cap
7. Five Gallon Tank
8. Chassis
9. Cord Wrap
10. Pump Solution In
11. Pump Solution Out
12. Power Cord
13. On - Off Switch
14. Release Latch
15. Handle
6001 ON - OFF SWITCH
SWITCH POSITION
On- To spray/operation.
Off- To store.
ON
OFF
6001 POWER CORD
Plug power cord into grounded wall outlet. NOTICE
Always store in OFF
position.
2
4
6
5
9
6001 Electric Boss™
1
7

5

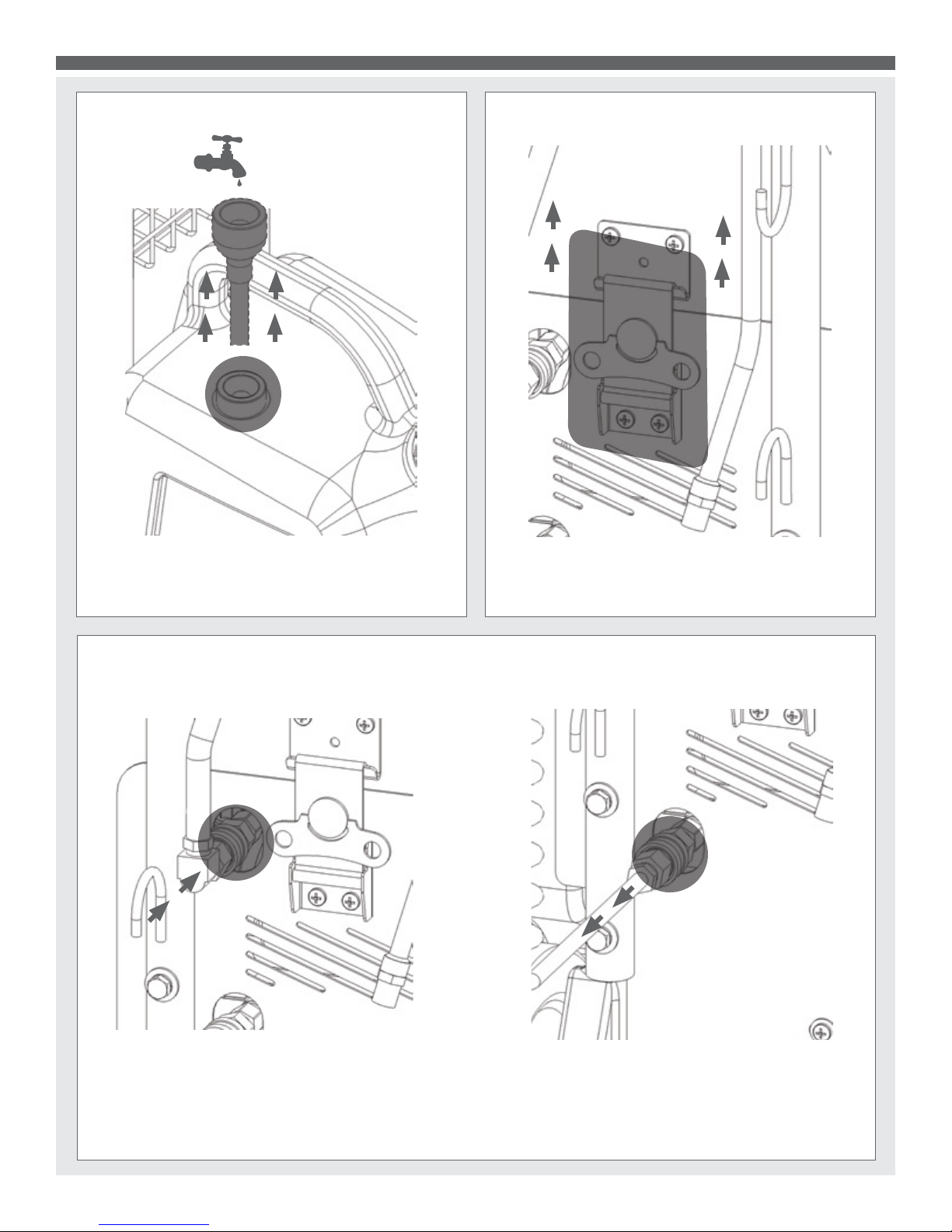

6001 RELEASE LATCH
6001 SOLUTION IN/OUT
6001 FAUCET FILL
Extend Hose.
Attach to faucet.
Fill tank.
Return hose to holder.
Detach: Flip-up latch. Attach: Place latch.
Twist counter clockwise Twist clockwise
for release. Press latch to secure.
Solution In: From tank to pump. Connect male quick disconnect to female Q.D.
Solution Out: From pump to high pressure spray gun. Connect male Q.D. to female Q.D.
6001 Electric Boss™

6

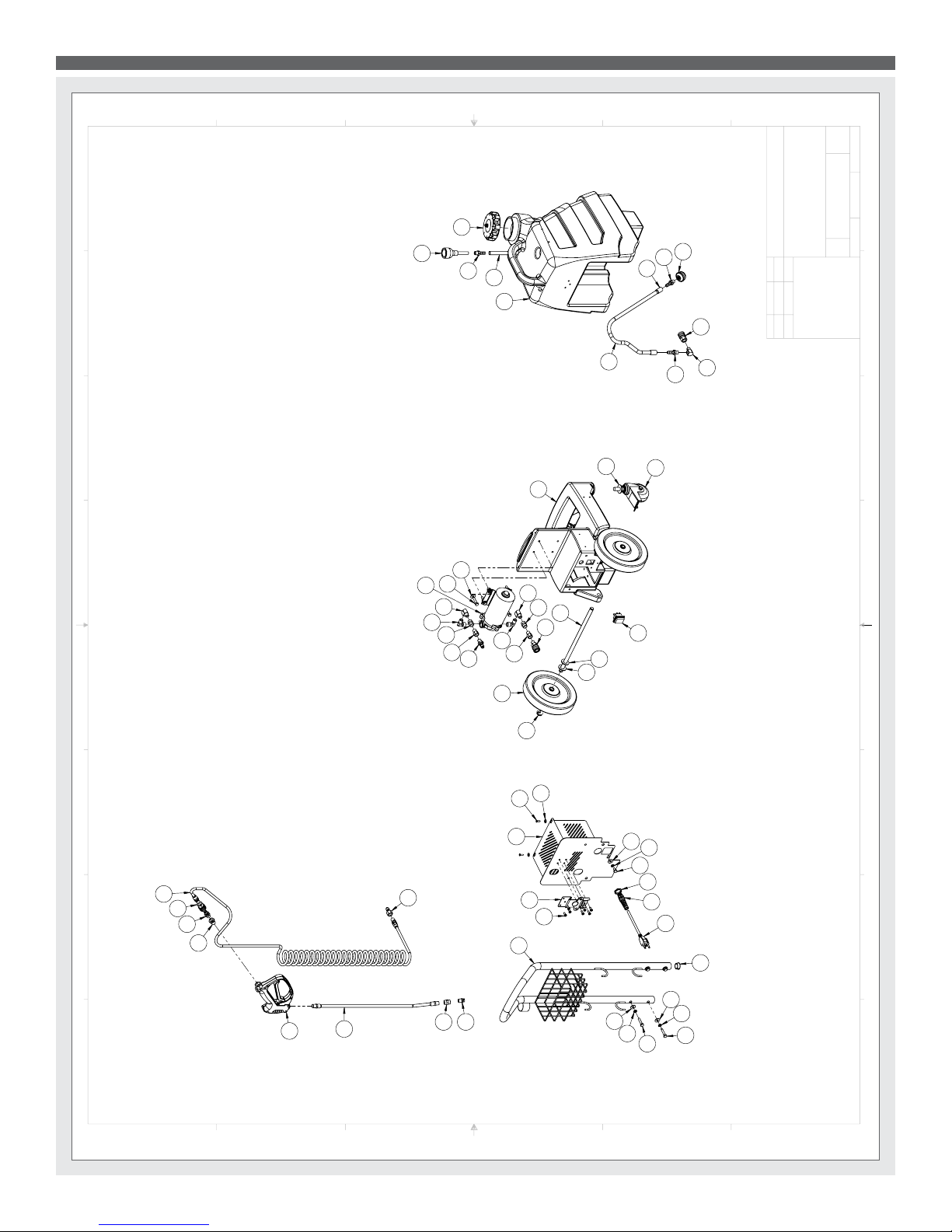

6001 Electric Boss™ PARTS & PRICING
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
1
AH107
sol hose, black coil 15' 1/4 m x 1/4 m
1 $55.99 ea
2
B259A
qd, brass, 1/4" fqd x fpt
2 $15.99 ea
3
B260A
qd, brass, 1/4" mqd x fpt
2 $8.99 ea
4
B105
bushing, brass, 3/8"mpt x 1/4" 1 $3.19 ea
5
H540
gun, high pressure
1 $41.99 ea
6
H171
lance, s/s, 20" w/bend, inj sprayer 1 $40.99 ea
7
B142A
coupling, brass, 1/4" fpt x 1/4" fpt
3 $4.49 ea
8
B258 v jet, brass, 6506, 1/4 male thread
1 $6.25 ea
9
B260
qd, brass, 1/4" mqd x fpt
1 $10.49 ea
10
H688
handle, w/basket w/tube ring
1 $61.99 ea
11
H230
screw, 10-32 x 1/2" phil pan head, s/s 7 $0.99 ea
12
H486
latch, front
1 $13.99 ea
13
H773
plate, cover, back, boss
1 $47.99 ea
14
H304
screw, #8 x 5/8 phil oval, s/s
2 $0.99 ea
15
H289B
washer, 10 flat, black
2 $0.99 ea
16
H210
washer, 1/4" flat, s/s
9 $0.99 ea
17
H213
washer, 1/4" lock, s/s
5 $0.99 ea
18
H201
bolt, 1/4-20 x 1/2", hex head, zinc
1 $0.99 ea
19
H221
nut, lock, 1/2" steel
1 $1.99 ea
20
H445
fitting, strain relief, w/ spring, 1/2" npt
1 $8.99 ea
21
E533
power cord, end, 25', 16/3
1 $35.49 ea
22
H423
plug, 7/8", black, heyco
2 $0.99 ea
23
H042
c-clip, 12mm, external
2 $0.99 ea
24
H239
wheel, 8"
2 $28.99 ea
25
B259
qd, brass, 1/4" fqd x mpt
1 $11.99 ea
26
B111
adapter, brass, extender, 1/4" mpt x 1/4" fpt, hex
2 $3.49 ea
27
B652
elbow, brass, 90 deg, 3/8"mpt x 1/4"mpt
2 $8.49 ea
28
B103
elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt 3 $4.49 ea
29
C305A
pump, 100 PSI, no pressure switch
1 $136.99 ea
30
H203
bolt, 1/4-20 x 1-1/4"
8 $0.99 ea
31
P545
chassis, big boss
1 $27.99 ea
32
H876
washer, 1/2" flat, s/s
2 $0.99 ea
33
H240
caster, swivel, stem, 3" w/lock
2 $9.99 ea
34
H228
axle, 13.10" x .50" dia
1 $9.99 ea
35
H212
flat washer, 9/16"ID x 1 1/16"OD, AN960-C916
4 $0.99 ea
36
E515
switch, rocker, 2 position
1 $13.99 ea
37
G033
cap, tethered, vented, 3.5"
1 $5.99 ea
38
H178
faucet fill
1 $10.99 ea
39
B241
adapter, brass, 3/8" barb x 1/4"mpt
3 $1.99 ea
40
PH612-60
clear tubing, 1/2" OD x 3/8" ID, faucet fill
1
$1.99 ft
41
P544
tank, big boss
1 $58.99 ea
42
PH715-37
sol hose, 3/8" kuri 150psi
1
$7.99/ft
43
B171
ferrule, 3/8", brass
2 $0.99 ea
44
B119
filter, strainer, 1/4"
1 $3.99 ea
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
6001
SHEET 1 OF 3
Big Boss
4/2014
A
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

7
6001 Electric Boss™ PARTS & PRICING
1
2
3
4
5
6
7 8
9
10
11
12
13 14
15
16
17
18
16
17
30
16
17
30
23
24
3
26 7
27
28
29
30
16
28
27
7
26
25
35
35
34
36
31
32
33
38
37
41
42
39
28 2
43
39
44
20
21
22
40
19
39
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
6001
SHEET 2 OF 3
Big Boss
4/2014
A
SCALE: 1:48
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

8
6001 Electric Boss™ WIRING SCHEMATIC
6001
115 Volt System
L1 L2
G
Primary Cord
Pump
L2L1
G
C-305A
E-515
4/30/2014

9
Mytee® Products Inc.
13655 Stowe Dr.
Poway, Ca. 92064
www.mytee.com
© 2016 Mytee® Products Inc.
Printed in the U.S.A.
NOTES
