Agu FIXIKI F1 User manual

EN USER MANUAL
RU РУКОВОДСТВО
ПО ЭКСПЛЛУАТАЦИИ
FIXIKI F1

24
1
3
5
6
7
8
9
10
12
11
19
13
14
15
12
13 14
16
17
18

21
micro
SIM card
Phonebook
Mama
Papa
+4171XXX1111
22
20
23

24
28 29 30
26 27
25
find
AGU app
or scan
QR code

5
GPS WATCH FOR KIDS FIXIKI F1
CONTENT
1. Introduction .......................................................................................................6
2. List of Symbols..................................................................................................6
3. Scope of application.....................................................................................8
4. Completeness of set..................................................................................10
5. Specifications .................................................................................................11
6. Product overview.........................................................................................12
7. Safe operation instructions ...................................................................14
8. Preparation for work ..................................................................................16
9. Operating principles and procedures............................................17
10. Potential breakdowns and their elimination.............................18
11. Conditions of transportation,
storage and operation..............................................................................19
12. Disposal..............................................................................................................19
13. Certification .....................................................................................................20
14. Manufacturer’s warranty .........................................................................20

6
EN
1. INTRODUCTION
Dear friends, thank you for selecting our product!
We present to you a high-tech device Fixiki F1 – «smart» watch
phone for kids with GPS-tracker! Built-in GPS module defines a
child’s location with the accuracy up to 1 m. The accuracy of the
device depends on the environment: the device is more accu-
rate outdoor, and slightly less accurate indoor. The GSM module
allows to use the device as a mobile phone.
GPS watch for kids Fixiki F1 will provide you with more confi-
dence that your children are safe!
Please study this instruction manual carefully before you
start making settings and device operation.
2. LIST OF SYMBOLS
Symbol Definition
The device meets the requirements of the following
documents:
• The Radio Equipment Directive 2014/53/EU;
• Directive 2011/65/EU on the Restriction of the Use
of Certain Hazardous Substances in Electrical and
Electronic Equipment.

7
WEEE (EC Directive on Waste Electrical and Elec-
tronic Equipment). This marking means that the de-
vice must not be disposed together with household
waste. In order to prevent a possible damage to the
environment and harm to human health, such waste
shall be segregated from other types of refuse and
disposed of in accordance with the relevant accept-
ed standards.
The device meets the requirements of Directive
2011/65/EU on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic
Equipment.
The device meets the main requirements of Customs
Union Technical Regulation 020/2011 on Electro-
magnetic Compatibility of Technical Products.
Warning / Attention.
Study the instruction manual
before usage.
Manufacturer.

8
EN
3. SCOPE OF APPLICATION
The smart GPS phone watch for kids is equipped with a micro SIM
card and has a two-way communication mode, which allows a real-
time tracking your child’s location.
Built-in GPS tracker receives the satellite’s signal and sends the data
about the child’s location via Internet to the tablet or smartphone*
of the parents or people indicated in the phone book settings. By
installing a micro SIM card in the watch you will stay always con-
nected to your child!
The undeniable advantage of the Fixiki F1 watch is the opportu-
nity to track the child’s location and contact the child at any time.
Whether you are at work, traveling on business, at home or in any
other circumstances, which do not allow you to see and know
where your child is and what is happening around your child, you
can always open the application in your device and learn where
your child is or call him/her*.
*Note: the tracking function is only available if the micro SIM card is installed
in the watch.
GPS Watch for Kids Fixiki F1 provides the following:
• Stay always connected, as the child cannot turn off the de-
vice. The watch can only be turned off using the application
installed in the parents’device (tablet or smartphone).

9
Please check the battery level.
• Define the child’s exact location with the real GPS coordi-
nates* displayed right on the screen of your device with
the help of the mobile application.
• Store the history of child’s moves. You can see the history
of the child’s moves during the day at any time. The history
is kept for the last 7 days and is available in the application.
• Set the borders of the permitted area and track the child’s
presence in this area. The watch can send messages about
the child’s exit from the permitted area (for example, a
playground).
• Contact the parents urgently using the SOS button.
• Receive an instant text alert or signal if the watch is taken
off the child’s hand.
• Protect your child from unwanted calls, as the watch can
only receive calls from authorized numbers. You can make a
list of authorized contacts for incoming and outgoing calls.
All other calls will be blocked and automatically rejected.
• Monitor child’s health by using the pedometer and the cal-
ories count function.
*Note: the tracking function is only available if the micro SIM card is in-
stalled in the watch.

10
EN
4. COMPLETENESS OF SET
GPS Watch for kids Fixiki F1 — 1 pc.
Instruction manual — 1 pc.
USB cable — 1 pc.

11
5. MAIN TECHNICAL SPECIFICATIONS
Type Watch phone with GPS
Supports IOS 7.0 or later,
Android 4.5 or later
Watch off device sensor +
Built-in speaker,
microphone,
accelerometer, GPS,
GSM antenna
+
Micro SIM support +
Display 1.0 inch OLED
Dimensions, LxWxH, mm 45х37х16
Power source 400 mAh li-pol battery
Weight, g 25
Connection
Battery runtime
GPS connection 22 channels;
GSM (850 / 900 / 1800 / 1900 MHz);
GPRS (Class 12);
AGPS; LBS; Glonass
up to 24 hours

12
EN
6. PRODUCT OVERVIEW
(1) micro USB – plug for charging
(2) button of receiving incoming calls / SOS button /
«back» button
(3) the watch take-off sensor defines if the watch is off
the child’s hand
(4) micro Sim card slot
(5) Sim card slot is empty
(6) signal level
(7) GPS signal availability
(8) sound on
(9) watch take-off sensor
(10) alarm clock
(11) date
(12) number of likes
(13) battery charge
(14) time
(15) speed dial button1 / in the phone book – «up in the list»
(16) on/off button / end a call

13
(17) press once – enter the phone book / hold the button –
speed dial button 2 / click in the phone book – «down in
the list» / hold in the phone book – call the selected contact
(18) day of the week
(19) USB cable
(20) phone book
Display
Shows time, date, battery charge level, cellular network signal
level.
The front, face side of the screen has a button of receiving in-
coming calls / SOS button / «back» button (2). To answer a call
push the button (2).
To send an alarm signal (SOS), press and hold the button (2) for
5 seconds.
There are three buttons on the side of the watch:
• on/off button / end a call (16);
• speed dial button1 / in the phone book – «up in the
list» (15);
• press once – enter the phone book / hold the button –speed
dial button 2 / click in the phone book – «down in the list» /
hold in the phone book – call the selected contact (17).

14
EN
Speed dial buttons 1 (15) and 2 (17) are used for calling num-
bers preset for each of the buttons. Press and hold this button
to call the assigned subscribers. For example, button 1 (15) is
for calling the mom, and button 2 (17) is for calling the dad.
Numbers can be preset for the speed dial buttons by using the
application installed in the parent’s smartphone.
On/off button (16)
• Turning on/off: press and hold for 2 seconds.
• Ending a conversation / call: press during a conversa-
tion / call to end the conversation or reject the call.
The watch warns of low battery power.
HOW TO TAKE OFF AND REPLACE THE STRAP:
Pull the stud on the pin and take off the strap.
Installation of the exchangeable strap is similar.
7. SAFE OPERATION INSTRUCTIONS
Study the instruction manual carefully before using. The
warranty does not apply to the devices that were oper-
ated with a violation of precautionary measures!

15
After studying the instruction manual and main functions put the
watch on your child’s hand and explain how to use it.
Treat the watch carefully; do not expose the watch to sharp tem-
perature changes.
Do not subject the watch to shock.
Do not disassemble the watch.
Teach your child how to put the watch on/off and how to charge it.
Do not submerge the GPS Watch for kids Fixiki F1 in water.
Do not leave the device exposed to fire and high temperatures.
For charging use only the original USB cable (19) supplied.
ATTENTION
• Do not attempt to repair the watch by yourself, this will
void the warranty. Contact a specialized service center for
repair and servicing*.
Any modifications made to this watch without the manufacturer’s
permission will result in the violation of the warranty.
*See the service centers’ addresses in the inserted list
or at the agu-baby.com web-site.

16
EN
8. PREPARATION FOR WORK
Turn the watch on and check the battery charge level. If the charge
level is low, charge the watch (23) using the USB cable (19).
Install a micro SIM card (22) of any cellular service provider in
the watch.
The cellular provider’s service package should have the monthly
Internet traffic subscription activated.
Make sure that the micro SIM card is activated, connected to the
Internet and there is money on the account.
Micro SIM card installation
Before installing the micro SIM card in the watch, turn off
the PIN code lock function.
You can turn off the PIN code lock function by seeking the
provider’s help when buying the SIM card or on your own.
If your watch is on, turn it off by pressing and holding the on/off
button (16) until you hear the signal and see the «BYE» message
on the screen of the watch*.
1. Open the silicone plug on the left facet of the watch (21).
2. Insert the micro SIM card (22) all the way in the slot.

17
3. Close the silicone plug tightly (21).
4. Turn the watch on and check the battery charge level. If the
charge level is low, charge the watch using the USB cable (19).
*After registering the account you can only turn off the watch phone
by using the application in your smartphone.

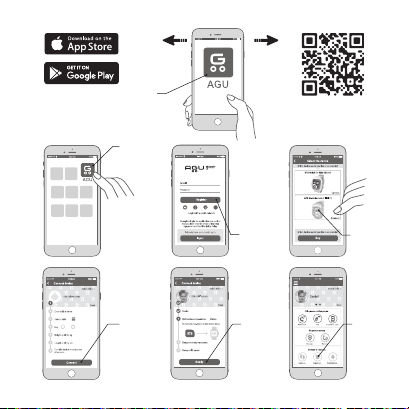

9. OPERATING PRINCIPLES AND PROCEDURES
1. Install the application (24).
Option 1: go to PlayMarket or AppStore and enter «AGU» into
the search box; then download the application.
Option 2: for direct download scan this
QR-code.
2. Download and start the application (25).
3. Register or login with a social network (26).
4. Select the device to connect to (27).
5. Enter the necessary data about the child (28).
6. Turn the device on and press «Connect» (29).
7. Then follow the instructions in the application (30).

18
EN
10. POTENTIAL BREAKDOWNS
AND THEIR ELIMINATION
If any problem arise during the operation of the device, refer to
the list of possible failures first.
Failure table
Failure Possible causes Solution
The watch would
not turn on The battery is low Charge the watch
The watch would
not connect
to the cellular
network
No micro SIM card
installed
Install
the micro SIM card
Micro SIM card
installed incorrectly
Install the micro SIM
card as instructed
No money
on the account Refill your account
The watch is out
of the network
coverage area
Make sure that
the watch is within
the network
coverage area

19
11. CONDITIONS OF TRANSPORTATION, STORAGE
AND OPERATION
The device should be transported at the temperature from –10°C
to +40°C and maximum reletive humidity level no more than 75%.
The device should be stored in a dry well ventilated room at
the temperature from –10°C to +30°C and maximum reletive
humidity level no more than 65%.
The device should be operated at the temperature from +5°C
to +30°C.
After transportation at temperatures below zero °C, before turn-
ing on the GPS watch for kids Fixiki F1, the device should be
kept at the normal temperature for at least 6 hours.
12. DISPOSAL
The symbol on the device and its packaging indicates that this
unit is not included in the category of household waste.
For environmental protection purposes this watch must not be
disposed of together with domestic (household) waste. Disposal
shall be performed in accordance with local regulations and laws.
The watch shall be disposed of in accordance with Directive
EC 2012/19/EU WEEE (Waste Electrical and Electronic Equip-
ment). If you have any questions, please contact your local waste
disposal authority.

20
EN
13. CERTIFICATION
GPS Watch for kids Fixiki F1 meets the following requirements:
• the main requirements of the Radio Equipment Directive
2014/53/EC; Directive 2011/65/EU on the Restriction of the
Use of Certain Hazardous Substances in Electrical and Elec-
tronic Equipment;
• the main requirements of Customs Union Technical Regula-
tion 020/2011 on Electromagnetic Compatibility of Techni-
cal Products.
14. MANUFACTURER’S WARRANTY
The warranty life of this device is 12 months from the sales date
with strict compliance observance of the operating conditions in
accordance with this manual.
The warranty may become void in the following cases:
• if the device has signs of extraneous or an attemp of repair
• if unsanctioned changes to the the device’s structure have
been revealed;
• if the device was operated not in accordance with its in-
tended purpose or in the conditions, for which it was not
intended.
