Aico Michael Amini Hudson Ferry KI-HUDF050-216 User manual

Congratulations on your purchase.
Rest assured only the finest materials, skilled artisans and modern
engineering were used to carefully construct this exquisite piece.
Dresser / Dresser Mirror
Assembly Instructions
KI-HUDF050-216/KI-HUDF060-216
Hudson Ferry

Caution:Before assembling, make sure all of the furniture
pieces are placed in their desired location. Inappropriate
moving furniture pieces after they are assembled might
cause structural damage and void warranties.

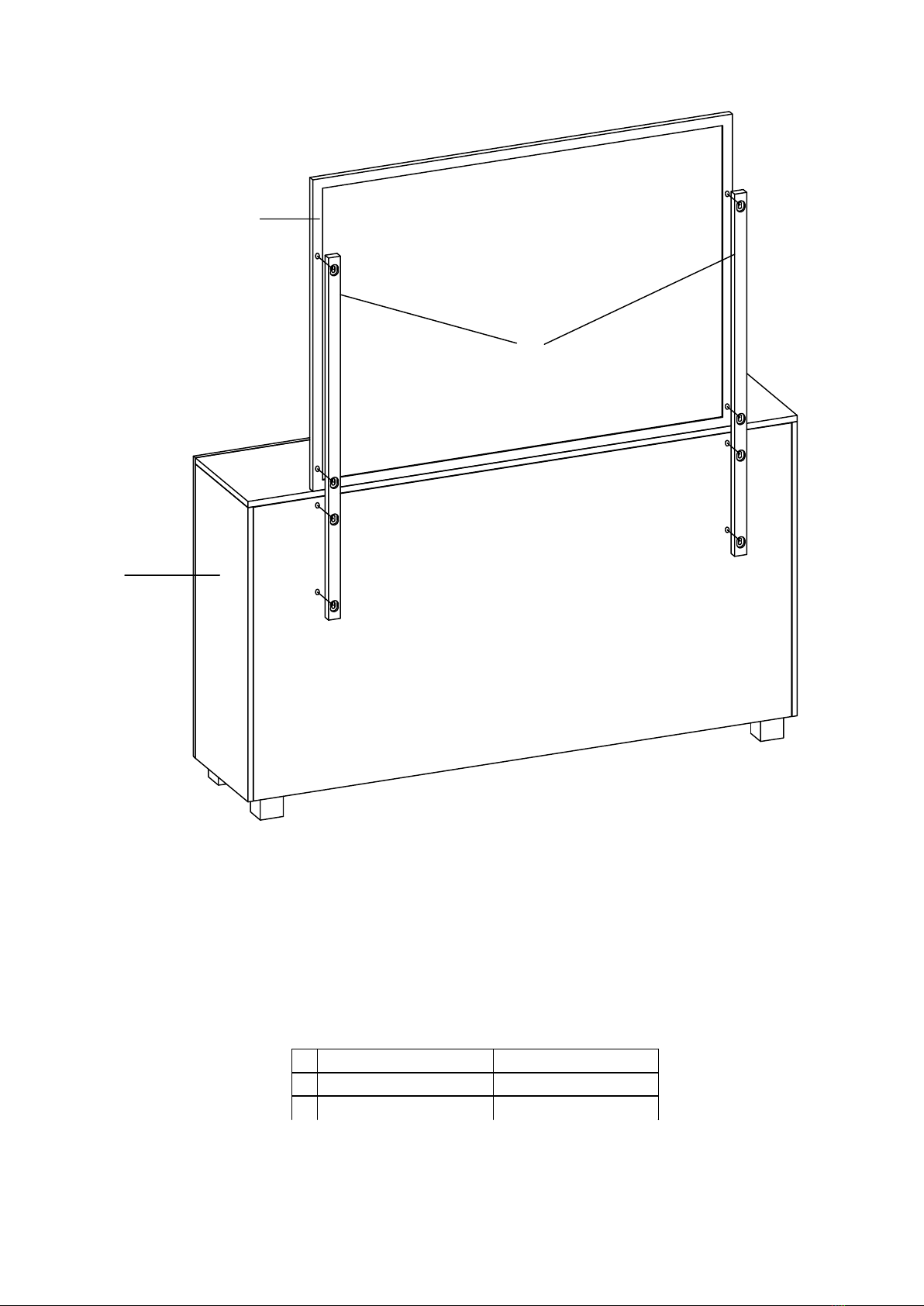

Dresser / Dresser Mirror Parts
Dresser Mirror
Dresser
Mirror Bracket
F
G
E1
2
1
G
F
E
NOTE: Inspect all packing material for small parts, which
may have come loose during shipment.Identify
and compare all parts against the parts list.
Index

Small Parts Ruler
Instructions:
Figure 1:
1. Place E (Dresser Mirror) onto F (Dresser).
2. Position E (Dresser Mirror) so that the back side is flush
with the back side of F (Dresser).
3. Loosen A (Bolt) from G (Mirror Bracket) with
D(Open Wrench) so that G will be able to rotate freely.
Assembly Hardware
Φ1/4 "*19*1.8mm
Φ1/4"
Φ1/4 "*1-1/2
Spring Washer
Bolt
Flat Washer
A
B
C
D
8
8
8
1
A
G
G
F
E
Φ5/16 "
Φ =diameter
10mm
Open Wrench
1 2 3
Step 1
Figure 1

Instructions:
Figure 2:
1. Adjust the G (Mirror Bracket) so that the empty hole on G(Mirror
Bracket) will be aligned with holes on E (Dresser Mirror).
2. Secure G (Mirror Bracket) to E (Dresser Mirror) and F (Dresser)
by inserting C (Flat Washer) + B (Spring Washer) + A (Bolt) through
holes and tighten with D (Open Wrench).
Figure 2
G
F
E
B
CD
A
B
CA
Heighten Lower
x5
Step 2
D
Adjust levelers to floor as shown
x4
x4
