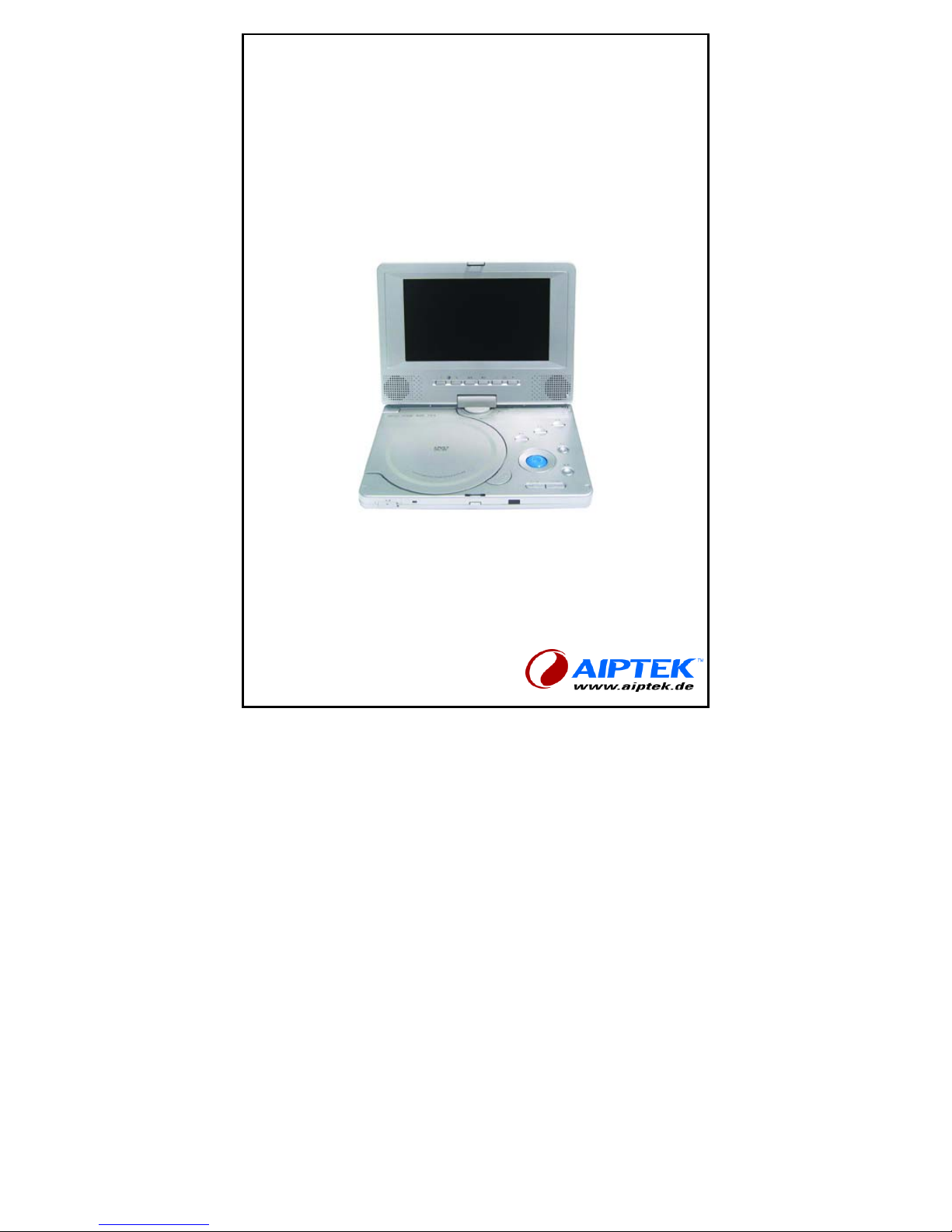

AIPTEK PDV-919 User manual

7” Portable DVD Player
PDV-919
Operation Manual

- 2 -
Contents
Important Safety Instruction --------------------------------------------
Precautions with Moisture ---------------------------------------------
Function Features ------------------------------------------------------
Parts Introduction --------------------------------------------------------
Remote Control -----------------------------------------------------------
Connections ---------------------------------------------------------------
Playback Preparations --------------------------------------------------
■Usage of Remote Control -----------------------------------------
■Disc Formats Supported by this player ------------------------
■Usage of Power Switching Adapter ----------------------------
Power Supply -------------------------------------------------------------
■Using and Charging the Battery Pack -------------------------
Detaching Battery Pack ------------------------------------------------
Using a Car Adapter -----------------------------------------------------
Using Headphones ------------------------------------------------------
About Rechargeable Battery ------------------------------------------
Basic Operation ----------------------------------------------------------
System Setup -------------------------------------------------------------
Playback Functions ------------------------------------------------------
Care of Discs --------------------------------------------------------------
Special Notes On Revolving TFT LCD Screen -------------------
Troubleshooting ----------------------------------------------------------
Specifications -------------------------------------------------------------
3
4
5
6
9
10
12
12
13
14
15
15
16
16
16
17
19
21
24
27
28
29
31

Important Safety Instruction
WARNING: To reduce the risk of fire
or electric shock, DO NOT expose
this product to rain or moisture.
- 3 -
The lighting flash with arrowhead symbol,within an triangle, alerts the user
to “dangerous voltage” which could cause electric shock.
The exclamation point within a triangle indicates to the user to read
important operating and maintenance instructions in the manual.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when
open and interlock failed or defeated.
Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover.
There are no user service-able parts inside
the unit. Leave all servicing to qualified
il
NOTES
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Maintain well-ventilated conditions around
the product, do not put product on bed, sofa or anything that blocks ventilation.
Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.

Precautions with Moisture
Under the following circumferences, moisture may appear on the lens of the product,
which is the most sensitive part of the DVD player.
The DVD player is suddenly moved from a cold place to a warm place.
A room is heated while the DVD player starts operating, or the DVD is placed near
an air-conditioner.
In the hot summer season, the DVD player is moved from an air-conditioned room
to a hot, damp place to be used.
The DVD player is being operated in a damp place.
If moisture appears on the player, stop operations.
If the player is operated under said conditions, or the disc is loaded, certain interior
components could be damaged. Take disc out, plug power in, switch power button
on the DVD player for two to three hours to dry.
-4-

- 5 -
Function Features
1. EXCELLENT SOUND
Dolby digital delivers great sound.
2.HIGHRESOLUTION
On-screen displays in your choice of
English, French or other language.
MPEG2 decoding format achieves
more than 500 lines of horizontal
resolution.
3. SPECIAL FUNCTIONS
Analog audio output and optical
digital audio outputs connect to any
amplifying equipment.
Supports multi-angle, excessive
language caption and parental-lock.
4. COMPATIBILITY
Plays DVD, CD, CD-R, CD-RW and
MP3 discs.
5. PARTICULAR PERFORMANCE
Multi-speed, fast forward, fast
backward, slow play and repeat
playback.
6. SEARCH BY TIME
Search for a certain time on a disc.
7. LAST MEMORY PLAYBACK
Continues playing from place
stopped.
8. ON-SCREEN DISPLAY
9. AUDIO OUT
10. EARPHONE OUTPUT
Convenient for listening to movies or
music in private.
11. REVOLVING TFT LCD screen
Adjust the screen for custom viewing
by revolving it horizontally about its
axis, or lay it flat with the screen
facing up.
12. SWITCHING POWER ADAPTER
Automatically adapts to voltage
requirements in the US and other
countries.
DVD players and discs are coded by region. These regional codes must
match the discs they play. If the codes don’t match, the disc won’t play.
This player’s code is region 2.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.

PartsIntroduction
DVD Player
1. Power switch
2. Disc cover
3. Open
4. Remote sensor
5. OK button
6. Prev skip button
-Press to skip to previous chapter/track.
7. Next skip button
-Press to skip to next chapter/track.
8. Direction buttons
9. Pause button
10. Stop button
11. Play button
12. Menu button
13. Title button
14. Bright up/down
15. Speaker
-For enjoying high quality stereo music.
16. Mode button
-The player is with TFT display mode:
normal screen (4：3) or wide screen
(16：9).
17. TFT Liquid Crystal Display
18. Color up/down
19. Screen Rotate button
-The picture can be rotated in inversion
and enantiomorphism from normal
modes.
20. TFT LCD Screen can be rotated in
the degree of 180.
21. Latch hook
-6-

PartsIntroduction

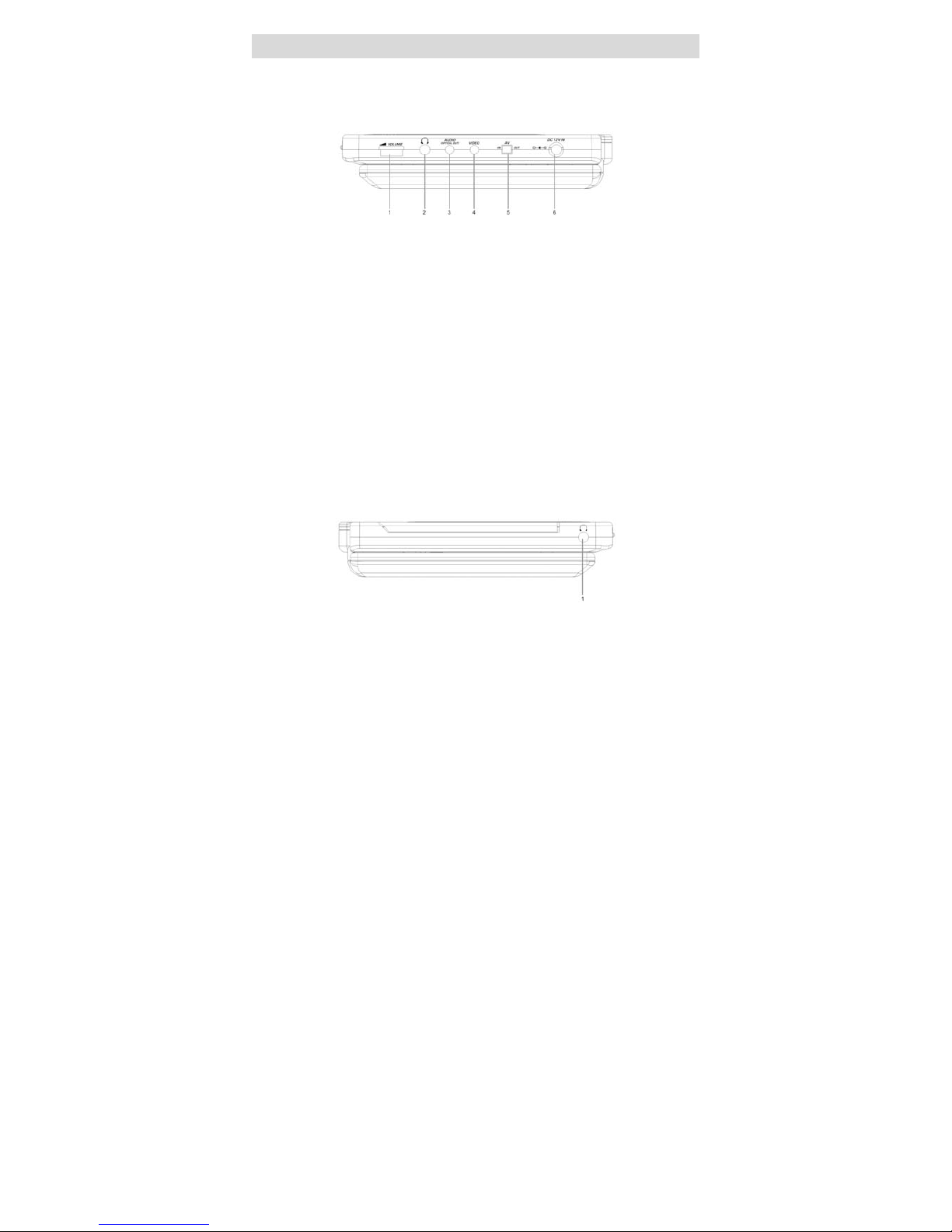

Right Side Of The Panel
1. Earphone volume adjusting knob
-Used to adjust the earphone and speaker volume.
2. Earphone jack
-HI-FI earphone output, when connecting this jack, speaker volume is turned off.
3. Audio/output/input and optical digital output jack
4. Video output/input jack
5. Switch position between AV ‘IN’ and AV ‘OUT’
-Switch to IN, then the player is in audio and video input mode.
-Switch to OUT, and then the player is in normal playback mode.
6. Direct current 12V input jack
Left Side Of The Panel
7. Earphone jack
- 7 -

RemoteControl
1. PWR button
-Press to enter standby mode.
-8-
2. INFO button
-Press for detailed information on
the disc playing.
-Keep pressing to remove
information from screen.
3. TITLE button
-Press to display titles if present on
the disc.
4. Direction buttons
-Press to select menu items.
5. ENTER button
-Press to confirm the items or
setting.
6. SETUP button
-Press to access the DVD player’s
setup menu.
7. 0-9 number buttons
-Select numbers by pressing these
buttons.
8. PREV SKIP button
-Press to go to beginning of current
track. Press twice repeatedly to go
to beginning of previous track.

- 9 -
RemoteControl
9. NEXT SKIP button
-Press to go to next chapter.
10. SUBT button
-When a DVD is playing, press to
select a subtitle language or to turn
subtitles off (if the DVD disc
contains multiple subtitles).
11. ANGLE button
-Press to access various camera
angles (if the DVD disc contains
multiple camera angles).
12. A-B button
-Press to mark a segment to repeat
between A and B.
13. ZOOM button
-Press to cycle through zoom
function.
14. REP button
-Press to repeat a chapter, track,
title, or all content.
15. MENU button
-Press to select the disc menu.
16. PAUSE button
-Press to pause playback.
-Press PLAY button to resume
normal playback.
17. STOP button
-Press once to stop playback and
then press PLAY button to resume
normal playback.
-Press the button twice repeatedly
to stop playback completely.
18. PLAY button
-Press to begin playback.
19. GOTO button
-Press to select the desired disc
starting time, track or title.
20. +10 button
-Select numbers greater than 9 by
pressing the (+10) button first, and
then an additional number button.
21. FWD SCAN button
-Press to search forward.
22. REV SCAN button
-Press to search backward.
23. SLOW button
-Press to activate slow forward or
slow rewind.
24. AUDIO button
-Press to access various audio
languages (if the DVD disc contains
multiple audio languages).

Connections
Connecting to a TV
Audio/video connections
1. Always ensure that the DVD player, TV and any other electrical equipment you are
connecting the DVD player to is switched off and unplugged from the power supply.
2. The easiest way to connect the DVD player to a television is via the supplied
Audio/Video connections. Connect the audio/video cable from the DVD player to the
TV’s audio/video inputs.
Connecting to an Amplifier with Dolby Digital Decoder
The DVD player can be connected to an AV amplifier of Dolby digital decoder via the
Digital Optical output. Please refer to your Audio equipment’s manual before
connecting.
-10-

Playback Preparations
Usage of Remote Control
1. Refer to the drawing, take the back cover off of the remote control and remove
the empty battery receptacle.
2. Prior to shipping, a separating film was applied to the battery. Remove this film.
3. Insert the battery into the receptacle and insert the receptacle into the remote.
4. For best results, aim the remote directly at the player’s receiving window within
the range of 15 feet, and angles of 60 degrees.
5. Under normal use the battery will last for one year.
6. Remove battery if the device is not to be used for a long time during storage.
- 11 -

Playback Preparations
D
isc Formats Supported by this Player
T
he unit can play discs bearing any of the following logos:
-12-
DISC LOGO DIAMETER
PLAYBACK TIME/
PLAYABLE SIDES
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
12cm
484 min (DS-DL)
41 min (SS-SL)
75 min (SS-DL)
82 min (DS-SL)
DVD
8cm
150 min (DS-DL)
12cm 74 min
CD
8cm 20 min
MP3 12cm 600 min
◆The operating method of some DVD discs is specified by the software maker.
Please refer to the instruction manual of the disc.
◆The DVD Player will play most recordable (CD-R) or erasable (CD-RW) CDs, but
playback of CD-R or CD-RW discs created on a computer requires proper
formatting and finalization of the disc for audio playback. Some computers and/or
software programs may not be capable of creating com atible discs.p
About Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several
sections, “title”.
Chapter
The smaller section unit of picture or music in a DVD under the title, usually one
title is comprised of one or more chapters and each of them is numbered for easy
searching. But some discs may not have a recording chapter.
Track
A segment of picture or music on a CD. Each track is numbered for searching.

Playback Preparations
Usage of Power Switching Adapter
The player is supplied with a power switching adapter.
1. Connect AC adaptor to the power jack marked “DC 12V IN” on the side of the
DVD player.
2. Connect the rabbit joint end of the AC adaptor to the power cord.
3. Plug the two-prong end of the power cord to a grounded electrical socket.
Note: Please turn player’s power off first and then unplug the power to prevent
malfunction.
Pre-operation
1. Connect to power.
2. Lift the main cover up and open the disc tray house.
3. Switch “POWER” to the “ON” position.
4. Adjust the volume with the “VOLUME” adjust knob (also adjusts earphone
volume).
Loading a disc
1. Press the OPEN button to open the disc cover.
2. Put disc into the tray house with the printed side up.
3. Close the disc cover.
- 13 -

-14-
Power Supply
Using and Charging the Battery Pack
Charge the Battery Pack before using it the first time. Charging time is normally about
4 hours. When fully charged, the Battery Pack delivers 2.5 hours of continuous power.
Battery Pack should be fully charged before initial use!
1. Attaching the Battery Pack
Turn the player upside down on a smooth,
clean surface. Direct the battery so that the
battery contacts and the five plastic tabs are
aligned with the matching contacts and tab
recesses on the player.
2. Lock the Battery Pack to the Player
With one hand on the player to prevent it from
moving, push the battery pack on to the player
then slide the Battery Pack toward the front of
the Player until you hear it click and lock into
place.
3. Charging the Battery Pack
Plug the Power Adapter into the Player’s
DC-IN 12 V Jack (located on Right Side of
Player). Plug the other end of the Power Cord
into a household wall Power Outlet.
Recommended Recharging and Charging Times
Your new battery should be fully charged before it is used for the first time. Charging
time is normally about 4 hours. A fully charged battery delivers 2.5 hours of use.
Therefore, we recommend that you only charge the battery when the battery is down
to its last hour of charge or completely out of power. Unnecessary charging of the
Battery Pack will reduce service life. When the Battery Pack is being charged, the
battery indicator will turn red. After charging is complete, the red light will turn to green.

Detaching Battery Pack
Detaching Battery Pack from the unit:
If the player is not going to be used for a long period of time, we recommend that you
detach the Battery Pack. Even if the unit is powered down, the unit is still consuming
some power in STANDBY mode. This could lead to over discharging the battery. Make
sure the power is turned off before detaching the Battery Pack. After detaching the
battery pack, take care when handling the unit.
1. Slide and hold in position.
Press the tab towards the front of the unit. Hold
the tab in the up position.
2. Taking off the Battery Pack
Gently slide the Battery Pack toward the back of
the Unit. Carefully lift the Battery Pack from your
player.
UsingaCarAdapter
You can use Car Adapter while in a vehicle:
Connecting the Car Adapter Power Plug into the
unit’s Power Jack and the other end to the Vehicle
Cigarette Lighter Socket:
Quick Tips
Do not operate the unit or view video software while driving a vehicle.
Place the unit in a secure position for viewing.
Do not leave battery attached when using car adaptor as power supply.
- 15 -

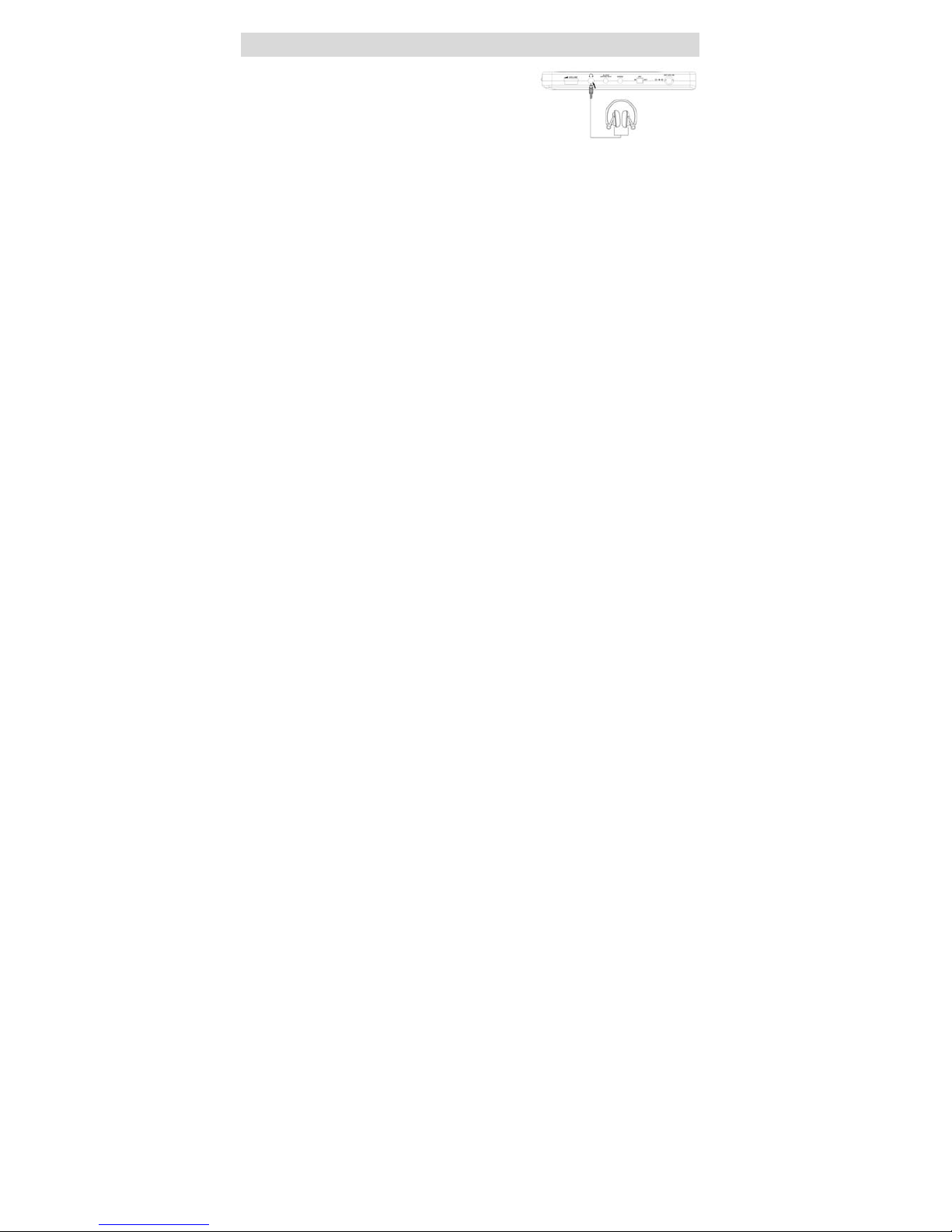

Using Headphones
Using Headphones while you are in a quiet area:
Connecting Headphone Connector into right side of
the unit’s Headphone Jack:
Quick Tips
Excessive loud usage of headphones could damage your hearing.
Turn down the Volume before you connect the headphones, and then raise
the volume to suit your level.
Sound from the unit’s external speaker will cease when headphones are
connected.
-16-

Battery Working Conditions
Your portable DVD player comes with a lithium ion rechargeable battery that attaches
to the bottom of the player.
1. If the battery is not used it will automatically discharge gradually within one month.
2. If you don’t plan on using the battery for an extended period of time, discharge the
battery and keep it in a dry and cool place.
3. If the battery loses power during play, stop playing the DVD, otherwise damage may
occur.
4. A fully charged battery is able to play a DVD with the TFT on for about 2.5 hour, but
playing time varies from disc to disc.
Note:
New batteries should be fully charged before
initial use.
Battery should only be used and charged
When temperatures are between 32-95F.
Never put the battery in fire or water.
Do not expose the battery to high temperatures
or store in hot, sunny places.
Maintain well-ventilated conditions around the product, avoiding heat. Don’t
put the product on bed, sofa or anything that may block ventilation to the
product.
Don’t use metal to link positive pole to negative.
Do not open the battery.
Do not leave battery attached when using alternative power source.
Never charge the battery for more than 8 hours. Detach battery immediately
after charging is complete.
Detach battery when not in use.
- 17 -

PlayOperation
Please read these instructions carefully before using your DVD player for the
first time.
-18-
1. Turn on the player’s power by switching the POWER switch on the side o
f
the player to “ON”.
2.
3.
4.
Press OPEN button on front panel to open the disc cover.
Load disc with the label facing up to prevent damage to the player or disc.
Close the disc cover. The player will automatically search for the disc and
when it finds it, play will begin.
Warning: Do not play poor quality discs to prevent damage to the lens.
Start to Playback
1. Press the PLAY button on the remote control.
2. Press the (direction button) or the number buttons to select a scene.
3. Press the ENTER or PLAY.
Pause
Press the PAUSE button on remote to pause.
Press the PLAY button to resume normal playback.
Zoom
Press the ZOOM button on remote to cycle through to different zoom settings.
Normal – 2x – 3x – 4x – 1/2 – 1/3 – 1/4.
While in zoom mode use direction keys to move around to different positions on
the picture.

- 19 -
Play Operation
Stop
During playback, press the STOP button once on the remote control to stop
playing.
Press the PLAY button, and then the player will play from the point where it
stopped.
Mode
During playback, press the MODE button on the control panel to change the
aspect ratio on the screen.
Title Menu
1. Press the TITLE button on the remote control during payback. The title menu
will appear on the TFT screen.
2. Press (direction button) or the number buttons to select the title o
r
disc option you wish to play.
3. Press the ENTER button to start playback.
Previous and Next
1. Press the PREV button twice repeatedly on the remote control, and playback
will start from the previous track.
2. Press the NEXT button on the remote control, and playback will start from
the next track.

System Setup
GENERAL SET-UP
You can change the default settings to customize performance to your own
preference.
1. Remove the disc from the DVD drive and press the ‘SETUP’ button on the
remote control, the settings menu will appear. It includes General Setup,
Speaker Setup, Dolby Digital Setup, Video Setup and Preference setup.
2. Press  (direction buttons) on the remote control to select a category.
3. All the items in the category will appear on the TV screen. Press the ‘ENTER’
button to confirm your selection.
Category
1. When you enter a category all the items under this category will appear, and
the items placed in the middle (or highlighted) will be the current set up.
2. Press (right direction button) on the remote control to select the correct
category.
3. Press the direction button to select your preference. The item you select will be
highlighted.
4. Press the ‘ENTER’ button for confirmation.
5. Press
(
left direction button
)
to enter the other setu
p
menu.
-20-
General Setup
The general setup is shown as follows:
1. TV Display
Select Normal/PS when a 4:3 TV is connected.
Display images with marking bars above and below the picture.
Select Wide when a 16:9 wide screen TV is connected.
2. Angle Mark
If the scene was shot from multiple angles, then you can easily change the
camera angle of the scene you are watching.
ON/OFF
With this switched on you will be notified if alternative viewing angles are
available.
3. OSD Lang
There are five kinds of different OSD languages for selection. You can select it
according to your preference.
