AIR HUNTER AWT2400G User manual

AIN AWT2400G WIRELESS LAN
AIR HUNTER 802.11G/B 54/MBPS
User Manual

Federal Communications Commission Statement
Installation and use of this Wireless LAN device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any changes
or modifications (including the antennas) made to this device that are not expressly
approved by the manufacturer may void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, or the substitution of the connecting cables and
equipment other than manufacturer specified. It is the responsibility of the user to correct
any interference caused by such unauthorized modification, substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for any
damage or violation of government regulations arising from failing to comply with these
guidelines.
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
.• This device may not cause harmful interference, and
.• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
.• Reorient or relocate the receiving antenna.
.• Increase the separation between the equipment and receiver.
.• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
.• Consult the dealer or an experienced radio/TV technician for help.
SAR Exposure
This device has been tested for compliance with FCC RF Exposure (SAR) limits in
typical flat configurations.
IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.

European Notice
ProductswiththeCEMarkingcomply with both the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following
European Norms:
 EN 55022 ( CISPR 22) radio Frequency Interference
 EN 55024 (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8, EN61000-4-11, EN61000-3-2,
EN61000-3-3) Generic Immunity Standard.
 EN 60950 ( IEC950) Product Standard.
Regulatory statement (R&TTE /WLAN IEEE802.11b & 802.11g)
European standards dictate maximum radiated transmit power
of 100mW EIRP and frequency range 2.400-2.4835GHz; In France,
the equipment must be restricted to the 2.4465-2.4835GHz
frequency range and must be restricted to indoor use.
CE Declaration of Conformity
For the following equipment:AIN AWT2400g Cardbus Wireless LAN Card
!
0984
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member States
relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage
Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the
procedures given in European Council Directive 99/5/EC and
89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
 EN 300 328-2 V.1.2.1 (2001-08)
 EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
 EN 50371: 2002
 EN 60950: 2000

AWT2400g Wireless LAN CARD 1
Content
1. Product Introduction………………………………………………………………………………..2
2. Air Hunter Installation……………………………………………………………………………..4
3. Ad-Hoc (Peer-to-Peer) Mode Setup………………………………………………………………13
Application 1: Access the Internet without an AP
Application 2: Data sharing between computers
4. Technical Support………………………………………………………………………………....22

AWT2400g Wireless LAN CARD 2
1.ProductIntroduction
Thank you for using Air Hunter WLAN product. This installation guide will help you install Air
Hunter WLAN Card and connect to the Internet quick & easy.
■Package Contents
1. AIR HUNTER WLAN CARD
2. Quick Installation Guide
3. Driver CD Disc
■Form Factor
1- Internal High gain Antenna_1
2- Green color LED is “LINK”
3- Yellow color LED is “ACT”
4- Internal High gain Antenna_2
■System Requirements
1. Laptop or Other with Cardbus（PCMCIA-II）port and CD-ROM driver
2. Operating System: Windows 98 SE / ME / 2000 / XP

AWT2400g Wireless LAN CARD 3
■Applied Environments
There are two application modes for this WLAN card, the “Ad-Hoc mode” and the “Infrastructure
mode”. (For further explain, please refer to the “WLAN Application Modes” below) Different modes
require different settings. Please check the environment first.
Infrastructure mode: Via “Access Point” (AP) to connect to the Internet. This mode further gives
wireless access to Internet or data sharing under a previously wired
environment.
Ad-Hoc mode: Connecting to other computer with WLAN card. This mode does not need AP to
connect to each other.

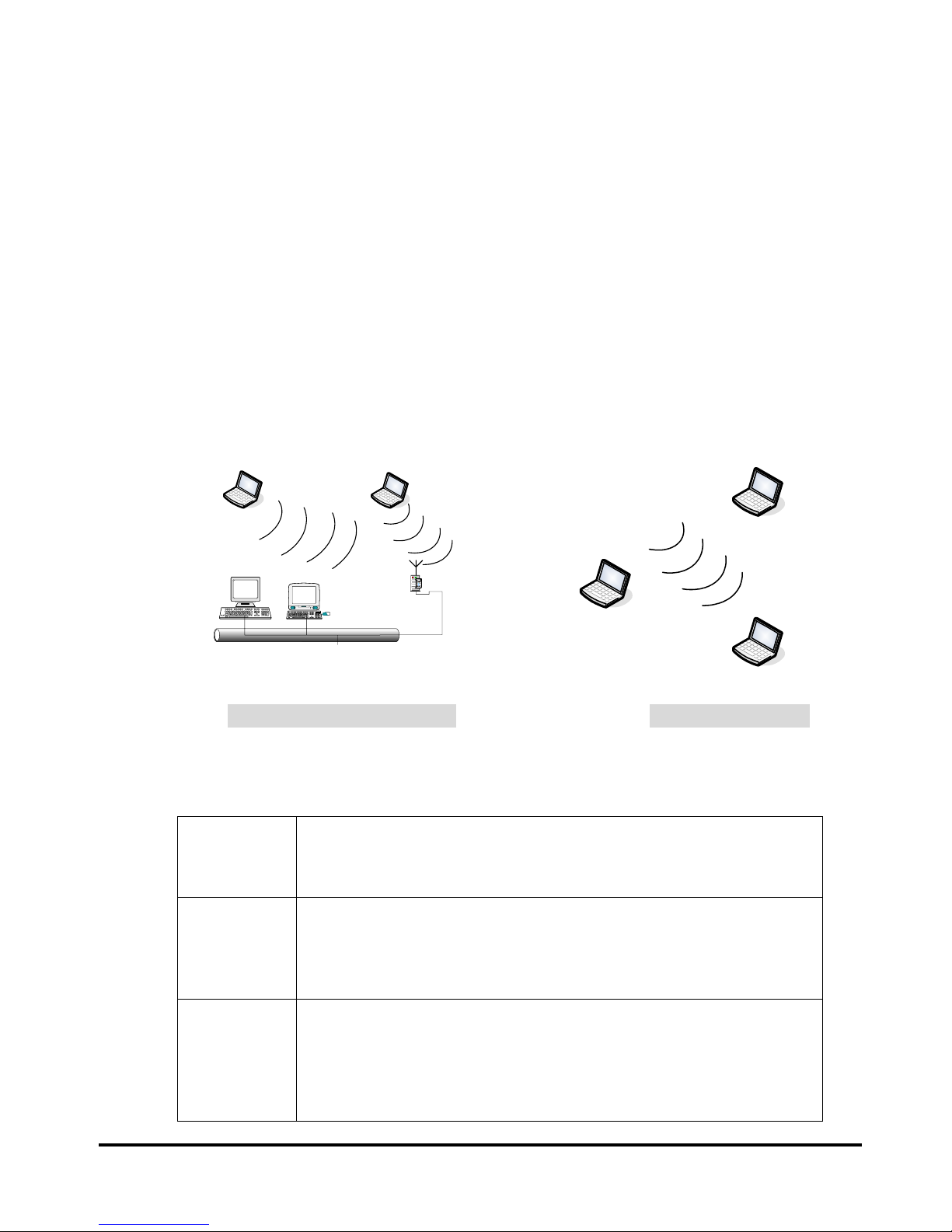

■WLAN Application Modes
Ad-Hoc Mode Ad-Hoc mode is a Peer-to-Peer mode. Without an AP, computers can also connect to each other by Air Hunter WLAN card. With this mode,
computers are able to share data or connect to the Internet if one of them
is already connected to.
Infrastructure
Mode Infrastructure mode including an AP, unlike Ad-Hoc mode, enabling users to best utilizes the frequency bandwidth of the A.P.
This mode enables users to integrate wired and wireless infrastructures.
Through A.Ps, wireless users are able to access wired resources, for
example: Internet, database, and printers.
Advantages Comparing to Ad-Hoc mode, Infrastructure mode has the following
advantages:
9Longer distance: Through AP, the wireless access distance is longer.
9Roaming: The wireless devices can move within the AP support
area.
9Integration of wired and wireless environment.
iMac
INFRASTRUCTURE
WIRELESS
Access
Point
Ad-Hoc
Infrastructure mode Ad-Hoc mode

AWT2400g Wireless LAN CARD 4
2.AirHunterWirelessLANcardInstallation
Note: The screens showed below are from Windows 2000. For other Windows system, the steps are the same, but
the screens shown will be a little different.
Please
Plugging your WLAN card first.
1. After plugging the LAN CARD into your PC, it will automatically find and alert a New PCMCIA
UNKNOWN_MANUFACTURER Device. Click “Cancel” to continue.
2. Please Inserted we supply the Driver CD in to your CD-ROM, our CD will run the installation in an
easily and simple procedure.
3. Please choose what is your need? Then press the button. We recommend you first press this “View
Here First” button.

AWT2400g Wireless LAN CARD 5
4. Press the “Install Card Driver” button, the program will Autoruning installation our Air Hunter
Wireless LAN card driver.
5. Press Next> button to continue.
6. Choose I accept the terms in the license agreement, then Press Next> button to continue.

AWT2400g Wireless LAN CARD 6
7. Press Install button, to next.
8. Press Yes button to next.

AWT2400g Wireless LAN CARD 7
8. Press Finish button to next.
After successful installation, you’ll see the new icon appear in the Icon Tray.
zThe software will automatically search for availableAPs for connecting to the Internet.
zIf the connecting fail, the Icon appeared is in yellow to white color.

AWT2400g Wireless LAN CARD 8
Software Utility

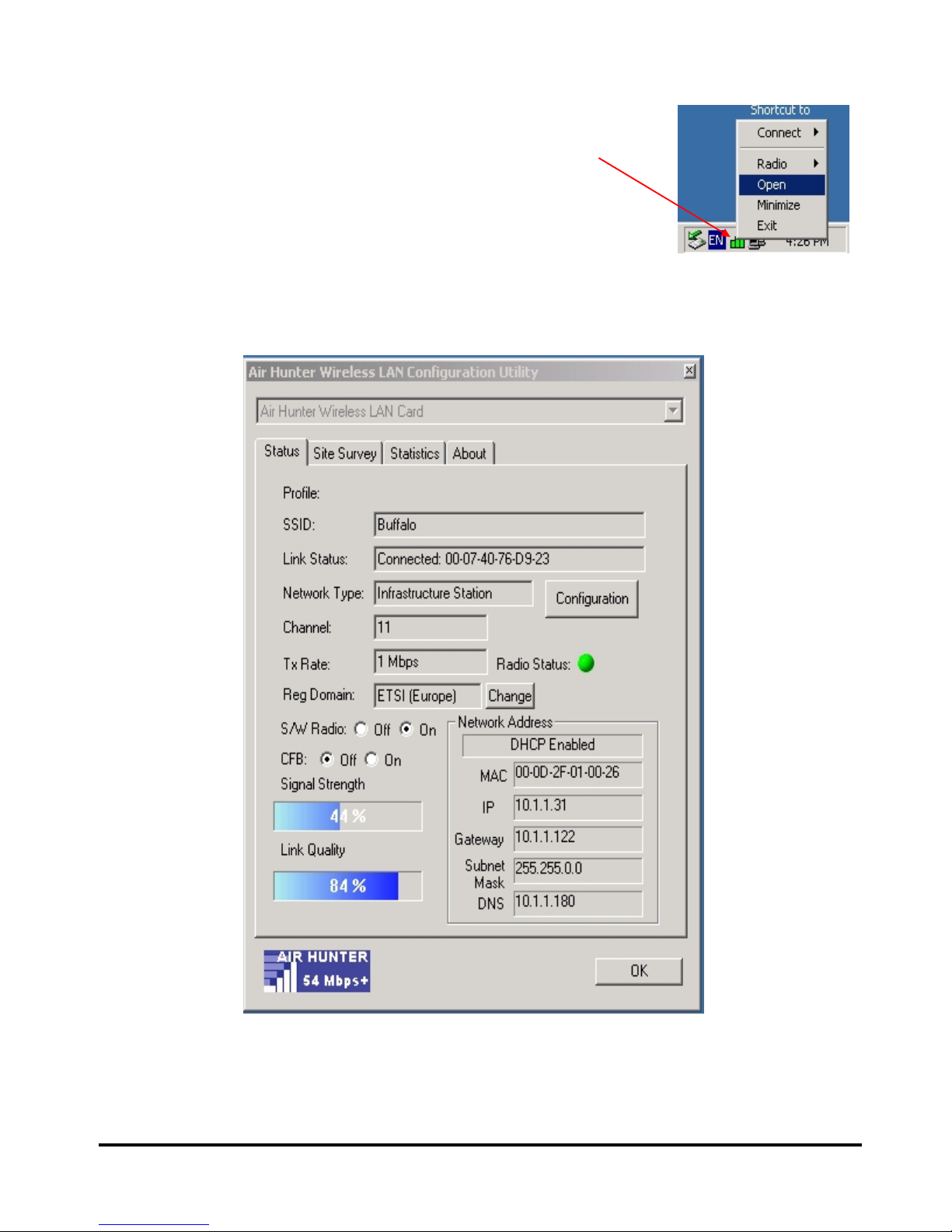

1. Click the icon and the software utility window shows up.
2. Status window allows you to change Operation Mode, Channel, SSID, Tx Rate, CFB mobe,
and Radio….et It also shows the connecting signal and quality for you to adjust related
infrastructures and configurations.
Remark:
The field of Reg Domain shown above exemplifies the application in the European market. It cannot be

AWT2400g Wireless LAN CARD 9

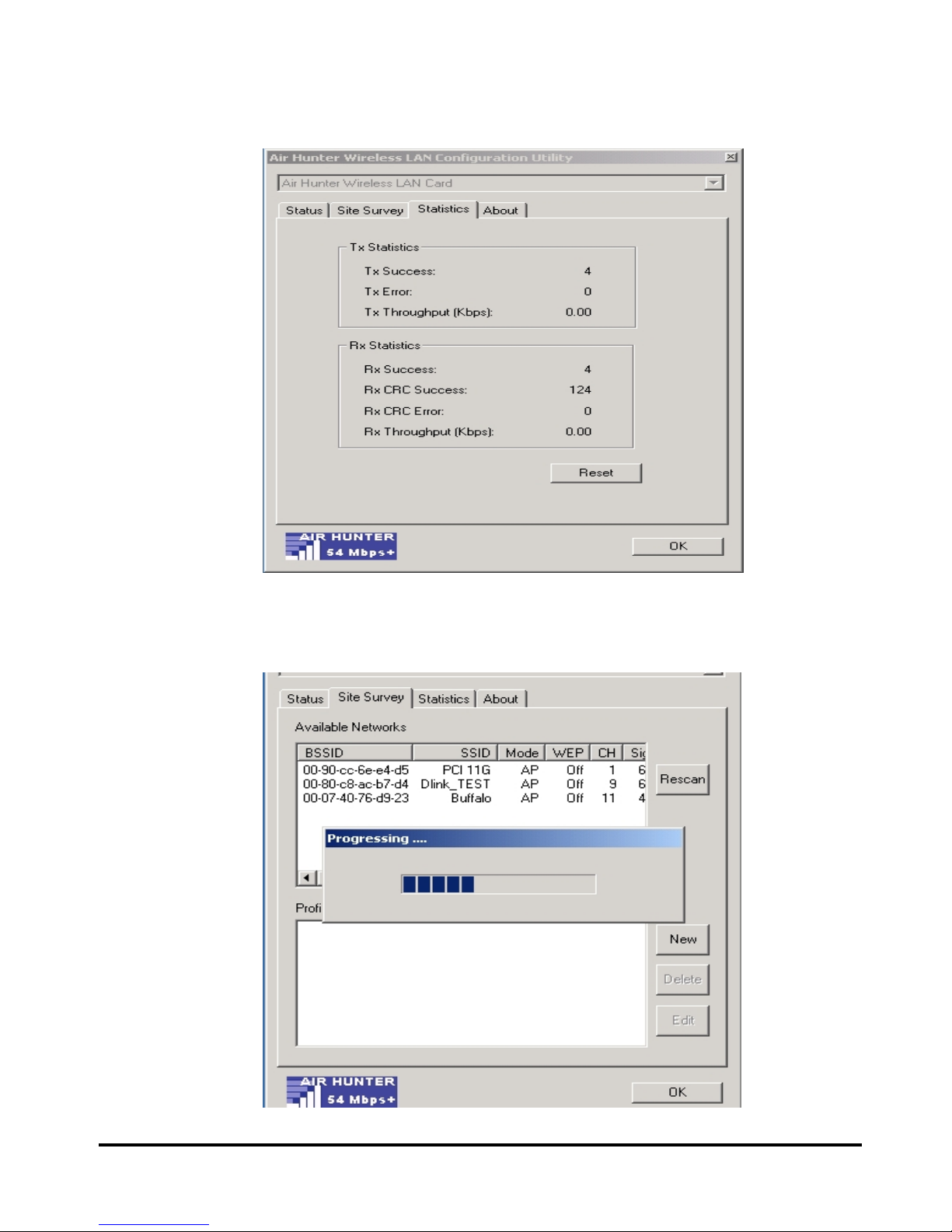

3. Statistics window: It shows the real time transmitting and receiving status.
4. Site Survey window: Click “Rescan” to search all available WLAN devices and their status in
current environment. Double click the device you want to connect.

AWT2400g Wireless LAN CARD 10

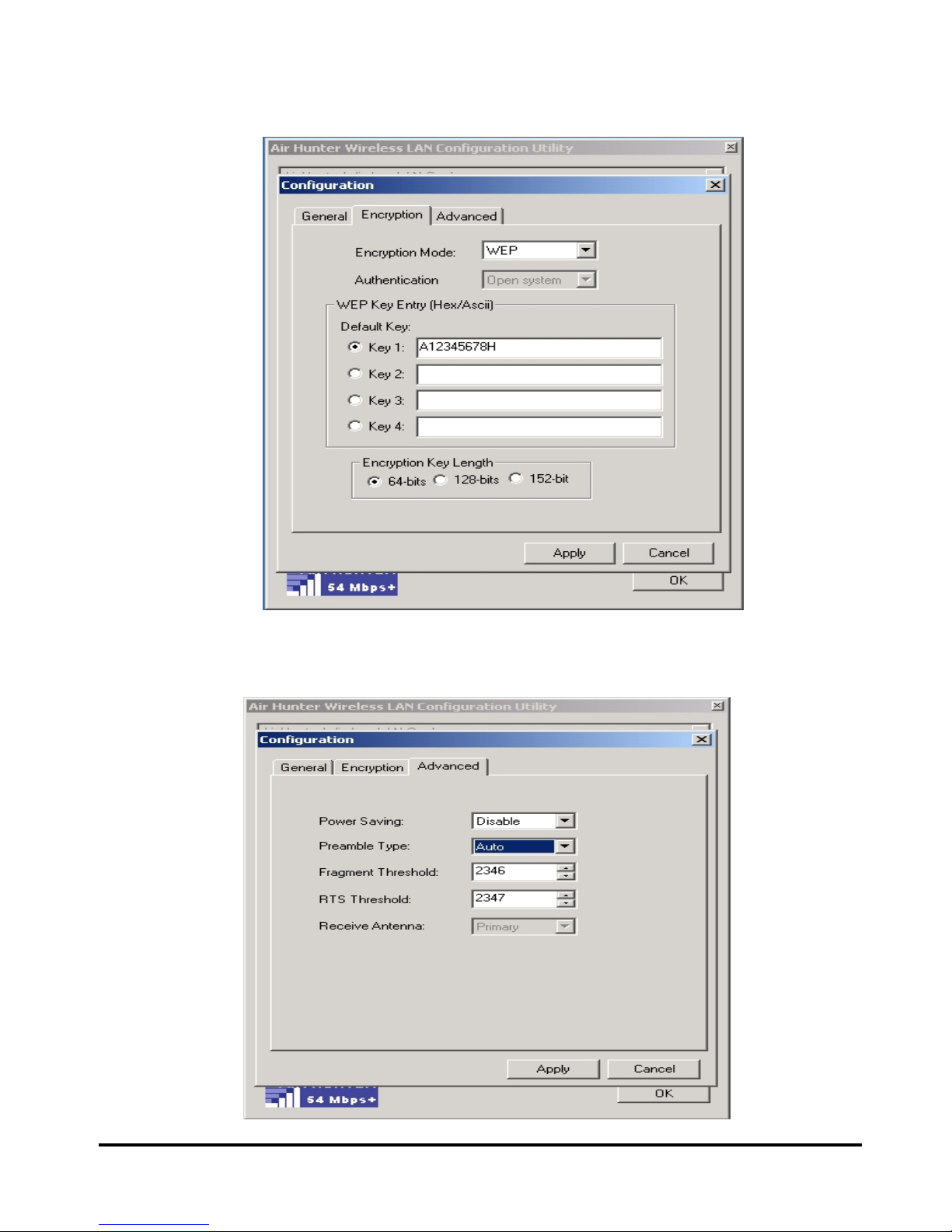

5. Encryption window: Air Hunter WLAN is able to provide 64/128/152Bit encryption.
6. Advanced window: It provides you to adjust Power Saving, Preamble Type, Fragment
Threshold, RTS Threshold, Receive Antenna.

AWT2400g Wireless LAN CARD 11
7. Profiles window: It provides customers to change settings and save them in the configuration
file.
8. Info window: It shows the latest software version and MAC address.

AWT2400g Wireless LAN CARD 12

AWT2400g Wireless LAN CARD 13

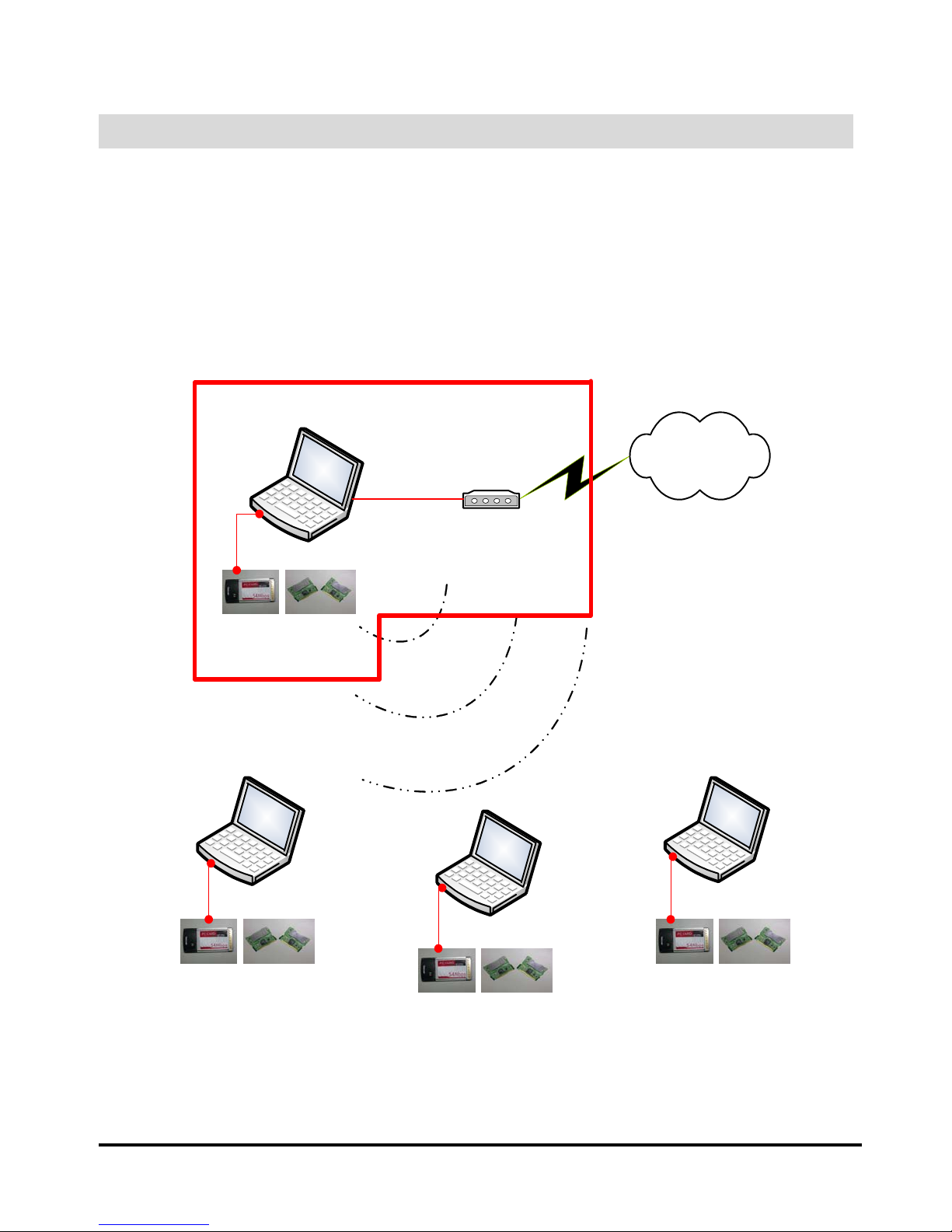

3. Ad-Hoc (Peer to Peer) Mode Setup
Application_1 ：Access the Internet without anAP
With existing Internet connection, another computer can access the Internet by using
Peer to Peer mode of Air Hunter Wireless LAN Card.
(Adsl / Cable)
Internet
WWW
Current Internet
set.
Laptop_Main
Laptop_1
Laptop_2
Laptop_3
Air Hunter
Mini-PCI
Air
Hunter
card
Air Hunter
Mini-PCI
Air
Hunter
card
Air Hunter
Mini-PCI
Air
Hunter
card
Air Hunter
Mini-PCI
Air
Hunter
card

AWT2400g Wireless LAN CARD 14
Setup Steps
1. Check the current environment and install WLAN cards
A. Check whether “Laptop_Main” connects to the Internet.
B. Install Air Hunter Wireless LAN Card in “Laptop_Main”, and “Laptop_2”….et.
2. “Laptop_Main” Setup
A. Click “Start” (1) -> Settings (2) -> Click Network and Dial-up Connections (3)
B. Under Network and Dial-up Connections, there are two Connection icons; one is the original
Ethernet card, another is the new Air Hunter WLAN card.
1
2
3

AWT2400g Wireless LAN CARD 15
C. Check the status of the Connection icon. Click the Connection icon, and you can see the device
name and status under Network Connections. The name of Air Hunter is “Air Hunter Wireless
LAN”, and another one is the original connected device, “Ethernet card 1”.
PS: (If you have more than 2 connecting devices, please un-plug the Ethernet line and the
disappear Connection icon is the original connected device.)
D. Double click the original connected device, and enter into the following window.
Click Properties (1) -> Sharing (2) -> Check “Enable Internet Connection Sharing for this
connection” -> OK
1
3
2

AWT2400g Wireless LAN CARD 16
E. After finishing, the following window shows up. Please choose “Yes”, and the computer will set
your IP address in 192.168.0.1.
F. Double click the Air Hunter icon in Icon Tray, and enter into the “Configuration windows”.
Configuration window:
Remarks:
The channel number shown in the above Configuration window exemplifies the application in the
European market. Available channel number will depend on the driver shipped with the product.
G. Change to the “Ad-Hoc Station” mode
I. Under “Configuration window”, click “Network Type”(1) to modify the Operation Mode to
“Ad-hoc Station” mode (2).
II. Change the SSID name to “USER” or “Dlink_TEST” or “Any” (3), and then click “Channel”
setting to your want Channel (4), next click “Apply” to save this change(5), this WLAN card
could be the Gateway for other WLAN devices.
III. Reset your computer.
1
2
3
4
5

AWT2400g Wireless LAN CARD 17
“Laptop_2” Setup
A. Double click the Air Hunter icon in the Icon tray.
B. Under Site survey window, you will see all available connecting instruments. Double click the
item (1) with SSID named “Dlink_TEST”.
C. Rest Laptop_2.
1
