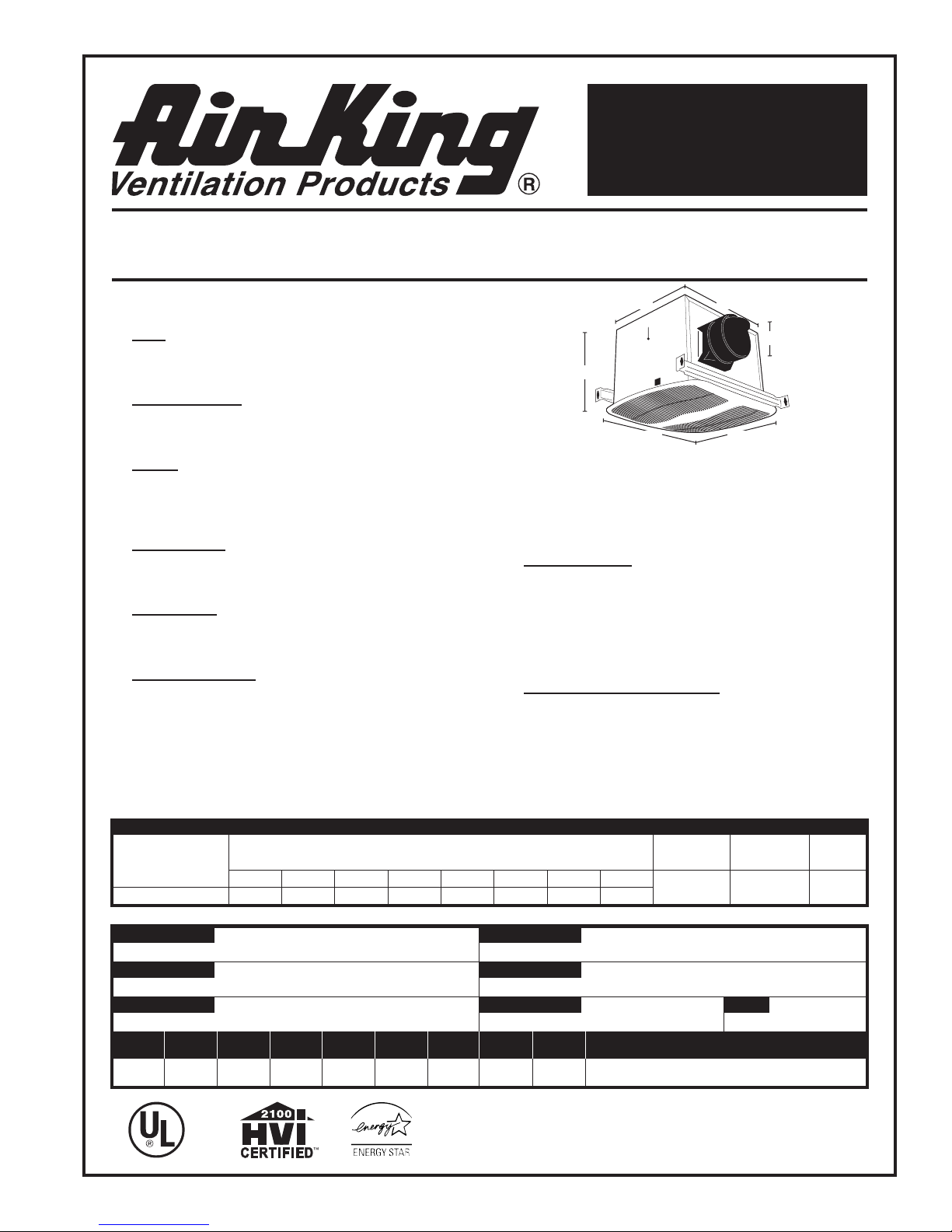

Air King AK90 User manual

CUL/HVI
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
77/8"
4"
107/8"
93/8"
11"
133/4"
SPECIFICATIONS
EXHAUST FANS
AK90
90 CFM/1.5 SONES @ 0.10" wg. 80 CFM/1.5 SONES @ 0.25" wg.
HVI CERTIFIED 120 Volts, 0.30 amps, 60 hz.
•Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 11" x 133/4".
• Blower Wheel
One piece polymeric centrifugal blower wheel, 57/32"diameter,
229/32" wide, with 30 paddles.
• Motor
Heavy duty, permanently split capacitor, plug-in, 4 pole motor,
life time lubrication, suitable for continuous operation. Rated
120 volts, 60 hz., 0.30 amps.
• Fan Housing
23 gauge galvanized steel housing.
Dimensions: 107/8" x 93/8" x 77/8".
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Ventilating Area
For bathrooms up to 90 sq. ft. For other rooms up to 115 sq. ft.
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: [phone]
Fax: [phone]
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: [phone]
Fax: [phone]
Updated 5-06Specifications subject to change without notice.
• Unit Mounting
The housing will mount in ceilings with at least 8" of clearence
and through drywall thickness up to 3/4", with a rough-in opening
of 111/8" x 95/8". Rated for ceilings insulated to R-40. The housing
will mount either between 16" or 24" on center joists, using the
4 supplied housing mounting rails. The housing mounting rails
can be adapted for overhead mounting (hardware not provided).
• Single Pack Shipping Info
Box Dim: 141/8" x 115/8" x 95/8"
UPC: 0-8316229001-4
Shipping Weight: 11.5 lbs.
CUS
PROJECT
LOCATION
CONTRACTOR
ARCHITECT
ENGINEER
SUBMITTED BY DATE
FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT
NUMBER NUMBER W.G. & REMARKS
PERFORMANCE
HVI Sones @ Fan Speed Power
Static Pressure (inches of w.g.) .1 SP /.25 SP RPM Watts
0 0.05 0.1 0.125 0.15 0.2 0.25 0.3
Air Flow - CFM 97 93 90 89 87 84 80 74 1.5 1050 30
