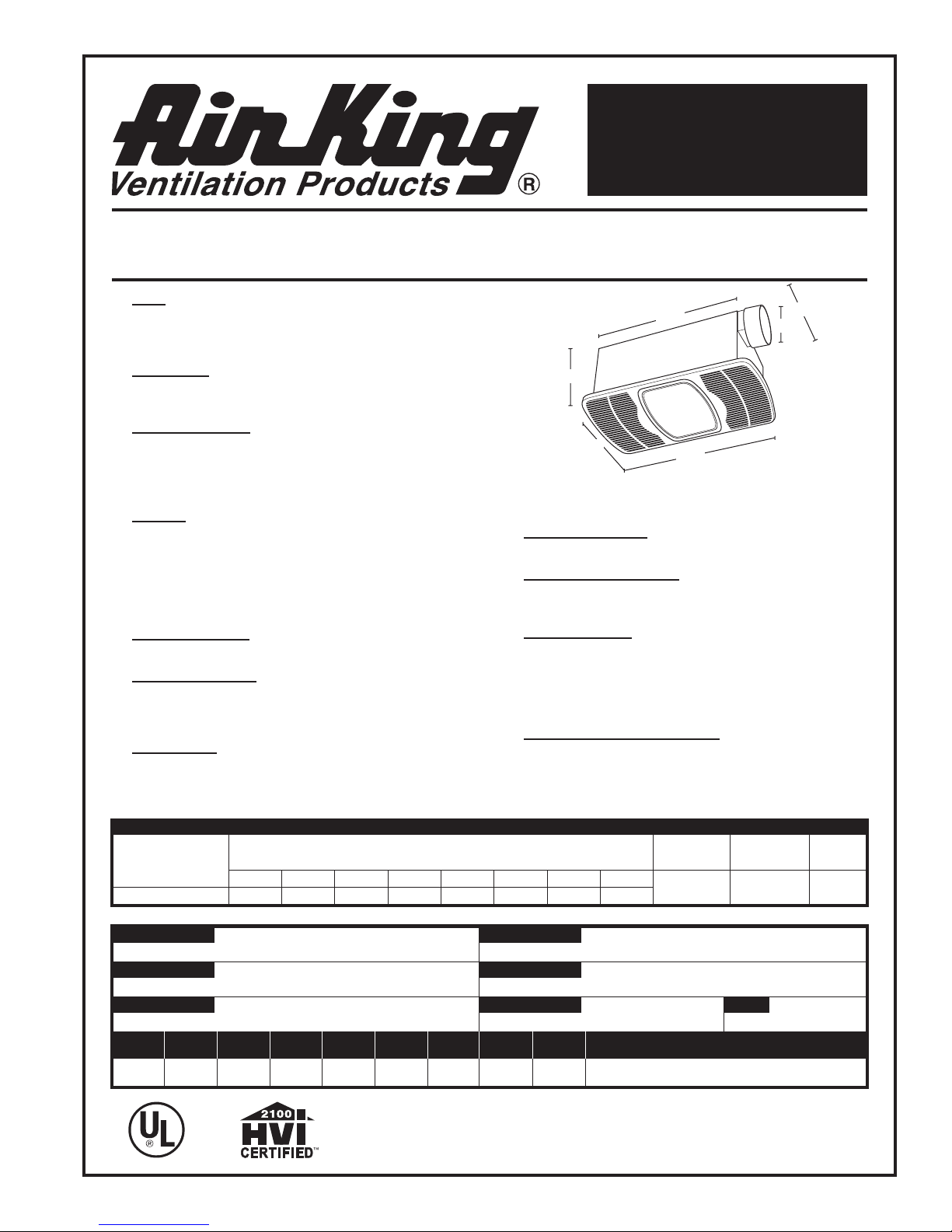

SPECIFICATIONS
EXHAUST FANS
AKF55
1350 watts - 70 CFM/5.0 SONES @ 0.10" wg.
HVI CERTIFIED 120 Volts, 11.2 amps, 60 hz.
•Grill
White, polymeric grill (flame retardant ABS UL rated 94-5V)
secured in place using 2 hex nuts that can be easily removed
if necessary, dimensions - 171/8" x 97/8".
•Light Lens
Moonstone glass lens, installed in a flip down lens holder.
Secured in place using integral tabs.
• Blower Wheels
Heater blower wheel - one piece metal electronically balanced,
311/16" x 2" with 28 fins.
Ventilation blower wheel - one piece polymeric electronically
balanced, 45/8" x 1" with 10 fins.
• Motors
Heater motor - Heavy duty, plug in 2 pole motor. Life time
lubrication, thermally protected.
Rated 120 volts, 60 hz., 0.90 amps., 2400 rpm.
Ventilation motor - Heavy duty, plug in 2 pole motor. Life time
lubrication, thermally protected.
Rated 120 volts, 60 hz., 1.2 amps.
• Heater Housing
23 gauge galvanized steel housing. Dimensions 141/2" x 83/8" x 61/2".
• Heating Element
Ultra safe ceramic heating element bonded to large heat transfer
surface allows heating at very low operating temperature. Self
regulating design provides 1,350 Watts – 4,600 Btu.
• Duct Collar
Metal collar for 4" duct connection, comes complete with built
in back draft damper.
CUL/HVI - TYPE IC RATED
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: [phone]
Fax: [phone]
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: [phone]
Fax: [phone]
Updated 5-06Specifications subject to change without notice.
• Ventilating Area
For bathrooms up to 70 sq. ft. For other rooms up to 85 sq. ft.
• Lamping Information
Electronic Quick Start Ballast – rated 26 Watt – Use Triple 4 pin
PL lamp. Maximum 26 Watt.
• Unit Mounting
Designed for ceilings insulated to R-40. Designed to mount in
ceilings with at least 7.5" of clearance. The unit will mount
between joists (with 16" centers) or butted up against a joist.
The housing will mount through drywall thickness up to 3/4",
with a rough in opening of 143/4" x 85/8".
• Single Pack Shipping Info
Box Dim: 211/8" x 111/4" x 9 3/4"
Shipping Weight: 16.09 lbs.
CUS
PROJECT
LOCATION
CONTRACTOR
ARCHITECT
ENGINEER
SUBMITTED BY DATE
FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT
NUMBER NUMBER W.G. & REMARKS
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35
Air Flow - CFM 76 73 70 67 64 61 57 53 5.0 2575 54
61/2"
4"
141/2"
97/8"
171/8"
83/8"
