PLAY & SOUND is a concept designed
to integrate a high quality, adaptable
and discrete audio system in a uniquely
designed enclosure, which can be
installed in any type of décor.
Requiring minimum work to fit it and
connected directly to the mains, you
will be able to enjoy a high-
performance system in one or several
rooms in your home.
You can choose between a wall control
unit (41502) or a two-way remote
control (41501).
Its design imitates an air conditioning
outlet. It can be installed in a normal
ceiling or a false ceiling.
esen

www.egiaudio.com
30

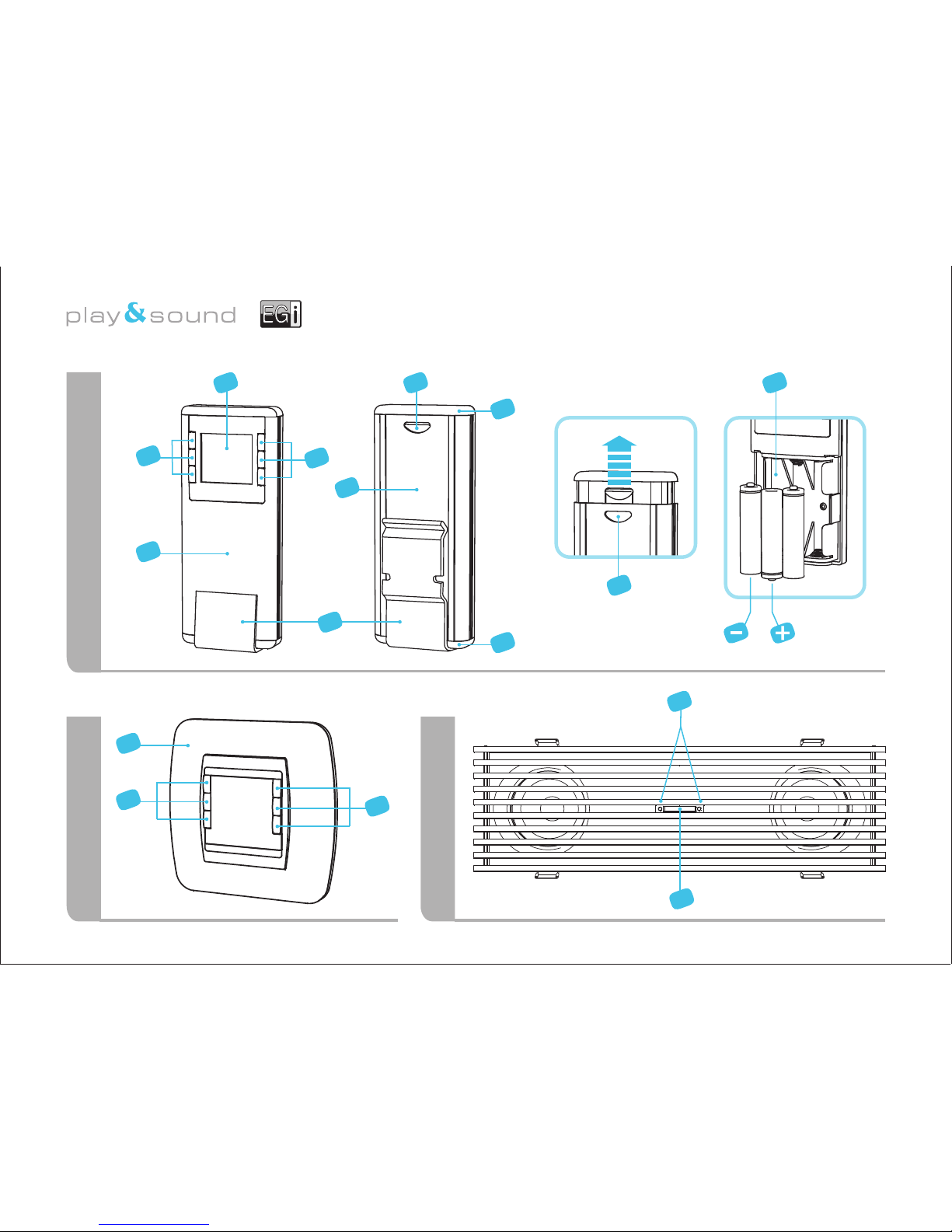

Main components
AKeys.
BScreen (display).
CFront casing.
DWall bracket for the remote control.
ERear casing.
FTrim covers (white / black).
GSliding tab.
HBattery compartment.
ITrim.
JWireless receiver.
KStatus LEDs.
•LEDs off: equipment off (standby).
•LEDs on: equipment connected.
•LEDs flashing fast: data transmission.
•LEDs flashing slowly: searching for FM stations.
Power supply 230 V~; 50-60 Hz
Max. power 35 W
Loudspeakers 7 W @ 4 Ω
Audio power 6 W + 6 W @ 1% distortion
Remote control range 15 m.*
41001 AIR RADIO KIT
41501 Remote control (includes batteries: 3 x AAA).
41504 Flush-fit module.
User manual (includes guarantee).
41502 FIXED WALL CONTROL
41504 FLUSH-FIT MODULE
Technical specifications
(*) The exact range will vary depending on where the base is installed.
general

www.egiaudio.com 31
INTEGRATED
It integrates in the home adding value to it without taking up any space.
MULTI-LANGUAGE
Menus in different languages.
EASY
Intuitive use.
FM LIST
Scans and memorises up to 36 of the most powerful FM stations. With RDS and
in stereo.
FAVOURITES
Enables you to store and interchange 6 favourite stations with rapid access.
BACKLIGHT
Quick adjustment of screen backlighting.
SOUND QUALITY
Sound quality, 6+6 WRMS power in stereo with base and treble controls.
SLEEP
Incorporates a sleep program that enables automatic disconnection after a
programmed time.
MANUAL TUNING
Enables manual tuning of any station, which can be memorised.
LINK
The system enables you to control all the receivers installed with a single
remote control.
EASY LOCATION OF THE CONTROL
Using the transparent wall bracket supplied.
41001 - AIR RADIO KIT
DATA TRANSMISSION
Its radiofrequency system enables it to be used even from another room or if it
is in a piece of furniture.
HIGH CLASS MATERIALS
Both the grille and the control are manufactured in anodised aluminium, which
is difficult to scratch and long lasting. The non-slip strips of the control protect
the surfaces on which it is placed
ADAPTABLE TO DÉCOR
With the remote control covers supplied in two colours, it can match any type
of décor.
QUICK CONNECTION
You only need a 230 V~ mains connection.
EASY TO INSTALL
With a 100 mm. ø crown bit, only 3 holes need to be drilled.
Same features as AIR RADIO KIT - 41001 incorporating a double light fitting for
high-power lamps.
41002 - AIR RADIO LUX KIT
Same characteristics as AIR RADIO KIT - 41001 incorporating the following features:
AUXILIARY MUSIC INPUT
Through a USB socket for PEN DRIVES (included in the Kit).
FAVOURITES
Enables you to save and exchange 5 FM memories + USB rapid access input.
41003 - AIR RADIO USB KIT
performace and quality
en

www.egiaudio.com
32
PERMANENT CLOCK
Time updated through the radio channels.
SLEEP
Incorporates a sleep program enabling automatic disconnection after a programmed
time has elapsed.
MANUAL TUNING
Enables you to manually tune any radio station that can be received and store
it in the memory.
Same features as AIR RADIO USB KIT - 41003 incorporating a double light fitting
for high power lamps.
41004 - AIR RADIO USB LUX KIT
Assembly that can be embedded in standard ø60 mm. boxes, comprising a control
module and a loudspeaker module, incorporated with a double trim frame.
EASY INSTALLATION
You only need a 230 V~ mains connection. For desktop installation you will need
to purchase accessory ref. 40160.
MULTI-LANGUAGE
Menu in different languages.
INTUITIVE USE
FM LIST
Scan and memorise up to 36 of the most powerful FM radio stations, RDS
information and stereo sound.
FAVOURITES
Enables you to store and exchange 6 rapid access radio stations.
BACKLIGHT
Adjust the screen backlighting in standby, so as not to disturb your sleep.
INTERNAL AUXILIARY INPUT
Has an internal auxiliary audio input to connect to accessory ref. 41509.
ALARM CLOCK
Enables you to view the time and access the alarm clock function.
41005 - WALL RADIO KIT
Same characteristics as AIR RADIO USB KIT - 41003 incorporating the following
features:
UNIVERSAL BLUETOOTH CONNECTIVITY
Can be paired with Bluetooth devices to reproduce the music they have stored.
WITH A BASE FOR EGi WIRELESS CONTROLS (type 41501)
The built-in base enables remote control charging.
USB INPUT
You can listen to audio material stored in a USB device.
AUXILIARY INPUT
An audio input to connect external audio systems.
FM LIST
Scans and memorises up to 36 of the most powerful FM stations. With RDS and
in stereo.
41006 - AIR BLUETOOTH TOP KIT
Available soon
performace and quality

www.egiaudio.com
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
First connection
Press any key.
The language selection menu will be displayed.
Use keys 4or 5to select your language and then press key 3(OK).
Autoscan
Once you have chosen the language, it will automatically search for the most powerful FM radio stations*.
(*) Up to 30 stations + 6 in manual mode.
Main screen
Turn the device on/off
Press key 1to turn the device on/off.
With the audio off, keys 4and 5are in screen backlight adjustment mode.
This will enable you to adjust the light intensity of the display when the control is on standby.

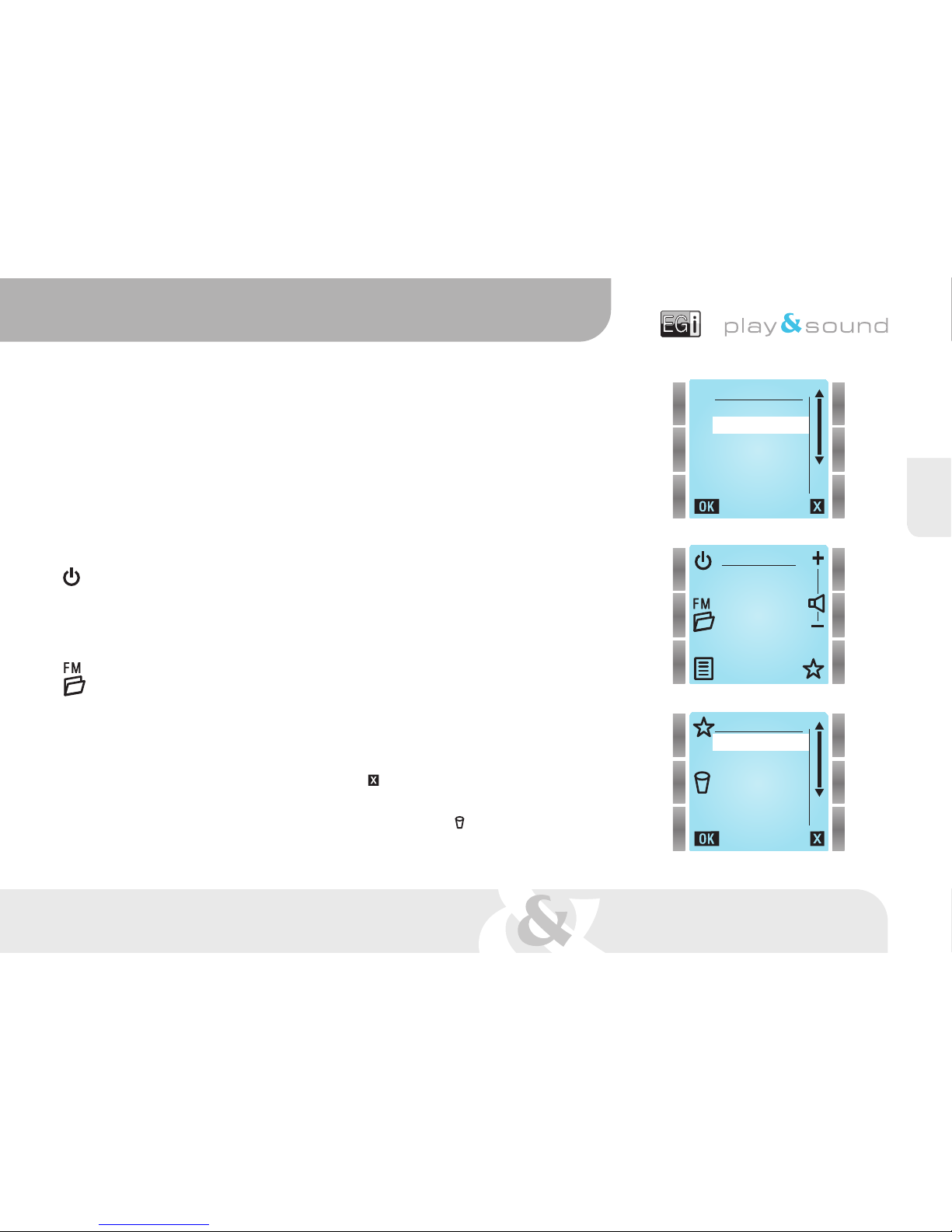

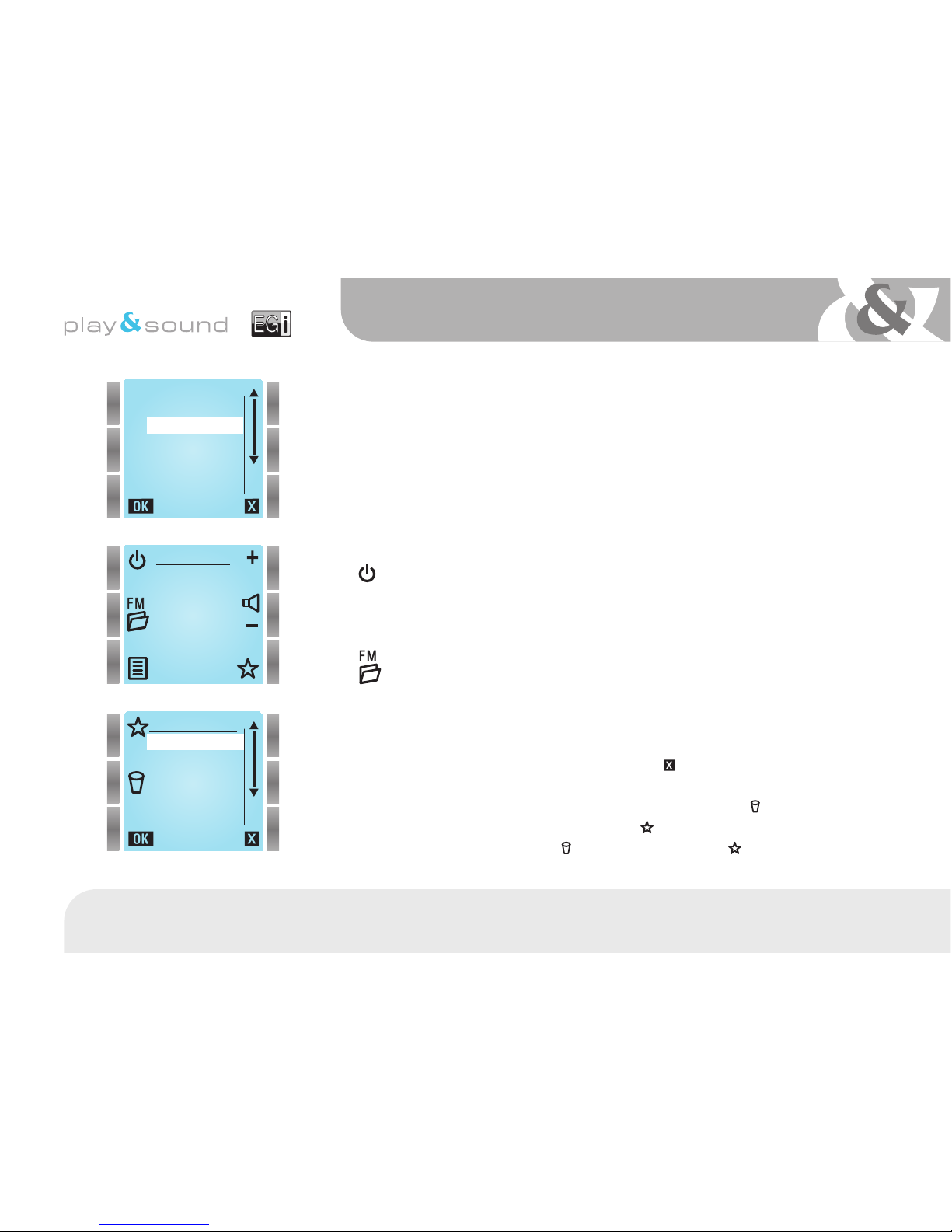

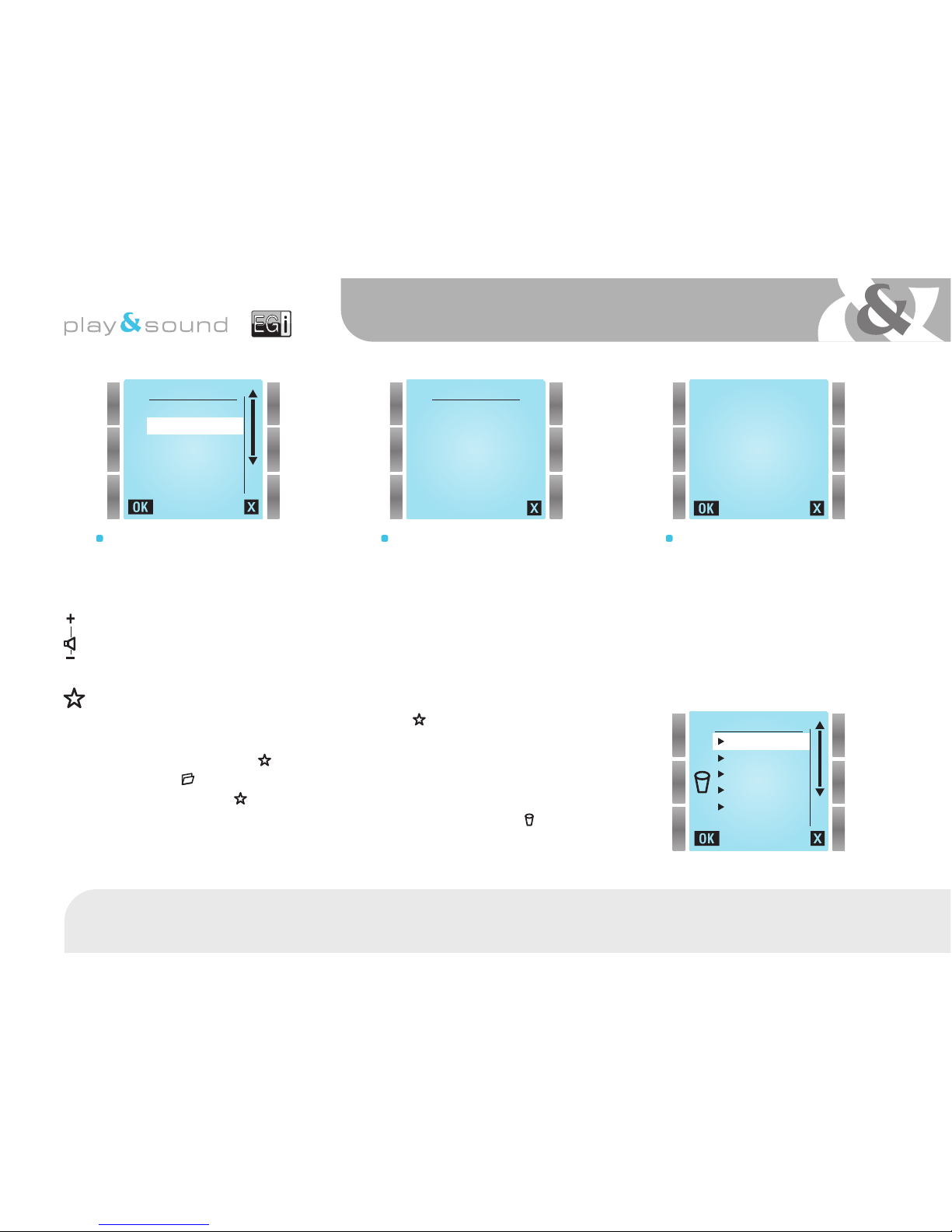

FM list
Press key 2to see all the stations tuned.
Use keys 4and 5to select the station. You will see the name displayed. If the station does not
transmit RDS information, its frequency will be displayed.
When the station you wish to listen to is selected, press key 3(OK).
You can quit the menu at any time by pressing key 6 (QUIT).
Press 1to add the selected station to FAVOURITES.
If you wish to delete a station from the FM LIST, select it and press 2(DELETE).
33
FM LIST
RADIO 1
RADIO 2
RADIO 3
RADIO 4
RADIO 5
RADIO 6
RADIO 5
107,9 FM
41501 remote control
en
LANGUAGE
DEUTSCH
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUES

www.egiaudio.com
4
5
6
1
2
3
4
5
6
1
2
3
0
4
5
6
1
2
3
10
34
MENU
SLEEP
EQUALIZER
MANUAL FM
AUTOSCAN
LINK
LANGUAGE
EQUALIZER
TREBLE
BASS
SLEEP
NOW
ALWAYS
MINUTES
If the radio station you wish to delete belongs to FAVOURITES:
• The first time you press key 2(DELETE) will remove it from FAVOURITES and
• the second time it is pressed will remove it from the FM LIST.
If you delete a radio station from the FM LIST, it will disappear permanently. It will not appear in FAVOURITES if it was selected.
If you wish to retrieve it later, you will have to retune it using MANUAL FM.
When there is only one station remaining, the icon DELETE (key 2) will disappear.
41501 remote control

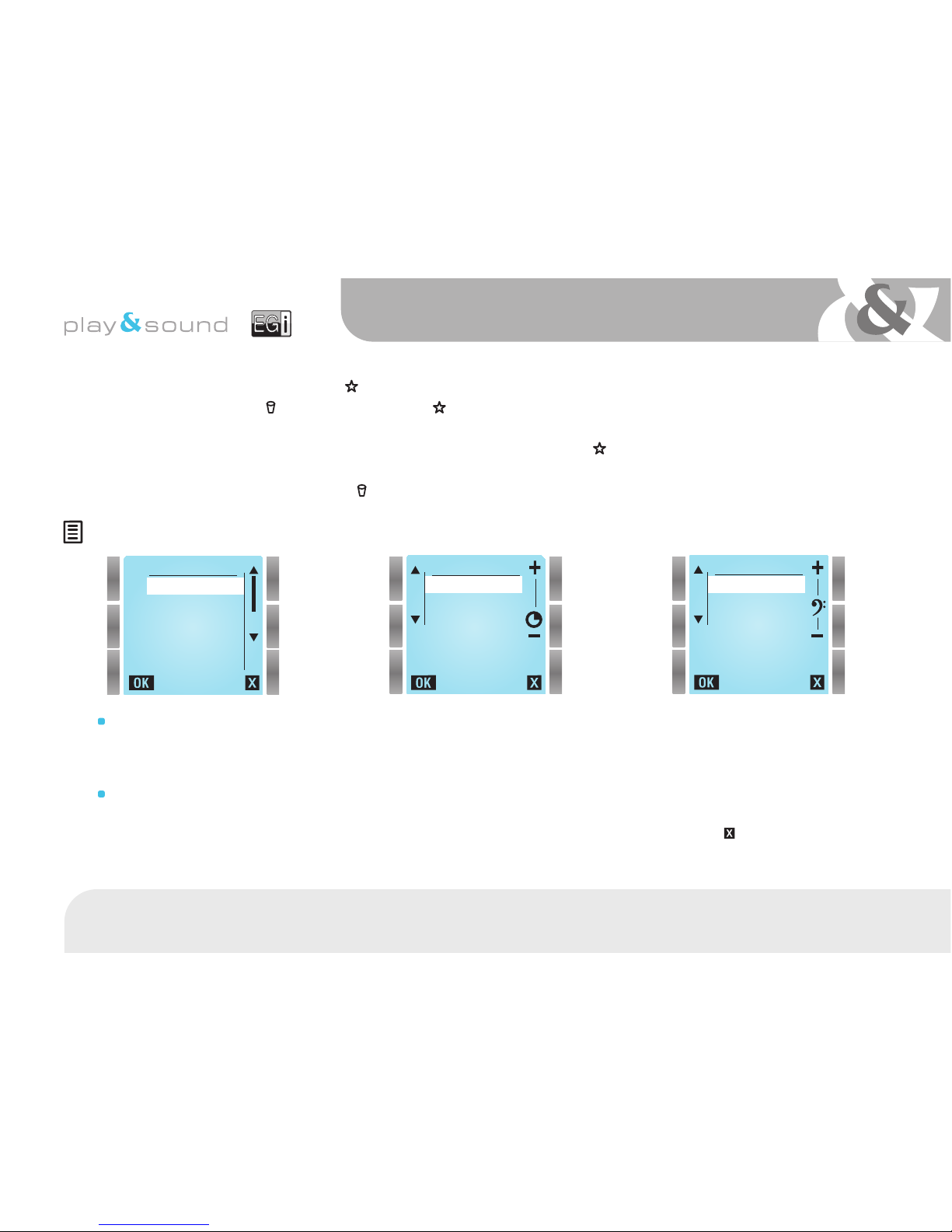

MENU adjustments
SLEEP (TIMER)
Use 1or 2to select if you wish to activate the timer just once (NOW) or every time you turn on the device (ALWAYS).
Press 4or 5to adjust the disconnection time. Press 3(OK) when you have finished. To deactivate SLEEP select 0minutes.
EQUALIZER
This adjustment can modify the level of bass and treble. Use 1or 2to switch between base and treble.
Once selected, press 4or 5to increase or decrease the level of bass or treble frequencies. Once modified, press key 6 (QUIT).

www.egiaudio.com
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
35
41501 remote control
APPROACH
RECEIVER
TO
LINK
AUTOSCAN
NEW
FM LIST
KEEP
FAVORITES?
YES NO
MANUAL FM
RADIO 1
en
MANUAL FM
Pressing 1or 4, you will move up or down the FM band in 100 kHz steps.
If you want to carry out an automatic search, pressing 2or 5will scan up or down the FM
bands automatically until FM radio station is found.
When you find the station (either in manual or automatic mode), press key 3(OK). This radio station
will be added to the FM list if there is space in the memory.
You can store up to 36 radio stations (30 in autoscan + 6 manual).
If you wait for a few seconds, once the station is tuned the RDS*information will be displayed. If this
information comes in several parts, press key 3(OK) when you are viewing the text you wish
to identify the station with.
(*) Not all radio stations transmit RDS information.
AUTOSCAN
On pressing AUTOSCAN, the list of FM stations is created again.
You can choose between keeping the list of favourite stations or delete it.
The autoscan process can take several minutes.
LINK (See MULTIROOM MODE)
If you have to link the control to a new flush-fit loudspeaker base, bring the control close to
the flush-fit loudspeaker base and press 3(OK).

www.egiaudio.com
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
VERSION
V 1.0 RESET
LANGUAGE
Use keys 4and 5to select the menu
language.
When selected, press 3(OK).
36
VERSION
On pressing this, the version of the
software installed will be displayed.
RESET
Returns the system to the factory default
status.
Personalised configurations and FM and
favourite lists of will be deleted.
41501 remote control
LANGUAGE
DEUTSCH
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUES
SETTINGS
STEREO:
Press keys 4or 5until STEREO is selected.
Use keys 1or 2to select STEREO audio mode (YES) or MONO audio mode (NO). Mono mode
is recommended for poor reception areas.
Volume adjustment
Keys 4and 5are used to raise or lower the volume.
A short press modifies the volume step by step and a long press speeds up the change.
SETTINGS
STEREO
YES

4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
www.egiaudio.com
Favourites list
You can select up to 6 favourite radio stations. To choose them, press FAVOURITES (1)
from the FM list.
The station selected will be added to the list of favourites in the first free position.
You can also add a station from FAVOURITES, using keys 4-5to select an empty position and
then press key 2FM. In this manner, the list of stations available will appear and you can select
the one you wish to add to FAVOURITES.
You can delete a favourite station by selecting it with keys 4-5and then pressing key 2(DELETE).
Multiroom mode
The MULTIROOM function is used when the installation has several flush-fit loudspeaker bases and you
wish to use a single remote control to control them.
The remote control will only control one base at a time, therefore it will be necessary to proceed with
the linking process whenever you wish to change the loudspeaker base.
There are 3 modes to begin this linking process:
By menu: MENU adjustments LINK.
Control without coverage: If the control is not within the coverage distance of the base you wish
to unlink, the possibility of linking a new loudspeaker base by pressing keys 4and 5simultaneously
will be displayed on screen.
In the process of linking the remote control, it will be associated to the closest built-in loudspeaker base,
therefore it is necessary to bring the control as close as possible to the base you wish to link to.
APPROACH
RECEIVER
TO
LINK
37
FAVORITES
RADIO 1
RADIO 2
RADIO 3
RADIO 4
RADIO 5
EMPTY
41501 remote control
en

www.egiaudio.com
4
5
6
1
2
3
OUT OF
COVERAGE
TRY
Loss of coverage
In the communication between the remote or wall control and the flush-fit loudspeaker base, there may
be a loss of coverage that impedes communication.
This may be due to the control being further away from the loudspeaker base than the maximum allowed
range. Control must be carried out at a shorter distance.
If there is a loss of coverage, the control will display on screen the options of either retrying communication
with the linked base, or carrying out a new link with another base (see MULTIROOM MODE).
Simultaneous control of a base with the remote control
and wall control
It is possible to control a single loudspeaker base with a wall control and a remote control without having
to link them alternatively.
The remote control will be the priority control, so that when you press any control on the remote, it
will become the active control.
At this moment the wall control will be off.
When 15 seconds have elapsed since the last time you pressed the remote control, it will change to
standby, turning itself off and the wall control will come on and become the active control.
38
41501 remote control

www.egiaudio.com
Fitting the batteries
Before replacing the batteries, make sure you have the new ones ready.
Slide the battery compartment cover open and insert three R6 batteries (AAA size)*.
Make sure the battery poles "+" and "–" coincide with the compartment "+" and "–" signs.
Replacing the batteries
If the remote control is not working properly, the batteries may be run down. Replace them with new
batteries when the following sign is displayed on the screen.
Attention
•Always replace the batteries at the same time.
•Do not mix old and new batteries or mix different types of batteries.
•If the batteries have leaked, clean the compartment with a cloth and replace the batteries with new
ones. To avoid battery leakage, remove the batteries when the remote control is not going to be used
for a long period of time.
39
Fitting the wall support
If you wish to use the wall bracket to install the remote
control, you can secure it with the adhesive label
(included) or screws (not included).
41501 remote control
en

4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
www.egiaudio.com
RADIO 5
107,9 FM
FM LIST
RADIO 1
RADIO 2
RADIO 3
RADIO 4
RADIO 5
RADIO 6
First connection
Press any key.
The language selection menu will be displayed.
Use keys 4or 5to select your language and then press key 3(OK).
Autoscan
Once you have chosen the language, it will automatically search for the most powerful FM radio stations*.
(*) Up to 30 stations + 6 in manual mode.
Main screen
Turn the device on/off
Press key 1to turn the device on/off.
With the audio off, keys 4and 5are in screen backlight adjustment mode.
This will enable you to adjust the light intensity of the display when the control is on standby.
FM list
Press key 2to see all the stations tuned.
Use keys 4and 5to select the station. You will see the name displayed. If the station does not
transmit RDS information, its frequency will be displayed.
When the station you wish to listen to is selected, press key 3(OK).
You can quit the menu at any time by pressing key 6 (QUIT).
Press 1to add the selected station to FAVOURITES.
If you wish to delete a station from the FM LIST, select it and press 2(DELETE).
If the radio station you wish to delete belongs to FAVOURITES:
• The first time you press key 2(DELETE) will remove it from FAVOURITES and
• the second time it is pressed will remove it from the FM LIST.
40
41502 wall control
LANGUAGE
DEUTSCH
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUES

www.egiaudio.com
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
MENU
TIME
ALARM
SLEEP
BACKLIGHT
EQUALIZAR
MANUAL FM
TIME
41
If you delete a radio station from the FM LIST, it will disappear permanently. It will not appear in FAVOURITES if it was selected.
If you wish to retrieve it later, you will have to retune it using MANUAL FM.
When there is only one station remaining, the icon DELETE (key 2) will disappear.
TIME
AUTO
MANUAL
12/24H
TIME
HOUR
MINUTES
12H / 24H
41502 wall control
en
MENU adjustments
TIME
You can set the clock automatically (synchronising it with a radio station that transmits the time in RDS information) or manually.
Automatic adjustment:
In TIME select AUTO.
Press key 2and choose the radio station that supplies time information via RDS (Go to
www.egiaudio.com to see the list of stations).
Wait a moment for the clock to synchronise and then press OK.
Manual adjustment:
To set the clock, use keys 4and 5to go to the option, and then press 3(OK).
Use keys 4and 5to increase the hour value (HOUR will appear selected).
When you finish, press key 2to adjust the minutes in the same manner.

4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
www.egiaudio.com
When everything is OK, press key 3(OK).
When the clock has been configured, if you return to the TIME menu, the OK key will be
replaced by STOP. If you press this, the time will disappear from the display in standby mode.
12/24 hour mode:
To change the time display mode, press key 5until 12H / 24H is displayed.
Press key 6to choose the desired option. Then press OK.

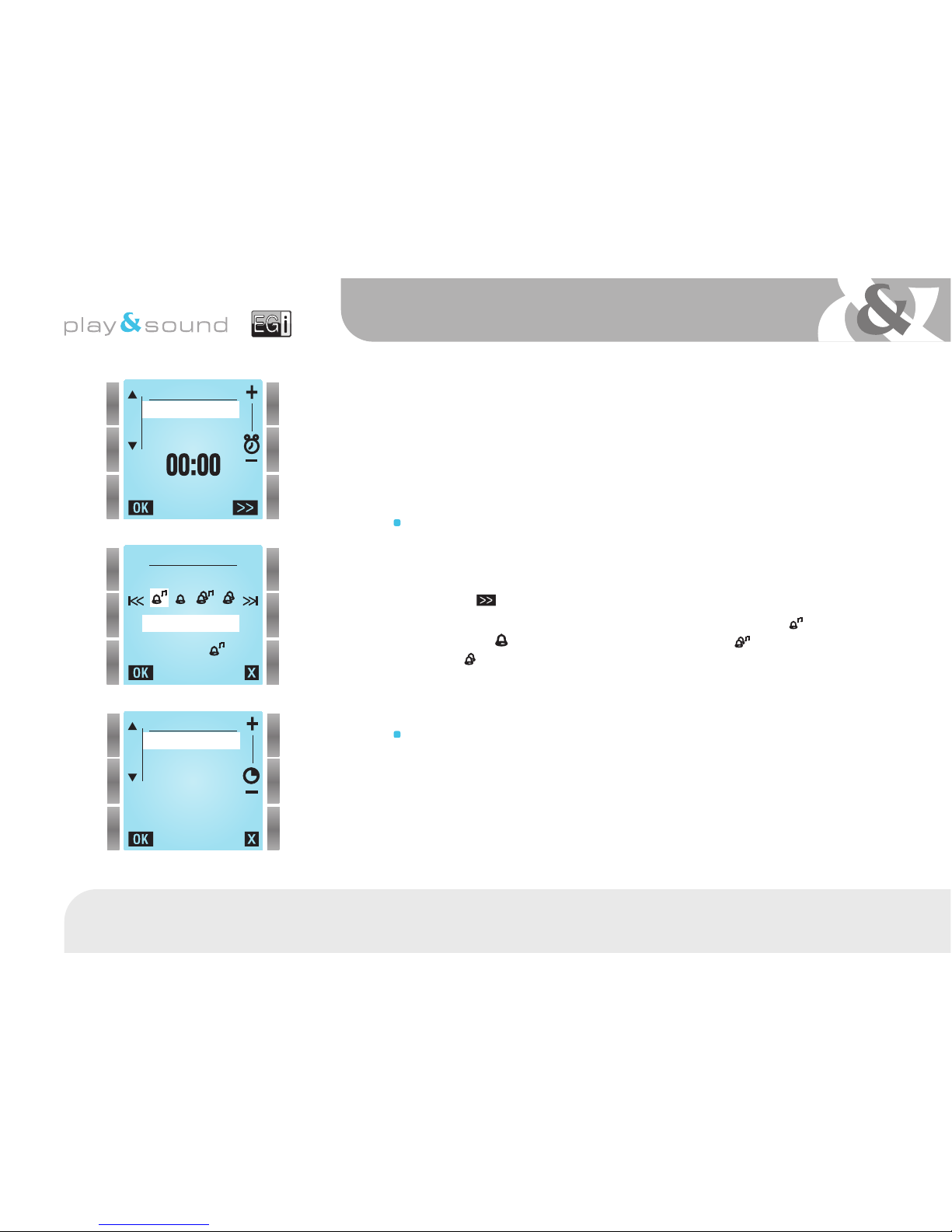

ALARM
To set the alarm, use keys 4and 5to go to the desired option, and then press 3(OK).
Use keys 4and 5to increase the time value (HOUR will be displayed as selected).
When you finish, press key 2to set the minutes in the same manner.
Press key 6 (PLUS) to select the type of alarm.
Using keys 2and 5you can choose between an alarm using FM one day , an alarm with a
buzzer one day , alarm using an FM connection every day or an alarm with a buzzer
every day .
When everything is correct, press 3(OK).
The home screen will display the hour of activation and the type of alarm.
SLEEP (TIMER)
Use 1or 2to select if you wish to activate the timer just once (NOW) or every time you turn
on the device (ALWAYS).
Press 4or 5to adjust the disconnection time. Press 3(OK) when you have finished.
To deactivate SLEEP select 0minutes.
42
ALARM TYPE
FM ONCE
00 : 00
SLEEP
NOW
ALWAYS
MINUTES
ALARM
HOUR
MINUTES
41502 wall control

4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
0
www.egiaudio.com
4
5
6
1
2
3
43
BACKLIGHT
AUTOSCAN
NEW
FM LIST
KEEP
FAVORITES?
YES NO
MANUAL FM
RADIO 1
EQUALIZER
TREBLE
BASS
41502 wall control
en
BACKLIGHT CONTROL
Use keys 4and 5to increase or decrease the
power of the display backlighting, with the
control in standby.
EQUALIZER
This adjustment can modify the level of bass
and treble.
Use 1or 2to switch between base and treble.
Once selected, press 4or 5to increase or decrease the level of bass or treble frequencies. Once
modified, press key 6 (QUIT).
MANUAL FM
Pressing 1or 4, you will move up or down the FM band in 100 kHz steps.
If you want to carry out an automatic search, pressing 2or 5will scan up or down the FM
bands automatically until FM radio station is found.
When you find the station (either in manual or automatic mode), press key 3(OK). This radio station
will be added to the FM list if there is space in the memory.
You can store up to 36 radio stations (30 in autoscan + 6 manual).
If you wait for a few seconds, once the station is tuned the RDS*information will be displayed. If this
information comes in several parts, press key 3(OK) when you are viewing the text you wish
to identify the station with.
(*) Not all radio stations transmit RDS information.
AUTOSCAN
On pressing AUTOSCAN, the list of FM stations is created again.
You can choose between keeping the list of favourite stations or delete it.
The autoscan process can take several minutes.

4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
www.egiaudio.com
44
VERSION
V 1.0 RESET
LANGUAGE
Use keys 4and 5to select the menu
language.
When selected, press 3(OK).
FAVORITES
RADIO 1
RADIO 2
RADIO 3
RADIO 4
RADIO 5
EMPTY
Volume adjustment
Keys 4and 5are used to raise or lower the volume.
A short press modifies the volume step by step and a long press speeds up the change.
Favourites list
You can select up to 6 favourite radio stations. To choose them, press FAVOURITES(1) from the FM list.
The station selected will be added to the list of favourites in the first free position.
You can also add a station from FAVOURITES, using keys 4-5to select an empty position and
then press key 2FM. In this manner, the list of stations available will appear and you can select
the one you wish to add to FAVOURITES.
You can delete a favourite station by selecting it with keys 4-5and then pressing key 2(DELETE).
VERSION
On pressing this, the version of the
software installed will be displayed.
RESET
Returns the system to the factory default
status.
Personalised configurations and FM and
favourite lists of will be deleted.
41502 wall control
LANGUAGE
DEUTSCH
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUES
