Airflow ecoDRY mini ABS Installation guide

80000414 Issue 3 - 07/23
Page 1 of 5
Installation and Operating Guide
ecoDRY mini Hand Dryers
ecoDRY mini ABS (Part No: 90000520)
ecoDRY mini Satin (Part No: 90000521)
Introduction
The ecoDRY mini hand dryers are an eco-hygienic drying system. The ecoDRY mini hand dryers offer
superior performance in drying time at an average of 20 seconds utilising an energy saving 400W
motor. Offers a contemporary design with ergonomic features making it a stylish addition to your
washroom. The ecoDRY mini hand dryers are available in two finishes - White ABS Plastic, and Satin
Die Cast Aluminium. Installation must be carried out by a qualified and suitable competent person.
Technical Data
Supply Voltage
220-240V
Frequency
50-60Hz
Absorption (Power)
400 Watts
IP Rating
IP23
Electrical Insulation
Class II
Airflow Performance
110 m³/hr / 31 l/sec
Dimensions (mm) (H x W x D)
238 x 156 x 99.5
Weight
1.2Kg
IMPORTANT! Read before commencing installation. Please leave these
instructions with the person responsible for the premises.

80000414 Issue 3 - 07/23
Page 2 of 5
Safety Information and Guidance
All electrical installation and repair work should be carried out by a qualified electrician accordance
with current codes or regulations.
Isolate the power before installation.
RISK OF ELECTRIC SHOCK! If casing is removed or handled improperly the internal components
of the unit may cause harm or become permanently damaged.
SAFETY FIRST: Always isolate the dryer from the power supply before removing the cover. When installed
according to these instructions the ecoDRY range of hand dryers are completely safe. The materials used
do not constitute a hazard. All ABS parts are made from flame retardant materials.
Wiring should conform to the latest edition of the IET wiring regulations (BS7671 – 17th Edition) or the
appropriate standard in the country of installation. The ecoDRY mini requires a 220-240V 50/60Hz supply
and an external 3A fuse. An isolator switch should also be installed in the MAINS input line to facilitate
maintenance and cleaning of the dryer.
Mechanical Installation
The ecoDRY hand dryer is designed for dry, internal locations only and should be installed at a minimum
height of 120cm (from the ground to the air outlet/ bottom of the dryer) and be positioned at least 60cm
from a bathtub, shower, or hand basin. Where multiple dryers are being installed alongside each other,
allow enough space for people to access the dryer. If installing next to an adjoining wall, the dryer should
be positioned at least 200mm from this wall to allow for proper access. Fix the hand dryer to the wall with
the fixing kit provided using the enclosed template to mark out where the holes should be drilled. You
should ensure that the electrical supply (tension) does not exceed the maximum power of the apparatus
(220 -240V). This product is intended for installation by a suitably qualified person.
Dimensions

80000414 Issue 3 - 07/23
Page 3 of 5
Front Cover Removal
Before installation can commence you need to remove the front cover by unscrewing the two screws at
the bottom of the cover (see Fig. 1). When the hand dryer is fixed to the wall, the cover should be
replaced, and the two screws tightened accordingly.
Mounting on the Wall
Fix the hand dryer to the wall with the fixing kit provided using the enclosed template to mark out where
the holes should be drilled. It is recommended that you use the raw plugs and screws provided in the
fixing kit. The hand dryer should always be positioned with the air outlet facing downwards.
Operation
The hand dryer comes into operation and automatically stops by hands approaching and moving away
from the cone air outlet.
WARNING: In case of an overload of internal temperature, a thermostat with automatic reset
protection suspends the operation of the motor. This device gives the user greater safety of
operation.
The unit has heating element. Air is then heated by the power of motor and heating element. This dryer
allows considerable energy savings compared to traditional dryers, reducing consumption as our trading
indications. In case of overheating a safety thermostat switch off temporary the heating element.
The device has a system that prevents vandalism continuous operation, caused for example by covering
the photocell. If this occurs, the dryer can work without interruption for about 60 seconds, then
automatically stops waiting for (stand by)
It will be needed to remove the cover that blocks the photocells to ensure the dryer to resume its normal
function in 3-4 seconds.
Maintenance
WARNING: Before commencing any maintenance on this product, please isolate the appliance
from the power supply!
Clean the dryer using a soft cloth dampened with water and detergent. To ensure the durability and
reliability of this product, periodically check that the grid inlet and outlet of the cone are not clogged by
dust or any equivalent material.
Brush Motor (carbon brushes)
The motor brushes cartridge in the drive unit has a life of 500-600 hours of effective operation. The
duration of the same varies depending on the conditions of use and of cleaning the filter and general
Fig. 1

80000414 Issue 3 - 07/23
Page 4 of 5
maintenance of the appliance. It is needed to contact the service in order to restore the brushes at the
end of the cycle.
IMPORTANT:
• Do not use this product for a function different to which it is intended.
• Do not expose the appliance to the elements such as rain, sun etc.
• Do not make any changes to the device.
• Do not obstruct the air outlet point or air inlet grille.
• Do not insert any object into the air outlet or air inlet grille.
• In case of failure/ malfunction, disconnect from the power supply and contact your installer.

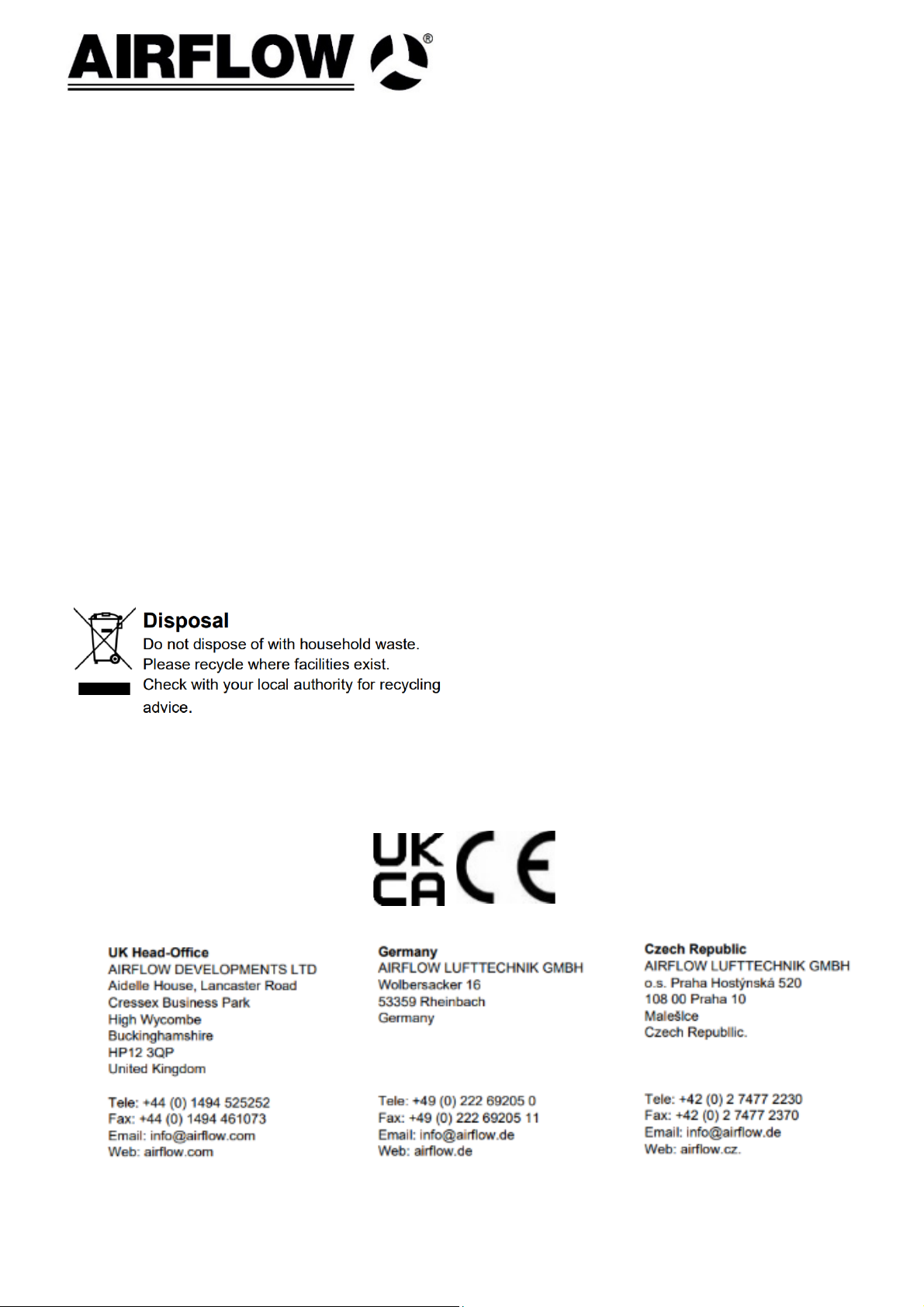

This product falls within the competence of the EC Directive 2002/96 (WEEE) on disposal of electrical and
electronic equipment. Complies with RoHS legislation.
Troubleshooting
1. If the dryer continuously blows cold air - please contact Airflow Developments Ltd at
[e-mail] or Tel [phone] for further assistance.
2. The dryer runs continuously – decrease the sensitivity of the activation sensor by turning the
white potentiometer on the board located inside the main body of the dryer (see Fig. 2 below)
clockwise with a pot adjuster/ small screwdriver. Adjust to suit the level of sensitivity required.
3. The dryer does not operate – check all connections, if this fails, please contact your installer.
Please contact Airflow Developments Ltd at [e-mail] or Tel [phone] for
further assistance.
Fig. 2

80000414 Issue 3 - 07/23
Page 5 of 5
Warranty
Applicable to units installed and used in the United Kingdom. Airflow guarantees the ecoDRY 550 hand
dryers for 3 years from date of purchase against faulty material or workmanship. Warranty only covers the
hand dryer, not the reinstallation of this if required. The warranty does not cover the replacement of the
EPA 11 filter (if included) or the carbon brushes both of which need to be replaced after 1,000 hours of
operation. These can be ordered from Airflow as spare parts as and when required. In the event of any
defective parts being found, Airflow Developments Ltd reserve the right to repair or at our discretion
replace without charge provided that the unit:
1. Has been installed and used in accordance with the fitting and wiring instructions supplied with
each unit.
2. Has not been connected to an unsuitable electrical supply.
3. Has not been subjected to misuse, neglect, or damage.
4. Has not been modified or repaired by any person not authorised by Airflow Developments Ltd
5. Has been installed in accordance with latest IET wiring regulations.
Airflow Developments shall not be liable for any loss, injury, or other consequential damage, in the event of
a failure of the equipment or arising from, or in connection with, the equipment excepting only that nothing
in this condition shall be construed as to exclude or restrict liability for negligence. This warranty does not
in any way affect any statutory or other consumer rights.
AIRFLOW DEVELOPMENTS Limited reserves the right in the interest of continuous development to alter
any or all specifications without Prior notice. All orders are accepted subject to our conditions of sale which
are available on request.
