airinspace HEPA BULLE User manual

Mobile Air Decontamination Unit
USER MANUAL
HEPA Bulle
European Low Voltage Directive (LVD) 2014/35/EU
European Electromagnetic Compatibility Directive (EMC) 2014/30/EU

User manual –HEPA Bulle –ED02_09-August-2021 1 /31
WARNING
We strongly recommend that you fully read these instructions before operating the HEPA Bulle for the first time
(see section 2 –Use).
To make it easier for the different users to access more detailed information, this manual is divided into three
sections:
•section 1: general information
•section 2: instructions for use
•section 3: technical commissioning, servicing and maintenance information
PACKAGE CONTENTS
•1 HEPA Bulle unit
•1 Prefilter
•4 H14 HEPA filters
•1 Power supply cable
•1 “Quick Start Guide” for installation/settings
NOTE: The user manual can be found by scanning a QR code on the quick start guide and in
the settings menu (see §3.4)

User manual –HEPA Bulle –ED02_09-August-2021 2 /31
TABLE OF CONTENTS
SECTION 1 - GENERAL INFORMATION............................................................................................................4
1.1 Safety instructions ............................................................................................... 4
1.2 Regulatory standard ............................................................................................. 5
1.3 Normative standards ............................................................................................ 5
1.4 Classification ........................................................................................................ 5
1.5 Description of the device ...................................................................................... 6
1.5.1 Overview......................................................................................................... 6
1.5.2 Internal access ................................................................................................. 7
1.5.3 Markings and warnings........................................................................................ 8
1.6 Functional description of the device ..................................................................... 9
1.6.1 Intended use.................................................................................................... 9
1.6.2 Operating principles ........................................................................................... 9
1.6.3 Airflow direction in the HEPA Bulle unit.................................................................... 9
1.6.4 Physical characteristics ......................................................................................10
1.7 Installation instructions ..................................................................................... 11
1.8 Instructions for removal and storage ................................................................. 12
1.9 Transport............................................................................................................ 12
1.10 Disposal.............................................................................................................. 12
SECTION 2 - USE...............................................................................................................................................13
2.1 Operating principles ........................................................................................... 13

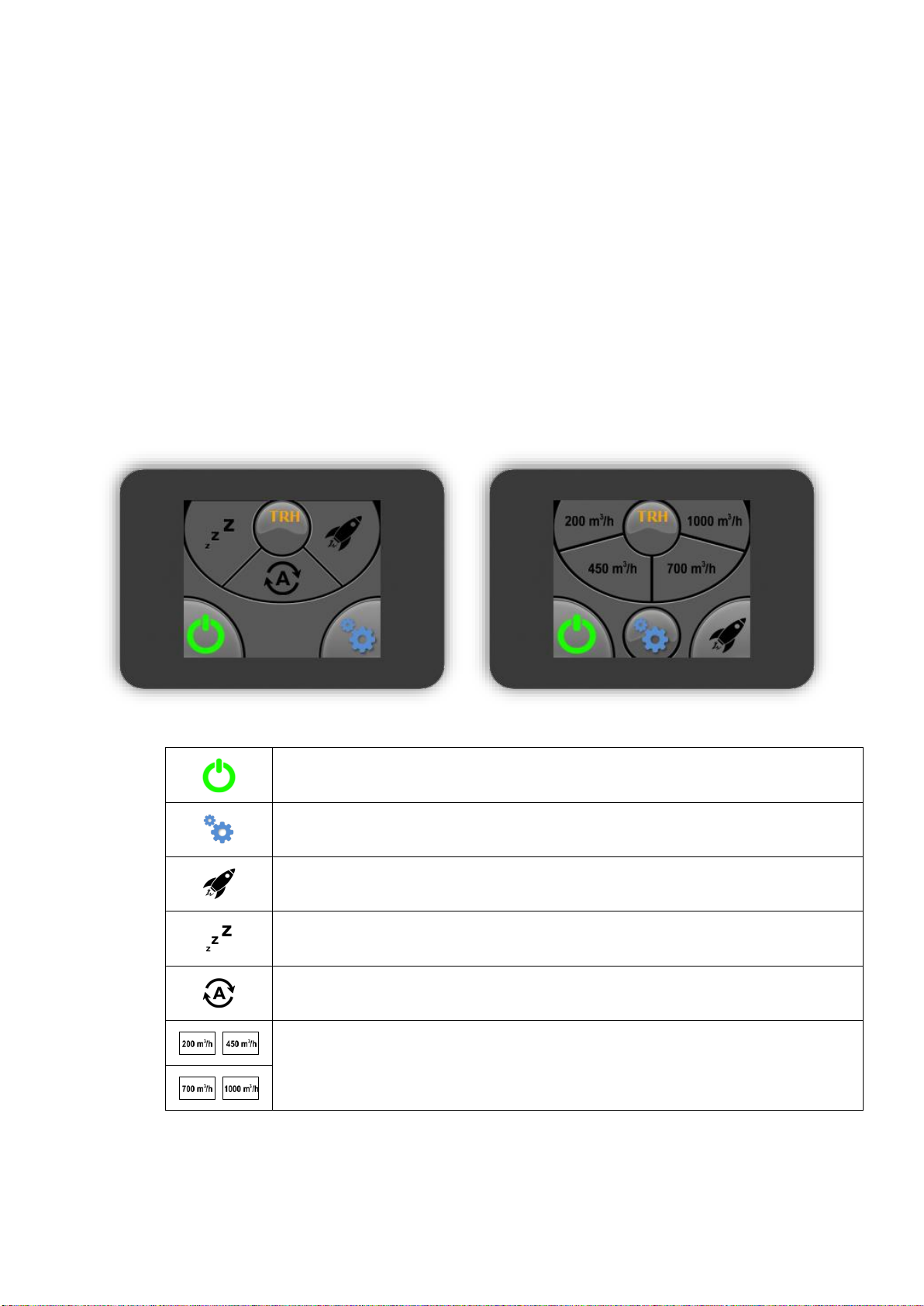

2.1.1 User interfaces ................................................................................................13
2.2 Start-up .............................................................................................................. 14
2.2.1 First boot........................................................................................................14
2.2.2 Subsequent start-ups .....................................................................................17
2.3 Changing the ventilation speed .......................................................................... 17
2.3.1 Automatic mode ............................................................................................17
2.3.2 Manual Mode.................................................................................................17
2.4 Handling warnings.............................................................................................. 18
SECTION 3 - SETTINGS - MAINTENANCE - CARE ........................................................................................19
3.1 Setup menu ........................................................................................................ 19
3.2 Filter condition ................................................................................................... 19
3.3 Locking with code............................................................................................... 20
3.4 Information menu .............................................................................................. 21

User manual –HEPA Bulle –ED02_09-August-2021 3 /31
3.5 Advanced settings menu..................................................................................... 21
3.6 Maintenance ....................................................................................................... 22
3.6.1 Replacing the filters...........................................................................................22
3.6.2 Replacing a fuse ..............................................................................................24
3.6.3 Resetting the counter.........................................................................................26
3.7 Care –Cleaning .................................................................................................. 28
3.7.1 Recommendations............................................................................................28
3.7.2 Cleaning/disinfection procedure ............................................................................28
3.8 Functional electrical diagram.............................................................................. 29
3.9 Manufacturer’s warranty .................................................................................... 31
3.10 Model identification ............................................................................................ 31

User manual –HEPA Bulle –ED02_09-August-2021 4 /31
SECTION 1 - GENERAL INFORMATION
1.1 SAFETY INSTRUCTIONS
•READ THESE INSTRUCTIONS THOROUGHLY and strictly follow the chronological order of
installation, start-up and maintenance steps.
•If stored or transported at low temperatures, wait at least 1 hour before turning on the equipment.
•The device must be used at temperatures from +5°C to +35°C, with relative non-condensing
humidity lower than 95%, with dust levels of less than 0.1 mg/m3.
•Do not allow any liquid to penetrate the device.
•Do not place the device near a heat source.
•Never obstruct or cover the device inlet (upper grille) or outlets (side grilles) during operation.
•For prefilter and filter replacement, only use airinspace®supplies.
•Disconnect the device’s mains socket before opening it. Do not place your hands near the fan
before it has come to a complete stop.
•Do not twist, stretch or damage the power supply cable.
•Only connect the device to earthed sockets that meet legal requirements and are inspected
periodically.
•Unplug the device when not in use for extended periods.
IMPORTANT: BEFORE CARRYING OUT ANY WORK ON AN ELECTRICAL COMPONENT,
SWITCH OFF THE DEVICE BY DISCONNECTING IT FROM THE MAINS.
IMPORTANT: WORK ON THE HEPA Bulle (INCLUDING ELECTRICAL CIRCUITS,
ELECTRONIC BOARDS AND FAN) MUST ONLY BE CARRIED OUT BY
airinspace®MAINTENANCE PERSONNEL OR DULY TRAINED
PERSONNEL.
THE USER IS LIABLE FOR ANY DAMAGE, REGARDLESS OF ITS NATURE,
CAUSED BY NON-COMPLIANCE WITH THE USAGE RULES AND SAFETY
INSTRUCTIONS.

User manual –HEPA Bulle –ED02_09-August-2021 5 /31
1.2 REGULATORY STANDARD
HEPA Bulle devices are CE-marked and comply with European regulations:
European Low Voltage Directive (LVD) 2014/35/EU
European Electromagnetic Compatibility Directive (EMC) 2014/30/EU
1.3 NORMATIVE STANDARDS
•NF EN 61010-1 (2011+A1: 2019). Safety requirements for electrical equipment for
measurement, control and laboratory use. Part 1: General requirements.
•EN 61326-1 (2013). Electrical equipment for measurement, control and laboratory use - EMC
requirements - Part 1: General requirements
•- NF S 90351 (2013). Healthcare establishments - Clean rooms and associated controlled
environments. Requirements relating to the control of airborne contamination.
1.4 CLASSIFICATION
Type of protection against electric shocks
Class I
Earthing for all accessible metallic elements and internal metallic elements.
Level of protection of applied parts against
electric shocks
No applied parts
Degree of protection against water and solids
IP 40
Operating mode
Continuous service
Operation under normal conditions of an unlimited duration without
exceeding operating temperature limits.
Electromagnetic interference
EN 61326-1 class B standard for conducted and radiated
disturbances.
HEPA Bulle is suitable for operation in an environment consisting of
devices which respect equivalent criteria.

User manual –HEPA Bulle –ED02_09-August-2021 6 /31
1.5 DESCRIPTION OF THE DEVICE

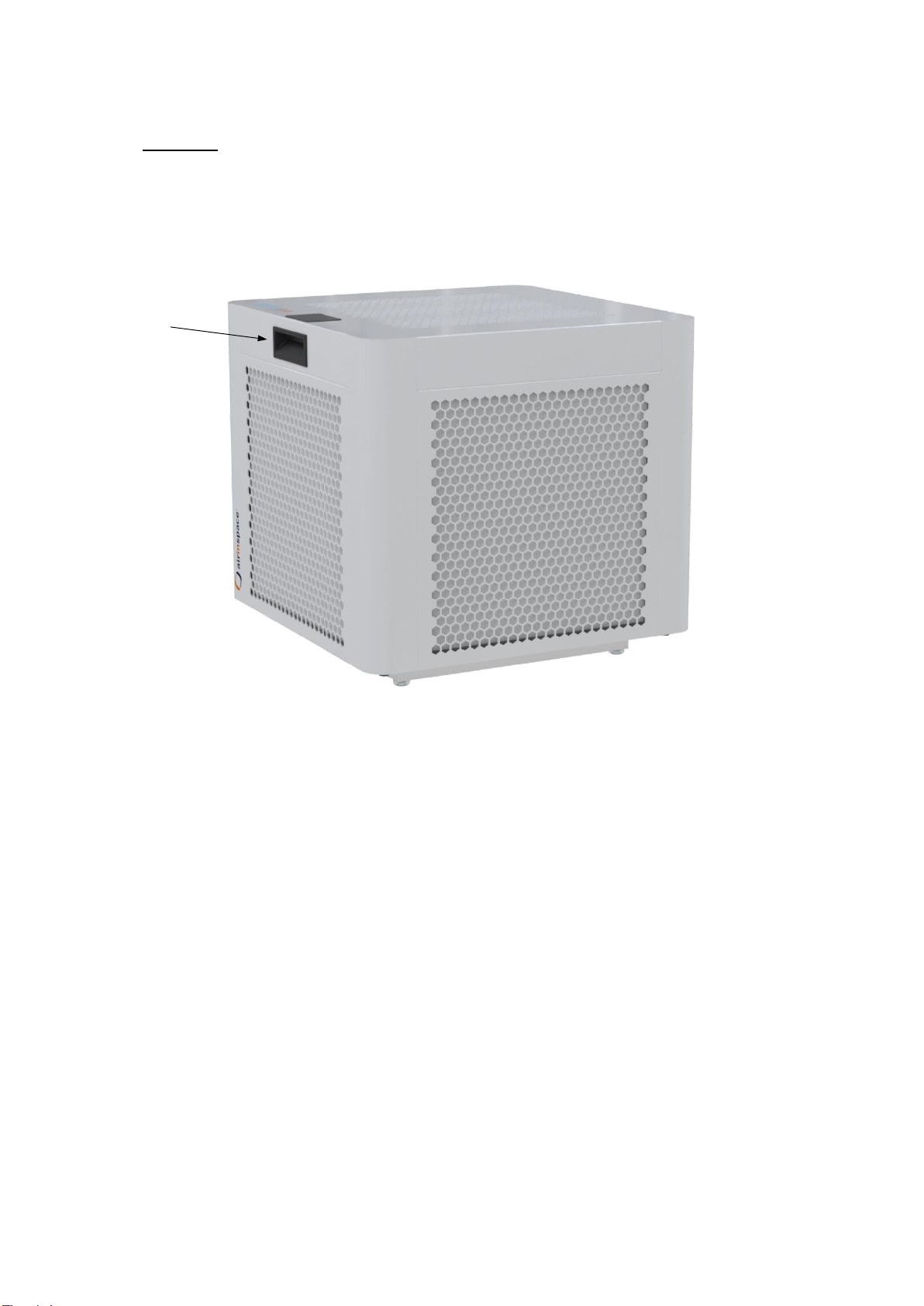

1.5.1 OVERVIEW
1
Painted aluminium chassis
2
Power supply socket with I/O switch
3
Outlet grille x4
4
Intake grille
5
Touchscreen control
6
Handle x2
4
1
5
2
3
6

User manual –HEPA Bulle –ED02_09-August-2021 7 /31
1.5.2 INTERNAL ACCESS
1
Prefilter access drawer
2
Prefilter
3
Suction hopper
4
Outlet grille
5
Electronics and fan unit
6
H14 HEPA filtration module x4
7
Electronic components access panel
8
H14 HEPA filter access panel
2
5
4
1
8
3
7
6

User manual –HEPA Bulle –ED02_09-August-2021 8 /31
1.5.3 MARKINGS AND WARNINGS
Label
Description
Position
Product
On the base of the machine, near the
mains socket
Electrical characteristics
On the base of the machine, near the
mains socket
“Maintenance access” hazard
warning
On the electronic components access
panel
Earth connection during assembly
warning
Near the Live Earth Neutral terminal
block
Fuses
Near the fuses
Packaging
Packing box

User manual –HEPA Bulle –ED02_09-August-2021 9 /31
1.6 FUNCTIONAL DESCRIPTION OF THE DEVICE
1.6.1 INTENDED USE
The HEPA Bulle is a high-performance mobile air purification unit that captures all types of contaminants
in the air: bacteria, viruses, fine particles, pollen, dust. It is used in buildings where air quality control is
desired (schools, businesses, doctor’s offices, nursing homes) to treat the air in canteens, classrooms,
meeting rooms, offices and bedrooms, as well as activity or TV common rooms, among others. It helps
to reduce airborne contamination and is a complementary health measure to other protective actions.
.
1.6.2 OPERATING PRINCIPLES
TheHEPA Bulle sucks in, treats and recirculates the air in the room. It quickly cuts down on environmental
contamination and keeps levels low. The factory-set recycling rate is 5 volumes per hour, as
recommended by the French High Council on Public Health (HCSP) for enclosed areas (14 and 21 May
2021). This can be changed if needed.

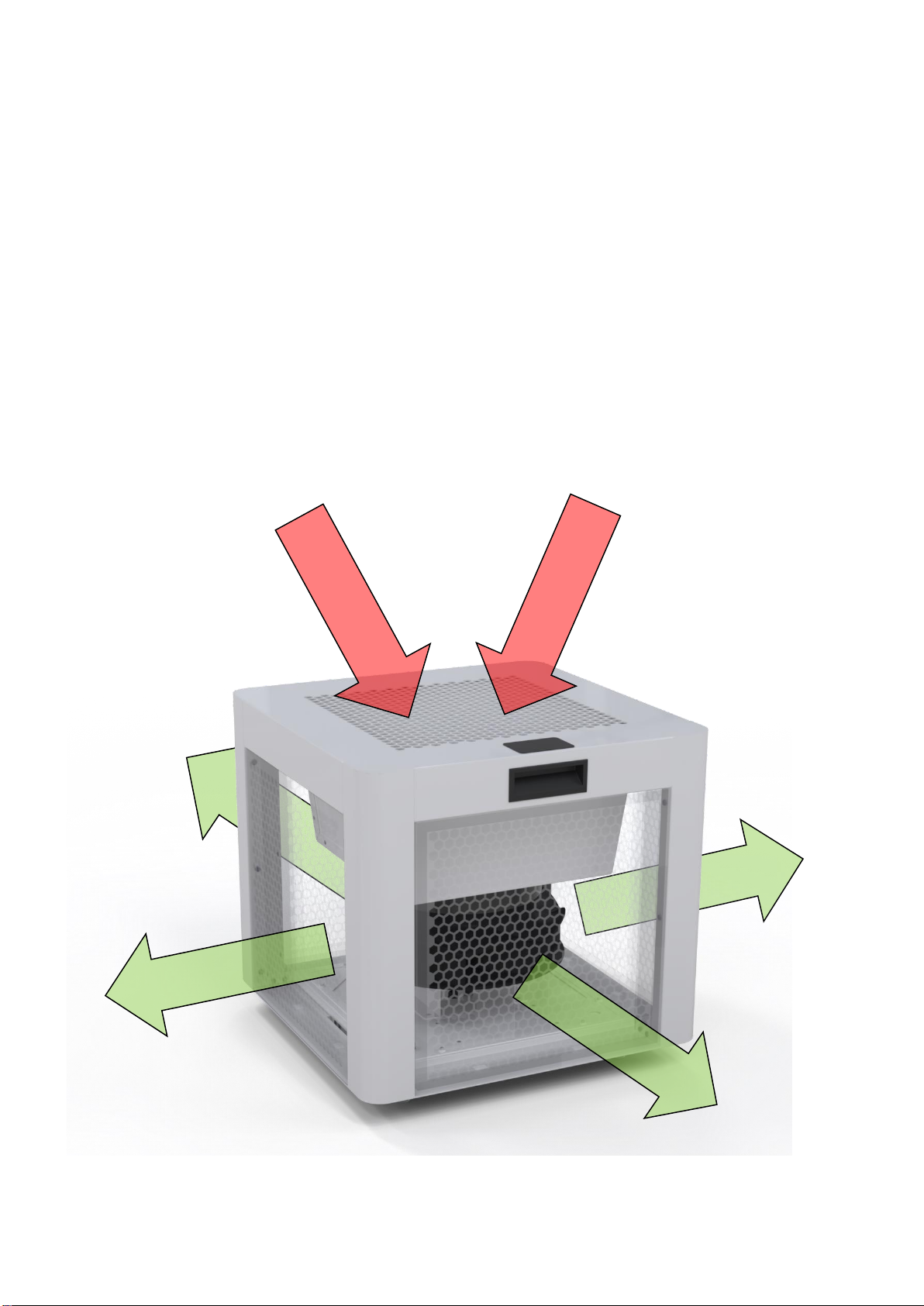

1.6.3 AIRFLOW DIRECTION IN THE HEPA Bulle UNIT

User manual –HEPA Bulle –ED02_09-August-2021 10 /31
1.6.4 PHYSICAL CHARACTERISTICS
Electrical supply
~ 230 V (+/- 10% max.); 50/60 Hz
Maximum electrical power
280 VA / 170 W
Electrical power at rated speed (450 m3/h)
30 VA / 20 W
Electrical protection
-Isolated by removable power cable
-Ph + N FUSES (3.15 A)
Volume output
Ventilation speeds adjustable from 200 m3/h to 1,000 m3/h
Boost mode: 1300 m3/h
Device noise level
according to standard NF-EN ISO 3744:2012 at 1 m / 2 m
(new filters)
-200 m3/h 30 dB(A) / 26 dB(A)
-400 m3/h 42 dB(A) / 38 dB(A)
-800 m3/h 54 dB(A) / 50 dB(A)
-1200 m3/h 63 dB(A) / 59 dB(A)
Average velocity of air exiting diffusion grilles
0.45 m/s at 450 m3/h
Air treatment capacity (room volume)
Potentially all volumes according to desired level of efficiency.
Water/solids protection index
Complete device
IP40
Control panel
IP40
Overall dimensions
H 402 x W 418 x D 427 mm
HEPA Bulle weight
With filters: 14 kg
Without filters: 9 kg
Environmental operating range
Temperature
+5°C to +35°C
Relative humidity
< 95% non-condensing
Altitude
Up to 2000 m
Overvoltage category
CAT II
Pollution degree
2
Environmental storage range
Temperature
0°C to 45°C
Relative humidity
20% to 90%
Dust level
< 1 mg/m3
NOTE: The information contained in this table is for information only. For any information on
measurements and tolerance intervals, please contact airinspace®at the address provided
at the end of this document.

User manual –HEPA Bulle –ED02_09-August-2021 11 /31
1.7 INSTALLATION INSTRUCTIONS
Reception
1. Remove the unit from its cardboard packaging.
2. Carefully examine the device delivered and check that the items on the packing list are present.
3. Grab the handles to move the unit to where it will be used.
4. Connect the unit to a secure electrical socket. (see §1.6.4 –Physical characteristics)
5. Switch on the unit and check that it starts up correctly (see §2.2 - Start-up).
6. Write down any anomalies and damage on the delivery note and notify the distributor or airinspace®.
If you wish to contact the manufacturer or distributor, please provide the serial number and date of
purchase.
IMPORTANT: THE ELECTRICAL SUPPLY PLUG MUST COMPLY WITH REGULATORY
TEXTS AND BE PERIODICALLY CHECKED. THE POWER SUPPLY CABLE
MUST BE ACCESSIBLE AT ALL TIMES SO THE PRODUCT CAN BE
UNPLUGGED EASILY, AS NEEDED.

User manual –HEPA Bulle –ED02_09-August-2021 12 /31
1.8 INSTRUCTIONS FOR REMOVAL AND STORAGE
1. Switch off the device and unplug it from the mains.
2. Place the unit in its original box.
3. Arrange the power supply cable.
4. Move the box to its storage area.
5. The unit must be stored in a clean area with an atmosphere not polluted by industrial activities.
The unit must be protected from dust, direct sunlight, heat sources, frequent changes in temperature and
humidity, potentially corrosive chemicals or other products.
Storage temperature : 0°C to +45°C.
Relative humidity level : 20% to 90%.
Dust level : less than 1 mg/m3.
1.9 TRANSPORT
Before transporting, protect the unit from shocks and scratches.
Follow the instructions regarding the transport box direction:
1.10 DISPOSAL
This product is covered by European Directive 2012/19/EU of 4 July 2012 on waste electrical and
electronic equipment (WEEE) and falls within category 6. “Electrical and electronic tools” as defined in
annex I to this directive.
Disposal of this product and the recovery of the resultant waste must respect regulations arising from the
application of the European directive by the different member states, as well as any local regulations that
complement it.

User manual –HEPA Bulle –ED02_09-August-2021 13 /31
SECTION 2 - USE
2.1 OPERATING PRINCIPLES
The HEPA Bulle was programmed to offer a simple, user-friendly interface to users. Using a single
software program, it shows different display modes (with auto mode and manual mode), adapted to
each user’s profile.
2.1.1 USER INTERFACES
2.1.1.1 main screen
Automatic mode activated (see §2.2) Manual mode activated (see §2.2)
The device’s on/off button
Setup button
“Boost” flow settings button
“Silent” flow settings button (automatic mode only)
“Auto” flow settings button (automatic mode only)
Flow settings button (manual mode only)

User manual –HEPA Bulle –ED02_09-August-2021 14 /31
2.2 START-UP
Connect the HEPA Bulle unit to an electrical socket ~ 230 V –50/60 Hz using the 2P+T 10 A power
supply cable provided. The screen turns on.
IMPORTANT: THE ELECTRICAL SUPPLY PLUG MUST COMPLY WITH REGULATORY
TEXTS AND BE PERIODICALLY CHECKED. THE POWER SUPPLY CABLE
MUST BE ACCESSIBLE AT ALL TIMES SO THE PRODUCT CAN BE
UNPLUGGED EASILY, AS NEEDED.
The HEPA Bulle unit loads the operating programme. The initialisation screen appears
(decontamination is not active).
2.2.1 FIRST BOOT
The first time the HEPA Bulle unit boots up, a succession of specific screens appears (called first boot
configuration), where the settings described hereafter must be adjusted. On subsequent start-ups, the
main screen will open directly (see §2.1.1).
NOTE: Confirm the current screen and move to the next screen by pressing the icon. You
can return to the previous screen by pressing the icon.
NOTE: You can reactivate the display of the first boot procedure in the machine settings (see
§3.1).
2.2.1.1 Interface language selection

User manual –HEPA Bulle –ED02_09-August-2021 15 /31
2.2.1.2 Room volume selection
As a reminder, the volume of the room is calculated by multiplying its surface area by its floor to ceiling height.
This height can vary depending on the location, but it is generally 2.5 m.
2.2.1.3 Selection for the number of HEPA Bulle units in the room
If multiple HEPA Bulle units are set up in the same room, their flow in automatic mode and their ARH in
manual mode are automatically calculated and adjusted.
2.2.1.4 Operating mode selection
The HEPA Bulle unit can be used in two different operating modes. airinspace®recommends using AUTO
mode.

User manual –HEPA Bulle –ED02_09-August-2021 16 /31
AUTO mode: Flow settings are automatically
calculated based on room volume and the number of
previously input HEPA Bulle units, as well as the Air
Recycling rate per Hour (ARH).
MANUAL mode: The HEPA Bulle’s flow settings are
chosen by the user from among 5 preset flows. The Air
Recycling rate per Hour (ARH) will appear, for information
purposes, on the main screen.
The default Air Recycling rate per Hour is 5 if
permitted by the HEPA Bulle’s flow. This value can
be raised or lowered by pressing the and
buttons
NOTE: If AUTO mode is selected and the default ARH setting given is under 5, this means the
number of HEPA Bulle units set up in the room is insufficient with respect to the
recommendation of the French High Council on Public Health (HCSP) for enclosed areas (14
and 21 May 2021).

User manual –HEPA Bulle –ED02_09-August-2021 17 /31
2.2.2 SUBSEQUENT START-UPS
The start-up screen varies depending on the choice made when selecting the operating mode (see
§2.2.1.4).
Automatic mode activated Manual mode activated
NOTE: If no buttons are pressed, the screen’s backlighting will dim after 30 seconds.
2.3 CHANGING THE VENTILATION SPEED
2.3.1 AUTOMATIC MODE
When automatic mode is selected, the HEPA Bulle unit is programmed with two ventilation speeds
(Silent and Automatic modes), as well as a Boost function to provide maximum flow.
To select a mode, simply press the corresponding icon:
Silent mode on:
Automatic mode on:
Boost mode on:
Generally speaking and/or when the room is occupied, the device is used in Automatic mode .
Silent mode reduces the noise level by slowing down the device’s flow rate for improved comfort.
Use this mode when there are no or few people in the area of use.
2.3.2 MANUAL MODE
When manual mode is selected, the HEPA Bulle unit is preprogrammed with four ventilation speeds
(200 m3/h, 450 m3/h, 700 m3/h and 1000 m3/h), as well as a Boost function to provide maximum
flow.
To select a speed, simply press the corresponding icon. The active speed appears in green.
Example with 450 m3/h selected:

User manual –HEPA Bulle –ED02_09-August-2021 18 /31
NOTE: During start-up, let the unit run in BOOST mode for at least one hour in the closed
room.
NOTE: The ARH is indicated in the zone and varies depending on the ventilation speed
chosen.
2.4 HANDLING WARNINGS
A warning message appears when it is time to replace a filter or when the device detects a fan
malfunction. There are three different warnings:
Warning definition
Fault condition(s)
Processing
1 year of use.
Replace the prefilter and
reset the associated counter
(see §3.6.1).
3 years of use.
Replace the after-filters and
reset the associated counter
(see §3.6.1).
Fan likely to fail or
blocked
Restart the HEPA Bulle. If
the problem persists, contact
airinspace®’s after-sales
service (refer to the last page
of this manual).
A warning message can be cleared by pressing the icon to go back to the main screen.

User manual –HEPA Bulle –ED02_09-August-2021 19 /31
SECTION 3 - SETTINGS - MAINTENANCE - CARE
3.1 SETUP MENU
You can browse the setup menu of the HEPA Bulle unit by pressing the setup button
from the main screen. The next screen appears:
This button is used to restart the setup sequence in AUTO or MANUAL mode (§2.2.1).
This button is used to access the filter condition, locking code, information and
advanced settings menus.
This button is used to return to the main screen.
NOTE: You can return to the main screen at any time by pressing the Back button.
NOTE: The and arrows at the bottom of the screen allow you to scroll through
the pages.
3.2 FILTER CONDITION
From the setup screen, press once on the button. The filter wear screen opens (page 1/4
):
The filters’ state of wear is shown on this page. A new filter will have a wear value of 0%. When
filter wear reaches 100%, a warning to replace it appears on the screen (see §2.4).
