AirMobi HPL220 User manual

1
200Mbps Powerline Network Adapter
HPL220
User Manual
V1.0

2
CopyrightStatement
AirMobiistheregisteredtrademarkofShenzhenHuaxunarkTechnologyCo.,Ltd.Othertrademark
ortradenamementionedhereinarethetrademarkorregisteredtrademarkofthecompany.
Copyrightofthewholeproductasintegration,includingitsaccessoriesandsoftware,belongsto
ShenzhenHuaxunarkTechnologyCo.,Ltd.WithoutthepermissionofShenzhenHuaxunark
TechnologyCo.,Ltd.,individualorpartyisnotallowedtocopy,plagiarize,imitateortranslateit
intootherlanguages.
Allthephotosandproductspecificationsmentionedinthismanualareforreferencesonly,asthe
upgradingofsoftwareandhardware,therewillbechanges.Andiftherearechanges,AirMobiis
notresponsibleforinforminginadvance.Ifyouwanttoknowmoreinformationaboutour
products,pleasevisitourwebsiteatwww.cctairmobi.com.

3
ImportantSafetyInstructions
1. Donotopenthisproductorattempttoservicethisproduct,itmayexposeyoutodangerous
highvoltageandotherrisks.
2. Donotoperatethisproductnearwater.
3. Donotplaceoroperatenearoroverradiatororheatregister.
4. Donotexposethisproducttodampness,dustorcorrosiveliquids.
5. DonotconnectthisproductandDisconnectfromwallsocketduringalightningor
thunderstorm.
6. Donotobstructthisproductventilationslots,asinsufficientairflowmayharmthisproduct.
7. Donotputanythingonthisproduct.
8. Plugdirectlyintowallsocket（AC100‐240V).Donotuseanextensioncordbetweenthis
productandtheACpowersource.
9. Whenpluggingthisproductintowallsocket,makesurethatelectricalsocketarenotdamaged,
andnoleakageforgasorwaterpipestobeginwith.
10. Placetheconnectingcablescarefullysopeoplewon'tstumbleorwalkonit.
11. Thepowerlineadaptershouldbeoperatedfromthetypeofpowerindicatedonthemarking
label.Ifyouarenotsureofthetypeofpoweravailable,consultthequalifiedtechnician.
12. UnplugthePowerlineAdapterfromthemainsandrefertheproducttoqualifiedservice
personnelforthefollowingconditions:
yIfliquidhasbeenspilledontheproduct
yIftheproducthasbeenexposedtorainorwater
13.Unplugfromthewallsocketbeforecleaning.Useadampclothforcleaning.Donotuseliquid
cleanersoraerosolcleaners.

``
i
CONTENTS

Chapter1:Introduction..........................................................................................................................1
ProductOverview...............................................................................................................1
MainFeatures.....................................................................................................................1
SystemRequirement...........................................................................................................2
Chapter2:PhysicalDescription.............................................................................................................3
Chapter3:HardwareInstallation..........................................................................................................4
Chapter4:OperationofButtons...........................................................................................................6
SecurethePowerlineNetwork...........................................................................................6
CreateaPowerlineNetwork...............................................................................................6
JoinanExistingPowerlineNetwork....................................................................................7
LeaveaPowerlineNetwork................................................................................................7
ResettoFactoryDefaultSettings........................................................................................8
Chapter5:SoftwareInstallation............................................................................................................9
Chapter6:AirMobiPLCUtility.............................................................................................................15
MainTag...........................................................................................................................15
LocalDeviceonyourcomputer（UpperPanel）............................................................15
RemoteDevice(LowerPanel)..........................................................................................16
Privacy..............................................................................................................................18
Diagnostics........................................................................................................................19
SystemInformation..........................................................................................................19
RemoteDeviceHistory.....................................................................................................19

``
ii
About................................................................................................................................20
Chapter7:Specification.......................................................................................................................21
AppendixA:Troubleshooting..............................................................................................................22
AppendixB:Certification.....................................................................................................................23
AppendixC:TechnicalSupport............................................................................................................24

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
1
Chapter1:Introduction
ProductOverview
Thisdeviceisa200MbpsPowerlineNetworkAdapterwhichtransformsyourhouse'sexisting
electricalwiringintoaubiquitousnetworkinginfrastructure.Thebuilt‐inpowersocketwillsave
yourpoweroutletresource.SimplyplugthisPowerlineNetworkAdapterintoanordinaryAC
poweroutletwhichwilleasilyextendyourCable/xDSLbroadbandconnectionorexistingEthernet
(LAN)networktoanyotherelectricaloutletinanyroomofahousewithouttheneedofanynew
cabling.
ThisPowerlineNetworkAdaptersupportsupto200Mbpsdatarateovertheexistinghousehold
powercircuit.Withdataratesof200Mbps,fullmultimediaapplicationcaneasilybesupported
throughoutthewholehouseinadditiontoInternetaccess.ThisPowerlineNetworkAdapteruses
theexistingpowerlinesinstalledinahomeasapathtotransmitdigitaldata,voice,audioand
videobetweendevices.
TakenotesthatthisPowerlineNetworkAdapterworksinpairs.Theyshouldbeconnectedina
samecircuit.Withcleanpowerline,thedistancebetweentwoPowerlineNetworkAdapterscan
reach300metersatlease,buttheactualdistancemayvaryduetotheenvironment.
Toensuredatacommunication'ssecurityandmultimediaapplications,thisPowerlineNetwork
Adaptersupportsbuilt‐in128‐bitAESencryptionandQualityofService(QoS)features.With
minimumsetup,youcaninstallandusethisPowerlineNetworkAdapterwithinminutes.The
adapteraddstwonewfunctionstobeuseful.
1. EstablishconnectionwithanewunassociateddeviceaddedviatheSecuritybutton.
2. ResettodefaultsettingsviatheResetbutton.
MainFeatures
y10/100MbpsfastEthernetinterfaceconnection
yIEEE802.3,IEEE802.3u,IEEE802.3xandHomePlugAVstandards
yCo‐existswithHomePlug1.0andHomePlug1.0turbo
yIntegratedQualityofService(QoS)
yBuilt‐in128‐bitAESencryptionassuresdatasecurity
ySupportsIGMPmanagedmulticastIPtransmission
yErP(Powersavingmode)support
yPlugandPlay

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
2
yWidepowerrange,AC100‐240V,50/60Hz
yDatatransmissionrateupto200Mbps,readyforFull‐HD
ySupportsanyMicrosoftWindows,LinuxandMacOperationSystem
SystemRequirement
a) AtleasttwoAC100‐240Vpoweroutletswithstandardhomepowerline
b) Acomputerwiththefollowing:
yPCwithAnyWindowsO/S,MacO/SorLinuxO/S
yPentiumIIIcompatibleprocessorandabove
yEthernetLANcardinstalledwithTCP/IPprotocol
y128MBRAMormore
y64MBoffreediskspace(Minimum)

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
3
Chapter2:PhysicalDescription

Detaileddescriptionsaregiveninthetablesbelow:
LEDStatusIndication
Power
OffPowerisoff
OnPowerison
BlinkingTheproductisinpowersavingmode
ETH
OffNonetworkconnection
OnTheLANcableisconnectedsuccessfully
BlinkingDataisbeingtransmittedoverEthernet
Data
OffTheproductisnotconnectedtoPowerlinenetwork
OnTheproductissuccessfullyconnectedtoPowerlinenetwork
BlinkingDataisbeingtransmittedoverPowerlinenetwork

ButtonFunction
Security/Reset
PressingandholdingtheSecurity\Resetbuttonforlessthan3secondsmakestheadaptera
memberoftheexistingAVLN.PressingandholdingtheButtonforbetween5and8seconds
makestheadaptergettingarandomNMK.PressingandholdingtheButtonforbetween10
secondsand15secondsmakestheadapterrestorethefactorydefaultsettings.Formoredetails,
seechapter4

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
4
Chapter3:HardwareInstallation
BeforeyouinstallPowerlineNetworkAdapterpleasebesuretoverifythefollowing:
1. YournetworkaccessdevicestotheInternet(i.e.DSL/CableModemetc.)areinstalledand
verifiedtohaveaccesstotheinternet.
2. EnsurethattherouterhasanavailableEthernetportonitsLAN(LocalAreaNetwork)switch.
3. Ensurethatthenetworkdevices(desktops,laptops,Set‐TopBoxes)youwishtoconnecttothe
adapterhaveanEthernetportavailable.
4. Selectthepowersocketlocationsthatyouintendtoplacetheadapter.
yEnsurethatpowersocketisnotcontrolledbywallswitch,thusavoidingthepossibility
thatthepowersocketwillbeaccidentallyturnedoff.
yEnsurethattheadapterisnotpluggedintopowerstrip,asitispossiblethatpowerstrip
mayhavesurgesuppressionwhichcandegradethePLC(PowerlineCommunication)
performanceoftheadapter.
5. Ifpossible,trytoensurethattheadapterisnotpluggedintoapowersocketthatisnearan
appliancewhichhasamotor,likeawasher,dryer,blender,hairdryeretc.Suchappliances
havebeenknowntosometimesdegradethePLC(PowerlineCommunication)performanceof
theadapter.

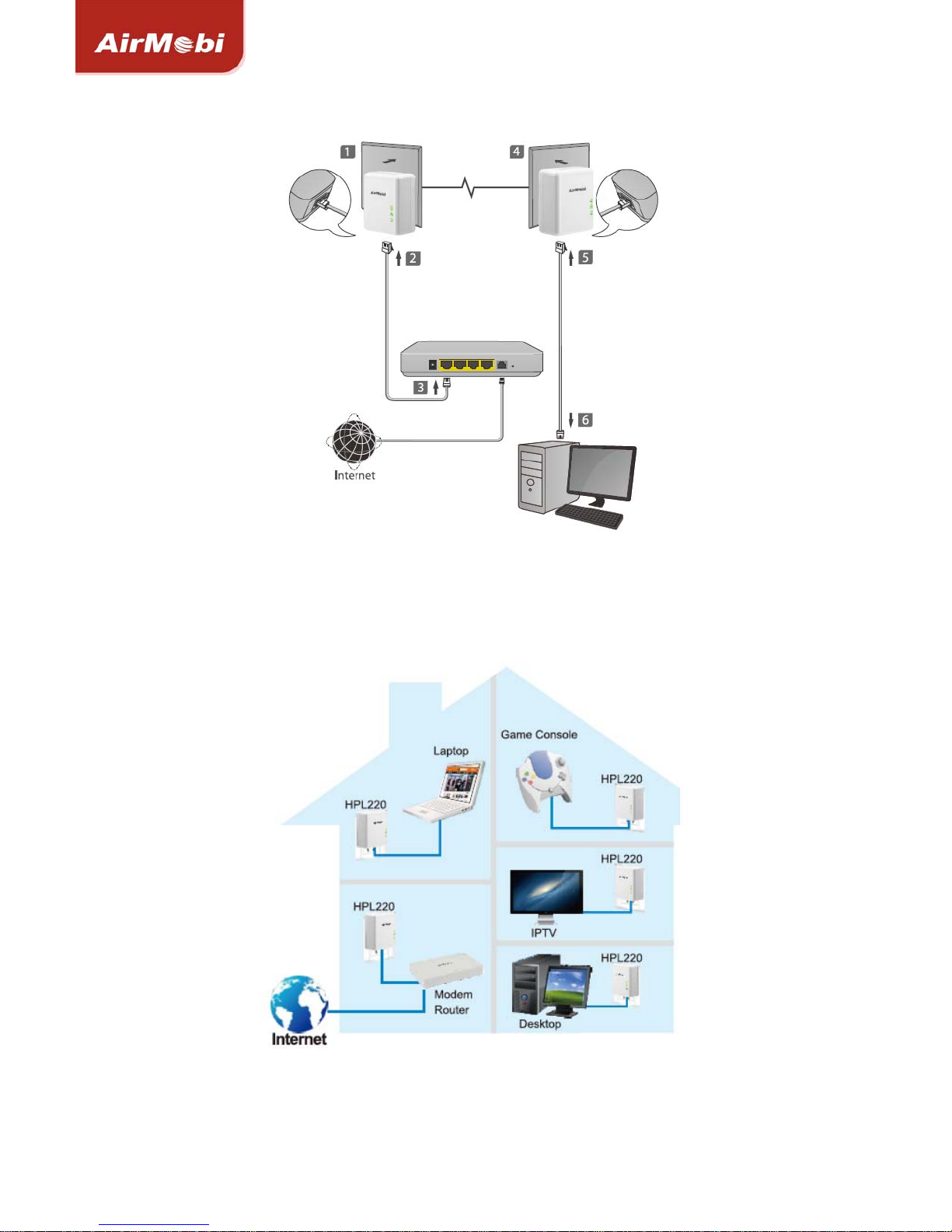

Ifalltheitemslistedintheprevioussectionareverified,youmayinstalltheadapterasfollows:
1. ConnectoneoftheprovidedEthernetcablestoHPL220Ethernetport.
2. ConnecttheotherendoftheEthernetcabletoyourcomputer'sLANport.
3. PlugHPL220tothepowersocket.
4. ConnecttheotherprovidedEthernetcabletotherestHPL220Ethernetport.
5. ConnecttheotherendoftheEthernetcabletoanavailableEthernetportofyourADSL
BroadbandRouter.
6. PlugthePowerlineNetworkAdapterintoapowersocketnexttothecomputer.
7. Turnonyourcomputer.
Note:
• Donotconnectthepowerlineadaptertoanextensionlead,powerstrip,extensioncord,surge
protectorasthismaydegradethenetworkperformance.
• PleasecheckandconfirmthatthePWR,ETHandDataLEDsonthePowerlineNetworkAdapter
areonaftertheinstallationwhatmeansyouhavegotinternetaccess.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
5

ThePowerlineNetworkAdapterallowsdatatobetransmittedoverEthernetcableswhatmeans
youcanextendyourbroadbandconnectionorexistingEthernetnetworktoothernetworkclients
byexistingelectricalwire.Digitaldata,voice,audioandvideocanbetransmittedbetweendevices.
ThefollowingisthearchitectureofvariousapplicationsoftheHomePlugproducts.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
6
Chapter4:OperationofButtons
AHomePluglogicalnetworkisformedwhentwoormoreHomePlugdevicesareconnectedover
commonpowerlineandshareacommonpassword.
SecurethePowerlineNetwork
TheHomePlugAVstandarduses128‐bitAES(AdvancedEncryptionStandard)tosafelytransmit
databetweenpowerlineadapters.Forthepowerlineadapterstocommunicatewitheachother
theyallneedtousethesameNetworkMembershipKey(NMK).Otherwise,theycannot
unscrambletheencrypteddatasentinthepowerlinenetwork.
TheSecuritybuttonallowsyoutosetupasecurepowerlineconnectionwithotherHomePlugAV
compliantpowerlinedeviceswhichalsosupporttheSecurityfeature.
CreateaPowerlineNetwork
Scenario：DevicesAandBwithdifferentNMKvaluesareconnectedtothesamepowerline.Users
wanttousethemtoformalogicalnetwork.

DoasfollowstoformalogicalnetworkusingtheSecurity/Resetbutton:
1. PresstheSecurity/ResetbuttononDeviceAorBfor5to8seconds.Thedevicewillresetand
restartwitharandomNMK.
2. PresstheSecurity/ResetbuttononDeviceAforlessthan3seconds.
3. PresstheSecurity/ResetbuttononDeviceBforlessthan3secondswithin2minutes
4. Waitforconnectiontocomplete.
ThePowerindicatoronbothdeviceswillflashevenlyat1secondintervaluntiltheoperation
succeedsorfails.ThePowerindicatorwillilluminatesteadilyonsuccessfulcompletion.Ifthe
connectionfails,thePowerindicatorsonbothdeviceskeepsteadyon,buttheDataindicatorson
bothdevicesareoff.Inthatcase,repeatsteps1‐4.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
7
JoinanExistingPowerlineNetwork
Scenario：DevicesAandBarelocatedinnetworkN.DeviceC(thejoiner)thatisnotlocatedinany
networksattemptstojoinNetworkN.AnydevicesonNetworkNcanbecomethe‘adder’.

DoasfollowstoaddDeviceCtoNetworkNusingtheSecurity/Resetbutton:
1. PresstheSecurity\Resetpushbuttononthe“Joiner”for5to8seconds.Thedevicewillreset
andrestartwitharandomNMK.
2. PresstheSecurity\ResetbuttonondeviceC(the‘joiner’)forlessthan3seconds,makingit
the‘adder’.
3. Within2minutes,presstheSecurity/ResetbuttonDeviceA(orDeviceB)forlessthan3
seconds.
4. Waitforconnectiontocomplete.
ThePowerindicatoronDeviceA(orDeviceB)andDeviceCwillflashat1secondintervalsuntil
theprocesssucceedsorfails.Itwillilluminatesteadilyonsuccess.Iftheconnectionfails,the
Powerindicatorsonbothdeviceskeepsteadyon,buttheDataindicatorsonbothdevicesareoff.
Inthatcase,repeatsteps1‐4.
LeaveaPowerlineNetwork
Scenario：DeviceCislocatedinanetwork.UserswanttoremovedeviceC(the‘leaver’)fromits
network.

DoasfollowstoremovedeviceCfromNetworkNusingtheSecurity/Resetbutton:
1. PresstheSecurity\ResetbuttonondeviceC(the‘leaver’)for5to8seconds.DeviceCresets
andrestartswitharandomNMK.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
8
2. Waitfortheresettocomplete.
ThePowerindicatorondeviceCmomentarilyextinguishesduringreset,blinksduringrestart,and
thenilluminatessteadily.
AfterdeviceCisremovedfromitsexistingnetwork,userscandisconnectthedevicefromthe
mediumorjoinittoanotherlogicalnetworkonthesamemedium.
ResettoFactoryDefaultSettings
PressingandholdingtheSecurity/ResetButtonforbetween10secondsand15secondsmakes
theadapterrestorethefactorydefaultsettings.Afterallthelightsstartflashingitgoesbackto
factorydefaultsettings.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
9
Chapter5:SoftwareInstallation
TheAirMobiPLCUtilityforWindows98SE/Me/2000/XP/Vista/7enablesuserstoidentify
HomePlugdeviceswithinthepowerlinenetwork,measuresdatarateperformance,ensures
privacyandperformsdiagnosticsbysettinguserdefinedsecurepowerlinenetworks.
TheAirMobiPLCUtilitycouldhelpyoutomanagealloftheHomePlugdevicesintheLAN.Please
followtheproceduresbelowtoinstalltheAirMobiPLCUtility.Takenotethatthefollowingprocedures
arerunninginWindowsXP.ForotherWindowsoperatingsystems,theproceduresaresimilar.
1. DoubleclickSetup.exetostarttheinstallation.

2. Thefollowingscreenwillpopup,clickOK.

3. ClickNext.

4. ClickNextagain.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
10


5. ChooseIAgree.


6. Thenextwindowwillpopup,clickInstall.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
11


7. Afterashortwhile,thenextscreenwillpopup.ClickFinish,theWinPcapissuccessfully
installed.

8. ThenitwillautomaticallyinstalltheAirmobiPPUutility.ClickNext.

200MbpPowerlineNetworkAdapterwww.cctairmobi.com
12


9. ChooseIAgreeandclickNext.



200MbpPowerlineNetworkAdapterwww.cctairmobi.com
13
10. ChoosetheinstallationlocationfolderandclickNext.


11. ClickNextagaintocontinuetheinstallation.



200MbpPowerlineNetworkAdapterwww.cctairmobi.com
14
12. Afterashortwhile,theinstallationiscomplete,clickClose.Thatisall,thePLCutilityis
successfullyinstalled.


200MbpPowerlineNetworkAdapterwww.cctairmobi.com
15
Chapter6:AirMobiPLCUtility
DoubleclickAirMobiPPUonyourdesktop.

MainTag
TheMainscreenprovideslistsofallHomePlugdeviceslogicallyconnectedtothecomputerwhen
theutilityisrunning.AfterconnectingaHomePlugdevicetoyourcomputer,theutilitywill
autoscanotherHomePlugdevicesinthesamenetwork.

LocalDeviceonyourcomputer（UpperPanel）
ThisareashowsalllocalHomePlugdevicesconnectedtothecomputer'sNetworkCard.Inmost
cases,onlyonedevicewillbeseen.Insituationswheretherearemorethanonelocaldevices
beingconnected,suchasaUSBoranEthernetadapter,theusercanselectthelocaldeviceby
clickingonitandthenclickConnecttoconnecttotheselecteddevice.Onceconnectedtothe
localdevice,theutilitywillautomaticallyscanthepowerlineperiodicallyforanyotherHomePlug
devices.
