AirMobi iTravel User manual

1
Wireless Travel Router
iTravel
User Manual
V1.0

2
Copyright Statement
AirMobi is the registered trademark of Shenzhen Huaxunark Technology Co., Ltd. Other
trademark or trade name mentioned herein are the trademark or registered trademark of the
company. Copyright of the whole product as integration, including its accessories and software,
belongs to Shenzhen Huaxunark Technology Co., Ltd. Without the permission of Shenzhen
Huaxunark Technology Co., Ltd., individual or party is not allowed to copy, plagiarize, imitate or
translate it into other languages.
All the photos and product specifications mentioned in this manual are for references only, as
the upgrading of software and hardware, there will be changes. And if there are changes,
AirMobi is not responsible for informing in advance. If you want to know more information
about our products, please visit our website at www.cctairmobi.com.

i
CONTENTS
Chapter 1: Introduction .................................................. 1
Product Overview.....................................................................1
Main Features ..........................................................................2
Chapter 2: Operating Mode Introduction............................... 3
Chapter 3: Installation ................................................... 5
Physical Connection ..................................................................5
Configure the Computer’s IP Address..........................................5
Setup Wizard .........................................................................15
AirMobi .....................................................错误！未定义书签。
Chapter 4: Software Configuration for 3G Mode..................... 27
Login .....................................................................................27
Running Status .......................................................................27
Setup Wizard .........................................................................28
Operating Mode .....................................................................28
Network Settings....................................................................29
Wireless Settings ....................................................................30
DHCP Server...........................................................................37
NAT.......................................................................................39

ii
Security Options .....................................................................44
Access Control........................................................................48
Routing Settings .....................................................................50
IP Bandwidth Control ..............................................................51
System Tools..........................................................................52
Chapter 5: Software Configuration for Router Mode ................ 57
Login .....................................................................................57
Running Status .......................................................................57
Setup Wizard .........................................................................58
Operating Mode .....................................................................58
Network Settings....................................................................59
Wireless Settings ....................................................................63
DHCP Server...........................................................................70
NAT.......................................................................................72
Security Options .....................................................................77
Access Control........................................................................81
Routing Settings .....................................................................83
IP Bandwidth Control ..............................................................84
System Tools..........................................................................85
Chapter 6: Software Configuration for AP Mode ..................... 90
Login .....................................................................................90

iii
Running Status .......................................................................90
Setup Wizard .........................................................................91
Operating Mode .....................................................................91
Network Settings....................................................................91
Wireless Settings ....................................................................92
DHCP Server...........................................................................99
System Tools........................................................................101
Chapter 7: Software Configuration for Repeater Mode.............106
Login ...................................................................................106
Running Status .....................................................................106
Setup Wizard .......................................................................107
Operating Mode ...................................................................107
Network Settings..................................................................107
Wireless Settings ..................................................................108
DHCP Server.........................................................................113
System Tools........................................................................115
Chapter 8: Specification...............................................120
Appendix A: Troubleshooting ........................................122
Appendix B: Certification .............................................123
Appendix C: Glossary...............................................125

Wireless Travel Router www.cctairmobi.com
1
Chapter 1: Introduction
Product Overview
Thank you for choosing iTravel Wireless Travel Router.
iTravel Wireless Travel Router is a built-in 5200mAh lithium battery portable 3G wireless router,
based on the latest IEEE802.11n standard, provide up to 300Mbps stable transmission. It
provides a USB interface can be connected to external WCDMA/CDMA2000/TD-SCDMA 3G
network card, it can change the 3G signal to WIFI signals, to meet people to share a 3G Internet
demand. Built-in 5200mAh lithium battery can be used as a mobile power. The iTravel set of 3G,
WIFI, mobile power, SD card and U disk multimedia sharing in one, able to adapt to a variety of
wireless network applications. With the compact and exquisite appearance, it is the best choice
for your enjoyable travel and business trip.
LED
Description
System Status
Solid Red - During Power ON or system is defective.
Solid Blue - The device is powered ON and operating properly.
Off - Power is off.
Battery Level
Marquee display the device in charging status, the 4 LED will off
when the battery is fully charged. 4 LED display different battery
level.

Wireless Travel Router www.cctairmobi.com
2
Interface/Button
Description
Ethernet Port
Use as either a LAN port or WAN port.
Mode Switch
R-Power On;
C-Charge;
Θ-Power Off.
SD Solt
Plug the SD Card to share files.
Micro USB Port
Used for charging the device.
USB Port
Plug a 3G modem to share the 3G internet;
Plug a USB disk to share files;
Used for charging the smart phone or tablet.
Battery Detection Button
Press the button to show the battery level.
Reset Button
Press and hold the button for at least 5 seconds, and then the router
will restore to the default setting.
Main Features
•Built-in 5200mAh battery, sustainable work 15-17 hours
•Wireless N speed up to 300Mbps
•USB port can be used for charging the Smart Phone or Tablet
•Compatible with mainstream CDMA2000, WCDMA, TD-SCDMA 3G wireless card
•Shares files from any USB drive and SD card
•Travel-sized design, lightweight, great for home or travel use
•Free AirMobi App for iPhone®, iPad® and Android® mobile devices

Wireless Travel Router www.cctairmobi.com
3
Chapter 2: Operating Mode Introduction
This Wireless Travel Router supports four operation modes including 3G, Router, AP and Repeater.
By default, the operation mode is 3G.

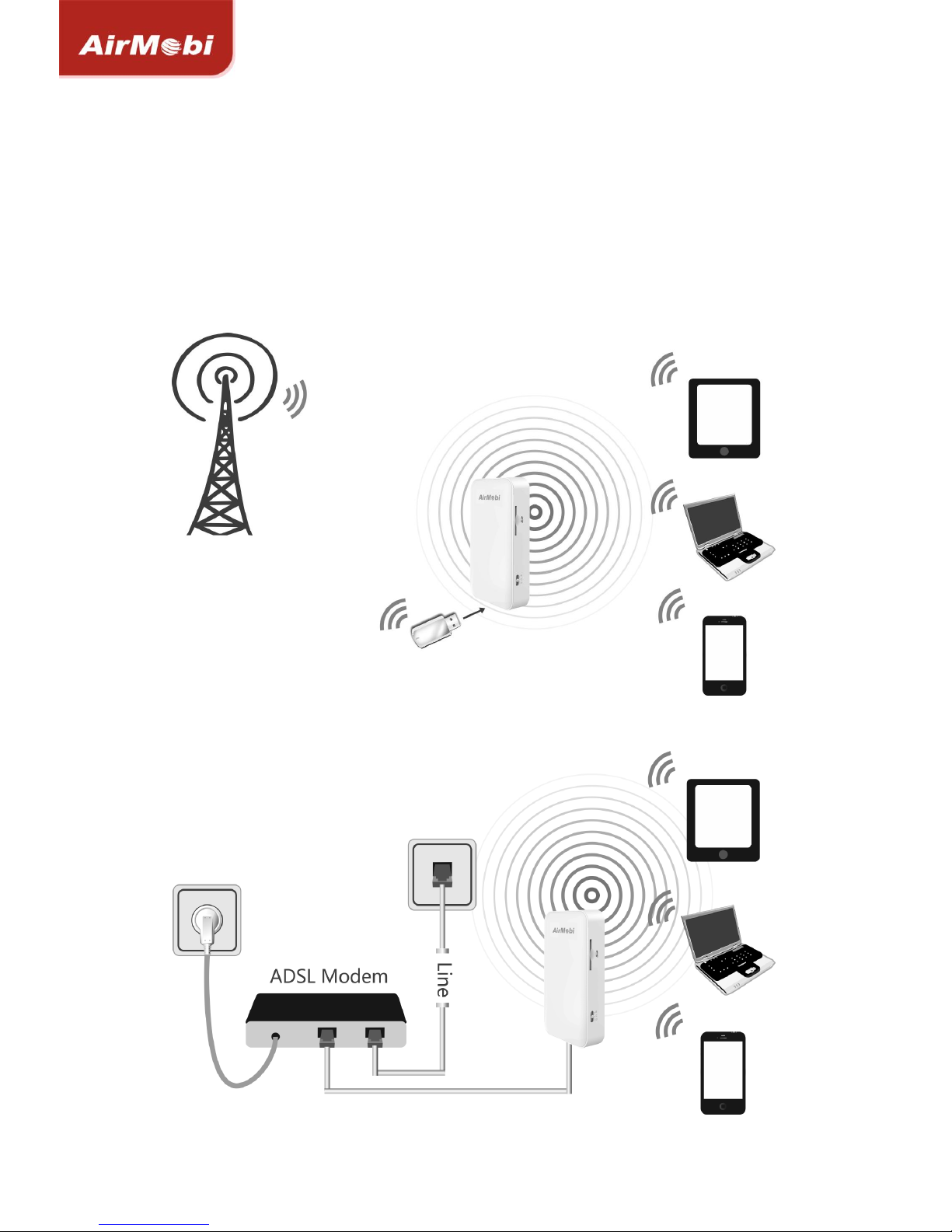

In 3G mode,it enables Multiple Wi-Fi devices to share Internet via 3G networks. In this mode, the
Ethernet port works as a LAN port.
In Router mode, it enables Multiple Wi-Fi devices to share Internet via DSL/Cable Modem.

Wireless Travel Router www.cctairmobi.com
4
In AP mode, it extends your existing wired network to your wireless clients.
In Repeater mode, it extends the coverage of your root wireless router, boost the wireless signal
strength.

Wireless Travel Router www.cctairmobi.com
5
Chapter 3: Installation
Physical Connection
Please refer to Chapter 2.
Configure the Computer’s IP Address

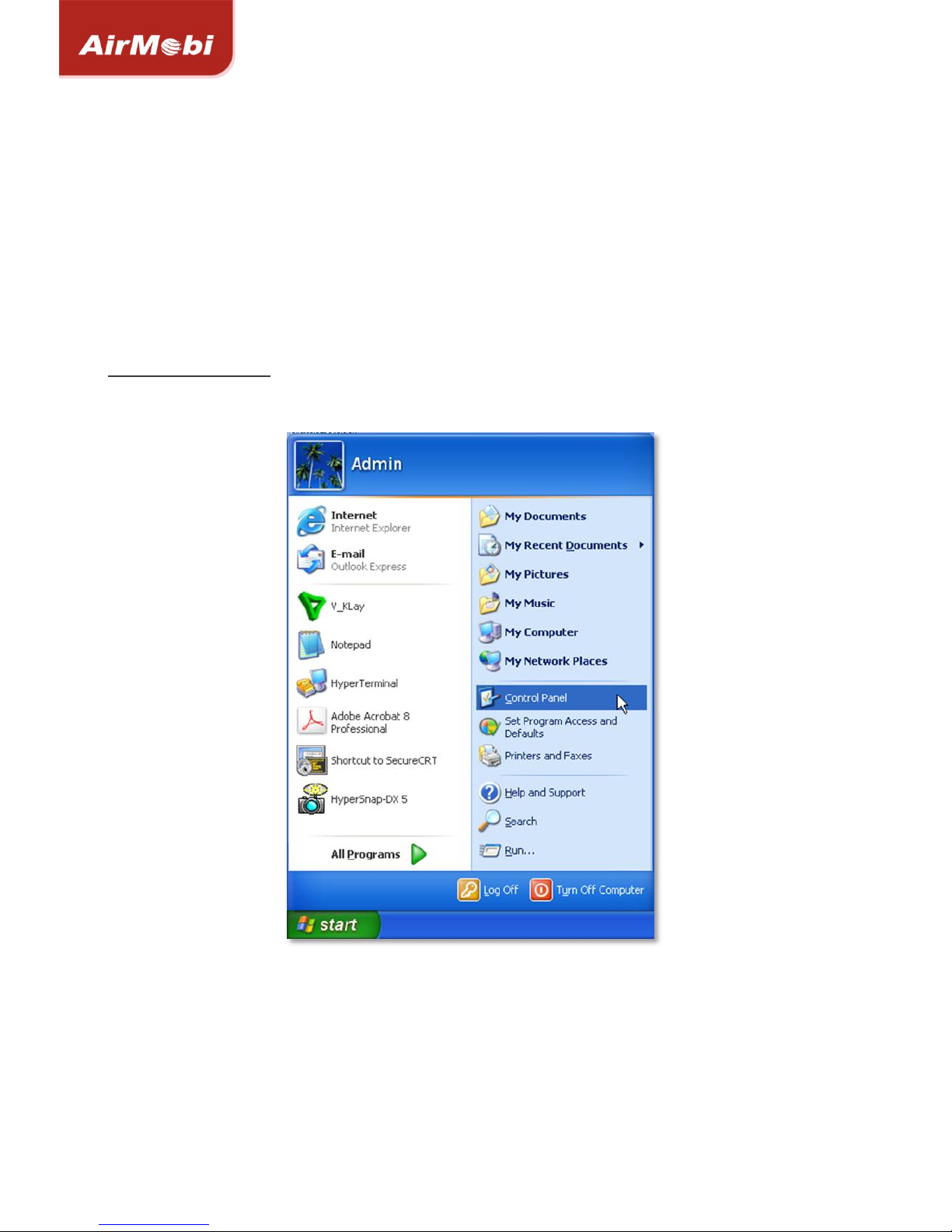

For Windows XP/2000
1) Click Start > Control Panel.

Wireless Travel Router www.cctairmobi.com
6
2) Select and double click Network Connections.
3) Right click Wireless Network Connection and then select Properties.

Wireless Travel Router www.cctairmobi.com
7

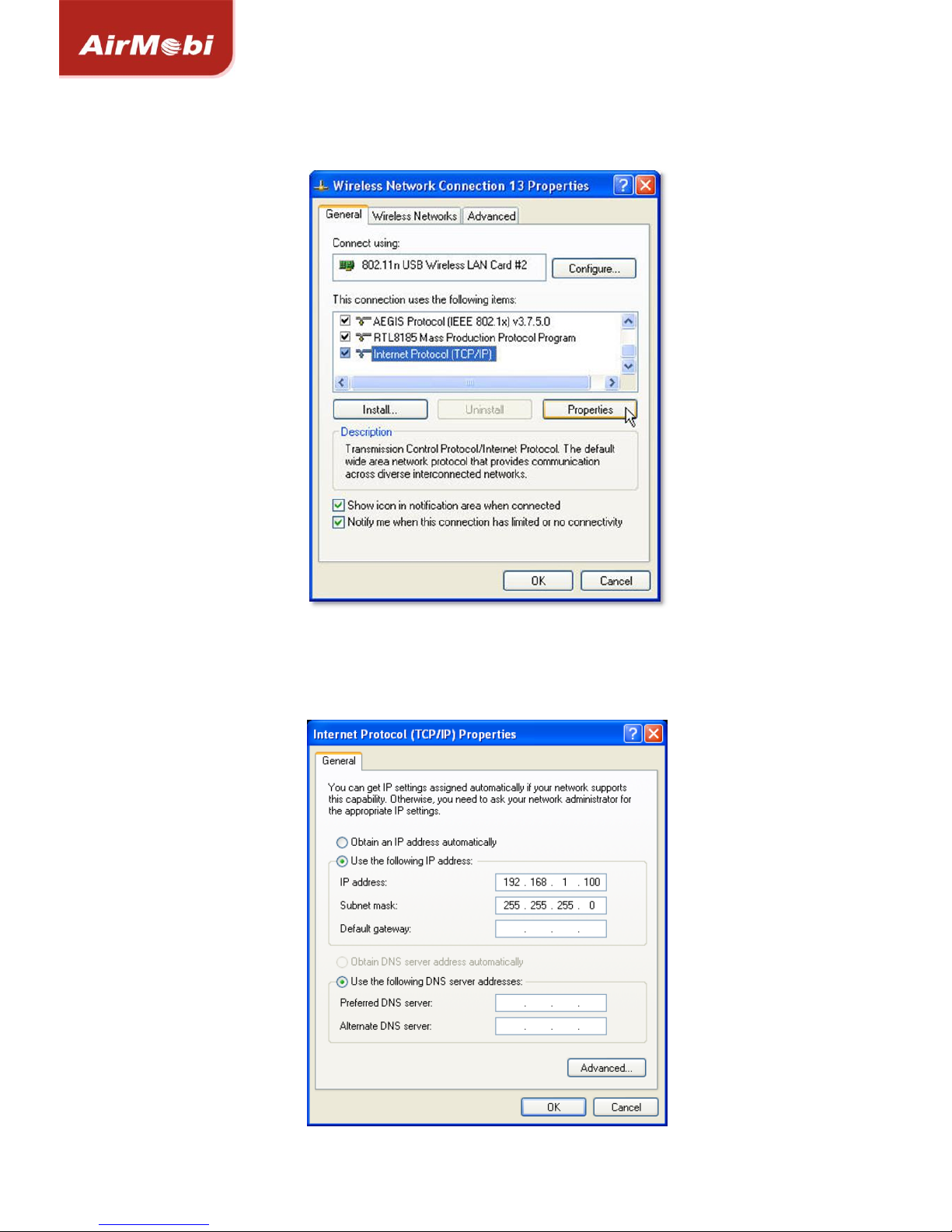

4) Select Internet Protocol (TCP/IP) and click Properties.
5) Select Use the following IP address and Use the following DNS Server addresses. The IP
address put in 192.168.1.X (like 192.168.1.100), Subnet mask put in 255.255.255.0, Default
gateway leave it blank. Then click OK, and then click OK again.

Wireless Travel Router www.cctairmobi.com
8

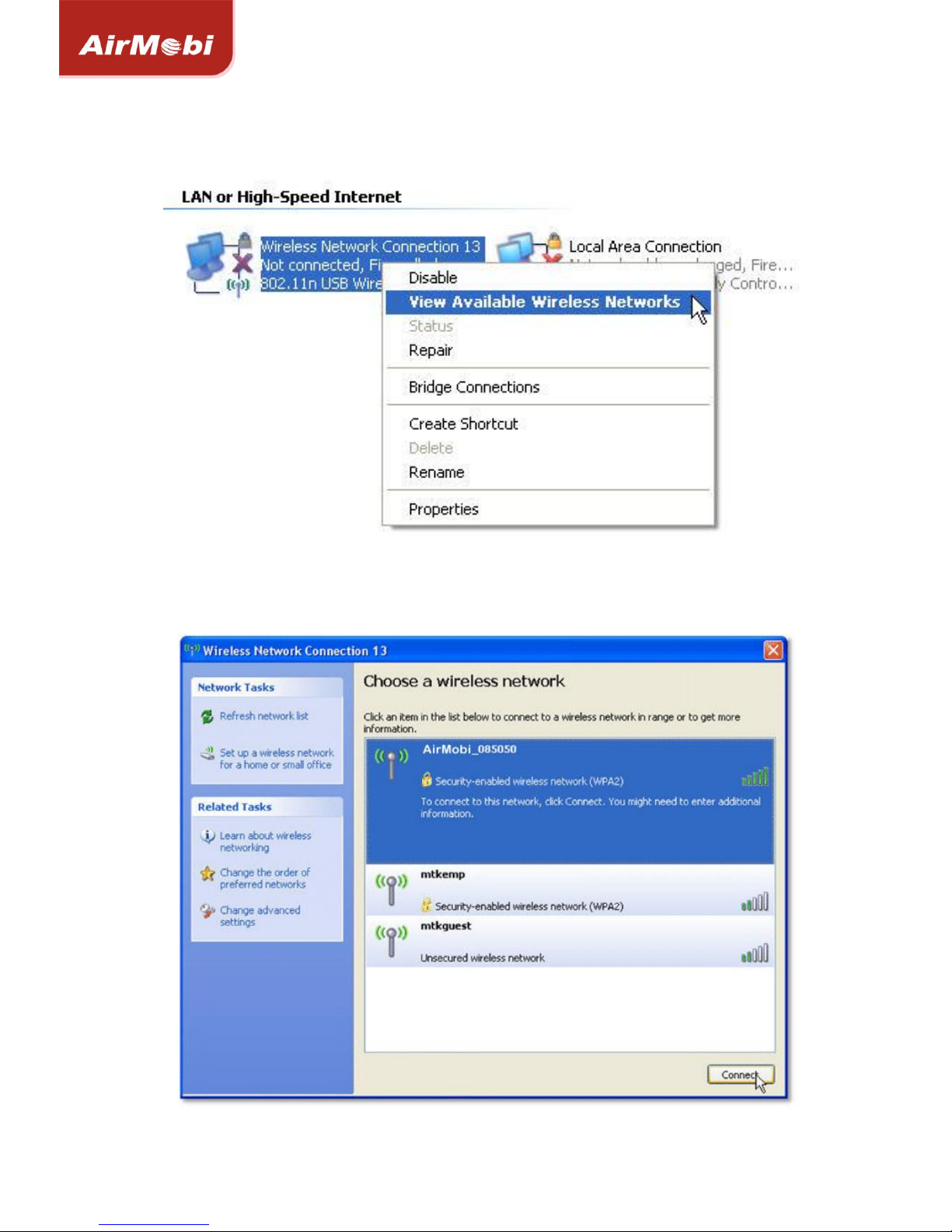

6) Right click on Wireless Network Connection again, choose View Available Wireless Networks.
7) Click Refresh network list, search for AirMobi_XXXXXX, highlight on it and then click Connect
button.

Wireless Travel Router www.cctairmobi.com
9
8) If you can see Connected as shown in the following screen, you’ve successfully connected to
the wireless network.

Wireless Travel Router www.cctairmobi.com
10
For Windows Vista/7
1) Click Start>Control Panel.
2) Click Network and Internet.

Wireless Travel Router www.cctairmobi.com
11

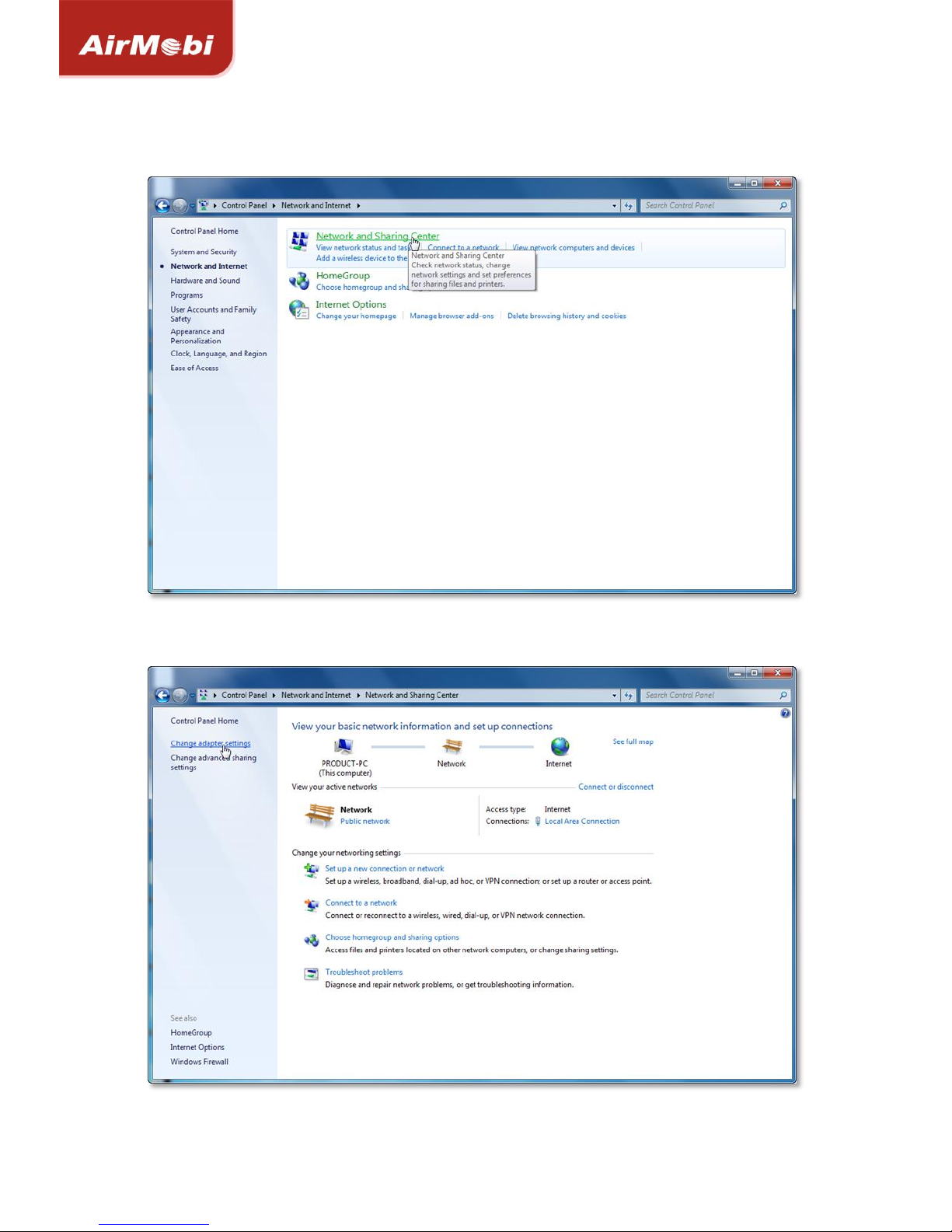

3) Click Network and Sharing Center.
4) Go to Change Adapter Settings (win7)/Manage Network Connections (Vista).

Wireless Travel Router www.cctairmobi.com
12
5) Right click Wireless Network Connection, choose Properties.
6) Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.

Wireless Travel Router www.cctairmobi.com
13
7) Select Use the following IP address and Use the following DNS Server addresses, the IP
address put in 192.168.1.X (like 192.168.1.100), the Subnet mask put in 255.255.255.0, the
Default gateway leave it blank, then click OK, and then click OK again.
8) Right click on Wireless Network Connection again, choose Connect/Disconnect.

Wireless Travel Router www.cctairmobi.com
14
9) Click Refresh network list, search for AirMobi_XXXXXX, highlight on it and then click Connect
button.
9) If you can see Connected as shown in the following screen, you’ve successfully connected to
the wireless network.

Wireless Travel Router www.cctairmobi.com
15
Setup Wizard
With a Web-based utility, it is easy to configure and manage the iTravel Wireless Travel Router.
The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser,
such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
1) Open your web browser, in the address bar, type in 192.168.1.254.
2) You are prompt to enter the Username/Password (preset as admin/admin) which you can
found on the label attached to the router, click Login.
3) After successful login, you can see the Setup Wizard page comes up, Click Next.
3G Mode
1) Choose 3G mode, and then click Next.
