AirOne ANT081 Dual Lens Streaming Video Monitor Mirror
User Manual
Dear Customer:
The product is a fully touch screen streaming video monitor mirror with DVR function from
BigerStone Corp.. It is based on the high performance hardware platform, stable and fluent
operation system, and effective HMI design which make the steaming video monitor mirror
more user-friendly, more functional, and not affecting the driving safety.
Notes:
Please do not disassemble, repair or replace the product in case the product do not run
normally, the artificial damage will not be accepted as warranty service and the repair fee
will be bound by the user.
Keep the camera clean, don't place anything blocking the view of the camera or else the
product may not work or may not be working properly.
Make sure the installation is properly done, and avoid beating or collision.
Be sure to use the power cable supplied in the factory package, for safety, do not use power
cable from other factory.
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 2of 13
Chapter 1：Product Specification
1.1 Product parameters
Operation System
Linux
Display screen
9.88-inch IPS screen
touch screen
Resolution: 1600X400
Speaker
Built-in,2W,8Ω
G-sensor
Three axis stereoscopic collision acceleration sensor
Resolution
Front camera:1296P
Rear camera: 1296P
TF Card
Support TF high speed memory card(4G-32GB)
Working voltage
DC 12V
Working current
1.5A
Working temperature
-20～70 ℃
Storage Temperature
-30~85℃
Gift Box Size/ Gross Weight
310mm(L) x 163mm(W) x 100mm (H)/1.5kg
Quantity per Carton
10
Carton Size/ Gross Weight/ Net Weight
505mm(L) x 320mm(W) x 400mm(H)/16.2kg/15.3kg
Remark: Specification parameters maybe changed by upgrading, updating and other reasons,
please adhered to the actual product.
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 4of 13
2.1 Precautions for use
1. Be sure TF card is inserted in the card slot properly.
2. Do not insert or pull TF card when the product is working in case it is damaged.
3. Insert TF card with the correct side to avoid damage on TF card or the product.
4. If TF card is incompatible with the product, insert the TF card again or change another TF
card and try it again.
5. The product support maximum 32GB TF card. (Using Class 10 high speed card is
suggested)
Chapter 3: Introduction of Function
After power on the product, you will find the screen shown similar with the below picture:
Click anywhere of the display, you can find the icons “Return” and “Photo”.
Click “Return” to turn to HOME page.
Click “Photo” to take photo by using the rear view camera.
Shift Up and Shift Down: adjust the view angle of the rear view camera.
Save: Click “Save” to save the view angle.
Auto Brightness Mode: adjust the backlight brightness automatically, change the camera
modes according to the change of light sensitivity value (you can adjust the backlight
brightness slightly by touching the screen and sliding to left side to dim the backlight or to
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 5of 13
right side to brighten the backlight with your finger.)
Manual Mode: Click and turn off the Auto Brightness Mode, change the camera modes
according to the change of light sensitivity value (you can only adjust the backlight brightness
by touching the screen and sliding to left or right with your finger.)
HOME page: click “Return” to turn to HOME page, on the screen show the icons of Shortcut,
Driving Record, Replay and Setting.
3.1 Streaming Video Rear View
Click “Streaming Media” to enter interface of streaming video.
3.2 Shortcut
Including Photo, Mic On/Off, Video Lock, Video On/Off.
Photo: click it to shoot and save photo with the front camera.
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 6of 13

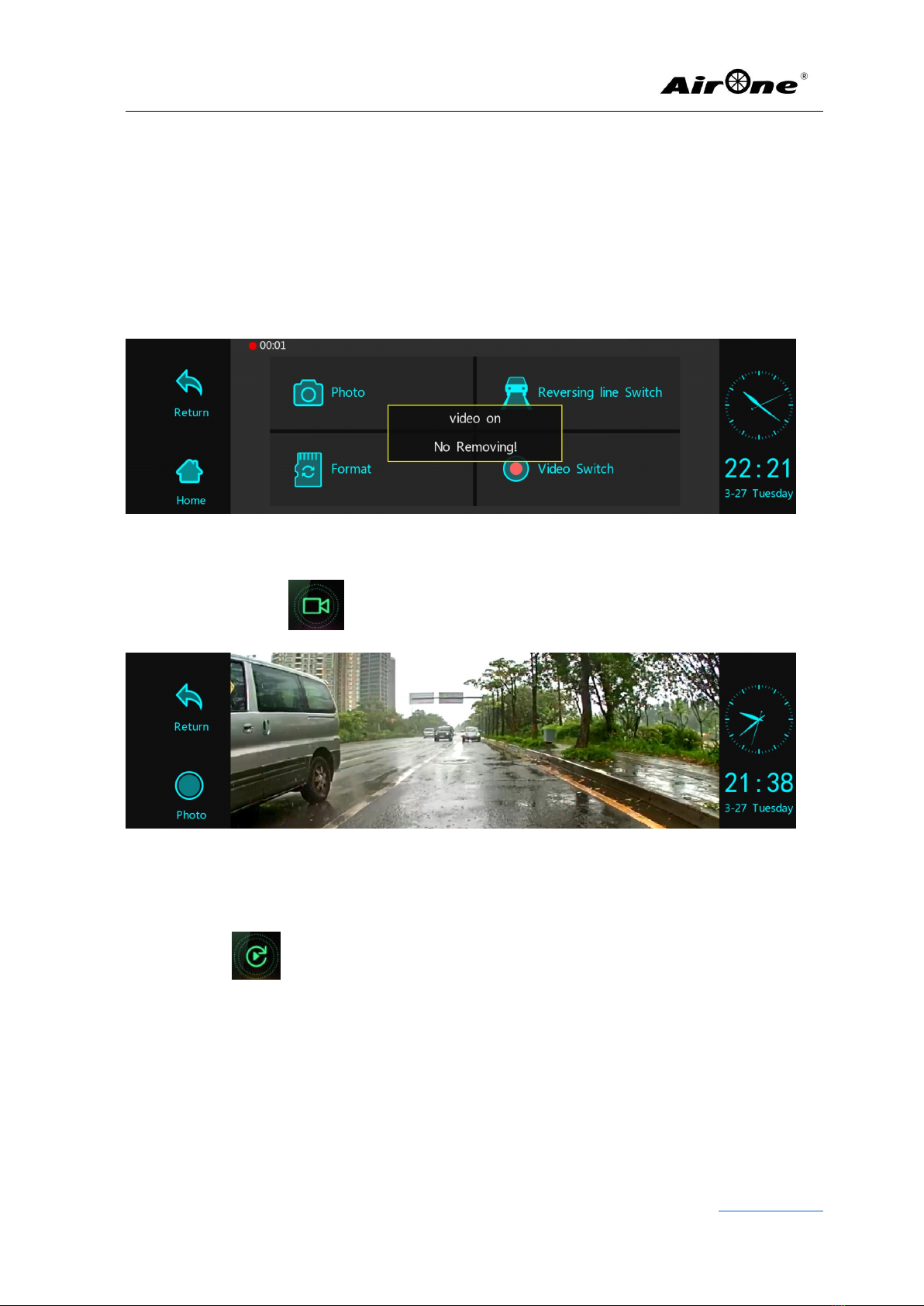

Reversing Line Switch: click it to turn on/off the reversing line.
Format: click it to format the storage card. All data in the card will be deleted and will be not
recovered if you format the card.
Video Switch: click it to start recording, red spot on the upper left corner of the screen
flashing at the same time; click the icon again, the product stop recording and the flashing
red spot disappears.
3.3 Driving Record
Click “Driving Record” to turn to front camera interface.
3.4 Video Playback
Click “Replay” to enter playback interface, you can find the recorded videos of front
view and rear view cameras. Under the replay mode, choose any file, and click “Play/Pause”
to play. You can fast forward or reverse the video by sliding on the screen left and right.
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 7of 13
Click “Full Screen” to enter the full screen play mode.
Click “Video Lock” to lock the file; unlock present file or all files.
Click “Delete” can delete present or all files.
Click “Volume” can adjust the volume of the product by sliding on the screen up and
down.
3.5 Setting
Click “Setting” to enter into setup interface with driving recorder setup and general
setup.
3.5. 1 Recorder Setting
Including Video Time, Time Watermark, G-sensor and Parking Monitor.

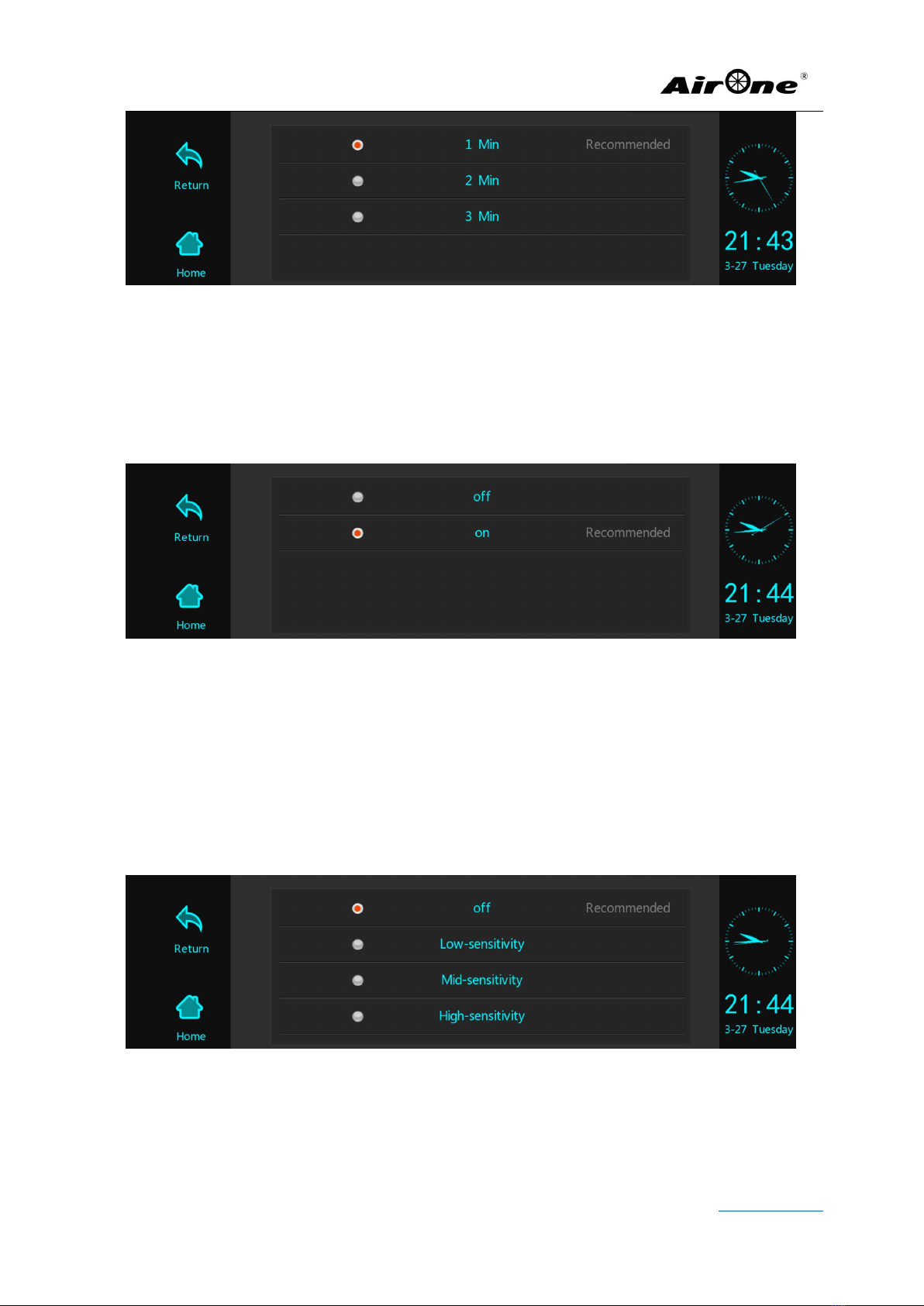

Video Time: 1min (recommended), 2min, 3min. (if you choose 1min, the product records
every 1min in cycle)
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 8of 13
Time Watermark: Off, On (recommended). （if watermark is on, video will show the time
when you record the video, logo, longitude and latitude, and current speed, otherwise will
not be shown.）
G-sensor: Off (recommended), Low Sensitivity, Mid Sensitivity and High Sensitivity. (Videos
recorded will be protected automatically when collision happens, if you set to Low Sensitivity,
videos will be protected when the collision is severe; if you set to Mid Sensitivity, videos will
be protected when the collision is moderate; if you set to High Sensitivity, videos will be
protected when the collision is light.
Parking Monitor: Off (recommended), Low Sensitivity, Mid Sensitivity, High Sensitivity.
When the car is hit during parking:
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 9of 13

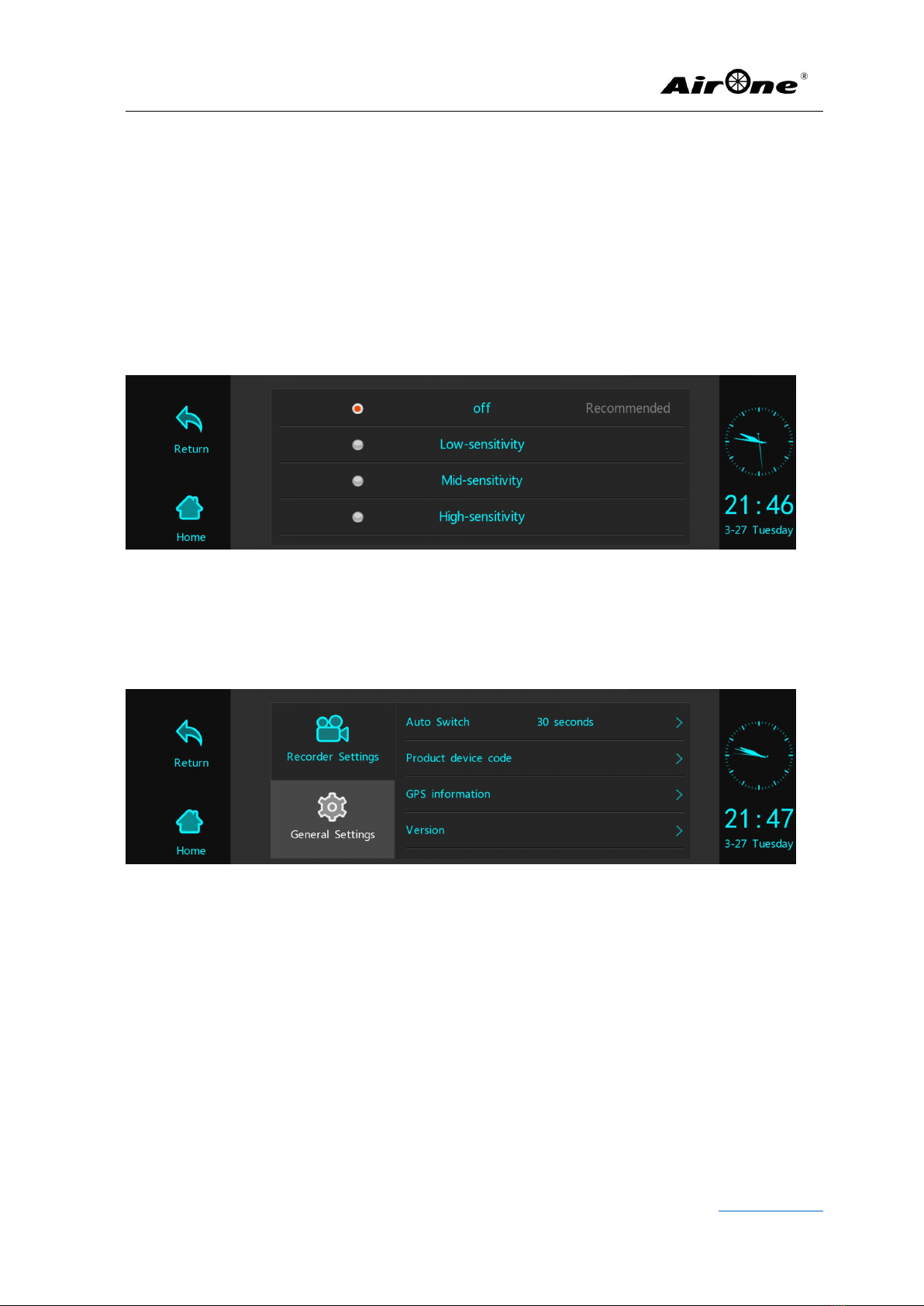

Set to Off: the product will not power on to record if you set it to “off”,
Set to Low Sensitivity: the product will power on to record and save the video if the car is hit
strongly;
Set to Mid Sensitivity: the product will power on to record and save the video if the car is hit
not very strongly;
Set to High Sensitivity: the product will power on to record and save the video if the car is hit
lightly;
3.5.2 General Setting
Including Auto Switch, Product Device Code, GPS Information and Version.
Auto Switch (auto switch to streaming video): Off, 30 seconds (recommended), 1min, 2min.
(this setting available only when the product is at HOME page, for example, when you set to
30 second, it will switch to streaming video interface automatically if no any operation to the
product in 30 seconds; when you set to off, the product will not switch to streaming video
interface automatically.
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 10 of 13
Product Device Code:
Version: check the product firmware version, where display the software, hardware and
front camera version, Time zone setting and Factory Reset.
Time Zone Setting: Click to set the time zone.
GPS Information: Position Status, Effective satellite number, Direction, Speed and GPS time.
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 11 of 13
Factory Reset: If you click “Factory Reset”, reset the product to the default setting after click
“OK”, click “Cancel” to cancel the order and return to the previous interface.
Packing List
ANT081 Host Unit
1pc
User Manual
1pc
Installation Tool
1pc
Rear view Camera
1pc
ANT081 Power Cable
1pc
Reversing Extension Cable
1pc
GPS Antenna
1pc
Pass Certificate
1pc
Cleansing Cloth
1pc
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280; www.bigerstone.com
Page 13 of 13
ANT081 Product parameters:
CPU
T3
GPU
Mali 400 MP2
Memory
DDR3:1GB/EMMC:16GB
External Storage
Support TF Card(maximum 32GB)
OS
Linux
LCD
9.88`` IPS/400*1600/MIPI DSI 4 Lane
TP
Capacitor Touch Screen/Sensor:GT911
Camera
Front:1296P / Rear 1296P
MIC
Build-in
Speaker
Build-in
G-Sensor
SC7A30E
light Sensor
PT850F3F
GPS
Ublox external GPS module,interface:TTL serial,3.5mm Plug
Main Function
Front&Rear Recording,Backup Image,Parking Monitor,Collision
Lock,Streaming Video.
Navigation
Nonsupport
Video Record
Front&Rear videoes stored on the sam card.
Working Voltage
DC9V-18V
working Current
1.5A
Remark:Specification parameters maybe changed by upgrading,updating and other resons,please adhered to the
actual product.
