AirPatrol Lite AirPatrol User manual

1
User manual
Snabbguide
Pikaopas
Hurtigstarts guide

2
What AirPatrol does? 4
Indicator lights 6
Buttons 8
Power 10
SIM card 10
Installing AirPatrol 12
Testing AirPatrol 17
Turning heat pump ON/OFF 18
Commands 20
User levels 22
Owner setup 24
Owner number reset 25
Setup reset 28
User setup 29
Multiple commands 30
Heat pump model setup 31
Alarm messages setup 34
Alarm messages 35
Error messages 37
Report messages 38
Airpatrol command sheets 42
Get in touch with us 45
Om AirPatrol 46
Indikationslampor 48
Knappar 50
Strömmatning 52
SIM-kort 52
Montering av AirPatrol 54
Testkörning av AirPatrol 59
Slå PÅ/AV värmepumpen via SMS 60
Kommandon 62
Användarnivåer 64
Inmatning av ägarnummer 66
Återställning av ägarnumret 67
Fabriksåterställning
(hård RESET) 70
Inmatning av Användarenumret 71
Inmatning av värmepumpsmodell 73
Inställningar för larmmeddelanden 76
Larmmeddelanden 78
Felmeddelanden 79
Rapportmeddelanden 80
Hård RESET (fabriksåterställning) och
inmatning av Ägarnummer 84
Kontakta oss 87
ENG SWE

3
Mitä AirPatrol tekee? 90
Merkkivalot 92
Painikkeet 94
Virta 96
SIM-kortti 96
AirPatrolin asennus 98
AirPatrolin testaus 103
Lämpöpumpun
käynnistys/sammutus 104
Käskyt 106
Käyttäjätasot 108
Omistajan asettaminen 110
Omistajan numeron poistaminen 111
Asetuksien tyhjennys 114
Käyttäjän asettaminen 115
Useat eri käskyt 116
Lämpöpumpun mallin asetus 117
Hälytysviestin asetukset 120
Hälytysviestit 121
Virheviestit 123
Raporttiviestit 124
Airpatrolin käskyt 128
Ota yhteyttä 133
Hva gjør AirPatrol? 134
Indikatorlys 136
Taster 138
Strøm 140
SIM-kort 140
Installering av AirPatrol 142
Testing av AirPatrol 147
Slåvarmepumpe PÅ/AV 148
Kommandoer 150
Brukernivåer 152
Eierinnstillinger 154
Nullstilling av Eiernummer 155
Nullstilling av innstillinger 158
Brukerinnstillinger 159
Multikommandoer 160
Innstilling av varmepumpemodell 161
Innstilling av alarmmeldinger 164
Alarmmeldinger 165
Feilmeldinger 167
Rapportmeldinger 168
Airpatrol kommandoark 172
Ta kontakt med oss 175
FIN NOK

4
What AirPatrol does?
AirPatrol is a heat pump controller you operate with a mobile phone. It
is compatible with all major manufacturers’ heat pumps and all mobile
phones (see airpatrol.eu for the complete list).
The easiest way to use AirPatrol is with a Smartphone, using the AirPatrol
app downloadable from the Google Play (for Android phones ) or App
Store (for iPhone). It can also be controlled with regular mobile phone text
messages (SMS). AirPatrol allows you to have long distance control over
the mode of the pump, room temperature and fan speed settings. AirPatrol
can also inform you about low room temperature, power failures and heat
pump service intervals.

5

6
Indicator lights
The controller has 3 LED indicators and 2 buttons
for easy setup. It has also 2 infrared LEDs that
transmit your commands to the heat pump.
LED 1 - Power
on switched on
blinking no power, working on battery
off switched off
LED 2 - GSM network LED
on restart time, SIM missing or SMS processing
1 blink (3 s interval) normal status
3 blinks (3 s interval) no signal from mobile phone
or not connected to a mobile network
blinking (500 ms interval) data call session is active
LED 3 - IR LED
blinking transmitting by IR

7
LED 1 - Power
LED 2 - GSM network LED
LED 3 - IR LED

8
Buttons
Use a straightened paper clip or something similar to push the recessed
buttons.
RESET button
Short push turns the controller off when working on battery
The controller has a battery that keeps it operational even if it’s
disconnected from a wall outlet. To fully turn off the controller, push the
RESET button. The 3 LED lights will blink for about a second and the
controller switches off.
Use this button also to clear the most recent settings (the Owner number
will remain unchanged).
TEST button
Short push turns the heat pump ON/OFF
Use the TEST button to confirm that the IR beam from the controller
reaches the heat pump.

9
RESET button
TEST button IR beam
NB! Pushing both buttons simultaneously for 3 seconds initiates the hard
reset: restores factory settings, deletes Owner number and heat pump
settings (same function as with command SMS “90”).

10
Power
When the power is out (power = 0V) the controller continues to work on
the battery and turns off after the battery’s voltage drops below 3.5V. A
fresh battery lasts for approximately 24 hours (note that over time the
battery’s capacity decreases). After the controller is turned off the run time
will be saved. To save battery life when the power is out the controller can
be turned off with a short push on the RESET button.
SIM card
NB! Make sure you disable the PIN code of the SIM card you use in
AirPatrol.
NB! Make sure the SIM card you use in AirPatrol can access 2G network.
Airpatrol is not compatible with SIM cards that use only 3G network.

11
A) Make sure that you have previously disabled the SIM card
PIN code. Insert SIM card as shown into AirPatrol.
B) Plug the adapter into the socket under the AirPatrol.
A B

12

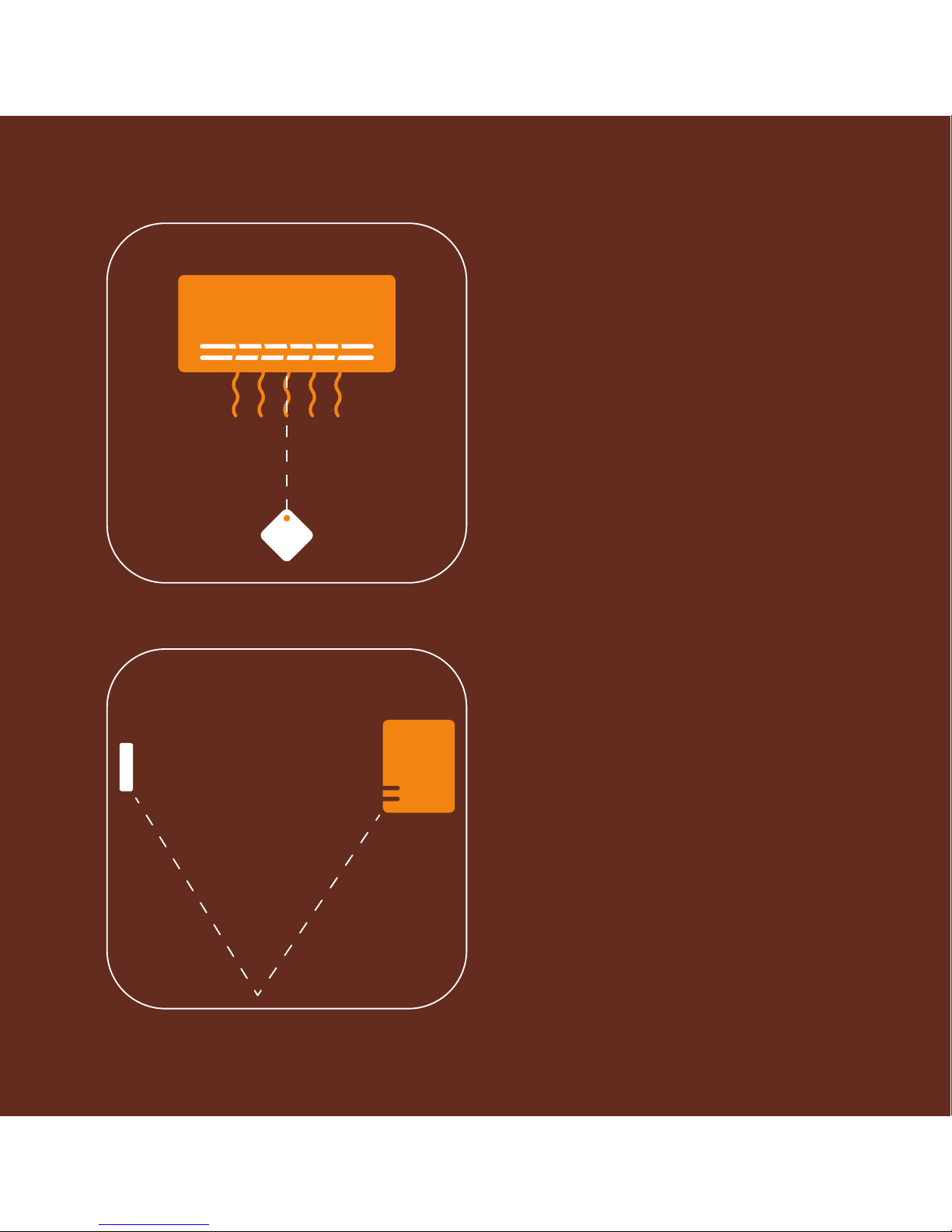

Installing AirPatrol
AirPatrol should be mounted on the wall to the right of your heat pump’s
indoor unit (see fig. 1), with its IR transmitter pointing down. This way
the IR beam is reflected from the floor and reaches the heat pump’s sensor
most efficiently.
Other mounting configurations are possible too
as long as IR transmission from the controller
to the pump works.
NB! Thick carpets and dark floors can distort the IR beam. Make sure the
IR beam reaches the pump’s sensor by using the controller’s Test function.

13
Fig. 1
On the right side of
the indoor unit
Fig. 2
Attached to the right side of
the indoor unit

14
Fig. 3
Beneath the indoor unit
Fig. 4
On the wall, opposite to
the indoor unit

15
Fig. 5
On a ledge, opposite to the
indoor unit

16
Fig. 6, 7
Do not place AirPatrol on the
left side of the indoor unit!
Indoor unit’s internal
condenser might block
AirPatrol’s signal.

17
Testing AirPatrol
To see if AirPatrol can send commands to your heat pump, turn off the
pump and press the controller’s TEST button. When the connection is
established, AirPatrol turns the pump on with its last settings and you can
proceed using the controller.

18
Turning heat pump ON/OFF
SMS Command ON turns heat pump on.
SMS Command OFF turns heat pump off.

19
ON
sms: sms:
OFF
turns heat pump on turns heat pump off

20
Commands
The range of heat pump temperature values AirPatrol controls is 16-30 °C
(default +20 °C) and the fan speeds are MIN, NORM, MAX
(the default is NORM).
After selecting a mode (AUTO, DRY, COOL, HEAT, T8, T10) heat pump is
turned on with 20 °C maximum temperature and normal fan speed, if not
assigned differently by the Owner or the Users.
The pump can be assigned different temperature and fan speed values
with AirPatrol.
For example, the SMS: “COOL 19 MAX” orders the pump to cool until 19
°C and fan at maximum speed. When you change a heat pump function
AirPatrol always responds with an SMS that reports its STATUS.
