Airrex HSC-14S User manual

AIRREX AIR CONDITIONER
HSC-14S
USER’S MANUAL
▶ Thank you for purchasing an AIRREX AIR CONDITIONER.
BEFORE operation please read this user’s manual carefully.
▶ Keep this manual readily available.
▶ It is ESSENTIAL that you read the ‘NOTES ON SAFETY’ carefully
before use and follow them at all times.
▶ The Air Conditioners are specified for use on a 115V. 60Hz. 1ph power supply.
You must check that the local electricity supply is the same and
have the appropriate plug fitted by a qualified electrician.
▶ The Warranty form is on Page 15. Please complete it now and keep
in a safe place.
▶ We have a policy of continual improving to our products.
The contents (features and specifications) in this manual are
therefore subject to change without notice.

2
TABLE OF CONTENTS
















■ SAFETY INSTRUCTIONS
■ DESCRIPTION



■ OPERATING INSTRUCTIONS






■ CLEANING AND MAINTENANCE
■ TROUBLE SHOOTING / ACCESSORIES
■ SPECIFICATIONS
■ WARRANTY

SAFETY INSTRUCTIONS
The following instructions are for ensuring the user’s safety and to prevent any physical
injury or material damage. Please read carefully and follow all instructions.
There are two sections to these instructions: WARNING and CAUTION.
The following symbols are for your guidance :
= You must NOT. = You MUST.
























Keep this manual in a visible location near the cooler for easy reference.
WARNING
3




SAFETY NOTICE
GENERAL ADVICE BEFORE USE









CAUTION










4

5
EXTERIOR DESCRIPTION
FRONT VIEW
BACK VIEW




















CONTROL PANEL FUNCTIONS





















⑤
①
②
③ ④
⑦
⑧
⑩
⑪
⑫
⑬
⑨
⑥
6

7

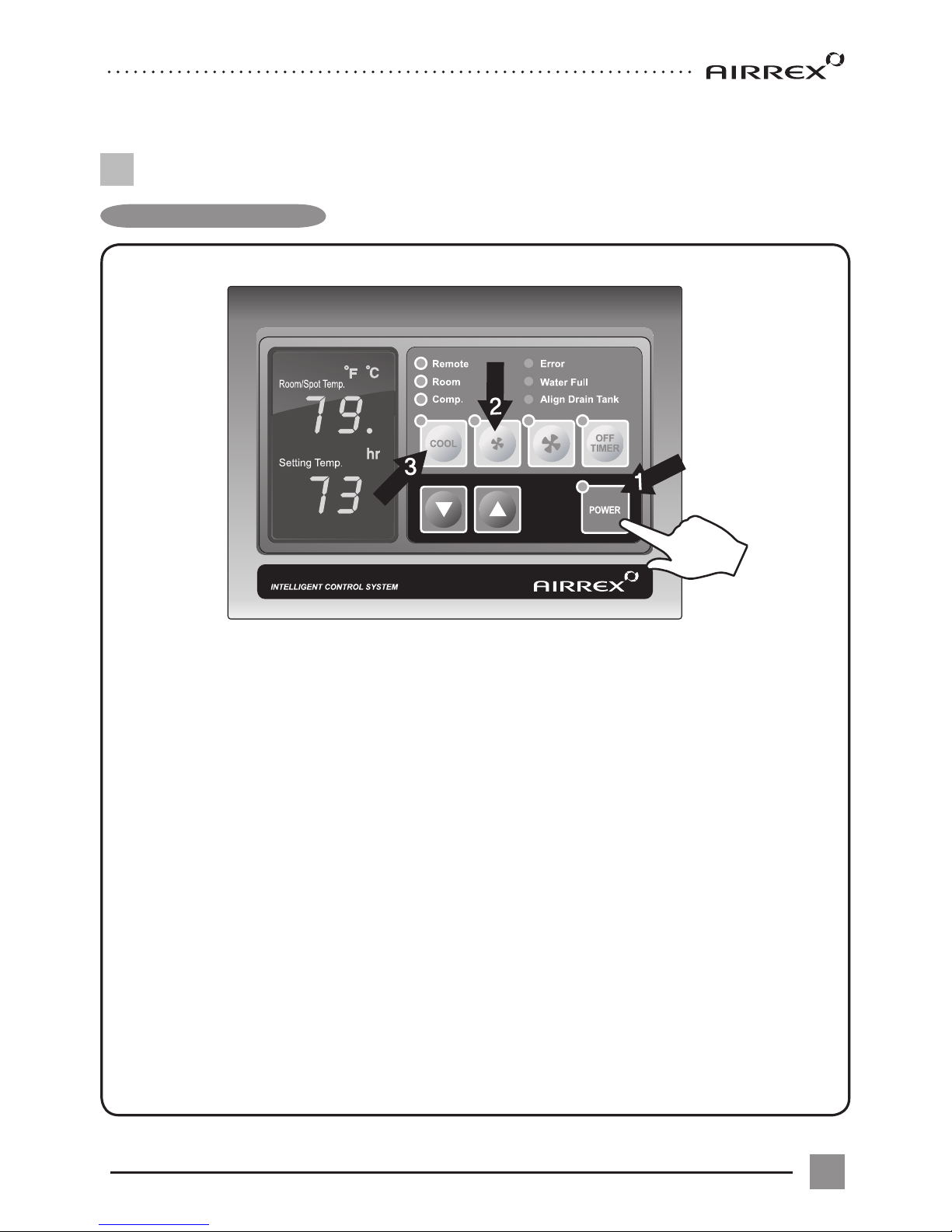

OPERATION
RUNNING & STOP









SELECTION of AREA/ROOM or SPOT COOLING
ECONOMIC MODE
To reduce the temperature of the entire room select 'Area/Room'.
For ‘targeted’ cooling of machinery, servers, or people etc. select ‘Spot Cooling’.













8

9
TEMPERATURE CONTROL OPERATION


















 



HOW TO SET THE ‘OFF’TIMER.
This function enables you to set the length of time you want the cooler to operate.
You can set the time period from 30min. to 24 hours in 30min. and 1 hour increments.
















10

11
'ERROR' and WARNING INDICATORS
The machine’s safety devices will automatically signal any problems via the display window
on the control panel. The information below shows how to read these signals.






















CLEANING AND MAINTENANCE
CLEANING THE AIR FILTERS





MAINTENANCE







12

TROBULE SHOOTING
ACCESSORIES
NOT
WORKING
POOR
COOLING
TROUBLE CHECK REMEDY
● Power plug correctly connected ● Connect plug correctly
● POWER button “OFF” ● Press POWER button to “ON”
● Blown fuse in electric panel ● Replace fuse
● Fuse (supply) blown ● Exchange fuse in board
● Breaker on switch board ● Check load capacity and reset
tripped
● Ambient temp. too high ● Use only below 105℉
(over 105℉)
● Filter blocked with dust ● Clean Filter
● Dust in heat exchanger ● Clean heat exchanger
● Obstacle against inlet side ● Remove and allow 20inch.clearance
● Ambient temp. too high ● Use only below 105℉
(over 105℉)
MODEL
ITEM DRAWING
HSC-14S
Aluminium Filter
for Evaporator
Aluminium Filter
for Condenser
13

SPECIFICATIONS
14




   
   
   
 

 
      
   
  
     
    
   
   
   
    
 
 

 
  
      
   
      
     
 

     






15
WARRANTY
Name :
Address :
Telephone :
CUSTOMER
DETAILS
(Applicable to first retail purchaser only)
PRODUCT
SERIAL NO:
Name of Company
Telephone No.
DISTRIBUTOR
Warranty Period ( ) Months
DESCRIPTION  
MODEL 
DATE OF PURCHASE


















HEPHZIBAH CO.,LTD.
423-5 CHUNGCHUN-DONG, BUPYUNG-KU
INCHEON, KOREA
TEL : [phone]
FAX : [phone]
E-mail : [e-mail]
Website : www.airrex.co.kr

USA DISTRIBUTOR
AIRREX USA
P.O BOX 340
HEWITT, TEXAS 76643
TEL : [phone]
FAX : [phone]
[e-mail]
