AirTime ATX6 Operation manual

Model ATX6
Wireless Wall Clock Transceiver
Installation & User's Guide
Copyright © 2009 Lathem Time Corporation. All rights reserved.
All manuals and user guides at all-guides.com
all-guides.com

AirTime, Lathem and the Lathem logo are registered trademarks of Lathem
Time Corporation. Other product names mentioned in this manual may be
trademarks of their respective companies and are hereby acknowledged.

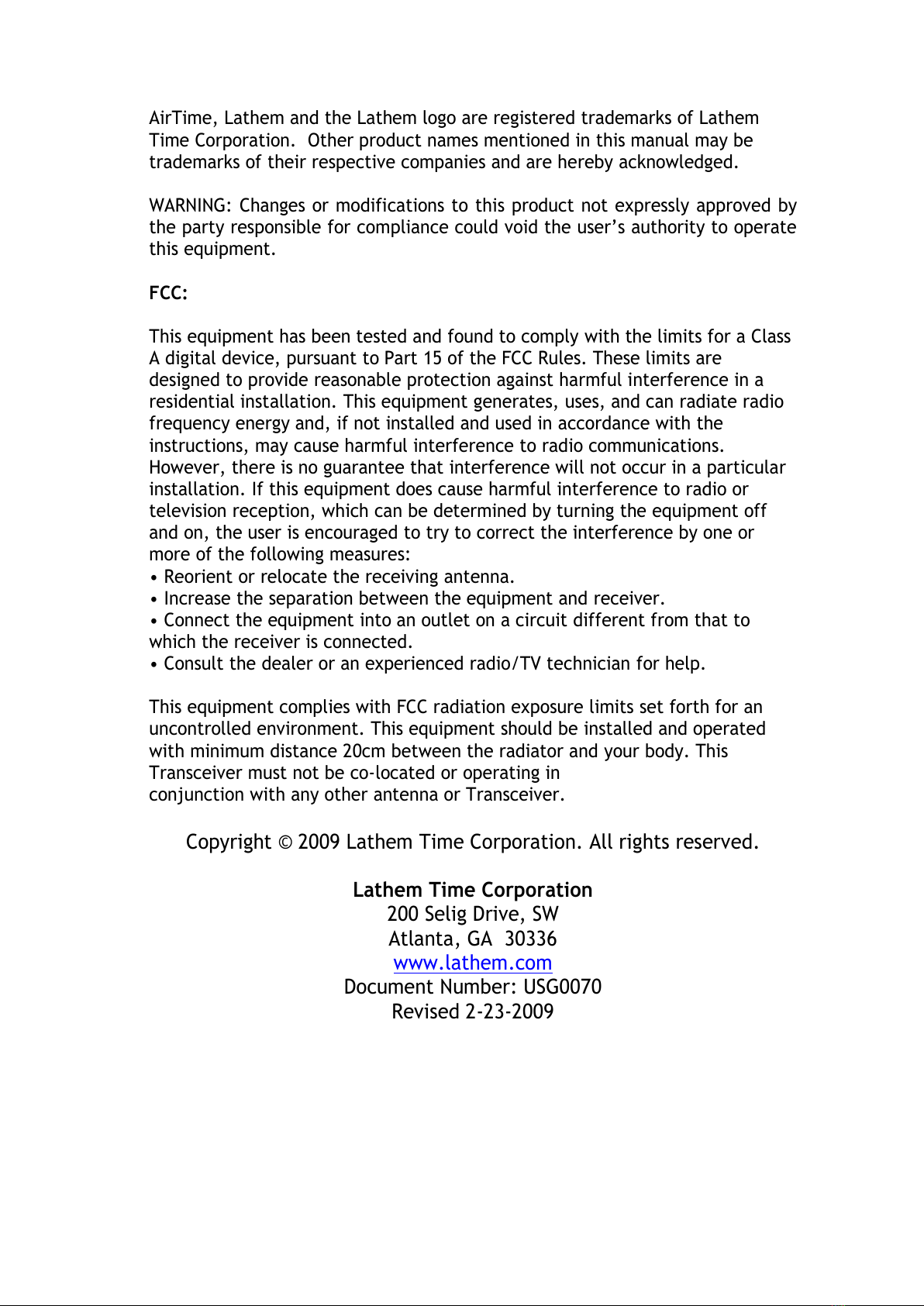

WA NING: Changes or modifications to this product not expressly approved by
the party responsible for compliance could void the user’s authority to operate
this equipment.
FCC:
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• eorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator and your body. This
Transceiver must not be co-located or operating in
conjunction with any other antenna or Transceiver.
Copyright © 2009 Lathem Time Corporation. All rights reserved.
Lathem Time Corporation
200 Selig Drive, SW
Atlanta, GA 30336
www.lathem.com
Document Number: USG0070
evised 2-23-2009
All manuals and user guides at all-guides.com

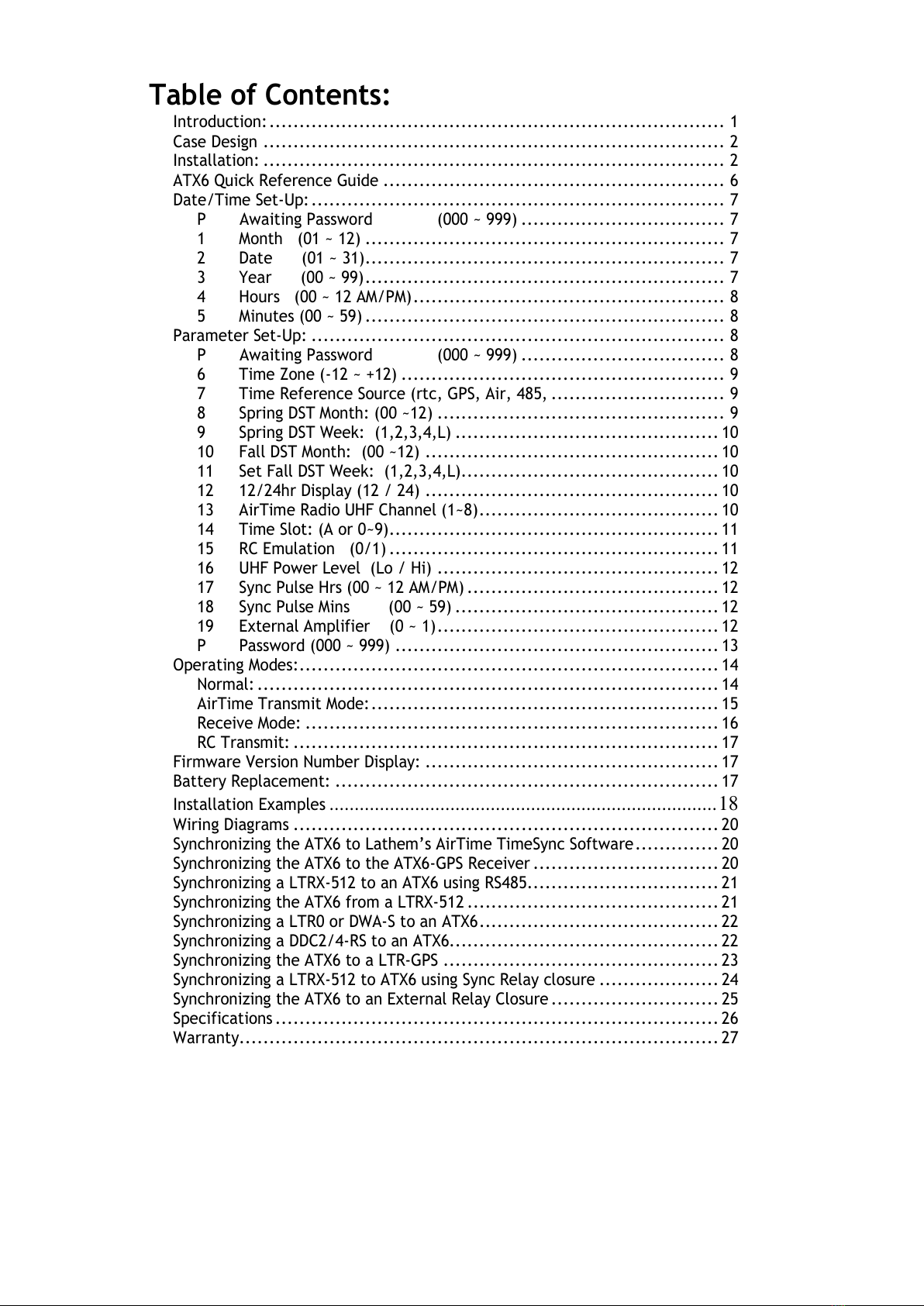

Table of Contents:
Introduction:............................................................................ 1
Case Design ............................................................................. 2
Installation: ............................................................................. 2
ATX6 Quick eference Guide ......................................................... 6
Date/Time Set-Up:..................................................................... 7
P Awaiting Password (000 ~ 999) .................................. 7
1 Month (01 ~ 12) ............................................................ 7
2 Date (01 ~ 31)............................................................ 7
3 Year (00 ~ 99)............................................................ 7
4 Hours (00 ~ 12 AM/PM).................................................... 8
5 Minutes (00 ~ 59) ............................................................ 8
Parameter Set-Up: ..................................................................... 8
P Awaiting Password (000 ~ 999) .................................. 8
6 Time Zone (-12 ~ +12) ...................................................... 9
7 Time eference Source (rtc, GPS, Air, 485, ............................. 9
8 Spring DST Month: (00 ~12) ................................................ 9
9 Spring DST Week: (1,2,3,4,L) ............................................ 10
10 Fall DST Month: (00 ~12) ................................................. 10
11 Set Fall DST Week: (1,2,3,4,L)........................................... 10
12 12/24hr Display (12 / 24) ................................................. 10
13 AirTime adio UHF Channel (1~8)........................................ 10
14 Time Slot: (A or 0~9)....................................................... 11
15 C Emulation (0/1) ....................................................... 11
16 UHF Power Level (Lo / Hi) ............................................... 12
17 Sync Pulse Hrs (00 ~ 12 AM/PM) .......................................... 12
18 Sync Pulse Mins (00 ~ 59) ............................................ 12
19 External Amplifier (0 ~ 1)............................................... 12
P Password (000 ~ 999) ...................................................... 13
Operating Modes:...................................................................... 14
Normal: ............................................................................. 14
AirTime Transmit Mode:.......................................................... 15
eceive Mode: ..................................................................... 16
C Transmit: ....................................................................... 17
Firmware Version Number Display: ................................................. 17
Battery eplacement: ................................................................ 17
Installation Examples .............................................................................18
Wiring Diagrams ....................................................................... 20
Synchronizing the ATX6 to Lathem’s AirTime TimeSync Software.............. 20
Synchronizing the ATX6 to the ATX6-GPS eceiver ............................... 20
Synchronizing a LT X-512 to an ATX6 using S485................................ 21
Synchronizing the ATX6 from a LT X-512 .......................................... 21
Synchronizing a LT 0 or DWA-S to an ATX6........................................ 22
Synchronizing a DDC2/4- S to an ATX6............................................. 22
Synchronizing the ATX6 to a LT -GPS .............................................. 23
Synchronizing a LT X-512 to ATX6 using Sync elay closure .................... 24
Synchronizing the ATX6 to an External elay Closure ............................ 25
Specifications .......................................................................... 26
Warranty................................................................................ 27
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 1

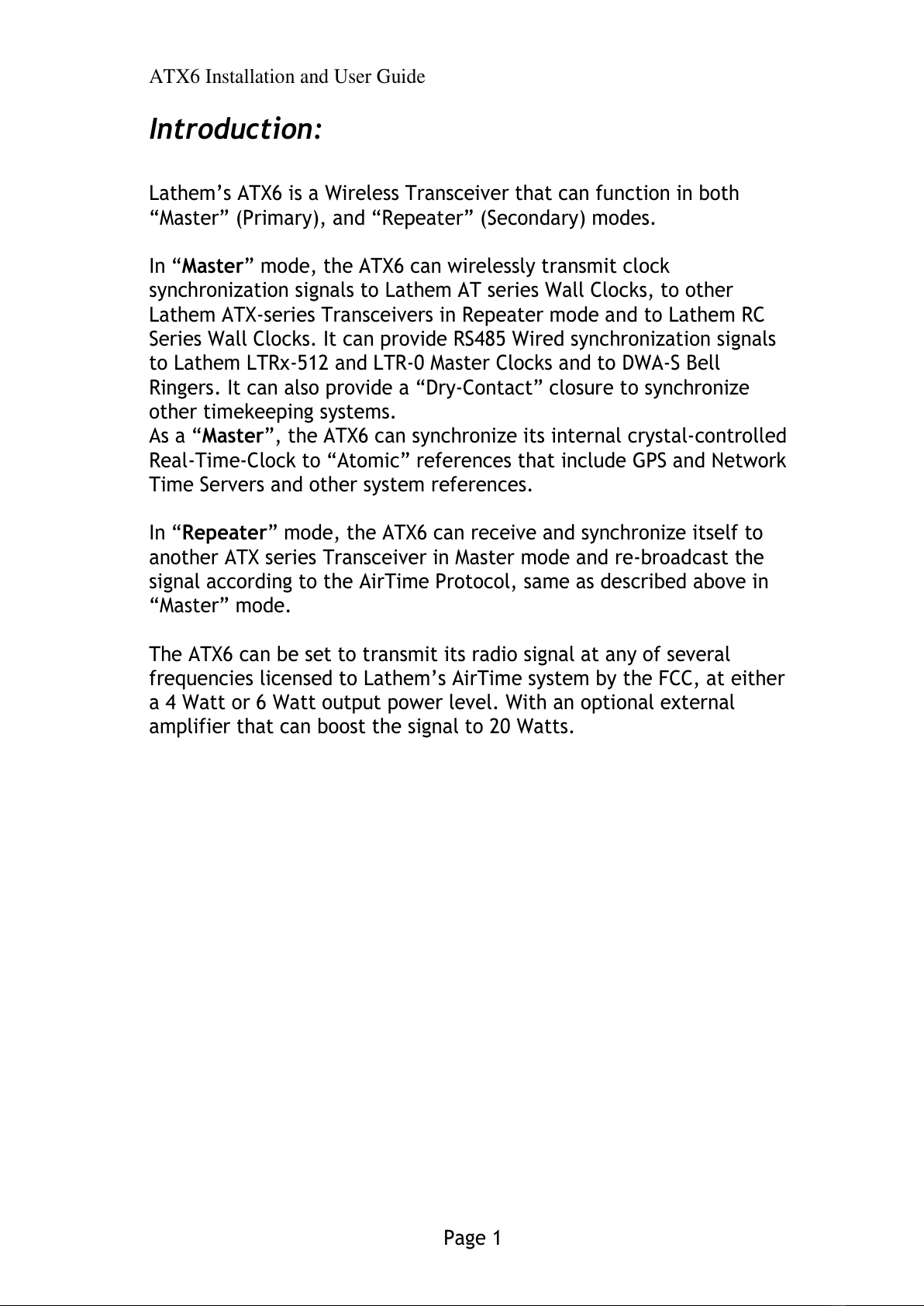

Introduction:
Lathem’s ATX6 is a Wireless Transceiver that can function in both
“Master” (Primary), and “ epeater” (Secondary) modes.
In “Master” mode, the ATX6 can wirelessly transmit clock
synchronization signals to Lathem AT series Wall Clocks, to other
Lathem ATX-series Transceivers in epeater mode and to Lathem C
Series Wall Clocks. It can provide S485 Wired synchronization signals
to Lathem LT x-512 and LT -0 Master Clocks and to DWA-S Bell
ingers. It can also provide a “Dry-Contact” closure to synchronize
other timekeeping systems.
As a “Master”, the ATX6 can synchronize its internal crystal-controlled
eal-Time-Clock to “Atomic” references that include GPS and Network
Time Servers and other system references.
In “Repeater” mode, the ATX6 can receive and synchronize itself to
another ATX series Transceiver in Master mode and re-broadcast the
signal according to the AirTime Protocol, same as described above in
“Master” mode.
The ATX6 can be set to transmit its radio signal at any of several
frequencies licensed to Lathem’s AirTime system by the FCC, at either
a 4 Watt or 6 Watt output power level. With an optional external
amplifier that can boost the signal to 20 Watts.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 2

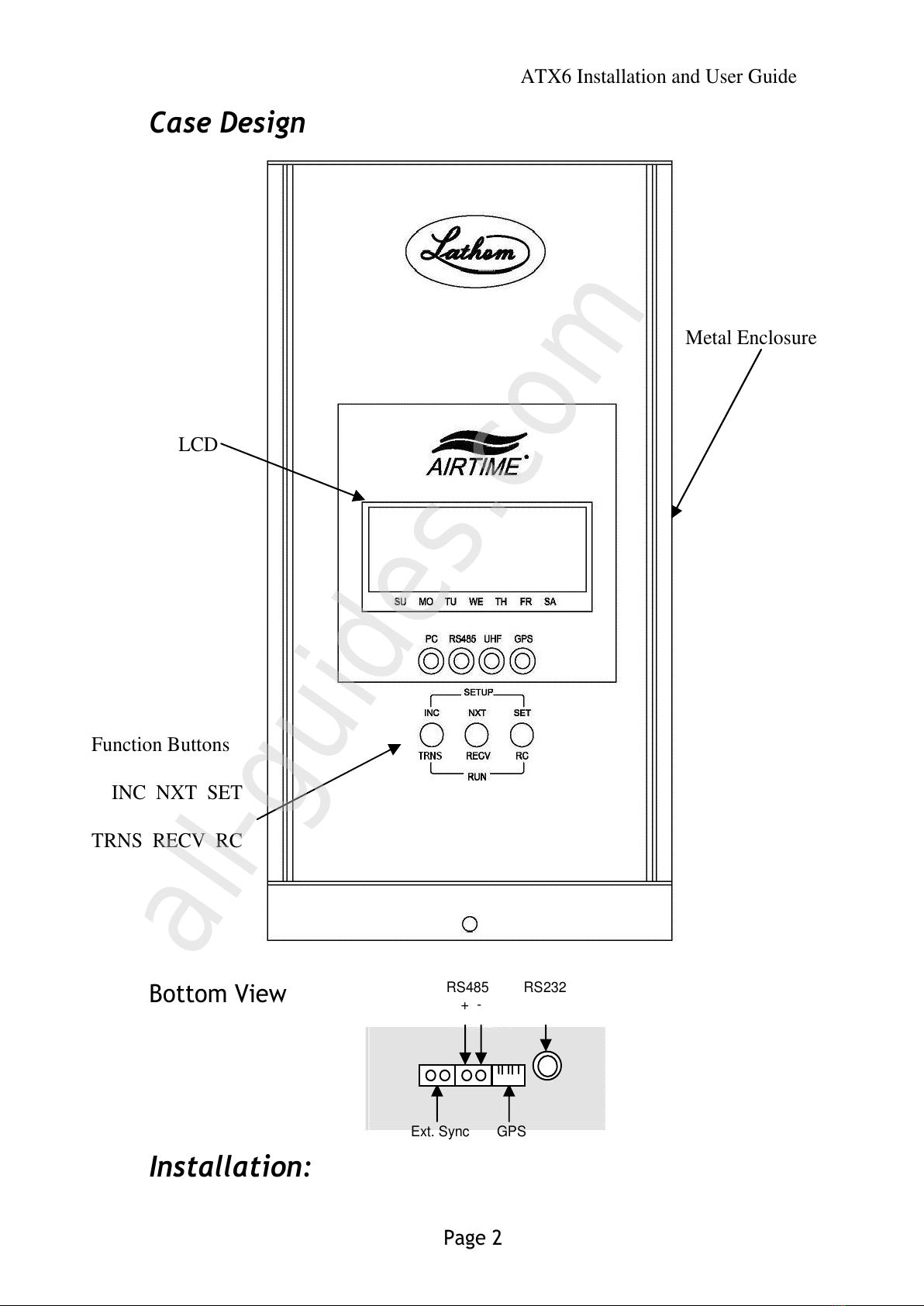

Case Design
Bottom View
Installation:
LCD
Metal Enclosure
Function Buttons
INC NXT SET
TRNS RECV RC
RS485 RS232
+ -
Ext. Sync GPS
All manuals and user guides at all-guides.com
all-guides.com

ATX6 Installation and User Guide
Page 3

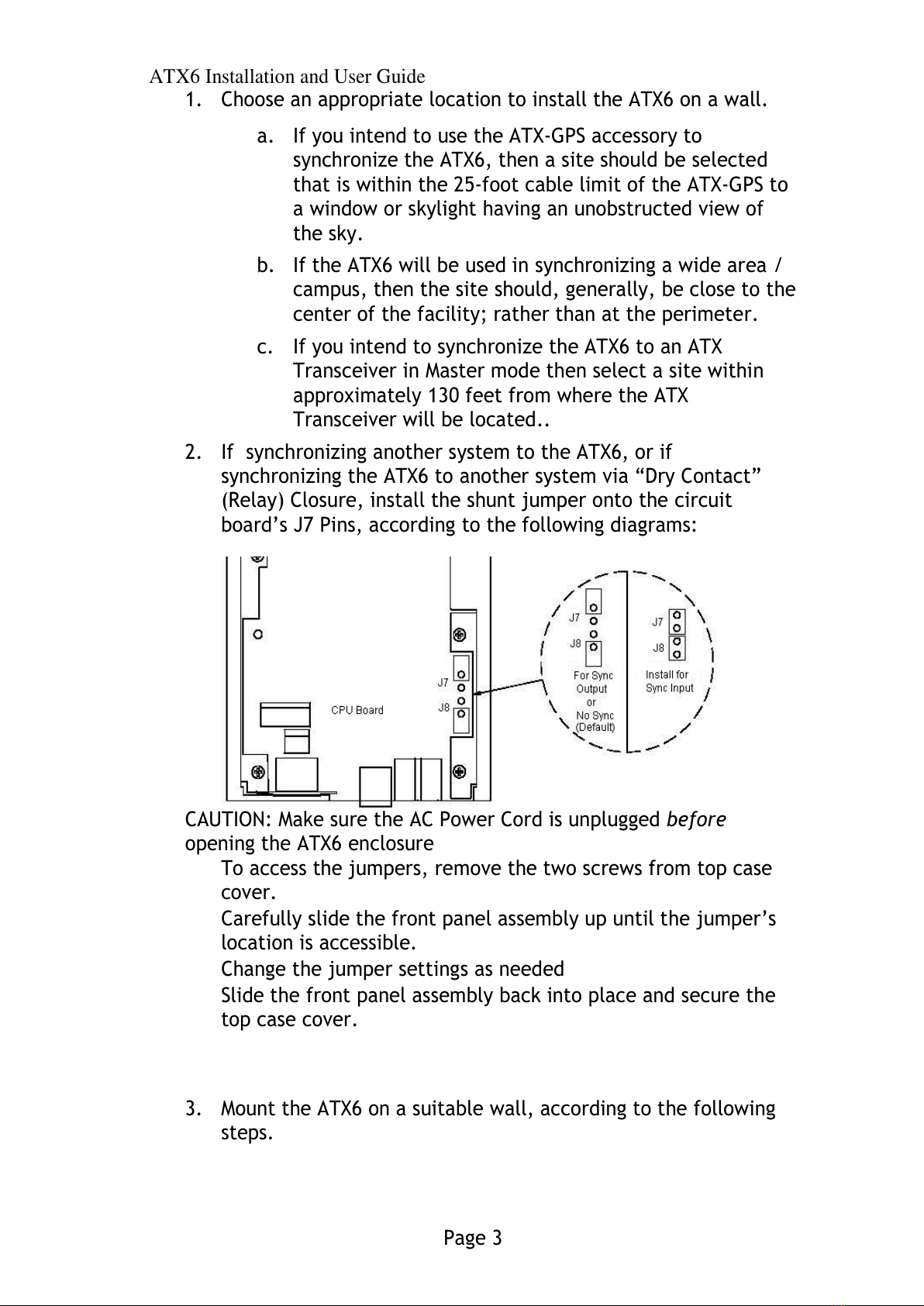

1. Choose an appropriate location to install the ATX6 on a wall.
a. If you intend to use the ATX-GPS accessory to
synchronize the ATX6, then a site should be selected
that is within the 25-foot cable limit of the ATX-GPS to
a window or skylight having an unobstructed view of
the sky.
b. If the ATX6 will be used in synchronizing a wide area /
campus, then the site should, generally, be close to the
center of the facility; rather than at the perimeter.
c. If you intend to synchronize the ATX6 to an ATX
Transceiver in Master mode then select a site within
approximately 130 feet from where the ATX
Transceiver will be located..
2. If synchronizing another system to the ATX6, or if
synchronizing the ATX6 to another system via “Dry Contact”
( elay) Closure, install the shunt jumper onto the circuit
board’s J7 Pins, according to the following diagrams:
CAUTION: Make sure the AC Power Cord is unplugged before
opening the ATX6 enclosure
To access the jumpers, remove the two screws from top case
cover.
Carefully slide the front panel assembly up until the jumper’s
location is accessible.
Change the jumper settings as needed
Slide the front panel assembly back into place and secure the
top case cover.
3. Mount the ATX6 on a suitable wall, according to the following
steps.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 4
If mounting near a ceiling, make sure the top holes are at
least 2” away from the ceiling.
If an external amplifier will be used, mount the ATX within
feet of its location.
»After deciding the location where the clock will be mounted,
use the enclosed template to make the three marks for the
mounting screws.
»Drill a 5/16" hole at each of the marks
»Insert a wall anchor in each hole and tap it flush to the wall
with the hammer.
»Insert a screw into the top two wall anchors leaving 1/8"
exposed.
»Line up the two keyholes on the back of the case and slip over
the two screws.
»The lower mounting screw can now be inserted into the wall
anchor and secured.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 5

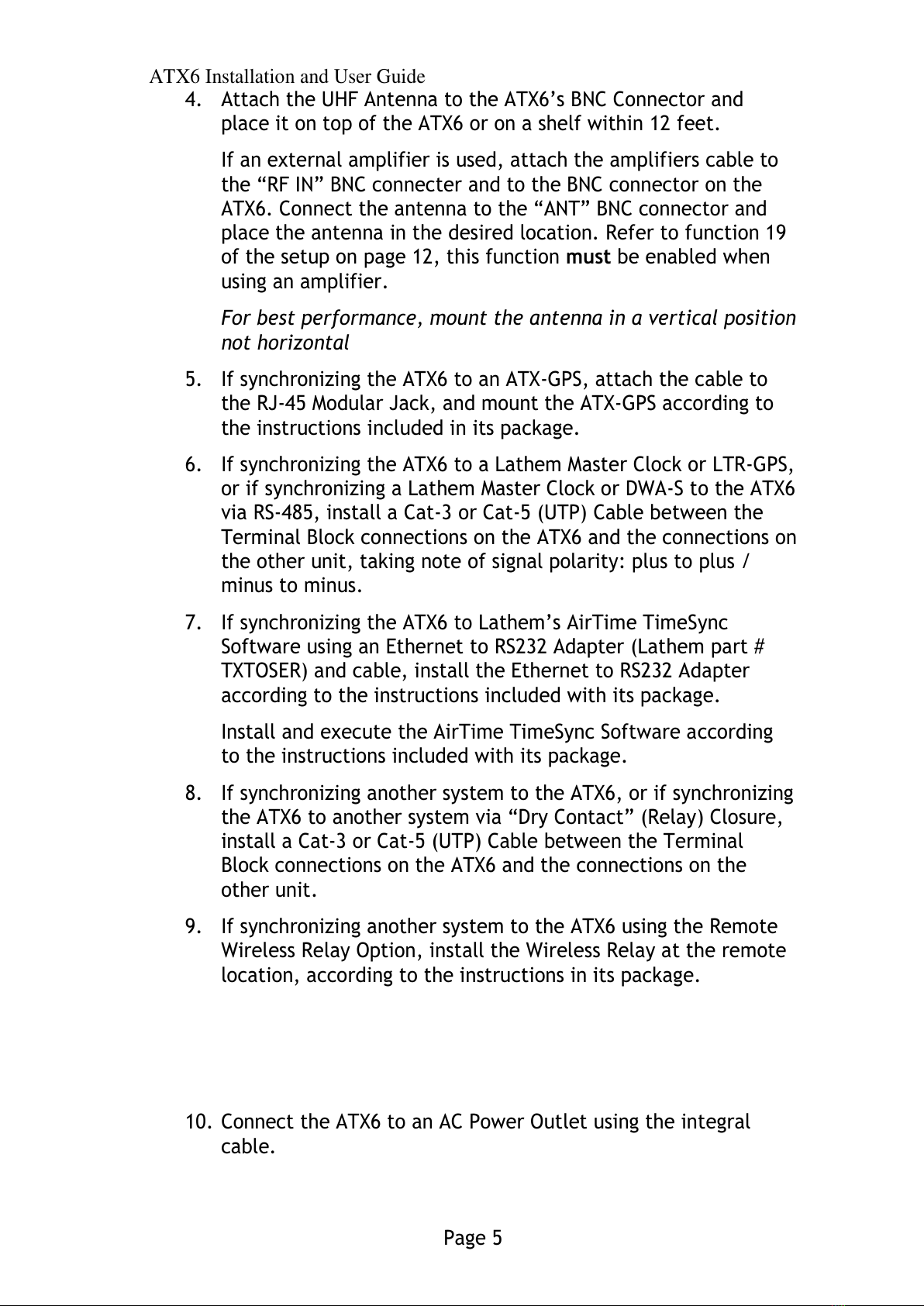

4. Attach the UHF Antenna to the ATX6’s BNC Connector and
place it on top of the ATX6 or on a shelf within 12 feet.
If an external amplifier is used, attach the amplifiers cable to
the “ F IN” BNC connecter and to the BNC connector on the
ATX6. Connect the antenna to the “ANT” BNC connector and
place the antenna in the desired location. efer to function 19
of the setup on page 12, this function must be enabled when
using an amplifier.
For best performance, mount the antenna in a vertical position
not horizontal
5. If synchronizing the ATX6 to an ATX-GPS, attach the cable to
the J-45 Modular Jack, and mount the ATX-GPS according to
the instructions included in its package.
6. If synchronizing the ATX6 to a Lathem Master Clock or LT -GPS,
or if synchronizing a Lathem Master Clock or DWA-S to the ATX6
via S-485, install a Cat-3 or Cat-5 (UTP) Cable between the
Terminal Block connections on the ATX6 and the connections on
the other unit, taking note of signal polarity: plus to plus /
minus to minus.
7. If synchronizing the ATX6 to Lathem’s AirTime TimeSync
Software using an Ethernet to S232 Adapter (Lathem part #
TXTOSE ) and cable, install the Ethernet to S232 Adapter
according to the instructions included with its package.
Install and execute the AirTime TimeSync Software according
to the instructions included with its package.
8. If synchronizing another system to the ATX6, or if synchronizing
the ATX6 to another system via “Dry Contact” ( elay) Closure,
install a Cat-3 or Cat-5 (UTP) Cable between the Terminal
Block connections on the ATX6 and the connections on the
other unit.
9. If synchronizing another system to the ATX6 using the emote
Wireless elay Option, install the Wireless elay at the remote
location, according to the instructions in its package.
10. Connect the ATX6 to an AC Power Outlet using the integral
cable.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 6
Apply a minimum of 3.5 to 4.5 lb-in torque for tightening field wires
into the terminal blocks. Use Cat-3 or Cat-5 Twisted-Pair Wires Use
only Copper Wire.

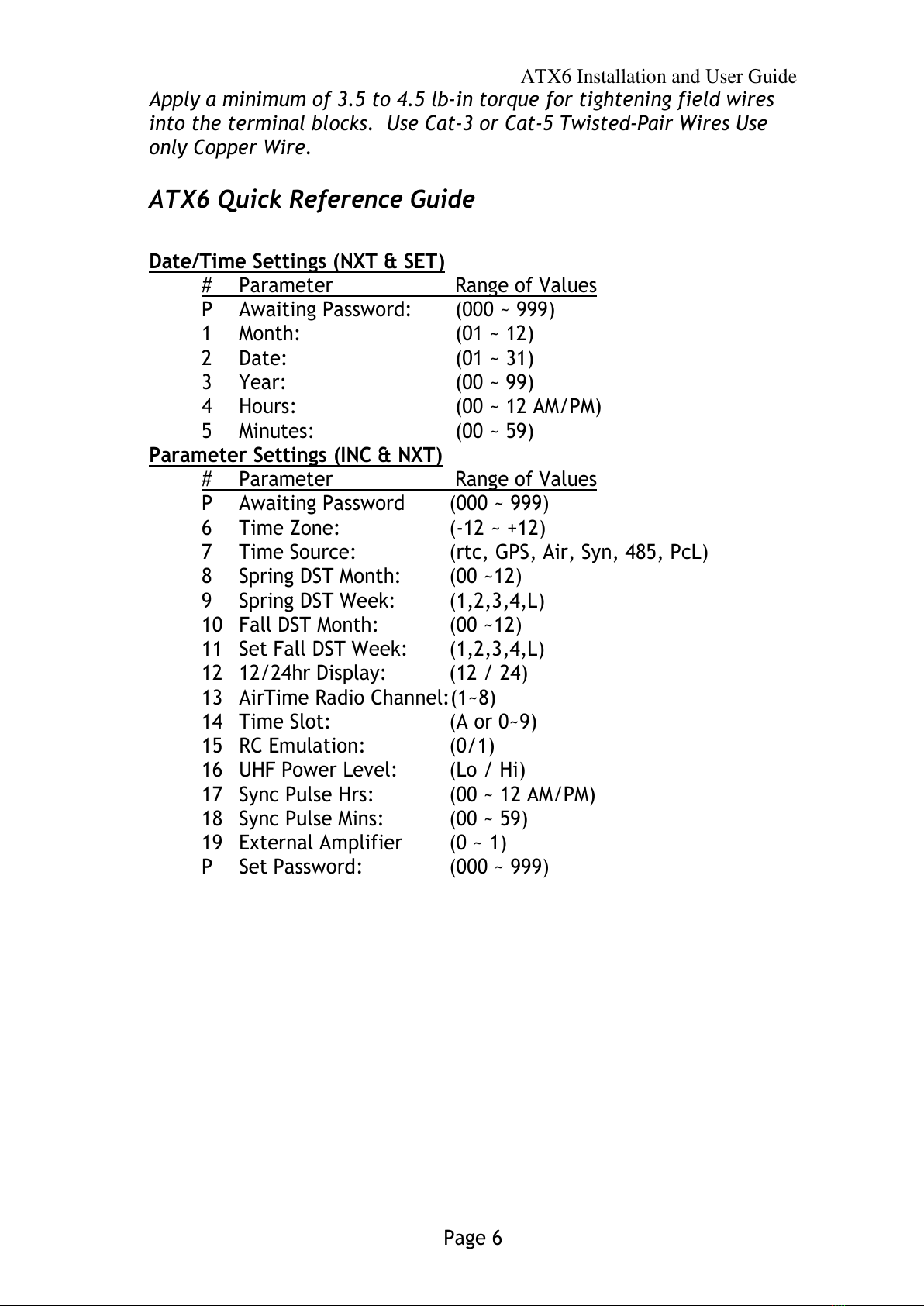

ATX6 Quick Reference Guide
Date/Time Settings (NXT & S T)
# Parameter ange of Values
P Awaiting Password: (000 ~ 999)
1 Month: (01 ~ 12)
2 Date: (01 ~ 31)
3 Year: (00 ~ 99)
4 Hours: (00 ~ 12 AM/PM)
5 Minutes: (00 ~ 59)
Parameter Settings (INC & NXT)
# Parameter ange of Values
P Awaiting Password (000 ~ 999)
6 Time Zone: (-12 ~ +12)
7 Time Source: (rtc, GPS, Air, Syn, 485, PcL)
8 Spring DST Month: (00 ~12)
9 Spring DST Week: (1,2,3,4,L)
10 Fall DST Month: (00 ~12)
11 Set Fall DST Week: (1,2,3,4,L)
12 12/24hr Display: (12 / 24)
13 AirTime adio Channel:(1~8)
14 Time Slot: (A or 0~9)
15 C Emulation: (0/1)
16 UHF Power Level: (Lo / Hi)
17 Sync Pulse Hrs: (00 ~ 12 AM/PM)
18 Sync Pulse Mins: (00 ~ 59)
19 External Amplifier (0 ~ 1)
P Set Password: (000 ~ 999)
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 7
Date/Time Set-Up:
To enter the Date/Time Set-Up Mode, simultaneously press the Center
(NXT) and ight (SET) buttons for 1 second. You will see the Password
prompt: “P000”. For each of the following parameters to be set, the
display will show the parameter number in the two left digit positions,
and the parameter value in the two right digit positions. The
parameters are as follows:
P Awaiting Password (000 ~ 999)
If you have not previously changed the password, press the SET button
to continue [Default Password is ‘000’]. If you have previously changed
the Password, enter the value using the INC, NXT and SET buttons. The
INC button will increment the digit over the displayed cursor. The NXT
button will move the cursor to point to the next digit. The SET button
will enter your final selection. If correct, the display will advance to
enter the first set-up parameter.
If incorrect, an “Err” message will be displayed. Press the Set button
to re-enter your password. Press Inc or Next to abort the setup.
1 Month (01 ~ 12)
Use the INC button to advance through the values. Press the SET button
when the correct value is displayed.
2 Date (01 ~ 31)
Use the INC button to change the first digit. Press NXT to move the
cursor to the next digit, then press INC to change the selected digit.
Press the SET button when the correct value is displayed.
If an incorrect value is entered “Err2” will be displayed. Press the Set
button and reenter the date
3 Year (00 ~ 99)
Use the INC button to change the value of the first digit. Press NXT to
move the cursor to the next digit, then press INC to change the
selected digit. Press the SET button when the correct value is
displayed.
All manuals and user guides at all-guides.com
all-guides.com

ATX6 Installation and User Guide
Page 8
4 Hours (00 ~ 12 AM/PM)
Use the INC button to advance through the values. Advancing past ‘11’
will also toggle the AM and PM indicators. Press the SET button when
the correct value is displayed.
5 Minutes (00 ~ 59)
Use the INC button to change the value of the first digit. Use the NXT
button to move the cursor to the next digit, and then use the INC
button to change the selected digit. Press the SET button when the
correct value is displayed.
Press SET after this step to set seconds to :00. For the most precise
manual time setting, increment the displayed value to represent the
up-coming minute. Then, at the start of the new minute, press the SET
button to record the programmed MM-DD-YY HH:MM:00.
Parameter Set-Up:
To enter the Parameter Set-Up Mode, simultaneously press the Left
(INC) and Center (NXT) buttons for 1 second. You will see the Password
prompt: “P000”. For each of the following parameters to be set, the
display will show the parameter number in the two left digit positions,
and the parameter value in the two right digit positions. The
parameters are as follows:
P Awaiting Password (000 ~ 999)
If you have not previously changed the password, press the SET button
to continue [Default Password is ‘000’]. If you have previously changed
the Password, enter the value using the INC, NXT and SET buttons. The
INC button will increment the digit over the displayed cursor. The NXT
button will move the cursor to point to the next digit. The SET button
will enter your final selection. If correct, the display will advance to
enter the first set-up parameter.
If incorrect, an “Err” message will be displayed. Press the Set button
to re-enter your password. Press Inc or Next to abort the setup.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 9
6 Time Zone (-12 ~ +12)
Use the INC button to advance through the values. Advancing past ‘11’
will also toggle the ‘+’ and ‘-‘indicators. The most common Western
Hemisphere values (offsets from GMT / UTC) are:
Atlantic Time -04
Eastern Time -05
Central Time -06
Mountain Time -07
Pacific Time -08
Alaska -09
Hawaii -10
Press the SET button when the correct value is displayed
7 Time Reference Source (rtc, GPS, Air, Syn, 485, PcL)
Use the INC button to advance through the values. Select which Time
eference is to be used by the ATX6. Press the SET button when the
correct value is displayed.
rtc eal-Time-Clock, set in parameters # 1 through 5
GPS External ATX-GPS eceiver option
Air Another ATX-series Transceiver
Syn Synchronize to an external elay closing for 1 second at
00:00:00
485 Sync from a Lathem LT x-series Master Clock or LT -GPS
PcL Sync from a PC using Lathem’s AirTime TimeSync, via Ethernet
to S232 (with external Adapter)
8 Spring DST Month: (00 ~12)
Use the INC button to advance through the values. Default value is ‘03’
(March). Selecting ‘00’ will disable automatic DST adjustment and
settings 9,10 and 11. Press SET when the correct value shows.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 10
9 Spring DST Week: (1,2,3,4,L)
Use the INC to select which Sunday of month that Daylight Savings Time
begins: 1
st
, 2
nd
, 3
rd
, 4
th
or Last Sunday of month. Default is ‘02’ (2
nd
Sunday in March). Press SET when the correct value is displayed.
10 Fall DST Month: (00 ~12)
Use the INC button to advance through the values. Default value is ‘11’
(November). Choose ‘00’ to disable automatic DST adjustment. Press
SET when the correct value shows
11 Set Fall DST Week: (1,2,3,4,L)
Use the INC button to select which Sunday of month that Daylight
Savings Time ends: 1
st
, 2
nd
, 3
rd
, 4
th
or Last Sunday of month. Default is
‘01’ (1
st
Sunday in November). Press SET when the correct value shows.
12 12/24hr Display (12 / 24)
Use the INC button to toggle between selection of a 12-hour display
with AM/PM indicators, or a 24-hour (Military Time) display (00:00 ~
23:59). Press SET when the desired value shows.
13 AirTime Radio UHF Channel (1~8)
The ATX6 is pre-loaded with the multiple Frequency selections:
Use the INC button to select the frequency channel for your
installation; default is ‘1’. Do not change unless AirTime system
components have been specifically ordered for a different
frequency. Press SET when the correct value shows.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 11
14 Time Slot: (A or 0~9)
To support systems that include multiple Transceivers using the same
Frequency Channel, AirTime Transceivers can automatically determine
their position in a network of transceivers. In most cases, the ATX6 will
determine its own position by listening to transmissions from other
Transceivers in the area. To select this feature, set the parameter
value to Automatic.
In installations with an ATX Transceiver receiving the time from WWVB
and transmitting it to multiple ATX6’s or a combination of ATX6’s and
ATX epeaters, Channel Interference may be avoided by setting
specific “Transmission Slots” for each Transceiver. The ATX and ATX6
Transceivers can be set to transmit on one of ten Transmission Slots,
numbered 0 through 9. When manually selecting a Transmission Slot
following this chart will often provide the best results:
ecommended Parameter # 14 Setting for each device
Fixed positions are numbered 0 ~ 9, and may be selected using the INC
button. Press the SET button when the correct value is displayed
15 RC mulation (0/1)
Use the INC button to toggle between Enabling (‘1’) and Disabling (‘0’)
the transmission of radio signals to synchronize Lathem’s C-series Wall
Clocks. If there are no C-series Wall Clocks in the system, or if they
are to be controlled by a separate C-MASTE , then C Emulation
should be disabled. Press SET when the correct value shows.
#of ATX
Transceivers
Device
#1
Device
#2
Device
#3
Device
#4
Device
#5
Device
#6
1 5
2 2 7
3 1 5 8
4 1 3 5 7
5 1 3 5 7 9
6 0 2 4 6 8 9
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 12
16 UHF Power Level (Lo / Hi)
Use the INC button to toggle between Lo (4-Watt) and Hi (6-Watt)
transmission power settings. Select the Hi setting for the widest area of
coverage. Select the Lo to minimize interference with systems outside
of your facility. Press SET when the desired value is displayed.
17 Sync Pulse Hrs (00 ~ 12 AM/PM)
If an external system will be synchronized to the ATX6 by a “Dry
Contact” elay closure, set the Hour at which the event should occur.
The double-cursor indicates that both digits may be changed using the
INC button. Advancing past ‘11’ will also toggle the AM / PM indicators.
Press SET when the correct value is displayed
18 Sync Pulse Mins (00 ~ 59)
If an external system will be synchronized to the ATX6 by “Dry
Contact” elay closure, set the Minute when the event should occur. A
two second closure will occur at the 58
th
second of the previous minute
syncing the device to the ATX6. Use the INC button to change the value
of the first digit. Press NXT to move cursor to the next digit, and then
press INC to change the selected digit. Press SET when the correct
value shows.
The Sync Pulse will not execute if programmed between 1:05AM and
1:20AM, 3:05AM and 3:20AM, 10:45PM and 10:59PM or during the first
15 minutes after power is applied.
19 xternal Amplifier (0 ~ 1)
If an external amplifier will be used this function must be set to 1
(Enable). Enabling this function changes the frequency of
transmissions. When enabled, the ATX6 will transmit an AirTime signal
4 times per hour.
All manuals and user guides at all-guides.com
all-guides.com

ATX6 Installation and User Guide
Page 13
P Password (000 ~ 999)
For security purposes, you may set a unique password for your ATX6. To
change the Password, use the INC, NXT and SET buttons. The INC
button will increment the digit over the displayed cursor. The NXT
button will move the cursor to the next digit. The SET button will enter
your final selection. If you do not wish to change the current Password,
simply press SET.
This is the final step, indicated by the display showing the correct time
and Day-Of-Week cursor. Daylight Savings Time is also indicated.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 14

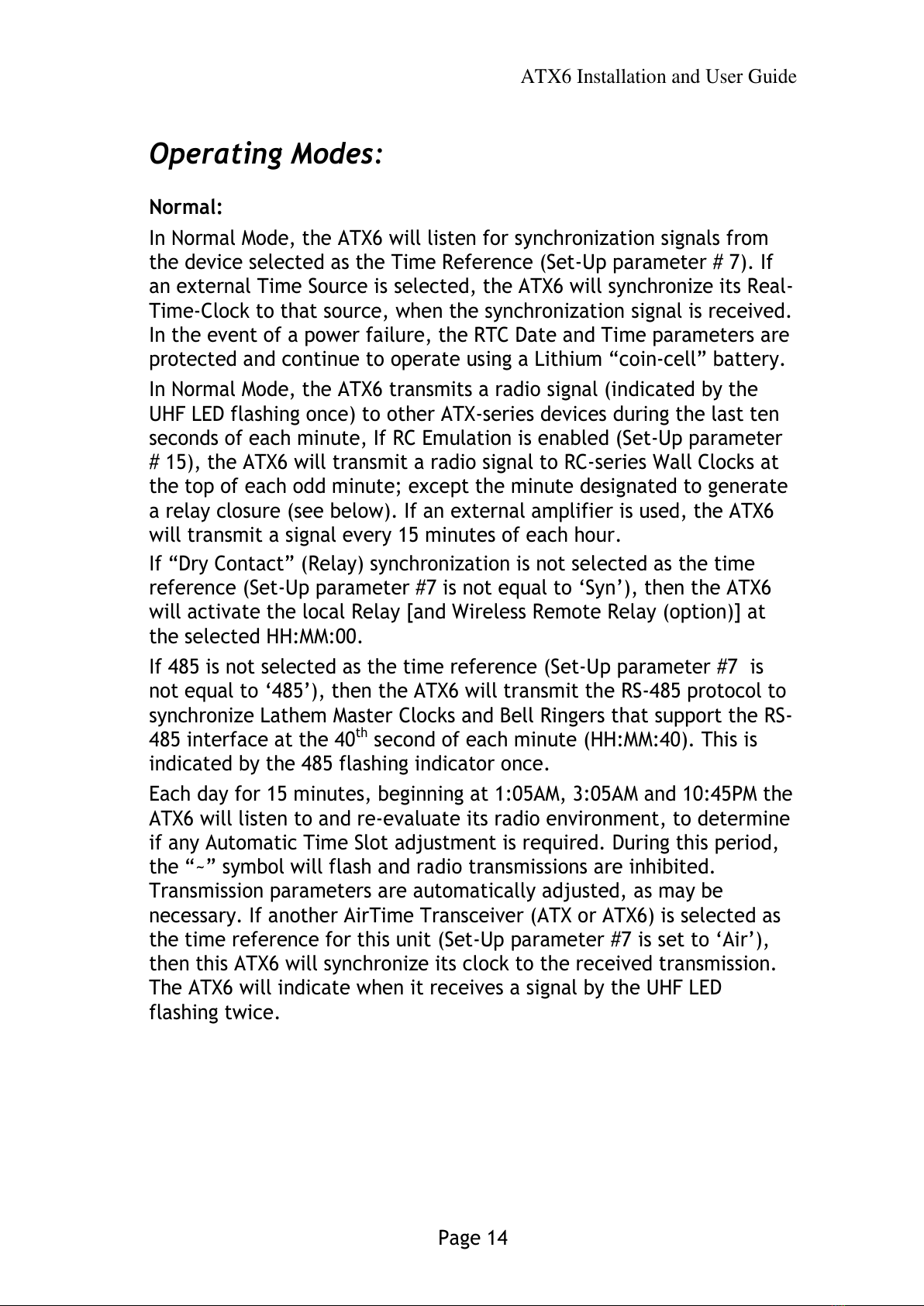

Operating Modes:
Normal:
In Normal Mode, the ATX6 will listen for synchronization signals from
the device selected as the Time eference (Set-Up parameter # 7). If
an external Time Source is selected, the ATX6 will synchronize its eal-
Time-Clock to that source, when the synchronization signal is received.
In the event of a power failure, the TC Date and Time parameters are
protected and continue to operate using a Lithium “coin-cell” battery.
In Normal Mode, the ATX6 transmits a radio signal (indicated by the
UHF LED flashing once) to other ATX-series devices during the last ten
seconds of each minute, If C Emulation is enabled (Set-Up parameter
# 15), the ATX6 will transmit a radio signal to C-series Wall Clocks at
the top of each odd minute; except the minute designated to generate
a relay closure (see below). If an external amplifier is used, the ATX6
will transmit a signal every 15 minutes of each hour.
If “Dry Contact” ( elay) synchronization is not selected as the time
reference (Set-Up parameter #7 is not equal to ‘Syn’), then the ATX6
will activate the local elay [and Wireless emote elay (option)] at
the selected HH:MM:00.
If 485 is not selected as the time reference (Set-Up parameter #7 is
not equal to ‘485’), then the ATX6 will transmit the S-485 protocol to
synchronize Lathem Master Clocks and Bell ingers that support the S-
485 interface at the 40
th
second of each minute (HH:MM:40). This is
indicated by the 485 flashing indicator once.
Each day for 15 minutes, beginning at 1:05AM, 3:05AM and 10:45PM the
ATX6 will listen to and re-evaluate its radio environment, to determine
if any Automatic Time Slot adjustment is required. During this period,
the “~” symbol will flash and radio transmissions are inhibited.
Transmission parameters are automatically adjusted, as may be
necessary. If another AirTime Transceiver (ATX or ATX6) is selected as
the time reference for this unit (Set-Up parameter #7 is set to ‘Air’),
then this ATX6 will synchronize its clock to the received transmission.
The ATX6 will indicate when it receives a signal by the UHF LED
flashing twice.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 15
If ‘PcL’, ‘485’ or ‘GPS’ is selected as the time reference, the ‘PCL’,
‘485’ or ‘GPS’ LED will flash twice each time a valid signal is received.
The ‘485’ or ‘UHF’ LED will flash once each time a signal is transmitted
by the ATX6.
AirTime Transmit Mode:
Automatic:
When not in eceive Mode (automatically or manually initiated) the
ATX6 will transmit the C radio signal each odd minute (if C Emulation
has been enabled). The ATX6 will transmit the AirTime radio signal
each minute, or each even minute (if C Emulation has been enabled).
When an external amplifier is used, the ATX6 will transmit an AirTime
signal 4 times per hour.
Manual:
Transmit Mode is entered by pressing and holding T NS (SET) for 2
seconds, and is evidenced by the ‘~’ symbol appearing in the display
solidly and the UHF LED flashing once each time it transmits a signal.
When AirTime Transmit Mode is active, the ATX6 will transmit the
AirTime synchronization signal to all ATX-series devices, once every 10-
seconds for one hour. This can be helpful when installing and testing
other ATX-series devices in the system.
If the T ANSMIT (SET) button is pressed during the 15-minute eceive
Mode that occurs automatically upon unit power-up and during the
period beginning at 1:05AM, 3:05AM and 10:45PM each day, or as a
result of manually starting eceive Mode (see below), transmissions will
not occur until eceive mode has expired or been cancelled.
During AirTime Transmit Mode, all other Normal operations (except C
radio transmissions) will continue. Transmit Mode can be terminated by
pressing and holding the T NS (SET) button for 2 seconds, and is
evidenced by the ‘~’ symbol disappearing from the display.
All manuals and user guides at all-guides.com

ATX6 Installation and User Guide
Page 16

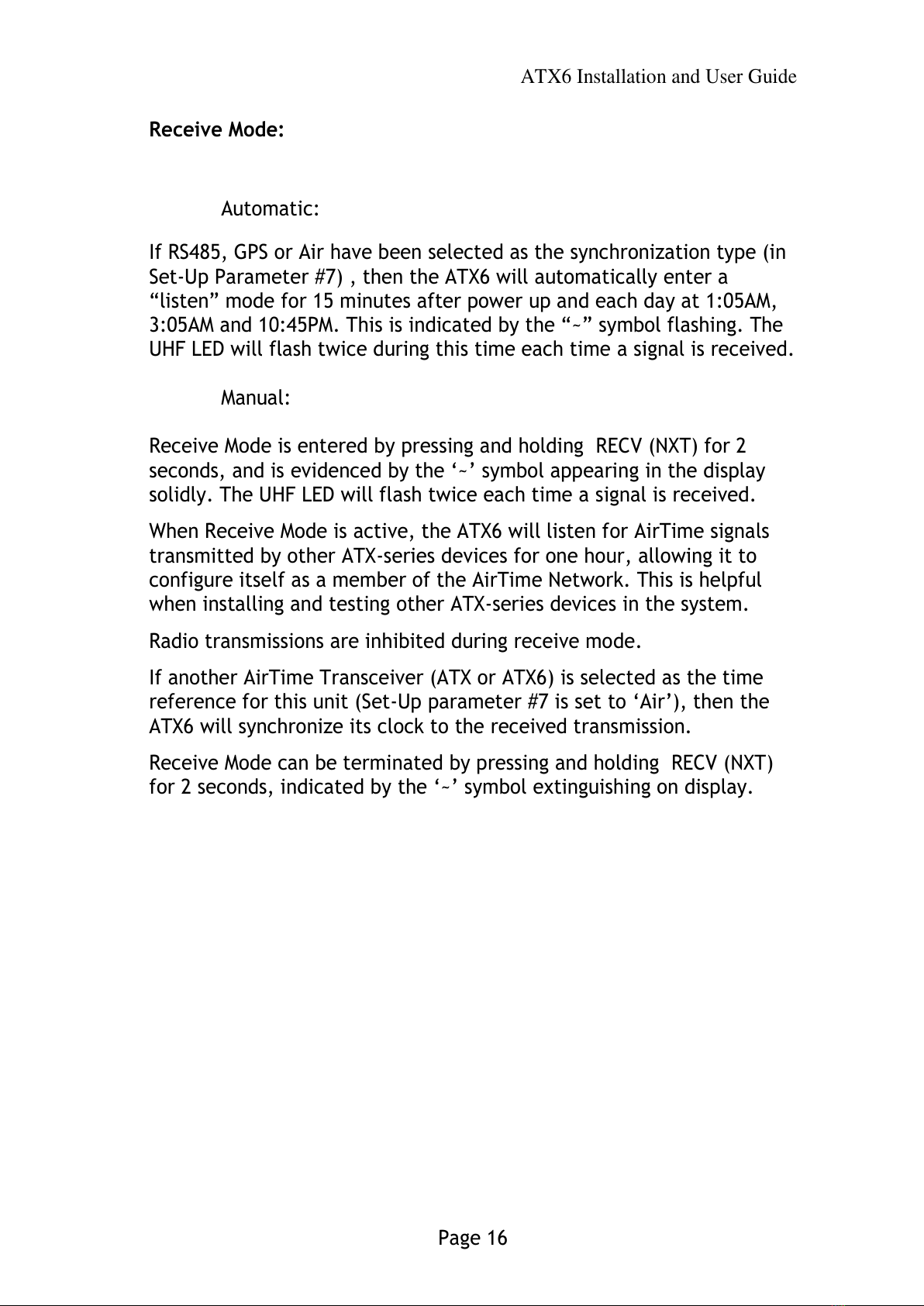

Receive Mode:
Automatic:
If S485, GPS or Air have been selected as the synchronization type (in
Set-Up Parameter #7) , then the ATX6 will automatically enter a
“listen” mode for 15 minutes after power up and each day at 1:05AM,
3:05AM and 10:45PM. This is indicated by the “~” symbol flashing. The
UHF LED will flash twice during this time each time a signal is received.
Manual:
eceive Mode is entered by pressing and holding ECV (NXT) for 2
seconds, and is evidenced by the ‘~’ symbol appearing in the display
solidly. The UHF LED will flash twice each time a signal is received.
When eceive Mode is active, the ATX6 will listen for AirTime signals
transmitted by other ATX-series devices for one hour, allowing it to
configure itself as a member of the AirTime Network. This is helpful
when installing and testing other ATX-series devices in the system.
adio transmissions are inhibited during receive mode.
If another AirTime Transceiver (ATX or ATX6) is selected as the time
reference for this unit (Set-Up parameter #7 is set to ‘Air’), then the
ATX6 will synchronize its clock to the received transmission.
eceive Mode can be terminated by pressing and holding ECV (NXT)
for 2 seconds, indicated by the ‘~’ symbol extinguishing on display.
All manuals and user guides at all-guides.com
